Dräger Alcotest® 7000
Alcohol Screening Device
The Dräger Alcotest® 7000 sets new standards in alcohol test devices.
Its benefits include a wider temperature- and measuring range, low
maintenance requirements and various networking options. In addition,
the device can perform alcohol tests via both a mouthpiece and a funnel.
Reliable alcohol tests have never been so fast, simple and efficient.
D-22900-2020
2.4" TFT colour display
Clear presentation of
information, notices and
warnings

Better visibility due
to sewn-in threads


Two testing methods
in one device


Choice of lithium-ion or
alkaline batteries

Secure grip and easy
handling due to rubber
coating on sides

Benefits
02 | Dräger Alcotest® 7000
Only one calibration per year
Typically alcohol testing devices have to be calibrated every six months. Thanks to its exceptional measurement
stability, the Dräger Alcotest® 7000 only needs calibrating every 12 months. As a result, you only have to collect,
send off and then re-issue your alcohol testers once a year. This saves time and, above all, money.
Two measurement methods in one device
Alongside the classic test using a mouthpiece, with the Alcotest 7000 you can also carry out tests using a
funnel attachment. This enables you to complete a large number of alcohol tests in a very short span of time:
time-saving, cost-effective and hygienic. The funnel-based test gives you an initial indication as to whether or
not alcohol is present in the subject's breath. If the answer is yes, you simply press a button to switch over to
the mouthpiece-based test mode. The following test then shows you the actual level of alcohol in the subject's
breath.
Wide temperature range
With the Alcotest 7000 you can take reliable measurements even in extreme temperatures. The alcohol tester's
patented heating system and high-quality materials ensure dependable results in temperatures ranging from
-10 °C to +55 °C.
Network-connected solutions
The built-in Bluetooth® Low Energy technology offers you energy-saving, digital connectivity for the device and
its data. This has many advantages: For example, the wireless connection of the alcohol tester to the Dräger BT
Mobile Printer enables you to print out test results from a distance of up to 15 meters.
In addition, our software solution "Dräger add" facilitates a range of processes for you, such as precise location
mapping and the on-site digitalisation of personal data and test results.
Dräger's Service Connect software enables you to download measurement data and much more. You can also
connect the Alcotest 7000 directly to a computer with a USB-C cable to read out just the test results.
High alcohol-detection limits
The increased performance capacity of the Alcotest 7000 also includes its measurement range. The maximum
blood-alcohol limit that can be set with this alcohol testing device is as high as 6‰. If this measurement range
limit is exceeded, the display will tell you.

Benefits
Dräger Alcotest® 7000 | 03
The Alcotest Hygiene Plus
Hygiene is an increasingly important part of our everyday lives. Dräger Alcotest breath-alcohol detection devices
use non-invasive measuring technologies with a high degree of hygiene – for the user as well as the test
subject – thanks to the following features:
‒ During testing, the exhaled air is directed past rather than through the device
‒ There is a 90° angle between the user and the test subject during testing
‒ Disposable mouthpieces and funnel attachments are individually packaged
‒ Benefits of the Slide ’n’ Click mouthpieces:
– safe, hygienic distance between user and test subject
– spacer prevents direct contact between lips and device
– mouthpiece is easy to remove
– the non-return valve prevents inhalation of air through mouthpiece
‒ Benefits of the replaceable funnel attachment:
– no body contact with the test subject
– blocks backflow of the test subject's own exhaled air, which prevents intake of potential pathogens from
previous test subjects
‒ The threaded attachment point attaches to an ordinary selfie stick (sold separately), creating even more
space between user and test subject
Innovation born out of tradition
With more than 65 years of experience, Dräger is a market leader in the field of breath-alcohol testing. Law
enforcement in many countries use devices from the Alcotest product series in everyday traffic monitoring. The
Alcotest 7000 is manufactured in Germany and meets the highest quality standards.

Details
04 | Dräger Alcotest® 7000
D-24153-2020
D-24151-2020 D-24144-2020

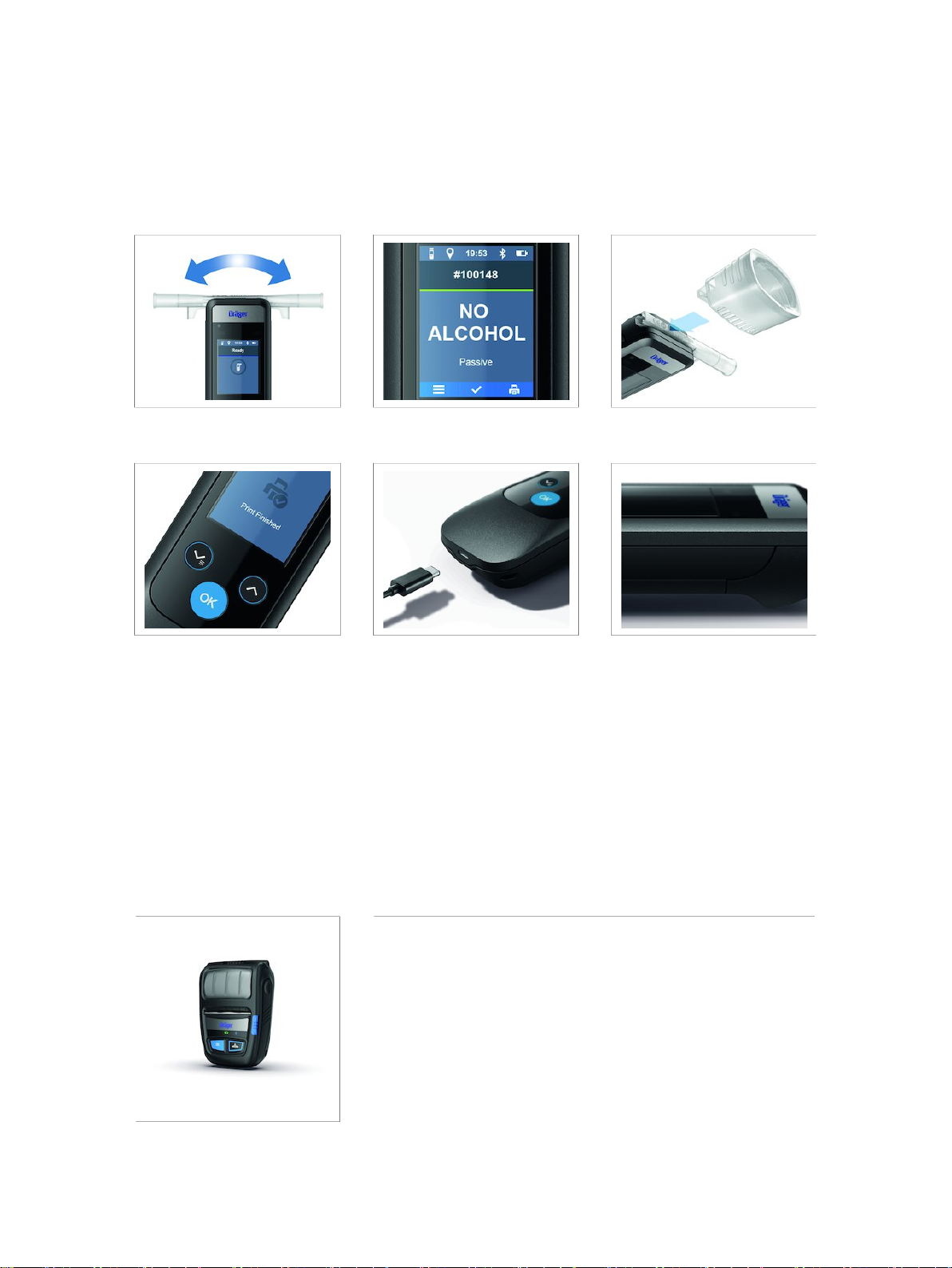

Mouthpiece receptacle can be mounted
on left or right
The 2.4" colour display provides
information, notices and warnings
Fast switchover from funnel-based to
mouthpiece-based testing
D-24152-2020
D-24145-2020 D-24147-2020
Simple push-button print function USB-C interface for easy downloading
(while stationary or on the move)
Rubberised handling area for a secure
grip
Accessories
D-25372-2020
Dräger Mobile Printer BT
The Dräger Mobile Printer BT facilitates wireless printing from any
compatible Dräger testing device within a 15-metre radius. You secure
the small, lightweight mobile printer to your belt with a retaining clip.
The OK key to switch the device on and off and the paper-feed button
ensure ease of use. Illuminated symbols provide you with information
about the status of the device.

Accessories
Dräger Alcotest® 7000 | 05
D-25676-2020
Alcotest 7000 charging station
The Alcotest 7000 charging station makes it easy to charge the lithium-
ion version as well as connect to a PC. The device's USB-C cable
charges it. The charging station can be fixed in place as required.
D-30594-2017
Alcotest funnel
Package unit: 10 pieces, hygienically and individually packaged with air
outlets to minimise back-flow of expired air
ST-178-2004
Mouthpieces (slide’n’click)
Available in packs of 100, 250, and 1,000 mouthpieces with or without
non-return valve.
D-30157-2020
Software solution "Dräger add"
In addition, our software solution "Dräger add" facilitates a range of
processes for you, such as precise location mapping and the on-site
digitalisation of personal data and test results.

Accessories
06 | Dräger Alcotest® 7000
D-25038-2020
Protection options
To protect the device, Dräger offers device protection bags and various
fabric storage bags and transport cases.
Services
D-2331-2016
Product Service
Our product service provides support with different service packages –
in our workshops or directly on your premises. Care, maintenance and
servicing are crucial for safety and reliability – but careful maintenance
and care are a must, even when it comes to commercial considerations.
Preventive checks, ongoing care and use of original replacement parts
improve the longevity of your investment.
D-2335-2016
Training
The Dräger Academy has shared its solid, practical knowledge for over
40 years. We hold more than 2,400 training courses each year, on a
range of over 600 topics, with more than 110 authorised trainers. We
equip your staff with practical knowledge and ensure that what they
learn can be applied effectively, both day-to-day and, more importantly,
whenever critical situations occur. We will be pleased to develop a
customised training programme for you.

Services
Dräger Alcotest® 7000 | 07
D-2330-2016
Rental Service
From bridging a temporary shortage of equipment to procuring special
equipment for applications involving specific requirements: If you
only need to cover a temporary higher demand, then DrägerRental
Service with over 65,000 pieces of rental equipment is an economical
alternative to purchasing. Fast, straightforward and with a wide range of
additional services available upon request.
D-2329-2016
Shutdown Safety Service
In need of a comprehensive safety solution? Is there a long list of
legal requirements you have to meet, and are you pressed for time?
Balancing maximum efficiency with optimal security can pose major
challenges. We can help you achieve that balance. Our Shutdown
Safety Service is a solution that takes into account all the necessities of
downtime and especially your individual requirements.
D-2332-2016
On-site Safety Service
Whether through a rental shop, personnel services or comprehensive
safety management, our On-Site Safety Services provide support in all
projects where there are particular safety risks – not to mention normal
day-to-day business.

Related Products
08 | Dräger Alcotest® 7000
D-31888-2020

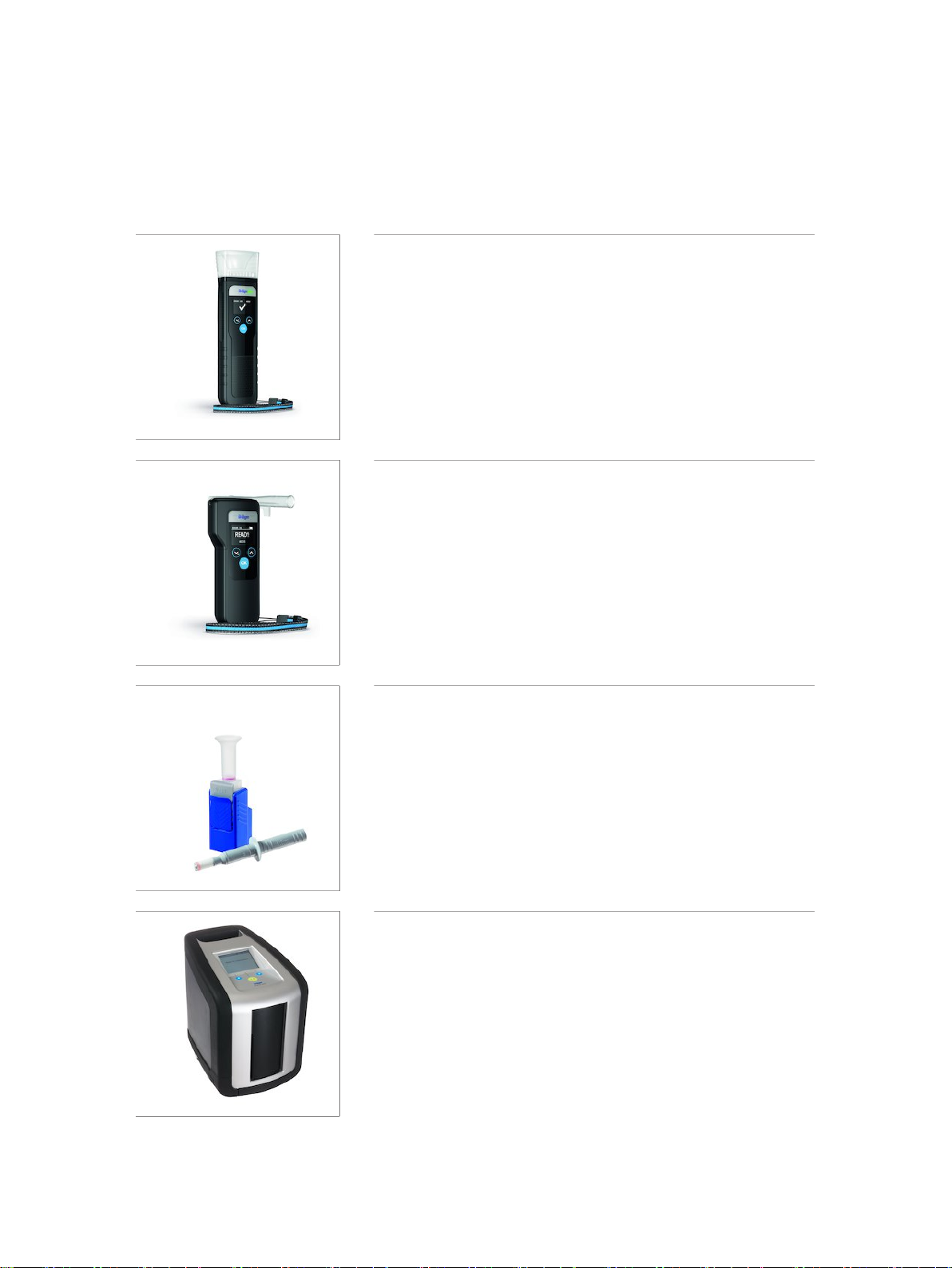

Dräger Alcotest® 5000
The Dräger Alcotest® 5000 is a professional breath-alcohol tester which
detects the presence of alcohol. The high-speed breathalyser lets
you perform numerous tests in no time. Its special funnel reduces the
back-flow of expired air to a minimum, preventing the risk of infection to
subsequent test subjects.
D-32068-2020
Dräger Alcotest® 6000
The Dräger Alcotest® 6000 allows the professional user to perform
a breath alcohol test with speed and precision. The measuring
technology of this small and user-friendly portable measuring
device has already been proven worldwide and has been sold over
1,000,000 times.
D-42702-2015
Dräger DrugCheck 3000
Use the Dräger DrugCheck 3000 to find out within minutes if a person
recently consumed certain drugs. The compact and quick saliva (oral
fluid) based drug test yields reliable results affordably and easily. The
non-invasive drug test kit does not require electricity and can therefore
be used anywhere.
D-54720-2012
Dräger DrugTest 5000
No pipetting, no drips, no timing: With the Dräger DrugTest 5000, a
drug test is carried out simply and quickly. The collected saliva samle
can be analyzed immediately – for a accurate results on the spot.

Technical Data
Dräger Alcotest® 7000 | 09
Dräger Alcotest 7000
Detection basis
Measurement range
Electrochemical DrägerSensor®, 1/4" technology, alcohol-specific
Breath alcohol concentration: 0 to 3.0 mg/l;
(Ethanol mass per minimum volume at 34 °C and 1,013 hPa)
Blood alcohol concentration: 0.00 to 6.00 ‰ (Ethanol mass per
blood volume or mass at 20 °C and 1013 hPa)
Visual signal when measuring limits are exceeded
Sample collection Default: Automatic sample collection when minimum volume or
predefined blowing time is reached;
Passive sampling or manual triggering of sampling possible
Start-up time Approx. 3 seconds after switching on (depending on
configuration)
Display of test results After approx. 3 seconds (at 0.0 mg/l)
After approx. 10 seconds (at 0.5 mg/l, at room temperature)
Ambient operating conditions -10 °C to +55 °C; 10 to 100 % relative humidity
(non condensing); 600 to 1,300 hPa
Ambient conditions during storage -20 °C to +60 °C; 15 to 75 % relative humidity
(10 to 100% relative humidity <48 h); 600 to 1,300 hPa
Display QVGA TFT colour display 320 x 240 2.4"
LEDs tricolour LEDs to help display results and warning messages
Acoustic signals Various signal tones to support display and warning messages
Memory Storage of the last 30,000 tests (minimum information) or
10,000 tests (high-detail information)
Energy supply Lithium-ion battery (rechargeable via USB-C connection) or
alkaline version (3 x 1.5 V alkaline type or 3x NiMH or 3x lithium
primary cell (Mignon, LR06, AA),
Charge status shown in display; one charge is sufficient to
perform approx. 5,000 breath test (lithium version) or
1,500 breath tests (alkaline version).
Mouthpiece receptacle The Slide ’n’ Click mouthpiece or Alcotest funnel mounts on either
side
Mouthpiece Hygienic, individually packaged with tamper-proof, unclosable air
outlet
Mouthpiece ejector and spacer between mouth and device
housing
Funnel Hygienic, individually packaged with air outlets for minimising
back-flow of expired air
Operating design Measuring functions can be performed with one key;
Navigation in menu with two menu keys
Calibration Wet gas or dry gas calibration;
Recommended calibration interval of 12 months
Casing Impact-resistant ASA/PC
Dimensions (W x H x D), Weight 61 mm x 172 mm x 36 mm;
A7000 LI: 275 g
A7000 AA: 285 g
Device configuration Configuration of device settings direct via device menu
(PIN required)
No additional PC software required
Vibration and impact resistance EN 60068-2-27, EN 60068-2-6; EN 60068-2-64
CE mark Electromagnetic compatibility
Standards EN 15964, NHTSA, FDA-conformity, depending on configuration
Internal clock Warning or switch-off after expiry of calibration period

Technical Data
10 | Dräger Alcotest® 7000
Not all products, features, or services are for sale in all countries.
Mentioned Trademarks are only registered in certain countries and not necessarily in the country
in which this material is released. Go to www.draeger.com/trademarks to find the current status.
CORPORATE HEADQUARTERS
Drägerwerk AG & Co. KGaA
Moislinger Allee 53–55
23558 Lübeck, Germany
www.draeger.com
REGION EUROPE
Dräger Safety AG & Co. KGaA
Revalstraße 1
23560 Lübeck, Germany
Tel [phone]
Fax [phone]
[email protected]
.
REGION MIDDLE EAST, AFRICA
Dräger Safety AG & Co. KGaA
Branch Office
P.O. Box 505108
Dubai, United Arab Emirates
Tel [phone]
Fax [phone]
[email protected]
.
REGION ASIA PACIFIC
Draeger Singapore Pte. Ltd.
61 Science Park Road
The Galen #04-01
Singapore 117525
Tel: [phone]
Fax: [phone]
asia.pacifi[email protected]
.
REGION CENTRAL
AND SOUTH AMERICA
Dräger Indústria e Comércio Ltda.
Al. Pucurui - 51 - Tamboré
06406-100 - Barueri - SP
Tel. [phone]
[email protected]
.
Locate your Regional Sales
Representative at:
www.draeger.com/contact
91 09 010 | 21.06-4 | HQ | PP | Subject to modifications | © 2021 Drägerwerk AG & Co. KGaA
(depending on configuration)
IP protection class IP 54
Interface USB-C
Bluetooth®Bluetooth® Low Energy 5.0
GPS Options
Ordering Information
Dräger Alcotest 7000 – Configuration tool 37 00 398
Dräger Alcotest 7000 – Standard configuration
Meter, 3 mouthpieces, hand strap, standard configuration
37 00 400
Dräger Alcotest 7000 charging cradle 37 00 420
Dräger Mobile Printer BT 37 00 421
Mouthpieces – package of 100 68 10 690
Mouthpieces – package of 250 68 10 825
Mouthpieces – package of 1,000 68 10 830
Mouthpiece with non-return valve – package of 100 68 11 055
Mouthpiece with non-return valve – package of 250 68 11 060
Mouthpiece with non-return valve – package of 1,000 68 11 065
Alcotest® funnel, package of 10; individually, hygienically packed 83 27 718
Alkaline batteries (Mignon, LR6, AA, 1.5 V) – 3 batteries required 13 35 804
NiMH battery (AA, 1.2 V rechargeable) – 3 batteries required 18 90 092
Lithium battery (AA, 1.5 V) – 3 batteries required 37 00 415
