Dreame DreameBot L10 Ultra User manual

Robot Vacuum and Mop with
Self-Cleaning and Auto-Empty
User Manual
The illustrations in this manual are for reference only. Please refer to the actual product.

Contents
User Manual
Användarmanual
Brukerhåndbok
Käyttöohjeet
Brugermanual
Gebruikershandleiding
Manual do utilizador
1
25
50
75
99
123
148
EN
SV
NO
FI
DA
NL
PT

1
EN
Usage Restrictions
Safety Information

·This product should not be used by children younger than 8 years old nor
persons with physical, sensory, intellectual deficiencies, or limited experience
or knowledge without the supervision of a parent or guardian to ensure safe
operation and to avoid any risks. Cleaning and maintenance shall not be
performed by children without supervision.

·The appliance is only to be used with the power supply unit provided with the
appliance.

·This appliance contains batteries that are only replaceable by skilled persons.

·Clear the area to be cleaned. Children shall not play with the appliance.
Ensure children and pets are kept at a safe distance from the robot while it is
operating.

·Do not install, charge or use the appliance in the bathrooms or around the
pools.

·This product is for floor cleaning in a home environment only. Do not use it
outdoors, on non-floor surfaces, or in a commercial or industrial setting.

·Ensure that the appliance operates correctly in a proper environment.
Otherwise, do not use the appliance.

·If the power cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.

·Do not use the robot in an area suspended above ground level without a
To avoid electric shock, re or injury caused by improper use of the appliance, please read the user
manual carefully before using the appliance and keep it for future reference.

2
EN Safety Information
protective barrier.

·Do not place the robot upside down. Do not use the LDS cover, robot cover, or
bumper as a handle for the robot.

·Do not use the robot at an ambient temperature above 40℃ or below 0℃ or on
a floor with liquids or sticky substances.

·To prevent damage or harm from dragging, clear any loose objects from the
floor, and remove cables or power cords on the cleaning path before operating
the appliance.

·Remove fragile or small items from the floor to prevent the robot from bumping
into and damaging them.

·Keep hair, fingers, and other body parts away from the suction opening of the
robots.

·Keep the cleaning tool out of reach of children.

·Do not operate the appliance in a room where an infant or child is sleeping.

·Do not place children, pets, or any item on top of the robot regardless of
whether it is stationary or moving.

·Keep the cleaner out of reach of children.

·Use only the officially-approved detergent. Do not add any liquid such as
alcohol or disinfectant.

·Do not use the robot to clean any burning objects. Do not use the robot to pick
up flammable or combustible liquids, corrosive gases, or undiluted acids or
solvents.
Usage Restrictions

3
EN Safety Information
Usage Restrictions 
·Do not vacuum hard or sharp objects. Do not use the appliance to pick up objects
such as stones, large pieces of paper or any item that may clog the appliance.

·Plug must be removed from the socket-outlet before cleaning or maintaining
the appliance.

·Do not wipe the robot or the base station with a wet cloth or rinse them with
any liquid. After cleaning washable parts, fully dry the parts before reinstalling
and using them.

·Please use this product in accordance with the instructions in the User Manual.
Users are responsible for any loss or damage that arise from improper use of
this product.
Batteries and
Charging

·Do not use any third-party battery orbase station. The robot can only be used
with the model RCS9-5 base station.

·Do not attempt to disassemble, repair, or modify the battery or the base station
on your own.

·Do not place the base station near a heat source.

·Do not use a wet cloth or wet hands to wipe or clean the base station's
charging contacts.

·Do not improperly dispose of old batteries. Unneeded batteries should be
discarded at an appropriate recycling facility.

·If the power cord becomes damaged or broken, stop using it immediately and
contact after-sales service.

4
EN
Laser Safety
Information
Safety Information

·The laser sensor in this product meets the IEC 60825-1: 2014 Standard for Class
1 laser products. Please avoid direct eye contact with it during use.
Hereby, Dreame Trading（Tianjin）Co., Ltd. declares that the radio equipment type RLS6LADC-6 is in compliance with Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the following internet address: https://global.dreametech.com
For detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-faqs

·Make sure the robot is turned off when being transported and kept in its
original packaging if possible.

·If the robot will not be used for an extended period of time, fully charge it, then
turn it off and store it in a cool, dry place. Recharge the robot at least once
every 3 months to avoid over-discharging the battery.

·The lithium-ion battery pack contains substances that are hazardous to the
environment. Before disposing of the robot vacuum, please first remove the
battery pack, then discard, or recycle it in accordance with local laws and
regulations of the country or region it is used in.

·When removing the batteries from the product, it is better to use up the
batteries and make sure your product is disconnected from power.
1) Uninstall the screw on the bottom, then remove the cover.
2) Unplug the battery connector, then remove the batteries. Do not damage the
battery case to avoid any risk of injuries.
3) Return the batteries to a professional recycling organization.
Batteries and
Charging

5
EN
Package Contents
Other Accessories
Product Overview
Side Brush
Mop Pad × 2
(pre-installed)
Robot
Base Station
Mop Pad Holder × 2 User Manual
Power Cord Cleaning Brush Dust Collection Bag
（replacement）

6
EN
Robot
Product Overview
Spot Cleaning Button
· Press briey to start spot cleaning
Power / Clean Button
· Press and hold for 3 seconds to turn on or o
· Press briey to start cleaning after the robot is turned on
Dock Button
· Press briey to send the robot back to the base station
· Press and hold for 3 seconds to disable Child Lock
Status Indicator
· Solid White: Cleaning or cleaned
· Quickly Blinking Orange: Error
· Solid Orange: Low battery or paused
Note: Press any button to pause while the robot is cleaning or returning
to charge.

7
EN
Robot and Sensors Cli Sensors
Main Wheel
Main Brush
Universal Wheel
Brush Guard
Main Wheel
Brush Guard Clips
Mop Pad Holder
Mounting Holes
Side Brush
Carpet Sensor
LDS Upper Cover
Laser Distance Sensor (LDS)
Bumper
Cover
Charging
Contacts
Automatic Water
Relling Inlet
Reset Button
·Press and hold for 3
seconds to restore to factory
settings
Wi-Fi Indicator
Edge Sensor
Auto-empty Vent
Dust Bin
Filter
Auto-empty
Vent
Bin Clip
Dust Bin Cover Clip
Bin Cover
Filter Clip
Product Overview
Connectors

8
EN
Base Station
Product Overview
Washboard
Upper Cover
Handle
Handle
Water Tank Clip
Water
Tank Clip
Float Ball Water Pipe
Filter
Used Water Tank Clean Water Tank
Floater
Dust Cabinet
Cover
Base Station
Filter
Slot
Auto-empty
Vent
Status Indicator
Solid white: The base station is
connected to power
Blinking Orange: The base
station has an error
Signaling Area
Charging Contacts
Automatic Water
Adding Inlet

9
EN
Note: Install the side brush until it clicks into place.
1. Remove the protective strips 3. Connect to an Electrical Outlet
PlacethebasestationinalocationthatisasopenaspossiblewithagoodWi-Fi
signal.Insertthepowercordintothebasestationandplugitintothesocket.
4. Place the Base Station
Removeanyobjectsthatarecloserthan1.5mfromthefront,1mfromthetop,
and0.5mfromeithersideofthebasestation.

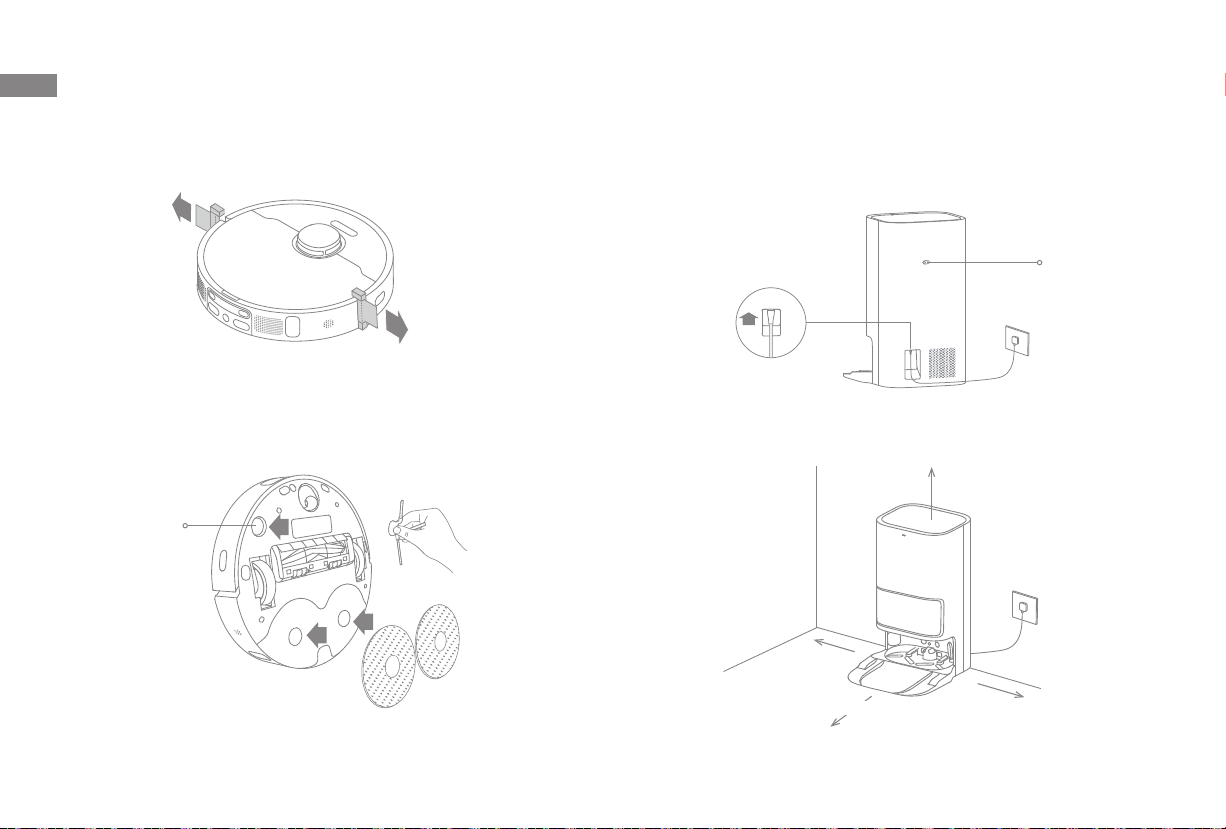

2. Install the Side Brush and the Mop Assembly
Before Use
Note:
·Make sure that no objects might block the signaling area.
·To prevent water stains from wetting wood floors or carpets, placing the base
station on tile floors or marble floors is recommended.
Firmly insert the power
cord upwards until the
indicator turns on.
Side Brush Clip
> 0.5 m
> 0.5 m
> 1 m
> 1.5 m
I：ON
O：OFF

10
EN
-MAX -
5. Place the Robot
Press and hold the button on the robot for 3 seconds to turn it on. Place
the robot onto the base station with the mop assembly facing toward
the washboard. Then you will hear a voice notication when the robot
successfully connects to the base station and starts charging. After the robot
is fully charged, the status indicators on the robot and the base station will
remain lit for 10 minutes and will then dim.
6. Add Water to the Clean Water Tank
Take out the clean water tank from the base station, and ll it with clean
water up to the max water line. Then install it back into the base station.
Before Use
Note: It is recommended to fully charge the robot before its rst use. When the
robot cannot be turned on after the battery is depleted, manually connect the
robot with the station to charge it.
MAX Water Line
Note:
·Do not add hot water to the water tank, as this may cause the tank to become
deformed.
·Do not add any liquid other than the officially-approved cleaner to help prevent
base station malfunction.

11
EN
Wi-Fi Indicator
· Blinking slowly: To be
connected
· Blinking quickly: Connecting
· On: Connected
Open the Dreamehome App, tap " " in the upper right corner, and scan
the QR code above again to add "DreameBot L10 Ultra". Please follow the
prompts to nish the Wi-Fi connection.
This product works with the Dreamehome App, which can be used to
control your device.
Connecting with Dreamehome App
1. Download the Dreamehome App

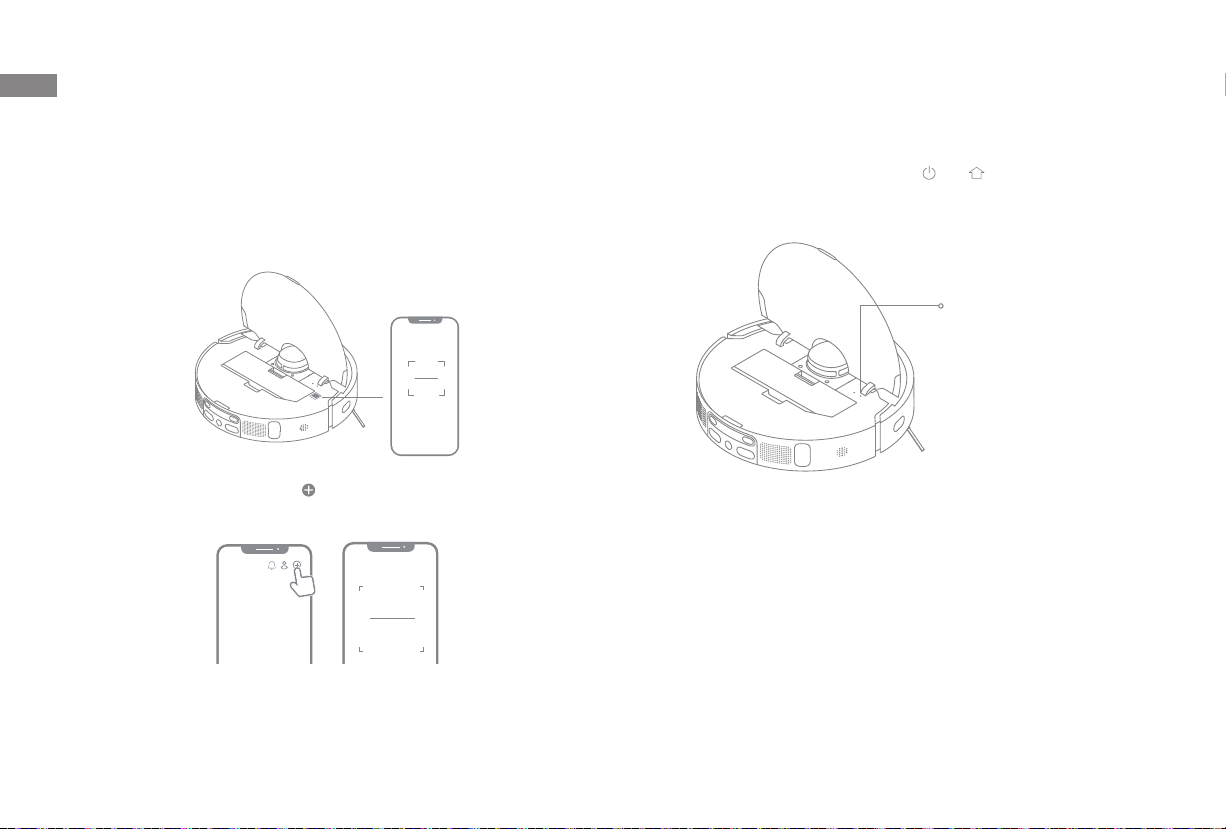

Scan the QR code on the robot, or search " Dreamehome" in the app store to
download and install the app.
2.Add Device
Note:
• Only 2.4GHz Wi-Fi is supported.
• Due to upgrades in the app software, the actual operations may be dierent
from the statements in this manual. Please follow the instructions based on the
current app version.
3. Reset Wi-Fi
Simultaneously press and hold the buttons and until you hear a voice
prompt saying, “Waiting for the network conguration.” Once the Wi-Fi
indicator is blinking slowly, the Wi-Fi has been successfully reset.
Note: If your robot cannot connect to the app successfully, reset the Wi-Fi and add
the device again.
Scan QR code on the device
Add Device
My Devices
Scan QR code to connect.

12
EN How to Use
Fast Mapping
After conguring the network for the rst time, follow the instructions on
the app to quickly create a map, and the robot will start mapping without
cleaning. The mapping process will be completed when the robot returns to
the station, and the map will be saved automatically.

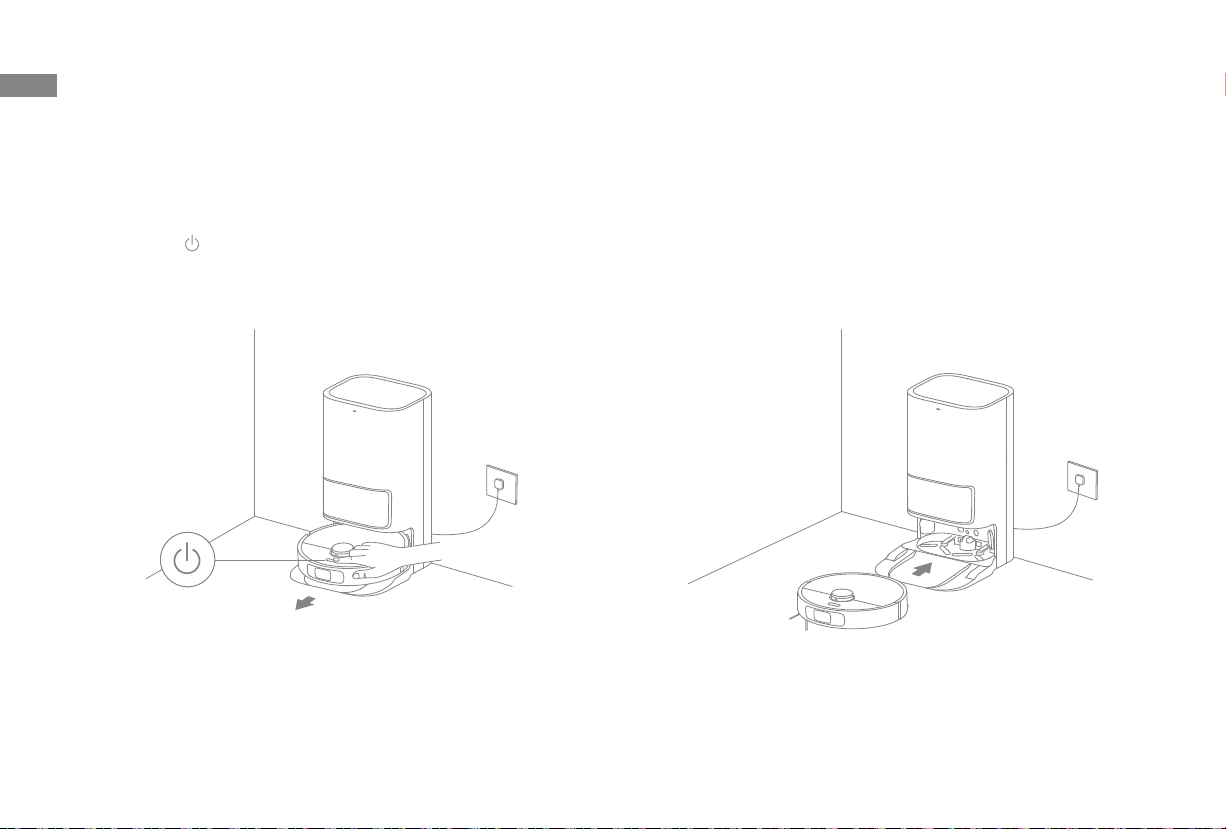

Turn On/O
Press and hold the button for 3 seconds to turn on the robot.The power
indicatorshould be illuminated. Place the robot onto the base, the robot
should turn onautomatically and begin charging. To turn o the robot, move
the robot away from the baseand press and hold the button for 3 seconds.
Pause/Sleep
When the robot is running, press any button to pause it.
If the robotispausedfor more than 10 minutes, it automatically enters sleep
mode. The power indicator and charging indicatorwillturn o. Press any
button on the robot or base, orusethe app to wake up the robot.
Note:
·The robot will turn off automatically if it is left in the sleep mode for more than 12
hours.
·If the robot is paused and placed onto the base station, the current cleaning
process will end.
Do Not Disturb (DND) Mode
When the robot is set to the Do Not Disturb (DND) mode, the robot will be
prevented from resuming cleaning and the power indicator goes out. The
DND mode is disabled by default at the factory. You can use the app to enable
the DND mode or modify the DND period. The DND period is 22:00-8:00 by
default.
Note:
·The scheduled cleaning tasks will be performed on time during the DND period.
·The robot will resume cleanup where it left off after the DND period expires.
Spot Cleaning
When the robot is on standby, press briey the button to enable the spot
cleaning mode. In this mode, the robot cleans a square-shaped area of 1.5 ×
1.5 meters around it and returns to its starting point once the spot cleaning is
completed.
Robot Restarting
If the robot stops responding or cannot be turned o, press and hold the
button for 10 seconds to forcefully turn it o. Then, press and hold the
button for 3 seconds to turn the robot on.

13
EN How to Use
Sweeping & Mopping
Note: When using the mop assembly for the rst time, the robot performs the sweeping and mopping task by default.
2. Return to clean mop pads midway
During mopping, the robot will automatically return to the base station to
wash mop pads based on the mop pad cleaning frequency specied on the
app. Then the base station will automatically rell the water tank of the robot,
and the robot will resume the cleanup after water relling.
Note:
·The mop pads will be cleaned before the robot starts mopping. Please wait with
patience.
·Do not move the base station, the clean water tank, the used water tank, or the
washboard during its working.
Note: If the robot returns to the base station to clean mop pads midway, the base
station will not automatically empty the dust bin.
1. Start sweeping and mopping
Press the button on the robot, or use the app to make the robot start from
the base station. Then the robot will plan the optimal cleaning route and
perform the cleaning task based on the created map.

14
EN How to Use
3. Clean and dry mop pads after dust emptying
After the robot nishes a cleaning task and returns to the base station to
charge, the base station will automatically start emptying the dust bin, and
then clean and dry the mop pads.
4. Clean the used water tank
After the robot has completed the task, please clean the used water tank to
avoid any odor.
Note:
·When the robot returns midway to the base station to clean mop pads, the base
station will not automatically empty the dust bin.
·If the auto-empty function is turned off in the app, the base station will not
automatically empty the dust bin.
·The base station will empty the dust bin according to the frequency set in the app.
Sweeping
1. To use only the sweeping function, select "Sweeping" on the app, or remove
the mop assembly from the robot and the robot will automatically switch to
the sweeping mode.

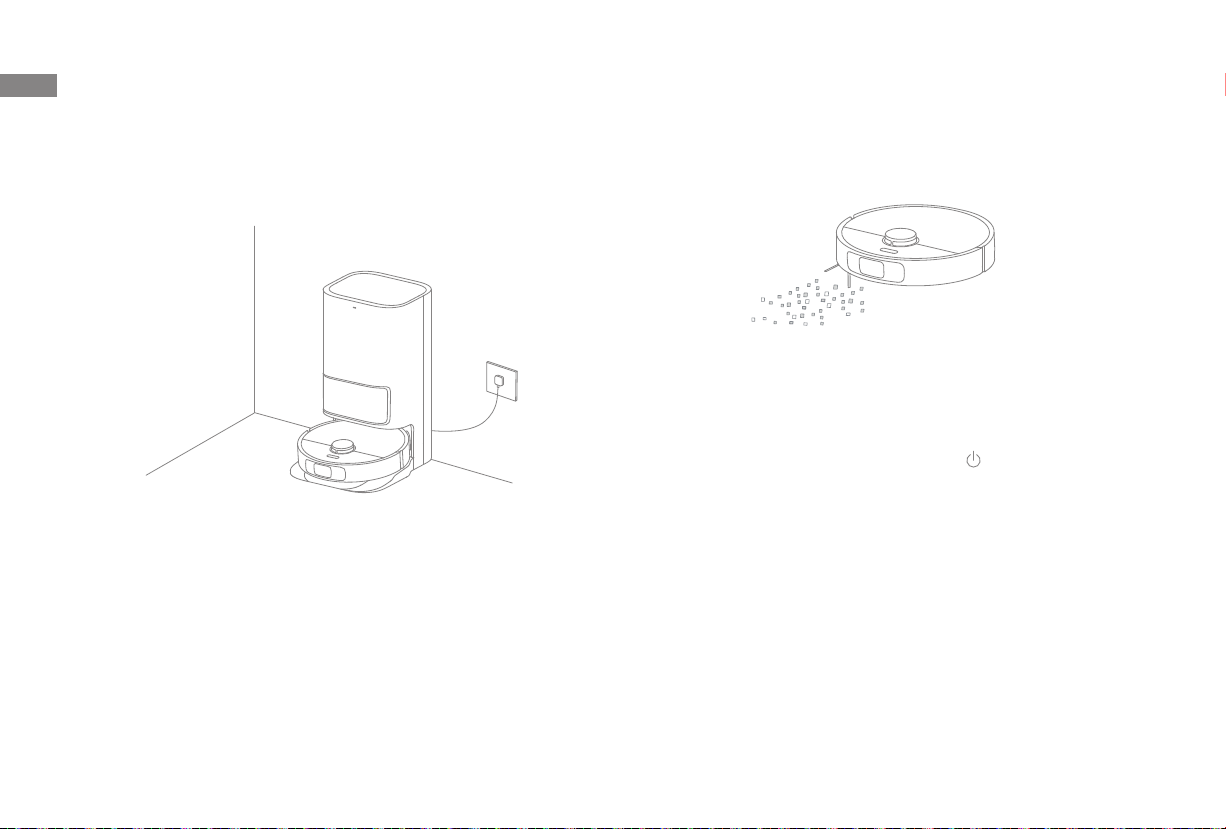

2. Make sure that the base station is connected to power and the robot is
connected with the base station. Press the button on the robot, or use the
app to send the robot to clean all areas from the base station.
Note: If the mop assembly is not removed from the robot, you can select the
sweeping mode on the app, and the robot will automatically lift the mop assembly
before sweeping.
Note: To ensure the robot can easily return to the base station after cleaning, it is
recommended to make the robot start from the base station and avoid moving the
base station during cleaning.

15
EN Routine Maintenance
Parts
To keep the robot in good condition, it is recommended to refer to the following table for routine maintenance.
Part Maintenance Frequency Replacement
Period
Used water tank After each use
/
Clean water tank
Once every 2 weeks
Main Brush Every 6 to 12 months
Dust bin lter
Every 3 to 6 months
Side brush
Washboard
Once every month /
Base station's
signaling area
Base station's
charging contacts
Base station's auto-
empty vent
Universal wheel
Edge sensor
Laser Distance
Sensor (LDS)
Part Maintenance
Frequency Replacement Period
Carpet Sensor
Once every month
/
Cli Sensors
Charging Contacts on Robot
Bumper
Robot's auto-empty vent
Robot's automatic water
relling inlet
Bottom of the robot
Dust bin Clean it as needed
Dust collection bag
/
6-8 weeks
Mop pad Every 1 to 3
months
Note: The replacement frequency will depend on your usage of the robot. If an
exception occurs due to special circumstances, the parts should be replaced.

16
EN Routine Maintenance
Dust Collection Bag
When the dust collection bag needs to be replaced, a notication will appear
in the app.
1. Discard the dust collection bag. 3. Install a new dust collection bag.
4. Close the cover of the dust cabinet.
2. Remove the dust and debris from the lter with a dry cloth.
Note: Pulling upwards on the handle will seal the bag to prevent the dust and
debris from accidentally falling out.

17
EN
Note: The oat ball in the used water tank is a movable part. Do not apply too
much force when cleaning it to avoid damaging it.
Routine Maintenance
Used Water Tank
1. Remove the used water tank, open its cover and pour out the dirty water.
2. Rinse the used water tank with clean water, and use the provided cleaning
brush to clean the inner wall of the used water tank.

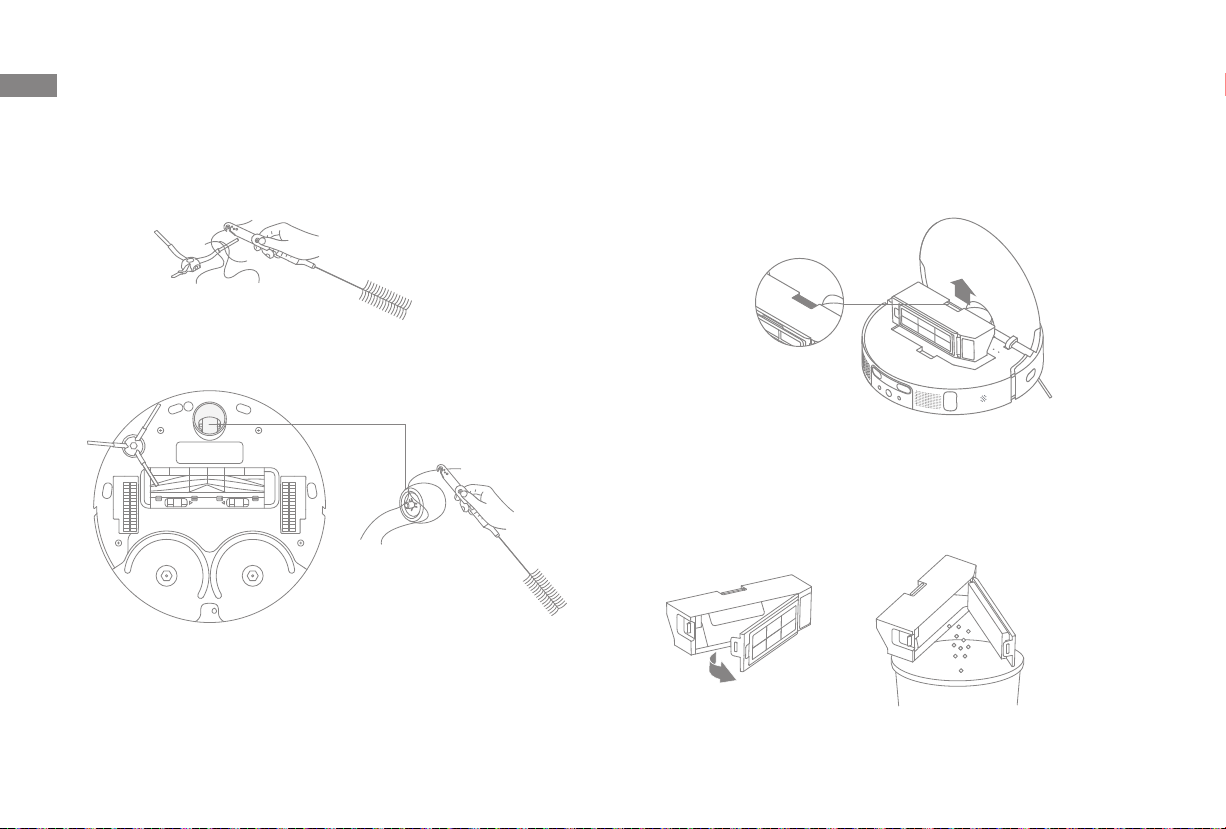

Main Brush
1. Press the brush guard clips inwards to remove the brush guard and lift the
brush out of the robot.
2. Pull out the brush covers as shown in the diagram. Use a proper tool to
remove the hair tangled in the brush.

18
EN Routine Maintenance
Side Brush
Remove and clean the side brush.
Universal Wheel
Note:
·Use a tool such as a small screwdriver to separate the axle and tire of the
universal wheel. Do not use excessive force.
·Rinse the universal wheel under the running water and put it back after drying it
completely.
Dust Bin
1. Open the robot cover and press the bin clip to remove the dust bin.
2. Open the bin cover and empty the bin as shown in the diagram.
