DSC Skyroute CL3050 ver 1.2 Operating instructions

Universal Wireless Communicator
Compatible with all PowerSeries keypads
Installation & Programming Guide
WARNING: This manual contains information on limitations regarding product use
and function and information on the limitations as to liability of the manufacturer.
Read the entire manual carefully.
CL3050
ver 1.2

For Your Records
Location
Test Time & Day
Additional Notes
CONNECT 24TM Enrollment Information
Note: Only authorized dealers can enroll a wireless system to Connect 24.
Dealer application forms and additional information on the Connect 24 Voice
Response Unit can be found at the Connect 24 web site.
http://www.connect24.com/dealer.htm
The information required for activation is listed below. Ensure that all information
is available before calling the Connect 24 Voice Response Unit.
USA 1-888-251-7458 CAN 1-888-955-5583
Profile Number ...................................................5 digits I___I___I___I___I___I
The profile number provides Central Station Receiver information.
Installer ID Number............... 8-9 digits I___I___I___I___I___I___I___I___I___I
An Installer ID number was provided for each installer listed on the Dealer
Enrollment Form. This number can be found on the authorized Installer Card
sent with the Dealer Confirmation Form.
Installer PIN Number................................................ 4 digits I___I___I___I___I
Each Installer provided a 4 digit PIN number on the Dealer Enrollment Form. If
you have forgotten your PIN Number contact Connect 24.
Central Station Account number ............ 2-6 digits I___I___I___I___I___I___I
This is the Account Number that will be sent to the Central Station.
NOTE: 4-digits maximum for Contact ID format.
Skyroute MIN....................10 digits I___I___I___I___I___I___I___I___I___I___I
The Skyroute Mobile Identification Number identifies the Skyroute transmitter.
The 10-digit MIN is located on the label affixed to your Skyroute Transmitter.
System ID Number (SID)................................5 digits I___I___I___I___I___I
The System ID Number informs Connect 24 and the cellular network the home
area that your transmitter is installed in. When this number is programmed into
an alarm panel it is entered in HEX format. When entering this number into the
Connect 24 Voice Response Unit, it is entered in Decimal Format.

i
Table of Contents
Section 1: Introduction............................................................................ 1
1.1Specifications.......................................................................................................... 2
1.2Unpacking .............................................................................................................. 2
Section 2: Quick Start.............................................................................. 3
2.1Installation.............................................................................................................. 3
2.2Testing.................................................................................................................... 4
2.3Resetting to Factory Defaults .................................................................................. 4
Section 3: Controls & Indicators ............................................................. 5
3.1LED Indicators......................................................................................................... 5
3.2Enroll Button........................................................................................................... 6
3.3Terminal Connections.............................................................................................. 6
Section 4: Power up Sequence ............................................................... 7
Section 5: System Programming ............................................................ 8
Section 6: Programming Descriptions.................................................... 8
[01]Zone 1-2 Definitions .............................................................................................. 8
[02]Zone 3-8 Definitions .............................................................................................. 9
[03]Zone 1-2 Loop Response........................................................................................ 9
[10]Skyroute CL3050 Mode of Operation..................................................................... 9
[11]Skyroute CL3050 Configuration Options 1........................................................... 10
[12]Skyroute CL3050 Configuration Options 2........................................................... 11
[13]Skyroute CL3050 Trouble Output Mask................................................................ 11
[15]System Time ........................................................................................................ 12
[16]System Day.......................................................................................................... 13
[17]Test Transmission Time ......................................................................................... 13
[18]Test Transmission Day........................................................................................... 13
[20]Transmission Options ........................................................................................... 13
[21]System Event Communication Options................................................................. 15
[22]Input Supply Fail Tx Delay .................................................................................... 15
[23]Generic Zone Reporting Timer ............................................................................. 15
[24]Number of Attempts............................................................................................ 15
[25]Response Wait Time............................................................................................. 15
Section 7: Programming Worksheets................................................... 16
Glossary of Terms .................................................................................. 20
Appendix A: Reporting Codes .............................................................. 22

ii
NOTE:

1
Introduction
Section 1: Introduction
The Skyroute CL3050 is a standalone wireless communicator that sends alarm system infor-
mation to Connect 24. Connect 24 then forwards this information to the central station.
The Skyroute CL3050 has four modes of operation. It can operate in one of three opera-
tional modes or; if it is connected to a keypad, in the programming mode. The Skyroute
CL3050 is pre-programmed with the most commonly used settings for quick installation. If
required the default options can be custom programmed.
NOTE: For UL Installations, use mode 2 or 3 ONLY.
Mode 1: Bell Follower
In Mode 1, the Skyroute CL3050 monitors the Bell Output of the control panel.
The system identifies the Bell Output cadence and transmits the corresponding
Fire or Burglar alarm reporting code to Connect 24.
Refer to the appropriate control panel Installation Manual.
NOTE: Not for UL Listed installations.
Mode 2: 2-Zone Panel
In Mode 2, the system will configure itself for 2 zone, stand alone operation.
NOTE: UL Listed for residential burglary installations ONLY.
Mode 3: 8-Zone Panel
If the Skyroute CL3050 detects a PC5108 expander card on power up it will auto-
matically configure itself for 8-zone standalone operation with normally closed
loops.
NOTE: Standalone operation is intended for household fire and burglary and it is
considered ancillary operation for commercial fire and burglary installations.
Programming Mode
If the Skyroute CL3050 detects a keypad on power up it will go into the program-
ming mode. Programming mode allows the installer to custom program system
options. Refer to Section 5, Programming Descriptions; and Section 6, Program-
ming Worksheets for programming options and default settings.

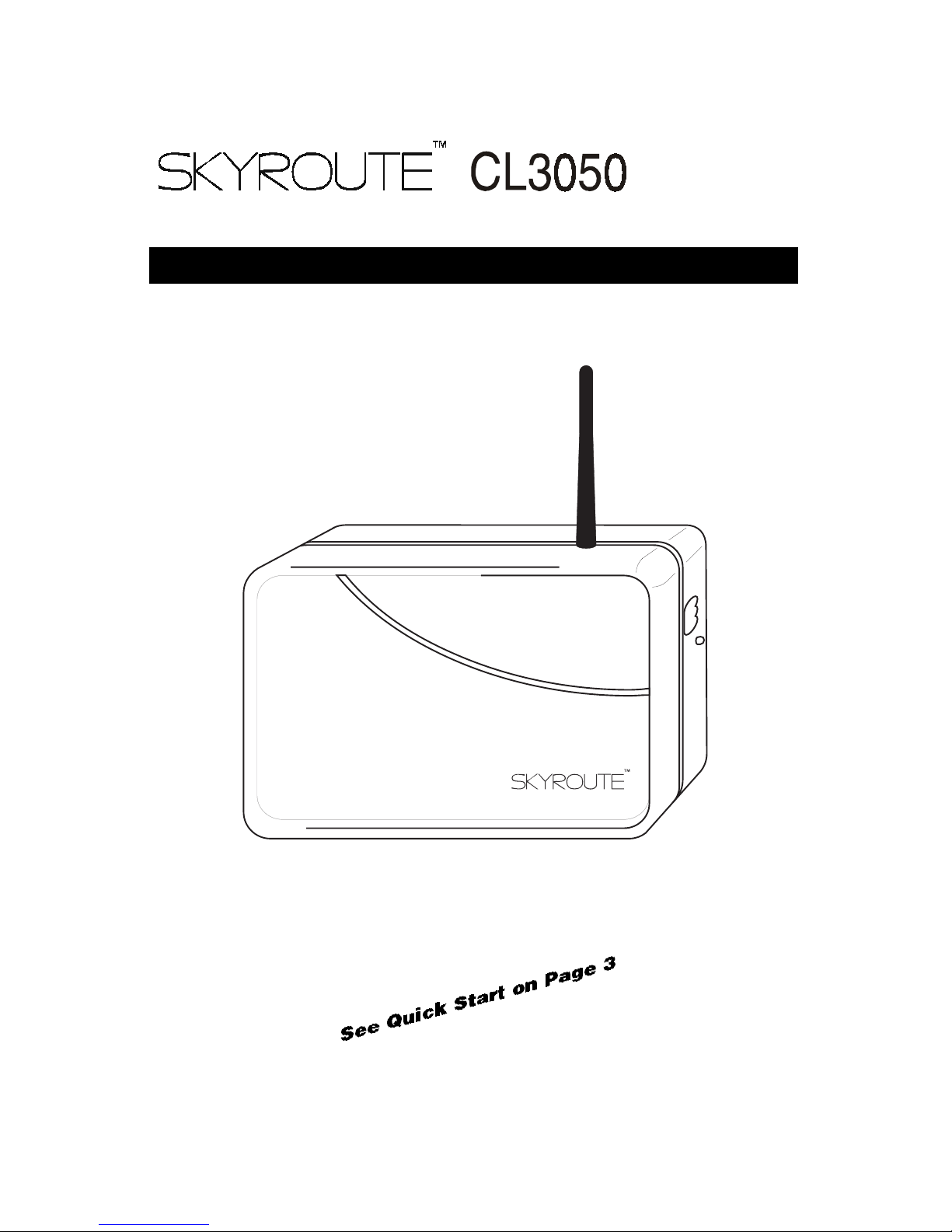

Figure 1
CL3050

2
Introduction
1.1 Specifications
• Power Supply Ratings
Voltage: 10.6-14 VAC or VDC
Current: 500 mA (Max)
Low DC Trouble: 8.8 VDC
Low DC Restore: 9.0 VDC
Low AC Trouble: 7.5 VAC
Low AC Restore: 8.0 VAC
• Current Drain
Standby: 100 mA
Receiving: 150 mA
Transmitting: 850 mA (350 mA from external power supply)
• RF Power Output: 600 mW
• Antenna Gain: 0 db
• Battery
Charging Voltage: 6.87 VDC
Low Battery Restore: 5.87 VDC
Low Battery Trouble: 5.72 VDC
Critical Shutdown: 5.0 VDC
• Operating Modes
Bell Follower
2-24Hr Zones
8-24Hr zones (with PC5108)
• Event Buffer (communications): 32 Events (not viewable)
• Dimensions: 5 1/8” x 7 3/4” x 2”
• Weight: 0.5 lbs. (0.2Kg)
• EEPROM Memory
• Programmable by all PowerSeries Keypads
PC5508/KP5508Z: 8 Zone LED keypad
PC5516Z/KP5516Z: 16 Zone LED keypad
PC5532Z/KP5532Z: 32 Zone LED keypad
LCD5500Z/KPL5500Z: Programmable Message LCD Keypad
LCD5501Z/KP5501Z: Fixed Message LCD Keypad
1.2 Unpacking
Verify that the following items have been included.
1
1
1
4
4
1
Skyroute CL3050 (rechargeable battery included)
Installation & Programming Guide
Antenna
Mounting screws
5.6KΩresistors
Enclosure screw
Remove antenna from protective bubble pack and install in unit.
CAUTION: Install antenna before connecting battery or power leads to this unit. Transmis-
sion without an antenna can cause permanent damage.
When removing cover of this unit DO NOT touch or handle exposed electrical devices and
components. Electrostatic discharge (ESD) can permanently damage this unit or reduce the
reliability and life expectancy of components.

Skyroute CL3050 Universal Wireless Communicator
3
Section 2: Quick Start
2.1 Installation
1 Determine The Operating mode required
The operating mode (modes 1, 2, or 3) will determine how the unit is to be wired
up. Refer to section 6, Programming Descriptions, section [10] for available
options and for programming defaults. See section 4, Power up Sequence for
selection of Operating and Programming modes.
NOTE: For UL Installations, use only mode 2 or 3.
2 Determine the Mounting Location
Select a mounting location in a dry, protected area. The mounting location
should be positioned so that it is at least 30 cm. away from physical contact with
any person.
NOTE: Do Not exceed the following recommendations for wire run distances
• Keybus and zone wiring should be run using minimum 22 gauge quad
(0.5mm). Two pair twisted is preferred.
• a keypad, PC5108, or zone wiring can not exceed 1,000'/305m (in wire
length) from the Skyroute CL3050.
• Shielded wire is not necessary unless wires are run in an area that may present
excessive RF noise or interference.
• Refer to section 6, Programming Descriptions, section [10] for zone wir-
ing details.
NOTE: Generally, the higher the location and the closer that the Skyroute CL3050
is to an outside wall, the better the signal strength will be.
3Checking Signal Strength
•Removefrontcover
• Connect Battery to the RED and BLK flying leads.
• Connect AC Power source or 12 VDC to RED & BLK terminals.
• Allow unit to power up
NOTE: The unit does not need to be enrolled with Connect 24 to check signal
strength.
• When the green LED stops flashing, press and release the enroll button.
• Ensure that Radio Signal Strength Indication (RSSI) is greater than the mini-
mum acceptable level as indicated below. If the signal level is not accept-
able, reposition and retest the Skyroute CL3050 until an acceptable signal
strength is found.
Red LED Yellow LED Green LED Signal Strength
On
On
On
On
On
Flash
On
On
On
Flash
Off
Off
On
Flash
Off
Off
Off
Off
>87%
69-87%
*52-68%
34-51%
16-33%
0-15%
*Minimum recommended signal strength for enrollment
4 Route Wiring to Mounting Location
Route wiring from the hardwired zones or control panel as required.
NOTE: Route wiring through conduit to a junction box if possible. Mount the
Skyroute Panel.

4
Quick Start
5 Mount Unit
• Remove the front cover if required
• Disconnect flying leads from battery and power leads from the RED and BLK
terminals (if connected).
• Remove two screws securing battery clamp. Remove battery
• Mount backplate of unit to wall or over electrical junction box using the
four screws provided.
NOTE: DO NOT connect the battery to the flying leads and AC or DC power to
the terminal strip until all other wiring connections are completed.
• Route wiring through the access holes provided and connect to terminal
strip.
• Power up unit by connecting battery and power source.
• Front cover is to be securely fastened with screw provided.
6 Enroll Unit
Call Connect 24 and Enroll the Skyroute CL3050. Refer to back of Front Cover
for contact information and a list of information required to complete the enroll-
ment with the Connect 24 Voice Response Unit.
2.2 Testing
Program Mode: If you have wired the unit to power up in the programming
mode. Follow the steps outlined in Section 6, Programming Descriptions and
record the program settings in Section 7, Programming Worksheets.
Test Transmission - Pressing and holding the enroll button for 2 seconds will
send a test transmission to the central station via Connect 24. Refer to Enroll
Button in Section 3, Controls and indicators for test transmission details.
Mode 1: Disable the telephone line connected to the control panel. Simulate
Burglar and Fire Zone violation. Verify that the Skyroute CL3050 transmits the
events to the central station.
Mode 2 & 3: Simulate Faults, Tampers, and Zone violations in accordance with
the settings outlined in Sections 6, Programming Descriptions. Verify that the
Skyroute CL3050 transmits the events to the central station.
2.3 Resetting to Factory Defaults
NOTE: Resetting to factory defaults is required to change mode of operation.
• Remove Power from the Skyroute CL3050; disconnect battery and control
panel if applicable (mode 1).
• Disconnect all wiring from the YEL and GRN terminals.
• Connect a jumper wire between the YEL and GRN terminals.
• Apply power to the system.
NOTE: When the hardware default has been completed; the yellow, green and
red LEDs will flash on and off continuously.
• Remove power from the system.
NOTE: To resume communications with Connect 24, Section [11], Option 6
must be set to ON. To do this; the system must be powered up in programming
mode. Refer to Section 5 System Programming.
• Reconnect all original wiring and reapply power to the system.
• Test System - Refer to Section 2.2

Skyroute CL3050 Universal Wireless Communicator
5
Section 3: Controls and Indicators
Figure 2
3.1 LED Indicators (see figure 2)
Yellow LED
During normal operation, the yellow LED will indicate the system status with a
series of flashes as indicated below.
No. of
Flashes Indication
1
2
3
4
5
6
7
8
9
No trouble conditions present
Low battery
Input supply failure
Not enrolled at Connect 24
No service available
Radio failure
PC5108 failure
Failure to communicate
Zone tamper/fault trouble
SW1
SW2
Enroll Button
Battery (6 VDC)Battery (6 V )
1.3 Ah
DC
Green LED
Yellow LED
Red LED
Tamper Switch
Mounting Holes
Wire Access
Antenna
RED BLK YEL GRN COM PGM

6
Controls and Indicators
NOTE: Multiple trouble conditions are displayed (flashed) in sequence.
Red LED
The red LED will flash to provide event transmission status for the following
events:
1 Flash
1 Flash
2 Flashes
Enroll button held down for 2 seconds
Event transmitted to cellular network
Event acknowledged by Connect 24.
Green LED
The green LED will light continuously if the (RSSI) signal is acceptable. If signal
strength is not acceptable the LED will turn OFF. Detailed information on signal
strength can be accessed by momentarily pressing and releasing the enroll
button. The green, yellow and red LEDs will light to indicate the range of signal
strength. Refer to Section 2 Step 3.
3.2 Enroll Button (see figure 2)
The Skyroute CL3050 Enroll button is located on the outside of the plastic hous-
ing directly below the status LEDs. The enroll button performs three functions.
• Pressing and releasing this button momentarily during the first 15 seconds
of power up will toggle between Mode 1 and Mode 2 to enable mode
selection.
•Pressing and releasing this button momentarily at any time after the power
up sequence will display the detailed RSSI status indicated above.
• Holding this button down for a period of 2 seconds continuously will cause
the Skyroute CL3050 to send a test transmission to Connect 24, this long
debounce will be indicated by the red LED flashing once.
3.3 Terminal Connections (see figure 2)
RED 10.6-14VDC Positive Input or 10.6-14VAC
NOTE: 12VDC is required for programming or for operation with a
PC5108 zone expander. Mode 1 and Mode 2 may be operated with an
AC Supply.
BLK 10.6-14VDC Ground or 10.6-14VAC
YEL Mode 1* - The YEL terminal functions as the Bell input.
Mode 2 -This terminal functions as the zone 1 input.
Mode 3 -This terminal connects to the YEL Keybus terminal when
using a PC5108 zone expander or PowerSeries keypad.
GRN Mode 1* - The GRN terminal functions as the TLM Trouble input.
Mode 2 - This terminal functions as the zone 2 input.
Mode 3 -This terminal connects to the GRN Keybus terminal when
using a PC5108 zone expander or PowerSeries keypad.
COM Mode 1* - This terminal functions as the common terminal for the Bell
Input on the YEL terminal, the TLM trouble input on the GRN terminal
and the Trouble Output on the PGM terminal.
Mode 2 - This terminal functions as the common terminal for zone 1
(YEL) and zone 2 (GRN).
Mode 3 - This terminal functions as the common terminal for the
Trouble Output
NOTE: Mode 1 is not intended for UL Installations.

Skyroute CL3050 Universal Wireless Communicator
7
PGM - The PGM output is
dedicated for Skyroute
CL3050 trouble indica-
tions. If a control panel is
not monitoring the Sky-
route CL3050, an LED or a
buzzer can be connected
between this terminal and
the RED terminal for trouble
indication. The PGM termi-
nal switches low from an
open-collector state. Con-
nect to the control panel
using a Single EOL configu-
ration as shown in 6 Pro-
gramming Descriptions
Section [13] on page 11.
NOTES: The PGM output
can sink 50 mA (maximum).
For UL Installations, use DSC
RM-1 Relay Module.
Section 4: Power up Sequence
On first-time power up, the Skyroute CL3050 will generate a random test trans-
mission time and random day of the week to send it. The installer can then
change this information if required.
During power up, the Skyroute CL3050 will look for a keypad on the Keybus, if
one is found, it will go into the programming mode. If no keypad is found, it will
look for a PC5108 zone expander module. If a zone expander is found, it will
automatically configure itself for mode 3. If no Keybus modules are present, the
Skyroute CL3050 will power up in mode 1. During the first 15 seconds of power
up, any zone scanning will be shunted. During this time the installer can momen-
tarily press the enroll button on the Skyroute CL3050 to toggle between mode 1
and mode 2. Upon power up the green LED will be flashing on and off. This will
indicate to the installer that he/she can change the mode to 1 or 2. The red LED
will indicate mode 1 and the yellow LED will indicate mode 2. If neither red or yel-
low LED is lit, then the Skyroute CL3050 has detected a PC5108 module, the
mode cannot be changed by pressing the enroll button if a PC5108 module is
connected to the Skyroute CL3050.
If a keypad is detected on Keybus, the green LED will stop flashing, and the red
LED will begin flashing to indicate that programming mode is active.

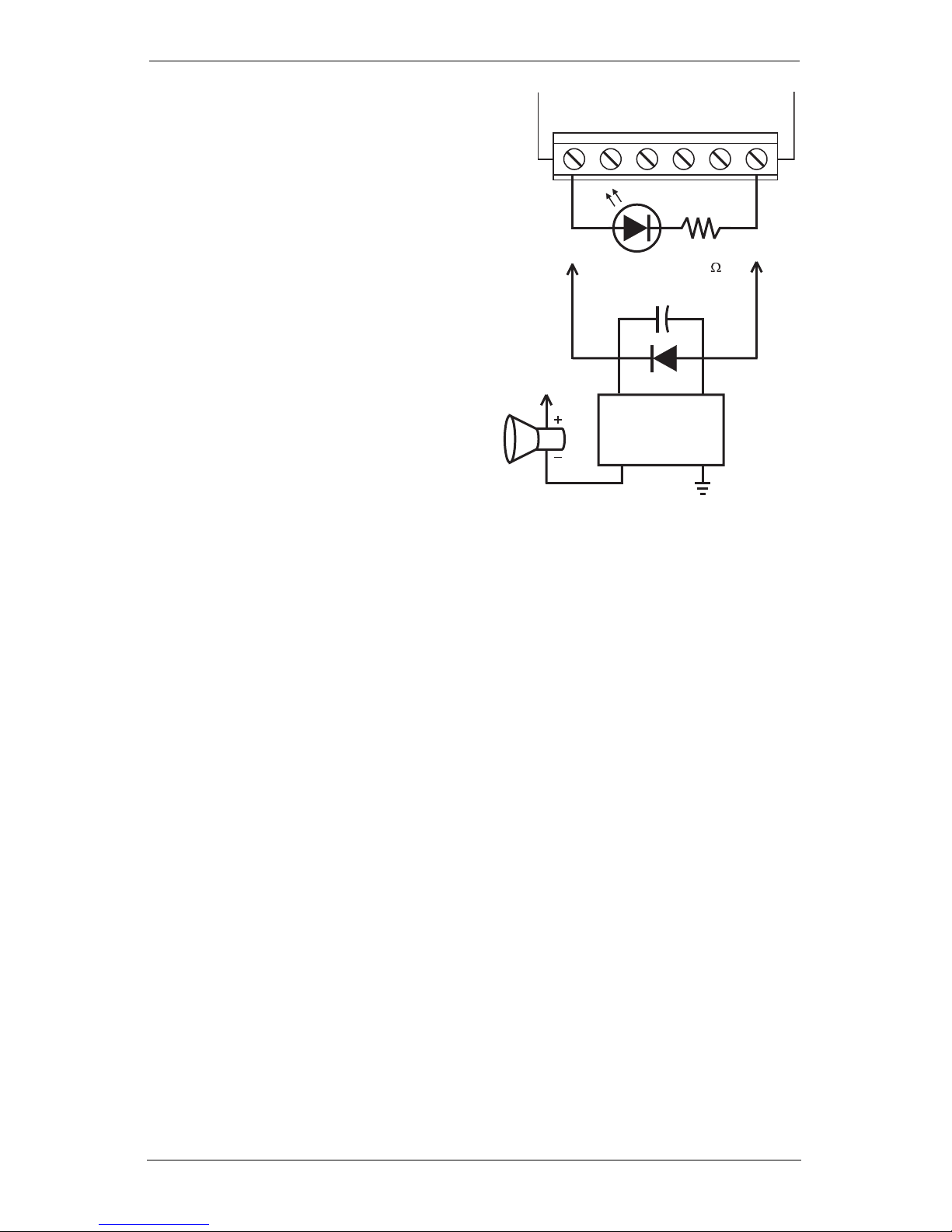

LED 560
LED Output with
current limiting
resistor
Optional relay
driver output
+ Coil -
Relay
To External
Supply
NC Com
Skyroute CL3050
RED BLK YEL GRN COM PGM

8
System Programming
Section 5: System Programming
The Skyroute CL3050 is programmed using any PowerSeries keypad. Refer to
Section 1.1 Specifications.
NOTE: Power down the Skyroute CL3050 when connecting or removing other
Keybus modules from the system. If the Skyroute CL3050 is connected to a con-
trol panel (mode 1), the control panel must also be powered down.
1. Connect keypad Keybus connections to the RED, BLK, YEL and GRN termi-
nals of the Skyroute CL3050.
2. Connect a +12VDC supply across the RED and BLK terminals.
Upon detecting the keypad on power up, the Skyroute CL3050 will begin
driving Keybus and will blank the keypad with all LEDs and icons off.
NOTE: The red LED on the Skyroute CL3050 will flash continuously if a
keypad is detected.
3. Press the star [*] key to gain access to the programming section.
Programming is done with a 2-digit section entry. When programming is
complete, power down the Skyroute CL3050 and remove the keypad.
Section 6: Programming Descriptions
[01] Zone 1, 2 Definitions Modes 2, 3
When the Skyroute CL3050 is in Mode 2 or 3, there are 14 options that can be
programmed as zone types. All of the zone types with the exception of 00 (null
zone), 13 (CL3050 communications zone) and 14 (trouble zone) are straightfor-
ward. Since all the zones are 24-hour type zones, selecting any listed zone type
will simply select which identifier should be used for reporting the alarm. Pro-
gramming a zone as 00 (null zone) will disable the zone input on the Skyroute
CL3050 or PC5108 hardware. Programming any zone as type 13 (CL3050 com-
munications zone) will disable all communications unless that zone input is closed
(short condition). Programming a zone as 14 ( trouble zone) will enable an addi-
tional reporting code to be sent with the daily/weekly test transmission (if
enabled). If all zones are restored and there are no trouble conditions present on
the Skyroute CL3050, a periodic test transmission code (RP00) will be sent. other-
wise a periodic test off-normal code (RY00) will be sent instead.
NOTE: Do NOT program more than 1 CL3050 communications zone or trouble
zone on the Skyroute CL3050.
Default - [01] zones 1 & 2
RED BLK YEL GRN COM PGM
+12 VDC
Ground
To Keybus
Connections
on Keypad
Not Connected

Skyroute CL3050 Universal Wireless Communicator
9
[02] Zone 3 - 8 Definitions Mode 3
This allows programming of the six additional zone definitions when operating in
mode 3 with a PC5108 zone expander. See section [01] for details
Default - [01] zones 3 - 8
[03] Zone 1, 2 Loop Response Modes 2
This entry determines how quickly a zone will respond to changes in state.
NOTE: This does not affect zones on a PC5108 zone expander card.
Default - 05 (0.5 seconds) 01-FF Hex x 0.1 seconds.
[10] Skyroute CL3050 Mode of Operation
[01] Mode 1 - Bell Follower Operation
In this mode, the YEL terminal is connected to the bell output of a control panel.
The Skyroute CL3050 monitors the output for burglary and fire cadences and
transmits the appropriate events. For any type of pulsed cadence, the Skyroute
CL3050 will send a generic Fire event, for any steady bell the Skyroute CL3050
will send a generic Burglary event. The GRN terminal is a trouble input which can
be connected to a system output to alert the Skyroute CL3050 of a system TLM
fault. This will enables the Skyroute CL3050 to be used as a back-up communi-
cator only. If not used, this input must to connected to COM. The bell
cadence will be determined as follows:
• Bell must be on for longer then 300mS to be considered a "pulse"
• Bell must be on for 3 seconds continuous to be considered "steady"
• Bell must be off for 3 seconds continuous to be considered "silenced"
• Bell must pulse on and off 3 times to be considered "pulsed", 3rd off-time
will trigger event
Bell Report Code Group
Pulsed
Steady
FA98
BA98
Fire
Burglary
NOTE: Mode 1 is not intended for UL Installations.
RED BLK YEL GRN COM PGM
BELL+ BELL-
Alternate connection for
Control Panels where Bell
switches High
Relay Com
NC
NO
Input Voltage
10.6-14 V or V
AC DC
Bell Input
TLM Input
System Common
Trouble Output
RED BLK YEL GRN COM PGM

10
Programming Descriptions
[02] Mode 2 - (2) 24-Hour Zones
In this mode, the YEL and GRN
terminals on the Skyroute
CL3050 will be used as zone
inputs. These zones will support
the DSC standard EOL configura-
tion and loop response. Pro-
gramming sections will allow the
installer to change the default
zone types and attributes. The
Skyroute CL3050 will continu-
ously monitor these zones and
transmit any alarms that occur to
the central station.
NOTE: Use Mode 2 for UL residential burglary installations.
[03] Mode 3 - (8) 24-Hour Zones
In this mode, the Skyroute
CL3050 is connected to a
PC5108 zone expander using the
corresponding RED, BLK, YEL and
GRN terminals. The Skyroute
CL3050 will drive the Keybus to
communicate with the PC5108.
A +12VDC supply connected to
the RED and BLK terminals is
required when using this mode.
The Programming sections allow the installer to change the default zone types
and attributes. The Skyroute CL3050 continuously monitors these zones and
transmits any alarms that occur to the central station.
NOTES: This configuration can not be used with an AC supply.
Jumpers on the PC5108 must be set as follows:
J1
J2
J3
ON
OFF
ON
J4
J5
J6
OFF
OFF
ON
Default - [01 -03] dependant on start up configuration.
NOTES: Use Mode 3 for UL Installations.
PC5108 must be installed in its own enclosure or in the same cabinet as the con-
trol panel.
All connections are power limited.
[11] Skyroute CL3050 Configuration Options 1
Option 1 - A Channel Selected/ B Channel Selected. All Modes
This Option determines whether cellular channel “B” or channel “A” is used. In
Canada, Channel B is used (Default). In the USA refer to the SID list for the chan-
nel of the cellular service provider in your area. Default - Channel B
Option 2 - Normally Closed Loops/ End-of-line Resistors Mode 2, 3
Normally Closed Loops can be wired as shown. Multiple Normally Closed con-
tacts can be wired in series. For Double or Single EOL resistors this option must be
set to OFF. Default - Normally Closed (N/C) Loops.
NOTE: Option must be OFF for UL Installations.
Input Voltage
10.6-14 V or V
AC DC
Zone 1 Input
Zone 2 Input
Zone Common
Trouble Output
RED BLK YEL GRN COM PGM
RED BLK YEL GRN COM PGM
+12 V DC
Ground
To Keybus
Connections
on PC5108
System Common
Trouble Output

Skyroute CL3050 Universal Wireless Communicator
11
Option 3 - Double EOL Resistors/Single EOL Resistors Mode 2, 3
This option selects Double EOL resistors (ON) or Single EOL resistors (OFF) wired
as indicated
Single EOL resistors allows the use
of N/C and/or Normally Open contacts.
Double EOL resistors allows the
zone to be monitored for fault,
tamper, secure and violated condi-
tions. Only Normally Closed contacts
can be used in this configuration
NOTES: Option 2 must be set to OFF to enable these options. Default - OFF
Option must be ON for UL Installations.
Option 4 - Test Once a Day Enabled/Disabled All Modes
Allows transmission test daily. Default - Disabled.
NOTE: Option must be ON for UL Installations.
Option 5 - Test Once a Week Enabled/Disabled All Modes
Allows transmission test weekly. Default - Enabled
NOTE: This option will be overridden If option 4 is set for daily test transmissions.
Option must be OFF for UL Installations.
Option 6 - Enrolled with Connect 24 /Not Enrolled All Modes
This option is set automatically during the enrollment procedure with
Connect 24. IF the Skyroute CL3050 is reset to the default settings this option
must be set to ON for the Skyroute CL3050 to resume communications.
Default - Not Enrolled.
Options 7, 8 - System Use All Modes
CAUTION: Do NOT change these settings unless it is requested by DSC technical
support personnel. Default - OFF.
[12] Skyroute CL3050 Configuration Options 2
Option 1 - Swinger Shutdown Enabled/Disabled Modes 2, 3
This option limits the number of alarm events transmitted per zone to 8 until the
counter has been reset (counter automatically resets at midnight), then event
transmissions will resume. Default - Enabled
NOTES: Tampers and Faults will be counted unless they are disabled in section [20].
Option must be OFF for UL Installations.
Options 2 - 8 Future Use
[13] Skyroute CL3050 Trouble Output mask All Modes
The PGM output is dedicated for trouble indications. If a control panel is not
monitoring the Skyroute CL3050, an LED or a buzzer can be connected between
this terminal and the RED terminal for a trouble indication. The PGM terminal
switches low from an open-collector state. Connect to the control panel using a
single EOL resistor configuration.

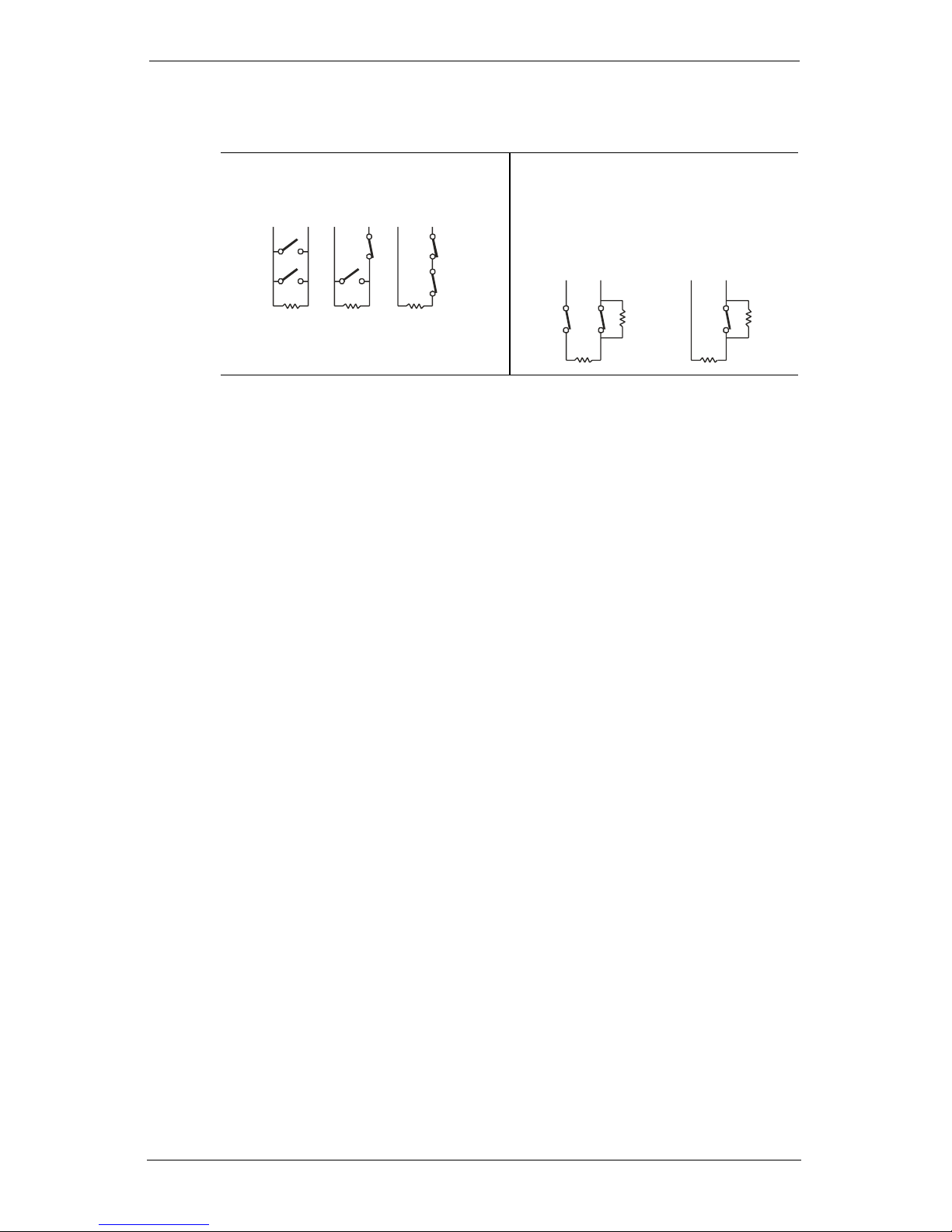

CZxCZxCZx
5.6K ohm 5.6K ohm 5.6K ohm
5.6KΩ
Tamper
Contact
CZx CZx
5.6KΩ
5.6KΩ5.6KΩ

12
Programming Descriptions
.
NOTE: A relay may be required for proper operation in other configurations.
See paragraph 3.3 Terminal Connections.
Option 1 - Low battery All Modes
If the battery voltage drops below 5.72VDC a trouble will be indicated until the
battery voltage rises to 5.87VDC. Default - ON
Option 2 - Input Supply Failure All Modes
If AC power is absent or if DC power drops below 8.8VDC on the RED and BLK
terminals, this trouble is indicated. Default - ON
Option 3 - Zone Fault/Tamper (DEOL Only) Modes 2, 3
A trouble will be indicated if any zone reports a fault or tamper condition. In Sec-
tion [11], Option [2] must be set to OFF and Option [3] must be set to ON for this
option to be enabled. Default - OFF
Option 4 - No Service Available All Modes
This trouble is indicated If the system is unable to detect cellular service.
Default - ON
Option 5 - Radio Failure All Modes
This trouble is indicated if there is an internal fault with the cellular radio.
Default - ON
Option 6 - PC5108 Failure Mode 3
This trouble is indicated if a PC5108 supervisory or Keybus fault occurs.
NOTE: The PC5108 tamper is communicated only, therefore it can only be
enabled by turning on section 20 option 7 and section 21 option 5. There is no
local annunciation for this event. Default - ON
Option 7 - Failure to Communicate (FTC) All Modes
This trouble will be indicated if no acknowledgement has been received from
Connect 24 after three attempts. Default - ON
Option 8 - Skyroute CL3050 Tamper All Modes
This trouble will be indicated if the cover is removed from the Skyroute CL3050
activating the on-board tamper switch. Default - OFF
[15] System Time All Modes
When the time and day have been programmed, the values are saved and are
used as the current time and day whenever the Skyroute CL3050 does a power
up. Time and day programming is only required if the installer desires the Sky-
route CL3050 to test transmit at a specific time and/or day. There is no "loss of
time" trouble on the Skyroute CL3050.
Default - 0000 - 2359
Zx COM
Control Panel
RED BLK YEL GRN COM PGM
5.6K
Skyroute CL3050

Skyroute CL3050 Universal Wireless Communicator
13
NOTE: If AC Power is detected, it will be used to provide the time base for the
internal clock. If AC power is not detected the internal clock will automatically
use the crystal time base.
[16] System Day of the Week All Modes
See section [15].
Option 1. (Sunday) Default - ON
Option 2 - 8. (Monday - Saturday) Default - OFF
[17] Test Transmission Time All Modes
When the Skyroute CL3050 is powered up for the first time, or after a default
reset; it will check if the test transmission time and day are programmed. If they
are not, a random time (0000 - 2359) will be programmed into this location. The
Skyroute CL3050 will randomly generate this value.
NOTE: Due to traffic volume, when selecting test transmission times, select a
time that is not on the :30 minute mark (e.g., 02:24, 04:07).
[18] Test Transmission Day All Modes
When the Skyroute CL3050 is powered up for the first time, or after a default, it
will check if the test transmission time and day are programmed. If they are not,
a random day (Sunday-Saturday) will be programmed into this location. The Sky-
route CL3050 will randomly generate this value. Because one test transmission
weekly is the most common configuration, this will allow the installer to setup
the Skyroute CL3050 without keypad programming.
Option 1-8. Default - [Random] - One only will be enabled.
[20] Transmission Options All Modes
When the following options are enabled the reporting codes listed in Appendix A
are sent to Connect 24.
Options 1, 2 - Zone Alarm/Zone Alarm Restores Modes 2, 3
When a zone is violated or restored, the reporting codes listed in Appendix A will
be sent.
NOTES: If generic reporting is enabled and multiple alarms occur during the
delay programmed in Section [23], only one alarm reporting code will be sent.
Zone alarm restorals enabled with generic zone reporting enabled can cause
unpaired events to be sent to Connect 24.
Option 1. Default - ON, Option 2. Default - OFF
Options 3, 4 - Zone Fault, Zone Fault Restores Modes 2, 3
When the system sees a short circuit across any zone, a zone fault is generated.
DEOL resistors are required for zone fault reporting. In Section [11], Option [2]
must be set to OFF and Option [3] must be set to ON; In Section [13], Option 3
must be set to ON and the Skyroute CL3050 must be operating in mode 2 or 3.
Option 3. Default - OFF, Option 4. Default - OFF
Options 5, 6 - Zone Tamper, Zone Tamper Restores Modes 2, 3

14
Programming Descriptions
When the system sees an open circuit across any zone a zone tamper is gener-
ated. DEOL resistors are required for zone tamper reporting. In Section [11],
Option [2] must be set to OFF and Option [3] must be set to ON. In Section [13],
Option [3] must be set to ON and the Skyroute CL3050 must be operating in
mode 2 or 3.
Option 5. Default - OFF, Option 6. Default - OFF
Option 7 - System Maintenance Events All Modes
When this option is enabled, the maintenance events enabled in Section [21] are
transmitted using the codes listed in appendix A.
Default - ON,
Option 8 - Generic Zones Modes 2, 3
The Skyroute CL3050 supports generic and detailed zone alarm reporting. By
default, the Skyroute CL3050 will be in generic zone reporting mode. When in
this mode, all zone types are divided into four reporting groups; BA Burg, FA Fire,
PA Panic, UA Technical. If any zone from this group initiates a transmission, the
generic reporting code for this event is sent, additional violations from other
zones from the same group will be ignored until that group's timer has expired.
See table below for zone type grouping.
Zone
Ty p e
Detailed
Reporting Code
Generic
Reporting Code
Null
Burglary
Fire
Panic
Technical
Gas*
Heat*
Medical*
Emergency
Water*
Freezer*
Sprinkler*
Hold-up
-
BA
FA
PA
UA
GA
KA
MA
QA
WA
ZA
SA
HA
-
BA
FA
PA
UA
UA
FA
PA
PA
UA
UA
UA
PA
* Not for UL Listed Installations.
Each zone group has it's own timer. The default time is 5 minutes and is pro-
grammed in Section [23]. If any zone in a group initiates an event, the timer will
start running and the generic event will be sent. If any additional zones from the
same group initiate an event before that group's timer expires, the event will be
ignored. This generic zone reporting mode only applies to zone alarms. Alarm
restorals, tamper/tamper restorals and fault/fault restorals are not grouped
together into generic reporting groups.
The generic identifier will be sent with 98 as it's zone number, this is a special
combination recognized by Connect 24 as a generic event. When the generic
zone reporting toggle is disabled, each zone alarm for each zone type will then
send it's own identifier. Default - ON.
NOTE: The CL3050 communication zone and trouble zone will always send
detailed reporting codes.

Skyroute CL3050 Universal Wireless Communicator
15
[21] System Event Communication Options
NOTE: Section [20], Option [7] must be enabled for these events to be communi-
cated.
Option 1 - Input Supply Failure All Modes
If AC power is absent or if DC power drops below 8.8VDC on the RED and BLK
terminals, a trouble will be sent after the delay programmed in section [22] has
expired. Default - ON,
Option 2 - Low Battery All Modes
If the battery voltage drops below 5.72VDC a trouble will be sent to Connect 24.
When the battery voltage rises to 5.87VDC the system will send a restore.
Default - ON.
Option 3 - Skyroute CL3050 Tamper All Modes
Removing the cover on the Skyroute CL3050 will send a tamper reporting code
to Connect 24. Default - OFF.
Option 4 - PC5108 Module Fault Mode 3
Indicates a Keybus communications fault condition. Default - OFF.
Option 5 - PC5108 Tamper Mode 3
Removing the cover on the PC5108 will send a tamper reporting code to
Connect 24. Default - OFF.
Option 6 - TLM Trouble Report All Modes
Indicates a telephone line trouble if a CL3050 communications zone is violated.
Default - OFF.
[22] Input Supply Fail TX Delay All Modes
This value determines the delay (default 0700 = 7 hrs) before an input supply fail-
ure reporting code is sent if programmed. See Section [21],Option [1] and Sec-
tion [20], Option [2]. Default - 0700 (=7 hrs)
[23] Generic Zone Reporting Timer Modes 2, 3
This hex value determines the delay before a generic zone reporting code is sent,
if programmed in Section 20 Option 8.
NOTE: There are four separate timers for Burglary, Fire, Panic and Supervisory;
the delay programmed is the same for each timer.
Default - 1E (300 seconds / 5 minutes) Range equals 01-FF Hex seconds x 10
[24] Number of Attempts All Modes
This value determines how many attempts are made to send an event to
Connect 24. Default - 03
NOTES: For UL Installations in Mode 2, minimum 5, maximum 10 attempts
required.
For UL Installations in Mode 3, the combination of attempts between DACT and
Skyroute shall be minimum 5 and maximum 10.
[25] Response Wait Time All Modes
This value determines how long the Skyroute CL3050 will wait for a response
from Conect 24 before attempting to resend the same event.
Default - FA (250 seconds) range equals 01-FF Hex seconds.
NOTE: For UL Installations this must be 90 seconds (5A).

16
Programming Worksheets
Section 7: Programming Worksheets
Zone Definitions (For Sections [01] -[02])
00 Null Zone (Not Used)
01 Burglary
02 Fire
03 Panic
04 Technical
* Not for use in UL Installations.
05 Gas*
06 High Temp*
07 Medical*
08 Emergency
09 Water Level*
10 Low Temp*
11 Sprinkler*
12 Hold-up
13 CL3050 Communications Zone
(1 zone max.)
14 Trouble Zone (1 zone max.)
[01] Zone 1-2 Definitions
Default Default
01 I___I___I Zone 1 01 I___I___I Zone 2
[02] Zone 3-8 Definitions
Default Default
01 I___I___I Zone 3 01 I___I___I Zone 4
01 I___I___I Zone 5 01 I___I___I Zone 6
01 I___I___I Zone 7 01 I___I___I Zone 8
[03] Zone 1-2 Loop Response 01-FF (Hex 0.1 second increments), mode 2 only
Default Default
05 I___I___I Zone 1 05 I___I___I Zone 2
[10] Skyroute CL3050 Mode of Operation
Default Default
01 I___I___I 01 - Bell Follower, 02 - 2 Zone, 03 - 8 zone (PC5108 )
NOTE: Use modes 2 and 3 for UL Installations.
[11] Skyroute CL3050 Configuration Options 1
Default Opt Option On Option Off
OFF I___I 1A Channel selected B Channel selected
ON I___I 2Normally Closed Loops End-of-Line Resistors*
OFF I___I 3Double End-of-Line Resis-
tors
Single End-of-Line Resistors**
OFF I___I 4Test Once a Day Enabled Disabled**
ON I___I 5Test Once a Week
Enabled
Disabled*
OFF I___I 6Enrolled with
Connect 24
Not Enrolled with Connect 24
OFF I___I 7 System Use - Caution: Do not change
OFF I___I 8 System Use - Caution: Do not change
* Option must be OFF for UL Installations.
** Option must be ON for UL Installations.
