DSC TL280R Operating and maintenance instructions

TL280(R)
Internet Alarm Communicator - International
INSTALLATION GUIDE V4.0
For installation manual visit www.dsc.com
Warning: This manual contains information on limitations regarding product use
and function and information on the limitations as to liability of the manufacturer.

WARNING: INSTALLER PLEASE READ CAREFULLY
Note to Installers
The warnings on this page contain vital information. As the only
individual in contact with system users, it is the installer’s responsi-
bility to bring each item in this warning to the attention of all users of
this system.
System Failures
This system has been carefully designed to be as effective as possi-
ble. There are circumstances, however, involving fire, burglary, or
other types of emergencies where it may not provide protection. Any
alarm system of any type may be compromised deliberately or may
fail to operate as expected for a variety of reasons. Some, but not all,
of the reasons may be:
Access by Intruders
Intruders may enter through an unprotected access point, circumvent
a sensing device, evade detection by moving through an area of
insufficient coverage, disconnect a warning device, or interfere with
or prevent the proper operation of the system.
Component Failure
Although every effort has been made to make this system as reliable
as possible, the system may fail to function as intended due to the
failure of a component.
Compromise of Radio Frequency (Wireless) Devices
Signals may not reach the receiver under all circumstances which
could include metal objects placed on or near the radio path or delib-
erate jamming or other inadvertent radio signal interference.
Criminal Knowledge
This system contains security features which were known to be
effective at the time of manufacture. It is possible for persons with
criminal intent to develop techniques which reduce the effectiveness
of these features. It is important that your security system be
reviewed periodically to ensure that its features remain effective and
that it is updated or replaced if it is found that it does not provide the
protection expected.
Failure of Replaceable Batteries
This system’s wireless transmitters have been designed to provide
several years of battery life under normal conditions. The expected
battery life is a function of the device environment, usage, and type.
Ambient conditions such as high humidity, high or low temperatures,
or large temperature fluctuations may reduce the expected battery
life. While each transmitting device has a low battery monitor which
identifies when the batteries need to be replaced, this monitor may
fail to operate as expected. Regular testing and maintenance will
keep the system in good operating condition.
Inadequate Installation
A security system must be installed properly in order to provide ade-
quate protection. Every installation should be evaluated by a security
professional to ensure that all access points and areas are covered.
Locks and latches on windows and doors must be secure and operate
as intended. Windows, doors, walls, ceilings and other building
materials must be of sufficient strength and construction to provide
the level of protection expected. A reevaluation must be done during
and after any construction activity. An evaluation by the fire and/or
police department is highly recommended if this service is available.
Inadequate Testing
Most problems that would prevent an alarm system from operating as
intended can be found by regular testing and maintenance. The com-
plete system should be tested weekly and immediately after a break-
in, an attempted break-in, a fire, a storm, an earthquake, an accident,
or any kind of construction activity inside or outside the premises.
The testing should include all sensing devices, keypads, consoles,
alarm indicating devices, and any other operational devices that are
part of the system.
Insufficient Time
There may be circumstances when the system will operate as
intended, yet the occupants will not be protected from an emergency
due to their inability to respond to the warnings in a timely manner. If
the system is remotely monitored, the response may not occur in time
to protect the occupants or their belongings.
Motion Detectors
Motion detectors can only detect motion within the designated areas
as shown in their respective installation instructions. They cannot
discriminate between intruders and intended occupants. Motion
detectors do not provide volumetric area protection. They have mul-
tiple beams of detection and motion can only be detected in unob-
structed areas covered by these beams. They cannot detect motion
which occurs behind walls, ceilings, floor, closed doors, glass parti-
tions, glass doors or windows. Any type of tampering whether inten-
tional or unintentional such as masking, painting, or spraying of any
material on the lenses, mirrors, windows or any other part of the
detection system will impair its proper operation.
Passive infrared motion detectors operate by sensing changes in tem-
perature. However their effectiveness can be reduced when the ambi-
ent temperature rises near or above body temperature or if there are
intentional or unintentional sources of heat in or near the detection
area. Some of these heat sources could be heaters, radiators, stoves,
barbecues, fireplaces, sunlight, steam vents, lighting and so on.
Power Failure
Control units, intrusion detectors, smoke detectors and many other
security devices require an adequate power supply for proper opera-
tion. If a device operates from batteries, it is possible for the batteries
to fail. Even if the batteries have not failed, they must be charged, in
good condition and installed correctly. If a device operates only by
AC power, any interruption, however brief, will render that device
inoperative while it does not have power. Power interruptions of any
length are often accompanied by voltage fluctuations which may
damage electronic equipment such as a security system. After a
power interruption has occurred, immediately conduct a complete
system test to ensure that the system operates as intended.
Security and Insurance
Regardless of its capabilities, an alarm system is not a substitute for
property or life insurance. An alarm system also is not a substitute
for property owners, renters, or other occupants to act prudently to
prevent or minimize the harmful effects of an emergency situation.
Smoke Detectors
Smoke detectors that are a part of this system may not properly alert
occupants of a fire for a number of reasons, some of which follow.
The smoke detectors may have been improperly installed or posi-
tioned. Smoke may not be able to reach the smoke detectors, such as
when the fire is in a chimney, walls or roofs, or on the other side of
closed doors. Smoke detectors may not detect smoke from fires on
another level of the residence or building.
Every fire is different in the amount of smoke produced and the rate
of burning. Smoke detectors cannot sense all types of fires equally
well. Smoke detectors may not provide timely warning of fires
caused by carelessness or safety hazards such as smoking in bed, vio-
lent explosions, escaping gas, improper storage of flammable materi-
als, overloaded electrical circuits, children playing with matches, or
arson.
Even if the smoke detector operates as intended, there may be cir-
cumstances when there is insufficient warning to allow all occupants
to escape in time to avoid injury or death.
Telephone Lines
If telephone lines are used to transmit alarms, they may be out of ser-
vice or busy for certain periods of time. Also an intruder may cut the
telephone line or defeat its operation by more sophisticated means
which may be difficult to detect.
Warning Devices
Warning devices such as sirens, bells, horns, or strobes may not warn
people or waken someone sleeping if there is an intervening wall or
door. If warning devices are located on a different level of the resi-
dence or premise, then it is less likely that the occupants will be
alerted or awakened. Audible warning devices may be interfered
with by other noise sources such as stereos, radios, televisions, air
conditioners, other appliances, or passing traffic. Audible warning
devices, however loud, may not be heard by a hearing-impaired per-
son.

1
General Internet Alarm Communicator Installation Guide
IMPORTANT
This installation manual shall be used in conjunction with the control panel manual. All the safety
instructions specified within that manual shall be observed. The control panel is referenced as the
“panel” throughout this document. This installation guide provides the basic wiring, programming
and troubleshooting information. Use this guide in conjunction with the Installation Manual avail-
able online from the DSC website at www.dsc.com.
The Ethernet communicator is a fixed, wall-mounted unit, and shall be installed in the location
specified in these instructions.The equipment enclosure must be fully assembled and closed, with
all the necessary screws/tabs, and secured to a wall before operation. Internal wiring must be
routed in a manner that prevents:
• Excessive strain on wire and on terminal connections,
• Interference between power limited and non power limited wiring,
• Loosening of terminal connections, or
• Damage of conductor insulation.
WARNING: Never install this equipment during a lightning storm.
Safety Information
The installer must instruct the system user on each of the following:
• Do not attempt to service this product. Opening or removing covers may expose the user to
dangerous voltages or other risks.
• Any servicing shall be referred to service persons only.
• Use authorized accessories only with this equipment.
• Do not stay close to the equipment during device operation.
Model Information
This manual covers the following model of alarm communicator: TL280 and TL280R. References
to model TL280(R) throughout this manual applies to all specified models unless stated differ-
ently. Models ending in “R” include a built-in RS-422 interface for connecting to local third party
applications.
TL280(R): Is an Ethernet alarm communicator that sends alarm communication to Sur-Gard Sys-
tem I-IP, II, III (SG-DRL3IP), IV (SG-DRL4IP), and 5 (SG-DRL5IP) central station receivers
through Ethernet/Internet.
The communicator can be used as either a backup or primary communicator. The communicator
supports Internet Protocol (IP) transmission of panel and communicator events over Internet.
Panel Mounting
The following communicators are compatible with HS2016, HS2032, HS2064, and HS2128 pan-
els:
•TL280
Features
• 128-bit AES encryption via Ethernet/Internet (NIST validation certificate number 2645).
• Ethernet LAN/WAN 10/100 BASE-T.
• Individual Internet periodic test transmission.
• Integrated call routing.
• Visual Verification (Requires Sur-Gard System 5 Receiver)
• Remote firmware upgrade capability of the communicator and panel firmware via Internet.
• Panel remote uploading/downloading support via Internet.
• PC-LINK connection.
• SIA and Contact ID (CID) formats supported.
• Trouble display LEDs.
• Supervision heartbeats sent via Internet.
GENERAL

2
General Internet Alarm Communicator Installation Guide
EN50131-1 Installation Requirements
For EN50131-1 compliant installations, the following programming options shall be set as
described.
Supervision Heartbeat (required for ATS4 and ATS5):
•[851][004] set to 0087h (135s heartbeat).
NOTE: The compatible receiver at ARC location shall have supervision window programmed for
1800s (ATS4) or 180s (ATS 5).
•[851][005] options 1 and 3 shall be enabled
Test transmission (required for ATS3):
• [851] System test options [026] and [027] shall be enabled (FF) for the communication paths
available.
•[851][124] and [125] shall be programmed with time of day for test transmission and 1440 min-
utes (24h) for test transmission cycle
Configuration of communication paths (all ATS classes)
•[300][001] select option 02 for auto routing (this will allow transmission of the events over all
available communication paths in the system)
•[380] enable option 5 (YES) for parallel transmission over all available communication paths
(if redundant configuration is desired)
•[382] enable option 5 (YES) this will enable Alternate communicator
•[384] enable the desired back-up configuration (receiver 2 back-up for receiver 1 or receiver 3
back-up for receiver 1).
Technical Specifications, Ratings and Compatibility
NOTE: Enter [*][8][Installer Code][900] at keypad to view the panel version number.
Table 1: Communicator Ratings
Model TL280(R)
Power Supply Ratings
Input Voltage
10.8-12.5 VDC
Power is supplied from the panel’s PC-Link header or a
PCL-422 module in remote cabinet installations. In
remote cabinet installations, the PCL-422 module located
with the communicator is powered by either an HSM2204
or an HSM2300. Refer to the PCL-422 installation
instructions for details.
Current Consumption
Current 100mA @ 13.66V
Environmental Specifications
Operating Temperature -10°C to 55°C
Humidity 5% ~ 93% relative humidity, non-condensing
Mechanical Specifications
Board Dimensions (mm) 100 × 150 × 15
Weight (grams) with bracket 290
Table 2: Compatible Receivers, and Panels
Communicator Receiver/
Panel Description
TL280
Receiver
• Sur-Gard System I Receiver, version 1.13+
• Sur-Gard System II Receiver, version 2.10+
• Sur-Gard SG-DRL3-IP, version 2.30+ (for Sur-Gard System III Receiver)
• Sur-Gard SG-DRL4-IP version 1.20+ (for Sur-Gard System IV Receiver)
• Sur-Gard SG-DRL5-IP version 1.00+ (for Sur-Gard System 5 Receiver)
Panel
• HS2016
• HS2032
• HS2064
• HS2128

3
Communicator Installation Configuration Internet Alarm Communicator Installation Guide
This Ethernet Communicator shall be installed by service persons only (service person is defined
as a person having the appropriate technical training and experience necessary to be aware of haz-
ards to which that person may be exposed to in performing a task and can also take measures to
minimize the risks to that person or other persons). The Communicator shall be installed and used
within an environment that provides the pollution degree max 2, overvoltages category II, in non-
hazardous, indoor locations only. This manual shall be used with the installation manual of the
panel which is connected to the Ethernet communicator. All instructions specified within the panel
manual must be observed.
All the local rules imposed by local electrical codes shall be observed and respected during instal-
lation.
Installing Communicator with HS2016, HS2032, HS2064, and
HS2128 Panel
1. To assemble supplied mounting bracket, perform the following: (see Figure 1 ).
a. Remove the 4 white plastic standoffs
from the bag provided with the com-
municator kit.
b. Insert the 4 standoffs through the back
of the mounting bracket, into the holes
at each corner.
c. Place the bracket on a flat, solid sur-
face. Hold the communicator compo-
nent side up and orient the 4 holes on
the communicator with the 4 standoffs
protruding from the bracket. Push the
communicator firmly and evenly onto
the standoffs until it is securely
attached to the mounting bracket.
d. Remove the panel front cover.
e. Remove and discard the circular knockout located
in the top-right section of the panel.
2. Install the Communicator into the panel:
a. Attach one end of the PC-LINK cable to the panel
PC-LINK header on the panel (red wire goes on
the right-hand pin of the panel PCLINK_2 header
(see Figure 3)).
b. Insert the assembled communicator into the panel.
c. Locate the screw hole on the right side wall of the
panel (see Figure 2 (screw)). Line up the assem-
bled communicator with the right side wall of the
panel and, using the screw provided, secure the
mounting bracket to the panel.
d. Attach the other end of the PC-LINK cable to the
communicator (red wire goes on the right-hand pin
of the communicator PC-LINK header (see Fig-
ure 3)).
e. Using light pressure (finger tight only), attach the supplied white quad band whip antenna to
the threaded antenna connection point at top of the panel.
WARNING! - Modules are power limited. Do not route any wiring over the circuit board.
Maintain at least 1in. (25.4mm) separation between circuit board and wiring. A minimum
of ¼ in. (7mm) separation must be maintained at all points between non-power limited
wiring and power limited wiring.
3. To electrically connect the communicator to the panel, perform the following steps (see Figure 3).
COMMUNICATOR INSTALLATION CONFIGURATION
INSTALLING ETHERNET COMMUNICATOR IN PANEL
Mounting
Holes
Mounting Holes
Mounting Plate
Communicator
Board
Mounting
Plate
Stand Off
Figure 1:Communicator Mounting Bracket
PC-Link
cable connector
screw
GSM Radio
RJ-45
UA601
HS2016/2032/2064/2128
Figure 2:HS2016/2032/2064/2128 Control Panel

4
Installing Ethernet Communicator in Panel Internet Alarm Communicator Installation Guide
a. Disconnect both AC power and battery connections from the panel, and disconnect tele-
phone line.
4. Install the RS-422 connections (R models only). If using the communicator with a 3rd party
device, wire the connections as per the table below:
NOTE: The GND connection is optional. DSC recommends connecting GND wire at both ends.
Install Network Cable
1. Route the CAT 5 Ethernet cable through back of the panel and plug it into the communicator’s
RJ45 jack.
2. Perform the following steps for initial power on of the panel with communicator installed:
a. Reconnect the AC power, telephone line, and battery +connector to the panel.
(The communicator and panel will power up together).
b. Observe that the communicator’s red and yellow LEDs are flashing together while it initial-
izes. The red and yellow LEDs will continue to flash until the communicator has success-
fully communicated to all programmed receivers. If this is the first time the communicator
has been powered up, the module will not be able to initiate communication until it has been
programmed.
NOTE: Initialization may take several minutes to complete. Red and yellow LEDs will flash
together during initialization. Do not continue to next step until the red and yellow LEDs
have stopped flashing. (If only the yellow LED is flashing, there is a communicator trou-
ble). Correct trouble indicated by flashes on yellow LED before continuing. (for trouble-
shooting assistance see Table 6 ).
3. Mount the panel in location.
Table 3: RS-422 Connections
3rd Party Device Communicator
TX+ RX+
TX- RX-
RX+ TX+
RX- TX-
GND (Optional) GND

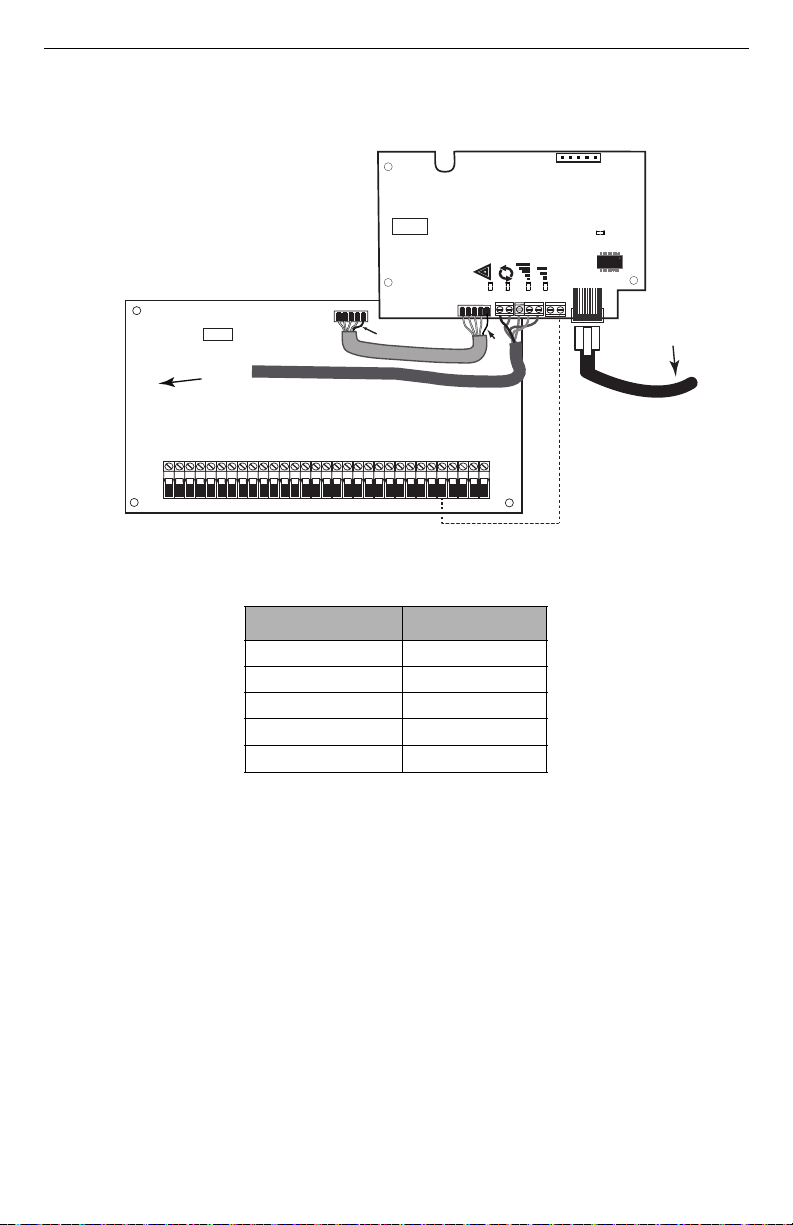

Figure 3:Communicator Wiring Diagram
AUDIO/DEFAULT
DSC
UA601
PC-LINK
COM
TL280(R)
AC AC Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8
AUX+
BELL +
PGM1 PGM3
RING T-1
HS2016/2032/2064/2128
UA621
Input Ratings:
+10.8V ~ +12.5 VDC
100mA
DSC Panel min. power requirements:
- 16.5 VAC 40 VA transformer;
- 12 VDC 7Ah battery
Jumper pins 4 and 5
to reset.
1
From NID
TL2803G(R)
Use only CAT5
Supervised
RJ-45
GRN YEL
TIP R-1
BLK
RED AUX -
BELL - EGND
TX+
GND
TX-
RX+ RX-
SHLD
Network Link
YELLOW
PGM2 PGM4
Maximum cable length
100 m (328 ft)
PCLINK_2
Red
Red
RS-422
To 3rd party device

5
Initial Panel Programming Internet Alarm Communicator Installation Guide
HS2016/2032/2064/2128 Initial Programming
Please refer to the panel manual section ‘Alternate Communicator Set-up’ for details.
1. In panel section [ 377 ] ‘Communication Variables’, subsection [002] ‘Communication Delays’,
sub-subsection
[1] ‘Communication Delay’, program 060 (seconds).
2. In panel section [382] ‘Communicator Option 3’ set option [5] ON.
3. In panel sections [300] ‘Panel/Receiver Communication Paths’, subsections [001] to [004],
program the subsection with 02 to 06.
NOTE: Refer to panel manual for additional information.
4. In panel section [350] ‘Communication Formats’, program the communication format as: CID
(03) or SIA FSK (04).
5. In panel sections [311] - [318] ‘Partition Call Directions’, program the call direction options for
the system.
6. In panel section [401] ‘DLS/SA Options’, set toggle option [2] ‘User Enable DLS’ to ON in
order to perform panel DLS session through Ethernet.
NOTE: Before leaving the premises, the installer should verify all programmed communications
paths. See programming options section [851][901] to send immediate test transmissions.
Communicator Troubles displayed on a HS2016/2032/2064/2128
The communication trouble is the only trouble that will appear on the keypad Liquid Crystal Dis-
play (LCD) when encountered by a communicator installed in a HS2016/2032/2064/2128. For
more information about the trouble on the communicator module refer to the panel event buffer or
by accessing *2 to view the individual trouble types.
The communicator has 2 on-board LED indicators: a yellow trouble LED and a red network con-
nection status LED.
Yellow Trouble LED
This yellow LED will flash to indicate a trouble on the unit. The number of flashes indicates the
type of trouble. See the table below for the coded flashes and the conditions which will activate the
trouble status LED.
NOTE: Only the highest priority trouble (2 flashes is the highest priority trouble) is indicated.
When this trouble is restored, the next highest trouble will indicate, if present. This will
continue until all troubles have been cleared (yellow LED is not flashing).
Red Network Connection Status LED
BLINKING: Indicates communications in progress.
INITIAL PANEL PROGRAMMING
Table 4: Communicator Path Programming
Value Communication Method
02 Auto Routing
03 Ethernet 1
04 Ethernet 2
COMMUNICATOR STATUS LEDS
Table 5: Yellow Trouble Status LED
# of
Flashes Trouble # of Flashes Trouble
2 Panel Supervision Trouble 8 Receiver Supervision Trouble
4 Not Applicable 9 FTC Trouble
5 Not Applicable 10 Not Applicable
6 Ethernet Trouble 12 Module Configuration Trouble
7 Receiver Not Available Trouble

6
Communicator Troubleshooting Internet Alarm Communicator Installation Guide
• Once quickly for outgoing Ethernet transmission.
• Twice quickly to indicate incoming Ethernet ACK/NACK.
OFF: This is the normal state of the red network connection status LED. There are no network
connection issues present.
ON: There is a problem with the Ethernet network connection. LED will be ON if any of the fol-
lowing occur:
• Ethernet cable is not connected,
• DHCP configuration times out.
Network Activity LED (Red)
•Ethernet Activity: Red LED will blink quickly once for transmit, or twice for receive.
The programming sections described in this document can be viewed at the keypad LCD. To start
programming enter: [*][8][installer code] [851] [section number], where section number is the 3
digit section number referenced in this section. The programming worksheets at the end of this
document can be used to record the new values when programming changes have been made from
the default values.
COMMUNICATOR TROUBLESHOOTING
Table 6: Trouble indications
Trouble
indication
Trouble
Indicator
Digit
Possible
Causes Trouble Possible Solution
No Indication N/A No Power
• Check the power connections between the panel and the communicator.
• Confirm PC-LINK cable is properly installed between communicator and panel.
Yellow LED –
2 Flashes 02
Panel
Supervision
Trouble
• Check section [382] toggle option[5] is ON (Alternate Communicator Enabled).
• Ensure the PC-LINK cable between the panel and communicator is connected
properly (not reversed) and is securely in place.
Yellow LED –
6 Flashes 06 Ethernet Trouble
• Check with your ISP to confirm Internet service is active in your area.
• Ensure your Ethernet cable is securely inserted into the RJ45 jack of the commu-
nicator and the hub/router/switch.
• Check the link light on the hub/router/switch is ON. If link light is OFF, start the
hub/router/switch.
• If DHCP is used, ensure that the unit has an assigned IP address from the server.
In Section [851] [992] verify a valid IP address is programmed. If not, contact
the network administrator.
• If problem persists, replace the Ethernet cable and RJ45 connector.
Yellow LED –
7 Flashes 07 Receiver Not Available
• Ensure that the Ethernet path has Internet connectivity.
• If using a static IP address, confirm that the gateway and subnet mask are
entered correctly.
• If the network has a firewall, ensure the network has the programmed
outgoing ports open (default UDP port 3060 and port 3065).
• Ensure that all the receivers are programmed for DHCP or have the proper IP
address and port number.
Yellow LED –
8 Flashes 08
Receiver
Supervision
Trouble
• This trouble is indicated when supervision is enabled and the unit is not able to
successfully communicate with the receiver.
• If this trouble persists, contact your central station.
Yellow LED -
9 Flashes 09 FTC Trouble
• The unit has exhausted all communications attempts to all programmed receiv-
ers for events generated by the communicator.
• Restart the system, if trouble persists, contact your dealer.
Yellow LED –
12 Flashes 0C
Module
Configuration
Trouble
• This indication appears when section [021] system account code or
sections [101] or [111] receiver account code have not been programmed.
Ensure that a valid account code has been entered in these sections.
Red and Yellow
LEDs flashing
together
N/A
Initialization
Sequence
• The unit is still initializing please wait while the unit gets its programming and
establishes a connection to all programmed receivers.
Note: This process may take several minutes to complete.
Boot Loader
Failed
• If the initialization sequence is taking more than several minutes, the boot loader
might have failed.
• Confirm that the boot loader has failed by entering communicator programming
[*][8][installer code][851] .
• If access is granted, continue waiting for the initialization sequence to complete.
• If access is denied (long error tone), disconnect power from, then reconnect
power to the communicator module.
ETHERNET PROGRAMMING OPTIONS

7
Ethernet Programming Worksheets Internet Alarm Communicator Installation Guide
System Options
[001] Ethernet IP Address
Default (000.000.000.000)
|____|____|____||____|____|____||____|____|____||____|____|____|
[002] Ethernet IP Subnet Mask
Default (255.255.255.000)
|____|____|____||____|____|____||____|____|____||____|____|____|
[003] Ethernet Gateway IP Address
Default (000.000.000.000)
|____|____|____||____|____|____||____|____|____||____|____|____|
[004] Receiver Supervision Interval
Default (0087/135) Valid range: 0000 - FFFF.
|____|____|____|____|
[005] System Toggle Options
|____| [1] Ethernet Receiver 1 Supervised Default (OFF).
|____| [2] Reserved.
|____| [3] Supervision Type Default (OFF).
|____| [4] Reserved.
|____| [5] Reserved.
|____| [6] Remote Firmware Upgrade Default (ON).
|____| [7] Alternate Test Transmission Default (OFF).
|____| [8] Reserved.
[006] System Toggle Options 2
|____| [1] Ethernet Receiver 1 Enabled Default (ON).
|____| [2] Ethernet Receiver 2 Enabled Default (ON).
[007] DNS Server IP 1
Default (000.000.000.000)
|____|____|____||____|____|____||____|____|____||____|____|____|
[008] DNS Server IP 2
Default (000.000.000.000)
|____|____|____||____|____|____||____|____|____||____|____|____|
Programming Options
[010] System Toggle Options 3
|____| [1] Reserved.
|____| [2] Visual Verification Default (OFF).
|____| [3] Reserved.
[011] Installer Code
Default (CAFE) Valid range: 0000 - FFFF.
|____|____|____|____|
[012] DLS Incoming Port
Default (0BF6/3062) Valid range: 0000 - FFFF.
|____|____|____|____|
[013] DLS Outgoing Port
Default (0BFA/3066) Valid range: 0000 - FFFF.
|____|____|____|____|
[015] DLS Call-Up IP
Default (000.000.000.000)
|____|____|____||____|____|____||____|____|____||____|____|____|
[016] DLS Call-Up Port
Default (0000) Valid range: 0000 - FFFF.
|____|____|____|____|
[020] Time Zone
Default (00) Valid range: 00 - 99.
|____|____|____|____|
[021] Account Code
Default (FFFFFF) Valid range: 000001 - FFFFFE.
|____|____|____|____|____|____|
[022] Communications Format
Default (04) Program 03 (CID), 04 (SIA).
|____|____|
[023] Panel Absent Trouble
Default (FF); Program 00 disable or FF enable.
|____|____|
[024] Panel Absent Trouble Restore
Default (FF) Program 00 disable or FF enable.
|____|____|
System Test Options
[026] Ethernet 1 Transmission
Default (FF) Program 00 disable or FF enable.
|____|____|
[027] Ethernet 2 Transmission
Default (00) Program 00 disable or FF enable.
|____|____|
[030] FTC Restore
Default (FF) Program 00 disable or FF enable.
|____|____|
[033] Communicator Firmware Update
Begin
Default (FF) Program 00 disable or FF enable.
|____|____|
[034] Communicator Firmware Update
Successful
Default (FF) Program 00 disable or FF enable.
|____|____|
[035] Panel Firmware Update Begin
Default (FF) Program 00 disable or FF enable.
|____|____|
ETHERNET PROGRAMMING WORKSHEETS

8
Ethernet Programming Worksheets Internet Alarm Communicator Installation Guide
[036] Panel Firmware Update
Successful
Default (FF) Program 00 disable or FF enable.
|____|____|
[037] Panel Firmware Update Fail
Default (FF) Program 00 disable or FF enable.
|____|____|
[095] SA Incoming Local Port
Default (0000) Valid range: 0000 - FFFF.
|____|____|____|____|
[096] SA Outgoing Local Port
Default (0000) Valid range: 0000 - FFFF.
|____|____|____|____|
[097] SA Call Up IP
Default (000.000.000.000)
|____|____|____|____|
[098] SA Call Up Port
Default (0000) Valid range: 0000 - FFFF.
|____|____|____|____|
[099] SA Access Code
Default (FFFFFFFF) Valid range: 00000000 - FFFFFFFF.
|____|____|____|____|____|____|____|____|
Ethernet Receiver 1 Options
[101] Ethernet Receiver 1 Account Code
Default (0000000000)
Valid range: 0000000001 - FFFFFFFFFE.
|____|____|____|____|____|____|____|____|____|____|
[102] Ethernet Receiver 1 DNIS
Default (000000) Valid range: 000000 - FFFFFF.
|____|____|____|____|____|____|
[103] Ethernet Receiver 1 Address
Default (127.000.000.001)
|____|____|____||____|____|____||____|____|____||____|____|____|
[104] Ethernet Receiver 1 UDP Remote
Port
Default (0BF5/3061) Valid range: 0000 - FFFF.
|____|____|____|____|
[105] Ethernet Receiver 1 UDP Local
Port
Default (0BF4/3060)Valid range: 0000 - FFFF.
|____|____|____|____|
[106] Ethernet Receiver 1 Domain Name
Default ( ) 32 ASCII characters.
________________________________
Ethernet Receiver 2 Options
[111] Ethernet Receiver 2 Account Code
Default (0000000000)
Valid range: 0000000001 - FFFFFFFFFE.
|____|____|____|____|____|____|____|____|____|____|
[112] Ethernet Receiver 2 DNIS
Default (000000) Valid range: 000000 - 0FFFFF.
|____|____|____|____|____|____|
[113] Ethernet Receiver 2 Address
Default (000.000.000.000)
|____|____|____||____|____|____||____|____|____||____|____|____|
[114] Ethernet Receiver 2 UDP Remote
Port
Default (0BF5/3061) Valid range: 0000 - FFFF.
|____|____|____|____|
[115] Ethernet Receiver 2 UDP Local
Port
Default (0BF9/3065) Valid range: 0000 -FFFF.
|____|____|____|____|
[116] Ethernet Receiver 2 Domain Name
Default ( )
____________________________________
Ethernet Options
[124] Ethernet Test Transmission Time
Default (9999) Valid: 00-23(HH); 00-59(MM)
|____|____|____|____|
[125] Ethernet Test Transmission Cycle
Default (000000)
Valid range: 000000 - 999999 minutes.
|____|____|____|____|____|____|
[663] Interactive Toggle Option
|____| [1] Interactive Over Serial (ON).
|____| [2] Reserved.
|____| [3] Reserved.
|____| [4] Reserved.
|____| [5] Interactive Protocol ITV2 (ON).
|____| [6] Reserved.
|____| [7] Reserved.
|____| [8] Reserved.
Receiver Diagnostic Testing
[901] Diagnostic Test Transmission
|___| [1] Ethernet 1 Default (OFF).
|___| [2] Ethernet 2 Default (OFF).

9
Ethernet Programming Worksheets Internet Alarm Communicator Installation Guide
System Information (Read Only)
[983] Firmware Update Diagnostics
Section
[984] Communicator Status
[987] Language Version
[988] DNS 1 IP Address
|____|____|____||____|____|____||____|____|____||____|____|____|
[989] DNS 2 IP Address
|____|____|____||____|____|____||____|____|____||____|____|____|
[990] Boot Loader Version
|____|____|____|____|____|____|____|____|
[991] Firmware Version
|____|____|____|____|____|____|____|____|
[992] Ethernet IP Address
|____|____|____||____|____|____||____|____|____||____|____|____|
[993] Ethernet Gateway Address
|____|____|____||____|____|____||____|____|____||____|____|____|
[998] MAC Address
| ____|____|____|____|____|____||____|____|____|____|____|____|
System Reset Defaults
[999] Software Default
Default (99); Valid entries are 00 or 55
|____|____|

10
Ethernet Programming Worksheets Internet Alarm Communicator Installation Guide
LIMITED WARRANTY
Digital Security Controls (DSC) warrants the original pur-
chaser that for a period of twelve (12) months from the date
of purchase, the product shall be free of defects in materials
and workmanship under normal use. During the warranty
period, Digital Security Controls shall, at its option, repair or
replace any defective product upon return of the product to
its factory, at no charge for labour and materials. Any
replacement and/or repaired parts are warranted for the
remainder of the original warranty or ninety (90) days,
whichever is longer. The original purchaser must promptly
notify Digital Security Controls in writing that there is defect
in material or workmanship, such written notice to be
received in all events prior to expiration of the warranty
period. There is absolutely no warranty on software and all
software products are sold as a user license under the terms
of the software license agreement included with the product.
The Customer assumes all responsibility for the proper selec-
tion, installation, operation and maintenance of any products
purchased from DSC. Custom products are only warranted to
the extent that they do not function upon delivery. In such
cases, DSC can replace or credit at its option.
International Warranty
The warranty for international customers is the same as for
any customer within Canada and the United States, with the
exception that Digital Security Controls shall not be respon-
sible for any customs fees, taxes, or VAT that may be due.
Warranty Procedure
To obtain service under this warranty, please return the
item(s) in question to the point of purchase. All authorized
distributors and dealers have a warranty program. Anyone
returning goods to Digital Security Controls must first obtain
an authorization number. Digital Security Controls will not
accept any shipment whatsoever for which prior authoriza-
tion has not been obtained.
Conditions to Void Warranty
This warranty applies only to defects in parts and workman-
ship relating to normal use. It does not cover:
• damage incurred in shipping or handling;
• damage caused by disaster such as fire, flood, wind, earth-
quake or lightning;
• damage due to causes beyond the control of Digital Secu-
rity Controls such as excessive voltage, mechanical shock
or water damage;
• damage caused by unauthorized attachment, alterations,
modifications, or foreign objects;
• damage caused by peripherals (unless such peripherals
were supplied by Digital Security Controls);
• defects caused by failure to provide a suitable installation
environment for the products;
• damage caused by use of the products for purposes other
than those for which it was designed;
• damage from improper maintenance; or
• damage arising out of any other abuse, mishandling or
improper application of the products.
Items Not Covered by Warranty
In addition to the items which void the Warranty, the follow-
ing items shall not be covered by Warranty: freight cost to the
repair centre; products which are not identified with DSC's
product label and lot number or serial number; or products
disassembled or repaired in such a manner as to adversely
affect performance or prevent adequate inspection or testing
to verify any warranty claim.
Access cards or tags returned for replacement under warranty
will be credited or replaced at DSC's option. Products not
covered by this warranty, or otherwise out of warranty due to
age, misuse, or damage shall be evaluated, and a repair esti-
mate shall be provided. No repair work will be performed
until a valid purchase order is received from the Customer
and a Return Merchandise Authorisation number (RMA) is
issued by DSC's Customer Service.
Digital Security Controls’ liability for failure to repair the
product under this warranty after a reasonable number of
attempts will be limited to a replacement of the product, as
the exclusive remedy for breach of warranty. Under no cir-
cumstances shall Digital Security Controls be liable for any
special, incidental, or consequential damages based upon
breach of warranty, breach of contract, negligence, strict lia-
bility, or any other legal theory. Such damages include, but
are not limited to, loss of profits, loss of the product or any
associated equipment, cost of capital, cost of substitute or
replacement equipment, facilities or services, down time,
purchaser’s time, the claims of third parties, including cus-
tomers, and injury to property. The laws of some jurisdictions
limit or do not allow the disclaimer of consequential dam-
ages. If the laws of such a jurisdiction apply to any claim by
or against DSC, the limitations and disclaimers contained
here shall be to the greatest extent permitted by law. Some
states do not allow the exclusion or limitation of incidental or
consequential damages, so that the above may not apply to
you.
Disclaimer of Warranties
This warranty contains the entire warranty and shall be in
lieu of any and all other warranties, whether expressed or
implied (including all implied warranties of merchantability
or fitness for a particular purpose) and of all other obligations
or liabilities on the part of Digital Security Controls Digital
Security Controls neither assumes responsibility for nor
authorizes any other person purporting to act on its behalf to
modify or to change this warranty, nor to assume for it any
other warranty or liability concerning this product. This dis-
claimer of warranties and limited warranty are governed by
the laws of the province of Ontario, Canada. Digital Security
Controls recommends that the entire system be completely
tested on a regular basis. However, despite frequent testing,
and due to, but not limited to, criminal tampering or electri-
cal disruption, it is possible for this product to fail to perform
as expected.
Out of Warranty Repairs
Digital Security Controls will at its option repair or replace
out-of-warranty products which are returned to its factory
according to the following conditions. Anyone returning
goods to Digital Security Controls must first obtain an autho-
rization number. Digital Security Controls will not accept
any shipment whatsoever for which prior authorization has
not been obtained. Products which Digital Security Controls
determines to be repairable will be repaired and returned. A
set fee which Digital Security Controls has predetermined
and which may be revised from time to time, will be charged
for each unit repaired.

11
Ethernet Programming Worksheets Internet Alarm Communicator Installation Guide
END USER LICENCE AGREEMENT
IMPORTANT - READ CAREFULLY: DSC Software purchased
with or without Products and Components is Copyrighted and is
purchased under the following license terms:
This End-User License Agreement (EULA) is a legal agreement
between You (the company, individual or entity who acquired the
SOFTWARE and any related HARDWARE) and Digital Security
Controls (DSC), a division of Tyco Safety Products Canada Ltd., the
manufacturer of the integrated security systems and the developer of
the software and any related products or components (‘HARD-
WARE’) which you acquired.
If the DSC software product (‘SOFTWARE PRODUCT’ or ‘SOFT-
WARE’) is intended to be accompanied by HARDWARE, and is
NOT accompanied by new HARDWARE, You may not use, copy or
install the SOFTWARE PRODUCT. The SOFTWARE PRODUCT
includes computer software, and may include associated media,
printed materials, and ‘online’ or electronic documentation.
Any software provided along with the SOFTWARE PRODUCT that
is associated with a separate EULA is licensed to You under the
terms of that license agreement.
By installing, copying, downloading, storing, accessing, or otherwise
using the SOFTWARE PRODUCT, You agree unconditionally to be
bound by the terms of this EULA, even if this EULA is deemed to be
a modification of any previous arrangement or contract. If You do
not agree to the terms of this EULA, DSC is unwilling to license the
SOFTWARE PRODUCT to You, and You have no right to use it.
SOFTWARE PRODUCT LICENSE
The SOFTWARE PRODUCT is protected by copyright laws and
international copyright treaties, as well as other intellectual property
laws and treaties. The SOFTWARE PRODUCT is licensed, not sold,
under the following terms:.
GRANT OF LICENSE This EULA grants You the following rights:
Software Installation and Use - For each license You acquire, You
may have only one copy of the SOFTWARE PRODUCT installed.
Storage/Network Use - The SOFTWARE PRODUCT may not be
installed, accessed, displayed, run, shared or used concurrently on or
from different computers, including a workstation, terminal or other
digital electronic device (‘Device’). In other words, if You have sev-
eral workstations, You will have to acquire a license for each work-
station where the SOFTWARE will be used.
Backup Copy - You may make back-up copies of the SOFTWARE
PRODUCT, but You may only have one copy per license installed at
any given time. You may use the back-up copy solely for archival
purposes. Except as expressly provided in this EULA, You may not
otherwise make copies of the SOFTWARE PRODUCT, including the
printed materials accompanying the SOFTWARE.
DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS
Limitations on Reverse Engineering, Decompilation and Disas-
sembly - You may not reverse engineer, decompile, or disassemble
the SOFTWARE PRODUCT, except and only to the extent that such
activity is expressly permitted by applicable law notwithstanding this
limitation. You may not make any changes or modifications to the
Software, without the written permission of an officer of DSC. You
may not remove any proprietary notices, marks or labels from the
Software Product. You shall institute reasonable measures to ensure
compliance with the terms and conditions of this EULA.
Separation of Components - The SOFTWARE PRODUCT is
licensed as a single product. Its component parts may not be sepa-
rated for use on more than one HARDWARE unit.
Single INTEGRATED PRODUCT - If You acquired this SOFT-
WARE with HARDWARE, then the SOFTWARE PRODUCT is
licensed with the HARDWARE as a single integrated product. In this
case, the SOFTWARE PRODUCT may only be used with the
HARDWARE as set forth in this EULA.
Rental - You may not rent, lease or lend the SOFTWARE PROD-
UCT. You may not make it available to others or post it on a server or
web site.
Software Product Transfer - You may transfer all of Your rights
under this EULA only as part of a permanent sale or transfer of the
HARDWARE, provided You retain no copies, You transfer all of the
SOFTWARE PRODUCT (including all component parts, the media
and printed materials, any upgrades and this EULA), and provided
the recipient agrees to the terms of this EULA. If the SOFTWARE
PRODUCT is an upgrade, any transfer must also include all prior
versions of the SOFTWARE PRODUCT.
Termination - Without prejudice to any other rights, DSC may ter-
minate this EULA if You fail to comply with the terms and condi-
tions of this EULA. In such event, You must destroy all copies of the
SOFTWARE PRODUCT and all of its component parts.
Tra de mark s - This EULA does not grant You any rights in connec-
tion with any trademarks or service marks of DSC or its suppliers.
COPYRIGHT - All title and intellectual property rights in and to the
SOFTWARE PRODUCT (including but not limited to any images,
photographs, and text incorporated into the SOFTWARE PROD-
UCT), the accompanying printed materials, and any copies of the
SOFTWARE PRODUCT, are owned by DSC or its suppliers. You
may not copy the printed materials accompanying the SOFTWARE
PRODUCT. All title and intellectual property rights in and to the
content which may be accessed through use of the SOFTWARE
PRODUCT are the property of the respective content owner and may
be protected by applicable copyright or other intellectual property
laws and treaties. This EULA grants You no rights to use such con-
tent. All rights not expressly granted under this EULA are reserved
by DSC and its suppliers.
EXPORT RESTRICTIONS - You agree that You will not export or
reexport the SOFTWARE PRODUCT to any country, person, or
entity subject to Canadian export restrictions.
CHOICE OF LAW - This Software License Agreement is gov-
erned by the laws of the Province of Ontario, Canada.
ARBITRATION - All disputes arising in connection with this
Agreement shall be determined by final and binding arbitration in
accordance with the Arbitration Act, and the parties agree to be
bound by the arbitrator’s decision. The place of arbitration shall be
Toronto, Canada, and the language of the arbitration shall be English.
7. LIMITED WARRANTY
NO WARRANTY - DSC provides the SOFTWARE ‘as is’ without
warranty. DSC does not warrant that the SOFTWARE will meet your
requirements or that operation of the SOFTWARE will be uninter-
rupted or error free.
CHANGES IN OPERATING ENVIRONMENT - DSC shall not
be responsible for problems caused by changes in the operating char-
acteristics of the hardware, or for problems in the interaction of the
SOFTWARE with non DSC software or hardware products.
LIMITATION OF LIABILITY; WARRANTY REFLECTS
ALLOCATION OF RISK -In any event, if any statute implies war-
ranties or conditions not stated in this license agreement, entire lia-
bility under any provision of this license agreement shall be limited
to the greater of the amount actually paid by you to license the
SOFTWARE and five Canadian dollars (CAD$5.00). because some
jurisdictions do not allow the exclusion or limitation of liability for
consequential or incidental damages, the above limitation may not
apply to you.
DISCLAIMER OF WARRANTIES - This warranty contains the
entire warranty and shall be in lieu of any and all other warranties,
whether expressed or implied (including all implied warranties of
merchantability or fitness for a particular purpose) and of all other
obligations or liabilities on the part of DSC. DSC makes no other
warranties. DSC neither assumes nor authorizes any other person
purporting to act on its behalf to modify or to change this warranty,
nor to assume for it any other warranty or liability concerning this
SOFTWARE PRODUCT.
EXCLUSIVE REMEDY AND LIMITATION OF WARRANTY -
Under no circumstances shall DSC be liable for any special, inciden-
tal, consequential or indirect damages based upon breach of war-
ranty, breach of contract, negligence, strict liability, or any other
legal theory. such damages include, but are not limited to, loss of
profits, loss of the SOFTWARE or any associated equipment, cost of
capital, cost of substitute or replacement equipment, facilities or ser-
vices, down time, purchasers time, the claims of third parties, includ-
ing customers, and injury to property.
DSC recommends that the entire system be completely tested on a
regular basis. However, despite frequent testing, and due to, but not
limited to, criminal tampering or electrical disruption, it is possible
for this Software Product to fail to perform as expected.

12
Ethernet Programming Worksheets Internet Alarm Communicator Installation Guide
FCC Compliance Statement
CAUTION: Changes or modifications not expressly approved
by the Digital Security Controls could void your authority to
use this equipment.
This equipment has been tested and found to comply with the lim-
its for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a par-
ticular installation. If this equipment does cause harmful
interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
- Re-orient the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician
for help.
The user may find the following booklet prepared by the FCC
useful: ‘How to Identify and Resolve Radio/Television Interfer-
ence Problems’. This booklet is available from the U.S. Govern-
ment Printing Office, Washington D.C. 20402, Stock # 004-000-
00345-4.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
EN50131 Compliant installations
1. The TL280R, TL280 module is monitored by the control panel
and it is programmed via the programming menu (* 8, section
[851] in the control panel. The interface is connected to the PC-
Link bus as shown in the diagram included in this manual.
2. The Ethernet port is protected against surge transients up to
2.5kV and it is immune to conducted and radiated RF fields with
levels up to 10V/m as tested per EN50130-4 Standard.
3. The TL280R, TL280 module conforms with radiated emissions
levels for Class B equipment as per standards EN61000-6-3/
EN55022/CISPR22.
4. The TL280R, TL280 module uses AES128 encryption and
heartbeat supervision for both the Ethernet communication path
and it meets security levels S2 as per EN50136-2-1 (EN50131-1).
It also uses authentication for each message exchanged with the
compatible receiver equipment at ARC and it meets level I2 for
information security.
5. The TL280R, TL280 module has only one communication
path: Ethernet 10/100BaseT using Internet/Intranet network.
TL280 and TL280R have been certified by Telefication in accor-
dance with EN50131-1 requirements for Grade 2, Class II and
ATS Class 3,4,5.

© 2014 Tyco International Ltd. and its Respective Companies. All Rights Reserved.
Toronto, Canada •www.dsc.com
Tech Support: 1-800-387-3630 (CA, US), 905-760-3000
29008729R001
