Dsc Gs2060 User manual

GS2060/GS2065

GPRS/GSM Wireless Alarm Communicator

Transmetteur d'alarme sans fil GPRS/GSM

Comunicador de alarma inalámbrico GPRS/GSM

Comunicador de alarme sem fio GPRS/GSM

TL260GS/TL265GS

Ethernet/Internet and GPRS/GSM Dual-Path Alarm Communicator

Transmetteur d'alarme à double liaison Ethernet/Internet et GPRS/GSM

Comunicador de alarma de doble vía Ethernet/Internet y GPRS/GSM

Comunicador de alarme de bidirecionais com Ethernet/Internet e GPRS/GSM

Warning: This manual contains information on limitations regarding product use and function and information on the

limitations as to liability of the manufacturer.

Attention: Ce manuel contient des informations sur les restrictions concernant le fonctionnement et l’utilisation du

produit et des informations sur les restrictions en ce qui concerne la responsabilité du fabricant. La totalité du manuel

doit être lu attentivement.

Advertencia: Por favor consulte el Manual de Instrucciones del Sistema para más información acerca de las

limitaciones conrelación al uso y funcionamiento del producto e información acerca de las limitaciones como la

responsabilidad del fabricante.

Advertência: Este manual contém informações sobre limitações entes ao uso efuncionamento do produto, e

informações sobre as limitações das responsabilidades dofabricante. Todo o manual deve ser lido atenciosamente.

v1.1

Installation Manual

Manuel d’installation

Manual de instalación

Manual de Instalação

English

Introduction 1

Panel Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Communicator Pre Installation Configuration 2

Installing the Ethernet Cable (TL260GS/TL265GS only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Inserting and Removing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

DLS IV Account Activation (Before Installation) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installing the GSM/ETHERNET Communicator 3

Installing GS2060/TL260GS Communicator with PC1616/1832/1864 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

PC1616/1832/1864 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Communicator Troubles displayed on a PC1616/1832/1864. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installing the GS2065/TL265GS with the PC9155 Panel.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Power Save Feature (GS2065/TL265 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Communicator Troubles displayed on a PC9155 Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Communicator Placement Test 6

Remote Programming 7

Programming via DLS IV: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Programming via Ethernet/Internet: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Communicator Status LEDs 7

Yellow Trouble LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Red Network Connection Status LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

(Green LED 1) (Green LED 2) and (Yellow LED) Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Communicator Reset / Update / Network Data Usage 9

Factory Defaults Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Firmware Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Network Data Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Appendix A: Communicator Troubleshooting 10

End User License Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Español. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Português . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

NOTE:

This document does not include the GPRS/Ethernet Module Programming Worksheets (Panel Section [851]). Refer to DSC Program-

ming Worksheets document- Part Number 29007619R001, included with the Communicator. The installation instructions in this doc-

ument apply to GS2060/GS2065 and TL260GS/TL265GS Communicators only.

IMPORTANT

The GPRS/Ethernet Communicator is fixed, wall-mounted and shall be installed in the position specified in these instructions. The

equipment enclosure must be fully assembled and closed, with all the necessary screws/tabs and secured to a wall before operation.

Internal wiring must be routed in a manner that prevents:

• Excessive strain on wire and on terminal connections,

• Interference between power limited and non power limited wiring,

• Loosening of terminal; connections, or

• Damage of conductor insulation.

WARNING: Never install this equipment during a lightning storm!

The Installer must instruct the System user on each of the following:

• Do not attempt to service this product. Opening or removing covers may expose the user to dangerous voltages or other risks.

• Any servicing shall be referred to trained service personnel only.

• Use authorized accessories only with this equipment.

TABLE OF CONTENTS

WARNING

Please Read Carefully

Note to Installers

This

Warning

contains vital information. As the only individual in

contact with system users, it is the installer’s responsibility to bring

each item in this Warning to the attention of all users of this system.

System Failures

This system has been carefully designed to be as effective as possi-

ble. There are circumstances, however, involving fire, burglary, or

other types of emergencies where it may not provide protection. Any

alarm system of any type may be compromised deliberately or may

fail to operate as expected for a variety of reasons. Some but not all

of these reasons may be:

Access by Intruders

Intruders may enter through an unprotected access point, circum-

vent a sensing device, evade detection by moving through an area of

insufficient coverage, disconnect a warning device, or interfere with

or prevent the proper operation of the system.

Component Failure

Although every effort has been made to make this system as reliable

as possible, the system may fail to function as intended due to the

failure of a component.

Compromise of Radio Frequency (Wireless) Devices

Signals may not reach the receiver under all circumstances which

could include metal objects placed on or near the radio path or delib-

erate jamming or other inadvertent radio signal interference.

Criminal Knowledge

This system contains security features which were known to be

effective at the time of manufacture. It is possible for persons with

criminal intent to develop techniques which reduce the effectiveness

of these features. It is important that your security system be

reviewed periodically to ensure that its features remain effective and

that it is updated or replaced if it is found that it does not provide the

protection expected.

Failure of Replaceable Batteries

This system’s wireless transmitters have been designed to provide

several years of battery life under normal conditions. The expected

battery life is a function of the device environment, usage, and type.

Ambient conditions such as high humidity, high or low temperatures,

or large temperature fluctuations may reduce the expected battery

life. While each transmitting device has a low battery monitor which

identifies when the batteries need to be replaced, this monitor may

fail to operate as expected. Regular testing and maintenance will

keep the system in good operating condition.

Inadequate Installation

A security system must be installed properly in order to provide ade-

quate protection. Every installation should be evaluated by a security

professional to ensure that all access points and areas are covered.

Locks and latches on windows and doors must be secure and oper-

ate as intended. Windows, doors, walls, ceilings and other building

materials must be of sufficient strength and construction to provide

the level of protection expected. A reevaluation must be done during

and after any construction activity. An evaluation by the fire and/or

police department is highly recommended if this service is available.

Inadequate Testing

Most problems that would prevent an alarm system from operating

as intended can be found by regular testing and maintenance. The

complete system should be tested weekly and immediately after a

break-in, an attempted break-in, a fire, a storm, an earthquake, an

accident, or any kind of construction activity inside or outside the

premises. The testing should include all sensing devices, keypads,

consoles, alarm indicating devices, and any other operational

devices that are part of the system.

Insufficient Time

There may be circumstances when the system will operate as

intended, yet the occupants will not be protected from an emergency

due to their inability to respond to the warnings in a timely manner. If

the system is remotely monitored, the response may not occur in

time to protect the occupants or their belongings.

Motion Detectors

Motion detectors can only detect motion within the designated areas

as shown in their respective installation instructions. They cannot

discriminate between intruders and intended occupants. Motion

detectors do not provide volumetric area protection. They have mul-

tiple beams of detection and motion can only be detected in unob-

structed areas covered by these beams. They cannot detect motion

which occurs behind walls, ceilings, floor, closed doors, glass parti-

tions, glass doors or windows. Any type of tampering whether inten-

tional or unintentional such as masking, painting, or spraying of any

material on the lenses, mirrors, windows or any other part of the

detection system will impair its proper operation.

Passive infrared motion detectors operate by sensing changes in

temperature. However their effectiveness can be reduced when the

ambient temperature rises near or above body temperature or if

there are intentional or unintentional sources of heat in or near the

detection area. Some of these heat sources could be heaters, radia-

tors, stoves, barbeques, fireplaces, sunlight, steam vents, lighting

and so on.

Power Failure

Control units, intrusion detectors, smoke detectors and many other

security devices require an adequate power supply for proper opera-

tion. If a device operates from batteries, it is possible for the batter-

ies to fail. Even if the batteries have not failed, they must be charged,

in good condition and installed correctly. If a device operates only by

AC power, any interruption, however brief, will render that device

inoperative while it does not have power. Power interruptions of any

length are often accompanied by voltage fluctuations which may

damage electronic equipment such as a security system. After a

power interruption has occurred, immediately conduct a complete

system test to ensure that the system operates as intended.

Security and Insurance

Regardless of its capabilities, an alarm system is not a substitute for

property or life insurance. An alarm system also is not a substitute

for property owners, renters, or other occupants to act prudently to

prevent or minimize the harmful effects of an emergency situation.

Smoke Detectors

Smoke detectors that are a part of this system may not properly

alert occupants of a fire for a number of reasons, some of which fol-

low. The smoke detectors may have been improperly installed or

positioned. Smoke may not be able to reach the smoke detectors,

such as when the fire is in a chimney, walls or roofs, or on the other

side of closed doors. Smoke detectors may not detect smoke from

fires on another level of the residence or building.

Every fire is different in the amount of smoke produced and the rate

of burning. Smoke detectors cannot sense all types of fires equally

well. Smoke detectors may not provide timely warning of fires

caused by carelessness or safety hazards such as smoking in bed,

violent explosions, escaping gas, improper storage of flammable

materials, overloaded electrical circuits, children playing with

matches or arson.

Even if the smoke detector operates as intended, there may be cir-

cumstances when there is insufficient warning to allow all occu-

pants to escape in time to avoid injury or death.

Telephone Lines

If telephone lines are used to transmit alarms, they may be out of

service or busy for certain periods of time. Also an intruder may cut

the telephone line or defeat its operation by more sophisticated

means which may be difficult to detect.

Warning Devices

Warning devices such as sirens, bells, horns, or strobes may not

warn people or waken someone sleeping if there is an intervening

wall or door. If warning devices are located on a different level of the

residence or premise, then it is less likely that the occupants will be

alerted or awakened. Audible warning devices may be interfered

with by other noise sources such as stereos, radios, televisions, air

conditioners or other appliances, or passing traffic. Audible warning

devices, however loud, may not be heard by a hearing-impaired per-

son.

TGS2060/GS2065: Are General Packet Radio Service/Global System for Mobile (GPRS/GSM) wireless alarm Communicators that send

alarm communication to Sur-Gard System I, II, and III (SG-DRL3IP) central station receivers via a GPRS/GSM digital cellular network.

TL260GS/TL265GS: Are Dual-path GSM/Ethernet alarm Communicators that send alarm communication to Sur-Gard System I, and III

central station receivers through Ethernet/Internet or a GPRS/GSM digital cellular network.

The Communicator can be used as either a backup or primary Communicator. The Communicator supports Internet Protocol (IP) trans-

mission of panel and internal events over Ethernet/Internet and/or GPRS/GSM. The Communicator can provide event notification via

Short Message Service (SMS) and allows SMS interactive via GPRS and Ethernet to 3rd party services using the ITV2 protocol.

The GPRS/GSM performance of the Communicator depends greatly on GSM network coverage and signal strength. It should not be

mounted in the final location without first performing the Communicator Placement Test on page 6 to determine the best location for

radio reception (minimum of one green LED ON). Optional antenna kits are available from DSC at: http://www.DSC.com.

NOTE: Prior to installation of the Communicator, confirm with your carrier that a GPRS/GSM network is available and active in the

area where the Communicator will be installed and confirm that the radio signal strength is adequate.

Panel Mounting

The following Communicators are compatible with PC1616/PC1832/PC1864 v4.1+ Control Panels:

•GS2060 (GPRS/GSM only) • TL260GS (Ethernet/Internet + GPRS/GSM dual-path)

The following Communicator models are compatible with PC9155 control panels:

•GS2065 (GPRS/GSM only) • TL265GS (Ethernet/Internet + GPRS/GSM dual-path).

NOTE: When GS2065 is installed, ALEXOR model is 9155G. When TL265GS is installed, ALEXOR model is 9155D.

Features

Technical Specifications

Ratings

Compatibility

INTRODUCTION

128-bit AES encryption via GPRS/GSM and Ethernet/Internet (NIST Validation Certificate No. 995).

Advanced remote and local programming via DSC DLS IV. (Refer to Programming Worksheets document 29007619R001)

Back up or primary GPRS/GSM alarm communication.

Ethernet LAN/WAN 10/100 BaseT (TL260GS/TL265GS only).

Full event reporting.

Full keypad programming (GS2065 and TL265GS only).

Fully redundant Ethernet/internet and GPRS/GSM Dual-path Alarm Communication (TL260gs/TL265GS only).

Individual Ethernet and/or GPRS Periodic test transmission.

Installer Code.

Integrated call routing.

Panel remote uploading/downloading support via GPRS/GSM and Ethernet/Internet.

PC-Link connection.

Programmable Labels (Zone and Partition Labels autosync with the ALEXOR v1.1+ only)

Programmable SMS commands and response messages available in 28 languages via two way cellular text messages.

Quad-Band Operation: 850 MHz, 900 MHz, 1800 MHz, and 1900 MHz.

SIA format (Contact ID GS2065/TL265GS V1.1 only).

Signal strength and Trouble display LEDs.

Supervision heartbeats via GPRS/GSM and Ethernet/Internet.

Table 1: Communicator Ratings

MODEL GS2060

GPRS/GSM ONLY TL260GS

ETHERNET & GPRS GS2065

GPRS/GSM ONLY TL265GS

ETHERNET & GPRS

POWER SUPPLY RATINGS

• Input Voltage 11.1~12.6V DC: The panel Bell output shall be derated:

700mA - (Communicator mA) = derated Bell output. 11.1 ~ 12.6V DC

(From PC-Link Header)

CURRENT CONSUMPTION

• Standby Current 65mA @ 12V 100mA @ 12V 65mA @ 12V 100mA @ 12V

• Alarm (Transmitting) Current 400mA @ 12V during transmission

• Operating Frequency Quad band 850MHz, 900MHz, 1800MHz, 1900MHz

• Typical Antenna Gain 2db

ENVIRONMENTAL SPECIFICATIONS

• Operating Temperature -10°C ~ 55°C (14°F~131°F)

•Humidity 5% ~ 93% relative humidity, non-condensing

MECHANICAL SPECIFICATIONS

•BoardDimensions(mm) 100 × 150 × 15 100 × 150 × 18 100 × 150 × 15 100 × 150 × 18

•Weight(grams) 310 (with mounting bracket) 320 (with mounting bracket) 68 78

Table 2: Compatible Receivers, Control Panels, and Cabinets

COMMUNICATOR RECEIVER/PANEL DESCRIPTION

GS2060/TL260GS

GS2065/TL265GS

Receiver

• Sur-Gard System I Receiver, version 1.1+

• Sur-Gard System II Receiver, version 2.0+

• Sur-Gard SG-DRL3-IP, version 2.2+(for Sur-Gard System III Receiver)

GS2060/TL260GS

Control Panel

and Cabinets

• Power Series PC1864, version 4.3+

• Power Series PC1832, version 4.3+

• Power Series PC1616, version 4.3+

•Cabinets:PC5003C/PC4050C

GS2065/TL265GS Control Panel • ALEXOR (PC9155) version 1.1+

This GSM/Ethernet Communicator shall be installed by Service Persons only. (Service Person is defined as a person having the appropri-

ate technical training and experience necessary to be aware of hazards to which that person may be exposed in performing a task and

can also take measures to minimize the risks to that person or other persons). The Communicator shall be installed and used within an

environment that provides the pollution degree max 2, over voltages category II, in non-hazardous, indoor locations only. This manual

shall be used in conjunction with the Installation Manual of the alarm control panel which houses the GSM/Ethernet Communicator. All

instructions specified within the panel installation manual must be observed.

Encryption

The Communicator uses 128 Bit AES Encryption. Encryption can only be enabled from the monitoring station receiver. Each

receiver can independently have encryption enabled or disabled. When encryption is enabled, the central station will configure the

device to encrypt communications the next time the Communicator module performs a communication to that receiver.

NOTE: Packets will start being encrypted only after the next event is sent to that receiver, or if the unit is re-started.

Installing the Ethernet Cable (TL260GS/TL265GS only)

A Category 5 (CAT 5) ethernet cable must be run from a source with Ethernet/Internet connectivity to the Communicator module,

inside the Control Panel cabinet. The Communicator end of the cable must have an RJ45 plug, which connects to the Communica-

tor’s RJ45 jack. All requirements for installation of CAT5 Ethernet cable must be observed for correct operation of the Communi-

cator, including, but not limited to, the following:

• Do NOT strip off cable sheathing more than required for proper termination.

• Do NOT kink/knot cable.• Do NOT crush cable with cable ties. • Do NOT untwist CAT5 pairs more than 1.2cm (½”).

• Do NOT splice cable. • Do NOT bend cable at right angles or make any other sharp bends.

NOTE: CAT5 specification requires that any cable bend must have a minimum 5 cm (2") bend radius. Do NOT exceed maxi-

mum 15cm (6”) from center of ferrite to T-Link Network Connector. Maximum length of CAT 5 cable is 328 ft. (100m).

Inserting and Removing the SIM Card

1. If the Communicator is already installed in a Control Panel cabinet, remove the front cover of the Control Panel to access SIM

holder.

2. Power down the panel and disconnect the backup battery connections.

3. On the SIM card holder push gently to slide the cover towards the PCB antenna, as indicated by the arrow on SIM holder, to

OPEN. See Figure 3 and Figure 5. This will unlatch the SIM card holder on the side closest to edge of the Communicator PCB.

4. Lift up the SIM card holder from the side that is not hinged.

5. Insert or remove the SIM card, noting the orientation of the notches on the SIM card and the SIM card holder.

6. When inserting a SIM card, insert the card in the proper orientation and gently push the SIM card holder down and slide the

holder as indicated by the arrow on SIM holder, to LOCK.

7. Reconnect the backup battery, apply power to panel, and replace the panel’s cover.

DLS IV Account Activation (Before Installation)

Optionally, the installer can perform all module programming prior to on-site installation (if the SIM card has been activated). Per-

form the following steps to program the Communicator locally using DLS IV software.

NOTE: When you receive the SIM card from the local GSM network carrier, record the SIM card’s GSM phone number. This

number will be required for remote programming and is also the number that will be used for SMS Interactive functions.

Due to the nature of the SIM card activation process with GSM network carriers, it can take up to 24 hours for SIM card

activation to be complete.

1. Connect the Communicator to your computer using the appropriate PC-Link cable for the Communicator type:

a. GS2060 and TL260GS:PCLINK-9 Kit or PCLINK-SCW Kit.

b. GS2065 and TL265GS:PCLINK-5WP Kit.

2. Power up the Communicator.

a. GS2060 and TL260GS:Get power from the panel Bell + and Aux - outputs. (PC1616/1832/1864).

b. GS2065 and TL265G:Get power from the transformer that is supplied in the PCLINK-5WP Kit.

3. Run the DLS IV software on your computer.

NOTE: If required, download the DLS IV software from DSC at: http://www.dsc.com/index.php?n=library#self

4. Perform the following steps to program the Communicator using DLS IV:

a. Select the Control Panel Type and set up a new account for this installation.

b. Add the Communicator type to this account.

c. Add the Communicator’s connection type (SMS, Ethernet/Internet, and PC-Link) and enter all relevant information.

d. Open the new account and navigate to the GS/IP section.

e. On the Communicator Options tab, enter all relevant information.

f. On the Receiver Options tab, enter all relevant information.

g. On the GPRS Network Options tab, enter all relevant information.

h. Confirm all information is entered correctly before submitting. Select Global Download.

i. In Connection Type, select PC-LINK, then click OK.

j. Exit the DLS IV software, then remove power and disconnect the Communicator.

5. Insert SIM card in its slot on the Communicator. (See Inserting and Removing the SIM Card on page 2).

NOTE: You can also use DLS IV to reconfigure the Communicator remotely after the initial installation. For more details,

see Programming via DLS IV: on page 7 or refer to the DLS IV Manual.

COMMUNICATOR PRE INSTALLATION CONFIGURATION

Before leaving the installation site, the equipment shall be connected via an APPROVED (acceptable to the local authori-

ties) Network Interface Device (NID). All wiring shall be performed according to the local electrical codes.

Installing GS2060/TL260GS Communicator with PC1616/1832/1864

NOTE: Before installing the GS2060/TL260GS or inserting/removing the SIM card, ensure that system power is OFF.

1. To assemble mounting bracket, perform the following (See Figure 1).

a. Remove the 4 white plastic standoffs from the

bag provided with the Communicator kit.

b. Insert the 4 standoffs through the back of the sup-

plied mounting bracket, into the holes at each cor-

ner. (The antenna mounting tab should be facing

away from you).

c. Place the bracket on a flat, solid surface. Hold the

Communicator face up and orient the four holes on

the Communicator with the four standoffs protrud-

ing from the bracket. Push the Communicator

firmly and evenly onto the standoffs until it is

securely attached to the mounting bracket.

d. Remove the alarm panel front cover.

e. Remove and discard the circular knockout located

in the top-right section of the panel. (This hole will

be used for connection of the supplied radio

antenna).

f. Connect the supplied 12.7cm (5”) antenna cable to the radio, by passing the connector through the hole on back of the

mounting bracket to the Communicator board. Push the antenna connector firmly into the socket on the GSM

radio.(See Figure 3).

g. Place the nylon washer with bushing (thick flat washer) onto the threaded

section of the antenna cable. Insert the threaded section through the

antenna mounting knockout hole. Place the second nylon washer (flat), fol-

lowed by the brass washer and the brass nut, onto the threaded section of

the cable, outside the panel. Tighten the assembly by hand only. Do not

overtighten the assembly.

2. To install the Communicator module into the panel. (See Figure 3).

a. Attach one end of the PC-LINK cable to the panel PC-LINK header on the

panel (red wire goes on Pin 1 of the panel PC-LINK header.)

NOTE: Note that on the panel, the black wire is on the right, whereas on

the Communicator this is reversed. See Figure 3.

b. Insert the assembled Communicator into the panel cabinet.

NOTE: Ensure that the threaded antenna connection point is visible

through the knockout hole of the panel.

c. Locate the screw hole in the right side wall of the panel. See Figure 2 (i).

Line up the assembled Communicator with the side wall of the panel and,

using the screw provided, secure the mounting bracket to the panel.

d. Attach the supplied white quad band whip antenna to the threaded antenna

connection point at top of the panel.

3. Wire the Communicator to the panel, perform the following (See Figure 3):

INSTALLING THE GSM/ETHERNET COMMUNICATOR

DG009352

Brass Washer

Nylon washer (flat)

Nylon Washer

with bushing

(thicker flat washer)

Brass nut

Antenna

Mounting Tab

Mounting

Holes

Mounting Holes Antenna

Cable

Figure 1 Communicator Mounting Bracket

DG009158

PC-Link Cable Connector

(i)

Figure 2 PC1616/1832/1864 Control Panel

Figure 3 GS2060/TL260GS Wiring Diagram

DG009391

AUDIO/DEFAULT

DSC

UA557

PC-LINK

GND

PWR

PWR GND GND

SHLD

TL260GS / GS2060

AC AC RED BLK YEL GRN Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8

AUX+ BELL+

AUX- BELL-

PGM1 PGM3 EGND TIP T-1

PGM2 PGM4

RING R-1

PC1616/1832/1864

GSM Radio

SIM Card

Holder

WARNING! All connections to the

TL260GS/GS2060 module are power

limited. Do not route any wiring over the

circuit boards. Maintain at least 1”

(25.4mm) separation between circuit

board and wiring. A minimum of 1/4”

(7mm) separation must be maintained at

all points between non-power limited

wiring and power limited wiring.

UA503

NOTE: For more details, refer to the

control, panel Installation Manual.

CON 4

To external

antenna

Network Connection

(Model TL260GS)

Use only CAT5 cable

(300ft/100m max.) Supervised

Input Ratings (from Bell Out)

11.1V - 12.6 VDC

100mA standby; 400mA Alarm

DSC Panel minimum

power requirements

16 VAC 40 VA transformer

12 VDC 7Ah battery

Status

LEDs

External Bell/Siren

Black

Hardware

Default

a. Disconnect the AC power and the battery + connections from the panel.

b. Attach a wire from the Communicator’s left PWR terminal to the panel’s BELL+ terminal.

c. Attach a wire from the Communicator’s GND terminal to the panel’s AUX

terminal.

d. Attach a wire from the Communicator’s SHLD terminal to the panel’s EGND terminal. (Protective earth ground).

e. If a Bell/Siren is used, attach a wire from the Communicator’s right PWR terminal to the positive (+) terminal on the external

Bell/Siren. (See Figure 3).

f. If a Bell/Siren is used, attach the panel’s BELL

terminal to the negative (

) terminal on the external Bell/Siren.

NOTE: If a Bell/Siren is not used, install the 1K

½ W 5% resistor (Brown, Black, Red, Gold) (supplied with the panel)

between the panel’s Bell + and Bell

terminals, then only wire the BELL + to the PWR terminal on the Communicator.

g. Confirm that the SIM card is inserted and locked. (See Inserting and Removing the SIM Card on page 2).

h. Insert the PC-LINK connector into the Communicator’s PC-LINK socket. (Black wire on Pin 1 on the Communicator).

i. Route the CAT 5 Ethernet cable through back of the cabinet and plug it into the Communicator’s RJ45 jack.

4. Perform the following for initial power on of the panel with Communicator installed:

a. Reconnect the AC power and battery + to the panel. (the Communicator and Panel will power up together).

b. Observe that the Communicator’s red and yellow LEDs are flashing together while it initializes. The red and yellow LEDs will

continue to flash until the unit has successfully communicated to all programmed receivers.

c. At the keypad, enter [*][8][Installer Code] [382] and confirm that Toggle Option [5] is ON (GPRS/Ethernet Module Enabled).

NOTE: Initialization may take several minutes to complete. Red and yellow LEDs will flash together during initialization.

Do not leave the installation until the red and yellow LEDs have stopped flashing. (If only the yellow LED is flashing,

there is a Communicator trouble and the Green LEDs are not valid for Communicator Placement Test). Correct trouble

before continuing. (See Table 7 for troubleshooting assistance).

5. Perform the Communicator Placement Test on page 6.

PC1616/1832/1864 Programming

Perform the following steps to ensure that the Communicator and the panel work together as intended.

These Sections must be programmed at the panel keypad. Enter [*][8][Installer Code][Section Number]. Record any values that

are modified from their default, in the appropriate Worksheets for the Panel or Communicator.

NOTE: The toggle is ON when the number is dispalyed. Toggle is OFFwhen the number is not displayed. (e.g., [1

---

Toggle Options 1 and 5 are ON, all others are OFF). Press the number on keypad to turn toggles ON/OFF.

1. In Section [167] (Wait for ACK) program 060 (seconds).

2. In Sections [301], [302], and [303] Program the central station telephone number that will be used for the GPRS/Ethernet

Communicator. Valid entries are:

a. A valid telephone number; signals will be routed to the central station using the Public Switched Telephone Network (PSTN).

b. DCAA (Receiver 0); signals will be routed to GPRS/Ethernet Receivers 1 - 4 depending on programming in Section

[851][006].

c. Section [301] sets the Primary communication path, and may be configured as either PSTN or Communicator routing. Panel

Section [302] is redundant, and Section [303] is the backup telephone number for Section [301].

NOTE: The leading digit ‘D’ in the telephone number (dial tone detection) is pre-programmed.

3. In Section [350], program the communication format as Contact ID (03) or SIA FSK (04).

NOTE: If any of the panel telephone numbers have been set to DCAA, this section must be set to [04 ].

4. In Sections [351] - [376], program the Communicator call direction options. Refer to the Panel Installation Manual for options.

5. In Section [382], ensure Toggle Option [5], ‘GPRS/Ethernet Module Enabled’ is ON. If this option is OFF, the yellow status LED

will indicate ‘Panel Supervision Trouble’ (2 flashes) and the unit can not be programmed via PC-LINK cable.

6. In Section [401] set Toggle Option [1] (Downloading Answer Enable) to ON in order to perform panel DLS session through

GPRS or Ethernet.

NOTE: Before leaving the premises, the installer should verify all programmed communications paths. Refer to Pro-

gramming Worksheets Section [851][901] to send immediate test transmission.

Communicator Troubles displayed on a PC1616/1832/1864

The General System trouble is the only trouble that will appear on the keypad LCD when encountered by a Communicator installed

in a PC1616/1832/1864 panel. For more information about the trouble on the Communicator module refer to the panel event buf-

fer. Log entry will show Fault or Restore for each event.

•T-Link Network Fault/Restore: This log will occur for the following trouble conditions: SIM Lock Trouble, GSM Trouble, Ether-

net Trouble, or Connect 24 Configuration Trouble.

•T-Link Receiver Trouble/Restore: This log will occur for the following trouble conditions: Receiver Not Available Trouble,

Receiver Supervision Trouble, or Failure to Communicate (FTC) Trouble.

•T-Link Comm. Fault/Restore: This log will occur when the panel loses communications with the Communicator.

Installing the GS2065/TL265GS with the PC9155 Panel.

NOTE: The GS2065 Communicator is used in Panel: 9155G and the TL265GS Communicator is used in Panel: PC9155D.

1. Remove the front cover of the Panel and remove AC and battery power (remove +(red) connector from battery).

2. Hold the Communicator module with the RJ45 connector at bottom left. Tilt module down slightly to right and align i the hole

with the bottom right tab and the right side inserts of the panel. Gently press communicator into right inserts, then press down

on left to lock it in position. (See Figure 4).

3. Connect the PC-LINK connector. Red wire on pin 5 on panel and communicator. (See Figure 5)

4. Connect the Ethernet cable plug to the RJ45 connector on Communicator. If a shielded CAT 5 cable is used, a jumper may be

placed between the GND and SHLD connections of the Communicator 2-terminal block (to left of the RJ45 jack) to reduce

noise.

NOTE: Do not attach this jumper if the Ethernet cable shield is grounded by the equipment at the other end. Do not route

any system wiring near the PCB antenna.

5. Reconnect the AC power and battery +connector to the panel. (the Communicator and Panel will power up together).

a. Observe that the Communicator’s red and yellow LEDs are flashing together while it initializes. The red and yellow LEDs will

continue to flash until the unit has successfully communicated to all programmed receivers.

NOTE: Initialization may take several minutes to complete. The red and yellow LEDs will flash together during initialization.

Do not leave the installation until the red and yellow LEDs have stopped flashing. (If only the yellow LED is flashing, there is

a Communicator trouble and the Green LEDs are not valid for Communicator placement test). See Table 7 for assistance in

Troubleshooting Communicator Troubles.

6. Perform the Communicator Placement Test on page 6.

7. Establishing a communication channel between the Communicator and the panel is critical to ensuring the desired operation of

the two units. The following must be completed during the on-site installation. Program the following at the panel to ensure that

the Communicator and the panel will work together as intended. Panel Sections must be programmed at the panel keypad.

Enter [*][8][Installer Code] [Section Number] for panel programming. Record any values that are modified from their default,

in the Programming Worksheets .

NOTE: When programming Toggle

Options, the toggle is ON when the

number is dispalyed and OFF when

the number is not displayed. (e.g.,

---

], Toggle Options 1 and 5

are ON, all others are OFF).

8. Panel Section [167] GPRS/Ethernet

Interface Communications Wait for

ACK: Program value as: 060 (sec-

onds).

9. When the communicator is installed

with the PC9155 panel, 4 telephone

number are available to backup one

another. You can set up these 4 tele-

phone numbers to perform in one of

two ways: Backup dialling or Alternate

dialling.

a. Backup dialling: each of the 4 tele-

phone numbers will make 5 dialling

attempts in turn, before a Failure to

Communicate (FTC) trouble is dis-

played on the keypad.

b. Alternate dialling: each telephone

number makes 1 dialling attempt and

cycles through each of the 4 num-

bers for a total of 5 times each. If all

numbers fail the 5 attempts,, an FTC

trouble is displayed on the keypad.

10.Panel Sections [301], [302], [303],

and [305] can be configured as Pri-

mary communication paths.

a. Panel Sections [302], [303], and

[305] may also be configured for

backup or redundant communica-

tions by using Panel Sections [383]

or [351] - [376]. Refer to the

PC9155 panel Installation Manual

for more information.

b. If a valid phone number is pro-

grammed, communications will use

Public Switched Telephone Network

(PSTN). Entering a 4 digit hexadecimal value for a telephone number will change the call routing as determined by the num-

ber programmed:

DCAAF: Internal (All Receivers). Signals will be routed depending on the GS/IP module programming.

DCBBF: Ethernet Receiver 1 (Primary). (TL260GS/TL265GS only).

DCCCF: Ethernet Receiver 2 (Backup). (TL260GS/TL265GS only).

DCDDF: GPRS Receiver 1 (Primary).

DCEEF: GPRS Receiver 2 (Backup).

NOTE: Add a single ‘F’ as a suffix to the number to populate the unused remainder of the 32 character field.

11.Panel Section [350]: If any of the phone numbers have been programmed as DCAA, DCBB, DCCC, DCDD, or DCEE, panel Sec-

tion [350] must be set to [04] if SIA format or [03] if Contact ID format.

12.Panel Section [382]: Toggle Option [5], (GS/IP Module Enabled), must be set to ON. If this option is OFF, the yellow status LED

will indicate ‘Panel Supervision Trouble’ (2 flashes) and the unit can not be programmed via PC-LINK cable.

13.Panel Section [401]: Toggle Option [1] must be set to ON in order to perform panel DLS session through GPRS or Ethernet.

NOTE: Keep a record of the SIM card telephone number, it is required by users for SMS interactive functions.

Due to the nature of the SIM card activation process with GSM network carriers, it can take up to 24 hours for SIM card

activation to be complete.

FUSEFUSE

3&%

$17(11

3&%

ANTENNA

SIM Card

7RDOWHUQDWHH[WHUQDO

DQWHQQDFRQQHFWLRQ

,QVHUWKHUHILUVW

5('

3&/,1.3&/,1.

1(7:25.

TL265GS/ GS2065

PC9155

SHLGND

BATTERY

DG009334

Do not disconnect the battery cable from the alarm controller board;

the battery shall be disconnected from the + (PLUS) TERMINAL.

To Remove Connector -

insert small, flat head

screwdriver between cable

and the radio module then

gently pry plug loose.

NOTE: Removal with fingers

may damage the connector.

Status

LEDs

Red

Wire

*HQWO\VOLGHWKHVSDGHFRQQHFWRUWRFRQQHFWGLVFRQQHFW

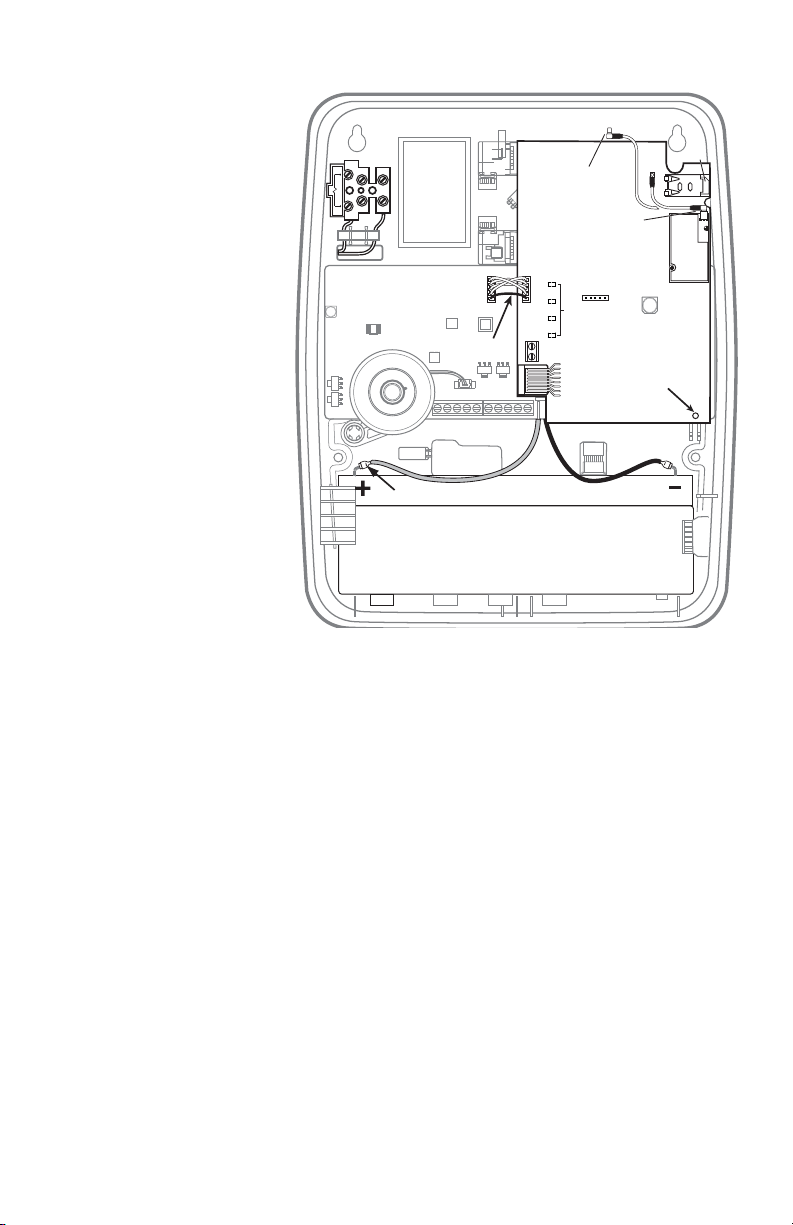

Figure 4 PC 9155 Control Panel

Power Save Feature

(GS2065/TL265 only)

The GS2065 and

TL265GS models have a

power save mode fea-

ture. If there is an AC

power loss on the

PC9155 control panel,

the system will enter

power save mode to

extend battery duration.

During power save

mode, the Ethernet func-

tionality is turned OFF

and will only turn ON

when an event needs to

be transmitted, DLS ses-

sion is requested via

SMS, or for firmware

upgrade is required.

• When in power save

mode, incoming DLS

connections will not

be possible.

• Outgoing SMS initi-

ated DLS sessions

are possible while the unit is in power save mode.

• The Link activity LED on the network interface device will also be OFF when the unit is in power save mode.

Communicator Troubles displayed on a PC9155 Panel

The following troubles will appear on the keypad LCD when encountered by a Communicator on the PC9155 panel. Please refer to

PC9155 Installation Manual for more information.

1. To confirm that the panel/antenna location is suitable for radio operation, perform this Communicator Placement Test:

NOTE: You may need to relocate the panel or install an optional extension antenna if radio signal strength is too low.

a. Confirm that the yellow LED on the Communicator is not flashing. A flashing yellow LED indicates trouble on the Communi-

cator.(See Table 7 to troubleshoot and correct the cause of this trouble before continuing to the next step).

b. Observe the strength of the radio signal on the yellow LED and the two green LEDs) on the Communicator board meet or

exceed the minimum signal level requirement. Minimum Signal Level: The yellow LED must be OFF and the Green LED 1

(furthest from the yellow LED) must be ON. (i.e., not flashing) for the panel location to be acceptable. See table for Radio

Signal Strength on page 8 for interpretation of receiver GSM signal strength on LEDs.

NOTE: If required signal strength is to low with the panel in its current location, an external antenna is required.

c. If required, the following GSM extension antenna kits are available to the installer:

• GS15-ANTQ - 4.57m (15’) Internal Antenna Extension Kit (suitable for interior mounting only).

• GS25-ANTQ - 7.62m (25’ External Antenna Extension Kit (suitable for exterior mounting only).

• GS50-ANTQ - 15.24m (50’ External Antenna Extension Kit (suitable for exterior mounting only).

Specific instructions for the installation of the extension antenna are included with its kit. Observe all the electrical safety instructions

regarding the installation of the antenna. All the wiring of the equipment shall be fully compliant with the local rules and regulations.

2. Install the antenna extension and perform the following steps to determine the best location for placement of the antenna :

NOTE: Follow steps for the Control Panel used. If you will not be installing an external antenna, go to Step 4.

PC1616/1832/1864

a. Disconnect the white whip antenna from the cabinet.

b. Attach one end of the antenna extension cable to the threaded antenna connector on the panel and the other end to the exter-

nal antenna.

c. Move the extension antenna to various locations while observing the two Green LEDs on the panel. Continue to reposition

the extension antenna until you receive an acceptable (minimum one green LED ON solid) signal strength.

NOTE: Minimum strength is: green LED 1 flashing and yellow LED OFF. If green LED 1 is flashing, relocation

should be considered.

d. Mount the supplied antenna extension bracket at the location that provided the best signal strength.

e. Alternately, you can reposition the control panel to improve signal strength. Dismount the panel and move it to another loca-

tion to achieve the required signal strength. If the panel is relocated to improve signal strength, mount it in the new location.

PC9155

a. Power down the Panel and remove the front cover.

b. Remove and discard the circular knockout at the top of the panel.

c. Insert a small flathead screwdriver between the antenna cable and the radio. (See Figure 4). Gently pry the plug loose from

the radio and remove the other end of the antenna cable from the PCB.

NOTE: Removing the antenna cable using only your fingers may cause damage to the connector.

d. Using instructions supplied with the antenna kit, install the optional extension antenna kit to the Communicator.

e. Attach one end of the antenna extension cable to the radio on the Communicator.

f. Replace the front cover on the panel.

Table 3: Communicator Troubles on a PC9155 Panel

TROUBLE CONDITION DESCRIPTION USER ACTION

Alternate Communicator Trouble

GSM trouble, Ethernet trouble, central station receiver trouble, super-

vision config SMS trouble for GS/IP module (if installed).

Press < > to scroll through troubles.

Call for service. For Ethernet

trouble check LAN connections.

COMMUNICATOR PLACEMENT TEST

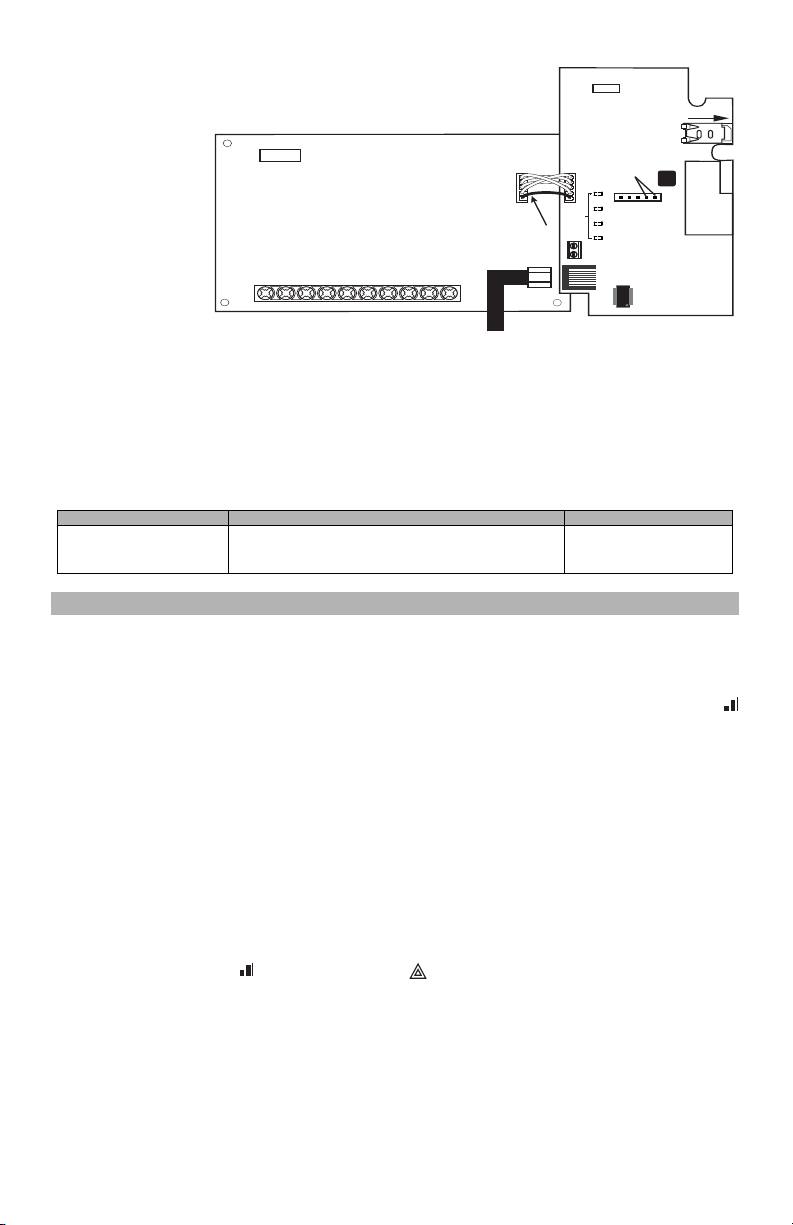

Figure 5 GS2065/TL265GS Wiring Diagram

DG009392

Network Connection

(Model TL265GS)

Use only CAT5 cable. Supervised.

PC9155D

PC9155G

AUDIO/DEFAULT

DSC

UA557

PC-LINK

GND SHLD

TL265GS / GS2065

T-1 R-1 TIP RING IO2 IO1 -AUX AUX+ AC AC

NOTE: Model PC9155D usesthe dual alarm

communicator GSM-GPRS/IP model TL265GS.

Model PC9155G usesthe GSM-GPRS only

communicator, model GS2065.

NOTE: For wiring detailsfor the PC9155,

refer to Installation Manual p/n 29007510.

UA558

GSM Radio

SIM Card

Holder

RED

Red

Wire

Status

LEDs

INPUT RATINGS (from PC-Link)

11.1V - 12.6 V

100mA standby; 400mA Alarm

Hardware

Default

Loc

RJ-45

g. Power up the panel and wait until it has initialized.

3. Move the extension antenna to various locations while observing the two Green LEDs on the panel. Continue to reposition the

extension antenna until you receive an acceptable (minimum one green LED ON solid) signal strength.

NOTE: Minimum strength is: green LED 1 flashing and yellow LED OFF. If green LED 1 is flashing, relocation

should be considered.

a. Mount the supplied antenna extension bracket at the location that provided the best signal strength.

4. Alternately, you can reposition the control panel to improve signal strength. Dismount the panel and move it to another location

to achieve the required signal strength. If the panel is relocated to improve signal strength, mount it in the new location.

NOTE: Before leaving the premises, the installer should verify all programmed communications paths. Refer to Pro-

gramming Worksheets Section [901] for Toggle Option settings to send immediate test transmission to receivers.

Programming via DLS IV:

NOTE: Before programming, you will require your network’s Public IP Address and Public listening port for incoming DLS IV

connections. You must send an SMS message to the unit, therefore, you must know the phone number assigned to the SIM.

1. Run the DLS IV software on your computer.

NOTE: If required, download the DLS IV software from DSC: http://www.dsc.com/index.php?n=library#self

2. Create an account for the Panel/Communicator, select the Communicator type (e.g., SMS - GS2065) and enter all relevant

information under SMS section, including the Communicator’s GSM telephone number.

3. All available Communicator and panel options can be configured in the DLS IV account. Refer to Programming Worksheets

Part Number: 29007619R001 for detailed programming information. Also, refer to your DLS IV manual and Help file.

4. When you have finished programming the account, click Global Download and choose SMS as Connection Type. Click OK.

5. DLS IV will generate the required text for the SMS message. This message has the Public IP and Port Number of the DLS

Server to allow the Communicator to link up with your computer. Type the SMS message in to your cell phone and send to the

Communicator’s GSM phone number. Then Click OK.

6. The SMS message will trigger the unit to establish a connection to your DLS IV software. New programming of the Communi-

cator will be downloaded to the unit remotely via GPRS or Ethernet/Internet. The actual path for the downloading will be deter-

mined by the Communicator’s communication settings in Section [851][005], Toggle Option [4].

NOTE: You can disable DLS over GPRS. Refer to Programming Worksheets Section [006] Toggle Option [7]. If you dis-

able DLS over GPRS, remote programming will not work on the GS2065/GS2065 Communicators, regardless of the path

set in Programming Options Section [005] Toggle Option [4].

Programming via Ethernet/Internet:

(TL260GS and TL265GS only)

NOTE: A computer with Internet access and DLS IV software is required for programming.

1. Run the DLS IV software on your computer.

2. With the DLS IV downloading software, you have the ability to change the programming of the Communicator using the Graph-

ical User Interface (GUI) on the screen. Refer to the Programming Worksheets document PN 29007619R001, included with the

Communicator, for detailed programming information. Also, refer to your DLS IV manual and Help file.

3. In Account Settings, select your module and enter all relevant information under Ethernet/Internet section.

4. After change the programming of the Communicator, click Global Download and choose Ethernet/Internet as the Connection

Type. Click OK. The initial connection between the unit and DLS IV will be established through Ethernet/Internet.

5. New programming of the Communicator will be downloaded to the unit remotely via GPRS or Ethernet/Internet. The actual path

for the downloading will be determined by the Communicator settings in Section [851][005], Toggle Option [4].

The Communicator has four on board LED indicators. These include a yellow trouble LED, a red Network Connection Status LED,

and two green Signal Strength LEDs.

Yellow Trouble LED

This yellow LED will flash to indicate a trouble on the unit. The number of flashes indicates the type of trouble. See the table below

for the coded flashes and the conditions which will activate the Trouble Status LED.

NOTE: Only the highest priority trouble (1 Flash is highest priority) is indicated. When this trouble is restored, the next

highest trouble will indicate, if present. This will conitinue untill all Troubles have been cleared (yellow LED OFF).

The following paragraphs describe the conditions associated with the trouble indicated:

Panel Supervision Trouble (2 Flashes)

This trouble will be indicated when communication between the Communicator module and the control panel fails. If for some rea-

son the module can not communicate with the panel (e.g., loss of power to the panel) the module itself will send a Panel Absent

Trouble Event message to the central station receiver. When communication returns, a Panel Absent Restore Event is sent by the

module to the central station receiver. Its reporting codes are ET0001 for Trouble, ER0001 for Restore. The panel absent event

always uses the primary receiver account code when communicating to the central station.

NOTE: The Panel Supervision Trouble/Restore is the only internally generated event by the Communicator. All other

events are generated by the control panel. This trouble is generated if unit misses 3 Polls (PC9155) or 6 Polls (PC1864).

Trouble is restored on receipt of first Poll from the panel.

Lockout Trouble (4 Flashes)

This trouble is indicated for either of the following conditions: SIM Lock Trouble or Network Lock Trouble.

a. SIM Lock Trouble.This trouble will signify that the SIM lock feature has been enabled and the unit has not been programmed

with the correct PIN for the SIM card. SIM Card Lockout Trouble equates to SIM Lock Trouble or Network Lock Trouble.

REMOTE PROGRAMMING

COMMUNICATOR STATUS LEDS

Table 4: Trouble Status LED

# OF FLASHES TROUBLE # OF FLASHES TROUBLE

1Reserved 7Receiver Not Available Trouble

2Panel Supervision Trouble 8Receiver Supervision Trouble

3Reserved 9Failure To Communicate Trouble

4Lockout Trouble 10 Reserved

5GSM Trouble 11 Remote Programming

6Ethernet Trouble 12 Module Configuration Trouble

b. Network Lock Trouble. This trouble will be indicated when the Network lock feature is enabled and the SIM card inserted in

the device does not have access to the network the device is locked to.

GSM Trouble (5 Flashes)

This trouble is indicated for any of the following conditions:

a. Radio Failure:Trouble is indicated after 8 failed attempts to communicate with radio.

b. SIM Failure:Trouble is indicated after 10 failed +CPIN commands.

c. GSM Network Trouble:Trouble is indicated for loss of the registration to the network provider.(3 consecutive init or refresh

failures, failure to connect to an APN, failure to open a socket, total error count in cyclic command = 20, or on receiving an

MSDI (1/2), (7/8/14). Trouble will clear after init and cyclic commands succeed and MIPCALL and MIPOPEN commands

succeed.

d. Insufficient Signal Strength: Trouble is indicated if calculated average signal strength is too low. (Both green LEDs OFF).

Trouble will clear when calculated average signal strength is above minimum requirement.

Ethernet Trouble (6 Flashes)

This trouble is indicated when Ethernet link between the transmitter and the local hub or router is absent.This trouble will also be

indicated if the unit fails to get DHCP settings from the DHCP server. (not active if Ethernet Receivers are not programmed).

Receiver Not Available (7 Flashes)

This trouble is indicated if the unit is not able to successfully initialize with any of the programmed receivers. Unprogrammed

receivers are excluded. This trouble is also indicated if the GPRS receiver APNs have not been programmed.

Receiver Supervision Trouble (8 Flashes)

This trouble is indicated when receiver supervision is enabled and communication between the Communicator module and the

receiver fails.Trouble is indicated if Ethernet 1 is supervised and does not receive a heartbeat from the receiver or GPRS is super-

vised and the unit does not receive an acknowledgment to 4 heartbeats sent to the receiver.

FTC Trouble (9 Flashes)

The Failure to Communicate (FTC) trouble is indicated when the unit fails to communicate module events to the central sta-

tion.Trouble is displayed after the unit has exhausted all communications attempts to all programmed receivers for events gener-

ated by the Communicator.

Remote Programming (11 Flashes)

This trouble is indicated during a remote firmware upgrade or during remote DLS programming. Indicates that a remote firmware

update is in progress over GPRS/Ethernet. Trouble will clear automatically when update DLS programming session completes

successfully.

Module Configuration Trouble (12 Flashes)

This trouble is indicated when the System Account Code or the Receiver Account have not been programmed. Disabled receivers

are excluded.

Red Network Connection Status LED

BLINKING: Indicates communications in progress.

• Once quickly for outgoing Ethernet transmission.

• Twice quickly to indicate incoming Ethernet ACK/NACK.

• Slowly for incoming or outgoing voice call.

OFF: This is the normal state of the Red Network Connection Status LED. There are no network connection issues present.

ON: There is a problem with the Ethernet or the GPRS network connection. LED will be ON if any of the following occur:

• Ethernet cable is not connected.

• DHCP configuration times out.

• Unit fails to get an IP address from the GPRS network.

• GPRS connection has been reset.

(Green LED 1) (Green LED 2) and (Yellow LED) Signal Strength

NOTE: If the yellow LED is flashing, Signal Strength in table below is not valid. See Table 7 for troubleshooting.

NOTE: The Communicator will indicate GSM Trouble (yellow LED = 5 flashes) if the average CSQ Level is 5 or less.

Network Activity LEDs (Red and Green)

•Ethernet Activity: The Red LED will blink quickly once for Ethernet Transmit, or twice for Ethernet Receive.

•GPRS Activity: The Green LED 2 will blink quickly once for GPRS Transmit, or twice for GPRS Receive.

•SMS Activity The Green LED 2 will blink quickly once for SMS Transmit, or twice for SMS Receive.

Table 5: Radio Signal Strength

SIGNAL

STRENGTH CSQ

LEVEL YELLOW

LED GREEN

LED 2 GREEN

LED 1 SIGNAL LEVEL ACTION REQUIRED

No Signal 0 ON OFF OFF -108.8 dBm Check Antenna connections. Confirm GSM service is

active. Relocate panel or install an external antenna.

1 Bar 1 - 4 ON OFF Flashing -108 dBm ~-103 dBm Relocate panel or install an external antenna.

2 Bars 5 - 6 OFF OFF Flashing -102 dBm ~ -99 dB If possible, relocate panel or install external antenna.

3 Bars 7 - 10 OFF OFF ON -98 dBm to -91 dBm Panel location has acceptable GSM signal level.

4 Bars 11-13 OFF Flash-

ing ON -90 dBm to -85 dBm Panel location has acceptable GSM signal level.

5 Bars 14 + OFF ON ON -84 dBm and higher Panel location has acceptable GSM signal level.

Factory Defaults Reset

You can reset the programming options for the Communicator to the factory settings by installing the hardware jumper. Perform

the following steps to reset the Communicator:

NOTE: Two pins require a jumper in order to reset the hardware values.

1. Remove panel front cover.

2. Locate the AUDIO/DEFAULT five pin connector in the middle of the Communicator board. On the PC1616/1832/1864 panels

pins 4 and 5 are on top. (See Figure 3). On the PC9155 panel, pins 4 and 5 on right. See Figure 5).

3. Apply a jumper to short the hardware default pins 4 and 5 together.

4. Remove all power from the panel and then apply power to the panel. Wait until the two green LEDs on the Communicator begin

flashing rapidly. (The Green LEDs will continue to flash as long as the hardware jumper is connected).

5. Remove the jumper from the hardware default pins 4 and 5. (Green LEDs will stop flashing).

NOTE: Your Communicator has now been reset to the factory default values.

Firmware Update

The firmware of the device can be updated over GPRS or Ethernet. (Remote or Local updating).

• When the firmware update begins, all LEDs are ON.

• During the firmware update process, the LEDs will be cycled individually in a chaser pattern.

• After a successful update the unit will automatically restart.

• Should the update fail, all 4 LEDs will flash ON, then OFF together at 1 second intervals.

• If the firmware update fails, restart the unit. In the event of consistent update failures, contact your dealer.

Network Data Usage

NOTE: With encryption and supervision on, all packets are 149 bytes.

COMMUNICATOR RESET / UPDATE / NETWORK DATA USAGE

Table 6: Network Data Usage

PACKET TYPE DIRECTION BYTES PACKET TYPE DIRECTION BYTES

Init Communicator to Receiver 101 Bytes Contact ID ACK Receiver to Communicator 49 Bytes

Init ACK Receiver to Communicator 74 Bytes Heartbeat 1 Communicator to Receiver 101 Bytes

SIA -Single Event Communicator to Receiver 124 Bytes Heartbeat 1 ACK Receiver to Communicator 74 Bytes

SIA -6 Events Communicator to Receiver 149 Bytes Heartbeat 2 Communicator to Receiver 60 Bytes

SIA ACK Receiver to Communicator 77 Bytes Heartbeat 2 ACK Receiver to Communicator 60 Bytes

Contact ID Event Communicator to Receiver 70 Bytes Encryption and Supervision Enabled Both Directions 149 Bytes

APPENDIX A: COMMUNICATOR TROUBLESHOOTING

Table 7: Trouble LED indications

TROUBLE INDICATION TROUBLE/POSSIBLE CAUSES TROUBLE POSSIBLE SOLUTION

All 4 LEDs OFF

No Power • Check your power connections to the control panel and the Communicator module.

Confirm PC-LINK cable is properly attached.

Power Save Mode

(GS2065/TL265GS only)

• The control panel may be in power save mode (In Power Save mode, the green

indicators still indicate incoming and outgoing communications. The yellow status

light also continues to function in power save mode.

• Check the AC source to the control panel.

Keypad Blanking Mode

(GS2065/TL265GS only)

• The control panel may be in keypad blanking. Press a key on a keypad to remove

blanking momentarily.

Yellow LED – ON Solid Insufficient Signal Strength

• Ensure the antenna is securely connected to the radio. Check the cable connection

to the radio.

• If a whip antenna is used ensure the antenna is securely screwed on to the antenna

cable connector and internally connected to radio.

• Confirm that GSM network service is active in your area.

Trouble LED – 2 Flashes Panel Supervision Trouble

• Check panel Option [382] Toggle Option[ 5] is set to ON.(GPRS/Ethernet Module

Enabled)

• Ensure the PC-Link cable between the control panel and Communicator is con-

nected properly (not reversed) and is securely in place.

Yellow LED - 4 Flashes Lockout Trouble

• The SIM card has incorrect PIN programmed or has a PIN that the module does not

recognize. Try a different SIM card.

• The module has been locked to a specific carriers network and you are trying to

use the device on an unsupported network. Use the device on the network it is

intended to be used with.

Yellow LED – 5 Flashes GSM Trouble

• Confirm that GSM service is available and active in your area.

• Check antenna connections.

• Ensure there is adequate radio signal strength. (See Table 5 ).

• Ensure the SIM card is properly inserted into the SIM card holder.

• Ensure the SIM card has been activated.

• If this trouble persists, you must relocate the Communicator , or install an external

antenna extension kit.

Yellow LED – 6 Flashes Ethernet Trouble

• Check with your ISP to confirm network service is active in your area.

• Ensure your Ethernet cable is securely inserted into the RJ45 jack of the Communi-

cator and the Hub/Router/ Switch.

• Check the link light on the Hub is ON . If link light is OFF, try restarting the HUB. If

problem persists, replace the Ethernet cable.

• If DHCP is used, ensure that the unit has an assigned IP address from the server. In

Panel Section [851] [992] verify a valid IP address is programmed. If not contact

the Network administrator.

Yellow LED – 7 Flashes Receiver Not Available

• Ensure that the Ethernet path has internet connectivity.

• Confirm that SIM does not have a custom APN. The unit will not allow connection

to the internet with custom APNs.

• If you are using a static IP address make sure the gateway and subnet mask are

entered correctly.

• If the network has a firewall, ensure the network has the programmed outgoing

ports open (Default UDP Port 3060 and Port 3065)

• Ensure that all the receivers are programmed for DHCP or have the proper IP

address and port number.

• Ensure the GPRS Receiver APNs have been programmed with the Access Point

Name provided by your GSM provider.

Yellow LED – 8 Flashes Receiver Supervision Trouble • This trouble is indicated when supervision is enabled and the unit is not able to suc-

cessfully communicate with the receiver.

• If this trouble persists, contact your central station.

Yellow LED - 9 Flashes FTC Trouble • The unit has exhausted all communications attempts to all programmed receiver for

events generated by the Communicator.

• Restart the system, if trouble persists, contact your dealer.

Yellow LED – 11 Flashes Remote Programming

• The LEDs will flash when a remote firmware upgrade is in progress over Ethernet or

GPRS. The LEDs will extinguish when update is complete.

• The LEDs will flash to indicate a remote DLS programming session is active over

Ethernet or GPRS. The LEDs will extinguish when the DLS session has been suc-

cessfully terminated.

Yellow LED – 12 Flashes Module Configuration Trouble • This indication appears when Section [021] System Account Code or Section

[101]; [111]; [201]; and [211] Receiver Account Code have not been pro-

grammed. Ensure that a valid account code has been entered in these Sections.

All LEDs flashing together Boot Loader Failed • Disonnect then reconnect power to the Communicator module.

Red and Yellow LEDs flash-

ing at the same time Initialization Sequence • The unit is still initializing please wait while the unit establishes a connection to all

programmed receivers. Note that this process may take several minutes.

Only Green LEDs flashing Hardware Default Jumper • The hardware default jumper must be removed. See Figure 3 and Figure 5.

IMPORTANT - READ CAREFULLY: DSC Software purchased with or without Products and Components

is Copyrighted and is purchased under the following license terms:

End User License Agreement

This End-User License Agreement (EULA) is a legal agreement

between You (the company, individual or entity who acquired the

SOFTWARE and any related HARDWARE) and Digital Security Con-

trols (DSC), a division of Tyco Safety Products Canada Ltd., the manu-

facturer of the integrated security systems and the developer of the

software and any related products or components (‘HARDWARE’)

which you acquired.

If the DSC software product (‘SOFTWARE PRODUCT’ or ‘SOFTWARE’)

is intended to be accompanied by HARDWARE, and is NOT accompa-

nied by new HARDWARE, You may not use, copy or install the SOFT-

WARE PRODUCT. The SOFTWARE PRODUCT includes computer

software, and may include associated media, printed materials, and

‘online’ or electronic documentation.

Any software provided along with the SOFTWARE PRODUCT that is

associated with a separate EULA is licensed to You under the terms of

that license agreement.

By installing, copying, downloading, storing, accessing, or otherwise

using the SOFTWARE PRODUCT, You agree unconditionally to be

bound by the terms of this EULA, even if this EULA is deemed to be a

modification of any previous arrangement or contract. If You do not

agree to the terms of this EULA, DSC is unwilling to license the

SOFTWARE PRODUCT to You, and You have no right to use it.

F. SOFTWARE PRODUCT LICENSE

The SOFTWARE PRODUCT is protected by copyright laws and

international copyright treaties, as well as other intellectual

property laws and treaties. The SOFTWARE PRODUCT is licensed,

not sold, under the following terms:.

1. GRANT OF LICENSE This EULA grants You the following rights:

(a) Software Installation and Use - For each license You acquire, You

may have only one copy of the SOFTWARE PRODUCT installed.

(b) Storage/Network Use - The SOFTWARE PRODUCT may not be

installed, accessed, displayed, run, shared or used concurrently on

or from different computers, including a workstation, terminal or

other digital electronic device (‘Device’). In other words, if You have

several workstations, You will have to acquire a license for each

workstation where the SOFTWARE will be used.

PRODUCT, but You may only have one copy per license installed at

any given time. You may use the back-up copy solely for archival

purposes. Except as expressly provided in this EULA, You may not

otherwise make copies of the SOFTWARE PRODUCT, including the

printed materials accompanying the SOFTWARE.

2. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS

(a) Limitations on Reverse Engineering, Decompilation and

Disassembly - You may not reverse engineer, decompile, or

disassemble the SOFTWARE PRODUCT, except and only to the

extent that such activity is expressly permitted by applicable law

notwithstanding this limitation. You may not make any changes or

modifications to the Software, without the written permission of an

officer of DSC. You may not remove any proprietary notices, marks

or labels from the Software Product. You shall institute reasonable

measures to ensure compliance with the terms and conditions of

this EULA.

(b) Separation of Components - The SOFTWARE PRODUCT is

licensed as a single product. Its component parts may not be

separated for use on more than one HARDWARE unit.

with HARDWARE, then the SOFTWARE PRODUCT is licensed with

the HARDWARE as a single integrated product. In this case, the

SOFTWARE PRODUCT may only be used with the HARDWARE as

set forth in this EULA.

(d) Rental - You may not rent, lease or lend the SOFTWARE

PRODUCT. You may not make it available to others or post it on a

server or web site.

(e) Software Product Transfer - You may transfer all of Your rights

under this EULA only as part of a permanent sale or transfer of the

HARDWARE, provided You retain no copies, You transfer all of the

SOFTWARE PRODUCT (including all component parts, the media

and printed materials, any upgrades and this EULA), and provided

the recipient agrees to the terms of this EULA. If the SOFTWARE

PRODUCT is an upgrade, any transfer must also include all prior

versions of the SOFTWARE PRODUCT.

(f) Termination - Without prejudice to any other rights, DSC may

terminate this EULA if You fail to comply with the terms and

conditions of this EULA. In such event, You must destroy all copies

of the SOFTWARE PRODUCT and all of its component parts.

(g) Trademarks - This EULA does not grant You any rights in

connection with any trademarks or service marks of DSC or its

suppliers.

3. COPYRIGHT - All title and intellectual property rights in and to the

SOFTWARE PRODUCT (including but not limited to any images,

photographs, and text incorporated into the SOFTWARE

PRODUCT), the accompanying printed materials, and any copies

of the SOFTWARE PRODUCT, are owned by DSC or its suppliers.

You may not copy the printed materials accompanying the

SOFTWARE PRODUCT. All title and intellectual property rights in

and to the content which may be accessed through use of the

SOFTWARE PRODUCT are the property of the respective content

owner and may be protected by applicable copyright or other

intellectual property laws and treaties. This EULA grants You no

rights to use such content. All rights not expressly granted under

this EULA are reserved by DSC and its suppliers.

4. EXPORT RESTRICTIONS - You agree that You will not export or

reexport the SOFTWARE PRODUCT to any country, person, or

entity subject to Canadian export restrictions.

5. CHOICE OF LAW - This Software License Agreement is governed

by the laws of the Province of Ontario, Canada.

6. ARBITRATION - All disputes arising in connection with this

Agreement shall be determined by final and binding arbitration in

accordance with the Arbitration Act, and the parties agree to be

bound by the arbitrator’s decision. The place of arbitration shall be

Toronto, Canada, and the language of the arbitration shall be

English.

7. LIMITED WARRANTY

(a) NO WARRANTY - DSC provides the SOFTWARE ‘as is’ without

warranty. DSC does not warrant that the SOFTWARE will meet

your requirements or that operation of the SOFTWARE will be

uninterrupted or error free.

(b) CHANGES IN OPERATING ENVIRONMENT - DSC shall not be

responsible for problems caused by changes in the operating

characteristics of the hardware, or for problems in the interaction

of the SOFTWARE with non DSC software or hardware products.

ALLOCATION OF RISK -In any event, if any statute implies

warranties or conditions not stated in this license agreement,

entire liability under any provision of this license agreement shall

be limited to the greater of the amount actually paid by you to

license the SOFTWARE and five Canadian dollars (CAD$5.00).

because some jurisdictions do not allow the exclusion or

limitation of liability for consequential or incidental damages, the

above limitation may not apply to you.

(d) DISCLAIMER OF WARRANTIES - This warranty contains the

entire warranty and shall be in lieu of any and all other warranties,

whether expressed or implied (including all implied warranties of

merchantability or fitness for a particular purpose) and of all other

obligations or liabilities on the part of DSC. DSC makes no other

warranties. DSC neither assumes nor authorizes any other person

purporting to act on its behalf to modify or to change this

warranty, nor to assume for it any other warranty or liability

concerning this SOFTWARE PRODUCT.

(e) EXCLUSIVE REMEDY AND LIMITATION OF WARRANTY - Under

no circumstances shall DSC be liable for any special, incidental,

consequential or indirect damages based upon breach of

warranty, breach of contract, negligence, strict liability, or any

other legal theory. Such damages include, but are not limited to,

loss of profits, loss of the SOFTWARE or any associated

equipment, cost of capital, cost of substitute or replacement

equipment, facilities or services, down time, purchasers time, the

claims of third parties, including customers, and injury to

property.

WARNING: DSC RECOMMENDS THAT THE ENTIRE SYSTEM BE COMPLETELY

TESTED ON AREGULAR BASIS. HOWEVER, DESPITE FREQUENT TESTING, AND DUE

TO, BUT NOT LIMITED TO, CRIMINAL TAMPERING OR ELECTRICAL DISRUPTION, IT IS

POSSIBLE FOR THIS SOFTWARE PRODUCT TO FAIL TO PERFORM AS EXPECTED.

Limited Warranty

Digital Security Controls (DSC) warrants the original purchaser

that for a period of twelve (12) months from the date of purchase,

the product shall be free of defects in materials and workmanship

under normal use. During the warranty period, Digital Security

Controls shall, at its option, repair or replace any defective prod-

uct upon return of the product to its factory, at no charge for

labour and materials. Any replacement and/or repaired parts are

warranted for the remainder of the original warranty or ninety (90)

days, whichever is longer. The original purchaser must promptly

notify Digital Security Controls in writing that there is defect in

material or workmanship, such written notice to be received in all

events prior to expiration of the warranty period. There is abso-

lutely no warranty on software and all software products are sold

as a user license under the terms of the software license agree-

ment included with the product. The Customer assumes all

responsibility for the proper selection, installation, operation and

maintenance of any products purchased from DSC. Custom

products are only warranted to the extent that they do not function

upon delivery. In such cases, DSC can replace or credit at its

option.

International Warranty

The warranty for international customers is the same as for any cus-

tomer within Canada and the United States, with the exception that

Digital Security Controls shall not be responsible for any customs

fees, taxes, or VAT that may be due.

Warranty Procedure

To obtain service under this warranty, please return the item(s) in

question to the point of purchase. All authorized distributors and

dealers have a warranty program. Anyone returning goods to Dig-

ital Security Controls must first obtain an authorization number.

Digital Security Controls will not accept any shipment whatsoever

for which prior authorization has not been obtained.

Conditions to Void Warranty

This warranty applies only to defects in parts and workmanship

relating to normal use. It does not cover:

• damage incurred in shipping or handling;

• damage caused by disaster such as fire, flood, wind, earth-

quake or lightning;

• damage due to causes beyond the control of Digital Security

Controls such as excessive voltage, mechanical shock or

water damage;

• damage caused by unauthorized attachment, alterations,

modifications, or foreign objects;

• damage caused by peripherals (unless such peripherals were

supplied by Digital Security Controls);

• defects caused by failure to provide a suitable installation

environment for the products;

• damage caused by use of the products for purposes other

than those for which it was designed;

• damage from improper maintenance; or

• damage arising out of any other abuse, mishandling or

improper application of the products.

Items Not Covered by Warranty

In addition to the items which void the Warranty, the following items

shall not be covered by Warranty:

(i) freight cost to the repair centre;

(ii) products which are not identified with DSC's product label and

lot number or serial number; or

(iii) products disassembled or repaired in such a manner as to

adversely affect performance or prevent adequate inspection or

testing to verify any warranty claim.

Access cards or tags returned for replacement under warranty will

be credited or replaced at DSC's option. Products not covered by

this warranty, or otherwise out of warranty due to age, misuse, or

damage shall be evaluated, and a repair estimate shall be provided.

No repair work will be performed until a valid purchase order is

received from the Customer and a Return Merchandise Authorisa-

tion number (RMA) is issued by DSC's Customer Service.

Digital Security Controls’ liability for failure to repair the product

under this warranty after a reasonable number of attempts will be

limited to a replacement of the product, as the exclusive remedy

for breach of warranty. Under no circumstances shall Digital

Security Controls be liable for any special, incidental, or conse-

quential damages based upon breach of warranty, breach of con-

tract, negligence, strict liability, or any other legal theory. Such

damages include, but are not limited to, loss of profits, loss of the

product or any associated equipment, cost of capital, cost of

substitute or replacement equipment, facilities or services, down

time, purchaser’s time, the claims of third parties, including cus-

tomers, and injury to property. The laws of some jurisdictions

limit or do not allow the disclaimer of consequential damages. If

the laws of such a jurisdiction apply to any claim by or against

DSC, the limitations and disclaimers contained here shall be to

the greatest extent permitted by law. Some states do not allow the

exclusion or limitation of incidental or consequential damages, so

that the above may not apply to you.

Disclaimer of Warranties

This warranty contains the entire warranty and shall be in lieu of

any and all other warranties, whether expressed or implied

(including all implied warranties of merchantability or fitness for a

particular purpose) and of all other obligations or liabilities on the

part of Digital Security Controls Digital Security Controls neither

assumes responsibility for nor authorizes any other person pur-

porting to act on its behalf to modify or to change this warranty,

nor to assume for it any other warranty or liability concerning this

product.

This disclaimer of warranties and limited warranty are governed

by the laws of the province of Ontario, Canada.

WARNING: DIGITAL SECURITY CONTROLS RECOMMENDS THAT THE

ENTIRE SYSTEM BE COMPLETELY TESTED ON AREGULAR BASIS. HOWEVER,

DESPITE FREQUENT TESTING, AND DUE TO, BUT NOT LIMITED TO, CRIMINAL

TAMPERING OR ELECTRICAL DISRUPTION, IT IS POSSIBLE FOR THIS PROD-

UCT TO FAIL TO PERFORM AS EXPECTED.

Out of Warranty Repairs

Digital Security Controls will at its option repair or replace out-of-

warranty products which are returned to its factory according to

the following conditions. Anyone returning goods to Digital Secu-

rity Controls must first obtain an authorization number. Digital

Security Controls will not accept any shipment whatsoever for

which prior authorization has not been obtained.

Products which Digital Security Controls determines to be repair-

able will be repaired and returned. A set fee which Digital Security

Controls has predetermined and which may be revised from time

to time, will be charged for each unit repaired.

Français

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Montage du panneau . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Caractéristiques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Caractéristiques techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Valeurs nominales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Compatibilité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Chiffrement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Configuration du Communicator avant installation . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Installation du câble Ethernet (TL260GS/TL265GS seulement) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Insertion et dépose de la carte SIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Activation du compte DLS IV (avant l'installation) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Installation du Communicator GSM/ETHERNET dans l'armoire . . . . . . . . . . . . . . . . . 17

Installation du Communicator GS2060/TL260GS avec le panneau PC1616/1832/1864 . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Programmation du PC1616/1832/1864 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Défauts de Communicator affichés sur un panneau PC1616/1832/1864 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Installation du GS2065/TL265GS avec le panneau PC9155. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Fonction d'économie d'énergie (GS2065/TL265 seulement) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Défauts de Communicator affichés sur un panneau PC9155 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Test d'emplacement de Communicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Programmation à distance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Programmation par DLS IV : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Programmation par Ethernet/Internet :. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Témoins LED d'état du Communicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Témoin LED jaune de défaut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Témoin LED rouge d'état de connexion réseau . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

(Témoin LED vert 1) (Témoin LED vert 2) et (Témoin LED jaune) Signal Strength (Force du signal). . . . . . . . . . . . . . . . . 23

Réinitialisation du Communicator/Mise à jour/Utilisation du réseau de données 23

Retour aux valeurs d'usine par défaut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Mise à jour du logiciel interne . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Utilisation du réseau de données. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Annexe A : Dépannage du Communicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

NOTE :

Ce document n'inclut pas la programmation du module GPRS/Ethernet (Section de panneau [851]). Consultez le document Fiches

de programmation DSC – Référence 29007619R001, inclus avec le Communicator. Les instructions d'installation de ce document

ne concernent que les Communicator GS2060/GS2065 et TL260GS/TL265GS.

IMPORTANT

Le Communicator GPRS/Ethernet est fixe, à fixation murale et doit être installé dans la position spécifiée dans ces instructions. Le

boîtier de l'équipement doit être totalement monté et fermé, avec toutes ses vis et languettes, et fixé au mur avant utilisation. Le

câblage interne doit être passé de façon à éviter :

• Toute contrainte excessive sur les fils et branchements des bornes,

• Les interférences entre les câblages de puissance limitée et de puissance non limitée,

• Le desserrage des bornes, ou

• Les dégâts à l'isolation des conducteurs.

AVERTISSEMENT : Ne jamais installer cet équipement pendant un orage avec éclairs !

L'installateur doit préciser à l'utilisateur du système chacun des points suivants :

• Ne pas tenter d'intervenir sur ce produit. L'ouverture ou la dépose des capots peut exposer l'utilisateur à des tensions dangereuses

ou autres risques.

• Toute intervention doit être confiée exclusivement à du personnel d'entretien formé.

• N'utiliser que des accessoires agréés avec cet équipement.

TABLE DES MATIÈRES

ATTENTION à lire attentivement

Note pour les installateurs

Cette mise en garde contient des informations vitales. En tant que

seul individu en contact avec les utilisateurs du système, c’est à

vous qu’incombe la responsabilité d’attirer l’attention des utilisa-

teurs du système sur chaque élément de cette mise en garde.

Pannes de Système

Ce système à été soigneusement conçu pour être aussi efficace que

possible. Toutefois, dans des circonstances, où il y a feu, cambrio-

lage ou autre genre d’urgences, il ne peut pas fournir de protection.

Tout système d’alarme quel qu’il soit peut être saboté ou peut ne

pas fonctionner comme prévu pour plusieurs raisons. Certaines de

ces raisons sont notamment :

• Mauvaise Installation

Un système de sécurité doit être correctement installé pour fournir

une protection adéquate. Chaque installation doit être évaluée par

un professionnel de la sécurité pour s’assurer que tous points

d’accès et aires sont couvertes. Serrures et loquets sur les fenêtres et

portes doivent être bien fermés et fonctionner comme prévu. Les

matériels de construction des fenêtres, portes, murs, plafonds et

autres doivent assez solides pour assurer le niveau de protection

attendue. Une réévaluation doit être effectuée pendant et après toute

construction. Une évaluation par les sapeurs-pompiers et/ou les ser-

vices de police est grandement recommandée si ce service est

offert.

• Connaissances Criminelles

Ce système contient des fonctions de sécurité reconnues efficaces

au moment de la fabrication. Il est possible que des personnes ayant

des intentions criminelles élaborent des techniques qui réduisent

l’efficacité de ces fonctions. Il est important qu’un système sécurité

soit réexaminé périodiquement pour assurer que ces fonctions rest-

ent fonctionnelles et pour les actualiser ou les remplacer si elles

n’assurent plus la protection attendue.

• Accès par des Intrus

Des intrus peuvent entrer par un point d’accès non protégé en con-

tournant une unité de détection, échapper à une détection en se

déplaçant dans une zone à couverture insuffisante, déconnecter une

unité d’alerte, ou interférer avec le système ou empêcher son fonc-

tionnement normal.

• Panne de Courant

Les unités de Contrôle, les détecteurs d’intrusion, les détecteurs de

fumée et bien d’autres dispositifs de sécurité nécessitent une ali-

mentation électrique pour fonctionner normalement. Si un dis-

positif fonctionne à partir de piles, il est possible que les piles

faiblissent. Même si les piles ne sont pas faibles, elles doivent être

changées, en bonne condition et installées correctement. Si un dis-

positif ne fonctionne que par courant électrique, toute interruption,

même brève, rendra ce dispositif inopérant pendant la durée de la

coupure de courant. Les coupures de courant, quelle qu’en soit la

durée, sont souvent accompagnées par des fluctuations de voltage

qui peuvent endommager l’équipement électronique tel qu’un sys-

tème de sécurité. Après qu’une coupure de courant s’est produite,

effectuez immédiatement un test complet du système pour vous

assurer que le système fonctionne correctement

• Panne de Piles Remplaçables

Les transmetteurs sans fils de ce système ont été conçus pour

fournir plusieurs années d’autonomie de piles sous des conditions

normales. La durée de vie de la pile dépend de l’environnement du

dispositif, de utilisation et du type de pile. Les conditions ambiantes

telles que l’humidité élevée, des températures très élevée ou très

bases, ou de grosses différences de température peuvent réduire la

durée de vie de la pile. Bien que chaque dispositif de transmission

possède un dispositif de surveillance de pile faible et qu’il indique

quand les piles ont besoin d’être remplacée, il peut ne pas fonction-

ner comme prévu. Des tests et un entretien régulier garderont le

système dans de bonne condition de fonctionnement.

• Limites de fonctionnement des Dispositifs de Fréquence

Radio (Sans Fils)

Les signaux peuvent ne pas atteindre le récepteur dans toutes les

circonstances qui pourraient inclure objets métalliques placés sur

ou à côté du chemin radio ou blocage délibéré ou autre interférence

du signal radio commis par inadvertance.

• Les Utilisateurs du Système

Un utilisateur peut ne pas être en mesure de faire fonctionner un

interrupteur de panique ou d’urgence à cause d’une invalidité per-

manente ou temporaire, d’une incapacité d’atteindre le dispositif à

temps, ou d’un manque de connaissance de la bonne fonction. Il est

important que tous les utilisateurs du système soient formés sur le

bon fonctionnement du système d’alarme pour qu’ils sachent com-

ment réagir quand le système indique une alarme.

• Détecteurs de Fumée

Les détecteurs de fumée qui font partie du système peuvent ne pas

bien alerter les occupants d’un endroit en feu pour un certains nom-

bre de raisons, en voici quelques une. Le détecteurs de fumée peu-

vent avoir été mal installés ou positionnés. La fumée peut ne pas

pouvoir atteindre le détecteurs de fumée, par exemple : un incendie

dans une cheminée, murs ou toits, ou de l’autre côté de portes fer-

mées. Les détecteurs de fumée peuvent ne pas détecter la fumée

provenant d’incendies à un autre niveau de la résidence ou du bâti-

ment.

Tous les incendies différent par la quantité de fumée produite et le

taux de combustion. Les détecteurs de fumée ne peuvent pas

détecter de la même manière tous les types d’incendies. Les détect-

eurs de fumée ne fournissent pas d’avertissement opportun d’un

incendie causé par une imprudence ou un manque de sécurité tels

que fumer dans le lit, explosions violentes, fuites de gaz, mauvais

rangement de produits inflammables, circuits électriques surchar-

gés, enfants jouant avec des allumettes.

Même si le détecteur de fumée fonctionne comme prévu, dans cer-

taines circonstances il n’y a pas assez de préavis pour permettre à

tous les occupants de s’enfuir à temps pour éviter blessure ou mort.

• Détecteurs de mouvement

Les détecteurs de mouvement ne peuvent détecter le mouvement

que dans les zones désignées, conformément aux instructions

d’installation. Ils ne peuvent pas distinguer entre intrus et occu-

pants. Les détecteurs de mouvement ne fournissent pas de protec-

tion de zone volumétrique. Ils ont de multiples rayons de détection

et les mouvements ne peuvent être détectés que dans des zones non

obstruées et couvertes par ces rayons. Ils ne peuvent détecter les

mouvements qui se produisent derrière les murs, plafonds, sol,

portes fermées, cloisons vitrées, portes vitrées ou fenêtres. Tout

type de problème qu’il soit intentionnel ou non tels camouflage,

peinture ou vaporisation de matériel sur les lentilles, miroirs,

fenêtres ou toute autre partie du système de détection l’empêchera

de son fonctionner normalement.

Les Détecteurs de mouvement à infra-rouge passif fonctionnent en

détectant les changements de température. Cependant leur fonc-

tionnement peut être inhibé quand la température ambiante

s’approche ou dépasse la température du corps ou s’il y a des

sources de chaleur intentionnelles ou non intentionnelles dans de la

zone de détection ou à côté de celle-ci. Quelques une de ces sources

de chaleur peuvent être chauffages, radiateurs, fours, barbecues,

cheminées, lumière du soleil, éclairages, etc.

• Dispositifs d’Avertissement

Les dispositifs d’avertissement tels que sirènes, cloches, klaxons ou

lumières stroboscopiques n’avertissent pas les gens ou ne réveillent

pas quelqu’un qui dort s’il y a un mur ou une porte fermée. Si les

dispositifs d’avertissement sont placés à un autre niveau de la

résidence ou du local, alors il est que probable que les occupants ne

seront pas alertés ou réveillés. Les dispositifs d’avertissement audi-

bles peuvent interférer avec d’autres sources de bruit tels stéréo,

radios, télévisions, climatisations ou autres unités électriques, ou la

circulation. Les dispositifs d’avertissement audibles, même bruy-

ants, ne peuvent pas être entendus par une personne malentendante.

• Lignes Téléphoniques

Si les lignes téléphoniques sont utilisées pour transmettre des

alarmes, elles peuvent être hors d’usage ou occupées pendant une

certaine période de temps. Un intrus peut également couper la ligne

téléphonique ou provoquer son dérangement par des moyens plus

sophistiqués parfois difficiles à détecter.

• Insuffisance de temps

Ils peut y avoir des circonstances où le système fonctionne comme

prévu, mais où les occupants ne seront pas protégés à cause de leur

incapacité à répondre aux avertissements dans un temps alloué. Si

le système est connecté à un poste de surveillance, l’intervention

peut ne pas arriver à temps pour protéger les occupants ou leurs

biens.

• Panne d’un élément

Bien que tout les efforts ont été faits pour rendre le système aussi

fiable que possible, le système peut mal fonctionner à cause de la

panne d’un élément.

• Test Insuffisant

La plupart des problèmes qui pourraient empêcher un système

d’alarme de fonctionner normalement peuvent être découverts en

testant et entretenant le système régulièrement. L’ensemble du sys-

tème devrait être testé hebdomadairement et immédiatement après

une entrée par effraction, une tentative d’entrée par effraction, un

incendie, une tempête, un tremblement de terre, un accident ou

toute sorte de construction à l’intérieur des lieux. Le test doit com-

porter tous les dispositifs de détection, claviers, consoles, dispositifs

d’indication d’alarme et tout autre dispositif de fonctionnement qui

font partie du système.

n Sécurité et Assurance

Sans tenir compte de ses capacités, un système d’alarme n’est pas

un substitut d’assurance sur la propriété ou d’assurance vie. Un sys-

tème d’alarme n’est pas un substitut de propriétaire, locataires ou

autres occupants pour agir prudemment afin d’empêcher ou de

minimiser les effets nuisibles d’une situation d’urgence.

TGS2060/GS2065 : Communicator d'alarme sans fil GPRS/GSM (General Packet Radio Service/Global System for Mobile)

envoyant les communications d'alarme aux récepteurs de station centrale Sur-Gard System I, II et III (SG-DRL3IP) par un réseau

cellulaire numérique GPRS/GSM.

TL260GS/TL265GS : Communicator d'alarme par réseau double GSM/Ethernet envoyant les communications d'alarme aux

récepteur de station centrale Sur-Gard System I et III par Ethernet/Internet ou par réseau cellulaire numérique GPRS/GSM.

Le Communicator peut être utilisé comme Communicator primaire ou de secours. Le Communicator assure la transmission par IP

(Internet Protocol) des événements de panneau et internes sur Ethernet/Internet et/ou GSM/GPRS. Le Communicator peut fournir

une notification d'événement par SMS (Short Message Service) et autorise la communication SMS interactive avec des services

tiers par GPRS et Ethernet selon le protocole ITV2.

Les performances GPRS/GSM des GS2060/GS2065/TL260GS/TL265GS Communicator dépendent largement de la couverture du

réseau GSM. Le montage à l'emplacement définitif ne doit pas se faire sans effectuer le Test d'emplacement de Communicator en page

20 pour déterminer le meilleur emplacement de réception radio (minimum un témoin LED vert allumé). Des kits d'antenne en option

sont disponibles auprès de DSC à l'adresse : http://www.DSC.com.

NOTE : Avant l'installation du Communicator, vérifiez auprès de votre opérateur qu'un réseau GPRS/GSM est disponible et

actif dans la zone où le Communicator sera installé et que la force du signal radio est suffisante.

Montage du panneau

Les Communicator suivants sont compatibles avec les panneaux de contrôle PC1616/PC1832/PC1864:

•GS2060 (GPRS/GSM seulement) •TL260GS (Ethernet/Internet + GPRS/GSM par réseau double)

Les modèles Communicator suivants sont compatibles avec le panneau de contrôle PC9155 :

•GS2065 (GPRS/GSM seulement) •TL265GS (Ethernet/Internet + GPRS/GSM par réseau double)

NOTE : Pour l'installation du GS2065, le modèle est 9155G. Pour l'installation du TL265GS, le modèle est 9155D.

Caractéristiques

Caractéristiques techniques

L'alimentation doit être de classe II, de puissance limitée. (C'est-à-dire pas plus de 30 V ou 8 A pour un total maximum de 100 VA).

Valeurs nominales

INTRODUCTION

• Chiffrement AES 128 bits par GPRS/GSM et Ethernet/Internet (certificat de validation NIST No 995)

• Programmation avancée locale et distante par DSC DLS IV.

• Communication d'alarme GPRS/GSM de secours ou principale.

• Réseau local ou étendu Ethernet 10/100 BaseT (TL260GS/TL265GS seulement).

• Signalisation complète d'événement.

• Programmation complète au clavier (GS2065 et TL265GS seulement).

• Communication d'alarme totalement redondante par réseau double Ethernet/Internet et GPRS/GSM (TL260GS/TL265GS seulement).

• Transmission de test périodique individuel par Ethernet et/ou GPRS.

• Code installateur.

• Routage d'appel intégré.

• Possibilité de téléchargement/envoi au panneau distant par GPRS/GSM et Ethernet/Internet.

• Connexion PC-Link.

• Étiquettes programmables (synchronisation automatique des étiquettes de zone et de partition avec les panneaux 9155 v1.1+ seulement).

• Commandes et messages de réponses SMS programmables dans 28 langues par messages texte de téléphone portable.

• Fonctionnement quadribande : 850 MHz, 900 MHz, 1800 MHz et 1900 MHz.

• Format SIA (Contact ID GS2065/TL265GS V1.1 seulement).

• Affichage de la force du signal et de défaut.

• Battements de cœur de supervision par GPRS/GSM et Ethernet/Internet.

Tableau 1 : Valeurs nominales du Communicator

MODÈLE GS2060

GPRS/GSM SEULEMENT TL260GS

ETHERNET ET GPRS GS2065

GPRS/GSM SEULEMENT TL265GS

ETHERNET ET GPRS

VALEURS NOMINALES D'ALIMENTATION

• Tension d'entrée 11,1 ~ 12,6 V CC : La sortie sonnerie du panneau sera

réduite :

700 mA – (mA Communicator) = sortie sonnerie réduite.

11,1 ~ 12,6 V CC

(Depuis le connecteur PC-Link)

CONSOMMATION DE COURANT

• Courant de veille 65 mA sous 12 V 100 mA sous 12 V 65 mA sous 12 V 100 mA sous 12 V

• Courant d'alarme (émission) 400 mA sous 12 V en émission

• Fréquence de fonctionnement Quadribande 850 MHz, 900 MHz, 1800 MHz, 1900 MHz

• Gain d'antenne typique 2 db

CARACTÉRISTIQUES D'ENVIRONNEMENT

• Température d'utilisation -10 °C à 55 °C (14 °F à 131 °F)

•Humidité 5 % à 93 % humidité relative, sans condensation

CARACTÉRISTIQUES MÉCANIQUES

• Dimensions de la carte (mm) 100 × 150 × 15 100 × 150 × 18 100 × 150 × 15 100 × 150 × 18

•Poids(grammes) 310 (avec support de

fixation) 320 (avec support de fixation) 68 78

Compatibilité

Ce Communicator GSM/Ethernet est fixe et doit être installé exclusivement par du personnel spécialisé. (Personnel spécialisé s'entend

d'une personne disposant de l'expérience et de la formation technique nécessaires pour connaître les dangers auxquels elle peut être

exposée dans l'accomplissement d'une tâche ainsi que des mesures à prendre pour réduire les risques vis-à-vis d'elle-même ou des autres

personnes). Le Communicator ne doit être installé et utilisé que dans un environnement à un degré de pollution maximal 2, des surtensions

de catégorie II, à l'intérieur et en zone non dangereuse. Ce manuel doit être utilisé avec le manuel d'installation du panneau de contrôle

d'alarme connecté au Communicator GSM/Ethernet. Toutes les instructions spécifiées dans le manuel du panneau doivent être respectées.

Chiffrement

Le Communicator utilise le chiffrement AES 128 bits. Le chiffrement ne peut être activé que depuis le récepteur de la station de

surveillance. Chaque récepteur peut activer ou désactiver indpendamment le chiffrement. Quand le chiffrement est activé, la station

centrale configure l'appareil pour chiffrer les communications vers ce récepteur lors de la prochaine communication du module

transmetteur avec ce récepteur.

NOTE : Les paquets ne commenceront d'être chiffrés qu'après l'envoi du prochain événement à ce récepteur, ou en cas de

redémarrage de l'appareil.

Installation du câble Ethernet (TL260GS/TL265GS seulement)

Un câble Ethernet Catégorie 5 (CAT 5) doit être tiré d'une source disposant d'une connectivité Ethernet/Internet jusqu'au module

Communicator, dans l'armoire du panneau de contrôle. Le côt Communicator du câble doit être équipé d'une fiche RJ45, à connecter

à la prise RJ45 du Communicator. Toutes les exigences d'installation d'un câble Ethernet CAT5 doivent être respectées pour un bon

fonctionnement du Communicator, notamment mais sans limitation :

• Ne PAS dénuder la gaine du câble plus que nécessaire pour une bonne terminaison.

• Ne PAS pincer ni nouer le câble. • Ne PAS écraser le câble avec les colliers à câble.

• Ne PAS détorsader les paires CAT5 de plus de 1,2 cm (½").

• Ne PAS épisser le câble. • Ne PAS courber le câble à angles droits ni toute autre courbure brusque.

NOTE : La spécification CAT5 impose que les rayons de courbure du câble soient d'au minimum 5 cm (2"). Ne PAS dépasser

la longueur maximale de 15 cm (6") du centre de la ferrite au connecteur réseau T-Link. La longueur maximale de câble CAT

5 est de 100 m (328 pi).

Insertion et dépose de la carte SIM

1. Si le Communicator est déjà installé dans une armoire de panneau de contrôle, déposez le capot avant du panneau de contrôle

pour accéder au support de carte SIM.

2. Coupez l'alimentation du panneau et débranchez les raccordements de batterie de secours.

3. Sur le porte-carte SIM, appuyez doucement pour faire glisser le capot vers l'antenne du circuit imprimé, comme indiqué par la

flèche sur le porte-carte SIM, pour l'ouvrir. Ceci déverrouille le porte-carte SIM du côté le plus proche du bord de la carte de

circuit imprimé du Communicator.

4. Soulevez le porte-carte SIM du côté opposé à la charnière.

5. Insérez ou retirez la carte SIM, en notant l'orientation des encoches sur la carte SIM et sur le porte-carte SIM.

6. Pour insérer une carte SIM, prenez garde à l'orientation correcte et poussez doucement le porte-carte SIM pour le faire glisser

comme indiqué par la flèche sur le porte-carte SIM, jusqu'au verrouillage. Voir Figure 3 et Figure 5.

Rebranchez la batterie de secours, rétablissez l'alimentation du panneau et reposez le capot du panneau.

Activation du compte DLS IV (avant l'installation)

L'installateur peut aussi facultativement effectuer toute la programmation du module avant son installation sur site (si la carte SIM

a été activée). Procédez comme suit pour programmer le Communicator en local à l'aide du logiciel DLS IV.

NOTE : Lors de la réception de la carte SIM de l'opérateur de réseau GSM local, notez le numéro de téléphone GSM de la

carte SIM. Ce numéro sera nécessaire pour la programmation à distance, c'est aussi celui qui sera utilisé pour les

fonctions SMS interactives. Du fait de la nature de la procédure d'activation de la carte SIM auprès des opérateurs de

réseau GSM, l'activation de la carte SIM peut prendre jusqu'à 24 heures.

1. Connectez le Communicator à votre ordinateur à l'aide du câble PC-Link approprié pour le type de Communicator :

a. GS2060 et TL260GS : Kits PCLINK-9 ou PCLINK-SCW.

b. GS2065 et TL265GS : Kit PCLINK-5WP.

2. Démarrez le Communicator.

a. GS2060 et TL260GS : Effectuez l'alimentation depuis les sorties Bell + et Aux – du panneau. (PC1616/1832/1864).

b. GS2065 et TL265G : Effectuez l'alimentation depuis le transformateur fourni avec le kit PCLINK-5WP.

3. Lancez le logiciel DLS IV sur votre ordinateur.

NOTE : Si nécessaire, téléchargez le logiciel DLS IV chez DSC à l'adresse : http://www.dsc.com/

index.php?n=library#self

4. Procédez comme suit pour programmer le Communicator à l'aide de DLS IV :

a. Sélectionnez le type de panneau de contrôle et configurez un nouveau compte pour cette installation.

b. Ajoutez le type Communicator à ce compte.

c. Ajoutez le type de communication du Communicator (SMS, Ethernet/Internet et PC-Link) et entrez toutes les informations

correspondantes.

d. Ouvrez le nouveau compte et trouvez la section GS/IP.

e. Sur l'onglet Options de Communicator, entrez les informations correspondantes.

f. Sur l'onglet Options de récepteur, entrez les informations correspondantes.

Tableau 2 : Récepteurs, panneaux de contrôle et armoires compatibles

COMMUNICATOR RÉCEPTEUR/

PANNEAU DESCRIPTION

GS2060/TL260GS

GS2065/TL265GS Récepteur • Récepteur Sur-Gard System I, version 1.1+

• Récepteur Sur-Gard System II, version 2.0+

• Sur-Gard SG-DRL3-IP, version 2.2+ (pour le récepteur Sur-Gard

System III)

GS2060/TL260GS Panneau de

contrôle

et armoires

• Power Series PC1864, version 4.3+

• Power Series PC1832, version 4.3+

• Power Series PC1616, version 4.3+

•Armoires:PC5003C/PC4050C

GS2065/TL265GS Panneau de

contrôle • PC9155 version 1.1+

CONFIGURATION DU COMMUNICATOR AVANT INSTALLATION

This manual suits for next models

Table of contents

Languages:

Popular Cell Phone manuals by other brands

Samsung

Samsung SCH-A301 user manual

Lenovo

Lenovo A7000-a user guide

Sagem

Sagem MYX5-2 user guide

Motorola

Motorola MOTOGO! TV manual

LG G5 Verizon user guide

Huawei

Huawei Mate 20 lite quick start guide

Opticon

Opticon H21 user manual

Samsung

Samsung GT-I9060I user manual

LG UN430 Grey Manual Del Usuario

honor

honor Magic Vs quick start guide

Samsung

Samsung SM-A226BR/DSN user manual

Huawei

Huawei STK-L21 quick start guide

HTC

HTC HTC One user guide

Trevi

Trevi FLEX Plus 65 user manual

LG UX145 quick start guide

Samsung

Samsung SGH-A707 SERIES user guide

Nokia

Nokia 6131 - Cell Phone 32 MB user guide

Samsung

Samsung Galaxy J7 Max user manual

DSC GS2060 User manual

Popular Cell Phone manuals by other brands
