DSC T-Link TL300 User manual

T-Link TL250/TL300
Network Internet
Alarm Communicator
Software Version 1.5
Installation Manual

WARNING Please Read Carefully
Note to Installers
This warning contains vital information. As the only individual
in contact with system users, it is your responsibility to bring
each item in this warning to the attention of the users of this sys-
tem.
System Failures
This system has been carefully designed to be as effective as
possible. There are circumstances, however, involving fire, bur-
glary, or other types of emergencies where it may not provide
protection. Any alarm system of any type may be compromised
deliberately or may fail to operate as expected for a variety of
reasons. Some but not all of these reasons may be:
Inadequate Installation
A security system must be installed properly in order to provide
adequate protection. Every installation should be evaluated by a
security professional to ensure that all access points and areas
are covered. Locks and latches on windows and doors must be
secure and operate as intended. Windows, doors, walls, ceilings
and other building materials must be of sufficient strength and
construction to provide the level of protection expected. A
reevaluation must be done during and after any construction
activity. An evaluation by the fire and/or police department is
highly recommended if this service is available.
Criminal Knowledge
This system contains security features which were known to be
effective at the time of manufacture. It is possible for persons
with criminal intent to develop techniques which reduce the
effectiveness of these features. It is important that a security sys-
tem be reviewed periodically to ensure that its features remain
effective and that it be updated or replaced if it is found that it
does not provide the protection expected.
Access by Intruders
Intruders may enter through an unprotected access point, cir-
cumvent a sensing device, evade detection by moving through
an area of insufficient coverage, disconnect a warning device, or
interfere with or prevent the proper operation of the system.
Power Failure
Control units, intrusion detectors, smoke detectors and many
other security devices require an adequate power supply for
proper operation. If a device operates from batteries, it is possi-
ble for the batteries to fail. Even if the batteries have not failed,
they must be charged, in good condition and installed correctly.
If a device operates only by AC power, any interruption, how-
ever brief, will render that device inoperative while it does not
have power. Power interruptions of any length are often accom-
panied by voltage fluctuations which may damage electronic
equipment such as a security system. After a power interruption
has occurred, immediately conduct a complete system test to
ensure that the system operates as intended.
Failure of Replaceable Batteries
This system’s wireless transmitters have been designed to pro-
vide several years of battery life under normal conditions. The
expected battery life is a function of the device environment,
usage and type. Ambient conditions such as high humidity, high
or low temperatures, or large temperature fluctuations may
reduce the expected battery life. While each transmitting device
has a low battery monitor which identifies when the batteries
need to be replaced, this monitor may fail to operate as
expected. Regular testing and maintenance will keep the system
in good operating condition.
Compromise of Radio Frequency (Wireless) Devices
Signals may not reach the receiver under all circumstances
which could include metal objects placed on or near the radio
path or deliberate jamming or other inadvertent radio signal
interference.
System Users
A user may not be able to operate a panic or emergency switch
possibly due to permanent or temporary physical disability,
inability to reach the device in time, or unfamiliarity with the
correct operation. It is important that all system users be trained
in the correct operation of the alarm system and that they know
how to respond when the system indicates an alarm.
Smoke Detectors
Smoke detectors that are a part of this system may not properly
alert occupants of a fire for a number of reasons, some of which
follow. The smoke detectors may have been improperly
installed or positioned. Smoke may not be able to reach the
smoke detectors, such as when the fire is in a chimney, walls or
roofs, or on the other side of closed doors. Smoke detectors may
not detect smoke from fires on another level of the residence or
building.
Every fire is different in the amount of smoke produced and the
rate of burning. Smoke detectors cannot sense all types of fires
equally well. Smoke detectors may not provide timely warning
of fires caused by carelessness or safety hazards such as smok-
ing in bed, violent explosions, escaping gas, improper storage of
flammable materials, overloaded electrical circuits, children
playing with matches or arson.
Even if the smoke detector operates as intended, there may be
circumstances when there is insufficient warning to allow all
occupants to escape in time to avoid injury or death.
Motion Detectors
Motion detectors can only detect motion within the designated
areas as shown in their respective installation instructions. They
cannot discriminate between intruders and intended occupants.
Motion detectors do not provide volumetric area protection.
They have multiple beams of detection and motion can only be
detected in unobstructed areas covered by these beams. They
cannot detect motion which occurs behind walls, ceilings, floor,
closed doors, glass partitions, glass doors or windows. Any type
of tampering whether intentional or unintentional such as mask-
ing, painting, or spraying of any material on the lenses, mirrors,
windows or any other part of the detection system will impair its
proper operation.
Passive infrared motion detectors operate by sensing changes in
temperature. However their effectiveness can be reduced when
the ambient temperature rises near or above body temperature or
if there are intentional or unintentional sources of heat in or near
the detection area. Some of these heat sources could be heaters,
radiators, stoves, barbeques, fireplaces, sunlight, steam vents,
lighting and so on.
Warning Devices
Warning devices such as sirens, bells, horns, or strobes may not
warn people or waken someone sleeping if there is an interven-
ing wall or door. If warning devices are located on a different
level of the residence or premise, then it is less likely that the
occupants will be alerted or awakened. Audible warning devices
may be interfered with by other noise sources such as stereos,
radios, televisions, air conditioners or other appliances, or pass-
ing traffic. Audible warning devices, however loud, may not be
heard by a hearing-impaired person.
Telephone Lines
If telephone lines are used to transmit alarms, theymay be outof
service or busy for certain periods of time. Also an intruder may
cut the telephone line or defeat its operation by more sophisti-
cated means which may be difficult to detect.
Insufficient Time
There may be circumstances when the system will operate as
intended, yet the occupants will not be protected from the emer-
gency due to their inability to respond to the warnings in a
timely manner. If the system is monitored, the response may not
occur in time to protect the occupants or their belongings.
Component Failure
Although every effort has been made to make this system as
reliable as possible, the system may fail to function as intended
due to the failure of a component.
Inadequate Testing
Most problems that would prevent an alarm system from operat-
ing as intended can be found by regular testing and mainte-
nance. The complete system should be tested weekly and
immediately after a break-in, an attempted break-in, a fire, a
storm, an earthquake, an accident, or any kind of construction
activity inside or outside the premises. The testing should
include all sensing devices, keypads, consoles, alarm indicating
devices and any other operational devices that are part of the
system.
Security and Insurance
Regardless of its capabilities, an alarm system is not a substitute
for property or life insurance. An alarm system also is not a sub-
stitute for property owners, renters, or other occupants to act
prudently to prevent or minimize the harmful effects of an emer-
gencysituation.

Table of Contents
Section 1: Introduction 1
1.1 Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Section 2: Quick Start 3
2.1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.3 Resetting to Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Section 3: Bell Follower Installation (Mode 1) 5
Section 4: Stand-alone Installation (Modes 2 & 3) 6
4.1 Stand-alone Mode 2 Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.2 Input Expander Mode 3 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Section 5: Standard Installation (Mode 4) 7
5.1 Input Expander Mode 3 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5.2 Standard connection with PC4020(CF)/PC5020(CF). . . . . . . . . . . . . . . . . . . . . . . . . 7

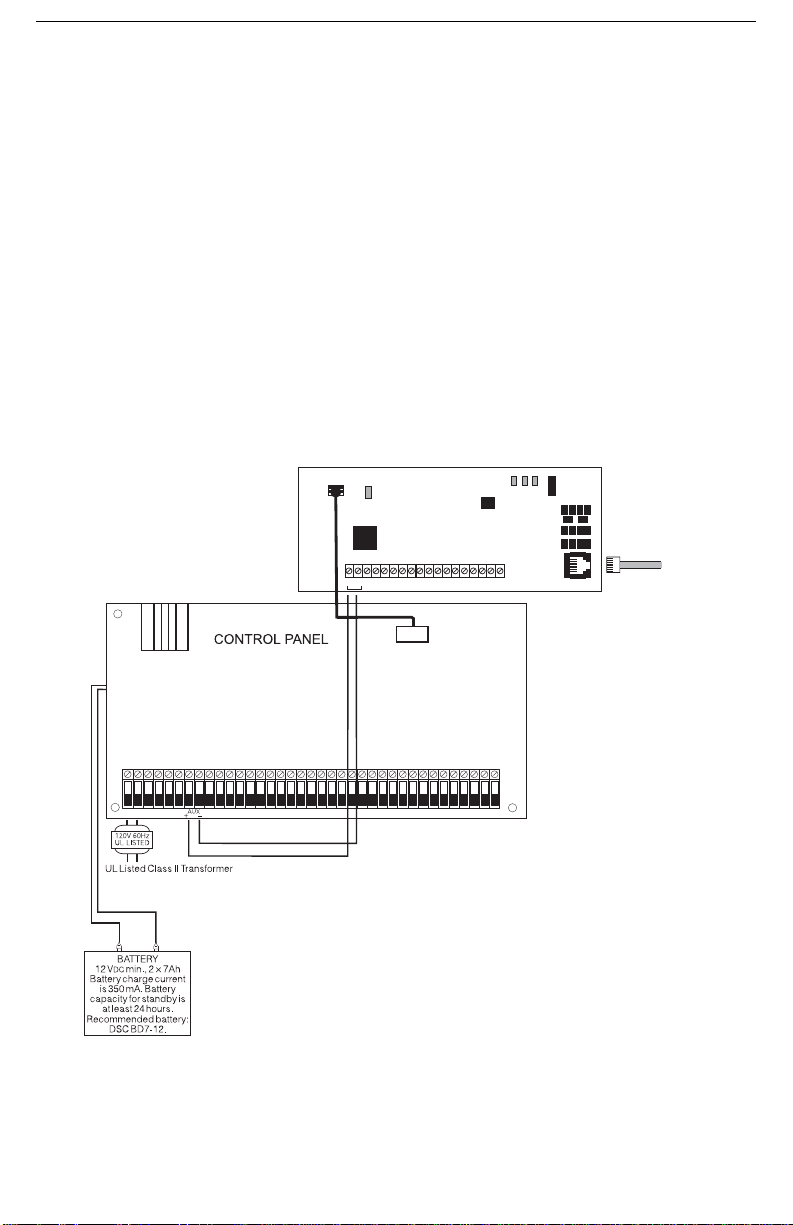

5.3 Wiring T-Link to a DSC compatible Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.4 UL Listed Commercial Fire Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Section 6: DVACS Installation (Mode 5) 9
6.1 DVACS Panel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6.2 DVACS Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Section 7: TL300 Telephone Simulation 11
7.1 TL300 Panel Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7.2 T-Link TL300 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Section 8: T-Link TL250/TL300 Operation 12
8.1 Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.2 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.3 IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.4 Port Usage Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.5 Integrated Call Directions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.6 Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8.7 Test & Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Section 9: Programming Guide 14
9.1 Basic Programming (PC4020 Control Panel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9.2 Basic Programming (PC5020 Control Panel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9.3 T-Link DVACS Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9.4 T-Link TL300 Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Section 10: Programming Descriptions (Advanced) 17
Section 11: Programming Worksheets 24
Glossary 27
Appendix A: T-Link TL250 Compatibility Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Appendix B: T-Link TL300 Compatibility Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Appendix C: T-Link TL250/TL300 Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Appendix D: Contact ID Reporting Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Appendix E: Network Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

IMPORTANT - READ CAREFULLY: DSC Software purchased with or without Products and Components
is copyrighted and is purchased under the following license terms:
• This End-User License Agreement (“EULA”) is a legal agreement
between You (the company, individual or entity who acquired the
Software and any related Hardware) and Digital Security Controls, a
division of Tyco Safety Products Canada Ltd. (“DSC”), the manufac-
turer of the integrated security systems and the developer of the soft-
ware and any related products or components (“HARDWARE”) which
You acquired.
• If the DSC software product (“SOFTWARE PRODUCT” or “SOFT-
WARE”) is intended to be accompanied by HARDWARE, and is NOT
accompanied by new HARDWARE, You may not use, copy or install
the SOFTWARE PRODUCT. The SOFTWARE PRODUCT includes
computer software, and may include associated media, printed mate-
rials, and “online” or electronic documentation.
• Any software provided along with the SOFTWARE PRODUCT that is
associated with a separate end-user license agreement is licensed to
You under the terms of that license agreement.
• By installing, copying, downloading, storing, accessing or otherwise
using the SOFTWARE PRODUCT, You agree unconditionally to be
bound by the terms of this EULA, even if this EULA is deemed to be a
modification of any previous arrangement or contract. If You do not
agree to the terms of this EULA, DSC is unwilling to license the
SOFTWARE PRODUCT to You, and You have no right to use it.
SOFTWARE PRODUCT LICENSE
The SOFTWARE PRODUCT is protected by copyright laws and
international copyright treaties, as well as other intellectual property
laws and treaties. The SOFTWARE PRODUCT is licensed, not sold.
1. GRANT OF LICENSE This EULA grants You the following rights:
(a) Software Installation and Use - For each license You acquire, You may have
only one copy of the SOFTWARE PRODUCT installed.
(b) Storage/Network Use - The SOFTWARE PRODUCT may not be installed,
accessed, displayed, run, shared or used concurrently on or from different
computers, including a workstation, terminal or other digital electronic
device (“Device”). In other words, if You have several workstations, You will
have to acquire a license for each workstation where the SOFTWARE will be
used.
(c) Backup Copy - You may make back-up copies of the SOFTWARE
PRODUCT, but You may only have one copy per license installed at any
given time. You may use the back-up copy solely for archival purposes.
Except as expressly provided in this EULA, You may not otherwise make
copies of the SOFTWARE PRODUCT, including the printed materials
accompanying the SOFTWARE.
2. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS
(a) Limitations on Reverse Engineering, Decompilation and Disassembly - You
may not reverse engineer, decompile, or disassemble the SOFTWARE
PRODUCT, except and only to the extent that such activity is expressly
permitted by applicable law notwithstanding this limitation. You may not
make any changes or modifications to the Software, without the written
permission of an officer of DSC. You may not remove any proprietary
notices, marks or labels from the Software Product. You shall institute
reasonable measures to ensure compliance with the terms and conditions
of this EULA.
(b) Separation of Components - The SOFTWARE PRODUCT is licensed as a
single product. Its component parts may not be separated for use on more
than one HARDWARE unit.
(c) Single INTEGRATED PRODUCT - If You acquired this SOFTWARE with
HARDWARE, then the SOFTWARE PRODUCT is licensed with the
HARDWARE as a single integrated product. In this case, the SOFTWARE
PRODUCT may only be used with the HARDWARE as set forth in this EULA.
(d) Rental - You may not rent, lease or lend the SOFTWARE PRODUCT. You
may not make it available to others or post it on a server or web site.
(e) Software Product Transfer - You may transfer all of Your rights under this
EULA only as part of a permanent sale or transfer of the HARDWARE,
provided You retain no copies, You transfer all of the SOFTWARE PRODUCT
(including all component parts, the media and printed materials, any
upgrades and this EULA), and provided the recipient agrees to the terms of
this EULA. If the SOFTWARE PRODUCT is an upgrade, any transfer must also
include all prior versions of the SOFTWARE PRODUCT.
(f) Termination - Without prejudice to any other rights, DSC may terminate this
EULA if You fail to comply with the terms and conditions of this EULA. In
such event, You must destroy all copies of the SOFTWARE PRODUCT and all
of its component parts.
(g) Trademarks - This EULA does not grant You any rights in connection with any
trademarks or service marks of DSC or its suppliers.
3. COPYRIGHT - All title and intellectual property rights in and to the
SOFTWARE PRODUCT (including but not limited to any images,
photographs, and text incorporated into the SOFTWARE PRODUCT), the
accompanying printed materials, and any copies of the SOFTWARE
PRODUCT, are owned by DSC or its suppliers. You may not copy the
printed materials accompanying the SOFTWARE PRODUCT. All title and
intellectual property rights in and to the content which may be accessed
through use of the SOFTWARE PRODUCT are the property of the
respective content owner and may be protected by applicable copyright
or other intellectual property laws and treaties. This EULA grants You no
rights to use such content. All rights not expressly granted under this
EULA are reserved by DSC and its suppliers.
4. EXPORT RESTRICTIONS - You agree that You will not export or
re-export the SOFTWARE PRODUCT to any country, person, or entity
subject to Canadian export restrictions.
5. CHOICE OF LAW - This Software License Agreement is governed by the
laws of the Province of Ontario, Canada.
6. ARBITRATION -All disputes arising in connection with this
Agreement shall be determined by final and binding arbitration in
accordance with the Arbitration Act, and the parties agree to be bound
by the arbitrator’s decision. The place of arbitration shall be Toronto,
Canada, and the language of the arbitration shall be English.
7. LIMITED WARRANTY
(a) NO WARRANTY - DSC PROVIDES THE SOFTWARE “AS IS” WITHOUT
WARRANTY. DSC DOES NOT WARRANT THAT THE SOFTWARE WILL
MEET YOUR REQUIREMENTS OR THAT OPERATION OF THE
SOFTWARE WILL BE UNINTERRUPTED OR ERROR-FREE.
(b) CHANGES IN OPERATING ENVIRONMENT - DSC shall not be responsible
for problems caused by changes in the operating characteristics of the
HARDWARE, or for problems in the interaction of the SOFTWARE PRODUCT
with non-DSC-SOFTWARE or HARDWARE PRODUCTS.
(c) LIMITATION OF LIABILITY; WARRANTY REFLECTS ALLOCATION OF
RISK - IN ANY EVENT, IF ANY STATUTE IMPLIES WARRANTIES OR
CONDITIONS NOT STATED IN THIS LICENSE AGREEMENT, DSC’S
ENTIRE LIABILITY UNDER ANY PROVISION OF THIS LICENSE
AGREEMENT SHALL BE LIMITED TO THE GREATER OF THE
AMOUNT ACTUALLY PAID BY YOU TO LICENSE THE SOFTWARE
PRODUCT AND FIVE CANADIAN DOLLARS (CAD$5.00). BECAUSE
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
(d) DISCLAIMER OF WARRANTIES - THIS WARRANTY CONTAINS THE
ENTIRE WARRANTY AND SHALL BE IN LIEU OF ANY AND ALL
OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED
(INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE) AND OF ALL OTHER
OBLIGATIONS OR LIABILITIES ON THE PART OF DSC. DSC MAKES
NO OTHER WARRANTIES. DSC NEITHER ASSUMES NOR
AUTHORIZES ANY OTHER PERSON PURPORTING TO ACT ON ITS
BEHALF TO MODIFY OR TO CHANGE THIS WARRANTY, NOR TO
ASSUME FOR IT ANY OTHER WARRANTY OR LIABILITY
CONCERNING THIS SOFTWARE PRODUCT.
(e) EXCLUSIVE REMEDY AND LIMITATION OF WARRANTY - UNDER NO
CIRCUMSTANCES SHALL DSC BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES BASED UPON
BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, STRICT
LIABILITY, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE,
BUT ARE NOT LIMITED TO, LOSS OF PROFITS, LOSS OF THE SOFTWARE
PRODUCT OR ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST
OF SUBSTITUTE OR REPLACEMENT EQUIPMENT, FACILITIES OR
SERVICES, DOWN TIME, PURCHASERS TIME, THE CLAIMS OF THIRD
PARTIES, INCLUDING CUSTOMERS, AND INJURY TO PROPERTY.
WARNING: DSC recommends that the entire system be completely
tested on a regular basis. However, despite frequent testing, and due to,
but not limited to, criminal tampering or electrical disruption, it is
possible for this SOFTWARE PRODUCT to fail to perform as expected.

1
Section 1: Introduction
This manual shall be used with the Installation Manual of the associated Alarm Controller for installation.
T-Link TL250/TL300
The T-Link TL250/300 modules are network internet communicators that send alarm system
information to a central station receiver. The module is pre-programmed with the most com-
monly used settings for quick installation. Default options can be custom programmed using
T-Link Console software if required.
T-Link TL300
The T-Link TL300 connects directly to the telephone output of a control panel and simulates a tele-
phone connection, that sends predefined Contact ID codes to the central station using the UDP proto-
col. The T-Link TL300 on-board zones can be used as in mode 2 (4-zone stand-alone) and mode 3 (12-
zone stand-alone). Modes 1,4 and 5 are not supported.
Software Version 1.0
• Supports TL250 and Modes 1, 2, 3 and 4 only.
Software Version 1.10
• Supports TL250, includes version 1.0 options and Mode 5, TL250 DVACS panel conversion
(Canada only). Corresponding version numbers for SG DRL3-IP and T-Link Console are
required to ensure compatibility (i.e., SG DRL3-IP v2.11 and T-Link Console v1.10 are
required for corresponding T-Link TL250 v1.10).
NOTE: For DVACS mode, an SG-DRL3-IP v2.11 or SG System II v1.21 receiver line card is required to com-
municate with the T-Link TL250 v1.10 or higher.
• Account code extended from 6 to 10 digits.
Software Version 1.20
• Supports TL250 and TL300 and all version 1.10 options.
• Supports new digital input definition ‘98’ Panel Absent.
• Supports basic programming from LCD5500/PK5500 keypads.
• Default Installer Code has changed from CAFE to 5555 for this software version.
Software Version 1.3-1.5
• Supports TL250 and TL300 and all version 1.20 options
• Supports programmable heart beat interval (Section [072]
• Supports new digital input definition ‘97’ AC Trouble (delayed)
1.1 Operating Modes
Mode 1: Bell Follower (TL250 only)
In Mode 1, the T-Link TL250 monitors the Bell Output of a control panel. The system identifies
the Bell Output cadence and transmits the corresponding Fire or Burglar alarm reporting code to
the central station. Refer to section 3 for details. Refer to the appropriate control panel Installa-
tion Manual.
NOTE: Do not use Mode 1 for UL or ULC listed installations.
Mode 2: 4-Zone Panel (TL250 and TL300)
The system is configured for 4-zone, stand alone operation. Refer to section 4.1 for details.
Mode 3: 12-Zone Panel (TL250 and TL300)
If the T-Link TL250 detects a PC5108 expander card on power up, it will automatically configure
itself for 12-zone stand-alone operation with normally open loops. Refer to section 4.2 for details.
NOTE: In modes 2 & 3, the connections between the PC5108 inputs or T-Link TL250 inputs and the alarm
control unit outputs (relay contacts) shall be done in metal conduit, within 6.1m (20 ft.). Stand-alone opera-
tion will still require the inputs to be programmed with the desired alarm types.
Mode 4: Standard Mode (TL250 only)
In standard mode, the system is configured as a communicator with a compatible DSC alarm
panel: Models PC1616/1832/1864, PC4020, PC4020CF, PC5020 or PC5020CF. Refer to Section
5 for details.
Mode 5: DVACS®* Mode (V1.10 or later, TL250 only)
In DVACS mode, the system is configured as a communicator with a compatible DVACS
alarm panel. Refer to section 6 for details. Refer to Appendix C for a list of compatible
DVACS panels and modules.

2
NOTE: T-Link TL250 zone events are transmitted using the standard T-Link SIA protocol. DVACS generated
events are transmitted using the DVACS protocol.
NOTE: DVACS Mode 5 is used in ULC listed installations.
* DVACS is a registered trademark of Electro Arts Ltd. Scarborough Ontario, Canada.
1.2 Specifications/Requirements
The typical allowable current draw from a compatible DSC panel on the Aux terminal output is
500mA @ 12VDC (for specific current draw please refer to the compatible control panel Instal-
lation Manual). For the operational current draw of the TL250/TL300 refer to Specifications
below. The T-Link TL250/TL300 modules also have 2 switched negative programmable out-
puts (50mA @ 12 VDC, each).
NOTE: For UL listed fire installations, shared on-premises communication equipment is required to be UL
Listed for Information Technology Equipment. The communication medium between protected property and
communications service provider must be for the exclusive use of the protected property and not shared with
other communications service provider subscriber.
NOTE: When a hub or router/gateway is used on the premises with the T-Link TL250, 24-hr. standby power is
required for these devices (i.e., UL listed UPS, battery backup).
NOTE: It is the installers responsibility to ensure proper bonding between the METALLIC ENCLOSURES of
the ALARM CONTROLLER and the TL250/TL300.
ATTENTION: This equipment (T-Link TL250) shall be installed and used within an environment that pro-
vides the Pollution Degree Max. 2 and Overvoltages Category II non-hazardous locations, indoor only. The
equipment must be fixed and permanently connected, and is intended to be installed by service persons (i.e.,
having the appropriate technical training and experience necessary to be aware of hazards which that person
may be exposed to in performing the task, and of measures to minimize the risks to that person or other per-
sons). CAUTION
Ethernet communication lines must be connected to an approved (acceptable to local authorities) type NID
(Network Interface Device) before leaving the premises (e.g., UL installations, UL60950 Listed NID).
Specifications
Input Voltage: 12 VDC
Hardware Revision 05 or higher (INPUT TERMINAL LABELLED + AND - ):12 - 24 VDC
Input Current: T-Link TL250 Max current draw: 275mA
T-Link TL300 Max current draw: 360mA
Dimensions: 3.25” × 8.7” (8.3 cm × 22cm)
Operating Temperature: 32°-122°F (0°-49°C)
Output Protocols: UDP/IP 10/100 BaseT half duplex, TCP/IP for Console and DLS communications
Input Protocols: PC-Link (SIA format), DVACS (V1.10 and higher), Contact ID protocol. (TL300 Only)
Digital Inputs: 4-digital inputs (can be increased to 12 using the PC5108)
Connectors: 4-pin header for the PC-Link and RJ-45 for Ethernet, DVACS adaptor (DVACS kit only)
Programming: Panel keypad, console on the RS232 or remote T-Link console
Network: Ethernet LAN/WAN 10 BaseT or 10/100 BaseT
E-mail: Sends alarm messages to maximum 2 E-mail addresses (not available for DVACS installations)
Downloading Support for DSC Panels: DLS 2002 and DLS 4 PC1616/1832/1864 version 4.2 only
Multiple Central Stations: Primary & backup via phone line* (not available for DVACS installations)
Call Direction Options: Primary or backup communicator using panel call direction (available for
DVACS installations)
Approval Listings: FCC, IC, CE, CSFM
UL (Central Station and Police Connect with Standard or Encrypted Line Security)
ULC (Active and Passive Fire Monitoring, Burglary Signal Channel Security Level A1-A4)

3
Section 2: Quick Start
2.1 Installation
1. Determine the Operating Mode Required
The operating mode (Modes 1, 2, 3, Standard Mode, or DVACS Mode) will determine how the
unit is to be wired.
2. Determine the Mounting Location
Select a mounting location in a dry, protected area at least 30cm away from physical contact
with any person. Refer to Appendix C, for Network Protection details.
NOTE: Do not exceed the following recommendations for wire run distances.
• Input wiring should must be minimum 22 gauge quad (0.5mm). Two pair twisted is preferred.
• PC5108 zone wiring must not exceed 1,000'/305m (in wire length) from the TL250/TL300.
• Do NOT use shielded wire for the keybus. Shielded wire will reduce the effectivedistance of the
keybus.
• Refer to section 9, Programming Descriptions, section [36] for zone wiring details.
3. Route Wiring to Mounting Location
Route wiring from the hard wired zones or control panel as required.
NOTE: Route wiring through conduit to a junction box if possible.
4. Mount the T-Link TL250/300 Panel
2.2 Testing
Mode 4, Standard Mode: Ensure the panel is programmed to use the T-Link TL250 in accor-
dance with the settings outlined in section 8, Programming Guide. Simulate Burglar and Fire
Zone violation on the DSC alarm panel. Verify that the T-Link TL250 transmits the events to
the central station.
Mode 1: Ensure the T-Link is programmed in accordance with the settings outlined in Sections
9, Programming Descriptions. Simulate Burglar and Fire Zone violation on the alarm panel.
Verify that the T-Link TL250 transmits the events to the central station.
Modes 2, 3 and 5 (DVACS): Simulate input violations in accordance with the settings out-
lined in section 9, Programming Descriptions. Verify that the T-Link transmits the events to the
central station.
TL300 Simulated Phone:Ensure the T-Link TL300 Input 1 is programmed in accordance
with the TL300 settings outlined in section 9, Programming Descriptions. Simulate Burglar
and Fire Zone violation on the alarm panel. Verify that the T-Link TL300 transmits the associ-
ated Contact ID code to the central station.

4
2.3 Resetting to Factory Defaults
Hardware Defaults (all modes)
• Remove Power from the T-Link TL250/TL300; disconnect battery and control panel if
applicable.
• Disconnect all wiring from the PGM1 and IN1 terminals. Connect a jumper wire between the
PGM1 and IN1 terminals.
• Apply power to the system.
• Remove power from the T-Link TL250/TL300 for approximately 20 seconds.
• Reconnect all original wiring and reapply power to the T-Link TL250/TL300.
• Test System (refer to section 2.2).
NOTE: A restart is required for the programming changes to take effect. Allow up to 15 seconds for a restart.
Mode 4:
In mode 4, the T-Link can be Defaulted through the panel keypad:
• Enter Section 999 of the T-Link TL250.
• Enter 00 to default the unit to factory settings.
• Enter 55 to restart the unit.
2.4 LCD5500/PK5500 Programming
All Modes (Software version 1.2 and up)
Local programming of basic options can be done through a standard DSC Power LCD5500/
PK5500 keypad. Connect the keypad on the T-Link TL250/TL300 Keybus terminals. Access
to programming mode uses the same code as the console (default is 5555).
NOTE: Programming mode access can be done only on power up for 30 seconds, and only
if the reset to factory default is not activated.
• Access the Installer mode using [*][8], followed by the installer code.
NOTE:The [*] and [#] keys are not supported to re-enter installer code in the event of an
incorrect entry. All keys will be ignored if the correct sequence following [*][8] is not
entered.
• Four Programming Sections are available and will be displayed in the sequence indicated
below. See section 9 for details:
[001] T-Link IP Address
|___|___|___|.|___|___|___|.|___|___|___|.|___|___|___|
[003] T-Link Account Code
|___|___|___|___|___|___|___|___|___|___|
[007] Primary Receiver IP Address
|___|___|___|.|___|___|___|.|___|___|___|.|___|___|___|
[008] Primary Receiver Gateway IP Address
|___|___|___|.|___|___|___|.|___|___|___|.|___|___|___|
When programming is completed, press the [#] key to save changes and exit programming
mode. A 2-minute timing delay begins when entering the programming mode. At the end of
the timing delay T-Link will exit program mode and save the changes made regardless of
where the programmer is in the programming sequence.
• Remove power from the system.
• Reconnect all original wiring and reapply power to the system.
• Test System - Refer to section 2.2
NOTE: A restart is required for the programming changes to take effect, allow up to 15 seconds for a restart.

5
Section 3: Bell Follower Installation (Mode1)
3.1 Setup and Installation
3.1.1 Bell Follower Installation (Mode 1, TL250 Only)
Install the T-Link TL250 in a DSC enclosure (model PC5003C) when used in a Bell Follower
configuration. Refer to section [036][99]. Connect the + and - terminals to the external 12-
24Vdc power source.
NOTE: Bell Follower mode can not be used in UL or ULC listed installations.
Refer to options [062] through [065].
BELL+ BELL-
Alternate connection for
Control Panelswhere Bell
switchesHigh
Relay
Com
NC
NO

6
Section 4: Stand-alone Installation (Modes 2&3)
Install the TL250/TL300 in a DSC enclosure (model PC5003C) when used in a stand-alone configura-
tion or with the PC5108 module. Connect the + and - terminals to the external 12-24Vdc power source.
NOTE: For UL Listed installations, the power supply used must be UL Listed for the application.
NOTE: For ULC Central Station Fire and Burglary Monitoring configurations please refer to ULC Installa-
tion Sheet part #29002157.
4.1 Stand-alone Mode 2 Configuration
4.2 Input Expander (Mode 3 Configuration)
To expand from 4-zone inputs a PC5108 must be connected to the T-Link TL250/TL300 . Connect
the Keybus from the PC5108 to the Keybus of the TL250/TL300. Devices that require 12V
DC ,
motion detectors, glass-break detectors, etc. will require an external 12V DC power supply.
PC5003C Cabinet
NOTE: Wiring between the control panel and the T-Link
TL250/TL300 must be enclosed in metal conduit.
Outputs
Input
12-24Vdc TX RX GND RED BLK YEL GRN IN1 IN2 IN3 IN4 EARTHGND GND1 PGM 2
LK
ACT
SPD
STAT
T-LINK TL250/TL300
12V 275mA
UL Listed
Power Supply
Hardware Rev. 05 or higher:
24V 275mA/360mA, UL Listed
Power Supply can also be used.
CAT5 Cable
(shielded)
10/100 BaseT
Network
PGM1 Trouble Output
IN1 - IN4
Zone Inputs
(Not supervised)
Fire/Burglary
Alarm Panel
Metal Conduit
(20ft max.)
DG009335
+-
J6
J4 J5
J1 J2 J3
12-24Vdc
GND RED BLK YELGRN GNDIN1 GND
EARTH IN3 IN4IN21 PGM 2
TX RX
LK ACT SPD
STAT
Cat5
Network
10/100 BaseT
T-LINK TL250/TL300
12V 275mA
UL Listed
Power Supply
PGM1 Trouble Outputs
Metal
Conduit
(20ft max.)
Z1 - Z8 Inputs (NO/NC)
(Not supervised)
IN1 - IN4 Inputs (NO/NC)
(Not supervised) Connect
to Fire/Burg.
Alarm
Panel
Hardware Rev. 05 or higher:
24V 275mA/360mA
UL Listed Power Supply
can also be used
DG009336
+ -

7
Section 5: Standard Installation (Mode 4, TL250 only)
5.1 PC1616/1832/1864, Power864, and Maxsys Panel Setup and
Installation
Refer to the control panel Installation Manuals for detailed installation instructions. Mount the
T-Link on the side wall of the PC4050C or PC4050CR cabinet. Refer to Appendix C for Net-
work Protection installation instructions.
Remove power from the control panel before any connections are made to the T-Link TL250.
Connect the + and - terminals to the panel auxiliary power output. Connect the supplied cable
from the T-Link TL250 white connector to the PC-Link header of the control panel.
The black wire of the PC-Link cable is pin 1 (facing the right side of the board) on the PC-Link
header for the PC5020 v3.2 or higher and PC1616/1832/1864 v4.1 or higher control panels.
The PC-Link header is polarized on the PC4020 v3.31 or higher control panel. Connect the e-
ground to a proper earth-ground connection.

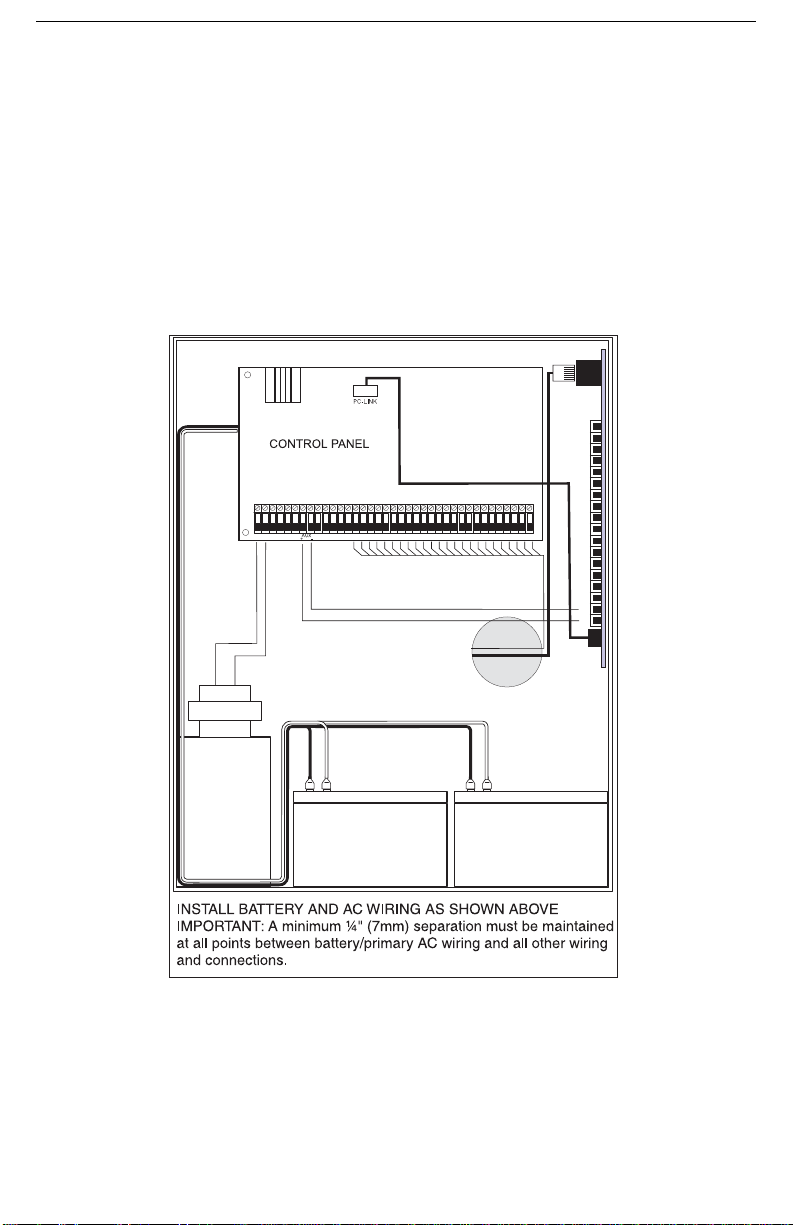

5.2 Standard Connection with PC1616/1832/1864/PC4020(CF)/PC5020(CF)
NOTE: All circuits are supervised and power limited. Refer to section 5.4, UL Listed Commercial Fire Sys-
tems diagram for wire routing. Do NOT route any wiring over the circuit boards. Maintain at least 1”
(25.4mm) separation between circuit board and wiring.
A minimum of 1/4” (7mm) separation must be maintained at all points between non-power lim-
ited wiring and power limited wiring.
12-24Vdc TX RX GND RED BLK YEL GRN PGM1PGM2 IN1 GND IN2 IN3 GND IN4 EARTH
Network
PC-LINK
PC-LINK
SUPERVISED
SUPERVISED
STAT
Network Connection
Use only CAT5 cable
(300ft / 100m max.)
Supervised
WARNING!: Do not connect transformer
to receptacle controlled by a switch. The
transformer must be UL Listed and have
a restraining means.
V = 12VDC
I = 250mA (275mA with PGM or PC5108)
RED BLK
+ -
LK ACT SPD
16.0V@40VA
NOTE: The black wire is on
the right side and red wire is
on the left.
Recommended: DSC PTD 1640U-CC
DG009338
+-
NOTE: For ULC Central Station
Fire and Burglary Monitoring con-
figurations please refer to ULC
Installation Sheet part #29002157.

8
5.3 Wiring T-Link TL250 to a DSC Compatible Control Panel
• Secure the T-Link TL250 module to the side of the cabinet using the supplied standoffs.
• With AC power removed and the battery disconnected from the DSC control panel, wire the
T-Link TL250 to the panel using 4 wires from the PC-Link of the panel to the ‘PANEL’ con-
nector on the T-Link TL250.
• Wire the panel's AUX+ and - to + and - terminals of the TL250.
• Apply AC and DC to the main control panel. Both the TL250 and panel should power up.
• Program the T-Link TL250 as instructed in Section 9.
NOTE: If a Bell/Siren will not be used, wire the Bell/Siren terminals on the panel with a 1000 ohm resistor.
For Commercial Fire installation, when a bell/siren is used in the application, it should be connected to the
DSC module PC4702BP. Refer to the PC4020CF Installation Manual. The keypad or any other accessory
connected to the Combus shall be connected within 3 feet / 0.9 m and in conduit.
5.4 Battery and AC Power Lead Routing for UL Listed Commercial Fire
Systems
12-24Vdc
T-Link board must be mounted on the side of the cabinet. Refer to
the mounting instructions in the associated Installation Manual.
+
-

9
Section 6: DVACS Installation (Mode 5, TL250 only)
6.1 DVACS Panel Installation.
Remove power from the control panel before wiring connections to the T-Link TL250 module.
Connect the + and - terminals to the panel auxiliary power output. Connect the DVACS cable
from the T-Link TL250 Adaptor on the PC-Link header to the DVACS connector on the control
panel. Connect the e-ground to a proper earth-ground connection.
In a typical DVACS Installation, a DVACS panel is connected to an F1/F2 subset that communi-
cates the alarm information to the central station comprising an SG MRL2 receiver with an SG
DVL2A module installed.
To send DVACS Alarm information over the internet, the T-Link TL250 performs the equivalent
functions of the F1/F2 subset and the polling function of the SG DVL2A. DVACS alarm infor-
mation is sent to the T-Link TL250 by connecting the existing RJ-45 terminated cable to the PC-
Link Header on the TL250 module with an RJ-45 to PC-Link adaptor. The TL250 transmits
DVACS alarm information in the DVACS protocol and T-Link Alarm information in the SIA
protocol over the internet to a System III Receiver with SG-DRL3-IP line card installed.
6.2 DVACS Events
DVACS events generated on DVACS panels connected through the T-Link TL250 follow the
same protocols used on the SG-DVL2A module.
DVACS Alarms Examples
Example 1 (DVACS with receiver set as 1 digit line number)
Printer:
Computer:
Example 2 (DVACS with receiver set as 3 digits line number)
Printer:
Computer:
01 Nov 2004-11:38:22-01/02-SG -01-1-001--Burgl Alm Zn#02
1011 001 A 02
01/02-SG -01-001-014--Burgl Alm Zn#13
101001 014 A 13
DVACS Panel
Installed in Cabinet
ULC Listed Installation
DVACS RS-232
TX, RX, GND
12/24VDC
Red, Blk
F1/F2
DVACS
Subset
MLR2
with DVL2A
DV1660
DVACS
Network
DVACS
Network
SG-DVL2A
Tx
Rx
ALARM
ACK./
TROUBLE
SELECT
WATCHDOG WATCHDOG
SELECT
TROUBLE
ACK./
ALARM
Rx
Tx
CARRIERCARRIER
FUNCT. FUNCT.
BACKSPACE
Rx
ESCAPE
TROUBLE
OPTION
ACK.
ENTER
Tx
SG-CPM2
AC
F E D
7 8 9 C
65
0
B
1 2 3 A
4
LAN/WAN/
Internet
LAN/WAN/
Internet
DVACS Panel
Alternate
Power Supply
Installed in Cabinet
ULC Listed Installation
DVACS cable must be run
in metal conduit & terminated
with an RJ-45 connector
RJ-45 to PC-Link Adaptor
12V Red, Blk
DC
T-Link TL250
PC 5003C Cabinet
CON5
CON2
CON1
CON1
CON3
CON3
PCLINKPCLINK SPDACT LNK
SPDACT LNK
STAT
STAT
+12V GND TX RX GND RED BLK YELGRN PGM1PGM2 IN1 GND IN2 IN3 GND IN4EARTH+12V GND TX RX GND RED BLK YELGRN PGM1PGM2 IN1 GND IN2 IN3 GND IN4EARTH
220
System III Receiver
with DRL3-IP Line Card
RRLLL = 02345
IP Account = 010A000034
DVACS Automation Protocol
1 Digit 101A 034...
2 Digits 1010A 034...
3 Digits 10100A 034...
SIA Automation Protocol
1 Digit S025[#000034|...
2 Digits S0245[#000034|...
3 Digits S02345[#000034|...
ID=34
Account = 010A000034
RRLL = 010A
For Decimal Account#
Account = 010A000056
Typical T-Link TL250/DVACS Installation
ULC Listed Power Supply
with Battery Backup
DV1660

10
SIA
DVACS Alarms Examples
Example 1 (DVACS with receiver set as 1 digit line number)
Printer:
Computer:
Example 2 (DVACS with receiver set as 3 digits line number)
Printer:
Computer:
Additional Events:
If the T-Link TL250 transmitter does not receive polls (response) from the panel, the T-Link will gener-
ate the events previously generated by the SG-DVL2A for DVACS panel and restoral.
SIA Printer:
Computer:
Printer:
Computer:
Standard
Printer:
Computer:
Printer:
Computer:
NOTE: The SG-DRL3-IP will use 10-digit account identifications in the IP table for DVACS transmitters. The
first 4 digits represents the receiver and line number originally used on the SG-DVL2A and are programmed as
the first 4 digits of the T-Link account (refer to Appendix F of SG-DRL3-IP Installation Manual).
NOTE: If the automation protocol in the form of 1RRL, 3RRL is required when using the DRL3-IP in the
DVACS configuration, set DRL3-IP Option [11] =1 and CPM3 Options [10] & [11] = 03
01 Nov 2004-13:50:51-01/02-SG -01-1-0456--Fire Alm Zn999
3011 0456FA 999
01 Nov 2004-13:51:03-01/02-SG -01-001-0456--Medical Alm Zn001
3011 0456MA 001
01 Nov 2004-13:50:51-01/02-SG -01-1-001--Account Absent
3011 0001YC 000
01 Nov 2004-13:50:51-01/02-SG -01-1-001--Account Present
3011 0001YK 000
01 Nov 2004-13:50:51-01/02-SG -01-1-001--IDcde IncResp
1011 001 A 0A
01 Nov 2004-13:50:51-01/02-SG -01-1-001--IDcde Restore
1011 001 R 0A

11
Section 7: T-Link TL300 Telephone Simulation (TL300 only)
7.1 T-Link TL300 Panel Installation
• Disconnect the AC Power and battery from the Control Panel
• Secure the T-Link TL300 module to the side of the cabinet of the control panel or install the
TL300 in a DSC enclosure (model PC5003C). Refer to Appendix B: T-Link TL300 Compatibil-
ity Chart for a list of panels supported
• Wire the panel's 12VDC and GND terminals or a unit with a 12VDC 360 mA UL Listed Power
supply to the TL300 (Hardware Revision 05 or higher: 24V 360 mA UL Listed Power Supply
can also be used. Hardware revision is indicated on the PCB and the input terminal will be
labelled + and - and 12-24Vdc will be indicated).
• Wire the panel's Tip and Ring terminals to the T1 and R1 terminals of TL300
• Apply AC and DC to the main control panel. Both the TL300 and the panel should power up
• Program the T-Link TL300 as instructed in section 9.4
7.2 T-Link TL300 Operation
Communication events between the panel, TL300 and the Central Station receiver are as follows:
• When an alarm triggers, the panel goes off-hook.
• The T-Link TL300 module sends a dial tone to the panel.
• The panel dials the telephone number of the central station.
• The T-Link TL300 detects the DTMF dialing and stops sending the dial tone.
• The T-Link TL300 sends a request to the Receiver.
• The Receiver responds with the command to the TL300 to generate the corresponding handshake.
•
After receiving the handshake, the Panel transmits the alarm message in DTMF Contact ID format .
• The T-Link TL300 decodes and transforms DTMF digits into an IP packet and sends it to the
Receiver over IP.
• The Receiver acknowledges alarm and sends command to the T-Link TL300 to generate a corre-
sponding kiss-off signal.
• After the TL300 generates kiss-off, the panel goes on-hook if no more alarms need to be sent.
NOTE: Do not connect the alarm panel or TL300 to a telephone line.(!)
LCD/PK5500
KEYPAD
12V, 360mA
UL Listed
Power Supply
or Panel Aux
12 VDC
NOTE: For ULC Central Station Fire and Burglary Monitoring
configurations please refer to ULC Installation Sheet part # 29002157.
Hardware Rev. 05
or higher 24V, 360mA
UL Listed Power Supply
can also be used
DG009337
+-
12-24Vdc

12
Section 8: T-Link TL250/TL300 Operation
8.1 Remote Control
The panel and the DLS software will control this function. The module will be a conduit for the
information. Commands can be sent from the DLS or SA software to allow control of the panel;
Arm/Disarm, Bypass/Un-Bypass, Status Request.
NOTE: DLS2002 and DLS2002SA drivers are required for the PC1616/1832/1864, PC5020 v3.2 and PC4020
v3.31. DLS IV may be used with PC1616/1832/1864 v4.2 and higher only. These drivers can be downloaded
free from www.dsc.com. DLS2002 and DLS2002SA can communicate directly to the T-Link TL250 module.
The DLS software can be used with UL Listed installations only when service personnel are on-site.
8.2 Programming
The T-Link TL250/TL300 can be programmed remotely or locally with the T-Link Console Soft-
ware via the ethernet connection or locally with the T-Link console via the serial port. Program-
ming can also be done through the control panel when connected to a PC1616/1832/1864,
PC4020 or PC5020. NOTE: TL250 programming cannot be done using DLS software.
NOTE: On a default unit the T-Link can be reached from the console at IP 192.168.0.99 with a subnet mask
of 255.255.0.0 on port 3064.
8.3 IP Address
Each TL250/TL300 on the same network node must have a unique IP address. This system is
compatible with any device that masks the IP address of the originating device. Dynamic
addressing (DHCP) can also be used with the TL250.
For remote programming, the IP must be known by the T-Link console or the DLS/SA com-
puter(s). For this reason, DSC recommends a Static IP or setting up the DHCP server to always
license the same IP to the TL250/TL300 based on its MAC address.
8.4 Port Usage Table
NOTE: Confirm with the network administrator that the following ports are locked open and that the SG-
DRL3-IP has network access for all required network segments.
8.5 Integrated Call Directions
The T-Link TL250/TL300 features a built-in call direction that will allow signals to be sent to
active receivers as well as a local LAN logging application.
The T-Link TL250/TL300 has a choice of 3 receivers when transmitting signals. Receiver 1,
Receiver 2 and Receiver 3. Should the communications be lost to Receiver 1, the TL250/TL300
will generate a local trouble and send the trouble to the appropriate receiver. The loss of Receiver
2 or 3 does not generate any signal since they are not supervised.
The panel can direct to which receiver the signal will be sent. If a Receiver is lost, the TL250/300
will route the alarm to the backup receiver (if programmed). Receiver 3 will be used for local log-
ging. Any signal sent to Receiver 1 or Receiver 2 will also be sent to Receiver 3. Once the con-
nection has been reestablished to Receiver 1, the TL250/TL300 will resume transmission to it.
NOTE: If Receiver 1, 2 or 3 is not programmed, TL250/TL300 will not attempt to report to the receiver.
NOTE: Receiver 2 is not supported for DVACS installations.
NOTE:Transmissions to receiver 3 are not gaurenteed.
Description Default
Port # Protocol Programming Location to Change
T-Link TL250/
TL300
T-Link Source Port 3060 UDP Section [009] T-Link options from Keypad
T-Link Destination
Port
3061 UDP Section [010] T-Link options from Keypad
SG-DRL3-IP
T-Link Port 3061 UDP Section [0B] [0C] from Console S/W
DLS Port 3062 TCP Section [0D] [0E] from Console S/W
SA Port 3063 TCP Section [11] [12] from Console S/W
Console S/W Port 3064 TCP Section [14] [15] from Console S/W
DLS2002 DLS Port 3062 TCP Modem Configuration Options
DLS SA SA Port 3063 TCP Modem Configuration Options
Console Console Port 3064 TCP
T-Link Console
TFTP Firmware Upgrade 69 TCP

13
8.6 Status Indicators
There are 4 LEDs on the board to indicate connection, traffic and trouble conditions.
LK LED (Link Status) will turn on when the network is present and will turn off when the net-
work is absent.
ACT LED (Activity/Network Traffic Status) will blink to show network activity.
SPD LED (Speed Status) will remain off for 10BaseT network connection and will be on to indi-
cate 100BaseT network connection.
STAT (Status) LED will normally blink once every 5 seconds. If a trouble is present, the LED
will blink a number of times (as per table) with a one second pause before restarting the
sequence. If there is more than one trouble present, the LED will blink at a rate that is equal to
the highest priority.
Example: The network is not present and inputs are in alarm. The LED will blink once with a
one-second pause. When the network trouble is cleared the LED will blink five times with a
one-second pause.
The transmitter has a number of individually maskable trouble conditions that report various
troubles present on the transmitter. For the corresponding trouble toggle option, refer to section
[033] and [034]. Options [033] and [034] can be set to ignore for any or all trouble conditions.
Once a trouble is ignored, it no longer generates a signal or has any affect on the Status LED.
8.7 Testing & Troubleshooting
The T-Link TL250/TL300 and the Sur-Gard System I IP, System II or System III Receiver can
be connected directly with an Ethernet crossover cable. An Ethernet crossover cable can be
made by taking a standard Ethernet cable (which will have wires attached to pins 1, 2, 3 and 6
only on the 8 pin RJ-45 connector) and swapping pin 1 with pin 3, and also swapping pin 2
with pin 6, on one end of the cable only. This effectively reverses the transmit and receive
pairs, and allows two hosts to communicate without the use of a network hub.
Upon T-Link power-up (without the Ethernet cable connected), LED2 will blink periodically,
approximately once every 12 seconds. This represents the T-Link TL250 attempting to send a
connection request to the receiver. The TL250 will try to connect to the receiver until it succeeds.
The Activity and Link LED’s are normally OFF in their default state after power-up (i.e. when
no Ethernet cable is connected, and there are no packets being transmitted or received, respec-
tively). Refer to the Status Indicator table above for details.
Status Blinks/
Priority Description
Network Absent 1The Ethernet link between the transmitter and local hub or router is absent. This is equivalent to the link LED on the Ethernet chip
being off.
Invalid Account 2The transmitter account code is still set to the default value of
FFFFFF.
Receiver 1 Absent 3The transmitter is not receiving Receiver Heartbeat commands
from the receiver.
Panel Absent 4The transmitter is not receiving polls from the DSC 4020, 5020
or DVACS panel through the PC-Link interface. Generic panels
are not supervised by the transmitter.
Input Alarms 5There are inputs on the T-Link which are in ‘alarm’ condition.
FTC 1 6T-Link failed to communicate with Receiver#1
PC5108 Absent 7The PC5108 Module is not responding to the transmitter.
PC5108 Tamper 8The PC5108 Module Tamper has been activated
FTC 2 9T-Link failed to communicate with Receiver#2
Keyswitch Arm 10 The system was armed by the keyswitch zone
T-Link Remote Programming 11 T-Link is being programmed remotely
T-Link Local Programming 12 T-Link is being programmed locally
Receiver #2 Absent 13 The transmitter is not able to connect to Receiver#2 on power-up
Receiver Version Mismatch 14 Indicates that the current Receiver software version requires
updating. The present version may not support some alarms.
NOTE: This applies to software versions v1.20 and higher

14
Section 9: Programming Guide
The following information is required before programming the T-Link TL250/300 modules.
1. The static IP address for the T-Link TL250/TL300 module (Section [001]).
2. The subnet mask for the T-Link TL250/TL300 module (Section [002]).
3. The static IP address of the static gateway for the LAN to which the TL250/TL300 is connected in
a WAN configuration (Section [008]).
NOTE: For DHCP networks, the above items are not required. Consult your network administrator for infor-
mation about the DHCP settings.
IMPORTANT!: If a telephone line is used to back up communication, program the phone number you want
to use as a backup or dial direction option in section [000401] ‘Communication Toggle Options’. If using
PC4020, PC5020 or PC1616/1832/1864, [380] Option [5] enables 3rd number to backup. DSC recommends
programming the TL250/TL300 to transmit first for faster communication. If the land line communication is
programmed to communicate first, then the TL250/TL300 communication will be delayed for the duration of
the land line call (30-45 seconds). This also applies when using the phone line for backup only.
9.1 T-Link TL250 Basic Programming (PC4020 Control Panel)
NOTE: PC4020 v3.3 or higher required (Rev04B hardware).
DSC recommends changing the reporting code transmission delay from 20s to 40s on the PC4020:
Step 1 Power down the MAXSYS panel.
Step 2 Power up the MAXSYS panel. Enter Installer Programming ([4][8][Installer Code] within
the first 10 minutes of power up.
Step 3 Scroll to Diagnostics (04) and press [4].
Step 4 Scroll to Binary Programming (01) and press [4].
Step 5 Enter the address of the address location 03044 and change the value to 28, this will change
the time to 40 seconds.
Programming Steps:
Step 1: Program the Hex digits [CAAA] in the telephone number that will be used for T-Link TL250
communications (section [0004000000] ‘Communicator + Main Items Phone Numbers’).
NOTE: You must delete the [D] in the telephone number first (this is the dial tone detection).
Step 2: Program YES for ‘T-Link Enabled’ option, section [000401] ‘Communication Toggles’.
Step 3: If using DLS communication over the TL300 then program YES for ‘DLS Enabled’ in sec-
tion [000300], ‘DLS Section +DLS Toggles’.
Step 4: Program the dialer direction options for the phone number that has been programmed to send
T-Link communications in section [000400XX02], where XX = telephone number 00-02 in
the ‘Communicator + Main Options’.
NOTE: Auto report SIA section [000401] must be enabled in order for the T-Link TL250 to communicate.
The communication format must be programmed for SIA [000400XX01].
Step 5: Enter section [000406] for T-Link TL250 module programming options.
NOTE: Data must be entered within a 14-second window. Exceeding the 14s limit will result in the following
sequence: a tone will sound, exit from the programming section, all data previously entered will be lost.
Step 6: Program the static IP address for the T-Link TL250 module in section [001]. Program
000.000.000.000 for DHCP.
Step 7: Program the subnet mask for the T-Link TL250 module in section [002]. This option will be
ignored if the unit is set for DHCP.
Step 8: Program the receiver static IP address (DRL3-IP line card or the PC running The Reporter IP
software in section [007].
Step 9: If the Sur-Gard receiver is on a different network segment than the T-Link TL250 module,
the gateway address associated with the TL250 module must be programmed in section
[008]. This is an optional step; determine if this is required with the network administrator.
Step 10: Program the T-Link TL250 account number in section [003].
NOTE: The T-Link account number can be up to 10 digits long. If account number is less then 10 digits lead-
ing zeros must be entered.
Step 11: When TL250 Programming is completed perform the following for programming changes to
take effect. In T-Link Programming Section [999], enter digits [55][#]. It will take approxi-
mately 15s for the module to reboot. Press the [#] key to exit T-Link TL250 programming.

15
Maxsys V3.5 Only:
If the panel sends events to Receiver 0, the T-Link will perform backups automatically to IPs
from Receiver 1 and Receiver 2. If the panels sends events to specific receivers then the
panel will be responsible for all backup/alternate dial functions.
NOTE: The IP Receiver addresses are programmed in the T-Link TL250.
9.2 T-Link TL250 Basic Programming (PC1616/1832/1864, PC5020 Panels)
NOTE: PC1616/1832/1864 or PC5020 software version 3.2 or higher required (Rev03 hardware).
Programming Steps:
Step 1: Program the hex digits [DCAA] in the telephone number that will be used for T-Link TL250
communications (section [301] to [303], ‘Telephone Phone Number Programming’).
NOTE: The leading digit [D] in the telephone number for dial tone detection is already programmed.
Step 2: Program the communication format as SIA FSK format in section [350] and Auto SIA,
option 3 in section [381] has to be OFF.
Step 3: Program the call direction options in section [351] to [376] for the phone number being used
to communicate using T-Link TL250.
Step 4: Section [382] Option 5 ‘PC-Link Active’ option must be ON to enable T-Link TL250 com-
munication.
Step 5: Enter section [851] for T-Link TL250 module programming options.
NOTE: Option [5] in Section [382] must be enabled to access this section.
NOTE:Data must be entered within a 14-second window. Exceeding the 14s limit will result in the following
sequence: a tone will sound, exit from the programming section, all data previously entered will be lost.
Step 6: Program the static IP address for the T-Link TL250 module in section [001]. Program
000.000.000.000 for DHCP.
Step 7: Program the subnet mask for the T-Link TL250 module in section [002]. This option will be
ignored if the unit is set for DHCP.
Step 8: Program the static IP address of the receiver (DRL3-IP line card) in section [007].
Step 9: If the Sur-Gard receiver is on a different network segment than the T-Link TL250 module,
the gateway address associated with the T-Link TL250 module must be programmed in sec-
tion [008]. This is an optional step; verify with the network administrator if this is required.
Step 10: Program the T-Link account number in section [003].
NOTE: The T-Link account number can be up to 10 digits long. If account number is less then 10 digits lead-
ing zeros must be entered.
Step 11: When T-Link Programming is completed perform the following for programming changes to
take effect. In T-Link Programming Section [999], enter digits [55]. It will take approxi-
mately 15s for the module to reboot. Press [#] key to exit T-Link TL250 programming.
9.3 T-Link TL250 DVACS Programming
Obtain the following information from the station monitoring the DVACS alarm panel:
1. The SG-DVL2A Receiver number and line number that the DVACS panel is connected to.
2. The DVACS panel ID (Account Number).
3. The programmed value of the SG-DVL2A extended format (Option [07]) for step 2 below.
Step 1: Program the Account Number of the DVACS control panel in the DVACS account option of
the T-Link (Option [067]). The T-Link will use this number to supervise the control panel
and poll for DVACS signals from the panel.
NOTE: Alarms generated by the DVACS panel will be sent using the T-Link account.
Step 2: Program the T-Link DVACS extended Option [068] so that it is identical to the SG-DVL2A
extended option 07.
Step 3: Program the T-Link Account (Option [003]). To use the DVACS account number for alarm
reporting, program the T-Link account option with this value.
When an alarm is sent from the DVACS control panel to the central station, the account number is
expanded to a 10-digit value. The first four digits emulate the line number and receiver number on the
CAAA = Receiver 0 CCCC = Receiver 2
CBBB = Receiver 1 CDDD = Receiver 3

16
MLR2/DVL2A. These four digits overwrite the SG-DRL3-IP receiver and line number before being
sent to the printer and computer. This allows existing DVACS accounts to be sent to the automation
software without alteration and account duplication on the same SG DRL3-IP line card using a differ-
ent line and/or receiver number.
NOTE: If a new account is created, the first four digits must be programmed as ‘0000’.
9.4 T-Link TL300 Programming
Step 1: Program the static IP address for the T-Link TL300 module in section [001].
Program 000.000.000.000 for DHCP.
Step 2: Program the subnet mask for T-Link TL300 in section [002] if required.
This option will be ignored if the unit is set for DHCP (Section [001])
Step 3: Program the T-Link account number in section [003].
NOTE: The T-Link account number can be up to 10 digits long. If account number is less then 10 digits lead-
ing zeros must be entered.
Step 4: Program the static IP address of the receiver (DRL3-IP line card) in section [007].
Step 5: If the Sur-Gard receiver is on a different network segment than the T-Link TL300 module,
program the gateway address associated with the T-Link TL300 in section [008].
NOTE: This step is optional. Verify with the Network Administrator if this step is required.
Step 6: If a specific dial tone is required for the panel connected to T-Link TL-300 T1/R1, refer to
section [071].
