DSC T-LINK TL250 User manual

T-Link TL250/TL300
Network Internet
Alarm Communicator
Software Version 1.20
Installation Manual

WARNING Please Read Carefully
Note to Installers
This warning contains vital information. As the only individual
in contact with system users, it is your responsibility to bring
each item in this warning to the attention of the users of this sys-
tem.
System Failures
This system has been carefully designed to be as effective as
possible. There are circumstances, however, involving fire, bur-
glary, or other types of emergencies where it may not provide
protection. Any alarm system of any type may be compromised
deliberately or may fail to operate as expected for a variety of
reasons. Some but not all of these reasons may be:
Inadequate Installation
A security system must be installed properly in order to provide
adequate protection. Every installation should be evaluated by a
security professional to ensure that all access points and areas
are covered. Locks and latches on windows and doors must be
secure and operate as intended. Windows, doors, walls, ceilings
and other building materials must be of sufficient strength and
construction to provide the level of protection expected. A
reevaluation must be done during and after any construction
activity. An evaluation by the fire and/or police department is
highly recommended if this service is available.
Criminal Knowledge
This system contains security features which were known to be
effective at the time of manufacture. It is possible for persons
with criminal intent to develop techniques which reduce the
effectiveness of these features. It is important that a security sys-
tem be reviewed periodically to ensure that its features remain
effective and that it be updated or replaced if it is found that it
does not provide the protection expected.
Access by Intruders
Intruders may enter through an unprotected access point, cir-
cumvent a sensing device, evade detection by moving through
an area of insufficient coverage, disconnect a warning device, or
interfere with or prevent the proper operation of the system.
Power Failure
Control units, intrusion detectors, smoke detectors and many
other security devices require an adequate power supply for
proper operation. If a device operates from batteries, it is possi-
ble for the batteries to fail. Even if the batteries have not failed,
they must be charged, in good condition and installed correctly.
If a device operates only by AC power, any interruption, how-
ever brief, will render that device inoperative while it does not
have power. Power interruptions of any length are often accom-
panied by voltage fluctuations which may damage electronic
equipment such as a security system. After a power interruption
has occurred, immediately conduct a complete system test to
ensure that the system operates as intended.
Failure of Replaceable Batteries
This system’s wireless transmitters have been designed to pro-
vide several years of battery life under normal conditions. The
expected battery life is a function of the device environment,
usage and type. Ambient conditions such as high humidity, high
or low temperatures, or large temperature fluctuations may
reduce the expected battery life. While each transmitting device
has a low battery monitor which identifies when the batteries
need to be replaced, this monitor may fail to operate as
expected. Regular testing and maintenance will keep the system
in good operating condition.
Compromise of Radio Frequency (Wireless) Devices
Signals may not reach the receiver under all circumstances
which could include metal objects placed on or near the radio
path or deliberate jamming or other inadvertent radio signal
interference.
System Users
A user may not be able to operate a panic or emergency switch
possibly due to permanent or temporary physical disability,
inability to reach the device in time, or unfamiliarity with the
correct operation. It is important that all system users be trained
in the correct operation of the alarm system and that they know
how to respond when the system indicates an alarm.
Smoke Detectors
Smoke detectors that are a part of this system may not properly
alert occupants of a fire for a number of reasons, some of which
follow. The smoke detectors may have been improperly
installed or positioned. Smoke may not be able to reach the
smoke detectors, such as when the fire is in a chimney, walls or
roofs, or on the other side of closed doors. Smoke detectors may
not detect smoke from fires on another level of the residence or
building.
Every fire is different in the amount of smoke produced and the
rate of burning. Smoke detectors cannot sense all types of fires
equally well. Smoke detectors may not provide timely warning
of fires caused by carelessness or safety hazards such as smok-
ing in bed, violent explosions, escaping gas, improper storage of
flammable materials, overloaded electrical circuits, children
playing with matches or arson.
Even if the smoke detector operates as intended, there may be
circumstances when there is insufficient warning to allow all
occupants to escape in time to avoid injury or death.
Motion Detectors
Motion detectors can only detect motion within the designated
areas as shown in their respective installation instructions. They
cannot discriminate between intruders and intended occupants.
Motion detectors do not provide volumetric area protection.
They have multiple beams of detection and motion can only be
detected in unobstructed areas covered by these beams. They
cannot detect motion which occurs behind walls, ceilings, floor,
closed doors, glass partitions, glass doors or windows. Any type
of tampering whether intentional or unintentional such as mask-
ing, painting, or spraying of any material on the lenses, mirrors,
windows or any other part of the detection system will impair its
proper operation.
Passive infrared motion detectors operate by sensing changes in
temperature. However their effectiveness can be reduced when
the ambient temperature rises near or above body temperature or
if there are intentional or unintentional sources of heat in or near
the detection area. Some of these heat sources could be heaters,
radiators, stoves, barbeques, fireplaces, sunlight, steam vents,
lighting and so on.
Warning Devices
Warning devices such as sirens, bells, horns, or strobes may not
warn people or waken someone sleeping if there is an interven-
ing wall or door. If warning devices are located on a different
level of the residence or premise, then it is less likely that the
occupants will be alerted or awakened. Audible warning devices
may be interfered with by other noise sources such as stereos,
radios, televisions, air conditioners or other appliances, or pass-
ing traffic. Audible warning devices, however loud, may not be
heard by a hearing-impaired person.
Telephone Lines
If telephone lines are used to transmit alarms, theymay be outof
service or busy for certain periods of time. Also an intruder may
cut the telephone line or defeat its operation by more sophisti-
cated means which may be difficult to detect.
Insufficient Time
There may be circumstances when the system will operate as
intended, yet the occupants will not be protected from the emer-
gency due to their inability to respond to the warnings in a
timely manner. If the system is monitored, the response may not
occur in time to protect the occupants or their belongings.
Component Failure
Although every effort has been made to make this system as
reliable as possible, the system may fail to function as intended
due to the failure of a component.
Inadequate Testing
Most problems that would prevent an alarm system from operat-
ing as intended can be found by regular testing and mainte-
nance. The complete system should be tested weekly and
immediately after a break-in, an attempted break-in, a fire, a
storm, an earthquake, an accident, or any kind of construction
activity inside or outside the premises. The testing should
include all sensing devices, keypads, consoles, alarm indicating
devices and any other operational devices that are part of the
system.
Security and Insurance
Regardless of its capabilities, an alarm system is not a substitute
for property or life insurance. An alarm system also is not a sub-
stitute for property owners, renters, or other occupants to act
prudently to prevent or minimize the harmful effects of an emer-
gencysituation.

Table of Contents
Section 1: Introduction 1
1.1 Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Section 2: Quick Start 3
2.1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.3 Resetting to Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Section 3: Bell Follower Installation (Mode 1) 5
Section 4: Stand alone Installation (Modes 2 & 3) 6
4.1 Stand alone Mode 2 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.2 Input Expander Mode 3 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Section 5: Standard Installation (Mode 4) 7
5.1 Input Expander Mode 3 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5.2 Standard connection with PC4020(CF)/PC5020(CF). . . . . . . . . . . . . . . . . . . . . . . . . 7
5.3 Wiring T-Link to a DSC compatible Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.4 UL Listed Commercial Fire Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Section 6: DVACS Installation (Mode 5) 9
6.1 DVACS Panel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6.2 DVACS Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Section 7: TL300 Telephone Simulation 11
7.1 TL300 Panel Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7.2 T-Link TL300 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Section 8: T-Link Operation 12
8.1 Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.2 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.3 IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.4 Port Usage Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.5 Integrated Call Directions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8.6 Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8.7 Test & Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Section 9: Programming Guide 15
9.1 Basic Programming (PC4020 Control Panel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9.2 Basic Programming (PC5020 Control Panel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9.3 T-Link DVACS Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9.4 T-Link TL300 Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Section 9: Programming Descriptions (Advanced) 18
Section 10: Programming Worksheets 26
Glossary 30
Appendix A: T-Link TL250 Compatibility Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Appendix B: T-Link TL300 Compatibility Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Appendix C: T-Link Tl250/Tl300 Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Appendix D: Contact ID Reporting Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Appendix E: Network Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

1
Section 1: Introduction
T-Link TL250/TL300
The T-Link TL250/300 modules are network internet communicators that send alarm system
information to a central station receiver. The module is pre-programmed with the most com-
monly used settings for quick installation. Default options can be custom programmed using T-
Link Console software if required.
T-Link TL300

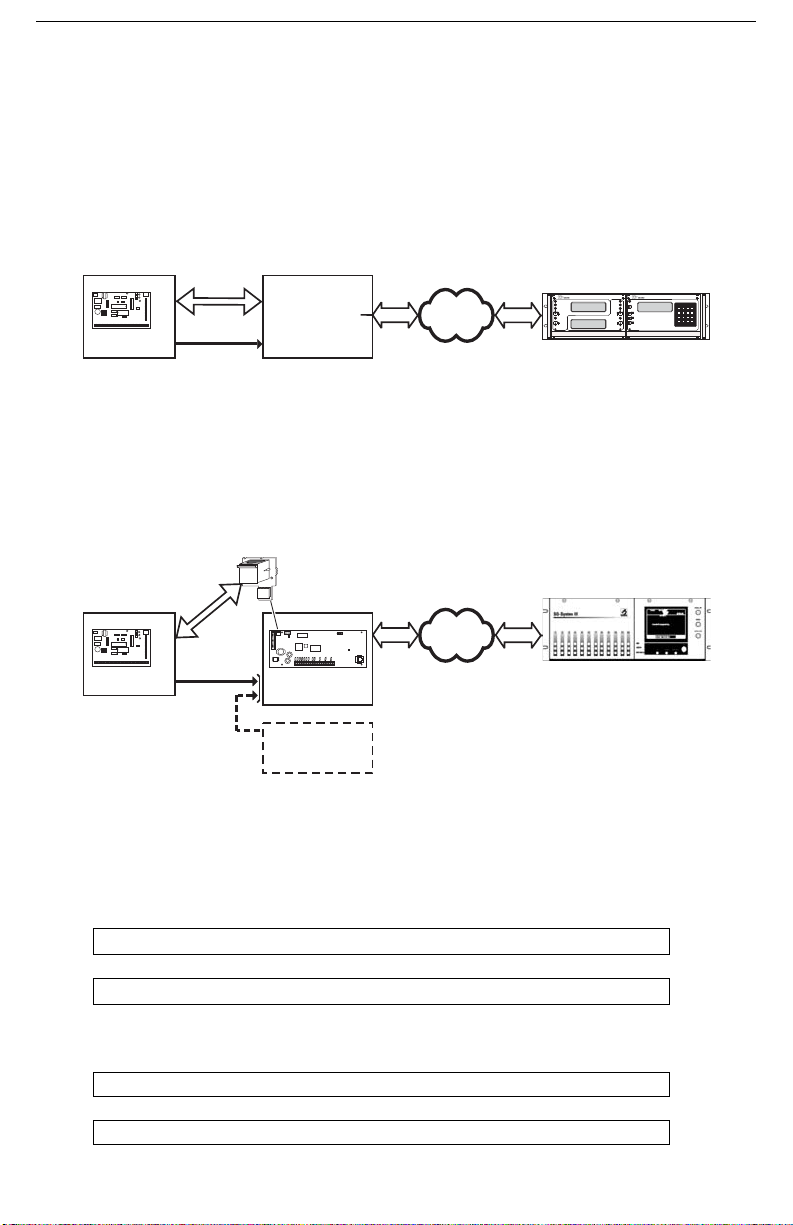

The T-Link TL300 connects directly to the telephone output of a control panel and simulates a
telephone connection, providing a TCP/IP connection that sends predefined Contact ID codes
to the central station. The T-Link TL300 on-board zones can be used as in mode 2 (4-zone
stand-alone) and mode 3 (12-zone stand-alone). Modes 1 and 5 are not supported.
Software Version 1.0
• Supports TL250 and Modes 1, 2, 3 and 4 only.
Software Version 1.10
• Supports TL250, includes Version 1.0 options and Mode 5, TL250 DVACS panel conver-
sion (Canada only). Corresponding version numbers for SG DRL3-IP and T-Link Console
are required to ensure compatibility (i.e., SG DRL3-IP v1.10 and T-Link Console v1.10 are
required for corresponding T-Link TL250 v1.10).
NOTE: For DVACS mode an SG-DRL3-IP v1.10 receiver line card is required to communicate
with the T-Link TL250 v1.10 or higher.
• Account code extended from 6 to 10 digits.
Software Version 1.20
• Supports TL250 and TL300 and all Version 1.10 options.
• Supports new zone type ‘98’ Panel Absent.
• Supports basic programming from an LCD 5500 Keypad.
• Default Installer code has changed from CAFE to 5555 for this software version
1.1 Operating Modes
Mode 1: Bell Follower (TL250 only)
In Mode 1, the T-Link TL250 monitors the Bell Output of a control panel. The system identi-
fies the Bell Output cadence and transmits the corresponding Fire or Burglar alarm reporting
code to the central station. Refer to section 3 for details
Refer to the appropriate control panel Installation Manual.
NOTE: Do not use Mode 1 for UL or ULC listed installations.
Mode 2: 4-Zone Panel (TL250 and TL300)
In Mode 2, the system is configured for 4-zone, stand alone operation. Refer to section 4.1 for
details.
Mode 3: 12-Zone Panel (TL250 and TL300)
If the T-Link TL250 detects a PC5108 expander card on power up it will automatically configure
itself for 12-zone standalone operation with normally open loops. Refer to section 4.2 for details.
NOTE: In modes 2 & 3, the connections between the PC5108 inputs or T-Link TL250 inputs and
the alarm control unit outputs (relay contacts) shall be done in metal conduit, within 20 ft.
Stand-alone operation will still require the inputs to be programmed with the desired alarm
types.
Mode 4: Standard Mode (TL250 only)
In standard mode, the system is configured as a communicator with a compatible DSC alarm
panel: Models PC4020, PC4020CF, PC5020 or PC5020CF. Refer to section 5 for details.

2
Mode 5: DVACS®* Mode (V1.10 or later)(TL250 only)
In DVACS mode, the system is configured as a communicator with a compatible DVACS
alarm panel. Refer to section 6 for details. Refer to appendix C for a list of compatible
DVACS panels and modules.
NOTE: T-Link TL250 zone events are transmitted using the standard T-Link SIA protocol.
DVACS generated events are transmitted using the DVACS protocol.
NOTE: DVACS Mode 5 is used in ULC listed installations.
* DVACS is a registered trademark of Electro Arts Ltd. Scarborough Ontario, Canada
1.2 Specifications/Requirements
The maximum allowable current draw from a compatible DSC panel on the Aux terminal
Output is 500 mA @ 12VDC. Operational current draw of the T-Link TL250 is 250 mA. The
T-Link TL250 module has 2 switched negative programmable outputs (50 mA @ 12 VDC).
*NOTE:This manual shall be used with the Installation Manual of the associated Alarm Con-
troller for installation.
NOTE: For UL Listed fire installations, shared on-premises communication equipment is
required to be UL Listed for Information Technology Equipment. The communication medium
between protected property and communications service provider must be for the exclusive
use of the protected property and not shared with other communications service provider
subscriber.
NOTE:When a hub or router/gateway is used on the premises with the T-Link TL250, 24-hr.
standby power is required for these devices (i.e., UL listed UPS, battery backup).
NOTE:This equipment (T-Link TL250) shall be installed and used within an environment that
provides the POLLUTION DEGREE MAX 2 and OVERVOLTAGES CATEGORY II NON-HAZARD-
OUS LOCATIONS, indoor only. The equipment must be FIXED and permanently connected,
and is intended to be installed by SERVICE PERSONS (i.e., having the appropriate technical
training and experience necessary to be aware of hazards which that person may be exposed
to in performing the task, and of measures to minimize the risks to that person or other per-
sons).
CAUTION
Ethernet communication lines must be connected to an approved (acceptable to local author-
ities) type NID (Network Interface Device) before leaving the premises (e.g., UL installations,
UL60950 Listed NID).
Specifications
Input Voltage:12 VDC
Input Current: T-LINK TL250 Max current draw: 275mA
T-LINK TL300 Max current draw: 360mA
Dimensions: 3.25” × 5.25” (8.3 cm × 13.3 cm)
Operating Temperature: 32°-122°F (0°-49°C)
Output Protocols: UDP/IP 10/100 BaseT half duplex, TCP/IP for Console and DLS commu-
nications
Input Protocols: PC-Link (SIA format), DVACS (V1.10 and higher), Contact ID protocol.
(TL300 Only)
Digital Inputs: 4-digital inputs (can be increased to 12 using the PC5108)
Connectors: 4-pin header for the PC-Link and RJ-45 for Ethernet, DVACS adaptor
(DVACS kit only)
Programming: Panel keypad, console on the RS232 or remote T-Link console.
Network: Ethernet LAN/WAN 10 BaseT or 10/100 BaseT
E-mail: sends alarm messages to maximum 2 E-mail addresses
(NOT available for DVACS installations)
Downloading Support for DSC Panels:DLS-3 and/or System Administrator software
Multiple Central Stations: primary and backup via phone line*
(NOT available for DVACS installations).
Call Direction Options: primary or backup communicator using panel call direction
(NOT available for DVACS installations).
Approval Listings: FCC, IC, CE
UL (Grade of Service AA, Encrypted Line Security)
ULC (Signal Channel Security Level 4/5)

3
Section 2: Quick Start
2.1 Installation
1. Determine the Operating Mode Required
The operating mode (Modes 1, 2, 3, Standard Mode, or DVACS Mode) will determine how the
unit is to be wired.
2. Determine the Mounting Location
Select a mounting location in a dry, protected area at least 30 cm. away from physical contact
with any person. Refer to page 34, appendix C, for Network Protection details.
NOTE: Do not exceed the following recommendations for wire run distances
• Input wiring should must be minimum 22 gauge quad (0.5mm). Two pair twisted is pre-
ferred.
• PC5108, or zone wiring must not exceed 1,000' (305m) (in wire length) from the T-Link
module.
• Shielded wire is not necessary unless wires are run in an area that may present excessive
RF noise or interference.
• Refer to section 9, Programming Descriptions, section [36] for zone wiring details.
3. Route Wiring to Mounting Location
Route wiring from the hard wired zones or control panel as required.
NOTE: Route wiring through conduit to a junction box if possible.
4. Mount the T-Link TL250/300 Panel
2.2 Testing
Mode 4, Standard Mode: Ensure the panel is programmed to use the T-Link TL250 in accor-
dance with the settings outlined in section 8, Programming Guide. Simulate Burglar and Fire
Zone violation on the DSC alarm panel. Verify that the T-Link TL250 transmits the events to
the central station.
Mode 1: Ensure the T-Link is programmed in accordance with the settings outlined in Sections
9, Programming Descriptions. Simulate Burglar and Fire Zone violation on the alarm panel.
Verify that the T-Link TL250 transmits the events to the central station.
Modes 2, 3 and 5 (DVACS): Simulate Inputs violations in accordance with the settings out-
lined in Sections 9, Programming Descriptions. Verify that the T-Link TL250 transmits the
events to the central station.
TL300 Simulated Phone: Ensure the T-Link TL300 Input 1 is programmed in accordance
with the TL300 settings outlined in Sections 9, Programming Descriptions. Simulate Burglar
and Fire Zone violation on the alarm panel. Verify that the T-Link TL300 transmits the associ-
ated Contact ID code to the central station.

4
2.3 Resetting to Factory Defaults
Hardware Defaults (all modes)
• Remove Power from the T-Link TL250/TL300; disconnect battery and control panel if
applicable
• Disconnect all wiring from the PGM1 and IN1 terminals. Connect a jumper wire between
the PGM1 and IN1 terminals
• Apply power to the system
• Remove power from the T-LINK TL250/TL300 for approximately 20 seconds
• Reconnect all original wiring and reapply power to the T-Link TL250/TL300.
• Test System - refer to section 2.2
NOTE: A restart is required for the programming changes to take effect. Allow up to 15 sec-
onds for a restart.
Mode 4:
In mode 4, the T-Link can be Defaulted through the panel keypad:
• Enter section 999 of the T-Link TL250
• Enter 00 to default the unit to factory settings
• Enter 55 to restart the unit.
2.4 LCD 5500 Programming
All Modes (Software version 1.2 only)
Local programming of basic options can be done through a standard DSC Power LCD keypad.
Connect the keypad on the T-Link Keybus terminals. Access to programming mode uses the
same code as the console (default is '5555').
NOTE:Programming mode access can be done only on power up for 30 seconds, and only
if the reset to factory default is not activated.
• Access the Installer mode using [*][8], followed by the installer code.
NOTE:The [*] and [#] keys are not supported to re-enter installer code in the event of an
incorrect entry. All keys will be ignored if the correct sequence following [*][8] is not
entered.
• Four Programming Sections are available and will be displayed in the sequence indicated
below. See section 9 for details
[001] T-Link IP Address:
|___|___|___|.|___|___|___|.|___|___|___|.|___|___|___|
[003] T-Link Account Code
|___|___|___|___|___|___|___|___|___|___|
[007] Primary Receiver IP Address
|___|___|___|.|___|___|___|.|___|___|___|.|___|___|___|
[007] Primary Receiver Gateway IP Address
|___|___|___|.|___|___|___|.|___|___|___|.|___|___|___|
When programming is completed, press the "#" key to save changes and exit programming
mode. A 2-minute timing delay begins when entering the programming mode. At the end of the
timing delay T-Link will exit program mode and save the changes made regardless of where
the programmer is in the programming sequence.
• Remove power from the system
• Reconnect all original wiring and reapply power to the system
• Test System - Refer to section 2.2
NOTE: A restart is required for the programming changes to take effect. Allow up to 15 sec-
onds for a restart.

5
Section 3: Bell Follower Installation (Mode1)
3.1 Setup and Installation
3.1.1 Bell Follower Installation (Mode 1)
Install the T-Link TL250 in a DSC enclosure (model PC5003C) when used in a Bell Follower
configuration. Refer to section [036][99].
Connect the 12VDC and GND terminals to the external 12V power source.
NOTE: Bell Follower mode can not be used in UL or ULC listed installations.
Refer to options [062] through [065].
BELL+ BELL-
Alternate connection for
Control Panels where Bell
switches High
Relay Com
NC
NO
+12V GND YX RX GND RED YEL GRN PGM1 PGM2 IN1 GND GNDIN2 IN3 IN4 EARTH

6
Section 4: Stand-alone Installation (Modes 2&3)

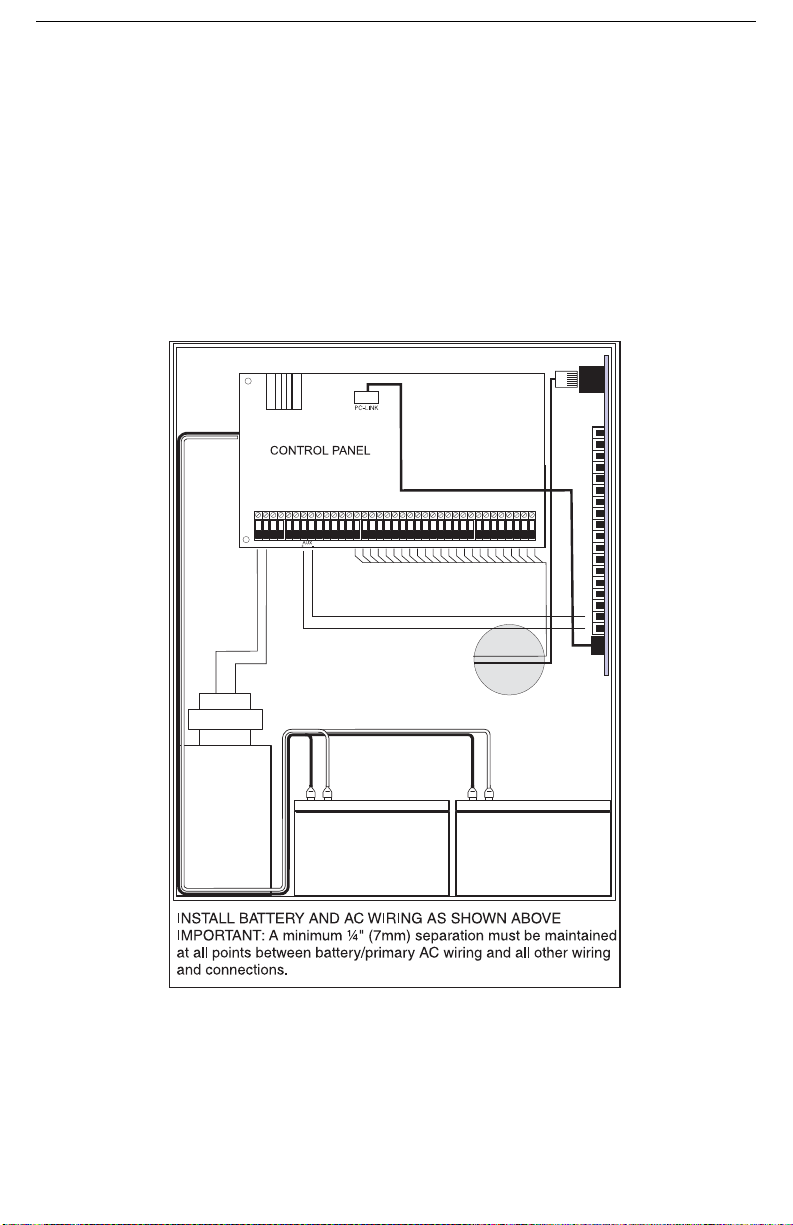

Install the T-Link TL250 in a DSC enclosure (model PC5003C) when used in a stand-alone configura-
tion or with the PC5108 module.
Connect the 12VDC and GND terminals to the external 12V power source.
NOTE: For UL Listed installations, the power supply used must be UL Listed for the applica-
tion.
4.1 Stand alone Mode 2 Configuration
4.2 Input Expander (Mode 3 Configuration)
To expand from the 4-zone inputs a PC5108 must be connected to the T-Link. Connect the
Keybus from the PC5108 to the Keybus of the T-Link TL250. Any devices that require 12VDC,
motion detectors, glass break detectors, etc., will require an external 12VDC power supply.
PC5003C Cabinet
Note: Wiring between the control panel and the T-Link
TL250 must be enclosed in metal conduit.
Outputs
Input
+12V GND TX RX GND RED BLK YEL GRN IN1 IN2 IN3 IN4 EARTHGND GND1 PGM 2
LK ACT SPD
STAT
T-LINK TL250
12V 275mA
UL Listed
Power Supply
CAT5 Cable
(shielded)
10/100 BaseT
Network
PGM1 Trouble Output
IN1 - IN4
Zone Inputs
(Not supervised)
Fire/Burglary
Alarm Panel
Metal Conduit
(20ft max.)
J6
J4 J5
J1 J2 J3
+12V GND GND RED BLK YELGRN GNDIN1 GND
EARTH IN3 IN4IN21 PGM 2
TX RX
LK ACT SPD
STAT
Cat5
Network
10/100 BaseT
T-LINK TL250
12V 275mA
UL Listed
Power Supply
PGM1 Trouble Outputs
Metal
Conduit
(20ft max.)
Z1 - Z8 Inputs (NO/NC)
(Not supervised)
IN1 - IN4 Inputs (NO/NC)
(Not supervised)
Connect
to Fire/Burg.
Alarm
Panel

7
Section 5: Standard Installation (Mode 4)
5.1 Power864 and Maxsys Panel Setup and Installation
Refer to the PC4020(CF) or PC5020(CF) Installation Manuals for control panel installations.
Mount the T-Link on the side wall of the PC4050C or PC4050CR cabinet. Refer to appendix C
for Network Protection installation instructions.
Remove power from the control panel before any connections are made to the T-Link TL250.
Connect the 12VDC and GND terminals to the panel auxiliary power output. Connect the sup-
plied cable from the T-Link TL250 white connector to the PC-Link header of the control panel.
The black wire of the PC-Link cable is pin 1 on the PC-Link header for the PC5020 v3.2 or
higher control panels. The PC-Link header is polarized on the PC4020 v3.31 or higher control
panel. Connect the e-ground to a proper earth-ground connection.
5.2 Standard Connection with PC4020(CF)/PC5020(CF)
CAUTION: All circuits are supervised and power limited. Refer to section 5.4, UL Listed Com-
mercial Fire Systems diagram for wire routing. Do NOT route any wiring over the circuit
boards. Maintain at least 1” (25.4mm) separation between circuit board and wiring.
A minimum of 1/4” (7mm) separation must be maintained at all points between non power lim-
ited wiring and power limited wiring.
+12V GND TX RX GND RED BLK YEL GRN PGM1PGM2 IN1 GND IN2 IN3 GND IN4 EARTH
Network
PC-LINK
PC-LINK
SUPERVISED
SUPERVISED
STAT
Network Connection
Use only CAT5 cable
(300ft / 100m max.)
Supervised
WARNING!: Do not connect transformer
to receptacle controlled by a switch. The
transformer must be UL Listed and have
a restraining means.
V = 12VDC
I = 250mA (275mA with PGM or PC5108)
RED BLK
+ -
LK ACT SPD
16.0V@40VA

8
5.3 Wiring T-Link to a DSC Compatible Control Panel
• Secure the T-Link module to the side of the cabinet using the supplied standoffs.
• With AC power and battery disconnected removed from the DSC control panel, wire the T-Link to
the panel using 4 wires from the PC-Link of the panel to the “PANEL” connector on the T-Link.
• Wire the panel's AUX+ and - to 12VDC and GND terminals of T-Link.
• Apply AC and DC to the main control panel. Both the T-Link and the panel should power up.
• Do the necessary programming that is required.
NOTE: If a Bell/Siren will not be used, wire the Bell/Siren terminals on the panel with a 1000
ohm resistor. For Commercial Fire installation, when a bell/siren is used in the application, it
should be connected to the DSC module PC4702BP. Refer to the PC4020 Installation manual.
The keypad or any other accessory connected to the Combus shall be connected within 3 feet
/ 0.9 m and in conduit.
5.4 Battery and AC Power Lead Routing for
UL Listed Commercial Fire Systems
+12VGND
T-Link board must be mounted on the side of the cabinet. Refer to
the mounting instructions in the associated Installation Manual.

9
Section 6: DVACS Installation (Mode 5)
6.1 DVACS Panel Installation.
Remove power from the control panel before wiring connections to the T-Link TL250 module.
Connect the 12VDC and GND terminals to the panel auxiliary power output. Connect the
DVACS cable from the T-Link TL250 Adaptor on the PC-Link header to the DVACS connec-
tor on the control panel. Connect the e-ground to a proper earth-ground connection.
In a typical DVACS Installation, a DVACS panel is connected to an F1/F2 subset that commu-
nicates the alarm information to the central station comprising an SG MRL2 receiver with an
SG DVL2A module installed.
To send DVACS Alarm information over the internet, the T-Link TL250 performs the equiva-
lent functions of the F1/F2 subset and the polling function of the SG DVL2A. DVACS alarm
information is sent to the T-Link TL250 by connecting the existing RJ-45 terminated cable to
the PC-Link Header on the TL250 module with an RJ-45 to PC-Link adaptor. The T-Link
transmits DVACS alarm information in the DVACS protocol and T-Link Alarm information in
the SIA protocol over the internet to a System III Receiver with SG-DRL3-IP line card
installed.
6.2 DVACS Events
DVACS events generated on DVACS panels connected through the T-Link TL250 follow the
same protocols used on the SG-DVL2A module.
DVACS Alarms Examples
Example 1 (DVACS with receiver set as 1 digit line number)
Printer:
Computer:
Example 2 (DVACS with receiver set as 3 digits line number)
Printer:
Computer:
01 Nov 2004-11:38:22-01/02-SG -01-1-001--Burgl Alm Zn#02
1011 001 A 02
01/02-SG -01-001-014--Burgl Alm Zn#13
101001 014 A 13
DVACS Panel
Installed in Cabinet
ULC Listed Installation
DVACS RS-232
TX, RX, GND
12/24VDC
Red, Blk
F1/F2
DVACS
Subset
MLR2
with DVL2A
DV1660
DVACS
Network
DVACS
Network
SG-DVL2A
Tx
Rx
ALARM
ACK./
TROUBLE
SELECT
WATCHDOG WATCHDOG
SELECT
TROUBLE
ACK./
ALARM
Rx
Tx
CARRIERCARRIER
FUNCT. FUNCT.
BACKSPACE
Rx
ESCAPE
TROUBLE
OPTION
ACK.
ENTER
Tx
SG-CPM2
AC
F E D
7 8 9 C
65
0
B
1 2 3 A
4
LAN/WAN/
Internet
LAN/WAN/
Internet
DVACS Panel
Alternate
Power Supply
Installed in Cabinet
ULC Listed Installation
DVACS cable must be run
in metal conduit & terminated
with an RJ-45 connector
RJ-45 to PC-Link Adaptor
12V Red, Blk
DC
T-Link TL250
PC 5003C Cabinet
CON5
CON2
CON1
CON1
CON3
CON3
PCLINKPCLINK SPDACTLNK
STAT
+12V GND TX RX GND RED BLK YELGRN PGM1PGM2 IN1 GND IN2 IN3GND IN4 EARTH+12V GND TX RX GND RED BLK YELGRN PGM1PGM2 IN1 GND IN2 IN3GND IN4 EARTH
220
System III Receiver
with DRL3-IP Line Card
RRLLL = 02345
IP Account = 010A000034
DVACS Automation Protocol
1 Digit 101A 034...
2 Digits 1010A 034...
3 Digits 10100A 034...
SIA Automation Protocol
1 Digit S025[#000034|...
2 Digits S0245[#000034|...
3 Digits S02345[#000034|...
ID=34
Account = 010A000034
RRLL = 010A
For Decimal Account#
Account = 010A000056
Typical T-Link TL250/DVACS Installation
ULC Listed Power Supply
with Battery Backup
DV1660

10
SIA
DVACS Alarms Examples
Example 1 (DVACS with receiver set as 1 digit line number)
Printer:
Computer:
Example 2 (DVACS with receiver set as 3 digits line number)
Printer:
Computer:
Additional Events:
If the T-Link TL250 transmitter does not receive polls (response) from the panel, the T-Link will gener-
ate the events previously generated by the SG-DVL2A for DVACS panel and restoral.
SIA Printer:
Computer:
Printer:
Computer:
Standard
Printer:
Computer:
Printer:
Computer:
NOTE: The SG-DRL3-IP will use 10-digit account identifications in it's IP table for DVACS
transmitters. The first four digits represents the receiver and line number originally used on
the SG-DVL2A and are programmed as the first four digits of the T-Link account (refer to
appendix F of SG-DRL3-IP Installation Manual).
NOTE:If the automation protocol in the form of 1RRL, 3RRL is required when using the DRL3-
IP in the DVACS configuration, set DRL3-IP Option [11] =1 and CPM3 Options [10] & [11] = 03
01 Nov 2004-13:50:51-01/02-SG -01-1-0456--Fire Alm Zn999
3011 0456FA 999
01 Nov 2004-13:51:03-01/02-SG -01-001-0456--Medical Alm Zn001
3011 0456MA 001
01 Nov 2004-13:50:51-01/02-SG -01-1-001--Account Absent
3011 0001YC 000
01 Nov 2004-13:50:51-01/02-SG -01-1-001--Account Present
3011 0001YK 000
01 Nov 2004-13:50:51-01/02-SG -01-1-001--IDcde IncResp
1011 001 A 0A
01 Nov 2004-13:50:51-01/02-SG -01-1-001--IDcde Restore
1011 001 R 0A

11
Section 7: TL300 Telephone Simulation
7.1 TL300 Panel Installation.
• Secure the T-Link module to the side of the cabinet of the control panel or install theT-Link TL300
in a DSC enclosure (model PC5003C). Refer to Appendix B: T-Link TL300 Compatibility Chart
for a list of panels supported
• With AC power and battery disconnected removed from the control panel, connect the T-L300 to
the RJ31 phone jack from the panel to the RJ31 connector on the T-Link.
• Wire the panel's 12VDC and GND terminals of T-Link or Power unit with a 12VDC 225 mA UL
Listed Power supply.
• Wire the panel's Tip and Ring terminals to the T1 and R1 terminals of T-Link TL300.
• Apply AC and DC to the main control panel. Both the T-Link and the panel should power up.
• Do the necessary programming that is required.
7.2 T-Link TL300 Operation
Communication events between the panel, T-Link and the Central Station receiver are as follows:
• When an alarm triggers, the panel goes off-hook
• The T-Link module sends a dial tone to the panel
• The Panel dials the telephone number of the central station
• The T-Link detects the DTMF dialing and stops sending the dial tone.
• The T-Link sends a request to the Receiver.
• The Receiver responds with the command to the T-Link to generate the corresponding handshake.
• After receiving the handshake, the Panel transmits the alarm message in DTMF Contact ID format
• The T-Link decodes and transforms DTMF digits into an IP packet and sends it to the Receiver
over IP.
• The Receiver acknowledges alarm and sends command to the T-Link to generate a corresponding
kiss-off signal.
• After the T-Link generates kiss-off, the Panel goes on-hook if no more alarms need to be sent.
CON5
SPD ACT LNK
STAT
+12 V GND TX RX GND R ED BLK YEL GRN P GM 1 P GM 2 IN1 G ND IN 2 I N3 GN D IN4 E ARTH T1 R 1
T-Link TL300
Connect PGM1 to panel zone to indicate network loss configure as TLM or FTC
(Refer to al arm panel manufacturer s doc umentation)
Note: Do NOT connect the alarm panel or T-link TL300 to telephone line
Temporary connection of Keypad for programming
of T-Link during first 30 secon ds of p ower up shown
Configure zone as zone definition 98 (see section [036]-[047] Option [98]
To Tip and Ring on Alarm Panel
12V 360mA
UL Listed
Power Supply
or
Panel Aux
12VDC
PC5108
(optional)
LCD5500
Keypad
PC5003 Cabinet
Metal Conduit
20 ft(6m) max
Connect to
Alarm Panel

12
Section 8: T-Link Operation
8.1 Remote Control
The panel and the DLS software will control this function. The module will be a conduit for the
information. Commands can be sent from the DLS or SA software to allow control of the
panel; Arm/Disarm, Bypass/Un-Bypass, Status Request.
NOTE: New DLS-3 and System Administrator drivers are required for the PC5020 v3.2 and
PC4020 v3.31. These drivers can be downloaded free from dsc.com/dls3drivers.htm. DLS-3
and System Administrator can communicate directly to the T-Link TL250 module. The DLS
software can be used with UL Listed installations only when service personnel are on-site.
8.2 Programming
The T-Link TL250/TL300 can be programmed remotely or locally with the T-Link Console
Software via the ethernet connection or locally with the T-Link console via the serial port. Pro-
gramming can also be done through the control panel when connected to a PC4020 or PC5020.
TL250 programming cannot be done using DLS software.
NOTE: On a default unit the T-Link can be reached from the console at IP 192.168.0.99 with a
subnet mask of 255.255.0.0 on port 3064.
8.3 IP Address
Each T-Link on the same network node must have a unique IP address. This system is com-
patible with any device that masks the IP address of the originating device. Dynamic
addressing (DHCP) can also be used with the TL250.
For remote programming, the IP must be known by the T-Link console or the DLS/SA com-
puter(s). For this reason, DSC recommends a Static IP or setting up the DHCP server to
always license the same IP to the T-Link based on its MAC address.
8.4 Port Usage Table
NOTE: Confirm with the network administrator that the following ports are locked open and
that the SG-DRL3-IP has network access for all required network segments.
Description Default
Port # Programming Location to Change
T-Link TL250/
TL300
T-Link Source Port 3060 Section [009] T-Link options from Key-
pad
T-Link Destination
Port
3061 Section [010] T-Link options from Key-
pad
SG-DRL3-IP
T-Link Port 3061 Section [0B] [0C] from Console S/W
DLS Port 3062 Section [0D] [0E] from Console S/W
SA Port 3063 Section [11] [12] from Console S/W
Console S/W Port 3064 Section [14] [15] from Console S/W
DLS2002 DLS Port 3062 Modem Configuration Options
DLS SA SA Port 3063 Modem Configuration Options
Console Console Port 3064
T-Link Console
TFTP Firmware Upgrade 69

13
8.5 Integrated Call Directions
The T-Link features a built-in call direction that will allow signals to be sent to active receivers
as well as a local LAN logging application.
The T-Link has a choice of 3 receivers when transmitting signals. Receiver 1, Receiver 2 and
Receiver 3. Should the communications be lost to Receiver 1, the T-Link will generate a local
trouble and send the trouble to the appropriate receiver. The loss of Receiver 2 or 3 does not
generate any signal since they are not supervised.
The panel can direct to which receiver the signal will be sent. If a Receiver is lost, the T-Link
TL250 will route the alarm to the backup receiver (if programmed). Receiver 3 will be used as
a local logging. Any signal sent to either Receiver 1 or Receiver 2 will also be sent to Receiver
3. Once the connections has been reestablished to Receiver 1 the T-link will resume transmis-
sion to it.
NOTE: If Receiver 1, 2 or 3 is not programmed, T-Link will not attempt to report to the receiver.
NOTE: Receiver 2 is not supported for DVACS installations.
8.6 Status Indicators
There are 4 LEDs on the board to indicate connection, traffic and trouble conditions.
LK LED (Link Status) will turn on when the network is present and will turn off when the net-
work is absent.
ACT LED (Activity/Network Traffic Status) will blink to show network activity.
SPD LED (Speed Status) will remain off for 10BaseT network connection and will be on to
indicate 100BaseT network connection.
STAT (Status) LED will normally blink once every 5 seconds. If a trouble is present, the
LED will blink a number of times (as per table) with a one second pause before restarting the
sequence. If there is more then one trouble present, the LED will blink at a rate that is equal
to the highest priority.
The transmitter has a number of individually maskable trouble conditions that report various
troubles present on the transmitter. For the corresponding trouble toggle option, refer to sec-
tion [033] and [034]. Options [033] and [034] can be set to ignore for any or all trouble con-
ditions. Once a trouble is ignored, it will no longer generate a signal or have any affect on the
Status LED.
Example: The network is not present and inputs are in alarm. The LED will blink once with
a one-second pause. When the network trouble is cleared the LED will blink five times with
a one-second pause.

14
8.7 Testing & Troubleshooting
The T-Link TL250/TL300 and the System III Receiver can be connected directly with an
Ethernet crossover cable. An Ethernet crossover cable can be made by taking a standard
Ethernet cable (which will have wires attached to pins 1, 2, 3 and 6 only on the 8 pin RJ-45
connector) and swapping pin 1 with pin 3, and also swapping pin 2 with pin 6, on one end of
the cable only. This effectively reverses the transmit and receive pairs, and allows two hosts
to communicate without the use of a network hub.
Upon T-Link power-up (without the Ethernet cable connected), LED2 will blink periodi-
cally, approximately once every 12 seconds. This represents the T-Link TL250 attempting to
send a connection request to the receiver. The TL250 will try to connect to the receiver until
it succeeds.
The Activity and Link LED’s are normally OFF in their default state after power-up (i.e.
when no Ethernet cable is connected, and there are no packets being transmitted or received,
respectively). Refer to the Status Indicator table above for details.
Status Blinks/
Priority Description
Network Absent 1
The Ethernet link between the transmitter and local
hub or router is absent. This is equivalent to the link
LED on the Ethernet chip being off.
Invalid Account 2The transmitter account code is still set to the
default value of FFFFFF.
Receiver 1 Absent 3The transmitter is not receiving Receiver Heartbeat
commands from the receiver.
Panel Absent 4
The transmitter is not receiving polls from the DSC
4020, 5020 or DVACS panel through the PC-Link
interface. Generic panels are not supervised by the
transmitter.
Input Alarms 5There are inputs on the T-Link which are in ‘alarm’
condition
FTC 1 6T-Link failed to communicate with Receiver#1
PC5108 Absent 7The PC5108 Module is not responding to the trans-
mitter.
PC5108 Tamper 8The PC5108 Module Tamper has been activated
FTC 2 9T-Link failed to communicate with Receiver#2
Keyswitch Arm 10 The system was armed by the keyswitch zone
T-Link Remote Pro-
gramming 11 T-Link is being programmed remotely
T-Link Local Pro-
gramming 12 T-Link is being programmed locally
Receiver #2 Absent 13 The transmitter is not able to connect to Receiver#2
on power-up
Receiver Version
Mismatch 14
Indicates that the current Receiver software version
requires updating. The present version may not
support some alarms.
Note:This applies to software versions v1.20 and
higher

15
Section 9: Programming Guide
The following information is required Before programming the T-Link TL250/TL300 modules.
1. The static IP address for the T-Link TL250 module (Section [001]).
2. The subnet mask for the T-Link TL250 module (Section [002]).
3. The static IP address of the receiver (Section [007]).
4. The static IP address of the static gateway for the LAN that the T-Link TL250 is connected to in a
WAN configuration (Section [008]).
NOTE: For DHCP networks, the above items are not required. Consult your network adminis-
ter for information about the DHCP settings.
Important!: If a telephone line is used to back up communication, program the phone number you
want to use as a backup or dial direction option in section [000401] ‘Communication Toggle
Options’. If using a PC4020 or a PC5020 [380] option 5, enables 3rd number to backup. DSC recom-
mends programming T-Link TL250 to transmit first for faster communication. If the land line com-
munication is programmed to communicate first, then the T-Link TL250 communication will be
delayed for the duration of the land line call (30-45 seconds). This also applies when using the phone
line for backup only.
9.1 Basic Programming (PC4020 Control Panel)
NOTE: PC4020 v3.3 or higher required (Rev04B hardware).
DSC recommends changing the reporting code transmission delay from 20s to 40s on the PC4020:
Step 1 Power down the MAXSYS panel.
Step 2 Power up the MAXSYS panel. Enter installers programming ([*] + 8 + Installers Code)
within the first 10 minutes of power up.
Step 3 Scroll to Diagnostics (04) and press [*].
Step 4 Scroll to Binary Programming (01) and press [*].
Step 5 Enter the address of the address location 03044 and change the value to 40 seconds (0x28).
Programming Steps:
Step 1: Program the Hex digits [CAAA] in the telephone number that will be used for T-Link
TL250 communications (section [0004000000] ‘Communicator + Main Items Phone Num-
bers’).
NOTE: You must delete the [D] in the telephone number first (this is the dial tone detection).
Step 2: Program YES for ‘T-Link Enabled’ option, section [000401] ‘Communication Toggles’.
Step 3: If using DLS communication over T-Link then program YES for ‘DLS Enabled’ in section
[000300], ‘DLS Section +DLS Toggles’.
Step 4: Program the dialer direction options for the phone number that has been programmed to
send T-Link communications in section [000400XX02], where XX = telephone number
00-02 in the ‘Communicator + Main Options’.
NOTE: Auto report SIA section [000401] must be enabled in order for the T-Link TL250 to com-
municate. The communication format must be programmed for SIA [000400XX01].
Step 5: Enter section [000406] for T-Link module programming options.
Step 6: Program the static IP address for the T-Link module in section [001]. Program
000.000.000.000 for DHCP.
Step 7: Program the subnet mask for the T-Link module in section [002]. This option will be
ignored if the unit is set for DHCP.
Step 8: Program the receiver static IP address (DRL3-IP line card or the PC running The Reporter
IP software) in section [007].

16
Step 9: If the receiver (DRL3-IP) is on a different network segment than the T-Link module, the
gateway address associated with the T-Link module must be programmed in section [008].
This is an optional step; determine if this is required with the network administrator.
Step 10: Program the T-Link’s account number in section [003].
Step 11: After all T-Link TL250 module programming is complete, you must restart the module so
the programming changes will take effect. To restart the T-Link module enter the digits
[55] in T-Link programming section [999] and wait 15 seconds for the module to reboot.
Once complete, press the [#] key to exit T-Link TL250 programming.
Maxsys V3.5 Only:
If the panel sends events to Receiver 0, the T-Link will perform backups automatically to
IPs from Receiver 1 and Receiver 2. If the panels sends events to specific receivers then
the panel will be responsible for all backup/alternate dial functions.
NOTE: The IP Receiver addresses are programmed in the T-Link TL250.
9.2 Basic Programming (PC5020 Control Panel)
NOTE: PC5020 software version 3.2 or higher required (Rev03 hardware).
Programming Steps:
Step 1: Program the hex digits [DCAA] in the telephone number that will be used for T-Link
TL250 communications (section [301] to [303], ‘Telephone Phone Number Program-
ming’).
NOTE: The leading digit [D] in the telephone number for dial tone detection is already pro-
grammed.
Step 2: Program the communication format as SIA FSK format in section [350] and Auto SIA,
option 3 in section [381] has to be OFF.
Step 3: Program the call direction options in section [351] to [376] for the phone number being
used to communicate using T-Link TL250.
Step 4: Section [382]Option 5 ‘PC-Link Active’ option must be ON to enable T-Link TL250 com-
munication.
Step 5: Enter section [851] for T-Link TL250 module programming options.
NOTE: Option [5] in Section [382] must be enabled to access this section.
Step 6: Program the static IP address for the T-Link TL250 module in section [001]. Program
000.000.000.000 for DHCP.
Step 7: Program the subnet mask for the T-Link TL250 module in section [002]. This option will
be ignored if the unit is set for DHCP.
Step 8: Program the static IP address of the receiver (DRL3-IP line card) in section [007].
Step 9: If the receiver (DRL3-IP) is on a different network segment than the T-Link TL250 mod-
ule, the gateway address associated with the T-Link TL250 module must be programmed in
section [008]. This is an optional step; verify with the network administrator if this is
required.
9.3 T-Link DVACS Programming
Obtain the following information from the station monitoring the DVACS alarm panel:
1. The SG-DVL2A Receiver number and line number that the DVACS panel is connected to.
2. The DVACS panel ID (Account Number).
3. The programmed value of the SG-DVL2A extended format (option 07) for step 2 below.
CAAA = Receiver 0 CCCC = Receiver 2
CBBB = Receiver 1 CDDD = Receiver 3
