LE2077

LTE/3G Wireless Alarm Communicator

Installation Manual v5.1

WARNING: Installer Please Read Carefully

Note to Installers

The Warnings on this page contain vital information. As the only

individual in contact with system users, it is the installer’s

responsibility to bring each item in this Warning to the attention of

all users of this system.

System Failures

This system has been carefully designed to be as effective as

possible. There are circumstances, however, involving fire,

burglary, or other types of emergencies where it may not provide

protection. Any alarm system of any type may be compromised

deliberately or may fail to operate as expected for a variety of

reasons. Some, but not all, of the reasons may be:

Access by Intruders

Intruders may enter through an unprotected access point,

circumvent a sensing device, evade detection by moving through

an area of insufficient coverage, disconnect a warning device, or

interfere with or prevent the proper operation of the system.

Component Failure

Although every effort has been made to make this system as

reliable as possible, the system may fail to function as intended due

to the failure of a component.

Compromise of Radio Frequency (Wireless) Devices

Signals may not reach the receiver under all circumstances which

could include metal objects placed on or near the radio path or

deliberate jamming or other inadvertent radio signal interference.

Criminal Knowledge

This system contains security features which were known to be

effective at the time of manufacture. It is possible for persons with

criminal intent to develop techniques which reduce the

effectiveness of these features. It is important that your security

system be reviewed periodically to ensure that its features remain

effective and that it is updated or replaced if it is found that it does

not provide the protection expected.

Failure of Replaceable Batteries

This system’s wireless transmitters have been designed to provide

several years of battery life under normal conditions. The expected

battery life is a function of the device environment, usage, and

type. Ambient conditions such as high humidity, high or low

temperatures, or large temperature fluctuations may reduce the

expected battery life. While each transmitting device has a low

battery monitor which identifies when the batteries need to be

replaced, this monitor may fail to operate as expected. Regular

testing and maintenance keeps the system in good operating

condition.

Inadequate Installation

A security system must be installed properly in order to provide

adequate protection. Every installation should be evaluated by a

security professional to ensure that all access points and areas are

covered. Locks and latches on windows and doors must be secure

and operate as intended. Windows, doors, walls, ceilings and other

building materials must be of sufficient strength and construction

to provide the level of protection expected. A reevaluation must be

done during and after any construction activity. An evaluation by

the fire and/or police department is highly recommended if this

service is available.

Inadequate Testing

Most problems that would prevent an alarm system from operating

as intended can be found by regular testing and maintenance. The

complete system should be tested weekly and immediately after a

break-in, an attempted break-in, a fire, a storm, an earthquake, an

accident, or any kind of construction activity inside or outside the

premises. The testing should include all sensing devices, keypads,

consoles, alarm indicating devices, and any other operational

devices that are part of the system.

Insufficient Time

There may be circumstances when the system operates as intended,

yet the occupants will not be protected from an emergency due to

their inability to respond to the warnings in a timely manner. If the

system is remotely monitored, the response may not occur in time

to protect the occupants or their belongings.

Motion Detectors

Motion detectors can only detect motion within the designated

areas as shown in their respective installation instructions. They

cannot discriminate between intruders and intended occupants.

Motion detectors do not provide volumetric area protection. They

have multiple beams of detection and motion can only be detected

in unobstructed areas covered by these beams. They cannot detect

motion which occurs behind walls, ceilings, floor, closed doors,

glass partitions, glass doors or windows. Any type of tampering

whether intentional or unintentional such as masking, painting, or

spraying of any material on the lenses, mirrors, windows or any

other part of the detection system impairs its proper operation.

Passive infrared motion detectors operate by sensing changes in

temperature. However their effectiveness can be reduced when the

ambient temperature rises near or above body temperature or if

there are intentional or unintentional sources of heat in or near the

detection area. Some of these heat sources could be heaters,

radiators, stoves, barbecues, fireplaces, sunlight, steam vents,

lighting and so on.

Power Failure

Control units, intrusion detectors, smoke detectors and many other

security devices require an adequate power supply for proper

operation. If a device operates from batteries, it is possible for the

batteries to fail. Even if the batteries have not failed, they must be

charged, in good condition and installed correctly. If a device

operates only by AC power, any interruption, however brief,

renders that device inoperative while it does not have power.

Power interruptions of any length are often accompanied by

voltage fluctuations which may damage electronic equipment such

as a security system. After a power interruption has occurred,

immediately conduct a complete system test to ensure that the

system operates as intended.

Security and Insurance

Regardless of its capabilities, an alarm system is not a substitute

for property or life insurance. An alarm system also is not a

substitute for property owners, renters, or other occupants to act

prudently to prevent or minimize the harmful effects of an

emergency situation.

Smoke Detectors

Smoke detectors that are a part of this system may not properly

alert occupants of a fire for a number of reasons, some of which

follow. The smoke detectors may have been improperly installed

or positioned. Smoke may not be able to reach the smoke

detectors, such as when the fire is in a chimney, walls or roofs, or

on the other side of closed doors. Smoke detectors may not detect

smoke from fires on another level of the residence or building.

Every fire is different in the amount of smoke produced and the

rate of burning. Smoke detectors cannot sense all types of fires

equally well. Smoke detectors may not provide timely warning of

fires caused by carelessness or safety hazards such as smoking in

bed, violent explosions, escaping gas, improper storage of

flammable materials, overloaded electrical circuits, children

playing with matches, or arson.

Even if the smoke detector operates as intended, there may be

circumstances when there is insufficient warning to allow all

occupants to escape in time to avoid injury or death.

Telephone Lines

If telephone lines are used to transmit alarms, they may be out of

service or busy for certain periods of time. Also an intruder may

cut the telephone line or defeat its operation by more sophisticated

means which may be difficult to detect.

Warning Devices

Warning devices such as sirens, bells, horns, or strobes may not

warn people or waken someone sleeping if there is an intervening

wall or door. If warning devices are located on a different level of

the residence or premise, then it is less likely that the occupants are

be alerted or awakened. Audible warning devices can be interfered

with by other noise sources such as stereos, radios, televisions, air

conditioners, other appliances, or passing traffic. Audible warning

devices, however loud, may not be heard by a hearing-impaired

person.

Contents

Communicator Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

UL/ULC Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Communicator Frequency Bands for North America. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Hardware Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Communicator Pre Installation Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Connect24™ Account and SIM card Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Encryption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Communicator Configuration with SCW9055/SCW9057 . . . . . . . . . . . . . . . . . . . . . . . . . .7

Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Antenna Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Inserting/Removing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Communicator Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Establishing a Communication Channel with the SCW9055/SCW9057 Panel . . . . . . . . . . . . . . . . . . . . . 8

Communicator Placement Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Cellular Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

System Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Programming Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Communications Reporting Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

System Test Options [026 - 029] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Cellular Receiver 1 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Cellular Receiver 2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Cellular Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Receiver Diagnostic Testing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

System Information (Read Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

System Reset Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Communicator Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Keypad Data Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Entering Data From Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Entering ASCII Characters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Mounting Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cellular Programming Worksheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

System Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Programming Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

System Test Options [026 - 029] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Cellular Receiver 1 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Cellular Receiver 2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Cellular Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

System Information (Read Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

System Reset Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

End User Licence Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

All versions of the LTE/3G Alarm Communicator, operate on a LTE/3G network and are

housed inside the Self Contained Wireless Alarm System Model SCW9055/9057. The

Communicators use an Internal Antenna only.

Each version of Alarm Communicators covered by this Installation Manual are described

below:

LE2077: A Long-Term Evolution/Global System for Mobile (LTE/3G) wireless Alarm

Communicator that sends alarm communication to Sur-Gard System I-IP, II, III (SG-DRL3-

IP), IV (SG-DRL4-IP) and 5 (SG-DRL5-IP) central station receivers through an LTE/3G

digital cellular network.

CAUTION:

• Do not stay close to the equipment during device operation and to do not touch any exposed

wires and other conductive surfaces,

• Recycle the battery according to the local rules and regulations.

NOTE: Prior to installation of the LE2077, confirm with your local carrier that the LTE/3G

network is available and active in the area where the Communicator is installed, and

that the location provides a radio signal strength that is adequate for uninterrupted

service.

FEATURES

• 128-bit Advanced Encryption Standard (AES, Certificate No. 5376) encryption through

Cellular

• Activating, initializing, and remote programming through using Connect24

• Back-up or primary Cellular alarm communication

• Dual internal LTE/3G antennas

• Full event reporting to central station

• RS422 is the connection for interactive hub/gateway.

• Individual Cellular Periodic test transmission

• 2-way audio (listen-in feature) provided over Cellular

• Integrated call routing

• Remote Firmware upgrade capability of the Communicator through Cellular

• CID and SIA format reporting

• Subscriber Identity Module (SIM) card, included with Communicator

• Supervision heartbeats through LTE/3G

UL/ULC INSTALLATION REQUIREMENTS

• For ULC Residential fire and burglary applications the LE2077 can be used as primary

communication channel using Cellular (as applicable) or as a back-up in conjunction with

the Digital Alarm Communicator Transmitter (DACT). Test transmission every 24 hours is

required on each channel.

• For UL Residential fire and burglary applications the LE2077 can be used as primary

communication channel using Cellular or as a back-up in conjunction with the DACT. Test

transmission every 30 days is required on each channel.

COMMUNICATOR FREQUENCY BANDS FOR NORTH AMERICA

COMMUNICATOR TECHNICAL SPECIFICATIONS

Table 1: 3G Frequency Bands - North America

Transmit Direction Cellular 850 North America PCS 1900 North America

Transmit Frequency 824 MHz to 849 MHz 1850 MHz to 1910 MHz

Receive Frequency 869 MHz to 894 MHz 1930 MHz to 1990 MHz

HARDWARE COMPATIBILITY

Note for ULC Listed installations:

Products or components of products, which perform communications functions only, must

comply with the requirements applicable to communications equipment as specified in CAN/

CSA –C22.2 No. 60950-1, Information Technology Equipment-Safety - Part 1: General

Requirements. Where network interfaces, such as the following, are internal to the subscriber

control unit or receiver, compliance to CAN/CSA –C22.2 No. 60950-1 is adequate. Such

components include, but are not limited to: Hubs; Routers; Network interface devices; Third

party communications service providers; Digital subscriber line (DSL) modems; and Cable

modems.

Note for UL Listed installations:

Packet switched data network interface equipment, manufactured by other than the burglar

alarm equipment manufacturer, that is not required for the processing of the signals must be

evaluated to the applicable requirements of the Standard for Information Technology

Equipment – Safety – Part 1: General Requirements, UL 60950-1, either as burglar alarm

equipment or communication equipment.

Table 2: LTE Frequency Bands (model LE2077 only)

Band Transmit Band (TX) Receive Band (RX)

LTE B2 1850 MHz to 1910 MHz 1930 MHz to 1990 MHz

LTE B4 1710 MHz to 1755 MHz 2110 MHz to 2155 MHz

LTE B5 824 MHz to 849 MHz 869 MHz to 894 MHz

LTE B12 698 MHz to 716 MHz 728 MHz to 746 MHz

LTE B13 777 MHz to 787 MHz 746 MHz to 756 MHz

UMTS B2 1850 MHz to 1910 MHz 1930 MHz to 1900 MHz

UMTS B5 824 MHz to 840 MHz 824 MHz to 894 MHz

RATINGS

Table 3: Communicator Electrical Ratings

Model LE2077

Cellular Only

Power Supply Ratings

Input Voltage 3.5 / 3.9 / 4.2 VDC (min / NOM / MAX) from

the SCW9055/SCW9057 panel

Current Consumption 75 mA

Standby Current (@ 3.7V) 75 mA

Alarm (Transmitting) Current) 400 mA @ 3.7V during transmission

Antenna Specifications

Dual band Antenna See Table 1

Environmental Specifications

Operating Temperature 0°C - 49°C (32°F- 120°F)

Humidity 5% ~ 85% relative humidity, non-condensing

Mechanical Specifications

Board Dimensions (mm) 109 x 110

Weight (grams) 60

Table 4: Compatibility

Communicator Receiver/Control

Panel Description

LE2077 Receiver

SG System I, v1.14+

SG System II, v2.11+

SG-DRL3-IP, v2.3+

SG-DRL4-IP, v1.2+

SG-DRL5-IP, V1.0+

Control Panel SCW9055/SCW9057 V1.17/1.18

CONNECT24™1ACCOUNT AND SIM CARD ACTIVATION

Installation of the Communicator requires activation with Connect24 before operation.

The LE2077 can be initialized with C24 Communications. To complete enrollment, a C24

Communications login and the 20-digit SIM number are required.

NOTE: The SIM activation process with the cellular carrier typically takes between five and

10 minutes to complete.

ENCRYPTION

The Communicator uses 128 Bit AES Encryption. Encryption can only be enabled from the

monitoring station receiver. Each receiver can independently have encryption enabled or

disabled. When encryption is enabled, the central station configures the device to encrypt

communications the next time the Communicator module performs a communication to that

receiver.

NOTE: Packet encryption starts only after the next event is sent to that receiver, or if the unit

is restarted.

COMMUNICATOR PRE INSTALLATION CONFIGURATION

1. Connect24, DSC, and DLS IV are Registered Trademarks of Tyco International Ltd. and its respective Companies.

NOTE: The SCW9055/

SCW9057

should not be

mounted in its

final location

without

performing a

Communicator

Test to ensure

adequate LTE/

3G coverage for

the LE2077

Alarm

Communicator.

INSTALLATION

LOCATION

The SCW9055/SCW9057

and integrated LE2077

alarm communicator shall

be installed in an indoor

location only.

This LTE/3G

Communicator must be

installed by Skilled

Persons only. Skilled Person is defined as a person with relevant education or experience to

enable him or her to identify hazards and to take appropriate actions to reduce the risks of

injury to themselves and others. The Communicator must be installed and used within an

environment that provides the pollution degree max 2, over voltages category II, in non-

hazardous, indoor locations only. This manual must be used with the Installation Manual of

the alarm control panel which is connected to the LTE/3G Communicator. All instructions

specified within the control panel manual must be observed.

All the local rules imposed by local electrical codes must be observed and respected during

installation.

ANTENNA CONNECTIONS

JK1 – If an external antenna extension kit is required to improve cellular performance, connect

the antenna extension cable to JK1. This deactivates the on-board antenna and allows the

product to use the external antenna. (See Figure 1.)

JK2 – The secondary receive antenna, mounted on the right side of the product enclosure, is

attached to the communicator using JK2. (See Figure 1.).

INSERTING/REMOVING THE SIM CARD

1. Remove the front cover of the SCW9055/SCW9057 Control Panel to access SIM card

holder.

COMMUNICATOR CONFIGURATION WITH SCW9055/

SCW9057

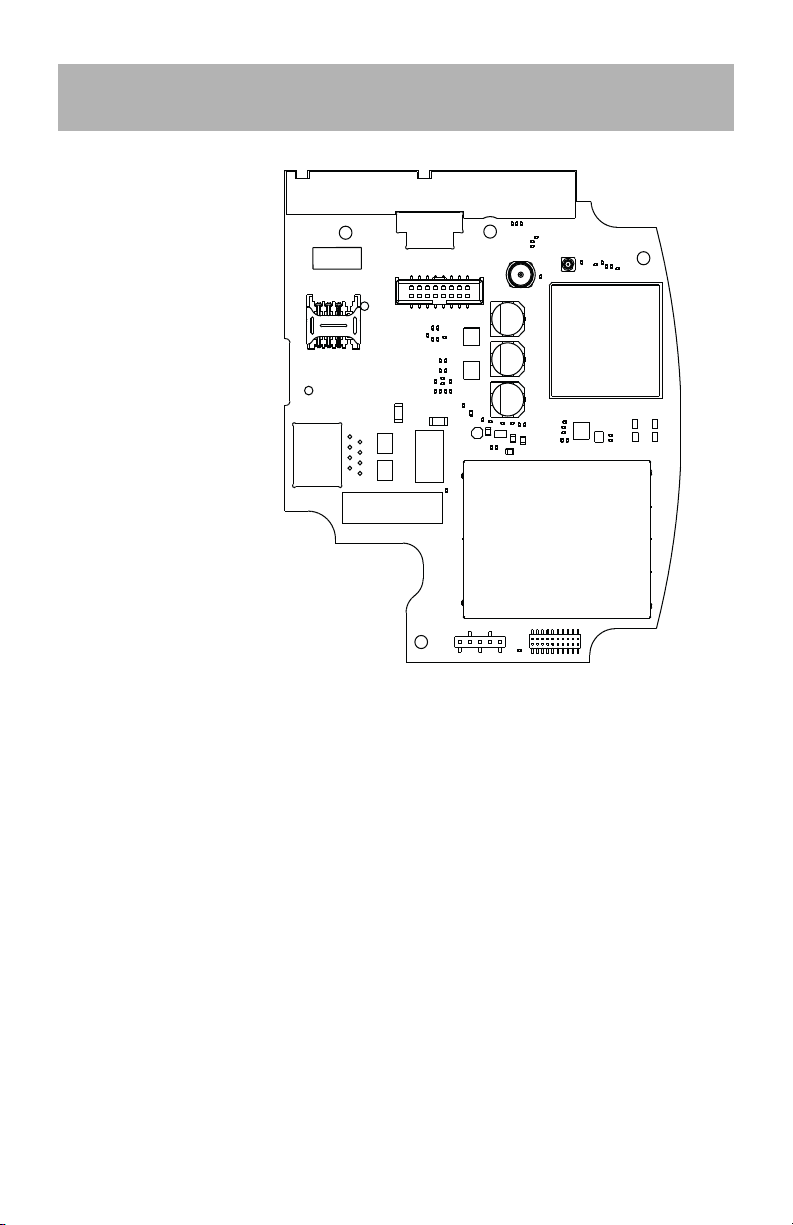

Figure 1: Communication Board Connection Points

UA735

JK1

JK2

2. Remove power from the SCW9055/SCW9057 and disconnect the backup battery

connections.

3. Gently slide the SIM card into the SIM card holder and ensure the notch in the corner of the

SIM card aligns with the indication on the PCB.

4. Apply AC power to panel, and replace the panel cover.

NOTE: If two way audio is enabled you CANNOT swap the SIM card with another card.

COMMUNICATOR RESET

The Communicator can be reset by cycling the power on the SCW9055/SCW9057.

ESTABLISHING ACOMMUNICATION CHANNEL WITH THE SCW9055/

SCW9057 PANEL

The Communicator interfaces to the SCW9055/SCW9057 through a keyed 16-pin Ribbon

cable. See Table 6 . The key prevents incorrect connection of the ribbon cable connector to the

SCW9055/SCW9057 and Communicator. The pin-out for the Ribbon cable is provided in the

Table below:

Establishing a communication channel between the Communicator and the SCW9055/

SCW9057 is critical to ensuring the desired operation of the two units. The following steps

must be completed during the on-site installation. Program the following options to ensure that

the Communicator and the panel work together as intended.

Initial Programming of Communicator and SCW9055/SCW9057

1. Enter

[*][8][Installer Code] [Section Number]

for panel programming. Record any values

that are modified from their default, in the appropriate Programming Worksheets.

NOTE: When programming Toggle Options, the toggle is ON when the number is displayed

andOFFwhenthenumberisnotdisplayed.(e.g.,[1---5---],ToggleOptions1and

5 are ON, all others are OFF).

2. Panel section [167] Cellular Interface Communications ‘Wait for ACK’: Default value is:

060 seconds.

3. When the communicator is installed with the SCW9055/SCW9057 panel, four telephone

numbers are available to backup one another. You can set up these four telephone numbers

to perform in one of two ways: Backup dialing or Alternate dialing.

a. Backup dialing: Each of the four telephone numbers make five dialing attempts in turn,

before an FTC trouble is displayed on the keypad.

b. Alternate dialing: each telephone number makes one dialing attempt before moving on

to the next number, cycling through each of the four numbers for a total of five times

each. If all four numbers fail the five attempts, an FTC trouble is displayed on the

keypad.

4. Panel sections [301], [302], [303], and [305] can be configured as Primary communication

paths.

Table 5: Communicator Ribbon cable to SCW9055/SCW9057

Pin # Signal Pin # Signal

1 PC-Link TX 2 PC-Link RX

3 GND 4 Vref

5 Vref 6 GND

7 AUD-OUT_N 8 AUD-OUT_P

9 AUD-IN_P 10 AUD-IN_N

11 GND 12 SI

13 GND 14 SO

15 GND 16 Wall Tamper

a. Panel sections [302], [303], and [305] may also be configured for backup or redundant

communications by using panel section(s) [383] or [351] - [376]. Refer to the

SCW9055/SCW9057 panel Installation Manual for more information.

b. If a valid telephone number is programmed, communication uses Public Switched

Telephone Network (PSTN). Entering a 4-digit hexadecimal value for a telephone

number changes the call routing to the Communicator, as determined by the number

programmed:

DCAAF: Internal (all receivers). Signals are routed depending on section [851]

[006] programming.

DCDDF: Cellular Receiver 1 (Primary).

DCEEF: Cellular Receiver 2 (Backup).

NOTE: Add a single ‘F’ as a suffix to the 4-digit hex number to populate the unused

remainder of the 32-character field.

5. Panel section [350]: If any of the phone numbers have been programmed as DCAA,

DCDD, or DCEE, panel section [350] must be set to [04] if SIA format or [03] if Contact

ID (CID) format is used by control panel.

6. Panel section [382]: Toggle Option [5], ‘GS/IP Module Enabled’, must be set to ON.

7. Panel section [401]: Toggle Option [1] must be set to ON in order to perform panel DLS

session through Cellular data channel.

8. Panel section [310], account code auto syncs with the communicator account code in

section [021]. The panel account code ([*][8][installer code] [310]) overwrites the

communicator account code section ([*][8][installer code] [851] [021]), if programmed

differently.

NOTE: Keep a record of the SIM card telephone number as it is required by users for SMS

Command and Control functions. (The number can be recorded in the Programming

Worksheets Section of this document, under Option [996].) Due to the nature of the

SIM card activation process with Cellular network carriers, it can take up to 24 hours

for SIM card activation to be complete.

COMMUNICATOR PLACEMENT TEST

1. Using the keypad enter the installer mode: [*][8] [installer code] [850].

2. View and record the number of bars showing on the SCW9055/SCW9057 LCD.

3. Compare with the number of bars indicated in the CSQ Levels column in Table 6.

4. If three or more bars are shown, the location is GOOD for installation.

5. If the location is BAD, move the SCW9055/SCW9057 to various suitable locations until

three or more bars are obtained.

Table 6: Communicator CSQ Levels

Signal Strength CSQ Level Signal Level

dBm Installer Action

5 Bars 14 and higher -84 and higher

Location is GOOD.4 Bars 11 to 13 -90 to -85

3 Bars 7 to 10 -98 to -91

2 Bars 5 to 6 -102 to -99 Location is BAD. Not suitable for Cellular operation.

1 Bar 1 to 4 -108 to -103

No Signal 0 -108.8 Check if Cellular coverage is active in your area.

The Programming Sections described in this document can be viewed at the SCW9055/

SCW9057 LCD. To start programming enter: [*][8][installer code] [851][###], Where # # #

is the 3-digit section number referenced in this section. The Programming Worksheets at the

end of this document can be used to record the new values when programming changes have

been made from the default values.

Programming sections are accessed through using Connect24. Installers can review/record

programming Options at the panel.

NOTE: Cellular Programming Sections accessed through the panel are for display purposes

only. Configuration changes must be done using Connect24.

SYSTEM OPTIONS

[004] Receiver Supervision Interval

Default (0087/135)

When receiver supervision is enabled (ON) in section [005], toggle option [3], the unit sends

heartbeats to Cellular Receiver 1 to test the communications path. Use this section to set the

interval time (in seconds) when heartbeats are sent to the receivers. Valid range 000A-FFFF

seconds. If the programmed value is less than (000A/10) seconds, supervision is disabled.

•Receiver Window: This is the supervision timeout that must be configured at the central

station receiver.

•Recommended Values: This is the recommended heartbeat interval that should be

programmed into the Communicator.

• For ULC installations, the Daily test transmission must be enabled over each available

communication channel sections [125] and [225]. When programming using Connect24,

the recommended intervals are programmed automatically when the required window is

selected.

[005] System Toggle Options

[2] Cellular Receiver 1 Supervised

Default (OFF)

ON: Cellular Receiver 1 is supervised and heartbeats are sent to Cellular Receiver 1 based on

the supervision interval programmed in section [004]. If ACK to heartbeat is not received, it is

retransmitted every 5 seconds. Failure to ACK 2 consecutive heartbeats resets the radio.

OFF: Cellular Receiver 1 is not supervised. When disabled, heartbeat is not sent to the

receiver. Supervisory trouble is indicated.

NOTE: Cellular Receiver 2 cannot be supervised.

[3] Supervision Type

Default (OFF)

ON: Heartbeat 1 (Commercial Supervision). This supervision type is suitable for applications

where swap detection is required on the supervisory packet.

OFF: Heartbeat 2 (Residential Supervision). This supervision type is suitable for applications

where supervision of the communication path to the receiver is required. (no swap detection).

NOTE: Commercial supervision is more data intensive than residential supervision and must

only be used when required to meet the approval for the installation.

[6] Remote Firmware Upgrade

Default (ON)

ON: The Communicator module firmware can be remotely upgraded using the Cellular paths.

OFF: The Communicator module firmware cannot be remotely upgraded. Local firmware

upgrade is still possible.

[7] Alternate Test Transmissions

Default (OFF).

CELLULAR PROGRAMMING OPTIONS

ON: When the periodic test transmission interval occurs, the test transmission will alternate

between being sent to the primary and secondary receivers with each test transmission

interval.

OFF: When the periodic test transmission interval occurs, the test transmission will be sent to

the programmed receivers, based on the settings of the periodic test transmission reporting

codes.

[8] Cellular Low Signal Trouble.

Default (OFF)

This option masks the Low Signal trouble from the Cellular trouble event.

ON: A Cellular Trouble event is transmitted to receiver when the radio signal level falls below

threshold level (average CSQ level is 4 or less).

OFF: A Cellular Trouble event is not transmitted to receiver when the radio signal level falls

below threshold level (average CSQ level is 4 or less).

[006] System Toggle Options 2

[3] Reserved. ( ).

[4] Cellular 1 Receiver Enabled.

Default (ON).

ON: Cellular Receiver 1 is enabled.

OFF: Cellular Receiver 1 is disabled.

[5] Cellular 2 Receiver Enabled.

Default (ON).

ON: Cellular Receiver 2 is enabled.

OFF: Cellular Receiver 2 is disabled.

[6] Reserved ( ).

[7] DLS Over Cellular.

Default (ON).

NOTE: Program this toggle as OFF if you want to completely disable DLS from using the

Cellular path.

ON: DLS is enabled on the Cellular path.

OFF: DLS is disabled on the Cellular path.

NOTE: If this Toggle is OFF, DLS sessions occur on the Cellular path, regardless of Primary

Path set in section [005], toggle option [4]. If it is ON, the Communicator connects to

the Primary path first for DLS. If the session fails, the Secondary path is used.

[8] Reserved ( ).

PROGRAMMING OPTIONS

[010] System Toggle Option

Default (Disable)

[1] This bit is used to enable/disable two way audio over Cellular.

[011] Installer Code

Default (CAFE)

Program your installer code for this Communicator module. The installer code is required

when programming the Communicator module. Valid range: 0000 - FFFF.

[012] DLS Incoming Port

Default (0BF6/3062)

The DLS Incoming Local Port (listening port) is the port DLS 5 uses when connecting to the

Communicator. If a router or gateway is used, it must be programmed with a Transmission

Control Protocol (TCP) port forward for this port to the Communicator module IP address.

Valid range: 0000 - FFFF.

[013] DLS Outgoing Port

Default (0BFA/3066)

The DLS Outgoing Port is used for outgoing session to DLS 5 after an SMS request has been

sent to the Communicator. Use this section to set the value of the local outgoing port. The

value must be changed if the Communicator is located behind a firewall and must be assigned

a particular port number, as determined by your network administrator. In most cases,

changing the default value or configuring your firewall with this port is not required.

Valid range: 0000-FFFF.

[020] Time Zone

Default (00)

Use Column 2 (Offset Hours) to find your local Time Zone. Record the 2-digit hex value from

Column 1 (HEX Value) on the same row. Program this hex value for your Time Zone. Valid

range is 00 - FF.

Table 7: World Wide Time Zones

HEX

Value

Offset

Hours Std

Abbrev Location

01 -12 BIT Baker Island Time

05 -11 NUT Niue Time

SST Somoa Standard Time

09 -10

HAST Hawaii-Aleutian Standard Time

THAT Tahiti Time

TKT Tokelau Time

CKT Cook Island Time

0B -9.5 MIT Marquesas Island Time

0D -9 AKST Alaska Standard Time

GIT Gambier Island Time

11 -8

PST Pacific Standard Time

PST Pitcarirn Standard Time

CIST Clipperton Island Standard Time

15 -7 MST Mountain Standard Time

19 -6

CST Central Standard Time

GALT Galapagos Time

PIT Peter Island Time

EAST Easter Island Standard Time

1D -5

EST Eastern Standard Time

COT Colombia Time

ECT Ecuador Time

PET Peru Time

ACT Acre Time

1F -4.5 VST Venezuela Standard Time

21 -4

AST Atlantic Standard Time

CLST Chile Standard Time

BWST Brazil Western Standard Time

SLT San Luis Time

PYT Paraguay Time

JFST Juan Fernandez Island Standard Time

GYT Guyana Time

FKST Falkland Island Standard Time

BOT Bolivia Time

23 -3.5 NST Newfoundland Standard Time

25 -3

CGT Central Greenland Time

ART Argentina Time

BRT Brazilia Time

UYT Uruguay Standard Time

SRT Suriname Time

ROTT Rothera Time

PMST St. Pierre & Miquelon Standard Time

GFT French Guiana Time

29 -2 GST South Georgia and the South

Sandwich Islands

BEST Brazil Eastern Standard Time

2D -1

EGT Eastern Greenland Time

CVT Cape Verde Time

AZOST Azores Standard Time

31 0

WET Western European Time

GMT Greenwich Mean Time (UTC)

SLT Sierra Leone Time

IST Ireland Standard Time

35 1

CET Central European Time

WAT Western Africa Time

BST British Summer Time

39 2

EET Eastern European Time

CAT Central Africa Time

SYT Syrian Standard Time

SAST South Africa Standard Time

IST Israel Standard Time

3D 3

MSK Moscow Standard Time

EAT Eastern Africa Time

AST Arabic Standard Time

AST Arabia Standard Time

AST Al Manamah Standard Time

3F 3.5 IRST Iran Standard Time

41 4

AMST Armenia Standard Time

SCT Seychelles Time

GST Gulf Standard Time

SAMT Samara Time

RET Reunion Time

MUT Mauritius Time

ICT Iles Crozet Time

GET Georgia Standard Time

AZT Azerbaijan Time

43 4.5 AFT Afghanistan Time

Table 7: World Wide Time Zones

HEX

Value

Offset

Hours Std

Abbrev Location

45 5

CAST Chinese Atlantic Standard Time

WKST West Kazakhstan Standard Time

PKT Pakistan Time

YEKT Yekaterinburg Time

UZT Uzbekistan Time

TMT Turkmenistan Time

TJT Tajikistan Time

TFT French Southern and Antarctic Time

MVT Maldives Time

MAWT Mawson Time

KGT Kyrgyzstan Time

HMT Heard and McDonald Island Time

DAVT Davis Time

47 5.5 IST Indian Standard Time

48 5.75 NPT Nepal Time

49 6

XJT Xinjiang Standard Time

EKST East Kazakhstan Standard Time

LKT Sri Lanka Time

VOST Vostok Time

OMSK Omsk Standard Time

NOVT Novosibirsk Time

BTT Bhutan Time

BIOT British Indian Ocean Time

4B 6.5 CCT Cococ Islands Time

MMT Myanmar Time

4D 7

CXT Christmas Island Time

KOVT Khovd Time

KRAT Krasnoyarsk Time

WIB Waktu Indonesia Bagian Barat

ICT Indochina Time

BDT Bangladesh Standard Time

51 8

AWST Australian Western Standard Time

CST China Standard Time

HKST Hong Kong Standard Time

WITA Waktu Indonesia Bagian Tengah

TWT Taiwan Time

SST Scarborough Shoal Time

SIT Spratly Island Time

SGT Singapore Time

PST Philippine Standard Time

PIT Pratas Islands

PIT Parcel Island Time

MYT Malaysia Time

MNT Mongolia Time

MBT Macclesfield Bank Time

IRKT Irkutsk Time

BDT Brunei Time

ACIT Ashmore and Cartier Island Time

52 8.25 APO Apo Island Time

54 8.75 ACWST Australian Central Western

Standard Time

Table 7: World Wide Time Zones

HEX

Value

Offset

Hours Std

Abbrev Location

[021] Account Code

Default (FFFFFF)

The account code is included when transmitting any events generated by the Communicator.

(e.g., Panel Absent Trouble). It is recommended that the account code be the same as the

control panel account number. Valid range: 000001-FFFFFE. If 4-digit account codes are

needed the two lowest digits must be programmed as FF.

(e.g., Account 1234 is programmed as:1234FF).

NOTE: Programming this section with all 0 or F causes a Module Configuration Trouble.

55 9

YAKT Yakutsk Time

JST Japan Standard Time

KST Korea Standard Time

WIT Waktu Indonesia Bagian Timur

TPT East Timor Time

PWT Palau Time

57 9.5 ACST Australian Central Standard Time

59 10

AEST Australian Eastern Standard Time

GST Guam Standard Time

YA P T Ya p Ti m e

VLAT Vladivostok Time

TRUT Truk Time

PGT Papua New Guinea Time

DTAT District de Terre Adelie Time

ChST Chamorro Standard Time

5B 10.5 LHST Lord Howe Standard Time

5D 11

KOST Kosare Standard Time

NCT New Caledonia Time

VUT Vanuatu Time

SBT Solomon Island Time

PONT Phonpei Standard Time

MAGT Magadan Island Time

5F 11.5 NFT Norfolk Island Time

61 12

NZST New Zealand Standard Time

FJT Fiji Time

WFT Wallis and Futuna Time

TVT Tuvalu Time

PETT Petropavlovsk Time

NRT Nauru Time

MHT Marshall Island Time

GILT Gilbert Island Time

ANAT Anadyr Time

64 12.75 CHAST Chatham Island Standard Time

65 13 PHOT Phoenix Island Time

TOT Tonga Time

69 14 LINT Line Island Time

70 - FF N/A Reserved

Table 7: World Wide Time Zones

HEX

Value

Offset

Hours Std

Abbrev Location

[022] Communications Format

Default (04)

Program 03 for Contact ID (CID). Program 04 for SIA. The module can be configured to send

Events in SIA or CID format. The SIA communication format follows the level 2

specifications of the SIA Digital Communication Standard - October 1997. This format sends

the account code along with its data transmission. The transmission looks similar to the

following at the receiver. Example: Nri0 ET001

Where: N= New Event; ri0 = Partition/Area identifier; ET = Panel Absent Trouble; 001 =

Zone 001.

COMMUNICATIONS REPORTING CODES

[023] Panel Absent Trouble

Default (FF)

Program 00 to disable this event or FF to enable. This event occurs when communications

with the panel have been lost for more than 60 seconds.

[024] Panel Absent Trouble Restore

Default (FF)

Program 00 to disable this event or FF to enable. This event occurs when communications

with the control panel have resumed.

[025] Radio Activation Restore

Default (FF)

Program 00 to disable this event or FF to enable. This event occurs after any successful

programming session (using Connect24).

SYSTEM TEST OPTIONS [026 - 029]

Test Transmissions to Primary Receiver, with Backup to Secondary Receiver:

Set Cellular Section [028] to (FF); [029] to (00).

• If the test transmission fails to the primary receiver, it backs up to the secondary receiver.

• If the test transmission fails to the secondary receiver, an FTC trouble is generated.

Test Transmission Unique to Primary and Secondary Receivers:

Set Cellular Section [028] to (FF); [029] to (FF).

• The module sends periodic test transmissions to each receiver independently, with no

backups.

• If the test transmission fails to any of the programmed receivers, an FTC trouble is

generated.

Alternate Test Transmission:

Alternate Test Transmission can be enabled or disabled in section [005], toggle option [7].

[028] Cellular 1 Transmission

Default (FF)

Program 00 to disable this event transmission or FF to enable. See System Test Options

(above) for details on settings.

Table 8: Communications Reporting Codes

Event SIA

Identifier

SIA

Reporting

Code

CID

Qualifier

CID

Event

Code

CID

Reporting

Code

CID

User/

Zone

[023] Panel Absent Trouble ET 001 1 3 55 001

[024] Panel Absent Trouble

Restore ER 001 3 3 55 001

[025] Radio Activation Restore RS 001 3 5 52 001

[028] Cellular 1 Test Transmission RP 003 1 6 A3 955

[029] Cellular 2 Test Transmission RP 004 1 6 A3 956

[030] FTC Restore YK 001 3 3 54 001

[029] Cellular 2 Transmission

Default (00)

Program 00 to disable this event transmission or FF to enable. See System Test Options

(above) for details on settings.

NOTE: The time interval (in minutes) between periodic tests is programmed in section [225]

(Cellular).

[030] FTC Restore

Default (FF)

Program 00 to disable this event transmission or FF to enable. This event occurs when an FTC

Trouble on the system restores.

[031] Priority Tamper Alarm

Program 00 to disable this event or FF to enable. This event occurs when panel tampered

during the entry delay.

[032] Priority Tamper Restore

Program 00 to disable this event or FF to enable. This event occurs when panel tamper

restored.

Table 9: Priority Temper Restore

[033] Communicator Firmware Update Begin

Default (FF);
