Edwards IPVA10EK User manual

C417-60-880
Issue A Original
Instruction Manual
IPVA10EK Air Admittance Valve
Description Item Number
Normally open valve - 230 V a.c. C417-60-000
Normally open valve - 110 V a.c. C417-60-100
Normally open valve - 24 V d.c. C417-60-200
Normally closed valve - 230 V a.c. C417-70-000
Normally closed valve - 110 V a.c. C417-70-100
Normally closed valve - 24 V d.c. C417-70-200

This product has been manufactured under a quality system certified to ISO9001:2008
Declaration of Conformity
We, Edwards Limited,
Crawley Business Quarter,
Manor Royal
Crawley,
West Sussex, RH10 9LW, UK
declare under our sole responsibility, as manufacturer and person within the EU authorised
to assemble the technical file, that the product(s)
Normally open valves:
230 V a.c. C417-60-000
110 V a.c. C417-60-100
24 V d.c. C417-60-200
Normally closed valves:
230 V a.c. C417-70-000
110 V a.c. C417-70-100
24 V d.c. C417-70-200
to which this declaration relates is in conformity with the following standard(s) or other
normative document(s)
EN61010-1:2010 Safety Requirements for Electrical Equipment for Measurement,
Control and Laboratory Use. General Requirements
EN50581:2012 Technical Documentation for the Assessment of Electrical and
Electronic Products with respect to the Restriction of Hazardous
Substances
and fulfils all the relevant provisions of
2006/95/EC‡Low Voltage Directive
2011/65/EU* Restriction of Certain Hazardous Substances (RoHS) Directive
* i.e. The product(s) contain less than - 0.1wt% for hexavalent chromium, lead, mercury, PBB and PBDE; 0.01wt% for
cadmium - in homogeneous materials (subject to the exemptions allowed by the Directive). The RoHS Directive does
not legally apply to industrial vacuum equipment until July 2019 (July 2017 for instruments).
‡110 V a.c. and 230 V a.c. only
Note: This declaration covers all product serial numbers from the date this Declaration was
signed onwards.
19.09.2013, Eastbourne
Mr L Marini, Senior Technical Manage
r
Date and Place
P200-07-920 Issue A

This product has been manufactured under a quality system certified to ISO9001:2008
Declaration of Incorporation
We, Edwards Limited,
Crawley Business Quarter,
Manor Royal,
Crawley,
West Sussex, RH10 9LW, UK
declare under our sole responsibility, as manufacturer and person within the EU authorised
to assemble the technical file, that the machine(s)
Normally open valves:
230 V a.c. C417-60-000
110 V a.c. C417-60-100
24 V d.c. C417-60-200
Normally closed valves:
230 V a.c. C417-70-000
110 V a.c. C417-70-100
24 V d.c. C417-70-200
to which this declaration relates is intended to be incorporated into other equipment and not to
function independently. The machine(s) must not be put into service until the equipment into
which it is incorporated has been brought into conformity with the provisions of the Machinery
Directive, 2006/42/EC.
The machine(s) is in conformity with the following standard(s) or other normative
document(s)
None.
and fulfils all the relevant provisions of
2006/95/EC Low Voltage Directive
2011/65/EU* Restriction of Certain Hazardous Substances (RoHS) Directive
* i.e. The product(s) contain less than - 0.1wt% for hexavalent chromium, lead, mercury, PBB and PBDE; 0.01wt% for
cadmium - in homogeneous materials (subject to the exemptions allowed by the Directive). The RoHS Directive does
not legally apply to industrial vacuum equipment until July 2019 (July 2017 for instruments).
The relevant essential requirements of the Machinery Directive 2006/42/EC Annex 1 have been applied
and fulfilled so far as practicable for this partly completed machinery. The relevant technical
documentation has been compiled in accordance with Annex VII Part B. In response to a reasoned request
by the national authorities, Edwards Ltd undertakes to provide relevant information on the partly
completed machinery (via email).
Note: This declaration covers all product serial numbers from the date this Declaration was
signed onwards.
19.09.2013, Eastbourne
Date and Place
P200-07-940 Issue A
Mr L Marini, Senior Technical Manage
r

This page intentionally blank.

© Edwards Limited 2013. All rights reserved. Page i
Edwards and the Edwards logo are trademarks of Edwards Limited.
Contents
C417-60-880 Issue A
Contents
Section Page
1 Introduction .......................................................................................1
1.1 Scope and definitions ................................................................................................... 1
1.2 Description ................................................................................................................ 1
2 Technical data ....................................................................................2
2.1 General .................................................................................................................... 2
2.2 Performance .............................................................................................................. 2
2.3 Electrical data ............................................................................................................ 2
2.4 Materials .................................................................................................................. 3
2.5 Item numbers ............................................................................................................. 3
3 Installation .........................................................................................5
3.1 Unpack and inspect ...................................................................................................... 5
3.2 Install the valve .......................................................................................................... 5
3.3 Electrical connections ................................................................................................... 5
4 Operation ..........................................................................................7
5 Maintenance .......................................................................................8
6 Storage and disposal .............................................................................9
6.1 Storage .................................................................................................................... 9
6.2 Disposal ....................................................................................................................9
For return of equipment, complete the HS Forms at the end of this manual.
Illustrations
Figure Page
1 Valve dimensions ......................................................................................................... 4
2 Electrical supply socket ................................................................................................. 6
cg/09/13

This page has been intentionally left blank.
C417-60-880 Issue A
Page ii © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.

© Edwards Limited 2013. All rights reserved. Page 1
Edwards and the Edwards logo are trademarks of Edwards Limited.
Introduction
C417-60-880 Issue A
1Introduction
1.1 Scope and definitions
This manual provides installation, operation and maintenance instructions for the Edwards IPVA10EK air admittance
valve. The valve must be used as specified in this manual.
Read this manual before installing and operating the valve. Important safety information is highlighted as WARNING
instructions; these instructions must be obeyed.
The use of WARNINGS and CAUTIONS are defined below.
CAUTION
Cautions are given where failure to observe the instruction could result in damage to the equipment, associated
equipment and process.
The following warning symbols can be found on this product:
The units used throughout this manual conform to the SI international system of units of measurement.
1.2 Description
The IPVA10EK valve is solenoid-operated and is designed for the automatic admittance of air or vent gas into a
vacuum system. The vacuum system is isolated from atmosphere (or the vent gas supply) by a fluoroelastomer pad
on the base of the valve-plunger which seals against the body of the valve.
The valve has two ports with NW flanges. One of these flanges is used to connect the valve to the vacuum system;
the other flange can be left open to atmosphere or connected to a vent gas supply.
Normally-open and normally-closed versions of the valve with a range of different electrical supplies are available to
suit the application.
WARNING
Warnings are given where failure to observe the instruction could result in injury or death to
people.
Warning - refer to accompanying documentation.
Warning - hot surface.

C417-60-880 Issue A
Page 2 © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Technical data
2Technicaldata
2.1 General
2.2 Performance
2.3 Electrical data
Dimensions See Figure 1
Mass 0.35 kg
Ambient operating temperature range -20 to 55°C
Vent gas temperature range -10 to 130°C
Maximum humidity 80% RH up to 31°C decreasing linearly to 50% RH at
40°C and above
Maximum altitude 2000 meters
Pollution degree 2
Overvoltage category II
Leak rate < 1 x 10-6 mbar.ls-1, < 1 x 10-4 Pa.ls-1
Venting rate 10 l in 12 seconds
Maximum cycle frequency 100 min-1
Mean time to failure (MTTF) 500,000 cycles
Response time 20 ms to open
30 ms to close
Maximum pressure d.c. electrical supply 1.8 bar (absolute), 1.8 x 105Pa
a.c. electrical supply 1.8 bar (absolute), 1.8 x 105Pa
Electrical supply 24 V d.c.
110 V a.c., 1-phase, 50/60Hz
230 V a.c., 1-phase, 50/60Hz
Electrical supply tolerance
Normally closed valves:
230 V a.c. ±10%
110 V a.c. ±10%
24 V d.c. ±10%
Normally open valves:
230 V a.c. ±10%
110 V a.c. ±10%
24 V d.c. +10%, -5%*
* Voltage tolerance reduced at elevated ambient temperatures; maximum recommended ambient temperature:
40°C

© Edwards Limited 2013. All rights reserved. Page 3
Edwards and the Edwards logo are trademarks of Edwards Limited.
Technical data
C417-60-880 Issue A
2.4 Materials
2.5 Item numbers
Power Consumption
Normally closed valves
230 V a.c. 5 W
110 V a.c. 5 W
24 V d.c. 5 W
Normally open valves
230 V a.c. 7 W
110 V a.c. 7 W
24 V d.c. 9 W
Duty cycle 100% continuous rating
Protection class IP65
Electrical supply cable outer diameter 6 to 7 mm
Coil insulation Class H
Materials exposed to vacuum*:
*Normally open variants have an additional carbon loaded PTFE slide ring within the vacuum envelope
Body Aluminium
Valve seals Fluoroelastomer
Actuator Stainless steel
Shading rings Silver
IPVA10EK normally open valves IPVA10EK normally closed valves
230 V a.c. C417-60-000 240 V a.c. C417-70-000
110 V a.c. C417-60-100 110 V a.c. C417-70-100
24 V d.c. C417-60-200 24 V d.c. C417-70-200

C417-60-880 Issue A
Page 4 © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Technical data
Figure 1 - Valve dimensions
IPVA10EK normally open valves IPVA10EK normally closed valves
Voltage Item number Dimensions Voltage Item number Dimensions
230 V a.c. C417-60-000 Figure 1A 230 V a.c. C417-70-000 Figure 1A
110 V a.c. C417-60-100 Figure 1A 110 V a.c. C417-70-100 Figure 1A
24 V d.c. C417-60-200 Figure 1A 24 V d.c. C417-70-200 Figure 1B

© Edwards Limited 2013. All rights reserved. Page 5
Edwards and the Edwards logo are trademarks of Edwards Limited.
Installation
C417-60-880 Issue A
3 Installation
3.1 Unpack and inspect
Remove all the packing materials and protective covers and check the IPVA10EK valve. If the valve is damaged, notify
the supplier and carrier in writing within three days; state the Item Number of the valve together with the order
number and the supplier's invoice number. Retain the packing materials for inspection. Do not use the valve if it is
damaged.
If the valve is not to be used immediately, replace the protective covers. Store the valve in suitable conditions, as
described in Section 6.
3.2 Install the valve
CAUTION
The body of the valve has an arrow which indicates the correct direction of gas flow. If the direction of gas flow
is incorrect, the valve may leak.
Connect the valve to the vacuum system (and, if required, to the vent gas supply) with standard NW coupling
components. If the valve is used to vent directly from the atmosphere, Edwards recommend that a filter is fitted to
the inlet of the valve to prevent contamination of the valve through the ingress of dust.
3.3 Electrical connections

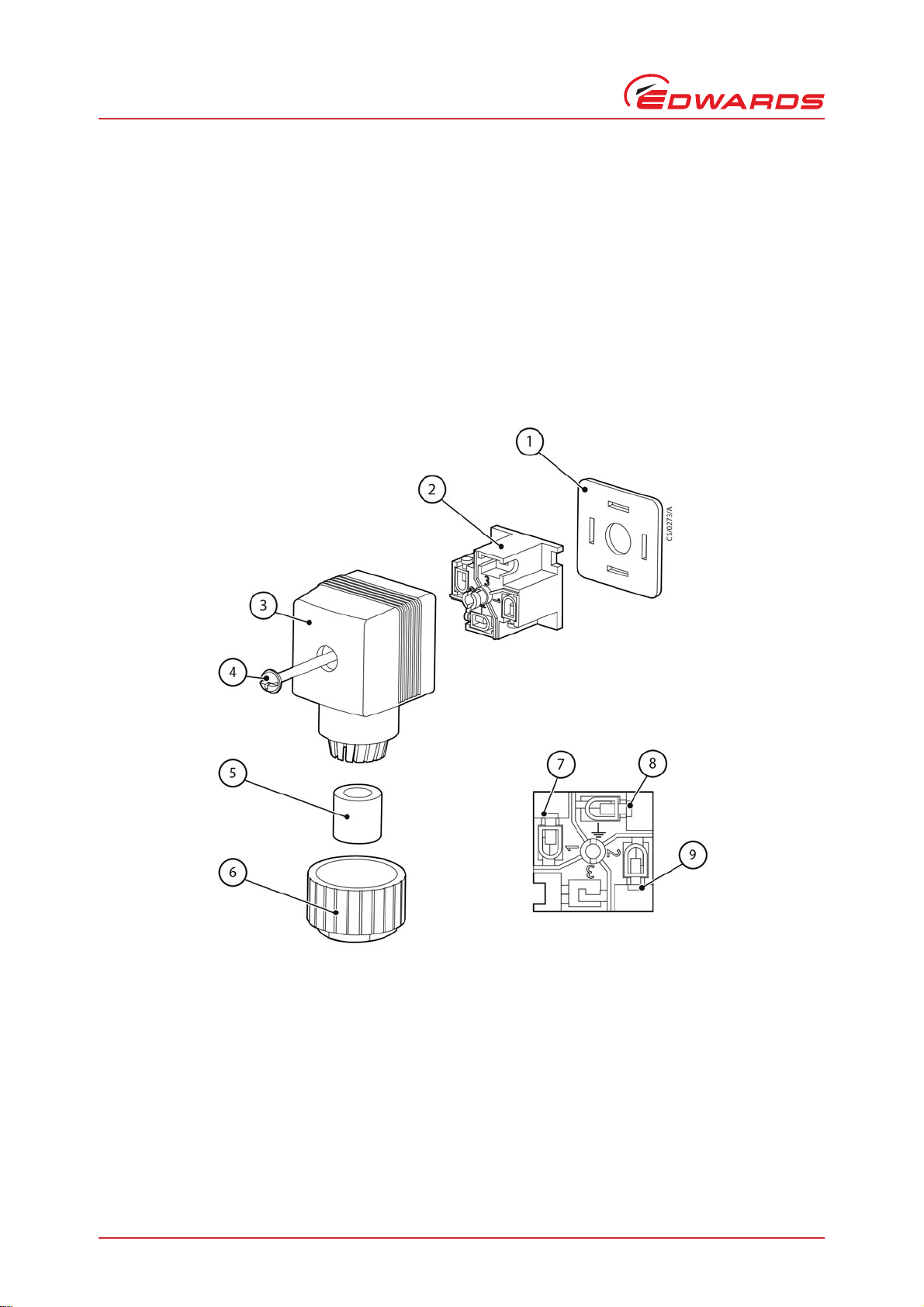

Refer to Figure 2 for item numbers in brackets and use the following procedure to connect the electrical supply to
the valve; ensure that a suitably sized electrical supply cable is used (refer to Section 2.3):
1. Ensure the electrical supply corresponds with the voltage stated on the valve label.
2. Gently prise out the connector block (2).
WARNING
Do not operate the IPVA10EK valve in safety critical applications. The IPVA10EK is not intended to
be fail-safe.
WARNING
If the nature of your application requires there to be an electrical connection between the valve
and adjacent pipe-work, the electrical connection should be adequately verified before the system
to which the valve is connected is operated.
WARNING
Take appropriate safety precautions when installing the valve in a system in which dangerous
process substances have been pumped.
WARNING
Ensure that the electrical installation of the IPVA10EK valve conforms with local and national
safety requirements. It must be connected to a suitable fused and protected electrical supply.

C417-60-880 Issue A
Page 6 © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Installation
3. Remove the strain-relief nut (6) and sealing gland (5). Pass the electrical supply cable through the strain-relief
nut (6), the sealing gland (5) and into the electrical supply socket (3).
4. Connect the electrical supply cable to the appropriate terminals of the connector block (7, 8, 9) as shown in
Figure 2.
5. Push the connector block (2) back into the electrical supply socket (3), a click should be heard; ensure that it is
orientated correctly so that the sockets mate with the corresponding pins on the valve.
6. Tighten the strain-relief nut (6) and push the electrical supply socket (3) onto the three connector pins on the
valve.
7. Refit the retaining screw (4) and tighten; ensure that there is a slight compression of the sealing gasket (1).
Figure 2 - Electrical supply socket
1. Sealing gasket 4. Retaining screw 7. Supply (-ve/N or +ve/L)
2. Connector block 5. Sealing gland 8. Earth
3. Electrical supply socket 6. Strain-relief nut 9. Supply (+ve/L or -ve/N)

© Edwards Limited 2013. All rights reserved. Page 7
Edwards and the Edwards logo are trademarks of Edwards Limited.
Operation
C417-60-880 Issue A
4 Operation
Once correctly installed, the operation of the IPVA10EK valve is dependent only upon the switching of the electrical
supply to the valve:
Normally-open valves close when the electrical supply to the valve is switched on; the valve opens
automatically when the electrical supply is switched off.
Normally-closed valves open when the electrical supply to the valve is switched on; the valve closes
automatically when the electrical supply is switched off.
WARNING
Do not touch the surface of the valve coil during operation. It may be hot.

C417-60-880 Issue A
Page 8 © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Maintenance
5Maintenance
IPVA10EK valves do not require routine maintenance during normal operational life and cannot be serviced by the
user. Carry out the following checks when maintaining the vacuum system:
Check that the connection to the vacuum system (and to the vent gas supply, if fitted) is secure.
Check that the electrical connections are secure and that the electrical cable is not damaged.
WARNING
Do not inhale or touch the breakdown products of fluorinated materials which may be present if
the vacuum system has been heated to 250°C or more. These breakdown products are very
dangerous.

© Edwards Limited 2013. All rights reserved. Page 9
Edwards and the Edwards logo are trademarks of Edwards Limited.
Storage and disposal
C417-60-880 Issue A
6 Storage and disposal
6.1 Storage
Place protective covers over the valve-ports and store the IPVA10EK valve in cool, dry conditions until required for
use. When required, prepare and install the valve as described in Section 3.
6.2 Disposal
Dispose of the valve and any components removed from it safely in accordance with all local and national safety and
environmental requirements.

C417-60-880 Issue A
Page 10 © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
This page has been intentionally left blank.
