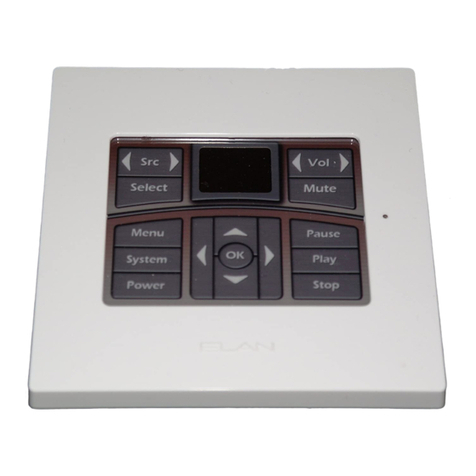

Elan OLE XL User manual

family of Film Interactive Touchpads
®

Imagine an Electronics Product that Adjusts to Your Style and Home.

it’s a FIT.
Enter a whole new era
in control.
Imagine a product that adjusts to your
style, your home and your wishes. Olé®
by ELAN does all that and much more.
Olé is an award-winning, breakthrough
new line of home control products that
have slide-in films and custom frames to
match your home, and easy button
layouts to suit exactly what you want
to control.
Olé marries all the magic and beauty
of touch screen technology with the
simplicity of a keypad, while adding
a display for instant, friendly feedback.
From selecting entertainment to
adjusting volume and lighting – it’s all
at your fingertips with Olé. And – it fits
in to your environment perfectly.
Introducing...
®

Fitting In Has A
Whole New Meaning
Olé is the world’s very first Film Interactive
Touchpad. We call it “FIT” because it’s been
designed carefully to fit in perfectly with your décor,
style, and control requirements. Whether you call
home a stately Victorian or you’re adding the
finishing touches to a newly minted contemporary,
Olé shares your sense of style and appreciation of
real value. Olé achieves a level of personalization
and ease-of-use never before realized in a home
control product.
Available in two models, Olé and OléXL, both
combine touch panel, keypad and new Organic
LED (OLED) capabilities to deliver you the most
home-friendly interface ever imagined. Backed by
patent-pending technology and ELAN, you’re
assured the very best and latest in control.
Olé provides hundreds of unique design possibilities
so you can personalize to your heart’s content.
Through the use of an irresistible collection of
photographic-quality slide-in, backlit films, 2 frame
styles in 7 color options and user-friendly layouts–
you can ensure Olé fits into your life.
•FITs in with your décor
•FITs the functions you want
•FITs a standard 2-gang, light switch-sized box
•FITs with all ELAN Systems for the best in
Multi-Room Audio/Video
With hundreds of unique design possibilities,
just imagine how Olé can FIT your style.
it’s a FIT

Create Your Vision
Olé and OléXL offer limitless possibilities for individual
expression, bringing you a beautiful selection of colors, themes
and textures to express your style and define your space.
Inspired by the world around you, Olé touch films bring
nature and technology together in
a seamless way. From soft breezes,
white sands and the blue of a summer
sea, to the sleek techno-styling of
an iPod®, there’s an Olé look to
complement any room or personality.
Onscreen, Full Color Graphical Feedback through OLED Display
Brilliant, Photographic-Quality Slide-in Films Match Décor
Uncomplicated Control of Audio and Video
Frames to Match Every Room
Elegant, In-Wall Size for Unobtrusive Look
the designer’s tour
the designer’s touchpad

scenes series
Enjoy the inspiration of a sunset, the majesty and
mystery of the mountains, or swaying palm trees.
Even match your beach home with the ocean’s
rolling waves.
sunset
beach palms mountains

southwest
stones series
Relax surrounded in shades borrowed from nature.
From the grace and swirls of inlaid marble to serene
earth tones of the Southwest – if you like stones,
Olé has it.
tan marble malachite black marble

traditional series
From quiet greens to cool blues to the dignity of
bronze and beyond. The traditional series brings
harmony to any setting.
bronze
turquoise neutral green

carbon
contempo series
Go contemporary with shimmering silvers, sleek
rocks and grained top-of-the-line wood looks. If you
like smooth, modern and classy, Contempo is the
way to go.
sleek wood black granite tan granite

VIA!
®
match series
Already an ELAN customer? Then you know VIA!®
Touch Panels provide the most powerful, graphical
control for larger spaces. This series offers a variety
of films that match beautifully with VIA!
metallix
tiffany futura trek

amber
gems series
If you like color, the gem series offers the coolness of
jewel tones. Be inspired by the commanding presence
of ruby red, or the rich beauty of sapphires. Add
the golden liquidity of amber or the fresh green of
peridot to your walls.
peridot
sapphireruby

computer match series
Sleek and eye-catching, this series offers techo and
modern designs that are ideal for offices or the
modern home. From iPod-esque designs to a PC
look, Olé has a streamlined look for you.
pc
iPod iPod ebonydj

games
themes series
The thrill of competition for the gameroom or the
fun of a summer’s day for a child’s room, this series
goes in new directions to blend in and provide
adventurous spirit to every room in the house.
sports groovy sunny day

ivory silver almond
keypad match
Should you like the look of a very clean, traditional
keypad, Olé can accommodate that too. With simple
colors such as white and ivory, coupled with clean
designs, this series gives you a keypad look plus
incredible technology and feedback.
white

White, Light Almond, Almond, Ivory, Brown, Black, and Satin Chrome.
Standard Frame in White Euro Frame in White
Complete your vision with a choice of two finely contoured wall frames, each in seven
different décor-matching colors.
there’s a fit just for you
Olé harmonizes with more than just your décor. Its interchangeable 13, 17 & 25
button layouts guarantee every member of the household just the right level of control.
OléXL, with its 2.1" OLED display, provides you with detailed “Now Playing”
information from many of your favorite music sources such iPod®and XM™radio,
and gives you enhanced control of your system.
the finishing touch

Olé & OléXL features & specifications
Olé/OléXL features
•The response & graphics of a touch screen - the simplicity & affordability of a keypad
•Colorful, slide-in, designer films for the ultimate in customization
•2 wall frame styles available in 7 colors
•Largest touch area of any 2-gang product
•Full color OLED display for system & metadata feedback
•Automatically dims and brightens to suit ambient room lighting
•Audible feedback to know “button” has been pressed
•Integrated IR receiver
•Compatible with all ELAN platforms
•Patent-Pending, one-of-a-kind design
Olé
•13-, 17- & 25-function layouts for customized control
•Over 1500 custom combinations
OléXL
•User-friendly 15-function layout
•Extra large 2.1" color OLED display that provides:
• Expanded “Now Playing” information from your
favorite music sources
• Enhanced navigation for DVD, DVR and more
• Over 500 custom combinations
Olé/OléXL specifications
Screen Size: 3-3/4 in. diagonal
Viewing Angle: 180° up/down, 180° left/right
Operating Temperature: 32°F-104°F / 0°C-40°C
OLED Display:
(Olé)
Type 16 bit, 1.2" Organic LED (OLED)
Colors 65k
Resolution 96 x 64 pixels (W x H)
(OléXL)
Type1 8 bit, 2.1" Organic LED (OLED)
Colors 262k
Resolution 160 x 128 pixels (W x H)
Wiring Requirements: Cat-5
Power Requirements: 12VDC/150mA or 16VDC/150mA
Dimensions:
w/ wall frame (in.) 4-5/8 W x 4-5/8 H x 1-3/16 D
(mm) 117 W x 117 H x 30 D
w/out wall frame (in.) 4-7/16 W x 4-7/16 H x 1-1/8 D
(mm) 112 W x 112 H x 26 D

Olé is part of the most broad, powerful lineup of home controls
available from ELAN.
We’ve got the touch.
In the wall, on a desk, under a kitchen cabinet, or totally wireless!
Enjoy full color graphics, whole-house control, live video monitoring
and more with ELAN’s award-winning line of VIA! Touch Panels.
Sound all around.
Enjoy high-performance sound throughout your home with our
complete line of award-winning Architectural In-wall, In-Ceiling,
Outdoor and Home Theater Speakers. As appealing to the eye as
they are to the ear, there’s an ELAN speaker suitable for every
application and every budget.
Enhance family communications.
Use your existing phones to page throughout the house, engage in
phone-to-phone conversation from any room, speak with visitors at
the door, control lighting or open and close your garage door. These
features and many more are yours with an ELAN Communication
Controller.
Digital music everywhere.
ELAN features the most comprehensive line of multi-room music
and video source components available today. Listen to your iPod®,
AM, FM or satellite radio. Enjoy your entire digitally-stored CD col-
lection. Easily access all your DVDs. All your favorite entertainment
is at your fingertips from any room in your home.
options & upgrades

ELAN Home Systems has been a leading manufacturer of
innovative, award-winning multiroom audio/video and home
automation systems since 1989. Based in Lexington, Kentucky,
the company was the first to integrate audio, video, phones
and third-party products to create a seamless, easy-to-use
“whole house” experience.
ELAN is also credited with being the company to create the whole-
house system, and has since been first to market in numerous categories
including multi-room audio, structured wiring and video tied to touch
panel controls – to name a few.
Today, the company’s unique products provide complete lifestyle,
feature-rich solutions, yet are flexible enough to be configured to fit the
needs and budget of every homeowner. We have introduced hundreds
of products in the last few years; each carefully designed to meet the
discerning needs of our customers and A/V Design and Installation
professionals.
Our people are incredibly passionate and completely dedicated to
serving your needs both through products and world-class customer
services.
ELAN products are distributed through a specialty channel of
Dealers and Distributors throughout the US, Canada and 58 countries
worldwide.
To learn more about ELAN, we welcome you to visit us today at
www.elanhomesystems.com or telephone us at 859.269.7760 to find the
nearest authorized ELAN Dealer in your area.
Juli from our inside
sales team
the company & the people
Life Just Got Better
®

13-Function layout, for simple control is shown here at actual size.
Olé. The Designer’s Touchpad.

ELAN controls ~ simple & elegant
Volume Controls
Clean & simple.
Keypads
Intelligent & low-profile.
Touchpads
Distinctive & decor friendly.
Touch Panels
Sophisticated & powerful.
Life Just Got Better
®
voice 859.269.7760 fax [phone] sales 877.BUY.ELAN (877.289.3526) tech support800.622.3526
internet www.elanhomesystems.com email [e-mail]
© ELAN Home Systems • 2006 • All rights reserved • ELAN Home System is a trademark of ELAN Home Systems.
All other trademarks mentioned are the property of their respective owners. P/N: OLEB REV D
