USER MANUAL

Elo Touch Solutions

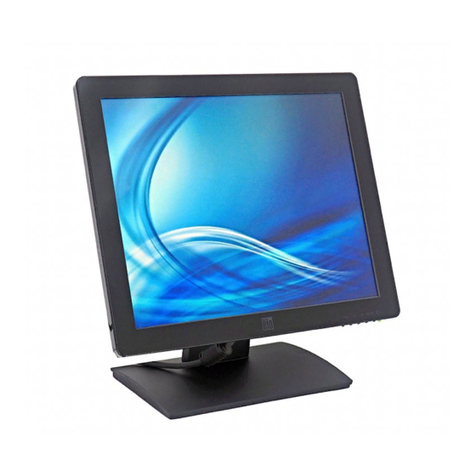

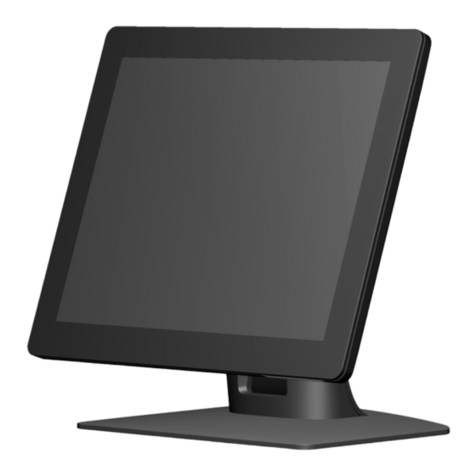

ET1517L and ET1717L Touchmonitors

SW601708 Rev G

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer language, in any form or by any means,

including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise

without prior written permission of Elo Touch Solutions, Inc.

Disclaimer

The information in this document is subject to change without notice. Elo Touch Solutions, Inc.

and its Affiliates (collectively "Elo") makes no representations or warranties with respect to the

contents herein, and specifically disclaims any implied warranties of merchantability or fitness

for a particular purpose. Elo reserves the right to revise this publication and to make changes

from time to time in the content hereof without obligation of Elo to notify any person of such

revisions or changes.

Trademark Acknowledgments

AccuTouch, CarrollTouch, Elo, Elo (logo), Elo Touch, Elo Touch Solutions, Elo TouchSystems,

IntelliTouch, iTouch, SecureTouch, TouchTools and VuPoint are trademarks of Elo and its

Affiliates. Windows is a trademark of Microsoft Corporation.

Table of Contents

Chapter 1: Introduction ............................................................................4

Chapter 2: Installation ..............................................................................5

Chapter 3: Mounting.................................................................................7

Chapter 4: Operation ..............................................................................13

Chapter 5: Technical Support ................................................................18

Chapter 6: Safety & Maintenance ..........................................................20

Chapter 7: Regulatory Information........................................................22

Chapter 8: Warranty Information ...........................................................28

Chapter 1: Introduction

Product Description

Your new touchmonitor combines the reliable performance of Elo Touch Solutions touch

products with the latest developments in touch technology and display design. This combination

of features creates a natural flow of information between the user and the touchmonitor.

This touchmonitor incorporates a 16.2M color, active matrix thin-film-transistor LCD panel to

provide high quality display performance. Its LED backlight significantly reduces power

consumption and eliminates mercury (compared to CCFL-backlit panels). Other features that

enhance this LCD monitor’s performance are Plug & Play compatibility, on-screen display

(OSD) controls, and an optional magnetic stripe reader (MSR).

Precautions

Follow all warnings, precautions and maintenance as recommended in this user manual to

maximize the life of your unit, to ensure user safety, and to prevent risks. See the Safety &

Maintenance chapter for more information.

This manual contains information that is important for the proper setup and maintenance of the

unit. Before setting up and powering on your new touchmonitor, read through this manual,

especially the Installation, Mounting, and Operation chapters.

Chapter 2: Installation

Unpacking the Touchmonitor

Open the carton and verify that the following items are present:

•Touchmonitor with protective sheet over touchscreen

•User Manuals CD

•Japanese language regulatory information pamphlet

•Quick Install Guide

•VGA cable

•USB cable

•North American power cable

•European power cable

•Filler plate (White or Black, depends on the monitor color)

Connector Panel & Interfaces

Touchmonitor Connections

1. Connect the VGA video cables between the monitor’s VGA input connectors and your VGA

video source, respectively. Tighten the video cable’s screws for best performance.

2. Connect the USB/serial touch cable between the monitor’s USB/serial connector and your

PC’s USB/serial port.

3. Select the correct power cable for your region. Connect the power cable between the AC

power source and the monitor’s AC input power jack.

4. Alternatively, if you have purchased an optional power adapter and elected to use it, connect

the cable between the AC power source and the optional power adapter’s input connector.

Connect the power adapter’s DC output connector to the monitor’s DC input power jack.

5. The touchmonitor ships in an OFF state. Press the power button to turn it on.

Installing the Touch Technology Software Drivers

Some software installation is required for your touchmonitor to work with your computer. No

additional drivers are required for your projected-capacitive touchmonitor, it uses Windows HID

drivers.

To download latest touch drivers

1.Visit www.elotouch.com/Support/Downloads/Driver/DriverDownload/Default.aspx

2.Select the operating system from “Operating System” dropdown menu.

3.Select the technology from “Technologies” dropdown menu.

4.Click on the driver version required for your touchmonitor.

5.Click “Accept” once you are directed to the “Driver License Agreement” page.

6.Enter you email address, Click on “Next Step”. Your driver download will start automatically.

7.If you are a new user, fill in the required information and Click on “Register”. Your driver

download will start automatically.

Chapter 3: Mounting

Rear VESA Mount

For the 15 inch touchmonitor, a four-hole 75x75mm mounting pattern for M4 screws is provided on

the rear of the monitor. Remove the stand using a Phillips screwdriver to access this mounting

interface. The VESA FDMI-compliant counting is coded: VESA MIS-B, 75, C.

For the 17 inch touchmonitor, a four-hole 75x75mm mounting pattern for M4 screws is provided

on the rear of the monitor. Remove the stand using a Phillips screwdriver to access this

mounting interface. The VESA FDMI-compliant counting is coded: VESAMIS-B, 75, C.

Base Mount

For the 15 inch touchmonitor, a threaded three-hole mounting pattern for M4 screws is provided

on the bottom of stand base for mounting or securing. An additional two-hole pattern is available

under small caps on the top of the base. See page 15 for instructions on how to access holes.

For the 17 inch touchmonitor, a threaded three-hole mounting pattern for M4 screws is provided

on the bottom of stand base for mounting or securing. An additional two-hole pattern is available

under small caps on the top of the base. See page 15 for instructions on how to access holes.

Both the 15” and 17” touchmonitors have covered mounting holes for securing the stand to a

flat surface using M4 flathead screws. To utilize these mounting holes, unsnap the access

covers from the outside, install the screws into the holes and then snap the cover back into

place.

Chapter 4: Operation

Power

To turn the touchmonitor on or off, press the touchmonitor power button once.

The Power Status LED on the bottom of the touchmonitor functions according to the following

table:

Touchmonitor status

LED status

OFF

SLEEP

PULSING

The system consumes low power when in SLEEP and OFF modes. For detailed power

consumption specifications, refer to the technical specifications available on the Elo website

www.elotouch.com.

Touching the screen will bring the attached host PC out of SLEEP mode (similar to moving the

mouse or pressing a keyboard key).

To improve reliability and reduce wasteful power consumption, disconnect the power adapter

when long periods of disuse are planned.

Touch

Your touchmonitor is factory-calibrated and should not need manual calibration (unless the

input video is not fully scaled to the native resolution, or the touch experience needs to be

calibrated to a specific user).

Video

A display’s native resolution is its width and height measured in number of pixels. Generally, for

best performance, an image displayed on this monitor will look best when your computer’s

output resolution matches this monitor’s native resolution, which is 1024 x 768 for the 15 inch,

or 1280 x 1024 for the 17 inch.

For computer output resolutions at non-native resolutions, the monitor will scale the video to its

panel’s native resolution. This involves stretching or compressing the input image as needed in

the X- and Y-dimensions to fit the display’s native resolution. An unavoidable byproduct of the

scaling algorithms is a loss of fidelity when the computer’s output video image is scaled by the

monitor to fit the display. This loss of fidelity is most apparent when viewing feature-rich images

at close distances (for example images containing small-font text).

Your touchmonitor will likely not require video adjustments. However, for analog VGA video,

variations in video graphic card outputs may require user adjustments through the OSD to

optimize the quality of the touchmonitor’s displayed image. These adjustments are

“remembered” by the touchmonitor. Also, to reduce the need for adjustments for different video

mode timings, the monitor correctly scales and displays some of the video industry’s most

common video timing modes. Refer to the technical specifications for this monitor at

http://www.elotouch.com for a list of these Preset Video Modes.

On-Screen Display (OSD)

Four OSD buttons are on the bottom of the monitor. These can be used to adjust various

display parameters.

The buttons and their functionality are:

Button

Function when OSD is not displayed:

Function when OSD is displayed:

Display OSD main menu

Return to previous OSD menu

Display OSD Brightness submenu

Decrease value of selected parameter /

select previous menu item

Display OSD Contrast submenu

Increase value of selected parameter /

select next menu item

Select

Auto Adjust

Select parameter for adjustment /

select submenu to enter

The OSD buttons control an on-screen graphical user interface, which displays on top of your

input video. This allows for intuitive adjustment of the following display parameters:

Parameter

Available Adjustment

Brightness

Increase/decrease monitor brightness

Default: Maximum

Contrast

Increase/decrease monitor contrast

Default: Best gray-shade performance

Clock

Allows fine adjustments of the panel’s pixel dot clock
