Quick Start Guide
00825-0100-2240, Rev AA
February2023
Rosemount™ 2240S Multi-input
Temperature Transmitter

Contents
About this guide...........................................................................................................................3
Overview....................................................................................................................................... 6
General information.................................................................................................................... 8
Sensor installation....................................................................................................................... 9
Rosemount 2240S Installation................................................................................................. 17
Configuration and operation....................................................................................................39
Quick Start Guide February2023
2 Emerson.com/Rosemount

1 About this guide
This Quick Start Guide provides basic guidelines for installation
and configuration of the Rosemount 2240S Multi-input Temperature
Transmitter.
NOTICE
Read this manual before working with the product. For personal and
system safety, and for optimum product performance, ensure you
thoroughly understand the contents before installing, using, or
maintaining this product.
For equipment service or support needs, contact your local Emerson
Automation Solutions/Rosemount Tank Gauging representative.
Spare Parts
Any substitution of non-recognized spare parts may jeopardize
safety. Repair, e.g. substitution of components etc, may also
jeopardize safety and is under no circumstances allowed.
Rosemount Tank Radar AB will not take any responsibility for faults,
accidents, etc caused by non-recognized spare parts or any repair
which is not made by Rosemount Tank Radar AB.
CAUTION
The products described in this document are NOT designed for
nuclear-qualified applications. Using non-nuclear qualified products
in applications that require nuclear-qualified hardware or products
may cause inaccurate readings. For information on Rosemount
nuclear-qualified products, contact your local Emerson Sales
Representative.
WARNING
WARNING - Substitution of components may impair Intrinsic Safety.
WARNING - To prevent ignition of flammable or combustible
atmospheres, disconnect power before servicing.
AVERTISSEMENT - La substitution de composants peut compromettre
la sécurité intrinsèque.
AVERTISSEMENT - Ne pas ouvrir en cas de presence d'atmosphere
explosive.
February2023 Quick Start Guide
Quick Start Guide 3

WARNING
Failure to follow safe installation and servicing guidelines could
result in death or serious injury.
Ensure only qualified personnel perform the installation.
Use the equipment only as specified in this manual. Failure to do so
may impair the protection provided by the equipment.
Do not perform any service other than those contained in this
manual unless you are qualified.
To prevent ignition of flammable or combustible atmospheres,
disconnect power before servicing.
Substitution of components may impair Intrinsic Safety.
WARNING
Explosions could result in death or serious injury
Verify that the operating atmosphere of the transmitter is consistent
with the appropriate hazardous locations certifications.
Before connecting a handheld communicator in an explosive
atmosphere, ensure the instruments are installed in accordance with
intrinsically safe or non-incendive field wiring practices.
Do not remove the gauge cover in explosive atmospheres when the
circuit is alive.
WARNING
High voltage that may be present on leads could cause electrical
shock.
Avoid contact with the leads and terminals.
Ensure the mains power to the device is off and the lines to any other
external power source are disconnected or not powered while wiring
the device.
WARNING
Electrical shock could cause death or serious injury.
Use extreme caution when making contact with the leads and
terminals.
Quick Start Guide February2023
4 Emerson.com/Rosemount

WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to
and/or misconfiguration of end users’ equipment. This could be
intentional or unintentional and needs to be protected against.
Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for
all systems used within the facility.
February2023 Quick Start Guide
Quick Start Guide 5

2 Overview
2.1 Components
Figure 2-1: Rosemount 2240S Components
A
B
E
D
F
C
A. Cover.
B. Entries (x 3) of type ½ - 14 NPT.
C. Lock nut for connection of Multi Spot Temperature sensor and
Water Level Sensors.
D. Cover screws (x 4).
E. External ground screw.
F. M32 Cable gland (option for remote mounting).
Quick Start Guide February2023
6 Emerson.com/Rosemount

2.2 Getting started
2.2.1 Start up a Rosemount Tank Gauging system
To start up a Rosemount Tank Gauging system do the following:
Procedure
1. Install the TankMaster software on the control room PC.
2. Prepare the start-up by recording the information that will be
needed for configuration of the various devices as described in
the Rosemount Tank Gauging System Configuration Manual.
3. Connect the Rosemount 2460 System Hub to the TankMaster
PC. The system hub may be connected via Modbus TCP, a
Rosemount 2180 Field Bus Modem, or directly via RS232 or
RS485 interface.
4. Connect the Rosemount 2410 Tank Hub to the Rosemount
2460 System Hub.
5. Connect the field devices, such as a Rosemount 5900S Radar
Level Gauge and a Rosemount 2240S Multi-input Temperature
Transmitter, to the Rosemount 2410 Tank Hub via the
Tankbus.
6. Configure the Rosemount 2460 System Hub (if included in
the system) by using the TankMaster WinSetup configuration
software.
7. Configure the Rosemount 2410 Tank Hub by using the
TankMaster WinSetup configuration software.
8. Configure field devices, such as the Rosemount 5900S and
the Rosemount 2240S, by using the TankMaster WinSetup
configuration software.
February2023 Quick Start Guide
Quick Start Guide 7

3 General information
3.1 Service support
For service support contact the nearest Emerson Automation
Solutions /Rosemount Tank Gauging representative. Contact
information can be found on the web site www.Emerson.com.
3.2 Product certifications
See the Rosemount 2240S Product Certifications document for
detailed information on the existing approvals and certifications.
3.3 Product recycling/disposal
Recycling of equipment and packaging should be taken into
consideration and disposed of in accordance with local and national
legislation/regulations.
Quick Start Guide February2023
8 Emerson.com/Rosemount

4 Sensor installation
4.1 Installation considerations
A Multiple Spot Temperature sensor (MST) and Water Level Sensor
(WLS), such as Rosemount 565, 566, or 765, must be installed on the
tank before installing the Rosemount 2240S Multi-input Temperature
Transmitter.
The sensor is normally anchored to the bottom of the tank by
attaching a weight at the end of the tube. A tank expands when it is
filled or warmed up, causing the roof to move slightly upwards. The
weight has a shackle which allows the tube to follow the expansion.
Multiple Spot Temperature sensor
•Be careful with the flexible protection tube
•Temperature and Water Level Sensors should be located as far
away as possible from heating coils and mixers.
•In case the flexible tube is damaged, please contact Emerson
Automation Solutions/Rosemount Tank Gauging.
•Do not attempt to fix or rebuild the temperature sensor since this
may cause serious malfunctions
Water Level Sensor
•Handle the Water Level Sensor carefully
•Leave the sensor protection on until the final positioning in the
tank
4.2 Multiple Spot Temperature sensor
A Multiple Spot Temperature sensor (MST) typically measures the
temperature with a number of Pt100 elements placed at different
heights to provide a temperature profile and average temperature of
the product. The spot elements are placed in a flexible gas tight tube
made of stainless steel which can be anchored to the tank bottom.
Up to 16 Pt100 temperature elements can be connected to a
Rosemount 2240S Multi-input Temperature Transmitter.
February2023 Quick Start Guide
Quick Start Guide 9

4.2.1 Installation on fixed roof tanks
On fixed roof tanks the MST is attached to a flange mounted on a
suitable nozzle.
Figure 4-1: Installation of Multiple Spot Temperature Elements
on Fixed Roof Tanks
A
B
D
E
F
H
C
G
A. Maximum product level
B. Recommended: 0.5 to 1 m (1.6 to 3.3 ft) below maximum filling
level
C. Upper spot element
D. First spot element
E. Minimum 1 m (3.3 ft)
F. Anchor weight
G. 2-15 kg (4.4-33 lbs)
H. 150-350 mm (5.9-13.8 in.)
Quick Start Guide February2023
10 Emerson.com/Rosemount

4.2.2 Installation on floating roof tanks
On floating roof tanks the temperature elements can be mounted
in a still-pipe as illustrated in Figure 4-2 or in other suitable roof
openings.
Figure 4-2: Installation of Multiple Spot Temperature Elements in
Still-pipe
A
B
E
C
D
GF
A. Maximum level
B. Minimum 1 m (3.3 ft)
C. Upper spot element
D. First spot element
E. Minimum 1 m (3.3 ft)
F. 2-15 kg (4.4-33 lbs)
G. 100 mm (3.9 in.)
4.2.3 Custody transfer applications
For Custody Transfer applications, API MPMS chapter 7 recommends
a minimum of one temperature element per 3 meters (10 feet) as
February2023 Quick Start Guide
Quick Start Guide 11

illustrated in Figure 4-3. Emerson Automation Solutions may in some
cases recommend even more temperature elements for Custody
Transfer tanks, depending on how the tanks are operated.

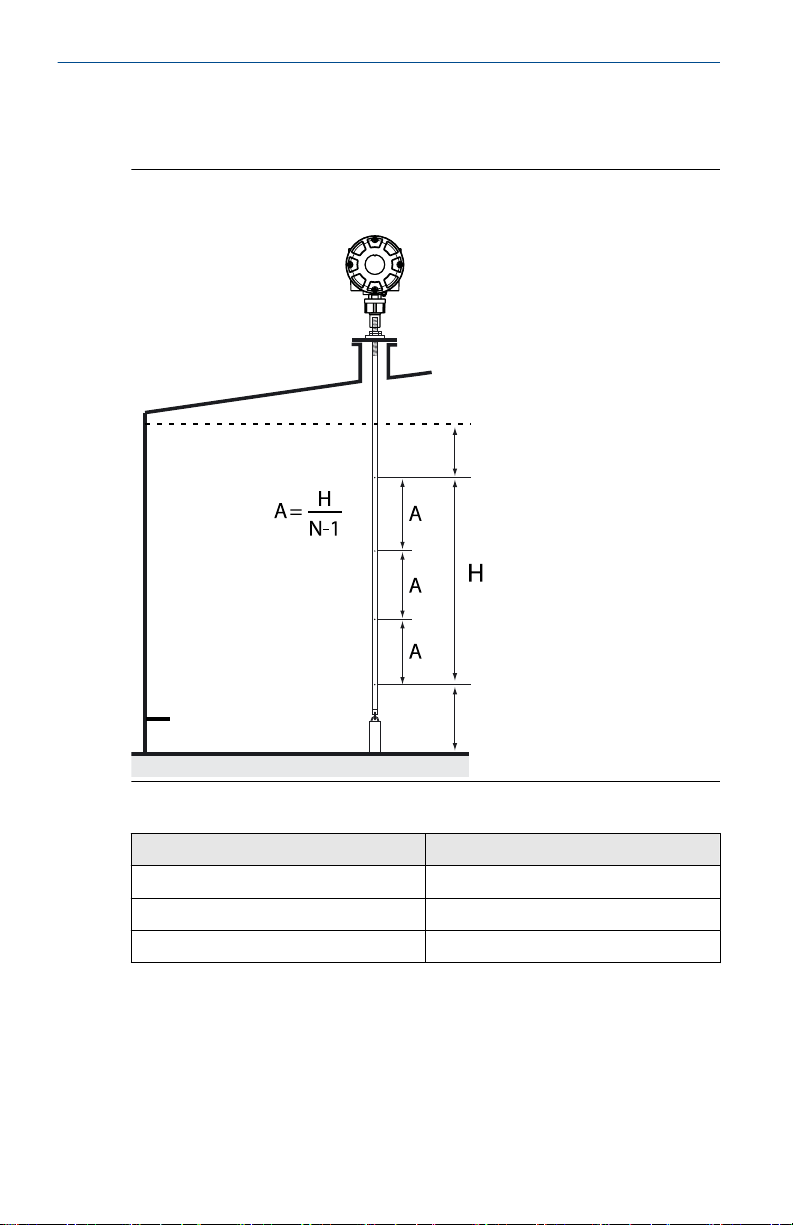

Figure 4-3: Recommended Position of Temperature Elements for
Custody Transfer Applications
Min. 1 m (3.3 ft)
Min. 1 m (3.3 ft)
Minimum level
Tank Zero Level
Table 4-1: Number of Spot Sensors for Various Tube Lengths
Tube length Number of temp. elements
< 9 m 4
9 - 15 m 5
> 15 m 6
Example
5 spot sensors and H=10 m.
A=10/(5-1)=2.5 m.
The position of a temperature element is measured from the Tank
Zero Level. See the Rosemount Tank Gauging System Configuration
Quick Start Guide February2023
12 Emerson.com/Rosemount

Manual for more information about how to use the TankMaster
WinSetup software to configure temperature elements for average
temperature calculations.
4.3 Water Level Sensor
The water level sensor (WLS) probe, with integrated temperature
elements, is attached at the lower end of the flexible protection tube.
A weight is attached to stabilize the tube as illustrated in Figure 4-4.
At the upper part of the sensor probe, nuts are placed at the middle
of the threaded section, 350 mm below the top of the probe. This is
intended as a starting point for adjusting the vertical position of the
probe.
As an option, the tube may be stabilized by putting a concentric
weight above the WLS probe, instead of at the end, in order to ensure
that measurements are performed as close to the tank bottom as
possible. Also, the eyebolt at the end of the tube can be removed.
February2023 Quick Start Guide
Quick Start Guide 13

Figure 4-4: Water Level Sensor with Integrated Temperature
Sensors
A
B
C
D
G
E
F
A. Nuts to adjust vertical position of the sensor probe
B. 350 mm (13.8 in.)
C. Upper Sensor Limit (100%)
D. Lower Sensor Limit (0%)
E. WLS Probe Active Length
Standard: 500 mm (19.7 in.)
Option: 1000 mm (39.4 in.)
F. Weight
G. Recommended minimum distance: 1 m (3.3 ft)
Quick Start Guide February2023
14 Emerson.com/Rosemount

4.4 Installing a temperature sensor tube
Follow these steps to install the temperature sensor tube:
Procedure
1. Mount the anchor weight on the tube.
2. Mount the tube so that the threads at the top of the tube fits
the nozzle flange as illustrated in Figure 4-5.
Figure 4-5: Adjusting the Temperature Sensor Tube
B
E
F
A
C
D
B
A. Threads
B. Lock nut
C. Tube
D. Anchor weight
E. 150-350 mm (5.9-13.8 in.)
F. 2-15 kg (4.4-33 lbs)
February2023 Quick Start Guide
Quick Start Guide 15

3. When the tube is placed on the nozzle, adjust the vertical
position with the lock nuts. If a weight is placed at the end
of the tube, it should barely touch the tank bottom.
Note
Ensure that the flexible protection tube is in a vertical position
to obtain correct measurement data.
4. Install the Rosemount 2240S Multi-Input Temperature
Transmitter.
Quick Start Guide February2023
16 Emerson.com/Rosemount

5 Rosemount 2240S Installation
5.1 Installation considerations
The information in this section covers installation considerations
for the Rosemount 2240S Multi-input Temperature Transmitter in
order to achieve a proper installation and optimum measurement
performance.
In order to reduce the required cabling, Rosemount Tank Gauging
devices, including the Rosemount 2240S, are designed for daisy-
chain connection of the Tankbus and shield grounding to other field
devices.
The Rosemount 2240S is designed for installation:
•on top of the MST/WLS
•on top of Rosemount 614 cone
•remote on a pipe or wall
With remote mounting of the Rosemount 2240S, the nut and sleeve
at the bottom of the 2240S can be replaced by a M32 cable gland, see
Components. See also Ordering Information in the Rosemount 2240S
Product Data Sheet.
When the Rosemount 2240S transmitter is installed in a hazardous
area, ensure that the installation requirements according to
Hazardous areas are complied with.
Ensure that the recommended cable glands/conduits are used.
Ensure that the Tankbus is correctly terminated, see Termination.
Ensure that grounding is performed according to national and local
electrical codes, see Grounding.
Do not install the Rosemount 2240S in non-intended applications,
for example environments where it may be exposed to extremely
intense magnetic fields or extreme weather conditions.
Ensure that the Rosemount 2240S is installed such that it is not
exposed to higher pressure and temperature than specified in
Product Data Sheet.
It is the responsibility of the user to ensure that the device meets the
specific inside tank installation requirements such as:
•chemical compatibility of wetted materials
•design/operation pressure and temperature
February2023 Quick Start Guide
Quick Start Guide 17

5.2 Mechanical installation
5.2.1 Mounting on top of a temperature sensor/WLS
Prerequisites
Ensure that the temperature and water level sensors are properly
installed as described in Sensor installation.
Procedure
1. Unscrew the four screws and remove the cover.
B
C
A
A. Cover
B. Cover screws (x4)
C. Plug
2. Remove the plug that protects the cable entry at the bottom of
the Rosemount 2240S transmitter housing.
Quick Start Guide February2023
18 Emerson.com/Rosemount

3. Attach the Rosemount 2240S transmitter on top of the
temperature sensor tube.
A
B
C
A. Terminal compartment
B. Sensor wires
C. Sensor tube
4. Run the sensor wires into the terminal compartment.
5. Tighten the nut on the transmitter by hand.
A
B
A. Sensor wires
B. Nut
February2023 Quick Start Guide
Quick Start Guide 19

Postrequisites
Proceed with electrical installation of Tankbus, temperature
elements, and water level sensor.
5.2.2 Mounting on a pipe
To mount Rosemount 2240S on a pipe, do the following:
Procedure
1. Use the four nuts to fasten the bracket on a vertical pipe. A
suitable pipe size is 1 to 2 inches.
2. Attach the Rosemount 2240S transmitter to the bracket.
3. Secure the transmitter with the screw on top of the bracket.
4. Proceed with electrical installation of Tankbus, temperature
elements, and water level sensor.
5.2.3 Wall mounting
To mount the Rosemount 2240S on a wall, do the following:
Procedure
1. Drill four 9 mm (0.35 in.) holes in the wall to fit the hole pattern
of the bracket.
Quick Start Guide February2023
20 Emerson.com/Rosemount
