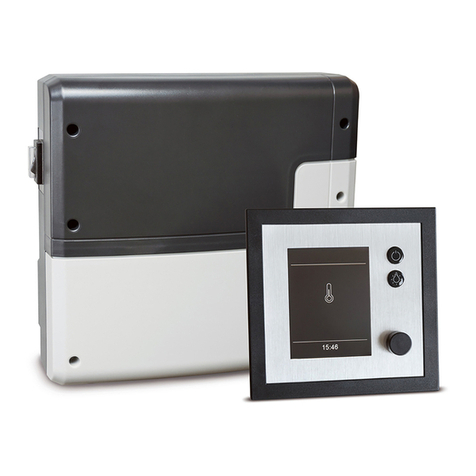

Eos Econ d1 User guide

IP x4

Made in Germany

ECON D1

Druck Nr. 29344711en/ - 23.15

GB Installation and operating instruction

sauna control unit

2GB

English

Table of Contents

Standard delivery...............................................................................................................................4

Technical data......................................................................................................................................4

General information concerning sauna bathing....................................................................5

General safety precautions.............................................................................................................6

Installation of the control unit.......................................................................................................8

Wall mount xture.............................................................................................................................8

Surface-mounted installation........................................................................................................8

Recessed installation ........................................................................................................................9

Connecting the sensor cables .......................................................................................................10

Installation of the heater sensor...................................................................................................10

Electrical connection ........................................................................................................................12

Connecting the sauna heater........................................................................................................12

Connecting the sauna lamp...........................................................................................................12

Installation diagram ..........................................................................................................................13

Terminal arrangement on the circuit board.............................................................................13

Connecting the sauna heater........................................................................................................14

Operation..............................................................................................................................................15

General...................................................................................................................................................15

The user interface ..............................................................................................................................15

Operating buttons.............................................................................................................................15

Default display Stand-by.................................................................................................................16

Default display in operation...........................................................................................................16

Energy-saving display.......................................................................................................................16

Cabin lighting......................................................................................................................................17

Initial commissioning .......................................................................................................................18

Change language...............................................................................................................................19

Change time.........................................................................................................................................19

Activating the Life-Guard................................................................................................................20

Activate / deactivate the child lock .............................................................................................21

Switching on the sauna unit ..........................................................................................................21

Switching o the sauna unit in the Finnish mode .................................................................21

Switching on the sauna unit with Life - Guard........................................................................22

Individual settings .............................................................................................................................23

Cabin temperature ............................................................................................................................23

Auto-Stop .............................................................................................................................................24

Life - Guard...........................................................................................................................................25

Unit fuses...............................................................................................................................................27

Error messages....................................................................................................................................28

The device switch (Switch-o)......................................................................................................29

Service Address:..................................................................................................................................30

Guarantee .............................................................................................................................................30

General Terms and Conditions of Service .................................................................................31

4GB

Standard delivery

(subject to changes)

Sauna control unit includes the following parts:

1. Temperature sensor, consisting of: sensor circuit board with over-temperature fuse, KTY-sen-

sor, sensor housing, two mounting screws 3 x 25 mm and sensor cable approx. 2 m long (red

and white).

2. Plastic bag containing three mounting screws 4 x 20 mm.

3. Spare over-temperature protection fuse

Technical data

Nominal voltage: 400 V 3 N 50 Hz AC

Switching capacity: max. 9 kW ohmic load (AC1-operation)

Heating time limitation: 6 h

Display: LCD display 40 x 22 mm, alphanumeric, with backlighting

Dimensions (HxWxD): 220 x 250 x 67 mm

Type of protection: IPx4 acc. EN 60529 splashproof protection

Temperature control range: 30 to 115 °C

Sensor system: KTY-sensor with safety-temperature limiter 142 °C

Control characteristics: Digital two-step control

Light output: max. 100 W

Ambient temperatures: -10 °C to +40 °C

Storage temperatures: -20 °C to +70 °C

Dear customer

You have purchased a high-quality technical

device with which you will have years of sauna

fun. This sauna control unit was designed and

inspected according to the current European

safety standards and manufactured at the facto-

ry in accordance with the quality management

standard DIN EN ISO 9001:2000.

This detailed installation and operation manual

has been prepared for your information. Please

observe in particular the important notes and

the information on electrical connection.

Wewishyouexhilaratingrecreationalexperience

and lots of fun with your sauna!

Intended use

This sauna control unit is exclusively intended

for the control of the sauna heater in a sauna

cabin.

Any other use over and above the intended

purpose is not considered as appropriate use!

Compliance of the standard operation, mainte-

nance and repair conditions is also an element

of appropriate use.

The manufacturer cannot be held liable for

deviating, unauthorized alterations and any re-

sulting damages: the initiator of these changes

bears the full risk.

General information

Please check whether the unit has arrived in per-

fect condition. Any transport damages should be

immediately reported to the freight forwarder

delivering the goods or you should contact the

company that shipped the goods.

Please note that you will only be able to achieve

an optimum sauna climate if the cabin with its air

intake and ventilation, the sauna heater and the

control unit are aligned to each other.

Please observe the information and stipulations

made by your sauna supplier.

Sauna heaters heat up your sauna cabin using

heated convective air. Here, fresh air is drawn

in from the air intake which, when heated, rises

upwards (convection) and is then circulated

within the cabin. Part of the used air is pushed

out through the vent in the cabin.This creates a

typical sauna climate which can achieve temper-

atures of approx. 110°C measured directly under

the ceiling of your sauna, dropping in temper-

ature to approx. 30-40°C towards the oor. It is

therefore not unusual to measure temperatures

of 110°C on the temperature sensor hanging

over the heater, whilst the thermometer hanging

on the sauna wall, approx. 20-25 cm under the

cabin ceiling, only indicates 85°C. The bathing

temperature generally lies between 80°C and

90°C in the area of the upper bench when the

temperature is set to maximum.

Please note that the highest temperatures are

always generated over the sauna heater and that

the temperature sensor and the safety limiter

must be mounted there in accordance with the

control unit installation instructions.

When heating up for the first time, you may

notice a slight smell caused by evaporating

lubricants used in production processes. Please

ventilate your cabin before beginning your

sauna bath.

General safety precautions

• This device can be used by children aged

8 upwards and by persons with physical,

sensory, or mental disabilities, or who

have inadequate experience and knowl-

edge if they are supervised or if they have

received adequate instruction in how to

use the device safely and understand the

associated risks. Children may not play

with this device. Children may not clean

or carry out any user maintenance if un-

supervised.

• Children are to be supervised in order to

make sure that they do not play with this

device.

•

Attention: It is forbidden to install

the control box in a closed switch cabinet

or behind a wooden panelling!

• The electrical installation may be done

only by a qualied electrical technician.

• You must comply with the regulations of

your power supply company and applica-

ble VDE regulations (DIN VDE 0100).

•

WARNING: Never attempt repairs or

installations yourself, as this could result

in serious injury or death. Only a qualied

technician may remove the housing cover.

• Please note the dimensions in the assem-

bly instructions, especially when installing

the temperature sensor. The temperature

above the oven is critical for the temper-

ature setting. The temperature can be

held within operating parameters and

a minimal temperature gradient inside

the bench area of the sauna cabin can be

achieved only if unit is assembled correct-

ly.

• The device may only be used as intended

as a control unit for sauna ovens up to 9

kW (up to 36 kW when combined with a

contactor box).

• Completely disconnect the control unit

from the electrical circuit, i.e. ip all circuit

breakers or the main circuit breaker during

each installation or repair.

• Please note the safety and installation

information from the sauna oven manu-

facturer.

• Always heed the specications and in-

structions of the cabin manufacturer, too.

• If control units with remote con-

trol options* are used, protection

against activation when the heater is

covered is required. (e.g. cover protec-

tion Type 1-5 or S-Guard).

*Telecontrol = setting up, controlling or adjusting a

unit by a command that can be given out of view

of the unit by means of transfer media such as tele-

communication, audio technology or bus systems.

(this also includes weekly timers)

6GB

Attention!

Dear customer,

according to the valid regulations, the

electrical connection of the sauna heater

and the control box has to be carried out

through the specialist of an authorized

electric shop

We would like to draw your attention that

in case of a warranty claim, you are kindly

requested to present a copy of the invoice

of the executive electric shop.

When designing the cabin ensure that

the external exposed glass surfaces only re-

ach a maximum temperature of 76°C. If ne-

cessary, protective features need to be tted.

ca. 35 cm

Installation of the control unit

Wall installation

The control unit may only be mounted outside

the sauna cabin. It is advisable to select the out-

side wall of the cabin to which the sauna heater

is xed from the inside as mounting position. If

ductwork is already provided for electrical in-

stallations then the position of the control unit

is predetermined by that. Please follow the in-

structions for installation:

Fig. 1

1. The 3 mm diameter boreholes for the sup-

plied wood screws 4 x 20 mm are drilled

according to the dimensions shown in Fig. 3

+ 3.1.

2. Insert one of the wood screws into the top

center hole. The control unit is hooked onto

this screw. Therefore, leave the screw out by

approx. 3 mm (Fig. 3.2).

3. Hook the control unit onto the 3 mm protru-

ding screw in the upper mounting hole.

Insert the supplied rubber grommets into

the openings at the rear wall of the housing

and insert the connecting cable through the-

se openings.

Fasten the housing bottom at the two bot-

tom openings (Fig. 4) rmly to the cabin wall.

Fig. 3

Eye level

Fig. 3.2

3 mm

Upper mounting hole

Mounting holes

Fig. 3.1

approx. 35 cm

17 cm

17.7 cm

Eye level

Remove the control device cover. In order to do

this loosen the screw at the top of the housing

and pull the housing top upward while swivel-

ling (Fig. 1).

Surface-mounted installation

Fig. 4

Feed-through for:

Mains cable

Heater cable

Evaporator cable

Lamp

Fan

Feed-

through for

sensor lines

8GB

Fig. 6

Feed-through for:

Mains cable

Heater cable

Evaporator cable

Lamp

Fan

Feed-

through for

sensor lines

Recessed installation

1. Cut out a wall section that is at least 3.5 cm

deep according to the dimension in Fig. 5.

Insert the supplied rubber grommets into the

openings at the rear wall of the housing and

insert the connecting cables through these

openings.

Place the control unit into the wall opening and

fasten it with 4 wood screws.

21 cm

20 cm

Eye level

Holes to fasten the con-

trol unit inside the wall

opening.

Fig. 5

10 GB

Connecting the sensor cables

You should not install sensor and power supply

lines together, or lead them through the same

feedthrough. This can lead to interferences in

the electronics, such as "uttering" in the re-

lays. If it is necessary to lay the cables down

together, or if the line is longer than 3m, use a

shielded sensor cable (4 x 0.5 mm²).

Connect the shielding to ground in the control

unit.

Please observe that the following dimensions

relate to the values stipulated during the unit

inspection acc. EN 60335-2-53. The heater sen-

sor must always be installed at the point where

the highest temperatures are to be expected.

Illust. 7-9 give you an overview of the mounting

point of the sensor.

1. Mount the oven sensor in cabins up to 2 x 2m

according to Illust. 7 and 8, in larger cabins

according to Illust. 7 and 9.

20 cm

Fig. 7

Housing

Red

Sensor circuit board

Sensor

white (Limiter)

Illust. 10

Fig. 8 Fig. 9

2. Drill a hole to lead the cable through, pre-

ferably through the middle of one of the

wooden boards.

3. Lead the sensor cable through the drilled

hole and attach it to the sensor line accor-

ding to Illust. 10.

4. The cables for the limiter (white) and the

temperature sensor (red) are connected to

the sensor circuit board acc. Fig. 10. Engage

the sensor board into the casing.

5. Lead the sensor cables through the

right cable intake into the control unit.

Install the sensor cables inside the

control unit as shown in Fig. 11.

Connect the sensor cables as shown in Fig.

12. In order to do this, pull the plug X2 from

the circuit board and plug it back in after the

connection.

Installation of the heater sen-

sor

Hole

Sauna ceiling

Centre sensor housing

on middle section

Sensor cables

Fig. 11

Fig. 12

6. After completed installation and correct

commissioning of the control unit, the line

for overtemperature protection must be

checked for short-circuits. In order to do this,

disconnect one of the wires of the white ca-

ble in the sensor casing. The respective error

message appears in the display. Reconnect

the wire to make the message disappear.

12:00

Thermal

fuse

L1 L2 L3 N W V U N

N L

142°C

KTY 10/5

Sensor

Limiter

weiß / white

rot / red

12 GB

Electrical connection

The electrical connection may only be done

by a certied electrician in compliance with

the guidelines of the local utility company

and the VDE.

In general, there should be only one perma-

nent connection to the mains. Furthermore

equipment should be provided that makes it

possible to disconnect the system on all phases

from the mains with a contact opening width

of minimum 3 mm.

All electrical installations and all connection

lines that are installed inside the cabin must be

suitable for an ambient temperature of at least

170 °C.

The power supply line is run to the control unit

and connected to the power input terminals.

Install the sauna heater in front of the air intake

according to the manufacturer’s installation in-

structions.

Run the silicone line through the ductwork to

the power unit and connect it to the appropri-

ate terminals as directed in the wiring diagram.

Note: In case there is no ductwork available drill

a hole next to the air intake opening and run

the heater line through this hole to the outside

and to the appropriate terminals in the control

unit. The silicone line must be buried to protect

it from outside inuences. Therefore, use a sui-

table cable-duct or a PVC-pipe through which

you can run the line up to the power unit.

Connecting the sauna heater

The sauna lamp must be splashproof protected

(IPx4) and resistant to the ambient tempera-

ture.The sauna lamp may be installed at any lo-

cation but never in the vicinity of the rising hot

air of the heater. Use only heat resistant bulbs.

Connecting the sauna lamp

Installation diagram

400 V 3 N AC 50 Hz

ECON

L1 L2 L3 N W V U N

N L

Terminal arrangement on the circuit board.

Plug for

sensor connection

14 GB

Connecting the sauna heater

400 V 3 N AC 50 Hz

max. 100 W

ECON

P max. 9 kW

UVWNL1 L2 L3 N

142°C

KTY 10/5

Sensor

Limiter weiß / white

rot / red

N L

Warning: Always connect

the neutral conductor (N) of the sau-

na oven.

Operation

General

Once the system has been installed with all components and all covers have been xed, you can

put your sauna unit into operation.

Over the following pages we will show you the options provided to you with the control.

The user interface

Operating buttons

= Cabin lighting on / o

= Heating on / o (stand-by mode)

= Programming mode

= Increase the value / next function

= Decrease the value / next function

MODE

16 GB

Default display Stand-by

Default display in operation

12:00

30° C

Temperature

12:00

30° C

Temperature

is shown if the system is in Stand-by mode.

Reset to this display takes place from other

menu items if no activity is carried out > 15 s.

is shown if the system is in operation. The dis-

play switches between the set temperature

and the remaining heating time (Auto-Stop).

Reset to this display takes place from other

menu items if no activity is carried out > 15 s.

During the heating phase the thermometer lls

up on the right side of the display.

Energy-saving display

12:34

12:00

5 : 59

Auto-stop

Current time

The clock symbol

The light - symbol

(when the light is switched on)

12 : 00

In addition, the following symbols are displayed

depending on the operating mode selected

Child lock active

If the unit is not used, it will switch into energy-

saving mode.

A moving time is shown after 5 minutes, simi-

lar to a PC screensaver. The back light for the

display is switched o after an additional 15

minutes.

By pressing any key you can return to the

Stand-by default display.

The following applies for all settings:

The following is shown in the top area of the

display:

Modiable value

In order to adjust the individual values to the

particular desires, briey push the

or -

buttons to select the desired parameter.

12:00

30° C

Temperature

By briey pushing the

MODE

-button again you

will arrive at the programming level.

The name of the parameter is highlighted in

black and the modiable value is now blinking.

The blinking value can then be changed with

the or - buttons.

All settings out of Stand-by are conrmed by

pressing

MODE

> 3 s and are saved in the unit.

The blinking of the parameter ends and the

new value is now authoritative until another

change is made.

12:00

30° C

Temperature

Modiable parameter

12:00

30° C

Temperature

If no key is pressed for > 15 s., the unit switches

back into the default display. Changes made up

to then are not saved

Cabin lighting

The cabin lighting is automatically switched on

as soon as the sauna unit is switched on. In the

top left of the display the - symbol is shown.

When the sauna unit is switched o the cabin

lighting will switch o with a delay of 30 mi-

nutes.

Irrespective of the status of the sauna unit, the

cabin lighting can be switched on or o

anytime with the button.

12:00

30° C

Temperature

Parameters that blink on the display can be

changed and are shown in these instructions

as displayed.

Temperature

Parameters that are highlighted in black on the

display can be adjusted.

30 °C

18 GB
