ETAS ES523.1 User manual

ETAS ES523.1
CAN FD Interface Module (4xCAN FD,
3xEthernet)
User Guide

Copyright
The data in this document may not be altered or amended without special noti-
fication from ETAS GmbH. ETAS GmbH undertakes no further obligation in
relation to this document. The software described in it can only be used if the
customer is in possession of a general license agreement or single license.
Using and copying is only allowed in concurrence with the specifications stipu-
lated in the contract.
Under no circumstances may any part of this document be copied, reproduced,
transmitted, stored in a retrieval system or translated into another language
without the express written permission of ETAS GmbH.
© Copyright 2021 ETAS GmbH, Stuttgart
The names and designations used in this document are trademarks or brands
belonging to the respective owners.
ES523.1 -User Guide R08 EN -02.2021

ETAS Contents
Contents
ES523.1 -User Guide 3
1 About this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1 Classification of Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Presentation of Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 Typographical Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.4 Presentation of Supporting Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1 Scope of Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Basic Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.1 General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 Requirements for Users and Duties for Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 Intended Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

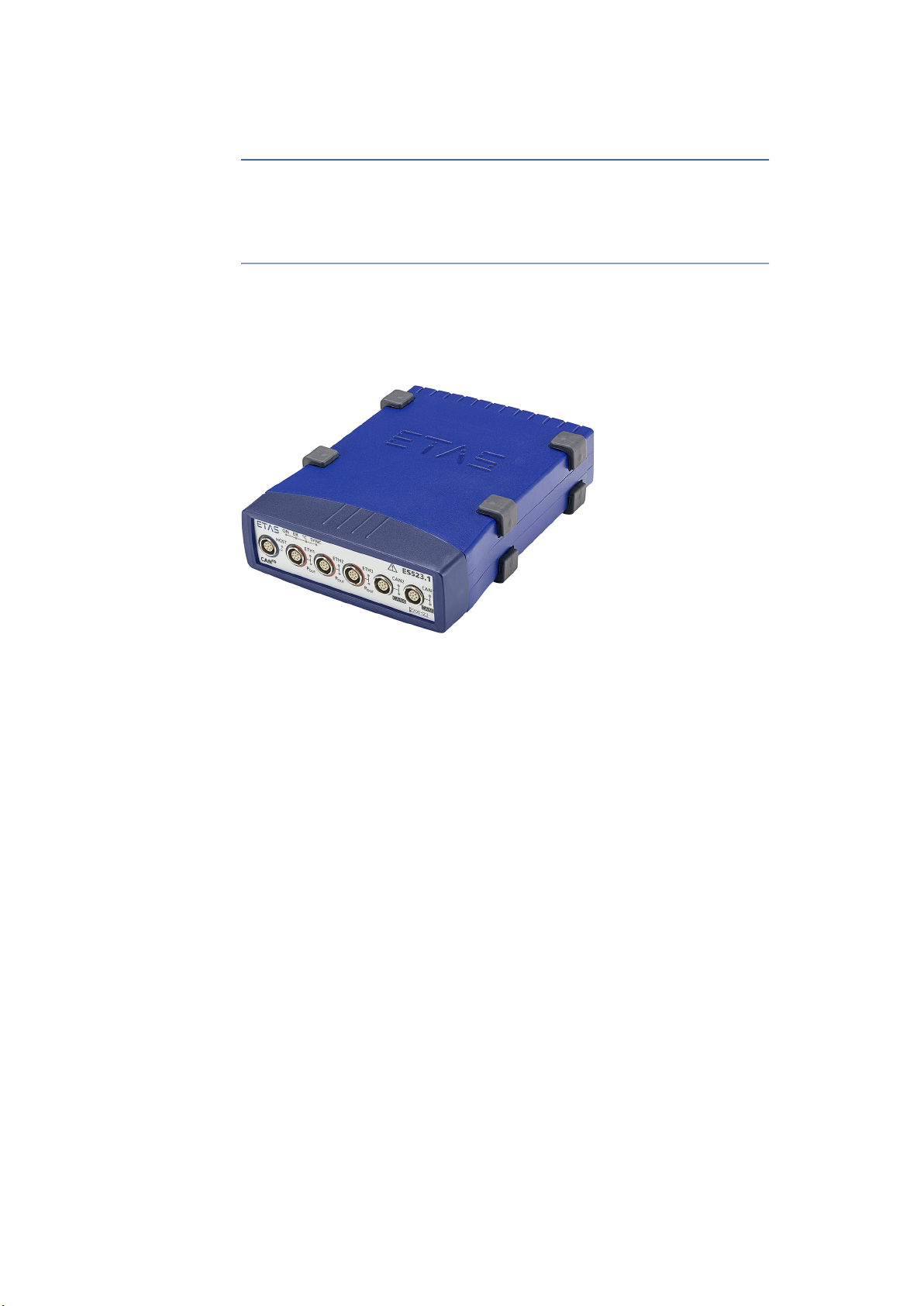

4.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3 Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.4 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

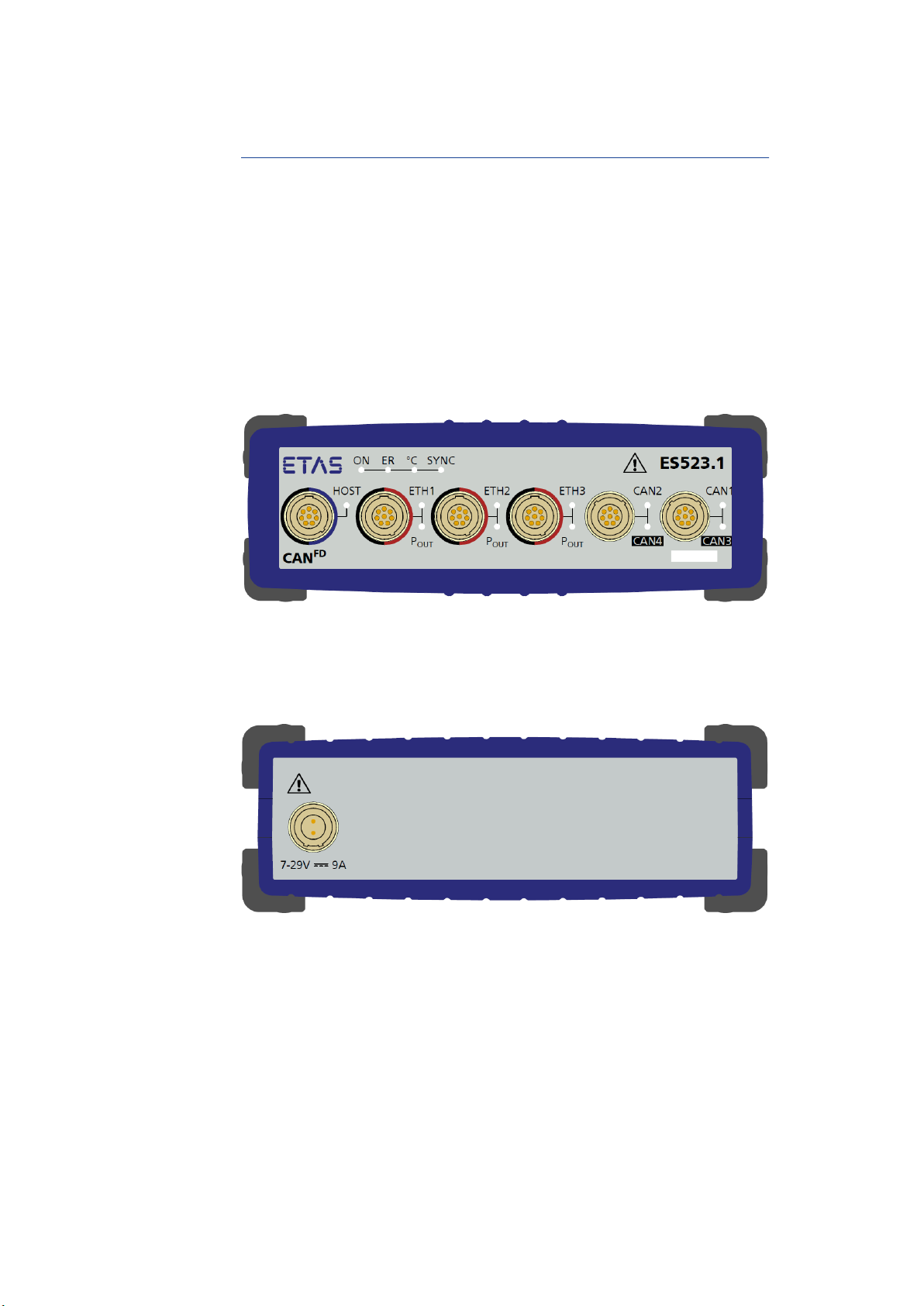

4.4.1 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.4.2 Back Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.5 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.5.1 Flash Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.5.2 Operational State of the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.5.3 Functional State of Individual Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5 Functional Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

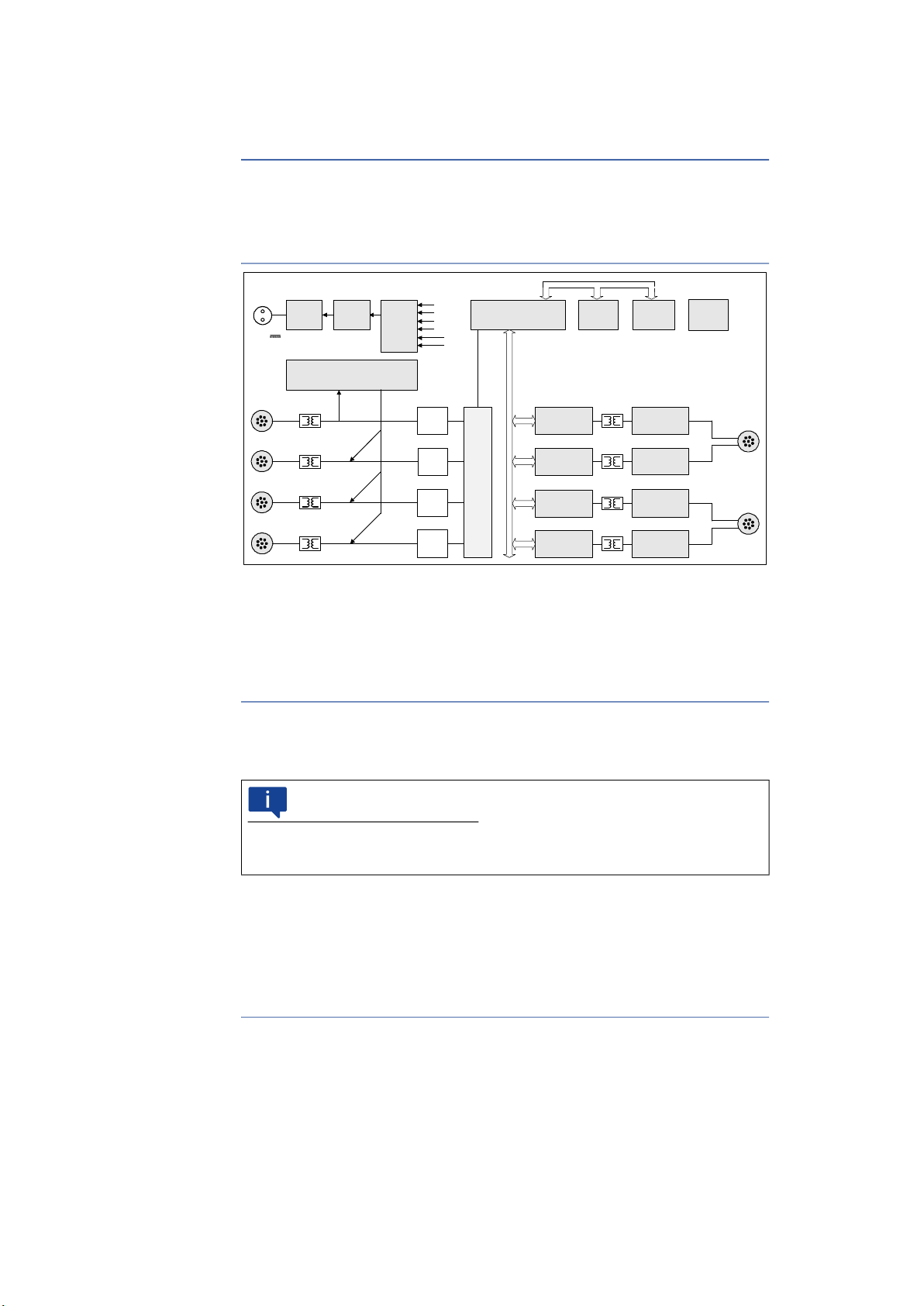

5.1 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.2 Power Supply (7-29V DC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3 Ethernet Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3.1 Host Port (HOST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.3.2 Ethernet Ports (ETH1, ETH2 and ETH3) . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.4 CAN Interface (CAN1/CAN3, CAN2/CAN4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.4.1 Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.4.2 Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.4.3 "Wake-Up" Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.4.4 Bus Terminating Resistor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.5 Time Synchronization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.6 "Wake-Up" Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.7 Firmware Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.1 Assembly and Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.1.1 General Installation Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Contents

ETAS Contents
ES523.1 -User Guide 4
6.1.2 Fixing a Module onto a Carrier System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.1.3 Connecting Several Modules Mechanically . . . . . . . . . . . . . . . . . . . . . . . . 26
6.2 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.3 Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.3.1 “HOST” Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.3.2 “7-29V” Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.3.3 “ETH1”, "ETH2" and “ETH3” Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.4 Configuring the ES523.1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.4.1 Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.4.2 Launching the ES523.1 Web Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.4.3 Configuring the “Wake Up” Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7 Troubleshooting Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.1 Error LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.2 Troubleshooting ES523.1 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.2.1 Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.2.2 Network Adapter cannot be selected via Network Manager . . . . . . . . . . 33
7.2.3 Search for Ethernet Hardware Fails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.2.4 Personal Firewall Blocks Communication. . . . . . . . . . . . . . . . . . . . . . . . . . 36
8 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8.1 General Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8.1.1 Product Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8.1.2 Fulfilled Standards and Norms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.1.3 Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.1.4 Maintenance the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.1.5 Cleaning the product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.1.6 Mechanical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.2 RoHS Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
8.3 CE conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
8.4 UKCA conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
8.5 KCC conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
8.6 Taking the Product Back and Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
8.7 Declarable Substances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
8.8 Use of Open Source software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
8.9 System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
8.9.1 Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
8.9.2 Supported Applications and Software Requirements . . . . . . . . . . . . . . . . 45
8.10 Electrical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
8.10.1 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
8.10.2 Host Interface (HOST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
8.10.3 Ethernet Interfaces (ETH1, ETH2 and ETH3) . . . . . . . . . . . . . . . . . . . . . . . 47
8.10.4 CAN Interfaces (CAN1/CAN3 and CAN2/CAN4) . . . . . . . . . . . . . . . . . . . . 47
8.11 Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
8.11.1 Power Supply Interface (7-29V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
8.11.2 Host Interface (HOST). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
8.11.3 Ethernet Interfaces (ETH1, ETH2 and ETH3) . . . . . . . . . . . . . . . . . . . . . . . 49
8.11.4 CAN Interface (CAN1/CAN3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
8.11.5 CAN Interface (CAN2/CAN4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

ETAS Contents
ES523.1 -User Guide 5
9 Cable and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
9.1 Cable for the "7-29 V DC" connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
9.1.1 CBP120 Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
9.1.2 CBP1205 Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
9.2 HOST Interface Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
9.3 ETH1, ETH2 and ETH3 Interface Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
9.3.1 Ethernet Connection and Power Supply Cable. . . . . . . . . . . . . . . . . . . . . . 54
9.3.2 Ethernet Connection Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
9.3.3 Ethernet Connection Adapter Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
9.4 CAN1/CAN3 and CAN2/CNA4 Interface Cable and Adapter. . . . . . . . . . . . . . . . . . . 57
9.4.1 CAN Interface Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
9.4.2 CBCFI100 Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
9.4.3 CAN Termination Resistor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
10 Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
10.1 ES523.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
10.1.1 ES523.1 with CBP120 Power Supply Cable . . . . . . . . . . . . . . . . . . . . . . . 61
10.1.2 ES523.1 with CBP1205 Power Supply Cable . . . . . . . . . . . . . . . . . . . . . . 61
10.2 Cable and Accessoires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
10.2.1 Cable for the "7-29 V DC" connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
10.2.2 "HOST" Interface Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
10.2.3 "ETH1, ETH2 and ETH3" Interface Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
10.2.4 "CAN/CAN" Interface Cable and Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . 63
10.2.5 Housing Accessoires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
10.2.6 Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
11 Contact Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

ETAS About this Document
ES523.1 -User Guide 6
1 About this Document
1.1 Classification of Safety Messages
The safety messages used here warn of dangers that can lead to personal
injury or damage to property:
1.2 Presentation of Instructions
The target to be achieved is defined in the heading. The necessary steps for his
are in a step-by-step guide:
Target definition
1. Step 1
2. Step 2
3. Step 3
> Result
DANGER
indicates a hazardous situation with a high risk of death or serious injury if
not avoided
WARNING
indicates a hazardous situation of medium risk which could result in death or
serious injury if not avoided.
CAUTION
indicates a hazardous situation of low risk which may result in minor or
moder-ate injury if not avoided.
NOTICE
indicates a situation which may result in damage to property if not avoided.

ETAS About this Document
ES523.1 -User Guide 7
1.3 Typographical Conventions
Hardware
1.4 Presentation of Supporting Information
Bold Menu commands, buttons, labels of the product
Italic Emphasis on content and newly introduced terms
NOTE
Contains additional supporting information.

ETAS About this Manual
ES523.1 -User Guide 8
2 About this Manual
This chapter contains information about the following topics:
• “Scope of Supply” on page 8
• “Additional Information” on page 8
2.1 Scope of Supply
Prior to the initial commissioning of the module, please check whether the
module was delivered with all required components and cables (see chapter
10.1 on page 61).
Additional cables and adapters can be obtained separately from ETAS. A list of
available accessories and their order designation is located in chapter “Cable
and Accessoires” on page 62 of this manual or in the ETAS product catalog.
2.2 Additional Information
The configuration instructions for the module under INCA can be found in the
corresponding software documentation.

ETAS Basic Safety Notices
ES523.1 -User Guide 9
3 Basic Safety Notices
This chapter contains information about the following topics:
• “General Safety Information” on page 9
• “Requirements for Users and Duties for Operators” on page 9
• “Intended Use” on page 9
3.1 General Safety Information
Please observe the Product Safety Notices ("ETAS Safety Notice") and the fol-
lowing safety notices to avoid health issues or damage to the device.
ETAS GmbH does not assume any liability for damages resulting from
improper handling, unintended use or non-observance of the safety precau-
tions.
3.2 Requirements for Users and Duties for Operators
The product may be assembled, operated and maintained only if you have the
necessary qualification and experience for this product. Improper use or use by
a user without sufficient qualification can lead to damages or injuries to one's
health or damages to property.
General safety at work
The existing regulations for safety at work and accident prevention must be
followed. All applicable regulations and statutes regarding operation must be
strictly followed when using this product.
3.3 Intended Use
Application area of the product
This product was developed and approved for applications in the automotive
sector. The module is suitable for use in interiors, in the passenger cell or in the
trunk of vehicles. The module is not suitable for installation in the engine com-
partment and similar environments. For use in other application areas, please
contact your ETAS contact partner.
Requirements for the technical state of the product
The product is designed in accordance with state-of-the-art technology and
recognized safety rules. The product may be operated only in a technically flaw-
less condition and according to the intended purpose and with regard to safety
NOTE
Carefully read the documentation (Product Safety Advice and this User's
Guide) that belongs to the product prior to the startup.

ETAS Basic Safety Notices
ES523.1 -User Guide 10
and dangers as stated in the respective product documentation. If the product
is not used according to its intended purpose, the protection of the product
may be impaired.
Requirements for operation
• Use the product only according to the specifications in the correspond-
ing User's Guide. With any deviating operation, the product safety is no
longer ensured.
• Observe the requirements on the ambient conditions.
• Do not use the product in a wet or damp environment.
• Do not use the product in potentially explosive atmospheres.
Electrical safety and power supply
• Observe the regulations applicable at the operating location concerning
electrical safety as well as the laws and regulations concerning work
safety!
• Connect only current circuits with safety extra-low voltage in accordance
with EN 61140 (degree of protection III) to the connections of the mod-
ule.
• Ensure that the connection and setting values are being followed (see
the information in the chapter "Technical data").
• Do not apply any voltages to the connections of the module that do not
correspond to the specifications of the respective connection.
Power supply
• The power supply for the product must be safely disconnected from the
supply voltage. For example, use a car battery or a suitable lab power
supply.
• Use only lab power supplies with double protection to the supply net-
work (with double insulation/reinforced insulation (DI/ RI)).
• The lab power supply must be approved for an operating altitude of
5000 m and for an ambient temperature of up to 70 °C.
• In regular operation of the modules as well as very long standby opera-
tion, a discharge of the vehicle battery is possible.

ETAS Basic Safety Notices
ES523.1 -User Guide 11
Connection to the power supply
• The power cable must not be connected directly to the vehicle battery or
lab power supply, but via a fuse of up to 20 A.
• Ensure that the connections of the lab power supply, the power supply at
the module and the vehicle battery are easily accessible!
• Route the power cord in such a way that it is protected against abrasion,
damages, deformation and kinking. Do not place any objects on the
power cord!
Disconnecting from the power supply
The module does not have an operating voltage switch. The module can be de-
energized as follows:
• Disconnecting the module from the lab power supply
– Separating device is the lab plug of the power cord or
– Separating device is the plug of the power cord at the connection of
the module
• Disconnecting the module from the vehicle battery
– Separating device is the lab plug of the power cord or
– Separating device is the plug of the power cord at the connection of
the module
• Disconnecting the vehicle battery.
Approved cables
• Use exclusively ETAS cables at the connections of the module!
•Adhere to the maximum permissible cable lengths!
• Do not use any damaged cables! Cables may be repaired only by ETAS!
• Never apply force to insert a plug into a socket. Ensure that there is no
contamination in and on the connection, that the plug fits the socket, and
that you correctly aligned the plugs with the connection.
Requirements for the location
• Position the module or the module stack on a smooth, level and solid
underground.
• The module or the module stack must always be securely fastened.
DANGER
Dangerous electrical voltage!
Connect the power cable only with a suitable vehicle battery or with a suitable
lab power supply! The connection to power outlets is not allowed!
To prevent an inadvertent insertion in power outlets, ETAS recommends to
equip the power cables with safety banana plugs in areas with power outlets.

ETAS Basic Safety Notices
ES523.1 -User Guide 12
Fixing the modules on a carrier system
• When selecting the carrier system, observe the static and dynamic
forces that could be created by the module or the module stack on the
carrier system.
Requirements on the ventilation
• Keep the module away from heat sources and protect it against direct
exposure to the sun.
• The free space above and behind the module must be selected so that
sufficient air circulation is ensured.
Assembling (interconnecting) the modules
• Prior to assembling (interconnecting) or separating a module stack, the
modules must be disconnected from the supply voltage or they have to
be in the standby operating mode.
Transport
• Stack and connect the modules only at the location of the startup!
• Do not transport the modules at the cable of the module or any other
cables.
Maintenance
The product is maintenance-free.
Repair
If an ETAS hardware product should require a repair, return the product to
ETAS.
Cleaning the module housing
• Use a dry or lightly moistened, soft, lint-free cloth for cleaning the module
housing.
• Do not user any sprays, solvents or abrasive cleaners which could dam-
age the housing.
• Ensure that no moisture enters the housing. Never spray cleaning agents
directly onto the module.
Ambient conditions
The housing and the connectors of the module as well as the plug connectors
of the cables meet the degree of protection IP30.

ETAS Basic Safety Notices
ES523.1 -User Guide 13
Opening the module
Potential equalization
Cabling
For detailed information about cabling, see the User's Guide of the module.
CAUTION
Damage to the module and loss of properties based on IP30!
Do not open or change the module housing!
Work on the module housing may only be performed by ETAS.
CAUTION
Potential equalization in the vehicle is possible via the shield of the
connecting cables of the modules!
Install the modules only at locations with the same electrical potential or iso-
late the modules from the installation location.

ETAS Hardware Description
ES523.1 -User Guide 14
4 Hardware Description
This chapter provides you with an overview of the ES523.1 with information on
the housing, serial number, ports and LEDs.
4.1 Overview
The ES523.1 module is a powerful ECU and bus interface modules. It has an
upstream Ethernet interface that guarantees data exchange with the host PC or
with a Drive Recorder. The ES523.1 module has three downstream Ethernet
interfaces that can be connected with ES59x, ES600, measurement and inter-
face modules.
Fig. 4-1View of the Device
Measurement, calibration and rapid prototyping modules are easy to combine
with ES523.1 modules. ECUs that have an XETK, or ECUs that have their own
Ethernet interface can be connected directly with an ES523.1 module and com-
municate with INCA via Ethernet.
The ES523.1 has four ECU interface CAN FD. Two of the four CAN interfaces
additionally offer a "Wake-Up" function.
If necessary, systems can be cascaded using ES59x nodes. The Ethernet
switch guarantees the time-synchronous sampling of all measurement chan-
nels – even in sizeable module networks.
The ES523.1 module and the relevant cables are intended for use in the lab, on
the test bench and in the passenger cell of vehicles.

ETAS Hardware Description
ES523.1 -User Guide 15
4.2 Features
Overview of the major features of the ES523.1:
• Ethernet switch with a 10/100 Mbit/s data rate:
– One host port (upstream)
– Three ports for compatible modules (downstream)
– Can be cascaded up to 15 modules
– Automatic standby function
– Precise synchronization of all connected modules and their measure-
ment channels
• Four independent CAN FD interfaces:
– CAN High Speed mode (max. 1 MBaud) or CAN FD mode (>
1MBaud)
– CAN protocols CAN V2.0a (Standard Identifier with 11-bit) and CAN
V2.0b (Extended Identifier with 29-bit)
– "Wake-Up" function (two CAN FD interfaces)
Additional features of the module:
• Module suitable for use in automotive applications; suitable for use in
the development environment and in the vehicle on test drives.
– Channels galvanically isolated from each other, from the device
ground and from the supply voltage
– Not sensitive to environmental conditions (temperature, EMC)
– Wide supply voltage range
– High mechanical stability and durability
• Part of the ETAS Tool Suite
For the complete technical data of the ES523.1, refer to the chapter “Technical
Data” on page 41.
4.3 Housing
Standard housing with interfaces on the front and rear of the device is used for
the ES523.1. The sturdy metal housing of the ES523.1 has nonskid plastic feet.
It can be easily screwed onto a carrier system for installation in a vehicle or in
the lab. The housings of this device family can also quickly and easily be con-
nected to one another (see the chapter 6.1 on page 25).
The ES523.1 is intended for use in the lab, on the test bench and in the passen-
ger cell of vehicles.

ETAS Hardware Description
ES523.1 -User Guide 16
4.4 Interfaces
4.4.1 Front Panel
The following interfaces are on the front panel of the ES523.1:
• HOST (Ethernet, SYNC-IN)
• ETH1 (Ethernet, SYNC-OUT)
• ETH2 (Ethernet, SYNC-OUT)
• ETH3 (Ethernet, SYNC-OUT)
• CAN2/CAN4 (1 x CAN FD and 1 x CAN FD)
• CAN1/CAN3 (1 x CAN FD and 1 x CAN FD)
Fig. 4-2Front Panel
4.4.2 Back Panel
The interface 7-29V (power supply) is on the back panel of the ES523.1.
Fig. 4-3Back Panel

ETAS Hardware Description
ES523.1 -User Guide 17
4.5 LEDs
4.5.1 Flash Codes
The ES523.1 is equipped with LEDs, which indicate the operational state of the
module, as well as with LEDs which display the function of individual interfaces.
The following flash codes are used for the LEDs:
Fig. 4-4Flash Codes
4.5.2 Operational State of the Module
Four LEDs can be found top left on the front panel of the ES523.1(see Fig. 4-2
on page 16). They indicate operational, error and synchronization states.
•ON: power supply and operational state
•ER: error states or firmware update
•°C: temperature inside the housing
•SYNC: synchronization function of the module (master or slave) and the
synchronization state
LED Display Operational State
ON Green The module is powered on.
Green, flashing
(Flash code 3)
The module is on “Standby”, the power
consumption is minimal. The module
needs a wakeup event to enter the nor-
mal operation mode.
Off The module is not powered.
ER Red Module is currently booting or booting
was unsuccessful.
Red, flashing
(Flash code 1)
Internal device software error, core file
created.
Red, flashing
(Flash code 2)
Firmware update is being executed.
Off No error
Flash code 1
On
Off
Off
On
LED
1342t(s)
Off
On
Off
On
Off
On
Flash code 2
Flash code 4
Flash code 5
Flash code 3

ETAS Hardware Description
ES523.1 -User Guide 18
4.5.3 Functional State of Individual Interfaces
LEDs assigned to the interfaces of the module can be found on the front panel
of the device (see Fig. 4-2 on page 16). If the ES523.1 is powered on (opera-
tional state "On") they indicate the following functional states at the assigned
interfaces:
HOST Interface
An LED HOST is assigned to the interface HOST.
ETH1 Interface
An LED ETH1 and an LED POUT are assigned to the interface ETH1.
°C Red Temperature inside the housing has
exceeded the critical level and the mod-
ule powered down; the module is pow-
ered on again if the temperature inside
the housing has reached the normal
operational range
Red
(Flash code 2)
Temperature inside the housing has
reached a critical level. The module
does not shut down any functionality.
Off Temperature inside the housing is in
normal operational range.
SYNC Blue, flashing
(Flash code 4),
fully bright
The module is a synchronization mas-
ter; the module is not synchronized
externally
Blue, flashing
(Flash code 5),
semi and fully
bright alternately
The module is a synchronization slave;
the module is synchronized externally at
the HOST or at the ETH1 or at the ETH2
port
Off No synchronization
LED Display Functional State
HOST Yellow, flashing Communication at the interface HOST
Off Communication interrupted
LED Display Functional State
ETH1 Yellow, flashing Communication at the interface ETH1
Off Communication interrupted
POUT Green Power supply output at the interface
ETH1 is switched on
Red Overload by connected module at the
power supply output at the interface
ETH1
Off Power supply output at the interface
ETH1 is switched off
LED Display Operational State

ETAS Hardware Description
ES523.1 -User Guide 19
ETH2 Interface
An LED ETH2 and an LED POUT are assigned to the interface ETH1.
ETH3 Interface
An LED ETH3 and an LED POUT are assigned to the interface ETH1.
CAN2/CAN4 Interface
An LED CAN2 is assigned to the interface CAN2 and an LED CAN4 is assigned
to the interface CAN4.
CAN1/CAN3 Interface
An LED CAN1 is assigned to the interface CAN1 and an LED CAN3 is assigned
to the interface LIN1.
LED Display Functional State
ETH2 Yellow, flashing Communication at the interface ETH2
Off Communication interrupted
POUT Green Power supply output at the interface
ETH2 is switched on
Red Overload by connected module at the
power supply output at the interface
ETH2
Off Power supply output at the interface
ETH2 is switched off
LED Display Functional State
ETH3 Yellow, flashing Communication at the interface ETH3
Off Communication interrupted
POUT Green Power supply output at the interface
ETH3 is switched on
Red Overload by connected module at the
power supply output at the interface
ETH3
Off Power supply output at the interface
ETH3 is switched off
LED Display Functional State
CAN2 Yellow, flashing Communication at the interface CAN2
Off Communication interrupted
CAN4 Yellow, flashing Communication at the interface CAN4
Off Communication interrupted
LED Display Functional State
CAN1 Yellow, flashing Communication at the interface CAN1
Off Communication interrupted
CAN3 Yellow, flashing Communication at the interface CAN3
Off Communication interrupted

ETAS Functional Description
ES523.1 -User Guide 20
5 Functional Description
This chapter describes the block diagram, power supply, Ethernet switch, mod-
ule network, time synchronization, ECU interfaces and the firmware update.
5.1 Block Diagram
Fig. 5-1Block Diagram
To fulfill the operation demands in the vehicle, the interfaces of the ES523.1 are
each routed to an Lemo socket.
5.2 Power Supply (7-29V DC)
The power supply interface (7-29V DC) is routed to a 2-pin connector (Lemo
socket) on the back panel of the module. Power is supplied to the module via
an external power supply or vehicle battery.
When the ES523.1 is connected to the operating voltage and there is an Ether-
net connection at HOST, the module boots. If there is no Ethernet connection,
the module changes to “Standby.”
5.3 Ethernet Switch
The integrated Ethernet switch is used for the connection of the ES523.1 mod-
ule and other measurement or interface modules to a user PC. Data from the
connected modules is acquired synchronously (ETAS device synchronization,
see chapter 5.5 on page 23). The Ethernet switch can be cascaded with other
network modules so that you can create larger blocks of measurement and
interface modules.
NOTE
The ES523.1 must be physically disconnected from all supply voltages so the
module is not supplied with power.
ES523
Time Synchronization Unit
LED
7..29V DC
SYNC
OUT
SYNC
IN
CPU FlashRAM
ETH1
10/ 100 MB it
HOST
ETH2
10/100 MBit
ETH3
10/100 MBit
CAN1
CAN3
CAN2
CAN4
Ethernet Switch
Ethe rnet
Phy
Ethernet
Phy
Ethernet
Phy
Etherne t
Phy
Traffic
Detectio n
HOST
ETH1
ETH2
ETH3
CAN1
CAN2
CAN FD
Transceiver
CAN / CAN FD
Contr oller
CAN FD
Transceiver
CAN / CAN FD
Contr oller
CAN FD
Transceiver
CAN / CAN FD
Contr oller
CAN FD
Transceiver
CAN / CAN FD
Contr oller
Power
Supply
WakeUp /
Standby
Controller
