ETC ColorSource PAR User manual

ETC Installation Guide
ColorSource PAR v1.7
Corpora te He adquarters Middleton, WI, USA [phone]
London, UK [phone] Holzkirchen, DE [phone]
Rome, IT [phone] Hong Kong [phone] Paris, FR [phone]
Web etcconnect.com Support support.etcconnect.com
Conta ct etcconnect.com/contactETC © 2020 Electronic Theatre Controls, Inc.
Product information and specifications subject to change. ETC intends this document
to be provided in its entirety. Trademark and patent info:etcconnect.com/ip
7412M2100-1.7 Rev D Released 2020-12

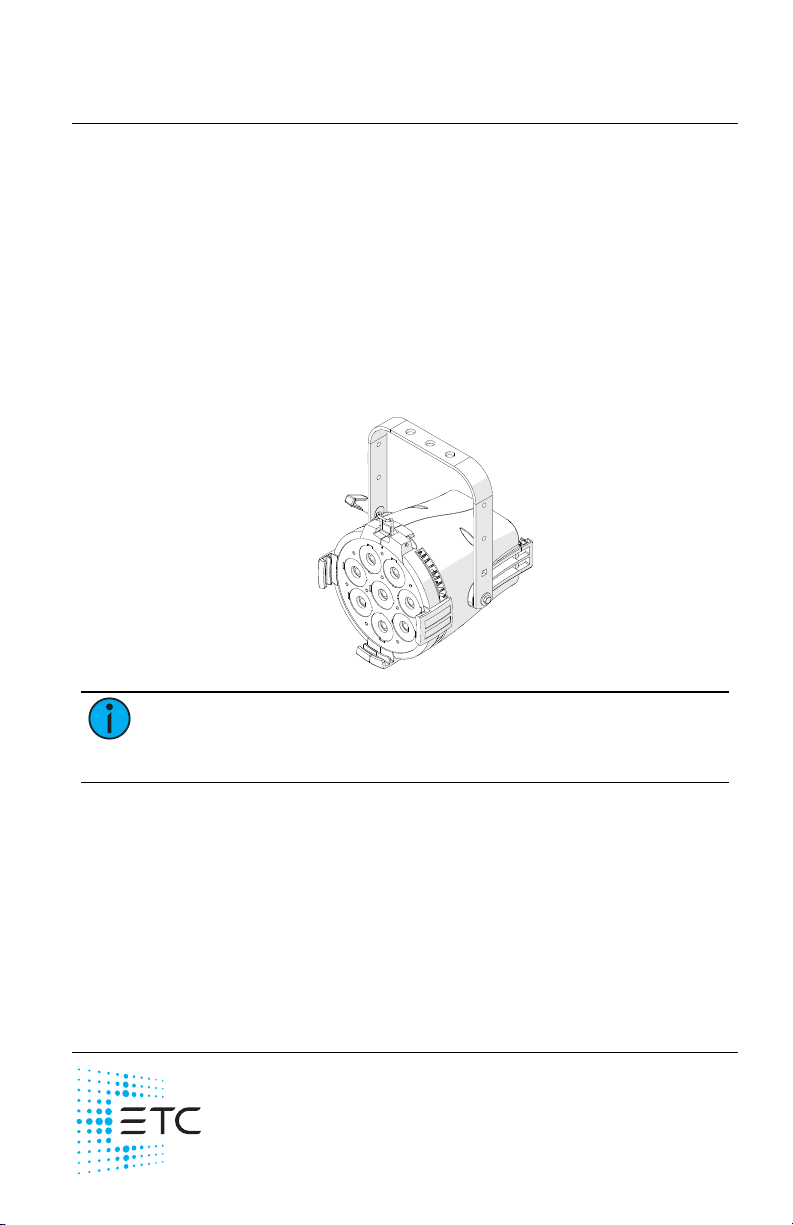

Overview
The ColorSource PAR is an affordable LED fixture that uses the RGB-L (red,
green, blue, and lime) color system to provide a rich, bright light.
The ColorSource PAR is available in both original and Deep Blue variants. The
Deep Blue uses an array that offers richer, more saturated blues and stronger
magentas in exchange for the more jewel-toned blues like sky or turquoise.
For more information, see the ETC website at etcconnect.com.
The ColorSource PAR is UL924 listed as a Directly Controlled Luminaire for
use in emergency lighting systems when used with the ETC DMX Emergency
Bypass Controller (DEBC).
Note: Features described in this document require the latest version
of software. For information on updating fixture software, see Update
the Fixture Software on page11.

ETC Installation Guide
ColorSource PAR v1.7
Safety
For professional use only. Read the entire manual before using this
equipment.
WARNING:
•
Risk of eye injury. Do not stare directly into the light.
•
Do not mount the fixture on or near a flammable surface.
•
Disconnect the fixture from power and DMX and allow it
to cool before installing accessories or performing any
cleaning and maintenance.
AVERTISSEMENT :
•
Risque de lésion oculaire. Ne fixez pas directement la
lumière.
•
Ne pas installer le projecteur sur ou à côté d’une surface
inflammable.
•
Débranchez le projecteur de son alimentation et du DMX
et laissez-le refroidir avant d’installer des accessoires ou
d’effectuer un nettoyage ou un entretien.
WARNING: The ColorSourcePAR is a Directly Controlled
Luminaire suitable for use in emergency lighting applications in
accordance with 2017 National Electrical Code section 700.24
when used with an ETC DMX Emergency Bypass Controller.
Equipment intended for this purpose must be properly selected,
installed, and maintained so that facility conformance can be
obtained. Installation and servicing shall be performed by
qualified service personnel.
WARNING: RISK OF ELECTRIC SHOCK! The light source in this
luminaire is not user-replaceable, and must be replaced only by a
qualified technician. Contact ETC Customer Support for
assistance.
AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La
source lumineuse de ce projecteur n'est pas remplaçable par
l'utilisateur et ne doit être remplacée seulement par un
technicien qualifié. Contactez le service client ETC pour obtenir de
l’assistance.
ColorSource PAR Page 2 of 12 ETC

ETC Installation Guide
ColorSource PAR v1.7
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
•
Do not use outdoors.
•
Do not let power supply cords touch hot
surfaces.
•
Do not mount near gas or electric heaters.
•
Equipment should be mounted in
locations and at heights where it will not
readily be subjected to tampering by
unauthorized personnel.
•
The use of accessory
equipment not
recommended by the
manufacturer may cause
an unsafe condition.
•
Do not use this
equipment for other than
intended use.
SAVE THESE INSTRUCTIONS
The luminaire must be installed at
least 0.1m (4.0in) away from all
lighted objects.
Le luminaire doit être installé à au
moins 0,1m (4,0po) de tout objet
éclairé.
Do not mount the fixture on or
near a flammable surface.
Ne pas installer le projecteur sur ou à
côté d’une surface inflammable.
Risk of electric shock Risque de décharge éléctrique
Do not stare at the operating light
source.
Ne pas regarder la source de lumière
lorsqu’elle fonctionne.
This product should not be
discarded as unsorted waste but
must be sent to separate collection
facilities for recovery and recycling.
Ce produit ne doit pas être jeté avec
les déchets ménagers mais doit être
déposé dans une collecte de déchets
électroniques ou dans un point de
collecte.
Protective earth (ground) Protection Classe I Mise à la terre
ColorSource PAR Page 3 of 12 ETC

ETC Installation Guide
ColorSource PAR v1.7
Environment
The ColorSource PAR operates in ambient temperatures of 0°C–40°C and
comes with a variable-speed fan. The ColorSource PAR is for indoor use only.
•
Maximum recommended ambient operating temperature: Ta=40°C
(104°F)
•
Maximum anticipated external surface temperature at 40°C ambient:
Tmax = 80°C (176°F)
•
External temperatures after 5 minutes of full-brightness operation at
25°C (77°F) ambient: 30°C (86°F)
•
External Temperature (steady state achieved) at 25°C (77°F): 41°C
(106°F)
Electrical
•
Operates between 100V and 240VAC at a frequency of 50/60Hz.
•
Maximum power consumption is 120 W.
•
Up to 9 luminaires(15 A max) may be linked via power thru connector
(10 luminaires total per circuit) when used with an R20Relay Module
or Unison Echo Relay Panel. Consult breaker trip curves when used
with other equipment. Requires power from a non-dimmable source.
•
Inrush:
-
120 V: 35 A (first half-cycle)
-
240 V: 49 A (first half-cycle)
Typical Power Consumption
100 V 120 V 230 V
Power Current Power Current Power Current
Idle 1.22 W 0.03 A 1.21 W 0.03 A 1.14 W 0.03 A
Direct at Full 107 W 1.07 A 106 W 0.88 A 104 W 0.46 A
ColorSource PAR Page 4 of 12 ETC

ETC Installation Guide
ColorSource PAR v1.7
Installation
Emergency Lighting Considerations
Luminaires that are used in emergency lighting applications must provide a
minimum illumination level over the identified means of egress path in
accordance with the Life Safety Code®, NFPA 101. A luminaire that is intended
to serve this purpose must be mounted at a height where it will not readily be
subjected to tampering by unauthorized personnel and where the minimum
required illumination level over the egress path can be achieved. The ETC
DMX Emergency Bypass Controller that is driving the luminaire upon loss of
utility power must be programmed to drive the ColorSource PAR to full
illumination.

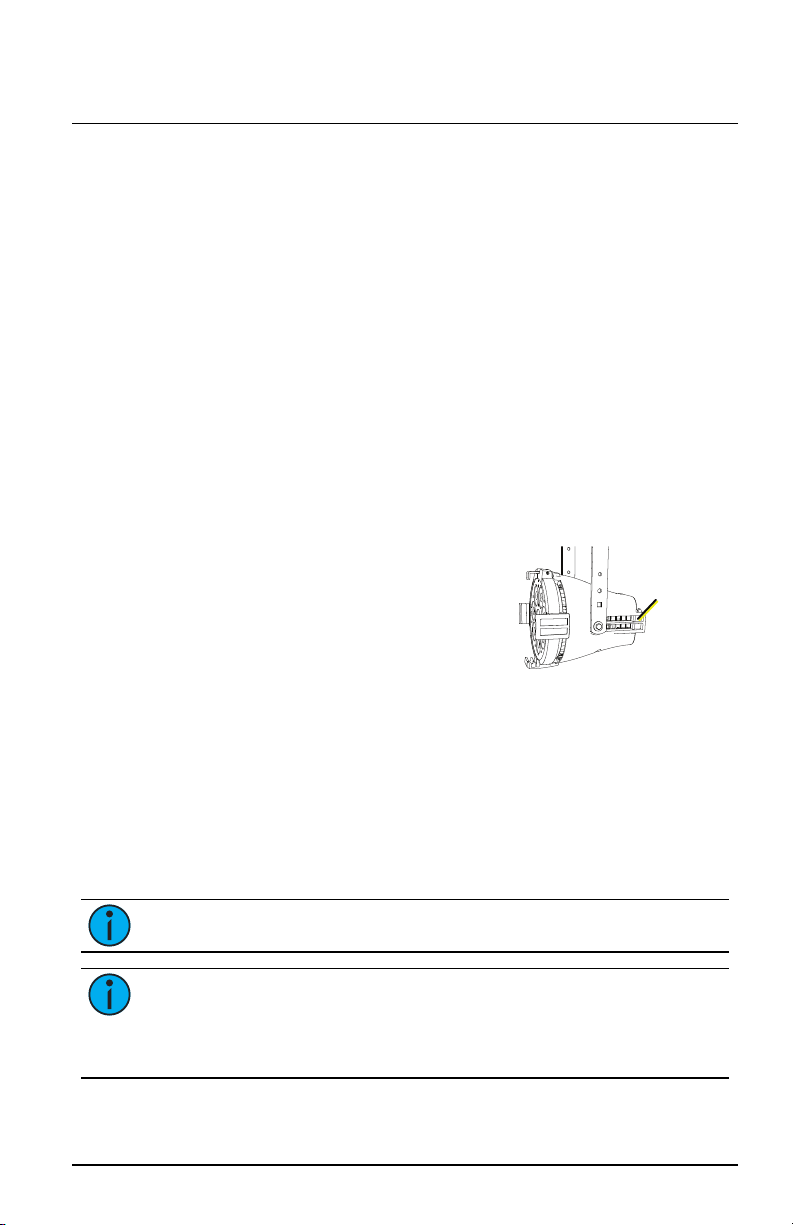

Mounting
The ColorSource PAR ships with a standard yoke for mounting with a clamp.
An expandable floor stand yoke is available as an optional accessory. Contact
your local dealer for more information.
Safety cable
attachment
loop
Safety Cable
A safety cable (or other approved safety device)
must be attached to the fixture. Attachment
loops are on the rear of the fixture. Take care to
leave as little slack as possible in the safety cable
to avoid catching the yoke of the fixture.
Connectors
•
Power: Two powerCON®connectors for power in and thru
•
Data (DMX512/RDM): Two five-pin XLR connectors OR two
RJ45connectors for data in and thru
Conversion cables are available from ETC. Please contact your ETC customer
service representative and request part number W6538 for RJ45 to female
XLR or part number W6539 for RJ45 to male XLR.
Note: This fixture is not Ethernet/data network compatible.
Note: The ColorSource PAR is not self terminating. You must
terminate the last fixture in line with a 120 Ohm resistor. To purchase
a terminator, please contact ETC customer service and request part
number N4086 (RJ45 terminator) or SGE1507 (XLR terminator).
ColorSource PAR Page 5 of 12 ETC

ETC Installation Guide
ColorSource PAR v1.7

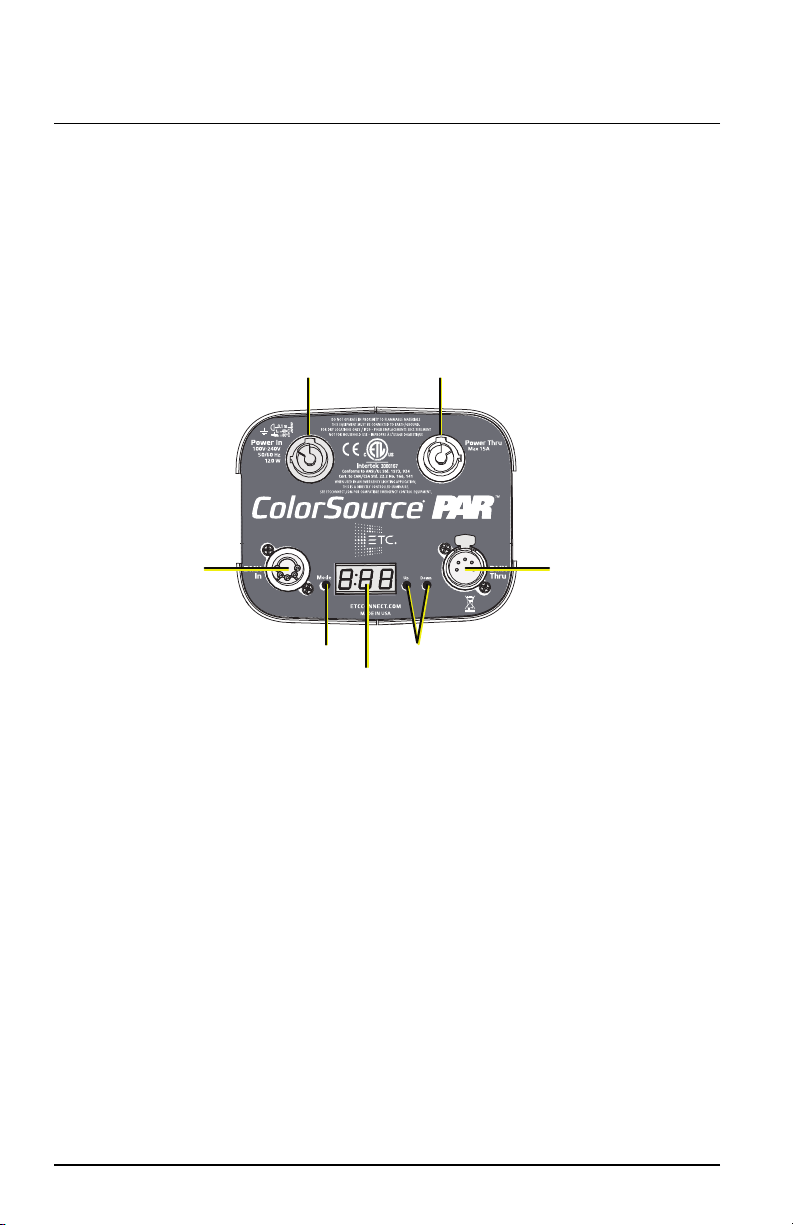

Set Up the Fixture
1. Plug the power cord into the powerCON In connector on the rear of
the fixture.
2. Make any power-thru cable connections prior to applying a power
source.
3. Make any DMX connections, and if the fixture is the last in a DMX line,
terminate the fixture. See Connectors on the previous page .
4. Plug the power cord into the power source.
Power thruPower in
Data in Data thru
Mode Up and Down
User interface
Power Up
Press any button to wake the display. The display shows the DMX address.
See Set the DMXAddress on the facing page .
You can press the Mode button to access the Presets/Sequences menu. See
Play Presets and Sequences on page8 .
Adjust the Tilt
The fixture can be tilted up and down and rotated (panned) as needed.
1. Loosen, but do not remove the yoke locking knob.
2. Tilt the fixture to the desired angle.
3. Tighten the yoke locking knob.
ColorSource PAR Page 6 of 12 ETC

ETC Installation Guide
ColorSource PAR v1.7
Set the DMXAddress
1. Press any button to wake the display. The display shows the DMX
address.
2. Use the Up and Down buttons to select the DMX address for the
fixture.
You can also use RDM for DMX addressing. See RDM Values on page12 .
Change the DMXControl Mode
You can set the DMX control mode for the fixture to one of four available
mode options.
1. Press any button to wake the display. The display shows the DMX
address.
2. Press and hold the Mode button for 3 seconds. The display shows the
current DMX control mode.
3. Press the Up button or Down button to change the DMX control
mode:
•
5ch: 5-channel mode (intensity, red, green, blue, and strobe). This
is the default mode.
•
dir: Direct emitter control (intensity, red, green, blue, indigo,
lime, and strobe).
•
1ch: 1-channel mode controls the intensity of preset 1 (defaults
to 3200K White).
•
rgb: RGB mode (red, green, and blue).
4. Press the Mode button to confirm your selection.
The display will automatically return to the DMX address after 10 seconds of
inactivity, and edits to the DMX control mode will not be saved. This cancels
unsaved changes.
ColorSource PAR Page 7 of 12 ETC

ETC Installation Guide
ColorSource PAR v1.7
DMXControl Channels
DMX
Channel
5ch
(5 channel)
dir
(Direct)
1ch
(1 Channel)
rgb
(RGB)
1 Intensity Intensity Intensity Red
2 Red Red Green
3 Green Green Blue
4 Blue Blue/Indigo*
5 Strobe** Lime
6 Strobe**
*Original ColorSource PAR fixture uses blue in channel 4; Deep Blue fixture uses indigo in
channel 4.
**Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe rate
from 1 per second up to 33 per second.
Data Loss Behavior
When DMX data is lost, the fixture does one of the following actions:
•
If you selected a preset or sequence, that preset or sequence
automatically plays.
•
If no preset or sequence is active in the background, the fixture goes
dark and the DMXstart address flashes on the user interface.
Play Presets and Sequences
The fixture has twelve factory-configured presets and five factory-configured
sequences. When you play a preset or sequence on a fixture:
•
The same preset number or sequence number plays on any connected
fixtures that are not receiving DMX.
•
If you power down the fixture, the preset or sequence resumes when
you power it on again.
You can re-record presets and sequences through an RDM device or manually
on the fixture. See Re-record Presets on the facing page .
1. Press the Mode button to activate the Presets/Sequences menu. The
last active preset or sequence plays automatically. (If DMX data is
present, the current preset or sequence plays in the background and
DMX data continues to take priority.)
2. Press the Up button or Down button as needed to scroll through the
available presets and sequences.
3. To stop the selected preset or sequence, press the Mode button a
second time. The display will revert to show the DMX start address.
ColorSource PAR Page 8 of 12 ETC

ETC Installation Guide
ColorSource PAR v1.7
Pre-configuredPresets
Preset Name
1 3200 K White
2 5600 K White
3 Red
4 Green
5 Blue
6 Cyan
Preset Name
7 Magenta
8 Yellow
9 Orange
10 Light Yellow
11 Light Blue
12 Light Pink
Pre-configuredSequences
Sequence Name
1 Rainbow Fast
2 Rainbow Slow
3 Warm Colors Fast
4 Cool Colors Fast
5 Random
Re-record Presets
1. Using DMX, set the desired levels for the new preset.
2. Press the Mode button to access the Presets/Sequences menu.
3. Press the Up button or Down button to navigate to the preset number
that you want to re-record.
4. Press and hold the Mode button for 3 seconds to confirm the preset
selection. The user interface will show a 3-second countdown. The
preset number blinks once to confirm that the preset has been
recorded.
Note: When the fixture is in Direct mode (dir) or 1-channel mode
(1ch), you cannot re-record presets.
When you re-record presets with the fixture in RGB mode (rgb), the
intensity is set to full and the strobe is turned off.
See Change the DMXControl Mode on page7.
ColorSource PAR Page 9 of 12 ETC

ETC Installation Guide
ColorSource PAR v1.7
Adjust the Intensity of Presets
1. Ensure that DMX data is not present.
2. Press the Mode button to access thePresets/Sequences menu, and
then press the Up button or Down button to select the preset that you
want to edit.
3. Press and hold the Mode button for 3 seconds. The display shows L:
followed by either an intensity level from 0–99 or FL for full.
4. Press the Up button or Down button to change the intensity level of
the preset in real time.
5. Press the Mode button to confirm your selection and return to
thePresets/Sequences menu.
The display will automatically return to thePresets/Sequences menu after
10seconds of inactivity, and edits to the preset intensity will not be saved.
Lock the User Interface
After you have set up the fixture, you can lock the user interface to prevent
additional changes.
1. Press and hold the Up button and Down button simultaneously for
3seconds. The display will show Loc to indicate that the user interface
is locked.
2. To unlock the user interface, press and hold the Up button and Down
button simultaneously for 3 seconds.
ColorSource PAR Page 10 of 12 ETC

ETC Installation Guide
ColorSource PAR v1.7
Update the Fixture Software
ETC recommends using UpdaterAtor software to manage software updates.
For more information on UpdaterAtor, see the UpdaterAtor Software Quick
Guide , which you can download for free from etcconnect.com.
When you add a ColorSource fixture running a newer software version or
update a ColorSource fixture to a newer software version using UpdaterAtor,
you can use that fixture to push the newer software version to all connected
ColorSource fixtures, except for ColorSource Spotjr fixtures. ColorSource
Spotjr fixtures can only update (and be updated by)other ColorSource Spotjr
fixtures.
You can push newer software versions from a connected fixture only on
ColorSource fixtures running software v1.3.0 or newer. Use UpdaterAtor to
update individual fixtures running versions older than v1.3.0.
Note: If you have other types of fixtures in your DMX run, you do not
need to disconnect them before pushing the updated fixture
software. The update process will ignore any other fixture types in the
DMXrun.
1. Remove power and DMX In from the fixture that is running the
software version that you want to push to other fixtures.
2. Press and hold the Up button and Down button simultaneously while
restoring power.
3. The display shows Udt rdy to indicate the update mode is selected.
4. Press the Mode button to start the update process.
•
The display alternates between Udt and the percentage complete
while updating.
•
The display blinks once to indicate that the update is complete.
5. Reconnect DMX In on the fixture.
ColorSource PAR Page 11 of 12 ETC

ETC Installation Guide
ColorSource PAR v1.7
Restore Factory Defaults
Press and hold the Mode button, Up button, and Down button
simultaneously for 5 seconds. The DMX start address will blink once to
confirm that defaults have been restored.
Error Codes
There are three error codes that may be shown on the user interface.
•
CAL: Screen toggles between CAL and Err to indicate a problem with
the color calibration. The fixture will need to be returned to the ETC
factory; contact your local dealer to set up a repair.
•
OtP: Screen toggles between OtP and Err to indicate that the fixture
has gone into over-temperature protection mode to avoid damaging
the fixture. Once the fixture has self-cooled, the error will automatically
clear.
•
No App: Screen toggles between no and APP to indicate that the
upgraded fixtures have a software issue. Reload software to clear the
error. If the error persists, contact ETC.
RDM Values
Parameter Fixture Value Description
Manufacturer ID All 0x6574 Electronic Theatre
Controls
Model ID
ColorSource PAR 0x0201
ColorSource PAR
DeepBlue 0x0202
DMXStart Address All 0x00F0 Range = 1–512
DMX Personality All 0x00E0
1 = 5 Channel
2 = Direct
3 = 1 Channel
4 = RGB
Output Frequency All 0x8123 0 = Standard (1.2 kHz)
1 = High (25 kHz)
ColorSource PAR Page 12 of 12 ETC
