Introduction 1
Introduction
The fos/4 Fresnel is a shapable wash light with top quality, highly tunable output. The fos/4
Fresnel is available in two arrays:
•
Lustr X8: The next generation of the Lustr color system incorporates deep red into the
already amazing x7 mix to create an even more rich, vibrant X8 color palette.
•
Daylight HDR: Years of research resulted in an LED mix that yields the highest quality
tunable white light, optimized for studio use.

2 fos/4 Fresnel User Manual
Help from ETC Technical Services
If you are having difficulties and your problem is not addressed by this document, try the ETC
support website at support.etcconnect.com or the main ETC website at etcconnect.com. If none
of these resources are sufficient, contact ETC Technical Services directly at one of the offices
identified below. Emergency service is available from all ETC offices outside of normal business
hours.
When calling for help, take these steps first:
•
Prepare a detailed description of the problem
•
Go near the equipment for troubleshooting
•
Find your notification number if you have called in previously
ETC, Inc.
Americas
Technical Services Department
3031 Pleasant View Road
Middleton, WI 53562
800-775-4382 (USA, toll-free)
[phone]
[e-mail]
ETC GmbH
Germany, Austria, Switzerland,
Eastern Europe, and Russia
Technical Services Department
Ohmstrasse 3
83607 Holzkirchen, Germany
[phone]
[e-mail]
ETC Austin
High End Systems Products
Technical Services Department
2105 Gracy Farms Lane
Austin, TX 78758 USA
800-890-8989 (USA, toll-free)
[phone]
[e-mail]
ETC France
France
Zone Urbaparc -
Bâtiment E
6 Boulevard de la Libération
Saint-Denis, 93200
[phone]
[e-mail]
ETC Ltd
Europe, Middle East, and Africa
Technical Services Department
26-28 Victoria Industrial Estate
Victoria Road,
London W3 6UU England
[phone]
[e-mail]
ETCAsia
Asia
Technical Services Department
Room 1801, 18/F
Tower 1, Phase 1 Enterprise Square
9 Sheung Yuet Road
Kowloon Bay, Kowloon, Hong Kong
[phone]
[e-mail]

Introduction 3
Safety
WARNING: RISK OF ELECTRIC SHOCK! The light source in this luminaire is
not user-replaceable, and must be replaced only by a qualified technician.
Contact ETC Customer Support for assistance.
AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La source
lumineuse de ce projecteur n'est pas remplaçable par l'utilisateur et ne doit
être remplacée seulement par un technicien qualifié. Contactez le service
client ETC pour obtenir de l’assistance.
WARNING: Note the following safety warnings before use:
•
Use the fixture in dry locations only, where humidity does not exceed
90 percent (non-condensing).
•
Connect the fixture to a non-dimmable power source in order to avoid
damage to the fixture's internal power supply and other electrical
components. Using a dimmable power source can damage the fixture
and will void the warranty.
•
Disconnect the fixture from power and DMX and allow it to cool before
installing accessories or performing any cleaning and maintenance.
•
Only use mounting hardware that is rated for the total weight of the
fixture and accessories.
•
In addition to primary suspension, attach a safety cable (or other
approved safety device) to the fixture. Safety cables must be rated to
support ten times the fixture weight. Consult local standards to ensure
that safety cables meet all requirements. See Mount the Fixture on
page7 .
•
Check that the accessory holder is locked and that any accessory safety
cables are connected before mounting the fixture.
•
Do not operate the fixture without the lens installed.
•
Do not use this fixture with a damaged power lead. If the power lead
(cord set) is damaged, it must be replaced.
•
Do not use this fixture if the lens is deeply scratched or cracked. You
must replace the lens when it is damaged.

4 fos/4 Fresnel User Manual
AVERTISSEMENT : Prendre connaissance des avertissements de sécurité
suivants avant toute utilisation :
•
Débranchez le projecteur de son alimentation et du DMX et laissez-le
refroidir avant d’installer des accessoires ou d’effectuer un nettoyage
ou un entretien.
•
N’utilisez que de la quincaillerie de montage adaptée au poids total
des projecteurs et des accessoires.
•
En plus de la suspension principale, fixez une chaîne de sécurité (ou
tout autre dispositif de sécurité homologué) au projecteur. Les chaînes
de sécurité doivent être en mesure de supporter dix fois le poids du
projecteur. Consultez les normes locales pour vous assurer que les
câbles de sécurité respectent toutes les exigences.
•
Vérifiez que le porte-accessoires est verrouillé et que les élingues de
tous les accessoires sont bien attachées avant de monter le projecteur.
•
N’utilisez pas le projecteur sans que la lentille soit installée.
•
Ne pas utiliser ce projecteur avec un cordon d’alimentation
endommagé. Si le cordon d’alimentation (câble) est abîmé, il doit être
remplacé.
•
N’utilisez pas ce projecteur si la lentille présente des rayures ou des
fissures profondes. Il faut remplacer la lentille si elle est abîmée.
The luminaire must be installed at least 0.1m (4.0in)
away from all lighted objects.
Le luminaire doit être installé à au moins 0,1m (4,0po)
de tout objet éclairé.
This product should not be discarded as unsorted
waste but must be sent to separate collection facilities
for recovery and recycling.
Ce produit ne doit pas être jeté avec les déchets
ménagers mais doit être déposé dans une collecte de
déchets électroniques ou dans un point de collecte.

Overview 5
Overview
Fixture
A
E
H
G
F
JKL
I
A
C
E
D
B

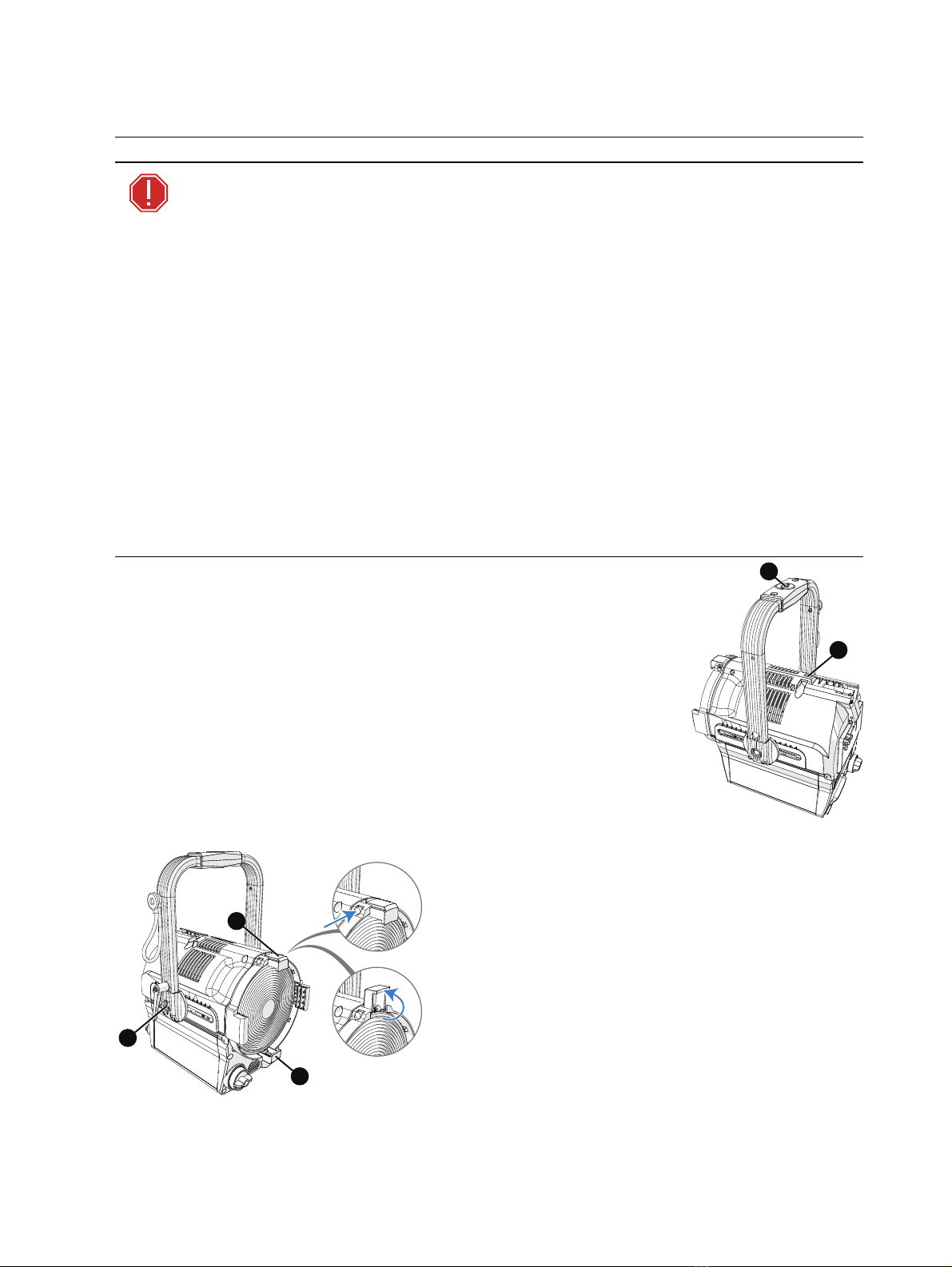

AAccessory holder: Insert accessories into the two available slots from either side of the holder,
and then lock the holder. See Add Accessories on page7 .
BCable tie: Store power cable on the yoke.
CYoke tilt-lock: Tilt the fixture as needed, and then turn the tilt-lock clockwise to lock the
position. If necessary, pull the tilt-lock away from the stem to adjust the tilt-lock position.
DAdjustable yoke: Loosen the bolts, and then shift the adjustable yoke forward or backward as
needed to balance the fixture. Tighten the bolts to secure. See Add Accessories on page7 .
EZoom knob: Rotate the zoom knob on either side of the fixture to adjust from spot to flood.
FNFC(Near Field Communication) tag: Use the Set Light app to wirelessly configure the fixture,
with or without power applied to the fixture. See
Set Up Wireless Control on page18
.
GUser interface: View the fixture status, set the DMXaddress and mode, or set stand-alone
options.
HAntenna: For use when controlling the fixture using wireless DMX. See Set Up Wireless Control
on page18
.
ISafety cable attachment point: See Mount the Fixture on page7 .

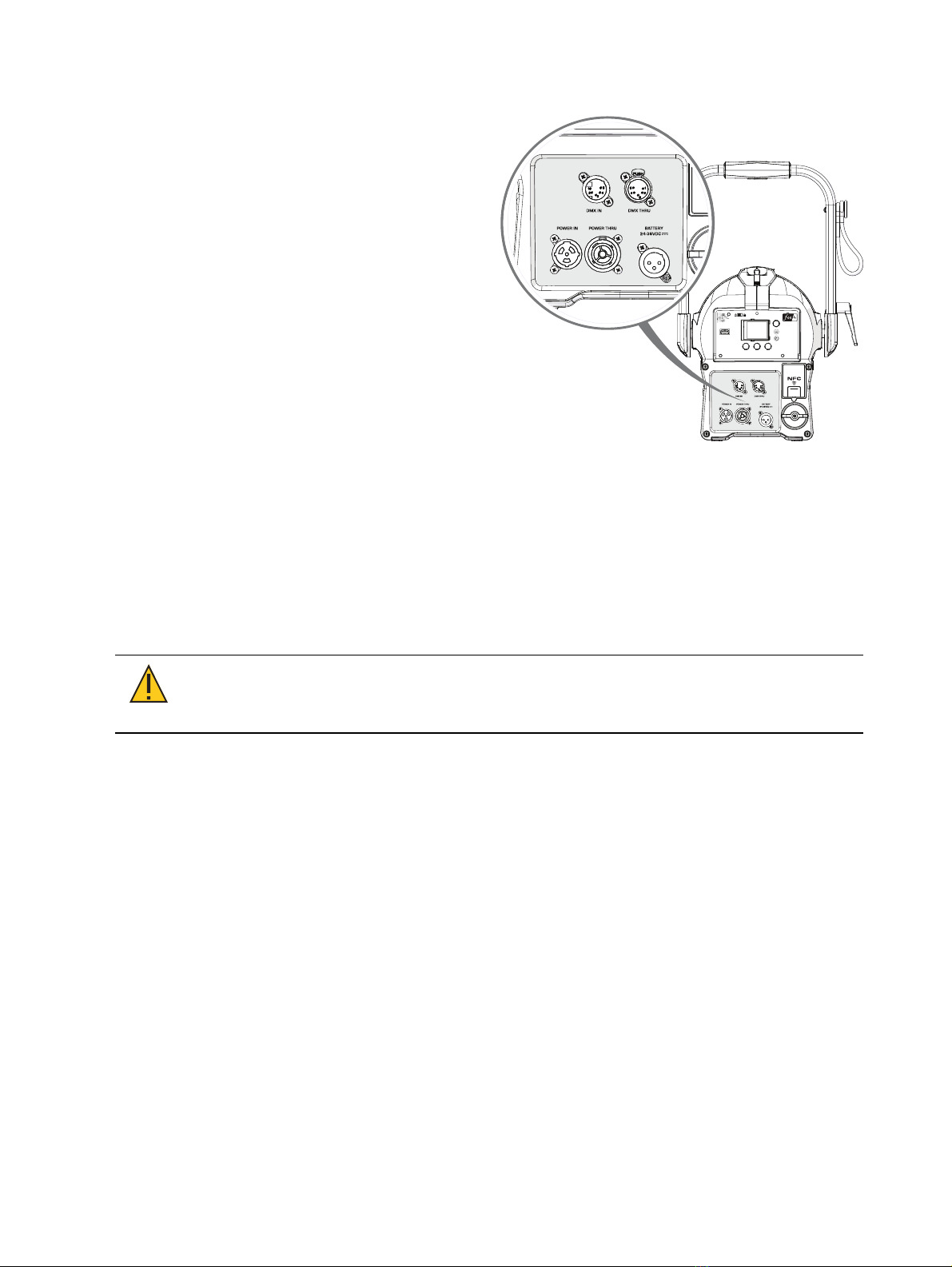

JDMX In and DMX Thru connectors: Five-pin XLRconnectors for DMX/RDM in and thru.
KPower In and Power Thru connectors: powerCON®TRUE1 TOP connectors for power in and
thru.
LBattery connector: Three-pin XLRconnector for battery power. Connect the fixture to battery
power only when AC power is not available. Maximum fixture output may be reduced when
powered by battery.

6 fos/4 Fresnel User Manual
User Interface
Effects
Effect Flicker
Rate 200
Min 0%
Max Int 100%
DMX
B
A
E
F
G
C
D

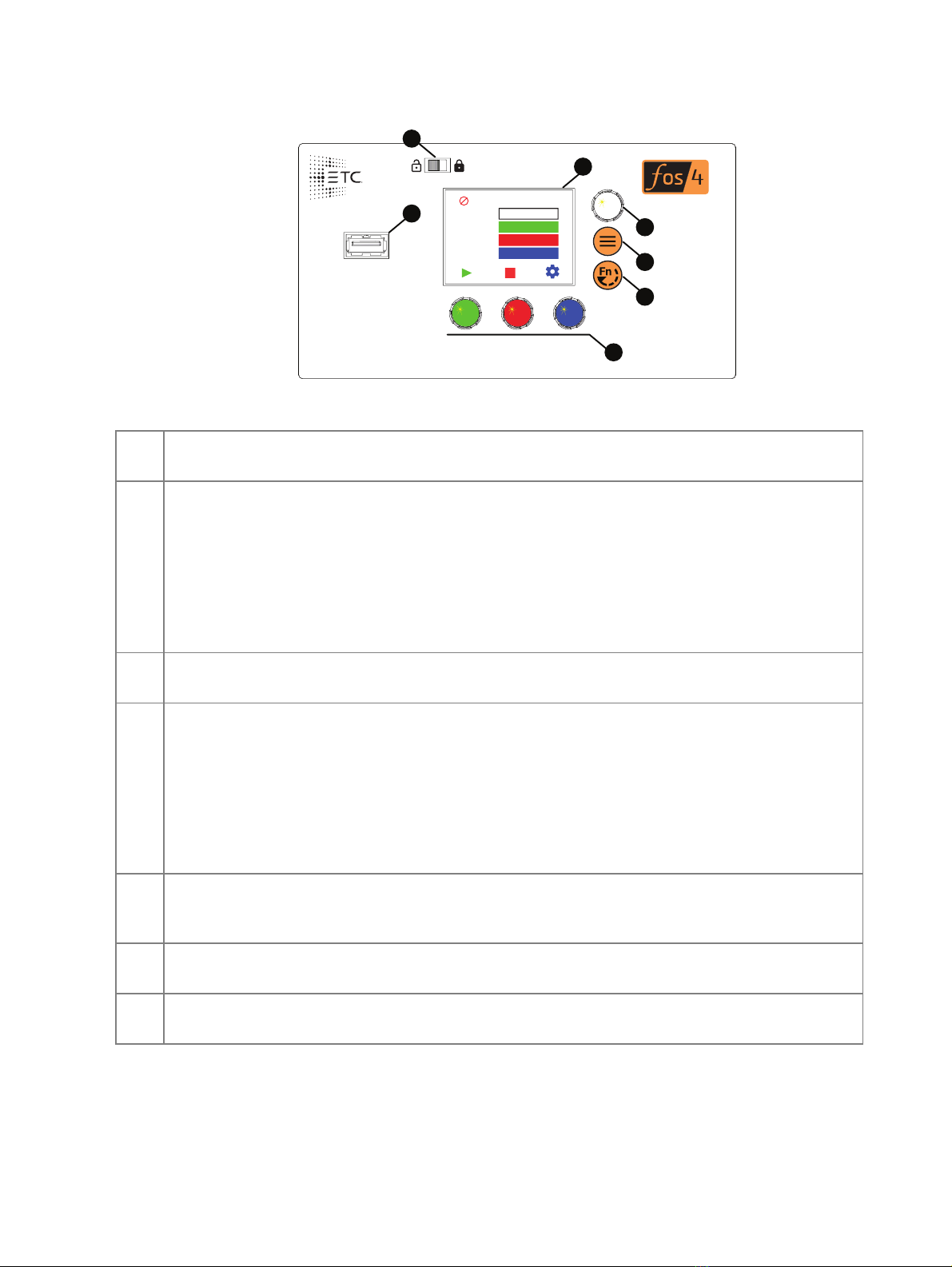

ADisplay: The colors of options on the display correspond to the colors of the encoders below the
display (E) and the Intensity encoder to the right of the display(B).
BIntensity encoder:
•
When in DMX mode, press the Intensity encoder to enter Focus mode when focusing the
fixture.
•
When configuring the fixture in one of the stand-alone modes, press the Intensity encoder to
toggle between the current intensity and 0, or turn the Intensity encoder to modify the white
fields on the display. See Use Fixture in Stand-aloneMode on page13 .
•
When navigating from the Main Menu screen, turn the Intensity encoder to scroll through
menu options, and then press the Intensity encoder to select a menu option.
CMenu button: Press to view the Main Menu screen and configure the fixture. Press the button
again to return to the previous screen when you are setting configuration options.
DFunction button: Press repeatedly to toggle through the following modes:
•
DMX:View and set DMX parameters for the fixture.
•
Studio: Use one of three studio (white light) presets, or customize the presets.
•
Color: Use one of 12 color presets, or customize the presets.
•
Effects:Use one of 12 effects, or customize the effects.
•
Preset: Use one of 12 presets (color preset + fade time), or customize the presets.
See Use Fixture in Stand-aloneMode on page13 and Use Fixture in DMX Mode on page9 .
EEncoders(Red, Green, Blue):The colors of encoders correspond to options on the display.
Press to activate the options at the bottom of the display, or turn to modify the values on the
display.
FUSB port: Use for updating firmware, saving and loading fixture configuration settings, or
saving error logs via a flash drive. See Troubleshooting and Maintenance on page20
.
GUI lock: Set this switch to lock the UI. This prevents inadvertent changes to the UI. See Lock the
Display on page19
.

Set Up and Focus the Fixture 7
Set Up and Focus the Fixture
WARNING: Note the following safety warnings before use:
•
Only use mounting hardware that is rated for the total weight of the
fixture and accessories.
•
In addition to primary suspension, attach a safety cable (or other
approved safety device) to the fixture. Safety cables must be rated to
support ten times the fixture weight. Consult local standards to ensure
that safety cables meet all requirements. See Mount the Fixture below .
•
Check that the accessory holder is locked and that any accessory safety
cables are connected before mounting the fixture.
AVERTISSEMENT : Prendre connaissance des avertissements de sécurité
suivants avant toute utilisation :
•
N’utilisez que de la quincaillerie de montage adaptée au poids total
des projecteurs et des accessoires.
•
En plus de la suspension principale, fixez une chaîne de sécurité (ou
tout autre dispositif de sécurité homologué) au projecteur. Les chaînes
de sécurité doivent être en mesure de supporter dix fois le poids du
projecteur. Consultez les normes locales pour vous assurer que les
câbles de sécurité respectent toutes les exigences.
•
Vérifiez que le porte-accessoires est verrouillé et que les élingues de
tous les accessoires sont bien attachées avant de monter le projecteur.
B
A
Mount the Fixture
You can mount the fixture using a clamp, baby-pin (16mm) receiver,
or spigot on the yoke(A), or you can set the fixture on the floor or
another flat surface. When suspending the fixture, make sure to
secure the fixture with an appropriate safety cable at the safety cable
attachment point (B).
If necessary, move the adjustable yoke (Din image below) to balance
the fixture. Use a 13 mm socket wrench to loosen the bolt and shift the
yoke position, and then tighten the bolt to secure the yoke.
D
C
C
Add Accessories
You can use up to two standard accessories (one scrim
and one additional accessory, such as a barn door) in the
accessory holder.
1. Unlock the accessory holder on either side by
pressing the spring-release and rotating the
accessory holder lock (C).
2. Slide an accessory into one of the accessory slots.
Add a second accessory in the other slot, if needed.
3. Lock the accessory holder by rotating the accessory
holder lock back into place.
4. If necessary, move the adjustable yoke (D) to
balance the fixture when using heavier accessories.

8 fos/4 Fresnel User Manual
Connect Power and Data
1. Attach five-pin XLR cable to the
DMX In connector (if using
external control).
2. Plug the XLR cable (if using) into
the DMX source or data daisy-
chain.
3. Use the DMX Thru connectors to
connect up to 32 device loads on
the DMX daisy chain.
4. Are you using AC power or
battery power?
•
AC power: Continue to step5.
•
Battery power:Continue to
step6.
5. Use the Power Thru connectors
to connect other fixtures using
the following recommended
guidelines, and then continue to step 6:
•
Power Thru: Link up to 6 additional fixtures (12A max) via Power Thru connector
when using an R20 Relay Module (consult breaker-trip curves when using other
equipment).
6. Supply power to the fixture in one of these ways:
•
Attach the power cable to the Power In connector, and then plug the power cable into
AC power (100–240VAC, 50/60 Hz) on a non-dimmable circuit.
•
Attach the three-pin XLR cable to the Battery connector, and then plug the cable into
the battery (24–36VDC). Cable must be rated for 10A or greater.
CAUTION: Do not connect the fixture to the battery when AC power is
present. Maximum fixture output may be reduced when the fixture is
connected to battery power.
Focus the Fixture
1. Apply power to the fixture, and wait until the fixture has booted up(the ETC splash screen
displays during boot up).
2. Press any encoder to "wake" the display.
3. What screen is currently displayed?
•
DMX:Press any encoder to leave the view-only screen, and then press the Intensity
encoder to turn on the LED array. The display shows a timeout countdown to indicate
how long the LED array will remain on at 100% intensity. You can turn the Intensity
encoder to reset the timeout countdown to 5minutes.
•
All other screens (Studio, Preset, etc.): Press the Intensity encoder to turn on the
LEDarray, and turn the Intensity encoder to adjust the intensity.
4. Adjust the fixture to the desired position.
5. Rotate the zoom knob on either side of the fixture to adjust from spot to flood.
6. Press the Intensity encoder to turn off the LEDarray.

Use Fixture in DMX Mode 9
Use Fixture in DMX Mode
After you connect power and data to the fixture and provide DMX, press the Function button ( )
repeatedly to toggle to the DMX screen, where you can set the DMX address, DMXmode, and
DMXloss behavior. (You can also set these values using RDM.)
The DMX screen displays the current DMX values. Press any of the encoders to "wake" the
display, and then press any of the encoders to edit the values. The colors of the encoders
correspond to options on the display. Turn an encoder to modify the corresponding value, and
then press the encoder to save all values on the screen.
After you wake the display, you can press the Intensity encoder to enter Focus mode. See Focus
the Fixture on the previous page .
DMX
Address
Mode
DMX Loss
1/3 Red
DMX
Address
Mode
DMX Loss
1/3 Red
001
3 Ch RGB
HLL
001
3 Ch RGB
HLL 2 Min
Press any encoder to wake the display... ...and then turn an encoder to modify the value in
the matching field. Press an encoder again to save
the value and return to the view-only screen.
Note: If the colors on the display or on the encoders are difficult to discern, you can
navigate based on position rather than color:
•
Top value = Left encoder
•
Middle value = Center encoder
•
Bottom value = Right encoder

10 fos/4 Fresnel User Manual
Set DMXAddress
In the DMX screen, turn the green encoder to set the DMX address. The default address is 001.
Set DMXMode
In the DMX screen, turn the blue encoder to set the DMX mode.
•
Direct: Direct control of emitters.
•
Expanded: Combines RGBcontrol with Studio control. The Mix control channel in
Expanded mode moves control from full RGB mode to full Studio mode.
•
Studio:CCT (Correlated Color Temperature) control, Tint control (from -10 to 10 green),
and Tuning control ranging from Brightest to Spectral. This is the default mode for
Daylight HDRfixtures.
•
3 Ch RGB: Standard RGB control. In RGB mode, the Curve is always set to Incandescent
and the Fan is always set to Auto. This is the default mode for Lustr X8 fixtures.
•
1 Channel:Intensity control for preset 1. (See Preset Mode on page17 .) In 1 Channel
mode, the Curve is always set to Incandescent and the Fan is always set to Auto.
DMXModes
Direct
(DaylightHDR)
Direct
(Lustr X8) Expanded Studio 3 Ch RGB 1 Channel
RDMPersonality ID 1 1 2 3 4 5
DMXChannel 
1 Intensity Intensity Intensity Intensity Red Intensity
2 Deep Red Deep Red CCT*CCT*Green
3 Red Red Tint*Tint*Blue
4 Mint Amber Tuning*Tuning*
5 Cyan Lime Mix*Strobe*
6 Blue Green Red Curve*
7 Indigo Cyan Green Fan*
8 Strobe*Blue Blue
9 Curve*Indigo Strobe*
10 Fan*Strobe*Curve*
11 Curve*Fan*
12 Fan*
* See DMX Control Channels below for the DMXvalues that set these parameters.
DMX Control Channels
Parameter DMX Value Description Comments
CCT 0 3200K
1–165 1900–6000K CCTvalues increase by 25 for each DMX value
(1=1900K, 2 =1925K, etc.).
166–254 6050–10,450K CCTvalues increase by 50 for each DMX value
(166=6050K, 167=6100K, etc.).
255 5600K

Use Fixture in DMX Mode 11
Parameter DMX Value Description Comments
Curve 0–9 Incandescent
10–19 Linear
20–29 Incandescent Red Shift In Direct Mode, the fixture uses Incandescent instead of
Incandescent Red Shift.
30–39 Linear Red Shift In Direct Mode, the fixture uses Linear instead of Linear
Red Shift.
40–255 Reserved All modes use Incandescent in the range of DMXvalues
for Reserved.
Fan 0–9 Auto
10–19 Off When the fixture gets too hot, the fixture reduces the
intensity instead of turning on the fan.
20 Slow Minimum fan speed. When the fixture gets too hot, the
fixture reduces the intensity instead of adjusting the
fan.
21–248 Linear Increase in Speed When the fixture gets too hot, the fixture reduces the
intensity instead of adjusting the fan.
249 Fast Maximum fan speed (100%). When the fixture gets too
hot, the fixture reduces the intensity instead of
adjusting the fan.
250–255 Auto
Mix 0 Full Studio
1–254 Linear interpolation from
Studio to RGB
255 Full RGB
Strobe 0 No Strobe Shutter open
1–40 Dark Strobe Range is 1–40Hz.
41–80 Bright Strobe Range is 1–40Hz.
81–120 Pulse Strobe Strobe includes a fade up and fade down on each pulse.
121–160 Random Strobe Strobe pulses at random intervals.
161–200 Flicker Effect Strobe pulses at random intervals and at random
intensity levels.
201–240 No Strobe Shutter open
241–254 LEDs Off Shutter closed
255 No Strobe Shutter open
Tint 0 Neutral
1–127 Linear between +10 and 0 Tint shifts toward green (+10) as the DMXvalue
decreases to 1.
128 Neutral
129–255 Linear between 0 and -10 Tint shifts toward magenta (-10) as the DMXvalue
increases to 255.
Tuning
(Color
calculation
method)
0–49 Brightest Calculation uses a combination of LEDs to produce the
brightest version of the selected chromaticity.
50–99 Hybrid Calculation is halfway between the brightest and the
best spectral match of the selected chromaticity.
100–149 Spectral Calculation uses a combination of LEDs to produce the
best spectral match of the selected chromaticity. The
Spectral option results in higher color rendering, but
lower intensity levels.
150–255 Reserved This range is reserved for future development, but
currently outputs the Brightest color calculation
method.

12 fos/4 Fresnel User Manual
Set DMX Loss Behavior
In the DMX screen, turn the red encoder to set the DMX loss behavior. Options are:
•
Instant:The fixture immediately goes dark.
•
HLL 2min:Hold last look for two minutes or until you make local changes. If you make no
changes during the two minutes, the fixture fades out over two seconds.
•
HLL:Hold last look until you make local changes. This is the default setting.
•
Preset 12: Two-second fade from last look to Preset 12.

Use Fixture in Stand-aloneMode 13
Use Fixture in Stand-aloneMode
After you connect power to the fixture, press the Function button ( ) repeatedly to toggle
through the following stand-alone modes:
•
Studio: Use one of three studio (white light) presets, or customize the presets.
•
Color: Use one of 12 color presets, or customize the presets.
•
Effects: Use one of 12 effects, or customize the effects.
•
Preset: Use one of 12 presets (color preset + fade time), or customize the presets.
The colors of options on the display correspond to the colors of the encoders below the display
and the Intensity encoder to the right of the display. Turn an encoder to modify the
corresponding value on the display, or press an encoder to activate the corresponding option at
the bottom of the display. Press the Intensity encoder to toggle between the current intensity
and 0%.
If the fixture is connected to other fos/4 Fresnel fixtures that are in the same stand-alone mode,
the connected fixtures will play the same preset or effect.
Note: If the colors on the display or on the encoders are difficult to discern, you can
navigate based on position rather than color:
•
Intensity = Intensity encoder
•
From top to bottom (in main section of display):
-
Top value = Left encoder
-
Middle value = Center encoder
-
Bottom value = Right encoder
•
From left to right (at bottom of display):
-
Left value = Left encoder
-
Center value = Center encoder
-
Right value = Right encoder

14 fos/4 Fresnel User Manual
Studio Mode

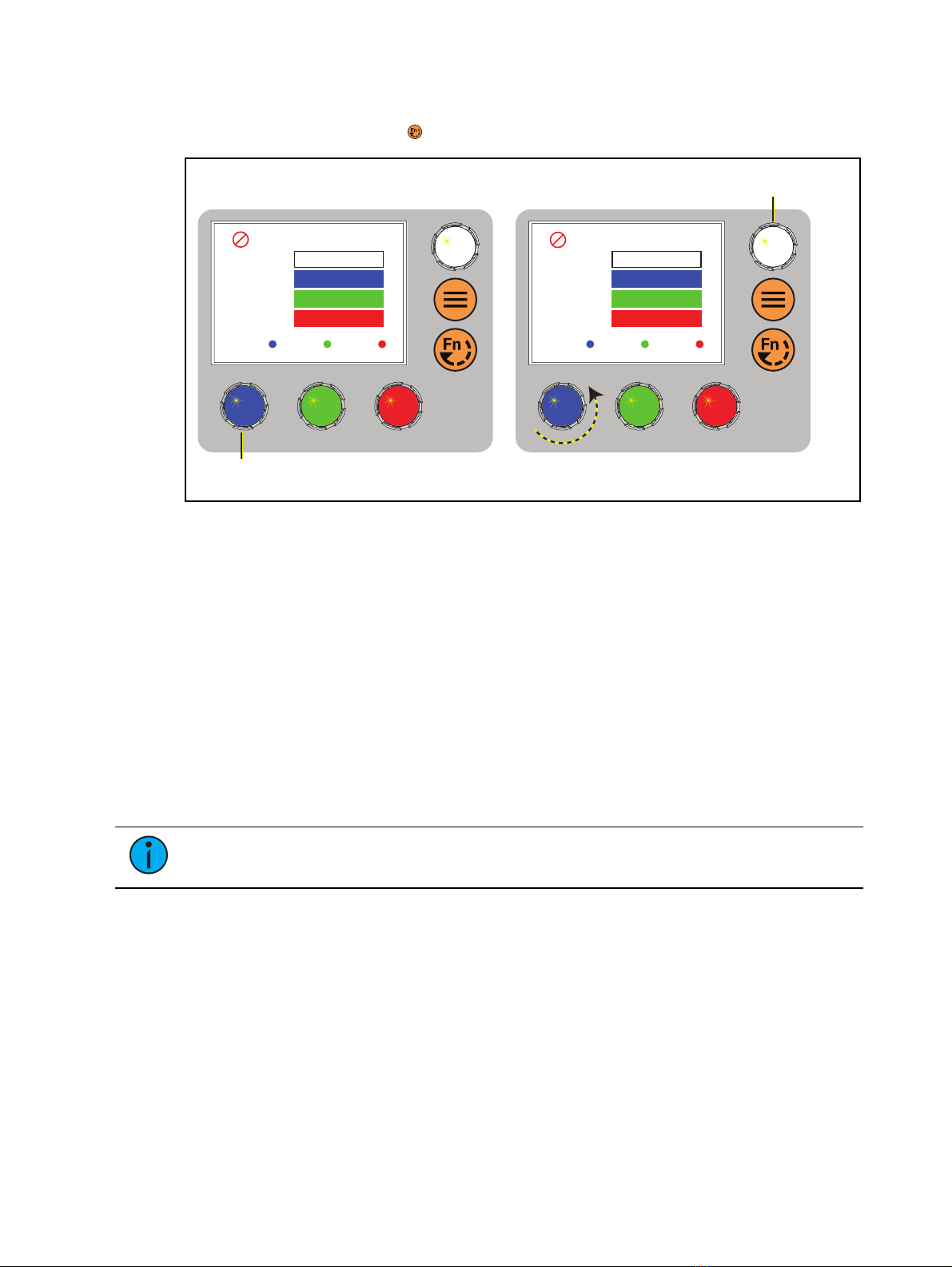

1. Press the Function button ( ) until the display shows the Studio screen.
Studio
3200K 4500K 5600K
CCT 3200 K
Tint 0.0 Green
Tune Brightest
Int 100%
Studio
3200K 4500K 5600K
CCT 3125 K
Tint 0.0 Green
Tune Brightest
Int 100%
Press an encoder to play that
studio preset...
...or turn an encoder to modify the
value in the matching field.
Turn to adjust intensity, or press to
toggle between current intensity and 0.
DMX
DMX
2. Press the color encoder that matches the studio preset you want to use (Blue = 3200K,
Green= 4500K, Red= 5600K).
More Options
•
Turn off the preset: Press the Intensity encoder to toggle the intensity value from the
current value to 0. Press the Intensity encoder again to toggle back to the previous
intensity value.
•
Modify the preset:Turn the encoders to change the corresponding values. For example,
turn the Intensity encoder to change the intensity value, or turn the blue encoder to
change the color temperature value.
•
Revert to the original preset:Press the encoder that corresponds to the preset again to
restore the original values.
•
Save the modified preset:Press and hold the encoder that corresponds to the preset that
you want to re-record. The display shows a three-second countdown before re-recording
the preset.
Note: The CCT,Tint, and Tune values match the values that are available when the
DMX mode is set to Studio. See DMX Control Channels on page10.

Use Fixture in Stand-aloneMode 15
Color Mode
1. Press the Function button ( ) until the display shows the Color screen.
Color
P1 P2
20
29
H: S: I: 97%
Page 1
Color
P3 P4
20
29
H: S: I: 97%
Page 2
Press and hold an encoder to
record the color to that preset.
Turn the green or blue encoder to
modify the value in the matching field.
Turn the red encoder to move
to another page of presets.
Turn to adjust intensity, or press to
toggle between current intensity and 0.
DMX
DMX
2. Turn the encoders to change the corresponding values. For example, turn the Intensity
encoder to change the intensity value, or turn the green encoder to change the hue value.
The crosshairs on the display indicate the approximate color.
You can use a preset as a starting point for a color by pressing the color encoder that
matches the preset. Turn the red encoder to move to another page of presets.
Number Preset
1 3200K
2 4500K
3 5600K
4 Yellow
5 Dark Straw
6 Red
Number Preset
7 Medium Pink
8 Magenta
9 Medium Blue
10 Primary Blue
11 Blue Green
12 Green
More Options
•
Turn off the color: Press the Intensity encoder to toggle the intensity value from the
current value to 0. Press the Intensity encoder again to toggle back to the previous
intensity value.
•
Revert to the original color of a preset: Press the encoder that corresponds to the preset
again to restore the original values.
•
Save the color to a preset:Press and hold the encoder that corresponds to the preset that
you want to re-record. The display shows a three-second countdown before re-recording
the preset. Changes that you make to presets in the Color screen also affect presets in the
Effects screen and the Preset screen.

16 fos/4 Fresnel User Manual
Effects Mode

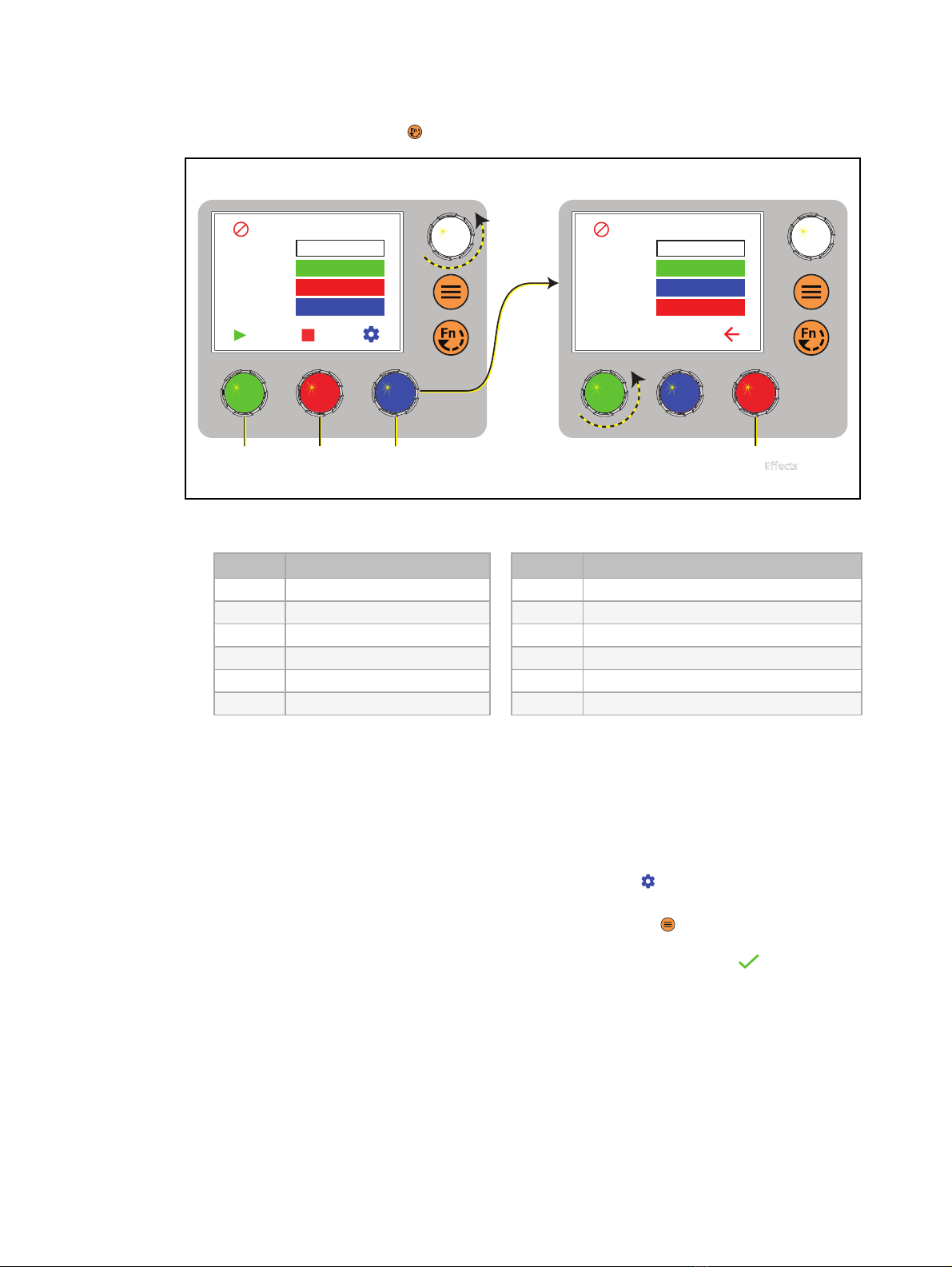

1. Press the Function button ( ) until the display shows the Effects screen.
Effects
Effect TV Set
Rate 250
Min 0%
Max Int 100%
Settings
Style Custom
Step 1
Preset 1
Max Int 100%
Turn to select effect,
and then press to
play/pause the effect.
Turn to modify
the value in the
matching field.
Press to
stop the
effect.
Press to
modify the
effect.
Press to return
to the Effects
screen.
Turn an encoder to modify the
value in the matching field.
DMX
DMX
2. Turn the green encoder to select an effect, and then press the encoder to play the effect.
Effect Description
Flicker Fire or candle
Siren Police or emergency vehicle lights
Lightning Lightning strikes
Beacon Rhythmic flashing
TV Set Flickering television screen
Projector Flickering film projector
Effect Description
Camera Paparazzi flashbulbs
Electrical Occasional increases in intensity
Party Rhythmic pulsing with bumps through colors
Fireworks Bursts in random colors that fade
Explosion Bursts in a selected color that fade
Sequence Series of presets
More Options
•
Pause the effect: Press the green encoder again. The green encoder toggles between play
and pause. When you press the green encoder to play the effect again, the fixture
resumes the effect from where you paused it.
•
Stop the effect:Press the red encoder. When you press the green encoder to play the
effect again, the fixture plays the effect from the beginning.
•
Modify the effect:Turn the encoders to change the corresponding values. To modify the
effect further, press the blue encoder (for the Settings icon ) to modify the settings for
the effect.
•
Push the effect to connected fixtures:Press the Menu button ( ), and then use the
Intensity encoder to navigate through the menu: Local Settings>Push Effects. When the
screen prompts you to confirm, press the green encoder (for the OK icon ) to continue.
