746ER & 780D
746ER & 780D

18
1) ATTENTION! To ensure the safety of people, it is important that you read
all the following instructions. Incorrect installation or incorrect use of
the product could cause serious harm to people.
2) Carefully read the instructions before beginning to install the product.
3) Do not leave packing materials (plastic, polystyrene, etc.) within reach
of children as such materials are potential sources of danger.
4) Store these instructions for future reference.
5) This product was designed and built strictly for the use indicated in this
documentation. Any other use, not expressly indicated here, could
compromise the good condition/operation of the product and/or be a
source of danger.
6) FAAC declines all liability caused by improper use or use other than that
for which the automated system was intended.
7) Do not install the equipment in an explosive atmosphere: the presence
of inflammable gas or fumes is a serious danger to safety.
8) The mechanical parts must conform to the provisions of Standards EN
12604 and EN 12605.
For non-EU countries, to obtain an adequate level of safety, the Standards
mentioned above must be observed, in addition to national legal
regulations.
9) FAAC is not responsible for failure to observe Good Technique in the
construction of the closing elements to be motorised, or for any
deformation that may occur during use.
10) The installation must conform to Standards EN 12453 and EN 12445.
Fornon-EUcountries,toobtainanadequate level of safety, theStandards
mentioned above must be observed, in addition to national legal
regulations.
11) Before attempting any job on the system, cut out electrical power .
12) The mains power supply of the automated system must be fitted with an
all-pole switch with contact opening distance of 3mm or greater. Use
of a 6A thermal breaker with all-pole circuit break is recommended.
13) Make sure that a differential switch with threshold of 0.03 A is fitted
upstream of the system.
14) Make sure that the earthing system is perfectly constructed, and
connect metal parts of the means of the closure to it.
15) The automated system is supplied with an intrinsic anti-crushing safety
device consisting of a torque control. Nevertheless, its tripping
threshold must be checked as specified in the Standards indicated at
point 10.
16) The safety devices (EN 12978 standard) protect any danger areas
against mechanical movement Risks, such as crushing, dragging,
and shearing.
17) Use of at least one indicator-light (e.g. FAACLIGHT ) is recommended
for every system, as well as a warning sign adequately secured to the
frame structure, in addition to the devices mentioned at point “16”.
18) FAAC declines all liability as concerns safety and efficient operation
of the automated system, if system components not produced by
FAAC are used.
19) For maintenance, strictly use original parts by FAAC.
20) Do not in any way modify the components of the automated system.
21) The installer shall supply all information concerning manual operation
of the system in case of an emergency, and shall hand over to the
user the warnings handbook supplied with the product.
22) Do not allow children or adults to stay near the product while it is
operating.
23) Keep remote controls or other pulse generators away from children,
to prevent the automated system from being activated involuntarily.
24) Transit is permitted only when the automated system is idle.
25) The user must not attempt any kind of repair or direct action whatever
and contact qualified personnel only.
26) Maintenance: check at least every 6 months the efficiency of the
system, particularly the efficiency of the safety devices (including,
where foreseen, the operator thrust force) and of the release devices.
27) Anything not expressly specified in these instructions is not permitted.
WARNINGS FOR THE INSTALLER
GENERAL SAFETY OBLIGATIONS
EC DECLARATION OF CONFORMITY FOR MACHINES
(DIRECTIVE 98/37/EC)
Manufacturer: FAACS.p.A.
Address: Via Benini, 1 - 40069 Zola Predosa BOLOGNA - ITALY
Declares that: Operator mod. 746ER with electronic control unit 780D
• isbuilt to be integrated into a machine ortobeassembledwithother machinery to create a machine under theprovisions
ofDirective98/37/EC;
• conforms to the essential safety requirements of the following EEC directives:
73/23/EECand subsequent amendment 93/68/EEC.
89/336/EECand subsequent amendment 92/31/EEC and 93/68/EEC
and also declares that it is prohibited to put into service the machinery until the machine in which it will be integrated or
ofwhichit will become a component has beenidentifiedanddeclared as conforming to the conditions of Directive98/
37/EC.
Bologna, 01 January 2004
TheManaging Director
A. Bassi

19
MODEL 746
Power supply (Vac +6% -10% 50-60Hz) 230
Absorbed power (W) 300
Reduction ratio 1 : 30
Type of pinion Z20 - Z16
Rack Module 4 - step 12.566
Max. thrust (daN) 50 (Z20) - 62,5 (Z16)
Max. Torque (Nm) 20
Winding thermal protection (°C) 120
Use frequency 70% (see graph)
Oil quantity (l) 1,8
Type of oil FAACXD220
Operatine ambient temperature (°C) -20 ÷ +55
Gearmotor weight (Kg) 14
Protection class IP 44
Gate max. weight (Kg) 400 (Z20) - 600 (Z16)
Gate speed (m/min) 12 (Z20) - 9,6 (Z16)
Gate max. length (m) (time-out) 50 (Z20) - 40 (Z16)
Clutch twin-diskin oil bath
Protective treatment cataphoresis
Equipment 780D
Limit-switch MSLorinductive
Gearmotor overall dimensions LxHxD (mm) see Fig. 2
Electric motor technical specifications
RPM 1400
Power (W) 300
Absorbed current (A) 1.5
Starting capacitor (µF) 25
Power supply (Vac +6% -10%; 50-60Hz) 230
% Freq.
Utilizzo
% Fréq.
d’utilisation
%
Benutzungs-
frequenz
% Frecuencia
de utilización
%
gebruiks
-
frequentie
%
Duty
Cycle
0
10
20
30
40
50
60
70
80
90
100
1234567 89101112
Tempo (h) Time (h) Temps (h) Zeit (h) Tiempo (h) werktijd (h)
These instructions apply to the following models:
746 ER Z16 - 746 ER Z20 - 746 ER CAT - 746 ER RF
The FAAC mod. 746 automated system for sliding gates is an
electro-mechanicaloperatortransmittingmotion to the sliding leaf
via a rack or chain pinion appropriately coupled to the gate.
Thenon-reversing system ensuresthe gate ismechanically locked
whenthemotorisnotoperatingand,therefore,no lock needs to be
installed.
The gearmotor is equipped with a mechanical clutch which,
combinedwithanelectronicdevice, offersthenecessary adjustable
anti-crushingsafetyandguarantees stopping or reversing the gate
movement.Ahandy manual release makesitpossibleto move the
gate in the event of a power cut or malfunction. The electronic
control equipment is equipped with a gearmotor and is housed
insidethe operator.
The 746 automated system was designed and manufactured to
control access of vehicles. Avoid any other use whatever.
Tab. 1 TECHNICALSPECIFICATIONS OF 746 GEARMOTOR
where:
Ta = opening time
Tc = closing time
Tp = pause time
Ti = timeof interval betweentwo complete cycles
Usefrequency graph
Securing corners
Pinion
Limit sensor switch
Operator cover
780 D Control board
Adjustment screw for
anti-crushing clutch
Oil filling plug
Operator earthing
Lever operated release system
Protective side panels
Cover for 780D control board
AUTOMATEDSYSTEM746&ELECTRONICCONTROLUNIT780D
1. DESCRIPTION AND TECHNICAL SPECIFICATIONS
1.1. MAXIMUM USE CURVE
The curve makes it possible to establish maximum work time (T)
accordingto use frequency(F).
E.g.: The 746 gearmotor can operate non-stop at 70% use
frequency.
Toensure efficient operation,operatein the workrange below the
curve.
Important:The curve is obtained at a temperature of 24°C. Exposure
to the direct sun rays can reduce use frequency down to 20%.
Calculation of use frequency
Thepercentageofeffectiveworktime(opening+closing)compared
to total time of cycle (opening + closing + pause times).
Calculationformula:
Ta + Tc
%F = X 100
Ta + Tc + Tp + Ti
Fig. 1












20
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 2
Fig. 3
2. DIMENSIONS
3. ELECTRICEQUIPMENT(standardsystem)
To make the connections efficiently, allow the cables to
project by about 40 cm from the hole (Figs.5-6 ref.) of the
foundation plate.
4. INSTALLATIONOFTHE AUTOMATEDSYSTEM
4.1. PRELIMINARYCHECKS
To ensure safety and an efficiently operating automated system,
makesure thefollowing conditions are observed:
• Thegate structure must besuitableforautomation.Thefollowing
arenecessary inparticular:wheeldiameter mustbeinproportion
tothe weight of thegatetobeautomated,anupperguide must
be provided, plus mechanical stop limits to prevent the gate
derailing.
• The soil must permit sufficient stability for the foundation plinth.
• Theremust be no pipes or electric cablesintheplinthexcavation
area.
• Ifthegearmotorisexposedtopassingvehicles,install, if possible,
adequatemeans of protectionagainst accidental impact.
• Checkif an efficientearthing is availablefor connection tothe
gearmotor.
4.2. MASONRY FOR FOUNDATION PLATE
1) Assemble the foundation plate as shown in figure 4.
2) The foundation platemustbelocated as shown infigure5 (right
closing) or figure 6 (left closing) to ensure the rack and pinion
meshcorrectly.
3) Prepare a foundation plinth as shown in fig.7 and wall the
foundation plate, supplying one or more sheaths for routing
electriccables. Using aspirit level, checkif the plate isperfectly
level. Wait for the cement to set.
4) Lay the electric cables for connection to the accessories and
power supply as shown in figure 3.
4.3. MECHANICALINSTALLATION
1) Assemble the securing corners and anti-vibration spacers on
the operator as shown in Fig. 8.
2) Open the cover,unscrewing the securing screws.
3) Place the operator on the plate, using the suppliedwashers and
nuts as shown in Fig. 9.
During this operation, route the cables through the duct inside
the lower half-casing of the operator (Fig.10 - Ref. A).
Toaccess the electronicequipment, route thecables through
theappropriate hole, using the suppliedrubber cable-clamp.
Make absolutely sure to unsheathe all the cables so that the
clamp holds single cables only (Fig.10 - Ref. B).


Operator 746
with 780D equipment
Photocells
Key-operated push-button
Flashing lamp
Radio receiver

21
AB
Fig. 8
Fig. 12
Fig. 10
Fig. 11
Fig. 9
Fig. 13
5) Secure the gearmotor to the foundation plate, tightening the
nuts as in Fig.12.
6) Prepare the operator for manualoperatingmodeasdescribed
in chapter 8.
4.4. INSTALLINGTHE RACK
4.4.1. STEEL RACK TO WELD (Fig.13)
1) Place the three threadedpawlsonthe
rackelement, positioning thematthe
topof the slot.In this way, theslot play
will enable any adjustments to be
made.
2) Manually take the leaf into its closing
position.
3) Lay the first piece of rack level on the
pinionand weld the threadedpawl
on the gate as shown in figure15.
4) Move the gate manually, checking if the rack is resting on the
pinion, and weld the second and third pawl.
5) Bring another rack element near to the previous one, using a
pieceof rack (as shown infigure 16) tosynchronise the teeth of
thetwo elements.
6) Move the gate manually and weld the three threaded pawls,
thus proceeding until the gate is fully covered.
Fig. 14
4.4.2. STEEL RACK TO SCREW (Fig. 14)
1) Manually take the leaf into its closing position.
2) Lay the first piece of rack level on
the pinion and place the spacer
between the rack and the gate,
positioning it at the top of the slot.
3) Mark the drilling point on the gate.
Drill a Ø 6,5 mm hole and apply
thread with a Ø 8 mm male tap.
Screwthe bolt.
4) Move the gate manually,checking
if the rack is resting on the pinion,
andrepeat the operations at point
3.
5) Bring another rack element near to the previous one, using a
pieceof rack (as shown infigure 16) tosynchronise the teeth of
thetwo elements.
6) Move the gatemanuallyandcarry out the securingoperations
as for the first element, thus proceeding until the gate is fully
covered.
Fig. 14bis
4.4.3. NYLON RACK TO SCREW (Fig.14bis)
1) Manually take the leaf into its
closing position.
2) Lay the first pieceof theracklevelon
thepinionandmarkthe drilling point
on the gate; drill Ø 4 mm and screw
the self-tapping screw 6 x 20 mm to
therelevant reinforcing plate.
3) Move the gatemanually, checking
if the rack is resting on the pinion,
and repeat the operations at point
2.
4) Bring another rack element near to the previous one, using
a piece of rack (as shown in figure 16) to synchronise the
teeth of the two elements.
5) Move the gate manually and carry out the securing
operations as for the first element, thus proceeding until the
gate is fully covered.

22
Fig. 15
Fig. 16
Fig. 19
Fig. 21
Fig. 20
Notes on rack installation
• Makesure that, duringthe gate travel,all the rack elementsdo
not exit the pinion.
• Do not, on any account, weld the rack elements either to the
spacers or to each other.
• When the rack has been installed, to ensure it meshes
correctly with the pinion, we advise
you to lower the gearmotor position
by about 1.5 mm (Fig.17).
• Manually check if the gate
habitually reaches the mechanical
stop limits and make sure there is no
friction during gate travel.
• Do not use grease or other lubricants
between rack and pinion.
4.5. INSTALLATION OF CHAIN PINIONS
In the versions for applications with chain and idle transmissions,
a Z16 or Z20 chain pinion must be installed. Proceed as follows:
4.5.1. MOD. 746 ER CAT (Figs. 18 - 19)
1) Insert the spring pin on the shaft, using a hammer.
2) Fit the chain pinion on the shaft, making the pinion seats
coincide with the spring pin and tighten the screw with the
appropriate washers.
Fig. 17
4.5.2. MOD. 746 ER RF (Figs. 20 - 21)
1) Insert the spring pin on the shaft, using a hammer.
2) Fit the idle transmissions bracket on the gearmotor flange,
using the four screws (M5 x 12) and the appropriate
washers , in the kit as shown in Fig. 20.
3) Fit the chain pinion on the shaft, making the pinion seats
coincide with the spring pin and tighten the screw  and
the appropriate washers  and .
4) Pass the chain as shown in Fig. 21 ref. A and install the
housing with screw  and washer  as in Fig. 20.
5) In case of operators with MLS limit switches, arrange the
supports for the positioning of the magnets supplied while
observing the dimensions given in fig. 21 ref. B.








0÷10 mm
5÷1
2
mm
Fig. 18
A
B

23
–
+
DL
Led
F1
J1
J2
Led
J5
F
J7
F2
J8
J6
Fig. 22
DL SIGNALLINGANDPROGRAMMINGDISPLAY
Led INPUTSSTATUSCONTROL LED
J1 LOWVOLTAGETERMINALBOARD
J2 CONNECTORFORDECODER/MINIDEC/RPRECEIVER
J5 CONNECTORFORMOTORSTARTINGCAPACITOR
J6 MOTORANDFLASHINGLAMPCONNECTIONTERMINALBOARD
J7 230Vac POWER SUPPLYTERMINAL BOARD
J8 DOUBLECONNECTOR J8 - LIMIT-SWITCH QUICK FIT
F1 MOTOR AND TRANSFORMER PRIMARY WINDING FUSE (F 5A)
F2 LOWVOLTAGE AND ACCESSORIESFUSE (T 800mA)
F"F"PROGRAMMING PUSH-BUTTON
–"–"PROGRAMMING PUSH-BUTTON
+"+"PROGRAMMINGPUSH-BUTTON
1OPENA(totalopening)
2OPENB(partialopening)
3FSW-OP(openingsafetydevices)
4FSW-CL(closingsafety devices)
5STOP
6SAFE(“edge”safetydevices)
7-(negative forpower supplyto accessories)
8-(negative forpower supplyto accessories)
9+24V (supply to accessories)
10 +24V (supply to accessories)
11 FSW-TX(negative for emittingphotocells - FAILSAFE)
12 W.L.(negativefor indicatorlight)
J1 CONNECTOR
Power supply V~ (+6% -10%) 230
Absorbed power (W) 10
Motor max. load (W) 1000
Accessories max. load (A) 0,5
Operating ambient temperature -20 °C +55 °C
Protection fuses 2 (see fig. 22 and par. 5.3)
Function logics: Automatic / “Stepped” automatic / Semi-automatic / Safety
devices / Semi-automatic B / Dead-man C / “Stepped” semi-automatic / Mixed B/C
logic
Work time Programmable (from 0 to 4,1 min.)
Pause time Programmable (from 0 to 4,1 min.)
Thrust force Adjustable over 50 levels
Terminal board inputs: Open - Partial Open - Opening safety devices - Closing safety
devices - Stop - Edge - Power supply+Earth
On-connector inputs Opening and closing limit-switch -
Motorcapacitor
Terminal board outputs: Flashing lamp - Motor - 24 Vdc accessories power supply
- 24 Vdc indicator-light / Timed output / Electric lock command - 'traffic lights' - Fail
safe
Rapid connector 5-pin card connection for Minidec, Decoder or RP receivers
Programming 3 keys (+, -, F) and display, "basic" or "advanced" mode
Basic mode programmable functions: Function logic - Pause time - Thrust Force
- Opening-closing direction
Advanced mode programmable functions: Torque at initial thrust - Braking - Fail safe
- Pre-flashing - Indicator-light/Timed output/Electric lock or 'traffic lights' command -
Opening and closing safety devices logic - Encoder/ Anti-crushing sensitivity -
Decelerations - Partial opening time - Work time - Assistance request - Cycle counter
5.2. TECHNICALSPECIFICATIONS
5.1. WARNINGS
Important: Before attempting any work on the control board
(connections,maintenance),alwaysturnoffpower.
- Install, upstream of the system, a differential thermal breaker with
adequatetrippingthreshold.
-ConnecttheearthcabletotheterminalonJ7connectoroftheboard,
and to the bush on the operator (figs. 22 and 40).
-Alwaysseparatepowercablesfromcontrolandsafetycables(push-
button, receiver,photocells, etc.).Toavoidanyelectricnoise,use
separatesheathsorashieldedcable(withearthedshield).
5. CONTROL BOARD 780D
5.3. LAYOUTAND COMPONENTS

24
SAFE
+
+
OPENB
OPENA
OP
CL
J1
J5

BLUE
SAFE
+
+
OPEN
B
A
OPEN
OP CL
SAFE
+
+
OPEN
B
A
OPEN
OP CL
SAFE
+
+
OPEN
B
A
OPEN
OP CL
Fig. 23
Fig. 24
Fig. 25
Fig. 26
Fig. 27
Fig. 28
5.4.1. Connection of photocells and safety devices
Before connecting the safety devices and photocells we advise
you to select the type of operation according to the movement
area they have to protect (see fig.24 for example):
Opening safety devices: they are tripped when an obstacle is
detected only during gate opening movement. They
cause immediate closure and resumption of opening
motion on release (see programming in par. 5.5.2.)
Closing safety devices: they are tripped when an obstacle is
detected only during gate closing movement. They
cause re-opening, either immediate or on release
(see programming in par. 5.5.2.)
Opening/closing safety devices: they are tripped during the
gate opening and closing movements. They cause
stopping and restart motion on release.
"Edge" safety devices: they are tripped during the gate opening
and closing movements. They cause immediate
reversal of motion and stopping after two seconds.
Encoder: it is tripped if there is an obstacle during gate opening
and closing movements. It causes immediate reversal
of motion and stopping after two seconds.
N.B. If two or more safety devices have the same function
(opening, closing, opening and closing, edge), the contacts
must be connected to each other in series (fig. 25).
N.C. contacts must be used.
N.B: If safety devices are not used, jumper connect the terminals
as shown in fig. 26.
The most common photocell and safety device lay-outs are
shown below (from fig. 27 to fig. 34).
230 Vac (max.
60W)
230Vac
50-60Hz
TOTAL
OPEN
PARTIAL
OPEN
STOP
For connection of the
photocells and safety
devices, see paragraph
5.4.1.
LIMIT-SWITCH
24 Vcc
max. 3W
Capacitor
5.4. ELECTRIC CONNECTIONS
Closing
photocells
Closing photocells
Opening or
opening/closing
photocells
"Edge" safety devices
Connection of two N.C. contacts in series
(e.g. Photocells, Stop, Edge, etc.)
Connection of no safety device
Connection of a closing safety device and an opening
safety device
Connection of an "edge" safety device

25
SAFE
+
+
OPEN
B
A
OPEN
OP
CL
RX OPTX OP
SAFE
+
+
OPEN
B
A
OPEN
OP CL
RX OP/CLTXOP/CL
RX OP TX OP
SAFE
+
+
OPEN
B
A
OPEN
OP
CL
SAFE
+
+
OPEN
B
A
OPEN
OP CL
SAFE
+
+
OPEN
B
A
OPEN
OP
CL
Fig. 30
Fig. 31 Fig. 33
Fig. 32
Fig. 29
Connection of a pair of closing photocells
Connection of a pair of opening photocells
Connection of a pair of opening photocells, a pair of closing
photocell and an edge safety device
Connection of a pair of closing photocells, a pair of opening
photocells and a pair of opening/closing photocells
Connection of two pairs of closing photocells and two
edge safety devices

26
RX OP/CL
TX OP/CL
SAFE
+
+
OPEN
B
A
OPEN
OP CL
Fig. 34
Fig. 35
5.4.2. J7 Terminal board - Power supply (fig. 23)
POWERSUPPLY (terminals PE-N-L):
PE: Earth connection
N:Power supply ( Neutral )
L:Power supply ( Line )
NB.:For correct operation, the board must be connected to the
earth conductor in the system. Install an adequate differential
thermal breaker upstream of the system.
Toinstallseveral partial opening pulse generators, connect
the N.O. contacts in parallel (fig.35).
FSW OP - Openingsafety devicescontact (terminal3): Thepurpose
oftheopeningsafetydevicesistoprotecttheleafmovement
area during opening. During opening, in the A-AP-S-E-EP
logicsthesafetydevicesreverse themovementofthegate,
or stop and restart the movement when it is released (see
advanced programminginChpt. 5.5.2).Duringtheopening
cyclein logics B,C and B/C,they interruptmovement.They
neveroperate during the closingcycle.
IftheOpeningsafetydevicesare engaged when the gate
isclosed,they prevent the opening movement.
Toinstallseveralsafetydevices,connecttheN.C.contactsin
series(fig.25).
NB.: If no opening safety devices are connected, jumper
connect inputs FSW OP and -TX FSW (fig. 26).
FSWCL - Closing safety devices contact (terminal4): The purpose
oftheclosingsafetydevicesistoprotectthegatemovement
area during closing. During closing, in the A-AP-S-E-EP
logics, the safety devices reverse the movement of the
gate,or stop and reverse the movementwhenitisreleased
(see advanced programming in Chpt. 5.5.2). During the
closingcycleinlogicsB,CandB/C,theyinterruptmovement.
Theynever operate duringtheopeningcycle.IftheClosing
safety devices areengaged when thegate is open,they
preventtheclosingmovement.
Toinstallseveralsafetydevices,connecttheN.C.contacts
inseries (fig.25).
NB.: If no closing safety devices are connected, jumper
connect terminals FSW CL and -TX FSW
(fig. 26).
STOP - STOPcontact(terminal5): any device (e.g.a push-button)
which, by opening a contact, stops gate movement.
Toinstall several STOP devices,connectthe N.C. contacts
in series (fig. 25).
NB.: If STOP devices are not connected, jumper connect
the STOP and -terminals.
SAFE- EDGEsafetydevicecontact(terminal6): The purposeofthe
"edge"safetydeviceisto protect the leaf movement area
during opening/closing. In all logics, during opening and
closing, the safety device reverses gate movement for 2
seconds.If the safetydevicesoperate again duringthe 2-
secondsreversingtime,itstopsmovement(STOP)withoutany
reversing.
Ifthe Edgesafetydeviceisengagedwhile thegateisclosed
oropen, it prevents movement.
Toinstallseveralsafetydevices,connecttheN.C.contactsin
series(fig.25).
NB.: If edge safety devices are not connected, jumper
connect the SAFE and - inputs (fig. 26).
–
Negative for power supply to accessories (terminals 7
and 8)
+ 24Vdc-Positiveforpowersupplytoaccessories(terminals
9 and 10)
Important:Accessories max. load is 500 mA. To calculate absorption
values, refer to the instructions for individual accessories.
Connection of a pair of closing photocells and a pair of
opening/closing photocells
Connection of two N.O. contacts in parallel
(e.g. Open A, Open B)
5.4.3. J6 Terminal board - Motors and flashing lamp
(fig. 23)
MOTOR - (terminals MOT-C, MOT-1, MOT-2): Motor connection
(see Par. 6.5).
LAMP - (terminals LAMP L, LAMP N): Flashing lamp output 230Vac
max 60W.
5.4.4. J1 Terminal board - Accessories (fig. 23)
Consult the relevant tables for a detailed description of
operation in the different logics
OPEN A - “Total Opening” command (terminal 1): any pulse
generator(push-button, detector, etc.)which,byclosinga
contact, commands total opening and/or closing of the
gateleaf.
Toinstall several totalopening pulse generators,connect
the N.O. contacts in parallel (fig. 35).
OPENB- “Partial opening”or“Closing”command (terminal 2):any
pulse generator (push-button, detector, etc.) which, by
closing a contact, commands partial opening and/or
closingofthe gate leaf. IntheB, C andB/Clogics, it always
commandsgate closure.

27
MINIDEC
PLUS
RP
F-
+
F
Fig. 37
Fig. 36
Fig. 38
Fig. 39
TX -FSW - Negative for power supply to photocell transmitters
(terminal11)
If you use this terminal for connecting the negative for
supplyingpower to the photocell transmitters, you may, if
necessary,also use the FAILSAFEfunction (see advanced
programming in Chpt. 5.5.2).
Ifthisfunctionisenabled,theequipment checks operation
of the photocells before every opening or closing cycle.
W.L. - Power supply to indicator light / timed exit / electric lock
/ 'traffic lights' (terminal 12)
Connect any 24 Vdc - 3 W max indicator light, timed exit,
commanddevice for electric lock or 'trafficlights'between
this terminal and the +24V (see advanced programming
in Chap. 5.5.2). To avoid geopardising correct operation
of the system, do not exceed the indicated power.
5.4.5. J2 Connector - Rapid connection to Minidec,
Decoder and RP
This is used for rapid connection of Minidec, Decoder and RP
receivers (see fig. 36, 37 and 38). Fit the accessory with the
components side toward connector J1. Insert and remove after
cuttingpower.
5.4.6. J5Connector-RapidconnectiontoCapacitor
Quick-fitconnector for connectingthemotor starting capacitor.
5.4.7. Double connector J8 - Limit-switch quick fit
Quick-fitconnector for connecting thelimit-switch. For connecting
both the MLS limit-switch and the inductive limit-switch (fig. 23
ref.) to the equipment.
5.5. PROGRAMMING
To program operation of the automated system, access the
"PROGRAMMING" mode with keys F,+ and -, and using the display
onthe equipment.
Attention: before attempting to power up the system, we advise
you to re-position the equipment's cover, to avoid coming into
contact with high voltage parts, and to use the push-buttons on
the cover to activate the keys (fig. 39).
BASICPROGRAMMING
Display Function Default
FUNCTION LOGICS (see table of logics):
= Automatic
= "Stepped" automatic
= "Safety" Automatic
= Semi-automatic
= "Stepped" Semi-automatic
= Dead-man
= "B" Semi-automatic
= Mixed Log. (B opening / C closing)
PAUSE TIME:
Thishaseffect only if theautomaticlogicwas
selected. Adjustable from to sec. in
one-secondsteps.
Subsequently, display changes to minutes
and tens of seconds (separated by a point)
and time is adjusted in 10-second steps, up
to the maximum value of minutes.
E.g. if the display shows , pause time is 2
min. and 50 sec.
5.5.1. BASICPROGRAMMING
Toaccess BASIC PROGRAMMING,press key F:
•if you press it (and hold it down), the display shows the name
of the first function.
•if you release the key, the display shows the value of the
function that can be modified with keys +and -.
•if you press Fagain (and hold it down), the display shows the
name of the next function, etc.
•when you reach the last function, press Fto exit the program,
and the display resumes showing the gate status.
Thefollowing table shows thesequenceof functions accessible in
BASICPROGRAMMING:
Programmingis divided in twoparts: BASIC and ADVANCED.

28
F+
+
FORCE:
AdjustsMotor thrust.
= minimum force
= maximum force
OPENINGDIRECTION:
Indicatesthe gate openingmovement and
makes it possible not to change the motor
connectionsontheterminalboard.
= Rightward opening movement
= Leftward opening movement
STATUSOF AUTOMATEDSYSTEM:
Exitfrom programming,savedata,andreturn
togate statusviewing.
= Closed
= Now opening
= At "STOP"
= Open
= Pause
= "FAIL SAFE" tripped
= Now closing
= Now reversing
= Photocells tripped
Display Function Default Display Function Default
Display Function Default
5.5.2. ADVANCEDPROGRAMMING
ToaccessADVANCEDPROGRAMMING,presskeyFand,asyouhold
it down, press key +:
•if you release key +, the display indicates the name of the first
function.
•if you release key Ftoo, the display shows the value of the
function that can be modified with keys +and -.
•if you press key F(and hold it down), the display shows the
name of the next function, and if you release it, the value that
can be modified with keys +and -is shown.
•when you reach the last function, press Fto exit the program,
and the display resumes showing the gate status.
The following table shows the sequence of functions accessible in
ADVANCEDPROGRAMMING:
ADVANCEDPROGRAMMING
MAXIMUMTORQUE ATINITIAL THRUST:
Themotoroperateatmaximumtorque(ignoring
thetorquesetting) at start of movement. Useful
forheavyleaves.
= Active
= Disabled
FINALBRAKING:
When the gate engages the opening or
closing limit-switch, a braking stroke can be
selected to ensure the leaf is stopped
immediately. If decelerations are selected,
braking starts when they finish.
At value, braking is disabled.
Time can be adjusted from to in
0.01-second steps.
= Braking disabled
from to = Timed braking
FAILSAFE:
Ifthis function is activated, it enablesafunction
test of the photocells before any gate
movement. If the test fails (photocells not
serviceable signalled by value on the
display), the gate does not start moving.
= Active
= Disabled
PRE-FLASHING(5 s):
Activatesthe flashing lampfor5seconds before
start of movement.
= Disabled
= Only before opening
= Only before closing
= Before every movement
CLOSINGPHOTOCELLS LOGIC:
Select the tripping mode of the closing
photocells.
They operate for the closing movement only:
they stop movement and reverse it when they
are released, or they reverse it immediately.
= Reverse on release
= Reverse immediately to opening
INDICATOR-LIGHT:
If is selected, the output functions as a
standard indicator-light (lighted at opening
and pause, flashing at closing, and off when
gate closed).
Courtesy light: Different figures correspond
to timed activation of the output, which can
be used (by a relay) to power a courtesy
lamp. Time can be adjusted from to
sec. in 1-second steps, and from to
min. in 10-second steps.
Electric lock command and 'traffic lights'
functions:
If you press key -from the setting, the
command for the closing electric lock is
activated;
If you press -again, the command for the
closing and opening electric lock is set;
if you press the - key again, you can set the
'traffic lights' functions and .
= Standard indicator-light
from to = Timed output.
= electric lock command before opening
movement
= electric lock command before
opening and closing movements
= 'traffic lights' function: the output is
active in "open" and "open on pause" status
and is disabled 3 seconds before the closing
manoeuvre starts.
Note: there is 3 seconds of pre-flashing before
the closing manoeuvre.
= 'traffic lights' function: the output is
active only in "closed" status.
Attention: do not exceed the output's
maximum load (24Vdc-3W). If necessary,
use a relay and a power supply source
outside the equipment.

29
Display Function Default Display Function Default
OPENINGPHOTOCELLS LOGIC:
Select the tripping mode of the opening
photocells.
They operate for the opening movement
only: they stop the movement and restart it
when they are released, or they reverse it
immediately.
= Reverse immediately to closing
= Restart movement on release
ENCODER:
Iftheencoderisused,youmayselectitspresence.
If the encoder is present and enabled,
"decelerations" and "partial opening" are
controlled by the encoder (see relevant
paragraphs).
Theencoderoperatesasananti-crushingdevice:
Ifthegate strikes an obstacle during opening or
closing,theencoderimmediately reverses gate
leaf movement for 2 seconds. If the encoder
operatesagainduringthe2-secondsreversing
time, it stops movement (STOP) without
commanding any reversing. If no sensor is
supplied,theparameter must be set on . If
thereisthe encoder, adjust the sensitivity of the
anti-crushingsystem, by varying the parameter
between (maximumsensitivity) and
(minimumsensitivity).
from to = Encoder active and
sensitivityadjustment
= Encoder disabled
Note 1: to reset the programming default settings, check if the
edge input is closed (SAFE LED ON), and simultaneously
press keys +, - and F, holding them down for 5 seconds.
Note 2: modification of programming parameters comes into
effectimmediately, whereas definitive memory storage
occurs only when you exit programming and return to
gate status viewing. If the equipment is powered down
before return to status viewing, all modifications will be
lost.
Pre-limit switch DECELERATION:
You can select gate deceleration before the
opening and closing limit-switches have been
tripped.
Time can be adjusted from to in
0.1-second steps.
If an encoder is used, the adjustment is not
determined by time but by motor revs, thus
obtaining greater deceleration precision.
= Deceleration disabled
from to = Deceleration enabled
Post-limitswitch DECELERATION:
You can select gate deceleration after the
opening and closing limit-switches have been
tripped.
Time can be adjusted from to in
0.1-second steps.
If an encoder is used, the adjustment is not
determined by time but by motor revs, thus
obtaining greater deceleration precision.
= Deceleration disabled
from to = Deceleration enabled
ASSISTANCE REQUEST (combined with next
function):
If activated, at the end of countdown
(settable with the next function i.e. "Cycle
programming") it effects 2 sec. (in addition to
the value already set with the PF function) of
pre-flashing at every Open pulse (job
request). Can be useful for setting scheduled
maintenance jobs.
= Active
= Disabled
WORKTIME (tome-out):
We advise you to set a value of 5 to 10
seconds over the time taken by the gate to
travel from the closing limit-switch to the
opening limit-switch and vice versa.
Adjustable from to sec. in one-
second steps.
Subsequently, display changes to minutes
and tens of seconds (separated by a point)
and time is adjusted in 10 second steps, up to
a maximum value of minutes.
Attention: the set value does not exactly
match the motor's maximum operating time,
because the latter is modified according to
the performed deceleration spaces.
PARTIALOPENING:
You can adjust the width of partial leaf
opening.
Time can be adjusted from to in
1 second steps.
If an encoder is used, the adjustment is not
determined by time but by motor revs, thus
obtaining greater partial-opening precision.
For example, with pinion Z20, partial opening
can vary from about 60 cm to 4 m.
CYCLEPROGRAMMING:
For setting countdown of system operation
cycles. Settable (in thousands) from to
thousand cycles.
The displayed value is updated as cycles
proceed.
This function can be used to check use of the
board or to exploit the "Assistance request".
GATESTATUS:
Exit from programming, data saving, and
return to viewing gate status (see par.
5.5.1.).

30
FC2
FC1
Fig. 40
Fig. 42

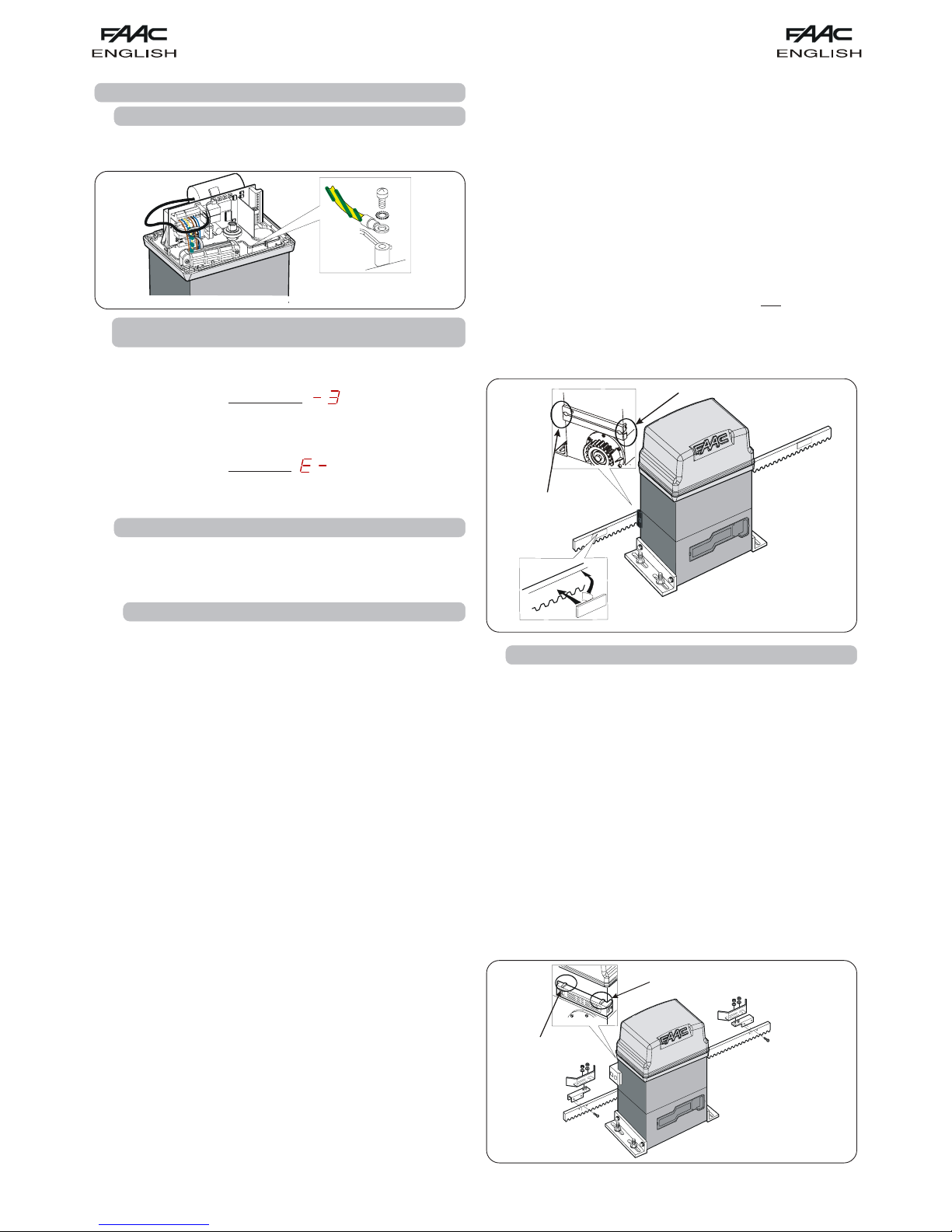

6.2. DEFINITION OFOPENINGDIRECTIONAND OPERATION
OF LIMIT-SWITCH LEDS
Power up the system and set the opening direction on the
board (see par. 5.5.1).
If opening direction is RIGHTWARD ( ):
OPENING limit-switch LED = FC1
CLOSING limit-switch LED = FC2
If opening direction is LEFTWARD ( ):
OPENING limit-switch LED = FC2
CLOSING limit-switch LED = FC1
6. START-UP
6.1. ELECTRIC CONNECTIONS
Make all electrical connections to the board as in chapter 5,
including earthing of the operator (Fig. 40).
6.3. DETERMINING THE STOP POINTS AT TRAVEL LIMIT
Operator 746 has a limit sensor switch which, by detecting the
transit of a reference applied to the rack, commands the gate
motor to stop. The device can be MLS (fig. 41) or inductive (fig.
42).
6.3.1. MLS limit-switch
The MLS limit sensor switch detects the transit of two magnets
fitted on the side of the rack facing the operator.
Procedurefor correct positioning of thetwo supplied magnets:
1) Check if the operator is in manual mode (see chapter 8).
2) Manually take the gate to opening position, leaving 2 - 5 cm
from the travel limit mechanical stop.
3) Fit the magnet (without removing the protective film from the
adhesive side) on the side of the rack facing the operator,
aligning the upper edges. Slide the magnet on the rack in
opening direction until the relevant LED goes off (Fig. 22 and
41), then move the magnet forward a further 45 mm.
4) Manually take the gate to closing position, leaving 2 - 5 cm
from the travel limit mechanical stop.
5) Fit the magnet (without removing the protective film from the
adhesive side) on the side of the rack facing the operator,
aligning the upper edges. Slide the magnet on the rack in
closingdirection until the relevantLEDgoes off (Fig.22and 41),
then move the magnet forward by about a further 45 mm.
6) Take the gate to itshalfway travel point and relockthe system
(seechapter 9).
7) Find out the desired pre- and post-limit-switch deceleration
values(see parag. 5.5.2)and run theautomated system forat
least one complete cycle.
8) Check if the gate stops at about 2 - 5 cm from its mechanical
stop point. If necessary, correct the position of the magnets
and check if the stop point is correct.
9) Mark the position of the magnets on the rack, and remove
them.
10) Clean the rack on its fitting points, remove the film on the
adhesivepartsofthe magnets (fig. 41ref.1)andre-position the
magnetswiththe adhesive strip incontactwiththe rack (fig. 41
ref. 2).
6.3.2. Inductivelimit-switch
Operator 746 has an inductive limit-switch which detects the
transit of the two steel plates fitted on the top of the rack.
Procedure for correct positioning of the two supplied steel plates:
1) Assemble the limit-switchby centring theplate with respect to
threaded pins of the support (Fig. 42).
2) Check if the operator is in manual operating mode (see
chapter8).
3) Manually move thegateto opening position,allowing2 - 5 cm
from the mechanical stop limit.
4) Allow the plate to move on the rack in opening direction until
the relevant LED goes OFF (Figs. 22 and 42); next, move the
plateforwardby about another 45 mm and secure it to the rack
bytightening the screws.
5) Manually move the gate to closing position, allowing 2 - 5 cm
from the mechanical stop limit.
6) Allow the plate tomoveontherackin closing direction until the
relevant LED goes OFF (Figs. 22 and 42); next, move the plate
forward by about another 45 mm and secure it to the rack by
tightening the screws.
Attention: due to the powerful magnetic fields the supplied
magnets produce, the magnets can damage magnetic band
components (credit cards, magnetic tapes, floppy disks, etc)
and electronic and mechanical equipment (e.g. watches, LCD
screens). We advise you not to bring them near to objects that
could be damaged if 'immersed' in a magnetic field.
Notes on magnet positioning
• To ensure correct operation, allow at least 2 cm from the
mechanical stop limit in the gate stop position. Carry out this
check after determining the values of the pre- and post-limit
switchdecelerations (see par. 5.5.2.) andafter running atleast
one complete cycle of the automated system.
• The distance between the limit-switch and magnets must be
from 5 to 12 mm.
• Magnets should be fitted on the rack and not on the fixing
screws.
If necessary, position the magnet at the side of the screw
and adjust decelerations (parag. 5.5.2) in order to obtain
the correct stop point.
2
1
FC2
FC1
Fig. 41

31
M
Fig. 46
Fig. 45
Fig. 44
Fig. 43
7. FINAL OPERATIONS
At end of installation, apply the danger sticker on the top of
the cover (Fig. 45).
6.7. CHECK OF STOP POINTS
Take care over the setting of the post-limit-switch deceleration
and braking: If deceleration is too long and braking is insufficient,
the reference fitted on the gate's rack (magnet or steel plate)
can overtake the sensor until the latter is disengaged. When
the gate stops, check if only the limit-switch involved is engaged.
The relevant LED must be OFF - if it went OFF and then ON
again, or if both the limit-switch LEDS are OFF, you must reduce
the post-limit-switch deceleration value and/or increase
braking value (see par.5.5.2).
6.8. SAFETY DEVICES AND ACCESSORIES CHECK
Check correct operation of all the safety and anti-crushing
devices (ENCODER sensor), and of the accessories used on the
system.
Snap-fit the side panels, fit the equipment's cover and fit the
cover with the supplied screws (Fig. 46).
Remove the vent stop screw (fig. 47).
Hand the "User's Guide" to the Customer, explain correct
operation and use of the gearmotor, and indicate the
potentially dangerous areas of the automated system.
Notes on plate positioning
• To ensure correct operation, allow at least 2 cm from the
mechanical stop limit in the gate stop position. Carry out this
check after determining the values of the pre- and post-limit
switchdecelerations (see par. 5.5.2.) andafter running atleast
one complete cycle of the automated system.
• Thedistance between the limit-switchandthe plates must be<
5mm.
• Fornylon racks, use the plateonly (without support),securing it
directlytothe rack by theself-tappingscrews. Make theabove
mentionedadjustments.
Note : a steel core is situated 5 mm under the surface of the
nylon rack. Therefore, drill until you reach the steel core and
screwwith the self-tappingscrews.
6.5. CHECK OF MOTOR CONNECTION
Check if the motor wiring
is as shown in Fig. 43(stan-
dard connection).
LEDS LIGHTED OFF
OP-A Command activated Command inactive
OP-B Command activated Command inactive
FC1 Limit-switch free Limit-switch engaged
FC2 Limit-switch free Limit-switch engaged
FSW OP Safety devices disengaged Safety devices engaged
FSW CL Safety devices disengaged Safety devices engaged
STOP Command inactive Command activated
SAFE Safety devices disengaged Safety devices engaged
ENC Flashes while the motor rotates
NB.:The status ofthe LEDs whilethe gate isclosed at restare shown inbold.
If opening direction is leftward, the status of LEDS FC1 and FC2 is reversed.
6.4. CHECK OF INPUTS
The table below shows the status of the LEDs in relation to to the
status of the inputs.
Notethefollowing: L ED LIGHTED = closed contact
L ED OFF = open contact
Check the status of the LEDs as per Table.
Tab. 2 Operation of the signalling status LEDs
BROWN
BLACK
BLUE
J6
MOT 2
MOT 1
MOT
COM
6.6. ADJUSTMENT OF MECHANICALCLUTCH
In addition to its electronic safety devices (encoder and force
adjustment),the 746 operatoris also equippedwith a mechanical
clutch.
For gate force and the encoder, please consult paragraphs 5.5.1
and 5.5.2.
Procedureforadjusting the operating threshold ofthemechanical
clutch (you are recommend to set it to conform with current
regulations):
1) Cut electrical power to the automated system.
2) Keep the motor shaftlockedwitha wrench and turntheclutch
adjustmentscrewwithan Allen wrench or screwdriver as shown
in Fig. 44.
Toincrease torque, turn the screwclockwise.
Toreduce torque, turnthe screw anti-clockwise.
ÜThe operator is supplied with the clutch set to maximum level.
Therefore, you must initially turn the screw anti-clockwise to
reach the best setting.
3) Poweruptheautomatedsystemand checkthatthetorque you
have just set is correct.

32
Fig. 50
Fig. 49
Fig. 48
Fig. 52
9. RESTORING NORMAL OPERATION
Topreventan involuntary pulse fromactivatingthegate during the
manoeuvre,cut power tothesystembeforere-locking the operator.
1) Re-close the release lever.
2) Turn the keyanti-clockwise
3) Remove the key and close the lock protection door.
4) Move the gate until the release meshes.
8. MANUAL OPERATION
If the gate has to be operated manually due to a power cut
or malfunction of the automated system, use the release
device as follows:
1) Open the protection door and fit the supplied key in the
lock (Fig. 48).
2) Turn the key clockwise and pull the release lever as shown
in Fig. 49.
3) Open and close the gate manually.
10. INSTALLING THE CN 60E CONTROL UNIT (OPTIONAL)
The operator is designed to house (with the aid of a DIN bar)
the CN 60E control unit of the safety conductive edge. Cut the
DIN bar to measure and secure it to the operator with two
screws in the appropriate holes and attach the CN 60E control
unit to it (Fig. 50).
For connection and operation, refer to the specific instructions.
11.SPECIALAPPLICATIONS
There are no special applications.
12.MAINTENANCE
Check the operational efficiency of the system at least once
every 6 months, especially as regards the efficiency of the
safety and release devices (including operator thrust force).
12.2. OIL TOP-UPS
Periodically check oil level inside the operator.
Aonce-a-year check is enough formedium or low use frequency.
For heavier duty, every 6 months is recommended.
To access the tank, temporarily remove the oil filling plug (Fig.
52).
Oillevel (visually checked) mustbein line withthecopper windings
of the electric motor.
To top up, pour in oil up to the required level.
Use FAAC XD 220 oil only.
12.1. DISASSEMBLING THE TRANSFORMER-BOARD UNIT
If you have to disassemble the transformer-board unit, proceed
as follows:
Remove all terminal boards and connectors from the board.
Unscrew the 3 securing screws of the board and the 2 of the
transformer. Lift the unit up and gently remove the transformer
from the couplings on the board as shown in Fig. 51.
13.REPAIRS
Forany repairs, contact the FAACauthorised Repair Centres.
Fig. 47
Fig. 51

33
"PA"cigoL SESLUP
SUTATSETAGA-NEPOB-NEPOPOTSSECIVEDYTEFASGNINEPOSECIVEDYTEFASGNISOLCECIVEDYTEFASLC/POECIVEDYTEFASEGDE
DESOLC
sesolcdnafaelehtsnepO
emitesuapretfati
laitrapehtroffaelsnepO
retfasesolcdnaemitgninepo
emitesuap
tceffeoN
)delbasidNEPO( tceffeoN tceffeoN
)delbasidNEPO(
ESUAPnoNEPO
)3(noitarepospotS
spotS
noitarepo
tceffeoN
)delbasidANEPO.gnpo.trapnofi(
)3(emitesuapsdaoleR
)delbasidNEPO(
emitesuapsdaoleR
)delbasidNEPO(
emitesuapsdaoleR
)delbasidNEPO(
GNISOLC
yletaidemmifaelehtsnepo-eR tceffeoN
)NEPOsevas( .2.5.5hpargarapees otsesrever,esaelerno,dnaskcoL
nepo )2("2rofnepootsesreveR
GNINEPO
)3(noitarepospotS .2.5.5hpargarapeestceffeoN seunitnoc,esaelerno,dnaskcoL
gninepo )2("2rofesolcotsesreveR
DEKCOL
,degagnesecivedytefaSgnisolChtiw(faelehtsesolC
)3()eslupdn2ehttasnepo
tceffeoN
)delbasidNEPO( tceffeoN tceffeoN
)delbasidNEPO(
Tab. 3/b
"S"cigoL SESLUP
SUTATSETAGA-NEPOB-NEPOPOTSSECIVEDYTEFASGNINEPOSECIVEDYTEFASGNISOLCECIVEDYTEFASLC/POECIVEDYTEFASEGDE
DESOLC
sesolcdnafaelehtsnepO
emitesuapretfati
laitrapehtroffaelsnepO
retfasesolcdnaemitgninepo
emitesuap
tceffeoN
)delbasidNEPO( tceffeoN tceffeoN
)delbasidNEPO(
ESUAPnoNEPO
)3(yletaidemmifaelehtsesolc-eR
spotS
noitarepo
tceffeoN
)delbasidANEPO.gnpo.trapnofi(
NEPO("5retfasesolc,esaelernO
)3()delbasid
"5retfasesolc,esaelernO
)delbasidNEPO(
)1(emitesuapsdaoleR
)delbasidNEPO(
GNISOLC
yletaidemmifaelehtsnepo-eR tceffeoN
)NEPOsevas( .2.5.5hpargarapees otsesrever,esaelerno,dnaskcoL
nepo )2("2rofnepootsesreveR
GNINEPO
)3(yletaidemmifaelehtsesolc-eR .2.5.5hpargarapees tceffeoN
)NEPOsevas(
seunitnoc,esaelerno,dnaskcoL
gninepo )2("2rofesolcotsesreveR
DEKCOL
)3(faelehtsesolC tceffeoN
)delbasidNEPO( tceffeoN tceffeoN
)delbasidNEPO
Tab. 3/c
"E"cigoL SESLUP
SUTATSETAGA-NEPOB-NEPOPOTSSECIVEDYTEFASGNINEPOSECIVEDYTEFASGNISOLCECIVEDYTEFASLC/POECIVEDYTEFASEGDE
DESOLC
faelehtsnepO laitrapehtroffaelsnepO
emitgninepo
tceffeoN
)delbasidNEPO( tceffeoN tceffeoN
)delbasidNEPO(
NEPO
)3(yletaidemmifaelehtsesolc-eR
spotS
noitarepo
tceffeoN
)delbasidANEPO.gnpo.trapnofi(
)3(tceffeoN
)delbasidNEPO(
tceffeoN
)delbasidNEPO(
GNISOLC
yletaidemmifaelehtsnepo-eR tceffeoN
)NEPOsevas( .2.5.5hpargarapees otsesrever,esaelerno,dnaskcoL
nepo )2("2rofnepootsesreveR
GNINEPO
)3(noitarepospotS .2.5.5hpargarapeestceffeoN seunitnoc,esaelerno,dnaskcoL
gninepo )2("2rofesolcotsesreveR
DEKCOL
,degagnesecivedytefaSgnisolChtiw(faelehtsesolC
)3()eslupdn2ehttasnepo
tceffeoN
)delbasidNEPO( tceffeoN tceffeoN
)delbasidNEPO(
Tab. 3/d
"A"cigoL SESLUP
SUTATSETAGA-NEPOB-NEPOPOTSSECIVEDYTEFASGNINEPOSECIVEDYTEFASGNISOLCECIVEDYTEFASLC/POECIVEDYTEFASEGDE
DESOLC
sesolcdnafaelehtsnepO
)1(emitesuapretfati
laitrapehtroffaelsnepO
retfasesolcdnaemitgninepo
)1(emitesuap
tceffeoN
)delbasidNEPO( tceffeoN tceffeoN
)delbasidNEPO(
ESUAPnoNEPO
)3()1(emitesuapsdaoleR
spotS
noitarepo
tceffeoN
)delbasidANEPO.gnpo.trapnofi( )3()1(emitesuapsdaoleR )1(emitesuapsdaoleR
)delbasidNEPO(
)1(emitesuapsdaoleR
)delbasidNEPO(
GNISOLC
)1(yletaidemmifaelehtsnepo-eR tceffeoN
)NEPOsevas( .2.5.5hpargarapees otsesrever,esaelerno,dnaskcoL
nepo )2("2rofnepootsesreveR
GNINEPO
)3()1(tceffeoN .2.5.5hpargarapeestceffeoN seunitnoc,esaelerno,dnaskcoL
gninepo )2("2rofesolcotsesreveR
DEKCOL
)3(faelehtsesolC tceffeoN
)delbasidNEPO( tceffeoN tceffeoN
)delbasidNEPO(
Tab. 3/a

34
(1) If maintained, it prolongs the pause until disabled by the command (timer function) (3) During the partial opening cycle, an OPEN A pulse causes total opening. (2) If a new pulse occurs within 2 seconds after reversing, it immediately stops operation. NB.: Effects on other active pulse inputs in brackets.
"PE"cigoL SESLUP
SUTATSETAGA-NEPOB-NEPOPOTSSECIVEDYTEFASGNINEPOSECIVEDYTEFASGNISOLCECIVEDYTEFASLC/POECIVEDYTEFASEGDE
DESOLC
faelehtsnepO laitrapehtroffaelsnepO
emitgninepo
tceffeoN
)delbasidNEPO( tceffeoN )delbasidNEPO(tceffeoN
NEPO
)3(yletaidemmifaelehtsesolc-eR
spotS
noitarepo
ANEPO.gnpo.trapnofi(tceffeoN
)delbasid )3()delbasidNEPO(tceffeoN )delbasidNEPO(tceffeoN
GNISOLC
noitarepospotS )NEPOsevas(tceffeoN.2.5.5hpargarapees otsesrever,esaelerno,dnaskcoL
nepo )2("2rofnepootsesreveR
GNINEPO
)3(noitarepospotS .2.5.5hpargarapeestceffeoN seunitnoc,esaelerno,dnaskcoL
gninepo )2("2rofesolcotsesreveR
DEKCOL
)3(noitceridesrevernitnemevomstratseR
)potSaretfasesolcsyawla(
tceffeoN
)delbasidNEPO(
tceffeoN
)NEPOselbasidti,nepotsumtifi(
tceffeoN
)NEPOselbasidti,esolctsumtifi( )delbasidNEPO(tceffeoN
Tab. 3/e
"C"cigoLNWODDLEHSYAWLASLORTNOC SESLUP
SUTATSETAG)gninepo(A-NEPO)gnisolc(B-NEPOPOTSSECIVEDYTEFASGNINEPOSECIVEDYTEFASGNISOLCECIVEDYTEFASLC/POECIVEDYTEFASEGDE
DESOLC
faelehtsnepO tceffeoN
)delbasidA-NEPO(
tceffeoN
)delbasidANEPO( tceffeoN tceffeoN
)delbasidANEPO(
NEPO
tceffeoN
)delbasidB-NEPO( faelehtsesolC tceffeoN
)delbasidB/A-NEPO(
tceffeoN
)delbasidANEPO(
tceffeoN
)delbasidBNEPO(
tceffeoN
)delbasidBNEPO(
tceffeoN
)delbasidB/A-NEPO(
GNISOLC
noitarepospotS/
noitarepospotS
tceffeoN noitarepospotS
)delbasidB-NEPO( noitarepospotS
)delbasidB/A-NEPO(
)2("2rofnepootsesreveR
GNINEPO
/noitarepospotS noitarepospotS
)delbasidA-NEPO( tceffeoN )2("2rofesolcotsesreveR
Tab. 3/f
"B"cigoL SESLUP
SUTATSETAG)gninepo(A-NEPO)gnisolc(B-NEPOPOTSSECIVEDYTEFASGNINEPOSECIVEDYTEFASGNISOLCECIVEDYTEFASLC/POECIVEDYTEFASEGDE
DESOLC
faelehtsnepOtceffeoN tceffeoN
)delbasidANEPO( tceffeoN tceffeoN
)delbasidANEPO(
NEPO
tceffeoNfaelehtsesolC NEPO(tceffeoN
)delbasidB tceffeoN tceffeoN
)delbasidBNEPO(
tceffeoN
)delbasidBNEPO(
tceffeoN
)delbasidB/A-NEPO(
GNISOLC
nepootsesreveRtceffeoN spotS
noitarepo
tceffeoN
)ANEPOsevas(
noitarepospotS
)delbasidB-NEPO( noitarepospotS
)delbasidB/A-NEPO(
)2("2rofnepootsesreveR
GNINEPO
tceffeoNtceffeoN noitarepospotS
)delbasidA-NEPO( tceffeoN )2("2rofesolcotsesreveR
DEKCOL
faelehtsnepOfaelehtsesolC tceffeoN
)delbasidB/ANEPO(
tceffeoN
)delbasidA-NEPO(
tceffeoN
)delbasidBNEPO(
tceffeoN
)delbasidB/ANEPO(
Tab. 3/g
"C/B"cigoLSLORTNOCNUROTDLOHGNISOLC/ESLUPGNINEPO SESLUP
SUTATSETAG)gninepo(A-NEPO)gnisolc(B-NEPOPOTSSECIVEDYTEFASGNINEPOSECIVEDYTEFASGNISOLCECIVEDYTEFASLC/POECIVEDYTEFASEGDE
DESOLC
faelehtsnepOtceffeoN tceffeoN
)delbasidANEPO( tceffeoN tceffeoN
)delbasidANEPO(
NEPO
tceffeoNfaelehtsesolC tceffeoN
)delbasidBNEPO( tceffeoN tceffeoN
)delbasidBNEPO(
tceffeoN
)delbasidBNEPO(
tceffeoN
)delbasidB/A-NEPO(
GNISOLC
nepootsesreveRtceffeoN spotS
noitarepo
tceffeoN
)ANEPOsevas(
noitarepospotS
)delbasidB-NEPO( noitarepospotS
)delbasidB/A-NEPO(
)2("2rofnepootsesreveR
GNINEPO
tceffeoNtceffeoN noitarepospotS
)delbasidA-NEPO( tceffeoN )2("2rofesolcotsesreveR
DEKCOL
faelehtsnepOfaelehtsesolC NEPO(tceffeoN
)delbasidB/A
tceffeoN
)delbasidA-NEPO(
tceffeoN
)delbasidBNEPO(
tceffeoN
)delbasidB/ANEPO(
Tab. 3/h

USER’SGUIDE
AUTOMATEDSYSTEM746
Readthe instructionscarefully before using the productand keep
them for future consultation.
GENERALSAFETY REGULATIONS
If installed and used correctly, the 746 automated system will
ensure a high degree of safety.
Some simple rules regarding behaviour will avoid any accidental
trouble:
- Do not stand near the automated system and do not allow
childrenandotherpeople or things to stand there, especially while
it is operating.
- Keep radiocontrols or any other pulse generator well away from
childrento prevent theautomated system frombeing activated
involuntarily.
- Do not allow children to play with the automated system.
- Donot willingly obstructgate movement.
- Prevent any branches or shrubs from interfering with gate
movement.
- Keep illuminated signalling systems efficient and clearly visible.
- Do not attempt to activate the gate by hand unless you have
released it.
- Intheeventof malfunctions, release the gate toallowaccessand
wait for qualified technical personnel to do the necessary work.
- After enabling manual operating mode, switch off the power
supply to the system before restoring normal operating mode.
- Donot make any alterations tothecomponentsoftheautomated
system.
- Donotattemptanykindofrepair of direct action whatsoever and
contactFAAC qualified personnel only.
- Call in qualified personnel at least every 6 months to check the
efficiency of the automated system, safety devices and earth
connection.
DESCRIPTION
The 746 automated system is ideal for controlling vehicle access
areas of medium transit frequency.
The746 automated systemforslidinggatesisan electro-mechanical
operatortransmitting motion to the sliding gate via arack or chain
pinionappropriately coupled tothe gate.
Operationof the sliding gate iscontrolled by anelectronic control
equipmenthoused inside the operator.
When, with the gate closed, the equipment receives an opening
command by radiocontrol or from another suitable device, it
activates the motor until the opening position is reached.
If automatic operating mode was set, the gate re-closes
automatically after the selected pause time has elapsed.
If the semi-automatic mode was set, a second pulse must be sent
to close the door again.
An opening pulse during re-closing, always causes movement to
bereversed.
A stop pulse (if supplied) always stops movement.
For details on sliding gate behaviour in different function logics,
consultthe installation technician.
The automated systems include accessories and safety devices
(photocells,edges) that prevent thegate from closingwhenthere
is an obstacle in the area they protect.
The system ensures mechanical locking when the motor is not
operating and, therefore, no lock needs to be installed.
Manual opening is, therefore, only possible by using the release
system.
Thegearmotor is equippedwith an adjustable mechanicalclutch
which, combined with an electronic device, offers the necessary
anti-crushingsafety, by guaranteeingreversal of closing motionor
stoppingof openingmotion.
A sensor detects transit of the references fitted on the rack, which
correspond to the travel limit positions.
The electronic control equipment is housed in the gearmotor.
Ahandy manualrelease makes it possible tomove the gate in the
event of a power cut or malfunction.
Thewarning-light indicates that the gateis currently moving.
MANUALOPERATION
If the gate has to be operated manually due to a power cut or
malfunction of the automated system, use the release device as
follows:
1) Open the protection doorandfitthe supplied key in thelockas
shown in Fig. 1.
2) Turn the key clockwise andpull the releaselever asshown inFig.
2.
3) Open and close the gate manually.
RESTORINGNORMAL OPERATION
Topreventan involuntary pulse fromactivatingthegate during the
manoeuvre,cut power tothesystembeforere-locking the operator.
1) Re-close the release lever.
2) Turn the keyanti-clockwise
3) Remove the key and close the lock protection door.
4) Move the gate until the release meshes.
Fig. 1
Fig. 2
