From Bicom Systems Wiki
Contents
1 Introduction
■
2 Requirements
■
2.1 Identifying Phone Model
■
2.2 Phone Firmware
■
2.3 DHCP Server
■
2.4 PBXware Version
■
3 Installation
■
3.1 Power Adapter
■
3.2 Power over Ethernet (PoE)
■
3.3 Find the Phone's IP Address
■
3.4 Reset to factory settings
■
4 Registering Phone
■
4.1 Manual Configuration
■
4.2 Registering a Phone
■
4.3 Auto Provisioning
■
5 Configure BLF
■
5.1 Extension Settings
■
5.2 Phone Settings
■

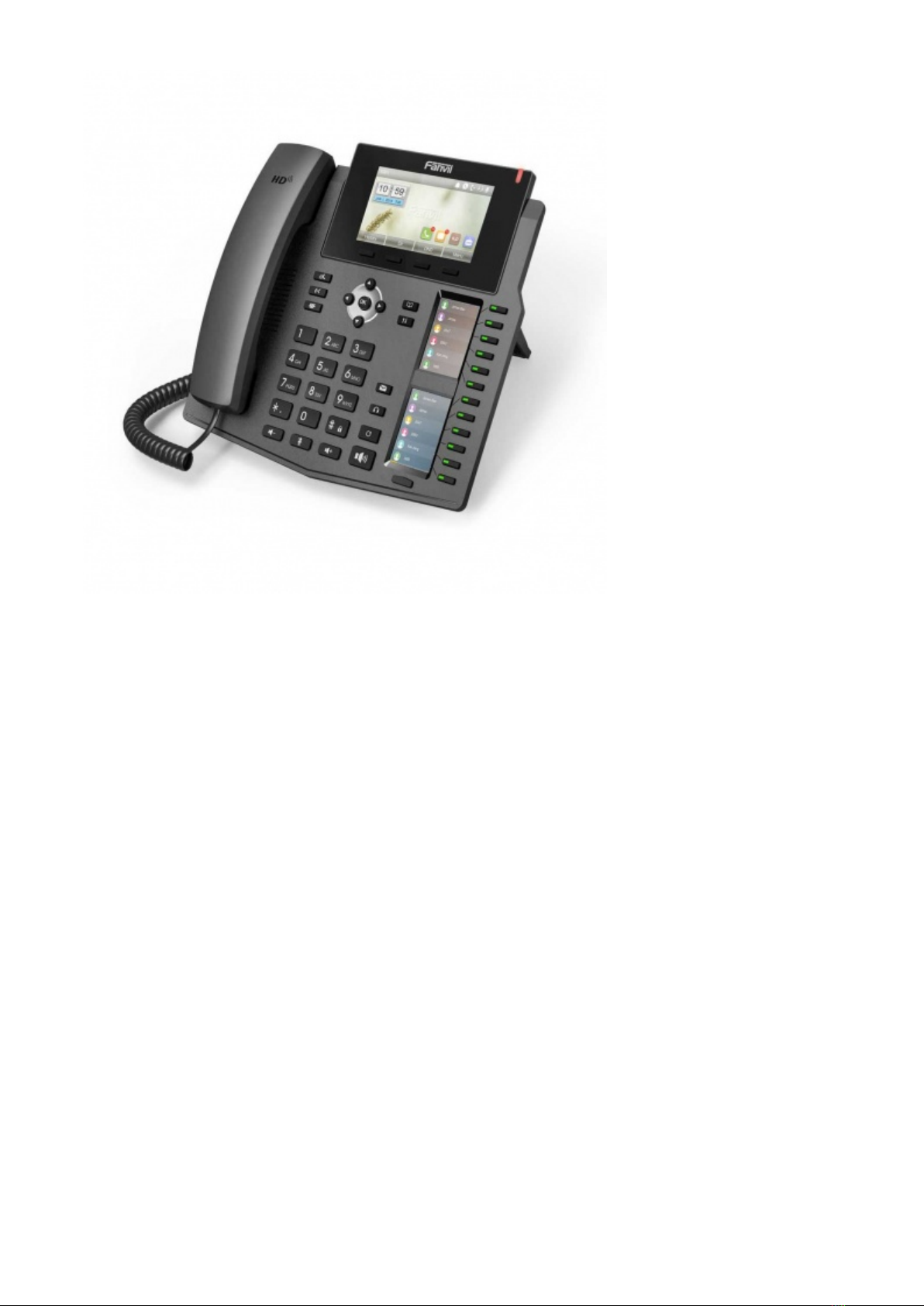

Introduction

This Configuration Guide is written as a general guide on how to configure the Fanvil phone
model X6U to work with PBXware 6.5.
Requirements
Identifying Phone Model
To start and successfully complete the registration of the Fanvil phone, users need to know
which phone model to set up.
On the back of each Fanvil phone, there is model information that you should check. Although
various phone models can have exactly the same requirements and installation procedures, they
can also have significantly different requirements and installation procedures, so that is why it
is important to know the model you own which results in you setting up the device successfully.
Phone Firmware
Make sure that the phone is loaded with an appropriate firmware version, 2.4.5.
■
To find out the firmware version of the Fanvil phone model, open a new browser window and
■
enter the phone's IP address in order to access the phone's web administration interface login
screen. Example: http://192.168.1.22.
Log in to the phone's web administration interface with a username and password. Please note
■
that factory default login details are as follows: username is admin and password is admin.

DHCP Server
Fully configured and operational DHCP server.
PBXware Version
PBXware version 6.5
In order to find out the PBXware version:
Log in to PBXware
■
Navigate to Settings: About.
■
On the top of About page, you may see a code similar to this one PBXware Edition: Multi-
Tenant Release: 6.5.0.0 (41a4f0e6) Running: 16.16.1-gc-c0d40968, Proxy v6.5.0
(231c5f3), API: 6, libmemcached version: 1.0.18, where Release denotes the current
version of your PBXware.
Installation
This section describes how to install and connect the phone to the electrical power and data
network as well as how to apply factory settings.
The following topics are covered:
Power Adapter
■
Power over Ethernet (PoE)
■
Factory Settings
■
Power Adapter
Connect the Network and Power
Connect the DC plug on the power adapter to the DC port on the phone and connect the other
■
end of the power adapter into an electrical power outlet.
Connect the Ethernet cable between the Internet port on the phone and the network port on a
■
router or switch to access LAN.
NOTE: If you are using Power over Ethernet (PoE), you don't need to connect the AC adapter.
Make sure that the Ethernet cable and router or switch is Power over Ethernet (PoE) compliant.
Power over Ethernet (PoE)
Connect the Network (only)
Using a regular Ethernet cable, your phone can be powered from a Power over Ethernet (PoE)
compliant router or switch.
Connect the Ethernet cable between the Internet port on the phone and an available port on
■
the in-line power router or switch.
NOTE: If you are using Power over Ethernet (PoE), you don't need to connect the AC adapter.

Make sure that the Ethernet cable and router or switch is Power over Ethernet (PoE) compliant.
Find the Phone's IP Address
Press the OK key
■
Go to Status and press OK
■
The IP address will be shown on the display.
Reset to factory settings
This step is not required for brand new out-of-the-box phones, however, if the phone has been
already used then it is a must.
Open a new browser window and enter the phone's IP address in order to access the phone's
■
web administration interface login screen. Example: http://192.168.1.22.
Log in to the phone's web administration interface with the username and password. Please
■
note that factory default login details are as follows: username is admin and password is
admin.
Click the Configurations tab.
■
Click on Reset Phone
■
Click the Reset button in order to reset the phone to factory settings. The phone will reset to
■
the factory settings and reboot.
Wait some time for a device to reboot.
■
NOTE: Do not unplug or remove power to the phone while it is updating firmware and
configuration.
Registering Phone
This section describes how to register the phone using manual configuration or auto
provisioning.
The following topics are covered:
Manual Configuration
■
Auto Provisioning
■
Manual Configuration
This section describes how to set UAD settings, create a PBXware Extension, and register a
phone.
The following topics are covered:
UAD Settings
■
Creating an Extension
■

Registering a Phone
■
UAD Settings
UAD settings
Log in to the PBXware web administration interface
Open a new browser window and enter the IP address in order to access the PBXware web
■
administration login screen. Example: http://192.168.1.10.
Log in to PBXware with the e-mail address and password.
■
UAD Settings
Navigate to Settings:UAD.
■
Make sure Fanvil UAD is enabled. To check the UAD status, click the Edit icon corresponding
■
to the Fanvil phone.
Make sure Status is set to Active, Auto provisioning is set to No, and DHCP is set to Yes.
■
Click Save.
■
Creating an Extension
Creating Extension
Add an Extension
Navigate to Extensions
■
Click Add Extension.
■
The standard options window will be shown below.
■
Select a Fanvil phone model from the UAD select box.
■
Select Location: Local or Remote.
■
Local is for all Extensions registered on the LAN and Remote is for all Extensions
registered from remote networks, WAN, Internet, etc.
Click the Next step button.
■

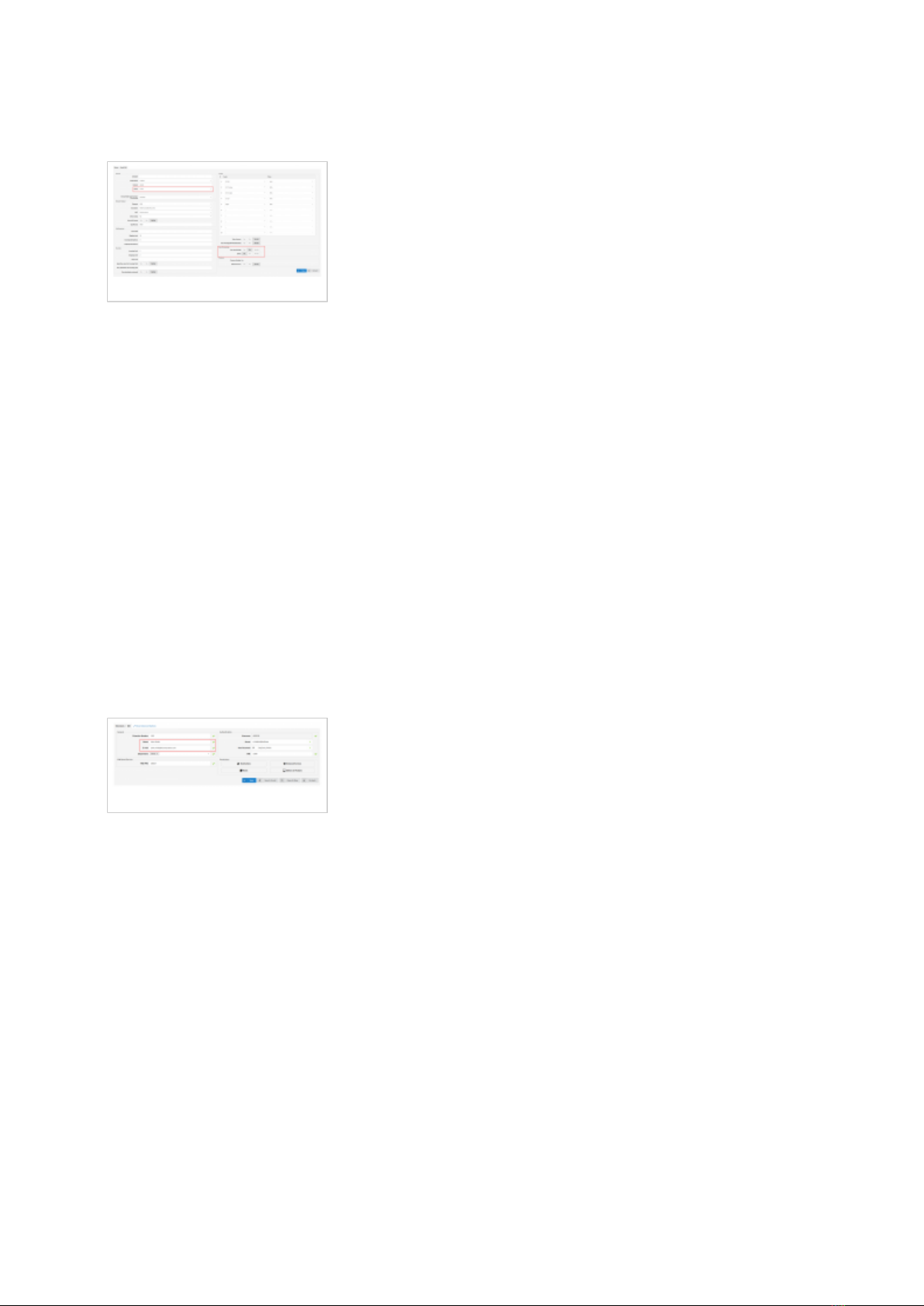

Extension Values

Enter values into the required field text boxes.
REQUIRED FIELDS:
Name
■
Enter a name for the Extension being created. Example: John Smith.
E-mail
■
Enter the e-mail address associated with this Extension. This e-mail address will receive
all system notification messages. Example: [email protected]
Department
■
Department to which Extension belongs to. Example: Sales.
Click Save.
■
Registering a Phone
This section describes how to register a Fanvil phone using Hostname or IP Address.
Hostname or IP Address
Log in to the phone's web administration interface
Open a new browser window and enter the phone's IP address in order to access the phone's
■
web administration interface login screen. Example: http://192.168.1.22
Log in to the phone's web administration interface with the username and password. Please
■
note that factory default login details are as follows: username is admin and password is
admin.
Click Line in the left-hand navigation menu.
■
Enter or set the following details into the respective fields.
■
REQUIRED FIELDS:
Username
■
PBXware Extension number. Example: 1003
Authentication Name
■
Usually the same number as the Phone Number.
Authentication Password
■

The Secret of the Extension as received in the e-mail associated with this Extension.
Example: _%Z4M3*Ts9y7. A password is generated automatically for each newly created
Extension.
Activate
■
Make sure the Activate check box is selected.
SIP Proxy Server Address
■
Enter the Hostname or IP Address of PBXware.
- Example of a Hostname: voip.bicomsystems.com
- Example of an IP Address: 192.168.1.10
Click Apply.
■
If everything is done as described above, you should have successfully registered your phone
■
to PBXware.
Dial *123 to verify the registration.
Auto Provisioning
This section describes how to set UAD settings, create a PBXware Extension and register the
phone using DHCP or Static IP address.
The following topics are covered:
UAD Settings
■
Creating an Extension
■
Registering a Phone
■
UAD Settings
UAD settings
Log in to the PBXware's web administration interface.
Open a new browser window and enter the IP address in order to access the PBXware web
■
administration login screen. Example: http://192.168.1.10.
Log in to PBXware with the e-mail address and password.
■

UAD Settings
Navigate to Settings: UAD.
■
Make sure Fanvil UAD is enabled. To check the UAD status, click the Edit icon corresponding
■
to the Fanvil phone.
Make sure Status is set to Active, Auto provisioning is set to Yes, and DHCP is set to Yes.
■
Click Save.
■
Creating an Extension
Creating Extension
Enable Auto provisioning
Add an Extension
Navigate to Extensions. Click Add Extension.
■
The standard options window will be shown below.
■
Select a Fanvil phone model from the UAD select box.
■
Select Location: Local or Remote.
■
Local is for all Extensions registered on the LAN and Remote is for all Extensions
registered from remote networks, WAN, Internet etc.
Click Next step.
■

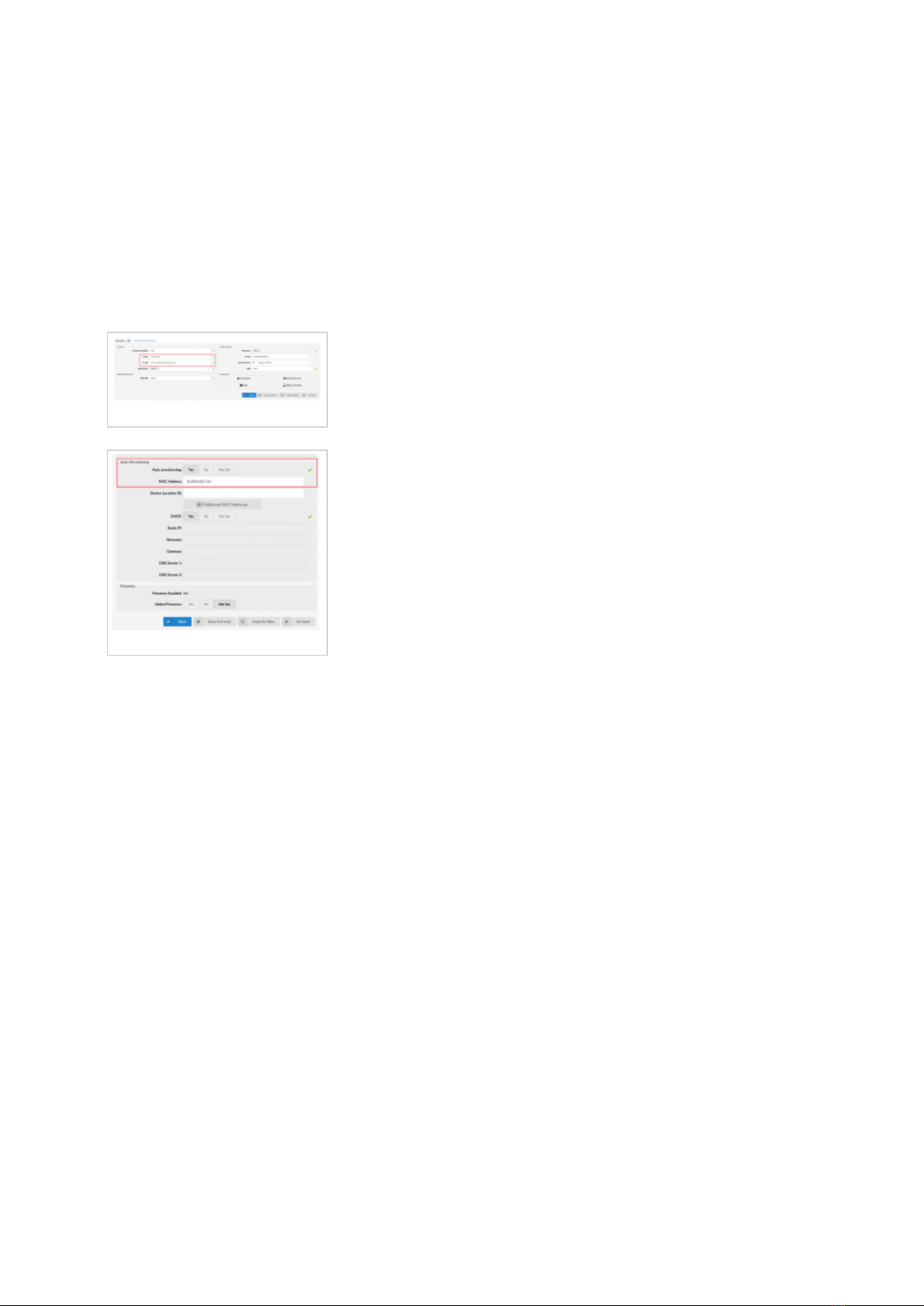

Extension Values
Enter values into the required field text boxes.
REQUIRED FIELDS:
Name
■
Enter a name for the Extension being created. Example: John Smith.
E-mail
■

Enter the e-mail address associated with this Extension. This e-mail address will receive
all system notification messages. Example: [email protected]
Auto Provisioning
■
Set to Yes.
MAC Address
■
Enter the Fanvil phone's MAC address. Example: 0C383E123456. The MAC address can
be found on the back of the phone.
Click Save.
■
Registering Phone
This section describes how to register a Fanvil phone using TFTP & HTTP.
TFTP & HTTP
Open a new browser window and enter the phone's IP address, e.g. http://192.168.1.22.
■
Enter username and password and press the Confirm button. NOTE: The factory default
■
login details are as follows: username is admin and password is admin.
Click Auto Provision in the navigation tab.
■
Enter the Auto Provisioning username and password into the Authentication Name and
■
Authentication Password fields.
Make sure the Save Auto Provision Information check box is selected.
Make sure the Download CommonConfig enabled check box is NOT selected.
Click Static Provisioning Server
■
Choose what Protocol Type you intend to use: HTTP, HTTPS or Trivial FTP. NOTE: Our
■
recommendation is to use HTTP.
If you choose to use Protocol Type HTTP, enter http:// followed by Hostname or
IP Address, then followed by /prov.
Example of a Hostname using HTTP: http://abc.bicomsystems.com/prov

Example of an IP Address using HTTP: http://192.168.1.10/prov
If you choose to use Protocol Type TFTP, enter tftp:// followed by Hostname or
IP Address
Example of a Hostname: tftp://voip.bicomsystems.com
Example of an IP Address: tftp://192.168.1.10
Make sure the Update Mode is set to Update After Reboot.
■
Click Apply.
■
Click Tools in the navigation tab.
■
Click Reboot.
■
A pop-up window will show up, click OK to confirm the action.
■
You will have to wait for a couple of seconds for the configuration to be updated. NOTE: Do
■
not power off the phone.
The auto-provisioning process will start during the phone's reboot process. the phone will pick
■
up the appropriate configuration file from PBXware. If everything is done as described above,
you should have successfully registered your phone to PBXware.
Dial *123 to verify the registration.
Configure BLF
Extension Settings
This section describes how to configure BLF (Busy Lamp Field) for Fanvil X6U.
Log in to the PBXware's web administration interface.
Open a new browser window and enter the IP address in order to access the PBXware's web
■

administration login page. Example: http://192.168.1.10.
Log in to PBXware with the e-mail address and password.
■
Edit an Extension
On the Extensions page, click the Edit icon corresponding to the Extension.
■
Click Advanced Options.
■
Navigate down to the Auto Provisioning and Presence group of settings.
■
Make sure Auto Provisioning is set to Yes.
■
Make sure Presence is set to "Yes".
■
Click Save.
■
Click Enhanced Services.
■
Click the Directory / BLF List check box and click the Save button in order to enable this
■
feature.
Click Directory / BLF List Edit.
■
Enter the user's Extension number and click the BLF check box.
■
Click Save.
■
Phone Settings
Log in to the phone's web administration interface.
Open a new browser window and enter the phone's IP address in order to access the phone's
■
web administration interface login screen. Example: http://192.168.1.22.
Log in to the phone's web administration interface with the username and password. Please
■
note that factory default login details are as follows: username is admin and password is
admin.
Click the Function Key link in the left-hand navigation menu
■
Configure 1 to 12 DSS Keys from the list.
■
Type: Select Memory Key.
Value: Enter the user's Extension. Example: 1005
Click Confirm to save changes.
■
Retrieved from "http://wiki.bicomsystems.com/Fanvil_X6U"
Disclaimers - About Bicom Systems Wiki
