VIDEOTRONIC V688.G3
USER’S MANUAL

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
ii
WARNING
.This document contains information which is the property of FASEP 2000 rl and all rights are reserved. This manual shall not be
photocopied or reproduced in any way without the prior written consent of FASEP 2000 srl.
.FASEP 2000 srl reserves the right to revise products firmware, software or documentation without obligation to notify any person
or organization. The information contained in this document is subject to change without warning.
.Prior of the installation of the unit described in this manual, user should read this manual carefully to be instructed properly on
installation, use and maintenance of the unit.
.Failing to read this manual and operate accordingly may cause damage to the user or the unit.
.FASEP 2000 srl shall not be responsible for inconvenience, breakdown, accidents due to uncomplete knowledge of this manual
or uncomplete application of raccomendations described in this manual.
.FASP2000srlshallnotberesponsibleforinconvenience, breakdown, accidentsduetounauthorizedmodifications of the unit, use
ofnon-original or unauthorizedaccessories(see Accessories listingin this manual for alist oforiginal accessories available forthis
model).
.FASEP2000 srl shall not beresponsible for any inconvenience,breakdown, accidents caused directlyor indirectlyby not
qualified service. Service to any parts by not qualified persons will void warranty and will void any right of the owner of
the unit.
SYMBOLS AND CONVENTIONS
To speed the retrieval of main information and make easy to understand the instructions, this manual uses the following typing
conventions:
<NAME OF THE PUSH BUTTON> Used to indicate name of push-buttons on the control panel.
DISPLAY Used to indicate text or number visible on the displays on the control panel.
ADVICES Contain useful advices or solutions, evidence d with respect to the rest of the text.
NOTE Notes contain important information, evidenced to the rest of the text.
WARNING Warning messages appears corresponding to procedures that, if not properly observed,
may lead to loose of data or cause damage to the unit.
!CAUTION Caution messages appears corresponding to procedures that, if not properly observed,
may cause injuries to the user.

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
iii
ORIGINAL INSTRUCTIONS
TABLE OF CONTENTS
WARNING .......................................................................................... ii
SYMBOLSANDCONVENTIONS ........................................................................ ii
1 PRESENTATION ............................................................................1-1
1.0 Intended Use .......................................................................1-1
1.1 Definitions .........................................................................1-1
2 INSTALLATION .............................................................................2-1
2.1 Movingtheunit......................................................................2-1
2.2 Assemblingtheunit ..................................................................2-1
2.3 Installation .........................................................................2-1
2.4 ElectricalHookup....................................................................2-1
2.5 Compressed air Hookup (PL models only) ................................................2-1
2.6 Power.............................................................................2-1
3 USEOFCONTROLPANEL....................................................................2-2
3.1 Meaning of the icons on the screen ......................................................2-2
4.0 CALIBRATIONOFWHEELBALANCER..........................................................2-5
4.1 How to calibrate the wheel balancer .....................................................2-5
4.2 How to control the calibration of wheel balancer and position weight ............................2-6
5 CalibrationALU-SE ..........................................................................3-5
6 CalibrationSME .............................................................................3-6
7 MEASUREMENTANDCORRECTIONOFUMBALANCE ............................................3-7
7.1 Placing the wheel rim on the wheel balancer ...............................................3-7
7.2 Input of Rim Dimensions (external measuring system version) .................................3-7
7.3 Input of Rim Dimensions (ALU-SE or LASER version) .......................................3-8
7.4 Detecting and correcting umbalance .....................................................3-8
7.5 How to apply the weight using ALU-SE applicator ...........................................3-9
7.6 How to apply the weight using LASER ....................................................3-9
7.7 HowtouseSPLITProgram ............................................................3-9
8 HOWTOOPTIMIZEUNBALANCEOFTHEWHEEL ................................................4-1
9 SPECIAL FUNCTIONS .......................................................................5-1
9.1 Language selection ..................................................................5-1
9.2 Setup .............................................................................5-1
APPENDIX ........................................................................................ A-2

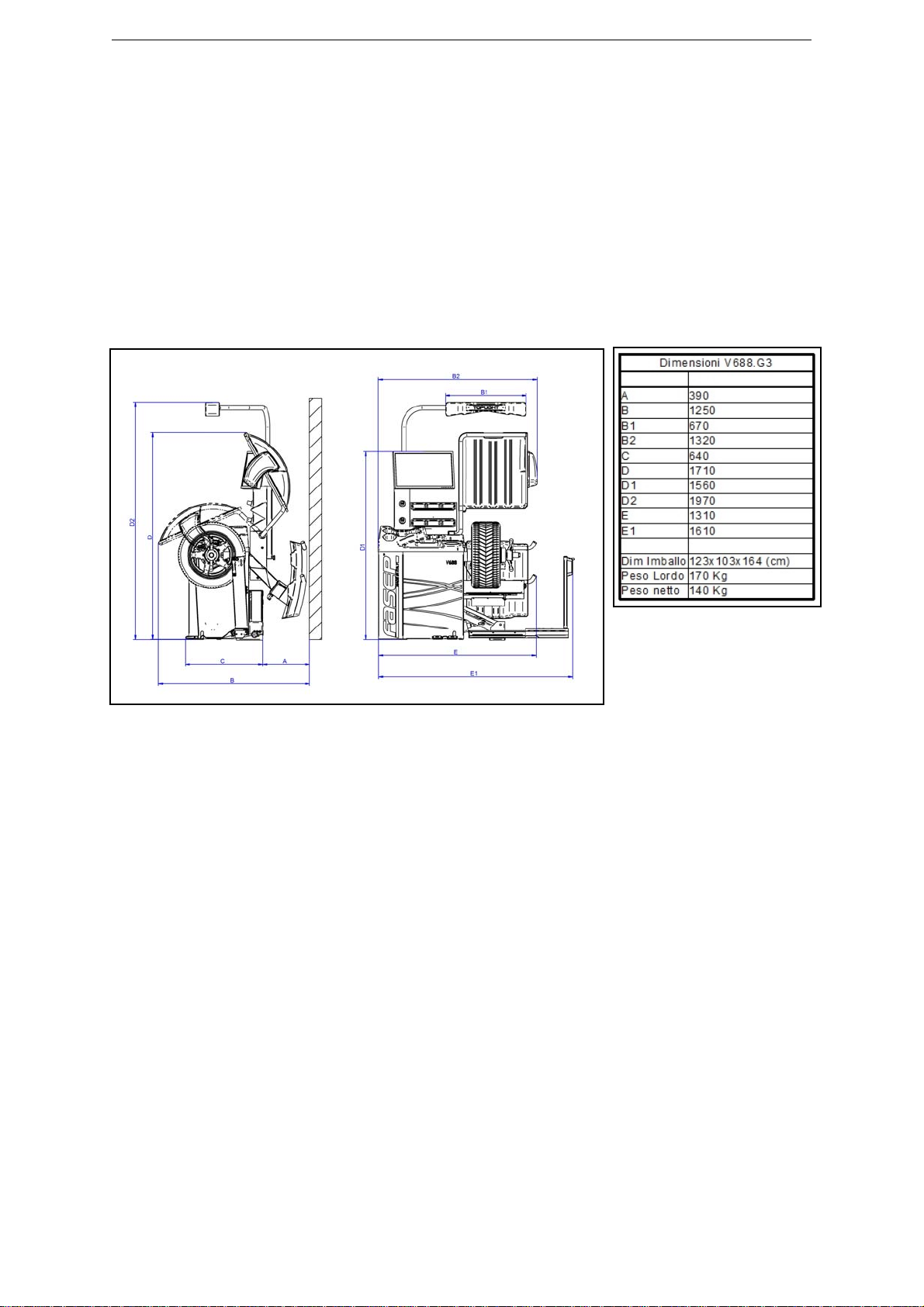

A: Technicaldata ..................................................................... A-2
B: Environmental Data, Safety Features and Requirements .................................... B-1
C: Errors and Malfunctions recognized by the Computer ....................................... B-2
D: How to remove the battery from the product safely. ........................................ B-3

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
1-1
1 PRESENTATION
1.0 Intended Use
This unit is designed to measure and correct static and dynamic unbalance of vehicle wheel, the dimension and weight
of which are within the working range of the machine (see “Technical Data”appendix for reference)
This unit is meant for a professional use. Operator shall be properly trained before use. Training Course is not included
in the price of the unit and must be purchased separately.
This unit is designed for indoor use only (see “Environmental Data”appendix for reference).
!CAUTION: This unit is designed to spin vehicle wheels only, within the range of dimensions and weight
approved (see “Technical Data”appendix for reference). Special adaptors suit this purpose. Do not
attempt to use the machine to spin anything else. Unproper locking may cause the part being
spinned to be ejected, causing damage to the unit itself, the operator or anything in the in the
neighboorhood.

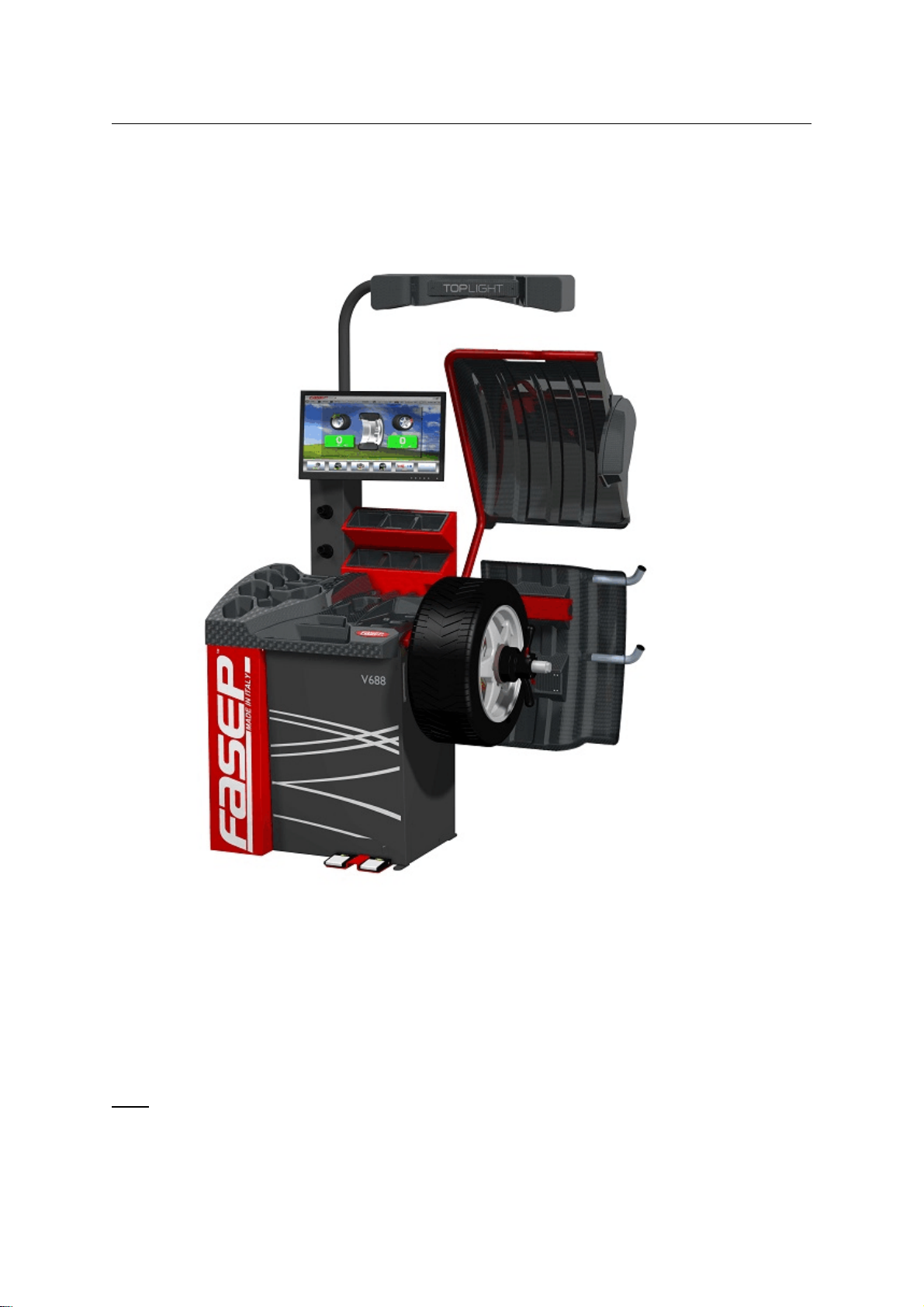

1.1 Definitions
1. Monitor
2. Back-mounted weight-compartments
3. Weights and tools trays
4. Side flange-holders
5. Wheel guard
6. UL 3D Automatic Input Sonar
7. Quick lock + HD shaft
8. 3dWall
9. Foot-pedal

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
2-1

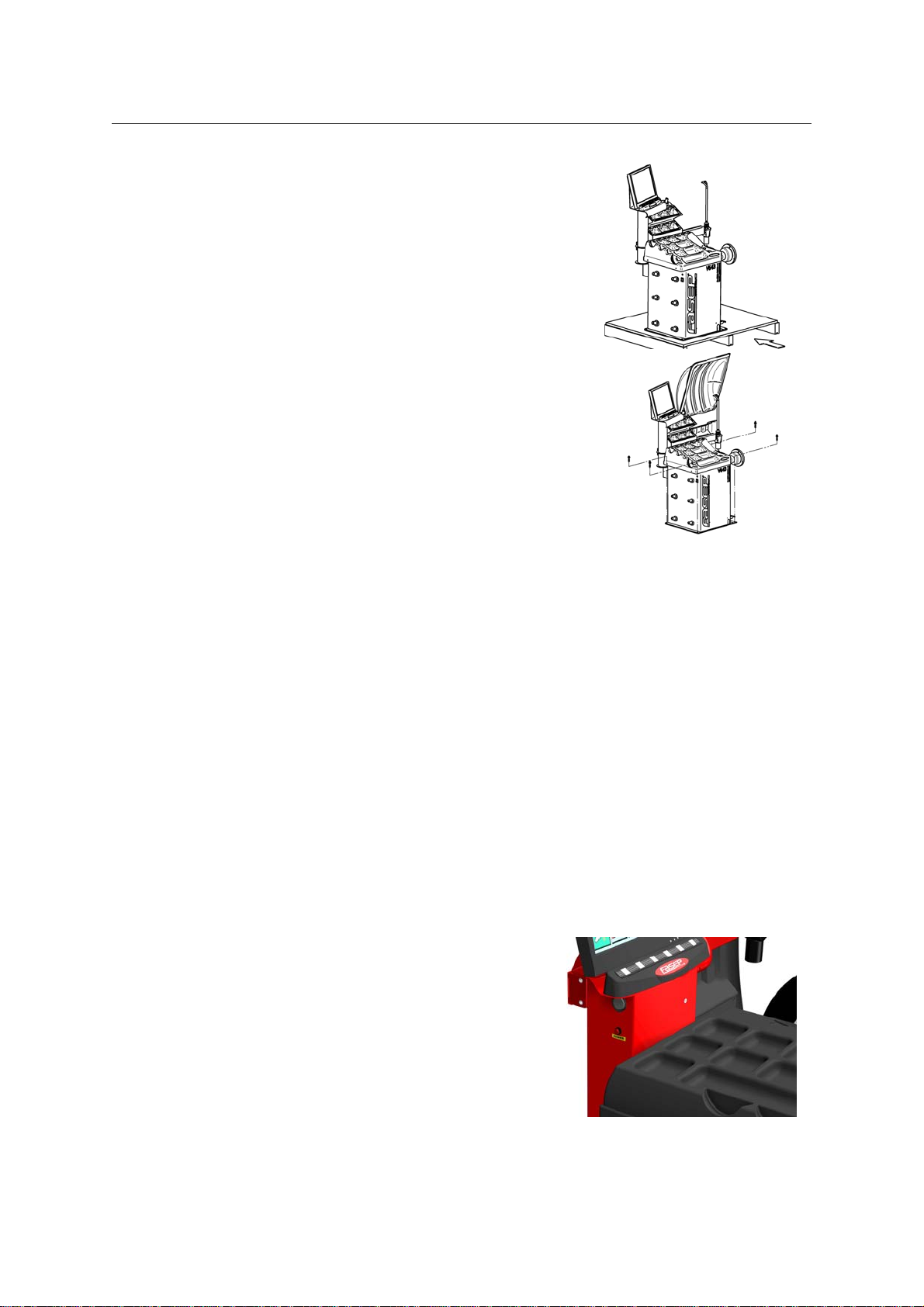

2 INSTALLATION
2.1 Moving the unit
WARNING When the unit has to be moved: never lift
balancerbymotorshaft or byneighborhoodofit.
2.2 Assembling the unit
Foreaseoftransportation,thewheelbalancermightbedisassembled
into units. If necessary, assembling instruction are provided within
each package..
2.3 Installation
The wheel balancer must be installed on a firm and level ground.
NOTE:the machine must be secured to the floor. Using four holes
in the base and anchor bolts provided
2.4 Electrical Hookup
!CAUTION: Failure to follow these instructions can results in
damage to unit or create an electrical hazard and
will void warranty..
2.4.1 Electrical hookup is to be provided by a qualified electrician.
2.4.2 A fusible wall-mounted switchbox is required at the installation site. This
switch should provide on-off control and overload protection for your
wheel balancer only. The switchbox should be fused with time-delay
fuse(s) in accordance with the power rating specified on your wheel balancer.
2.4.3 Electrical connection of the machine should be by plug connectors.
2.4.4 The balancer must be effectively connected to ground. The electric cord is regularly provided with a ground terminal.
2.4.5 Make sure that Power Rate Specifications for your wheel balancer (refer to nameplate on the wheel balancer) comply
with those provided by the external power source.
!CAUTION Afterelectricalhookuphasbeenperformedunitisreadytooperate.Always observepertinentsafety
precautions when operating the unit (see Appendix tables for an overview of relevant Safety
requirement).
2.5 Compressed air Hookup (PL models only)
!CAUTION Failure to follow these instructions can result in damage to unit or create a hazard and will void
warranty.
1. Compressed Air hookup is to be provided by a qualified technician, under the local safety
requirements, in line with relevant national standards and regulations. All fitting and hoses must
conform to local codes.
2. A wall-mounted lubricator and water-separator is required at the installation site.
3. Compressed Air circuit to the balancer shall be regulated to a maximum pressure of 7 atm.
Overpressure could compromise cylinder operation.
2.5.1 CONNECT TO AIR SUPPLY:
The machine is fitted with a universal connector and therefore no other special or additional fitting is required. Push all
the way onto the connector a high pressure rubber air-hose and secure it.
2.6 Power
Plug the wheel balancer into a 220V socket. To switch on the wheel
balancer press the red button (power) until it light up. To switch off the
wheel balancer press the red button (power) until it light off.

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
2-2
3 USE OF CONTROL PANEL
3.1 Meaning of the icons on the screen
Select balancing
mode
APS Function
Calibration
Delete last character in input
activation code
Change selection
Set default values
Fig. 6 Panel V643
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 12

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
2-3
Diagnostic
Key down
Position calibration
Go to previous page
Fine resolution
Access to Information center
Access to page measures
Laser calibration
Put in the rod laser in rest
position
Start laser
Extract fully rod laser
Manul input measures
Set Dynamic/Static
Mode moto
Fig. 13
Fig. 14
Fig. 15
Fig. 16
Fig. 17
Fig. 18
Fig. 19
Fig. 20
Fig. 21
Fig. 22
Fig. 23
Fig. 24
Fig. 25
Fig. 26

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
2-4
Key SET/OK
Double operator
Optimize
Restart software
Reset partial statistics
Reset variation in page Sensor
Save
Set measures
Go to setup menù
Skip current operation
Split function
Stop turning wheel
Key up
View menù and selection
(UP/DOWN)
Automatic flange calibration
Fig. 27
Fig. 28
Fig. 29
Fig. 30
Fig. 31
Fig. 32
Fig. 33
Fig. 34
Fig. 35
Fig. 36
Fig. 37
Fig. 38
Fig. 39
Fig. 40
Fig. 41

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
2-5
Fig. 42
Fig. 43
Fig. 44
Fig. 45

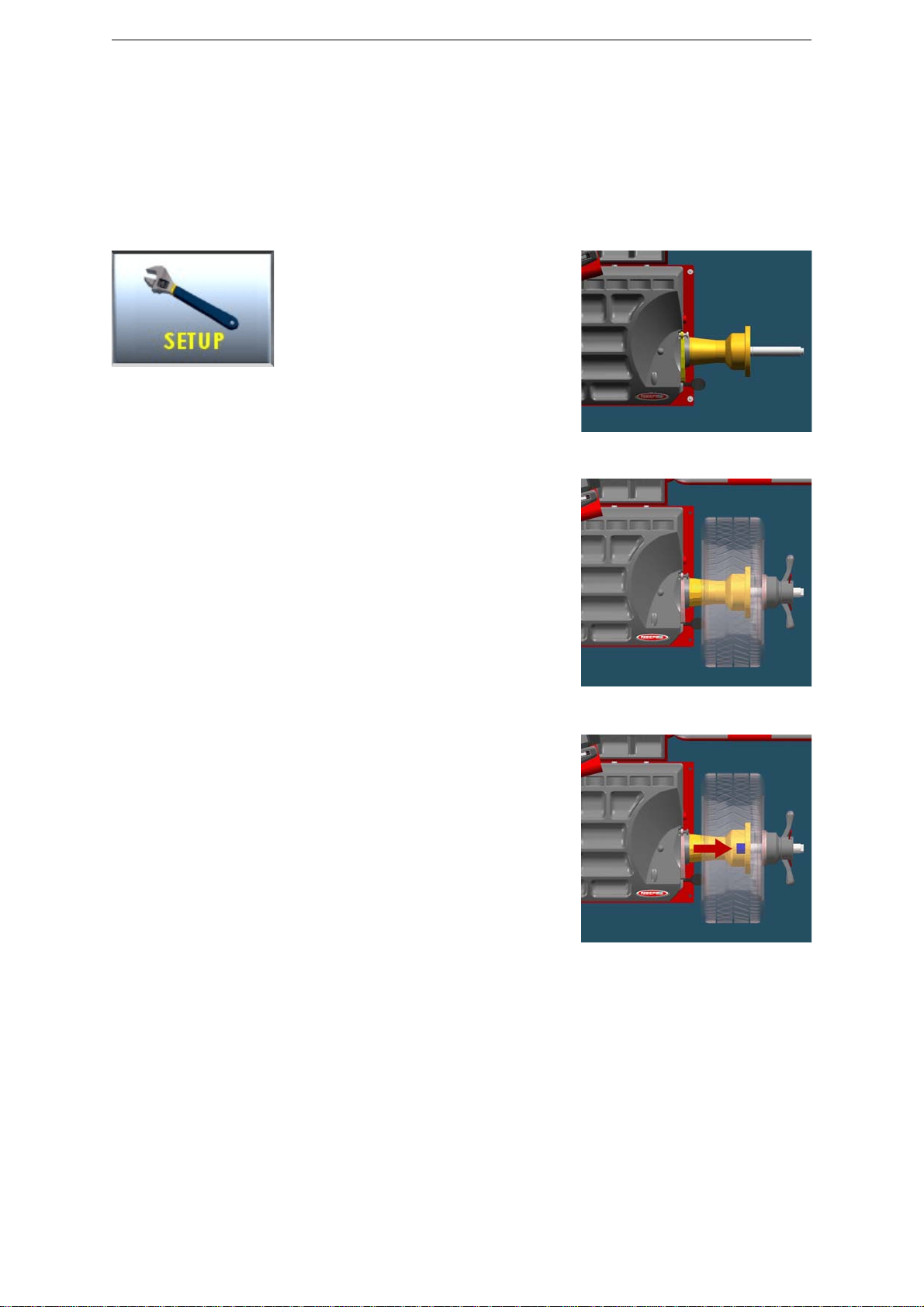

4.0 CALIBRATION OF WHEEL BALANCER
4.1 How to calibrate the wheel balancer (USER)
NOTE:the following symptoms indicate need for calibration::
a) check calibration program fails. b) constant low or high weight readings.
c) indicated point of unbalance constantly wrong d) more than 2 spins required to balance wheels
repeatedly.
Switch on the wheel balancer.
Select SET UP > CALIBRATION > SET/OK >
CALIBRATION > SET/OK.
Spin with no wheel on shaft (Fig. 43)
Close the wheel guard or press <START>.
At the end of the spin, put a wheel (Fig. 44)
and close the wheel guard or press <START>.
At the end of the spin, put the calibration
weight (Fig. 45) and close the wheel guard or
press <START>.
NOTE technical calibration is only available for qualified personnel.

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
2-6
Fig. 46

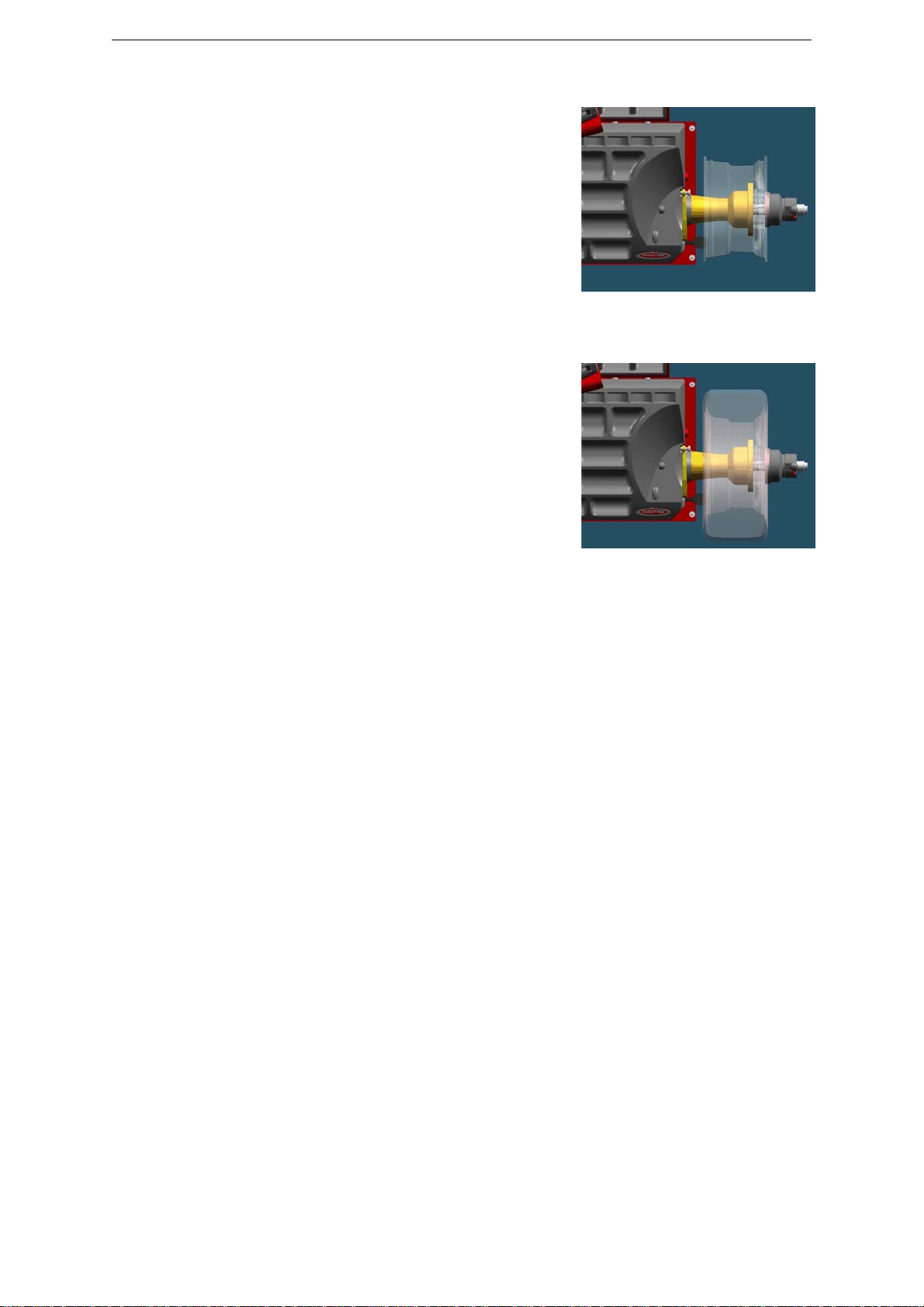

4.2 How to control the calibration of wheel balancer and position weight (USER)
Switch on the wheel balancer.
Select SET UP > CALIBRATION > SET/OK >
CHECK CALIBRATION > SET/OK.
Put a wheel on the shaft and press <START>
(Fig.47).
Put the calibration weight (Fig.48) and press
<SET/OK>.
Close the wheel guard or press <START>.
At the end of the spin, 160-0 will show on the
video (tolerance allowed is ±10).
Put the weight at 6h o’clock: the weight
indicators of internal side must be both green.
If not, press <6h>.
Put the weight at 6h o’clock and press <SET
OK>.
NOTE technical calibration is only available for qualified personnel.
Fig. 47
Fig. 48
Fig. 49

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
3-5

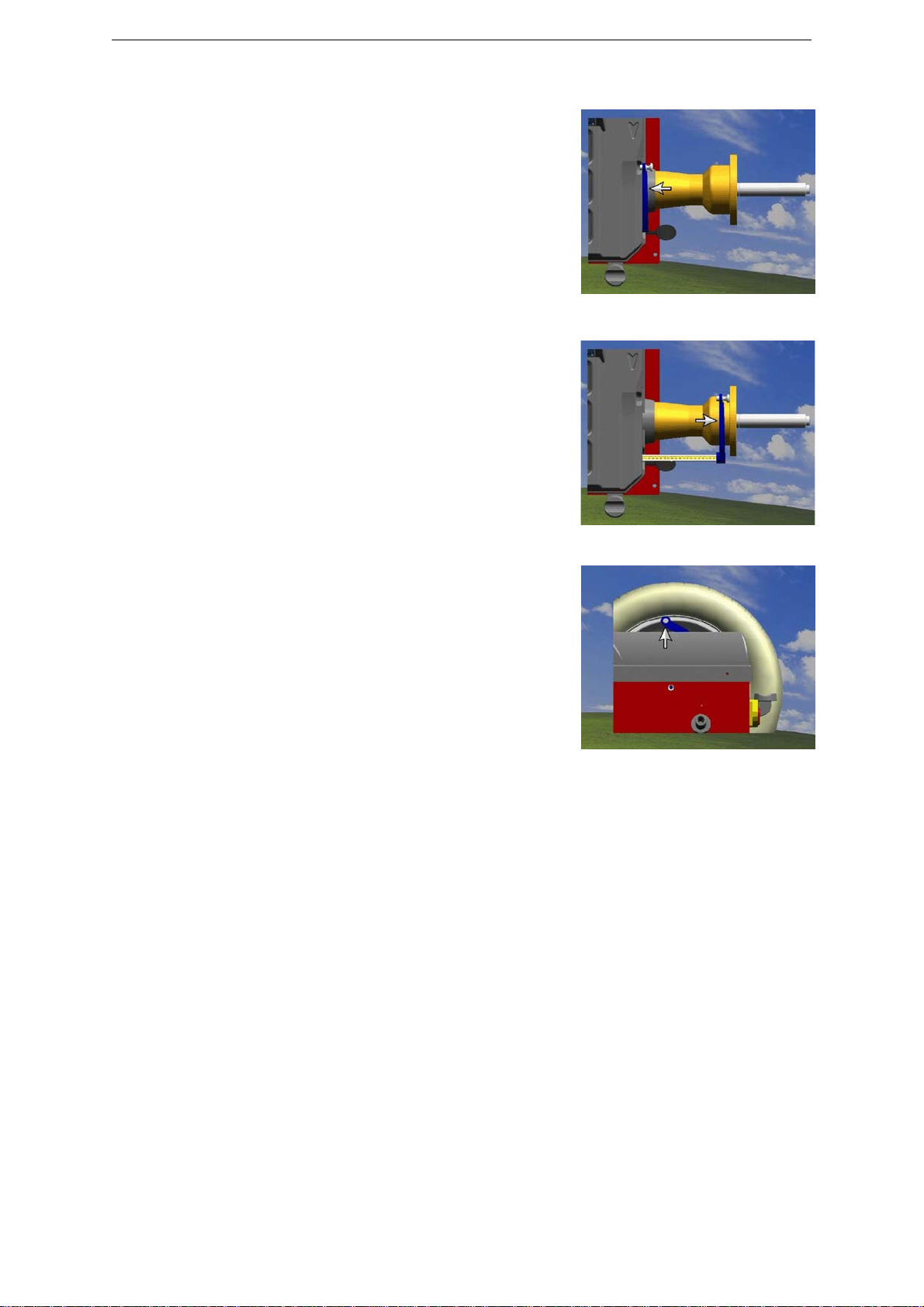

5 Calibration ALU-SE
Switch on the wheel balancer.
MAIN MENU > MENU > RESET > CALIB > ALU-SE
CALIBRATION > SET/OK
Put the rod on rest position (fig.50) and press SET/ OK.
Put the rod on the flange (fig.51) and press SET/ OK.
Select width of wheel
Put the rod on internal side of the rim (fig.52) and press
SET/OK.
Press <ESC> to go back to standard use.
Fig. 50
Fig. 51
Fig. 52

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
3-6
6 Calibration SME
Switch on the wheel balancer.
MAIN MENU > MENU > RESET > CALIB > SME
CALIBRATION > SET/OK
Put the rod on rest position (fig. 53) and press SET/ OK.
Put the rod (fig. 54) and press SET/OK.
Press <ESC> to go back to standard use.
Fig. 53
Fig. 54

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
3-7
Fig. 56: Distance
Fig. 57: Width
7 MEASUREMENT AND CORRECTION OF UMBALANCE
7.1 Placing the wheel rim on the wheel balancer
7.1.1 Select the cone or flange suitable for the wheel to be balanced. Specific mounting instructions are delivered with each
flange
NOTE: the operation of centering and tightening of the wheel on the flanges is of basic importance for correct
balancing. Good results depend on proper performance of these procedures.
To accurately clean up the superficial ones of connection before whichever operation.
!CAUTION: Always make sure flanges are correctly locked on the motor shaft and wheel is correctly locked on
the flange being used.
7.2 Input of Rim Dimensions (external measuring system version)
for V65x, V64x, V55x-D (automatic input of all data)
NOTE: AUTOSELECTfunctionadmitto chooseautomaticselectionof balancingsystem(Dynamic,ALU-S1, ALU-S2)
MAIN MENU
Insert the distance (fig.56).
Insert the width (fig.57).

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
3-8
Fig. 58
Fig. 59
7.3 Input of Rim Dimensions (ALU-SE or LASER version)
!CAUTION: Laserinstalled on wheel balancer is of class 2, so special protection are not required. It is however
recommended to avoid the continuos view of the direct beam.
MAIN MENU > INPUT
Press ALU MODE untill the required position of weight is on the video (fig.58).
Insert the distance (IN1).
Insert the distance (IN2).
Press ALU MODE untill the required position of weight is on the video (fig.59).
Insert the distance (IN1).
Insert the distance (IN2).
7.4 Detecting and correcting umbalance
7.4.1 After setting wheel dimensions, press <START> or close the safety cover to spin the wheel and start the measurement
run.
!CAUTION: wheel start automatically when safety cover is closed.
7.4.2 At the end of the spin the wheel will brake automatically and the display will show the weight position and weight
requirement to correct the wheel’s umbalance.
7.4.3 Apply the weights (fig.60, fig.61). If umbalance shown is 0, press <FINE> to show residual umbalance.
Fig. 60 Fig. 61

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
3-9
Fig. 62
Fig. 65 Fig. 66
7.5 How to apply the weight using ALU-SE applicator
Place the weight as in the picture 63.
Turn the wheel until reach the application
position of the weight (fig. 62).
Move the rod until reach the application
position of the weight.
Apply the weight(fig. 64).
Repeat the procedure for the other side.
.
7.6 How to apply the weight using LASER
Turn the wheel until the position weight
indicators of one side are both green (fig. 65).
The laser come out to show the point of
application of the weight (fig. 66).
Apply the weight on the laser dot.
Repeat the procedure for the other side.
7.7 How to use SPLIT Program
After the measurement spin
Press <SPLIT> to select the program.
Turn the wheel until first spoke (green position) is at 12 0' clock.
Press <SET/OK> to confirm.
Turn the wheel until second spoke (red position) is at 12 o’ clock
Press <SET/OK> to confirm the red position.
Balance the wheel applying weight on green and red positions.
Fig. 63
Fig. 64

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
4-1
8 HOW TO OPTIMIZE UNBALANCE OF THE WHEEL
8.1.1 MAIN MENU > OPTIMIZE
Measure the unbalance of the rim only ( fig. 67).
Mount the tire on the rim and put the wheel on the shaft
(fig.68).
Spin the wheel
Select the optimization and follow the video instruction.
WARNING:Balancing with flanges, put the accessories assembled to the rim during the complete operations.
NOTE:Selection of optimization: the green solution is the advised from the machine. The user can be choose also
one of the other.
Fig. 67 first spin, rim only
Fig. 68 second spin, complete wheel

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
5-1
9 SPECIAL FUNCTIONS
9.1 Language selection
9.1.1 MAIN MENU >SET UP > USER SET UP > LANGUAGE > SET OK >.
9.1.2 Select the language and press SET OK.
9.2 Setup
9.2.1 MAIN MENU >SET UP > USER SET UP .
9.2.2 Select item and press SET OK.

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
A-2
Fig. 69: Measures
APPENDIX
A: Technical data
Power requirement 400W
Speed Balancing 98RPM
Measuring time 4-15 s.
Accuracy ±1grammo (±1/28 once)
Wheel Dimensions Diameter Rim diameter 8" (200 mm) - 26" (650 mm)
Rim Width (with wheel-guard) max 16" (415mm)
Wheel Weight max 90 Kg (198Lbs)
Wheel balancer dimensions

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
B-1
B: Environmental Data, Safety Features and Requirements
Environmental Data
[Operating conditions]
This unit is designed for indoor use only.
Temperature: 0 to 45°C
Relative Humidity: 5 to 80% a 40°
[Storage conditions]
Package is designed for indoor storage only.
Temperature: -25° to 70°C
Relative humidity: 5 at 95% to40°C
Safety Features
1. TheBalanceWeightsHoldermayberemovedfor servicing.Itissecuredto themachine bodythrough screwsso thatonly
voluntarily it may be removed. Removal of this protection is therefore restricted to Authorized Service Engineers.
2. TheControlPanelmayberemovedforservicing.Itissecuredtothemachinebodythroughscrewssothatonlyvoluntarily
it may be removed. Removal of this protection is therefore restricted to Authorized Service Engineers.
!CAUTION: The safety cover is anyway required when using the motorcycle adapter.
WARNING FASEP 2000 srl shall not be responsible for any inconvenience, breakdown, accidents caused
directlyorindirectlybyunauthorizedservice.Servicetoanypartsbyunauthorizedengineerswillvoid
warranty and will any right of the owner of the unit..
NOTE: As this unit runs at speed below 100rpm, a safety cover is not required. However a safety cover is
recomended when balancing wheels with diameter bigger then 20".
General Safety Requirement
[before using/servicing this unit]
1. Read this instruction sheet and the whole user’s manual before operating or servicing the wheel balancer.
2. Make sure electrical power source conforms to requirements shown on nameplate (see also model identification chart
for reference).
3. Make sure the unit has a stable position.
[when using the unit]
4. Protect power leading to the unit from damage.
5. When work area is being washed, make sure unit is adequately protected.
6. Remove all stones and mud lodged in tire treads before balancing the wheel.
7. Do not touch spinning wheel. Always use Safety Safety cover to be protected.
8. Make sure counterweights are securely attached before checking residual umbalance.
[when servicing the unit]
9. Make sure power sources are disconnected before service on the unit is performed.
10. Service to PCB, electrical and mechanical parts should be done only by an Authorized FASEP 2000 Service Center.

Fasep 2000 srl Rev. 1.0
Videotronic V688.G3: User’s Manual 15 July 2019
B-2
C: Errors and Malfunctions recognized by the Computer
Errors may apply to some model only.
ERR 1: Shaft does not rotate
ERR 2: Rotation Direction is wrong
ERR 3: Rotation speed is not ready
ERR 4: Rotation speed is wrong (too low or too high)
ERR 5: Position Sensor or Position Disk failure
ERR 6: Safety Safety cover is open
ERR 7:Measuring cycle was interrupted
ERR 8: Calibration weight was not inserted.
ERR 9: Activation code not correct
ERR 10: Overflow in calculations
ERR 11: Serial number is wrong
ERR 12: Serial number not inserted
ERR 13: Reserved
ERR 14: Uncorrect password
ERR 15: E²prom error
ERR 16: Calibration memory error
ERR 17: Rod in uncorrect position
ERR 18: Excessive weight detected
ERR 19: Reserved
ERR 20: Reserved
ERR 21: Error in inputting data
ERR 22: Brake error
ERR 23: Substance change due to shakes
ERR 24: Reserved
ERR 25: Reserved
ERR 26: Reserved
ERR 27: Insufficient pressure
