FEIN ACCUTEC
Screwdrivers
Precision cordless
screwdrivers for use in
assembly production.

2
FEIN has good reason to claim that it is,
“Powered by innovation.’’ The demands of
torque fastening have increased enormously
in the last decade.
Based on many years of experience, FEIN has
acquired the knowledge for fastening applica-
tions: torque repeatability and excellent er-
gonomics for comfortable handling. FEIN‘s
ACCUTEC range of screwdrivers provides the
ideal solution for high-quality screwed con-
nections in a torque range of 8 to 221 in.lbs.
(0.9 to 25 Nm).
FEIN Basic.
FEIN has set a new standard with the
ACCUTEC screw gun. Features include a pistol
grip handle which provides the perfect bal-
ance for the operator.
With the ACCUTEC ASW nutrunner it is
possible to drive screws even in very con-
fined spaces at torque ranges up to 221 in.lbs.
(25 Nm) in assembly production. These
trend-setting cordless angle nutrunners are
outstanding in performance and precision.
FEIN Control.
Other advancements of the ACCUTEC shut-off
screwdriver has led to the ACCUTEC Control
screwdriver to meet the increased quality
requirements demanded of the industry.
The FEIN ACCUTEC Control can transmit all
pertinent screwdriving data by radio to a
computer. No matter which ACCUTEC shut-off
screwdriver you choose, FEIN power tools
are world-renowned for their precision and
reliability.

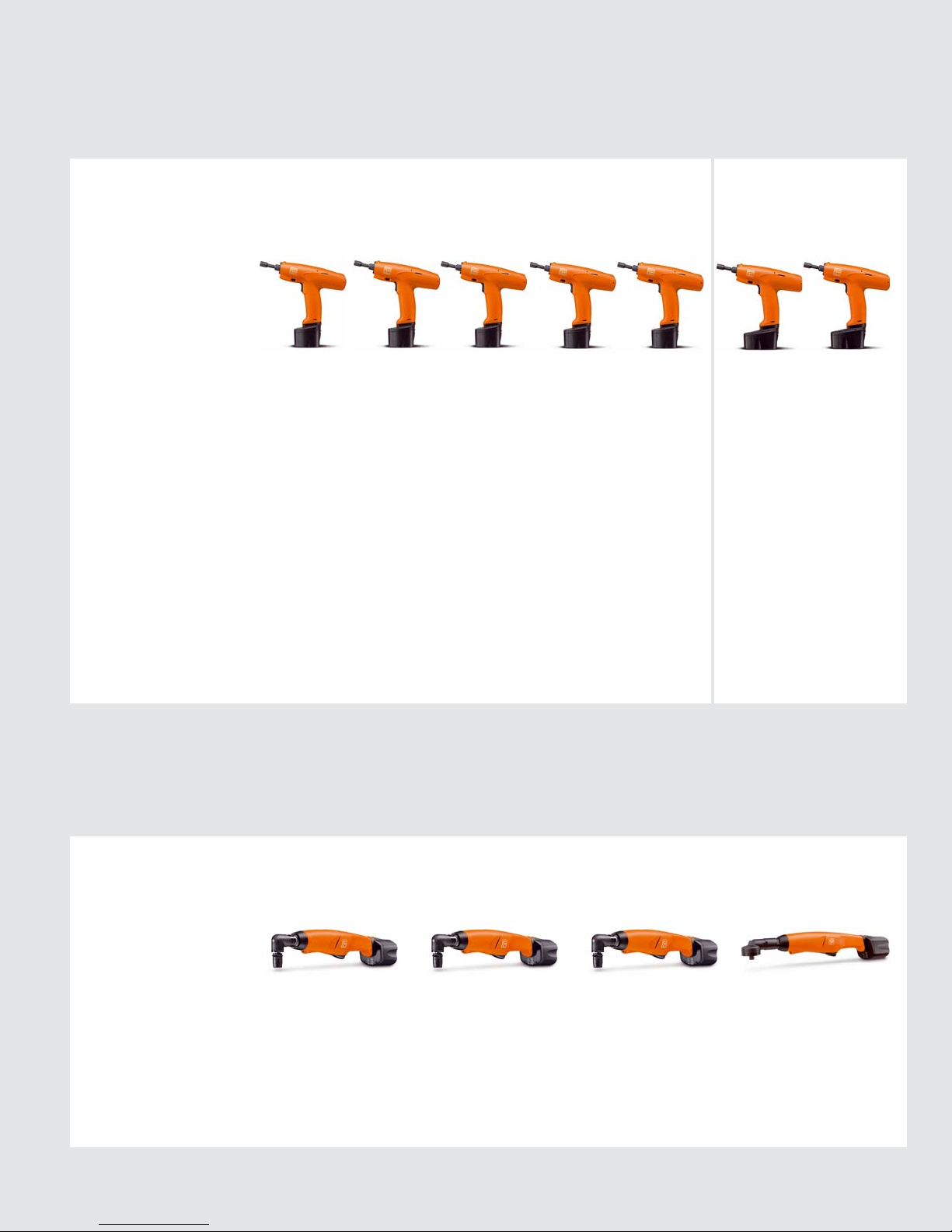

FEIN Basic
FEIN ACCUTEC ASM screw gun with pistol grip handle
for torque up to 106 in.lbs. (12 Nm).
FEIN ACCUTEC ASW nutrunner angle screwdriver
for torque up to 221 in.lbs. (25 Nm).
 Torque repeatability
 Maintenance-free brushless EC motor
 Various speed and torque versions
 Soft start
FEIN ACCUTEC screwdrivers: Quality in assembly.
FEIN Control
FEIN ACCUTEC ASMc screw gun with pistol grip handle
for torque up to 106 in.lbs. (12 Nm).
FEIN ACCUTEC ASWc nutrunner angle screwdriver
or torque up to 221 in.lbs. (25 Nm).
 Radio transmission for monitoring and documentation of
screwdriving processes
Integrated radio module
15 screwdrivers can be controlled per base station
Customized installation available

3
Features that raise the bar of expectations!
FEIN mechanics.
Modern and reliable mechanics integrated in
outstanding ergonomics – that is the concept
of the ACCUTEC shut-off screwdriver. By em-
ploying brushless EC motor technology in
theACCUTEC ASM and ASW screwdrivers, ser-
vice life is highly increased compared to con-
ventional motors. Premature motor replace-
ment is eliminated. Follow-up costs in main-
tenance and spare parts are kept to
a mimum.
Low Energy Lock.
The new ACCUTEC screw guns with the pistol
grip also features Low Energy Lock.
A restart lock monitors the remaining charge
of the battery. Before the charge becomes too
low to provide the desired torque the ma-
chine is locked. Fastening is not possible until
the battery has been exchanged. The switch-
on delay blocks the machine for 0.8 seconds,
which avoids undesired retightening of the
fastener. This function is activated immediate-
ly after the switch is released.
Loaded with extras.
An LED indicator lights up when the preset
torque has been reached. Improper fastenings
are indicated by the red LED and an acoustical
signal. Battery capacity is monitored continu-
ously. The LED indicator also signals when the
battery should be exchanged.
Maintenance Costs Comparison:
FEIN EC motor
Brush motor

4

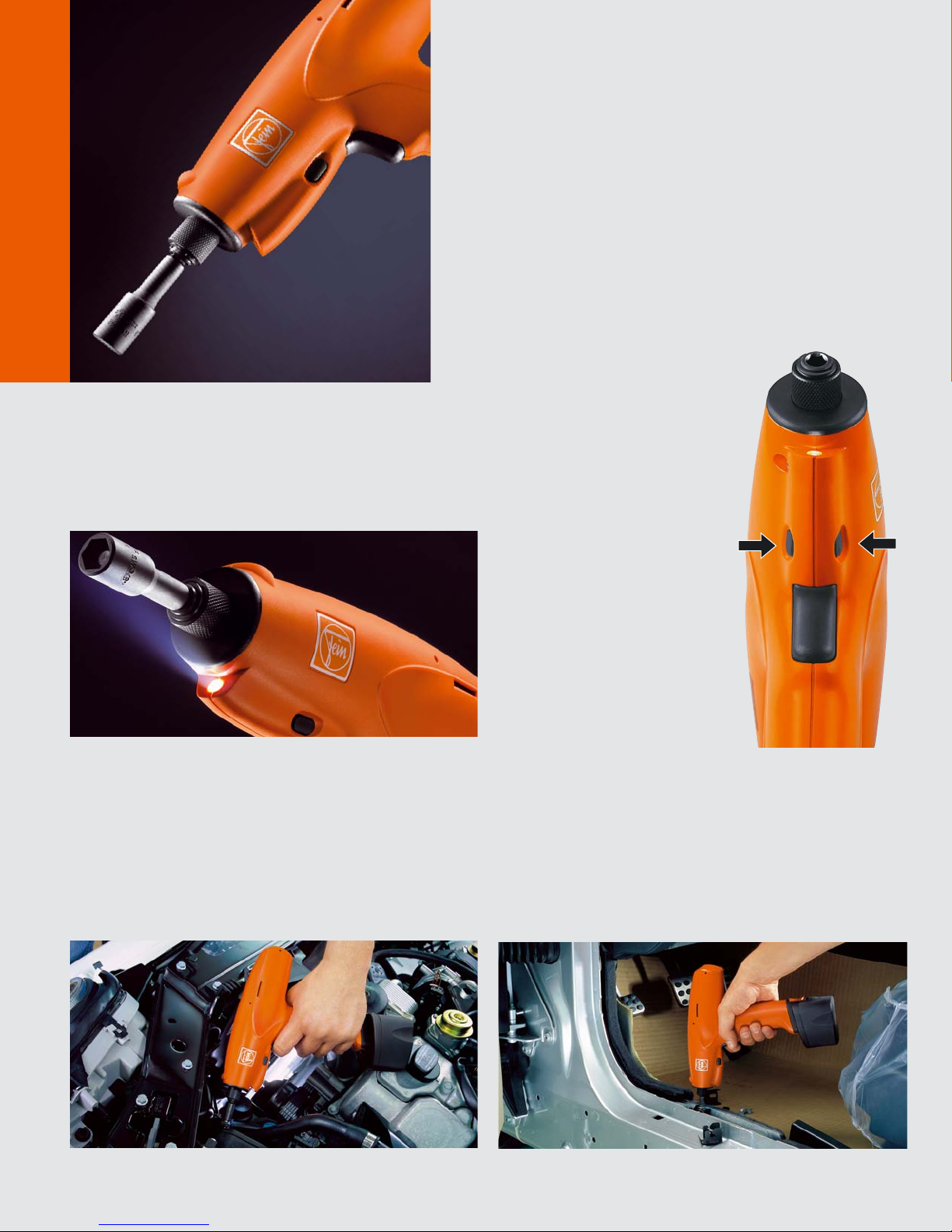

Unique left-hand operation!
The position of the button for left-hand run-
ning makes quick switching to left-hand mode
possible in case of a faulty fastening. Single-
hand operation is therefore also easy for
left-handers. By pressing the front toggle
switch once, the machine is switched to
left-hand operation. The LED indicator
then blinks red and green. After com-
pletion of the left-hand run, or 10sec-
onds, the right-hand run is automatically
re-activated.
More than exact screw-
driving: FEIN ACCUTEC screw
gun with pistol grip
handle or …
Continuous illumination.
Continuous illumination brightens the screw site. This helps the
operator drive screws in poorly lighted locations.
Highest torque repeatability.
The screw gun with the pistol grip handle features soft start. In com-
bination with the patented clutch unusually low starting torques can
be achieved. The gentle start-up and the soft stop reduce tension on
the operator as well as the tool. Different models can be used to work
with torques ranging from 8 to 106.2 in.lbs. (0.9 to 12 Nm).
Slower speeds for delicate applications.
Hose links and plastic screws require careful fastening. The ASM with
reduced speed is perfect for this application. The ASM 9-6-150 works
at only 150 rpm in the torque range of 9 - 53 in.lbs. (1-6 Nm). This
guarantees that the screw drive meets quality requirements from onset
until the set torque is reached.
.

5
Direct illumination.
The LED illumination integrated into all screwdrivers lights up the fas-
tening site. The view is optimal even in spots where the view is usually
difficult. During the actual screwdriving the illumination is automati-
cally switched off in order to conserve valuable battery capacity.
Operation made simple.
By pressing the front toggle switch once, the machine is switched to
left-hand running. The LED indicator then blinks red and green.
After completion of the left-hand run or a maximum of 10 seconds,
the right-hand run is automatically re-activated.
Compact design.
The offset construction allows for driving screws in even
hard-to-reach locations. In addition, the angled head can be adjusted
by ± 180 degrees.
Ergonomics.
Outstanding ergonomics and weight distribution allow for single-
handed operation. The standard soft start is easy on the hands and
arms of the operator and extends the service life of the motor
and gears as well.
... as an angle nutrunner.

6
5/8''
Ø
11
/
16
''
9
1
/
2
''
3
1
/
16
''
FEIN ACCUTEC ASM 9.6 V screw gun with pistol grip handle –
for soft and hard joints up to 80 in.lbs (9 Nm).
Model number ASM 9-2 ASM 9-4 ASM 9-6 ASM 9-6-150 ASM 9-9
Torque range in.lbs 8 – 17.7 13.3 – 35.4 8.9 – 53.1 8.9 – 53.1 17.7 – 79.65
(Nm) (0.9 –2.0) (1.5 – 4.0) (1.0 – 6.0) (1.0 – 6.0) (2.0 – 9.0)
Idle speed rpm 380 800 600 150 380
Current/Voltages V
C9.6 9.6 9.6 9.6 9.6
Weight incl. battery lbs (kg) 2.8 (1.3) 2.8 (1.3) 2.8 (1.3) 2.8 (1.3) 2.8 (1.3)
Chuck (QuickIN) 1/4" A1/4" A1/4" A1/4" A1/4" A
Order reference 7 112 07 50 01 0 7 112 06 50 01 0 7 112 04 50 01 0 7 112 05 50 01 0 7 112 03 50 01 0
Price includes: 1 NiCd battery 1 NiCd battery 1 NiCd battery 1 NiCd battery 1 NiCd battery
1,250 mAh 1,250 mAh 1,250 mAh 1,250 mAh 1,250 mAh
Certified screwdriver according to ISO
5393, VDI/VDE 2647, achieves Cmk
value > 2.00 at ± 10% (referred to 6
Sigma)
Process optimized with switch-on
delay and low energy lock (battery
monitor)
Consistently precise tightening torque
regardless of screwdriving operation
Brushless, maintenance-free EC motor
Soft stop without recoil to operator
Very high operating efficiency
Work without fatigue thanks to op-
timal ergonomics and well-balanced
weight distribution
FEIN batteries with high loading
capacity/screwdrives
Continuous illumination of the
screwdriving site
Left-hand operation activated at the
press of a button
Soft start
Retro-fits to ACCUTEC Control
Balancer suspension available
NiMH batteries also available
At a glance
713/16''
2
5
/
16
''

7
5/8''
Ø
11
/
16
''
9
3
/
4
''
3
1
/
16
''
7
13
/
16
''
2
5
/
16
''

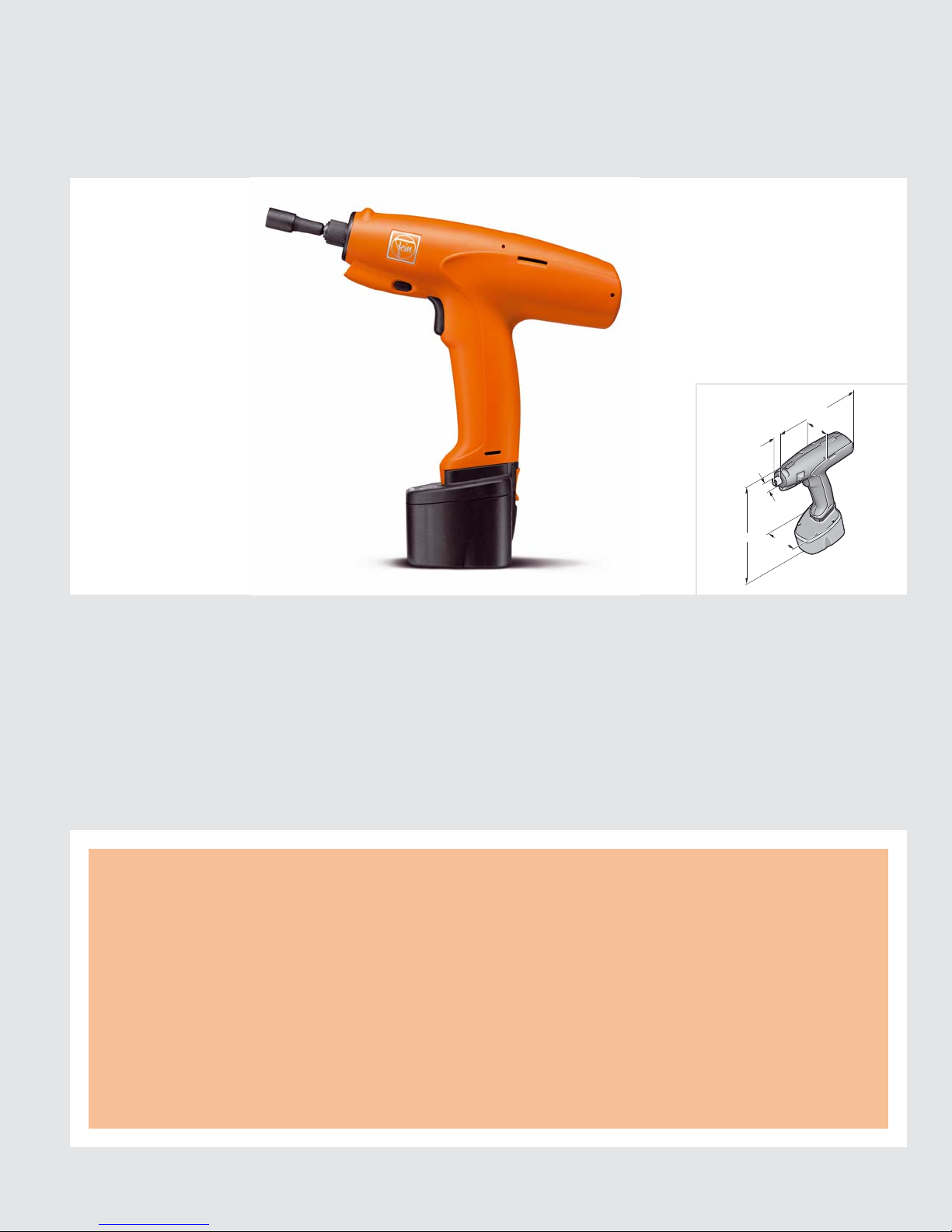

FEIN ACCUTEC 12 V screw gun with pistol grip handle –
for soft and hard joints up to 106 in.lbs (12 Nm).
Model number ASM 12-9 ASM 12-12
Torque range in.lbs 17.7 – 79.7 26.6 – 106.2
(Nm) (2.0 – 9.0) (3.0 – 12.0)
Idle speed rpm 590 460
Current/Voltages V
C12 12
Weight incl. battery lbs (kg) 3.3 (1.5) 3.3 (1.5)
Chuck (QuickIN) 1/4" A1/4" A
Order reference 7 112 02 50 01 0 7 112 01 50 01 0
Price includes: 1 NiCd battery 1 NiCd battery
1,250 mAh 1,250 mAh
Certified screwdriver according to ISO
5393, VDI/VDE 2647, achieves Cmk
value > 2.00 at ± 10% (referred to 6
Sigma).
Process optimized with switch-on
delay and low energy lock (battery
monitor)
Consistently precise tightening torque
regardless of screwdriving operation
Brushless, maintenance-free EC motor
Soft cut-out without hand/arm recoil
Very high operating efficiency
Work without fatigue thanks to op-
timal ergonomics and well-balanced
weight distribution
FEIN batteries with high loading
capacity/screwdrives
Continuous illumination of the
screwdriving site
Left-hand operation activated at the
press of a button
Soft start
Retro-fits to ACCUTEC Control
Balancer suspension available
NiMH batteries also available
At a glance

8

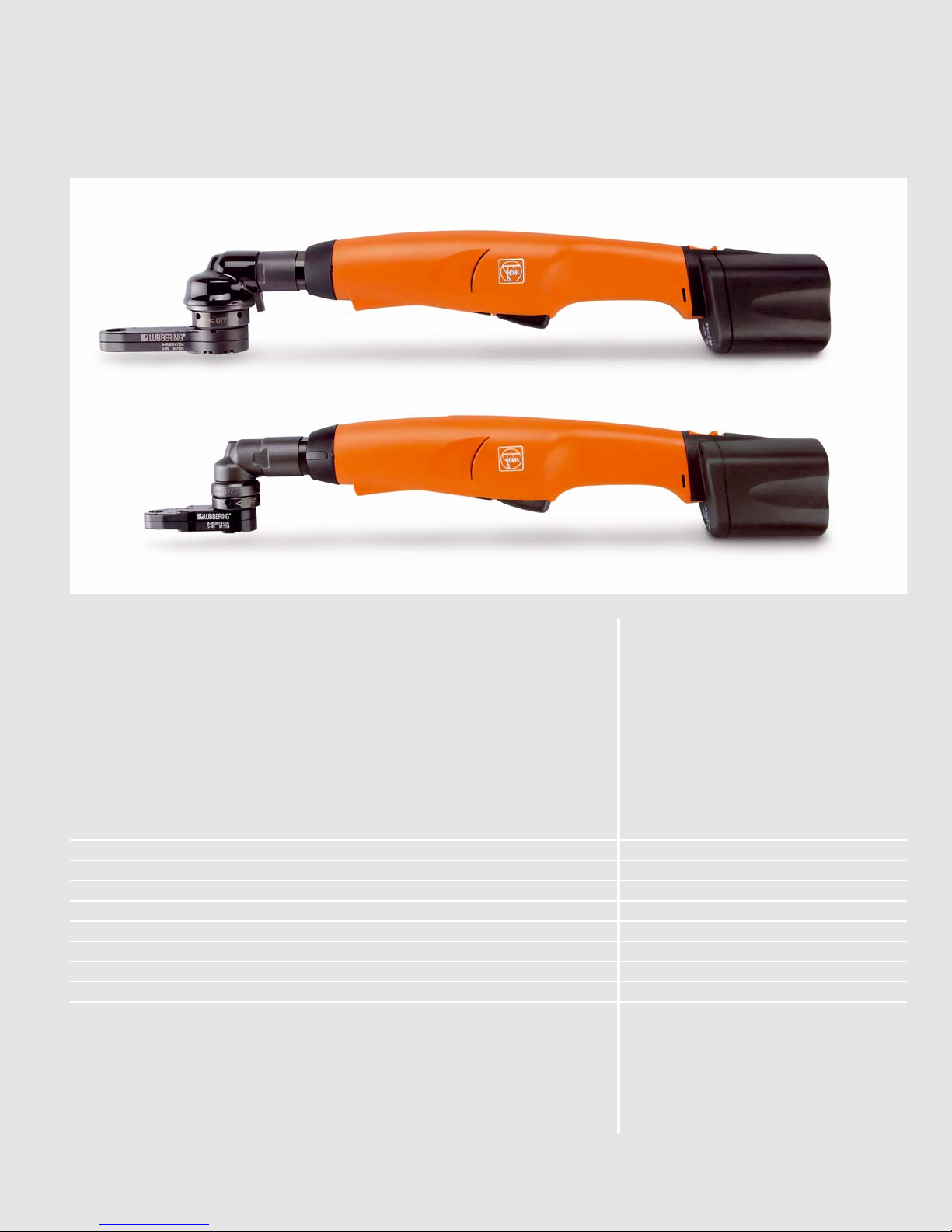

FEIN ACCUTEC 12 V angle nutrunner – for soft and hard
joints up to 142 in.lbs (16 Nm).
Model number ASW 12-16 ASW 12-16 ASW 12-16
Torque range in.lbs 8.9 – 141.6 8.9 – 141.6 8.9 – 141.6
(Nm) (6 .0 – 16.0) (6 .0 – 16.0) (6 .0 – 16.0)
Idle speed rpm 300 300 300
Current/Voltages V
C12 12 12
Weight incl. battery lbs (kg) 4.6 (2.1) 4.6 (2.1) 4.6 (2.1)
Chuck
3/8"  1/4" 1/4" A
Order reference 7 110 93 50 01 7 7 113 04 50 01 3 7 113 05 50 01 9
Price includes: 1 NiCd battery 1 NiCd battery 1 NiCd battery
2,000 mAh 2,000 mAh 2,000 mAh
At a glance
Certified screwdriver according to ISO
5393, VDI/VDE 2647, achieves Cmk
value > 1.67 at ± 12% (referred to 6
Sigma)
Process optimized with switch-on
delay and low energy lock (battery
monitor)
Consistently precise tightening torque
regardless of screwdriving operation
Brushless, maintenance-free
EC motor
Soft cut-out without hand/arm recoil
Very high operating efficiency
Work without fatigue thanks to
optimal ergonomics and well-balanced
weight distribution
FEIN batteries with high loading
capacity/screwdrives
Integrated illumination for the
screwdriving point
Left-hand operation activated at the
press of a button
Tongue tools can be used
Angled heads can be adjusted
2 x 180°
Soft start
Retro-fits to ACCUTEC Control
Balancer suspension available
NiMH batteries also available
3
13
/
16
''1
5
/
16
''
3
3
/
16
'' 15
3
/
16
''
2
3
/
16
''
Ø1
1
/
8
''
3
1
/
16
''
1
1
/
4
''

9
FEIN ACCUTEC 12 V angle nutrunner – for soft and hard
joints up to 221.2 in.lbs (25 Nm).
Model number ASW 12-25
Torque range in.lbs 88.5 – 221.2
(Nm) (10 .0 – 25.0)
Idle speed rpm 240
Current/Voltages V
C12
Weight incl. battery lbs (kg) 4.6 (2.1)
Chuck
1/4" 
Order reference 7 110 94 50 01 3
Price includes: 1 NiCd battery
2,000 mAh
At a glance
Certified screwdriver according to ISO
5393, VDI/VDE 2647, achieves Cmk
value > 1.67 at ± 12% (referred to 6
Sigma)
Process optimized with switch-on
delay and low energy lock (battery
monitor)
Consistently precise tightening torque
regardless of screwdriving operation
Brushless, maintenance-free
EC motor
Soft cut-out without hand/arm recoil
Very high operating efficiency
Work without fatigue thanks to
optimal ergonomics and well-balanced
weight distribution
FEIN batteries with high loading
capacity/screwdrives
Integrated illumination for the
screwdriving point
Left-hand operation activated at the
press of a button
Tongue tools can be used
Angled heads can be adjusted
2 x 180°
Soft start
Retro-fits to ACCUTEC Control
Balancer suspension available
NiMH batteries also available
3
13
/
16
'' 1
5
/
16
''
3
3
/
16
'' 15
3
/
16
''
2
3
/
16
''
Ø1
1
/
8
''
3
1
/
16
''
1
1
/
4
''

10
Model range.
FEIN ACCUTEC screw guns with pistol grip handle
Model number ASM 9-2 ASM 9-4 ASM 9-6 ASM 9-6-150 ASM 9-9 ASM 12-9 ASM 12-12
Torque in.lbs 8 – 17.7 13.3 – 35.4 8.9 – 53.1 8.9 – 53.1 17.7 – 79.65 17.7 – 79.7 26.6 – 106.2
(Nm) (0.9 – 2.0) (1.5 – 4.0) (1.0 – 6.0) (1.0 – 6.0) (2.0 – 9.0) (2.0 – 9.0) (3.0 – 12.0)
Idle speed rpm 380 800 600 150 380 590 460
Chuck (QucikIN) 1/4" A1/4" A1/4" A1/4" A1/4" A1/4" A1/4" A
Metric screws       
Self-tapping screws     
Screwdriving into
Plastics      
Hose links – –  – –
Careful screwdriving – –  – –
Order reference 7 112 07 7 112 06 7 112 04 7 112 05 7 112 03 7 112 02 7 112 01
 = very well suited, = well suited
Model number ASW 12-16 ASW 12-16 ASW 12-16 ASW 12-25
Torque in.lbs 8.9 – 141.6 8.9 – 141.6 8.9 – 141.6 88.5 – 221.2
(Nm) (6.0 – 16.0) (6.0 – 16.0) (6.0 – 16.0) (10.0 – 25.0)
Idle speed rpm 300 300 300 240
Chuck
3/8" 1/4" 1/4" A3/8" 
Angled head adjustment 2 x 180° 2 x 180° 2 x 180° 2 x 180°
Order reference: 7 110 93 7 113 04 7 113 05 7 110 94
FEIN ACCUTEC angle nutrunner
