FSC1.6X 7 236 37
FSC1.6Q 7 236 42
FSC2.0Q 7 236 36
3 41 01 120 21 0.book Seite 1 Dienstag, 26. Mai 2009 1:53 13

2
English _____________ Instruction manual___________________
Français ____________ Mode d'emploi______________________
Español _____________ Instrucciones de uso _________________
3
22
42
3 41 01 120 21 0.book Seite 2 Dienstag, 26. Mai 2009 2:21 14

3
en
For your safety.
Read all safety warnings and all
instructions. Failure to follow
the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
Do not use this power tool before you
have thoroughly read and completely
understood this Instruction Manual, including
the figures, specifications, safety regulations
and the signs indicating DANGER, WARN-
ING and CAUTION.
Only carry out such operations with this
power tool as intended for by FEIN. Only use
application tools and accessories that have
been released by FEIN.
Please also observe the relevant national
industrial safety regulations.
Non-observance of the safety instructions in
the said documentation can lead to an electric
shock, burns and/or severe injuries.
This Instruction Manual should be kept for
later use and enclosed with the power tool,
should it be passed on or sold.
SAVE THESE INSTRUCTIONS.
General Safety Rules.
1) Work area safety
a) Keep work area clean and well lit. Clut-
tered or dark areas invite accidents.
b) Do not operate power tools in explosive at-
mospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distraction can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or
grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an in-
creased risk of electric shock if your body
is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of elec-
tric shock.
e) When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use re-
duces the risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current de-
vice (RCD) protected supply. Use of an
RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the influence of drugs, alco-
hol or medication. A moment of inatten-
tion while operating power tools may re-
sult in serious personal injury.
b) Use safety equipment. Always wear eye
protection. Safety equipment such as dust
mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate
conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch
is in the off-position before plugging in.
Carrying power tools with your finger on
the switch or plugging in power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a
key left attached to a rotating part of the
power tool may result in personal injury.
WARNING
3 41 01 120 21 0.book Seite 3 Dienstag, 26. Mai 2009 2:21 14

4
en
e) Do not overreach. Keep proper footing and
balance at all times. This enables better
control of the power tool in unexpected
situations.
f) Dress properly. Do not wear loose clothing
or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose
clothes, jewelry or long hair can be caught
in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, en-
sure these are connected and properly
used. Use of these devices can reduce
dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The cor-
rect power tool will do the job better and
safer at the rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the
risk of starting the power tool acciden-
tally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamil-
iar with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalign-
ment or binding of moving parts, breakage
of parts and any other condition that may
affect the power tools operation. If dam-
aged, have the power tool repaired before
use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Prop-
erly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
g) Use the power tool, accessories and tool
bits etc., in accordance with these instruc-
tions and in the manner intended for the
particular type of power tool, taking into
account the working conditions and the
work to be performed. Use of the power
tool for operations different from those
intended could result in a hazardous situ-
ation.
5) Service
a) Have your power tool serviced by a quali-
fied repair person using only identical re-
placement parts. This will ensure that the
safety of the power tool is maintained.
3 41 01 120 21 0.book Seite 4 Dienstag, 26. Mai 2009 2:21 14

5
en
Special safety instructions.
This double-insulated power tool is equipped
with a polarized plug (one contact is wider than
the other). The plug will only fit into the polar-
ized socket outlet in one position. Turn the plug
if it does not fit completely into the socket out-
let. If the plug still does not fit, have a qualified
electrician install a polarized socket outlet. Do
not modify or alter the plug under any circum-
stances. Double-insulated power tools nei-
ther require a three-core power cable nor a
power connection with ground contact.
Operate the power tool only off of power sup-
plies whose voltage and frequency values cor-
respond with the values on the type plate of the
power tool.
When operating the power tool in a damp envi-
ronment, it must be connected via a ground-
fault circuit interrupter (g.f.c.i.). Using special
rubber protective gloves and footwear
increase your own safety.
Use clamps or another practical way to secure
and support the workpiece to a stable platform.
Holding the work by hand or against your
body leaves it unstable and may lead to loss of
control.
Before mounting or replacing application tools
or accessories, pull the power plug. This pre-
ventive safety measure rules out the danger of
injuries through accidental starting of the
power tool.
Hold the power tool by the insulated gripping
surfaces when performing operations where
the application tool could contact hidden wir-
ing or its own power cord. Contact with a
“live” wire will also make exposed metal
parts of the power tool “live” and shock the
operator.
Use appropriate detectors to determine if utility
lines are hidden in the work area or call the
local utility company for assistance. Contact
with electric lines can lead to fire and electric
shock. Damaging a gas line can lead to explo-
sion. Penetrating a water line causes property
damage or may cause an electric shock.
Do not direct the power tool against yourself,
other persons or animals. Danger of injury
from sharp or hot application tools.
For all work or when changing application
tools, always wear protective gloves. Danger
of injury from the sharp edges of the applica-
tion tools. Application tools can become very
hot while working. Danger of burns!
Grasp the power tool in such a safe manner
that your body never comes into contact with
the application tool, especially while working
with application tools such as saw blades or
other blades pointed toward the grasping
range. Touching sharp tips or cutting edges
can lead to injuries.
The power tool is not permitted for operations
or working with water supply. Water penetrat-
ing the motor casing can lead to electric
shock.
Do not rivet or screw any name-plates or signs
onto the power tool. If the insulation is dam-
aged, protection against an electric shock will
be ineffective. Adhesive labels are recom-
mended.
Clean the ventilation openings on the power
tool at regular intervals. The motor blower
draws dust into the housing. An excessive
accumulation of metallic dust can cause an
electrical hazard.
3 41 01 120 21 0.book Seite 5 Dienstag, 26. Mai 2009 2:21 14

6
en
Handling hazardous dusts
When working with power
tools, such as when grinding,
sanding, polishing, sawing or for other work
procedures where material is removed, dusts
develop that are both hazardous to one’s health
and can spontaneously combust or be explo-
sive.
Contact with or inhaling some dust types can
trigger allergic reactions to the operator or
bystanders and/or lead to respiratory infec-
tions, cancer, birth defects or other repro-
ductive harm.
Examples of such materials and therein con-
tained chemicals, where hazardous dusts can
develop when working them, are:
– Asbestos and materials containing asbestos;
– Lead-containing coatings, some wood types
such as beech and oak;
– Minerals and metal;
– Silicate particles from bricks, concrete and
other materials containing stone;
– Solvent from solvent-containing paint/var-
nish;
– Arsenic, chromium and other wood pre-
servatives;
– Materials for pesticide treatment on boot
and ship hulls.
To minimise the unwanted intake of these
materials:
– Use dust extraction matched appropriately
for the developing dust.
– Use personal protective equipment, such as
a P2 filter-class dust protection mask.
– Provide for good ventilation of the work-
place.
The risk from inhaling dusts depends on the
frequency how often these materials are
worked. Materials containing asbestos may
only be worked by specialists.
Wood and light-metal dust can
causespontaneous combustion
or explosions.
Hot mixtures of sanding dust and paint/varnish
remainders or other chemical materials in the
filter bag or the vac filter can self-ignite under
unfavourable conditions, such as sparking from
sanding metal, continuous sunlight or high
ambient temperatures. To prevent this:
– Avoid overheating the material being
sanded and the power tool.
– Empty the dust collector/container in time.
– Observe the material manufacturer’s work-
ing instructions.
– Observe the relevant regulations in your
country for the materials being worked.
Hand/arm vibrations
While working with this power
tool, hand/arm vibrations
occur. These can lead to health impairments.
The vibration emission value
during actual use of the power
tool can differ from the declared value
depending on the ways in which the tool is
used.
It is necessary to identify
safety measures to protect the
operator that are based on an estimation of
exposure in the actual conditions of use.
The vibration emission level given in this
information sheet has been measured in
accordance with a standardised test given in
EN 60745 and may be used to compare one
tool with another. It may be used for a pre-
liminary assessment of exposure.
The declared vibration emission level repre-
sents the main applications of the tool. How-
ever if the tool is used for different
applications, with different accessories or
poorly maintained, the vibration emission
may differ. This may significantly increase the
exposure level over the total working period.
An estimation of the level of exposure to
vibration should also take into account the
times when the tool is switched off or when
it is running but not actually doing the job.
This may significantly reduce the exposure
level over the total working period.
Identify additional safety measures to protect
the operator from the effects of vibration
such as: maintain the tool and the accessories,
keep the hands warm, organisation of work
patterns.
WARNING
CAUTION
WARNING
WARNING
WARNING
3 41 01 120 21 0.book Seite 6 Dienstag, 26. Mai 2009 2:21 14

7
en
Emission values for sound and vibration (Two-figure – specifications as per ISO 4871)
*These values are based on a work cycle con-
sisting of no-load and full-load operation of
the same duration.
For information on the vibration class
assigned to the application tool, please see the
enclosed data sheet 3 41 30 213 06 2.
Extension cord
If the use of an extension cable
is required, its length and con-
ductor cross-section must be adequate for the
applicational case, in order to prevent a volt-
age drop in the extension cable, power loss and
overheating of the power tool. Otherwise, the
extension cable and power tool are liable to
electrical danger, and the working efficiency is
impaired.
Recommended dimensions of extension cords
at an operating voltage of 120 V – single-phase
a. c., with only one power tool
FSC1.6X/FSC1.6Q/FSC2.0Q connected:
Sound emission
Measured A-weighted sound power level
L
wA
(re 1 pW), in decibels: 90
Measuring uncertainty K
wA
, in decibels: 3
A-weighted emission pressure power level
measured at the workplace L
pA
(re 20 µPa),
in decibels: 79
Measuring uncertainty K
pA
, in decibels: 3
REMARK: The sum of the measured emis-
sion value and respective measuring inaccu-
racy represents the upper limit of the
values that can occur during measuring.
Wear ear protection!
Measured values determined in accordance
with the corresponding product standard.
Vibrations
Classification of FEIN
application tools accor-
ding to vibration class
Weighted
acceleration*
VC0
< 2.5 m/s
2
< 8 ft/s
2
VC1
< 5 m/s
2
< 16 ft/s
2
VC2
< 7 m/s
2
< 23 ft/s
2
VC3
< 10 m/s
2
< 33 ft/s
2
VC4
< 15 m/s
2
< 50 ft/s
2
VC5
> 15 m/s
2
> 50 ft/s
2
CAUTION
Cord Size in A.W.G. Wire Sizes in mm
2
18 16 14 0.75 1.5 2.5
Cord Length in Feet Cord Length in Meters
25 100 150 30 60 120
3 41 01 120 21 0.book Seite 7 Dienstag, 26. Mai 2009 2:21 14

8
en
Intended use of the power tool.
This power tool is intended for commercial use
in industry and trade, using the application tools
and accessories recommended by FEIN.
FSC1.6X/FSC1.6Q:
for trimming plastic beads, e. g. in the vehicles
sector,
FSC2.0Q:
for sawing thin sheet metal, wood and plastic
parts,
and for sanding smaller areas, corners and
edges,
for cutting out elastic sealants and marble
trass joints.
Operation of the power tool off power generators.
Operate the power tool only off
a.c. generators with sufficient power
output that do not have any distortion of the
voltage curve.
Operating the power tool off
power generators whose no-
load speed exceeds the voltage value on the
type plate of the power tool is prohibited.
WARNING
3 41 01 120 21 0.book Seite 8 Dienstag, 26. Mai 2009 2:21 14

9
en
Symbols.
Symbol Explanation
➤
Action to be taken by the user
Danger of sharp application tools moving back and forth.
Warning against sharp edges of application tools, such as the cutting
edges of the cutter blades.
Follow the instructions in the adjacent text!
Be absolutely sure to read the enclosed documentation such as the
Instruction Manual and the General Safety Instructions.
Use eye-protection during operation.
Use ear protection during operation.
Use a dust mask during operation.
Use eye-protection, ear protection and dust mask during operation.
Use protective gloves during operation.
Worn out power tools and other electrotechnical and electrical products
should be sorted separately for environment-friendly recycling.
This symbol confirms the certification of this product for the USA and
Canada.
This sign warns of a directly imminent, dangerous situation. A false reac-
tion can cause a severe or fatal injury.
This sign indicates a possible dangerous situation that could cause severe
or fatal injury.
This sign warns of a possible dangerous situation that could cause injury.
Product with double or reinforced insulation
~ or a. c. Alternating current
1 ~ Alternating current single-phase
Ø Diameter of a round part
DANGER
WARNING
CAUTION
3 41 01 120 21 0.book Seite 9 Dienstag, 26. Mai 2009 2:21 14

10
en
Technical description and specifications.
Before mounting or replacing application tools or accessories, pull the power
plug. This preventive safety measure rules out the danger of injuries through
accidental starting of the power tool.
Only part of the accessories described or shown in this instruction manual will be included
with your power tool.
Character Unit of measure, national Explanation
n
o
/min Revolution speed at no-load
W Unit of measure for electrical power
Hz Frequency
V Unit of measure for the electric voltage
A Unit of measure for the electric current intensity
° Unit of measure for the angle width
lbs Unit of measure for the mass
ft, in Unit of measure for length, width, height or depth
m, s, kg, A, mm, V, W,
Hz, N, °C, dB, /min, m/s
2
Basic and derived units of measure from the interna-
tional system of units SI .
WARNING
On/Off switch
Dial control for adjustment of
oscillating frequency
Depth stop
Extraction device for
sanding and rasping
work

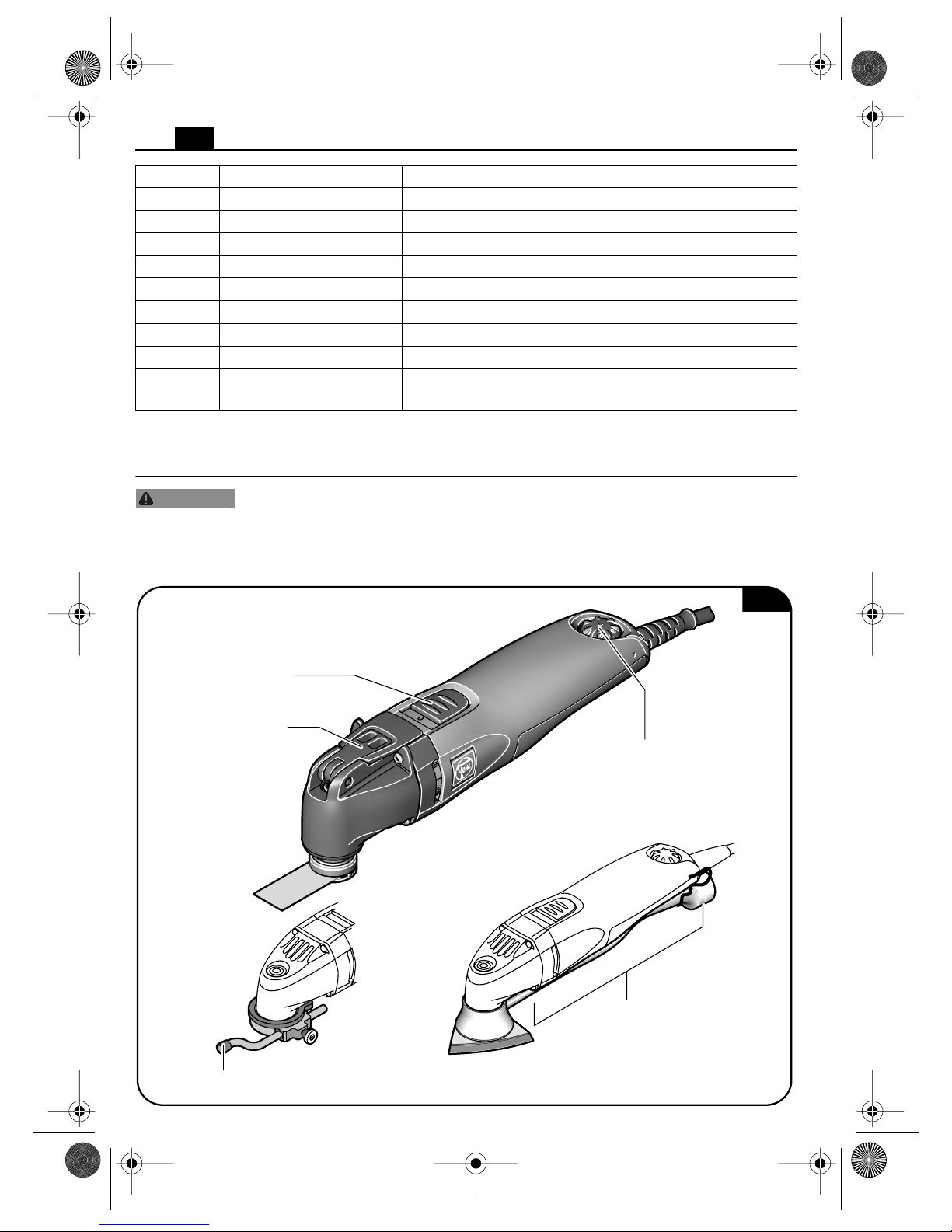

Fig. 1
FSC1.6Q/FSC2.0Q
Belt tension
lever
3 41 01 120 21 0.book Seite 10 Dienstag, 26. Mai 2009 2:21 14

11
en
Assembly instructions.

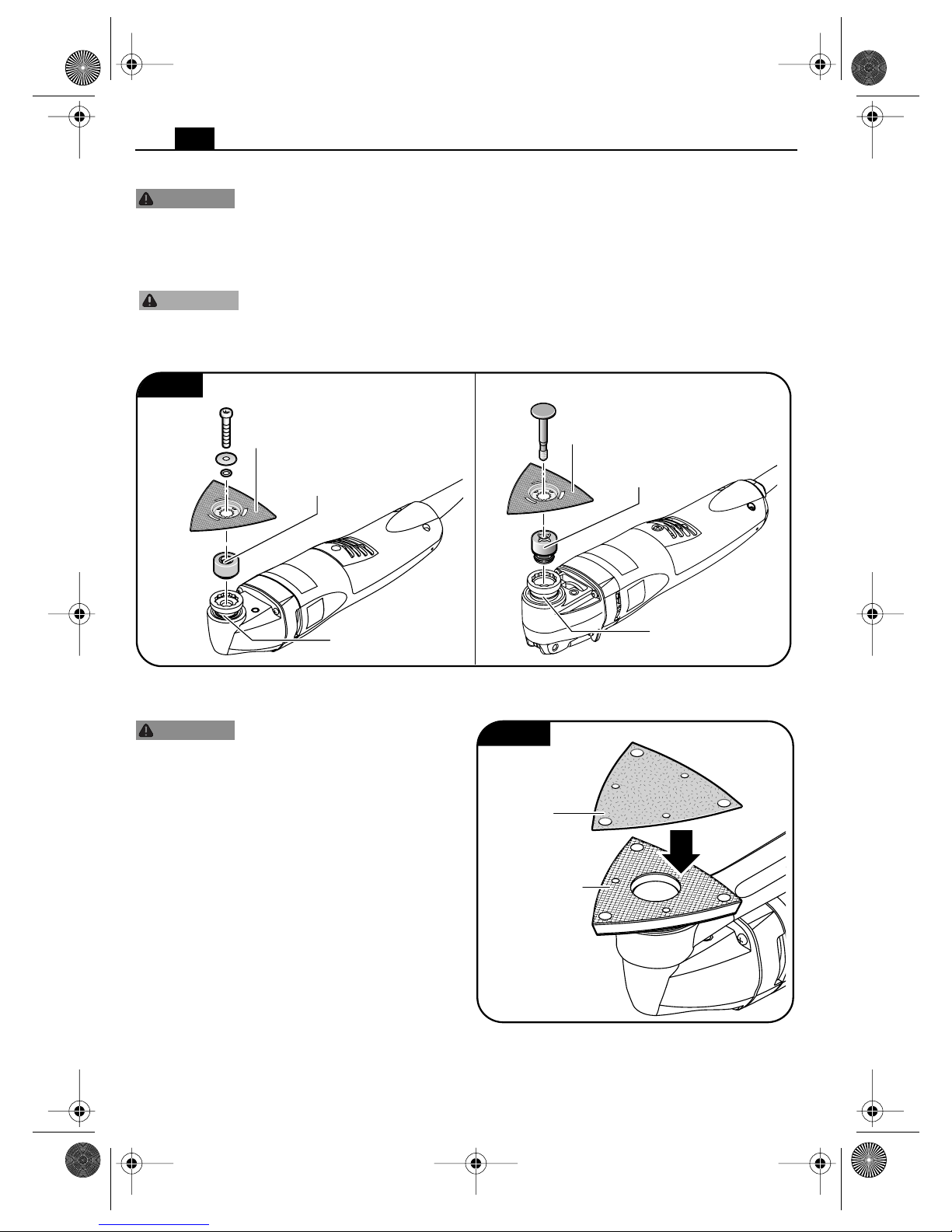

Mounting the handle (Figure 2).
Before mounting or replacing application tools or accessories, pull the power
plug. This preventive safety measure rules out the danger of injuries through
accidental starting of the power tool.
➤

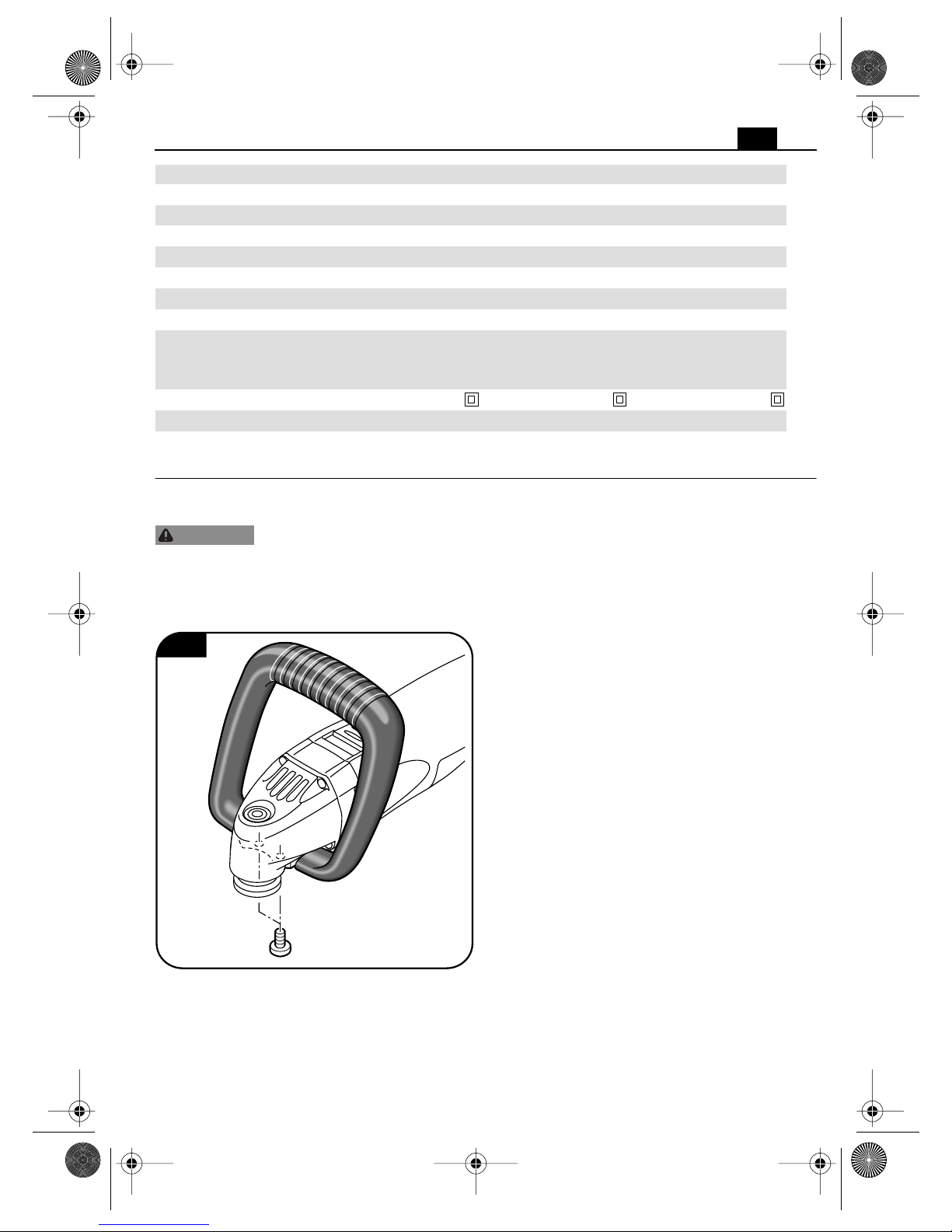

Mount the handle with the 2 screws to the bottom side of the gear head.
Type FSC1.6X FSC1.6Q FSC2.0Q
Reference number 7 236 37 7 236 42 7 236 36
Rated voltage 120 V/60 Hz 120 V/60 Hz 120 V/60 Hz
Power Input 400 W 400 W 400 W
Output 220 W 220 W 220 W
Current 4.2 A 4.2 A 4.2 A
Power supply type 1 ~ 1 ~ 1 ~
Oscillating frequency 11 000–18 500/min 11 000–18 500/min 11 000–18 500/min
Weight according to
EPTA-Procedure
01/2003
1.25 kg (2.8 lbs) 1.45 kg (3.2 lbs) 1.45 kg (3.2 lbs)
Class of protection II II II
Oscillating angle 1.6 °1.6 °2.0 °
WARNING
Fig. 2
3 41 01 120 21 0.book Seite 11 Dienstag, 26. Mai 2009 2:21 14

12 en

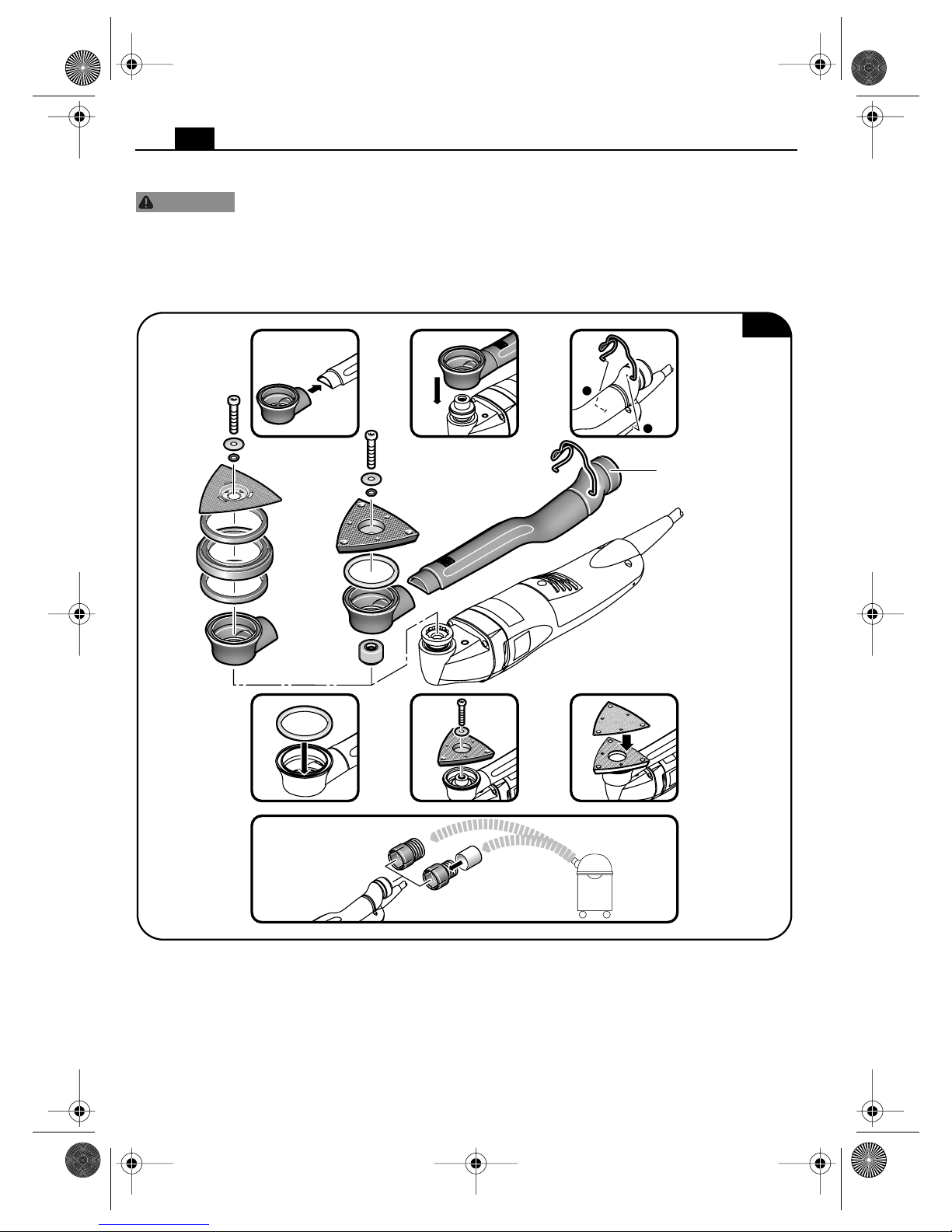

Mounting the extraction device for sanding and rasping work (Figure 3 + 4).
Before mounting or replacing application tools or accessories, pull the power
plug. This preventive safety measure rules out the danger of injuries through
accidental starting of the power tool.

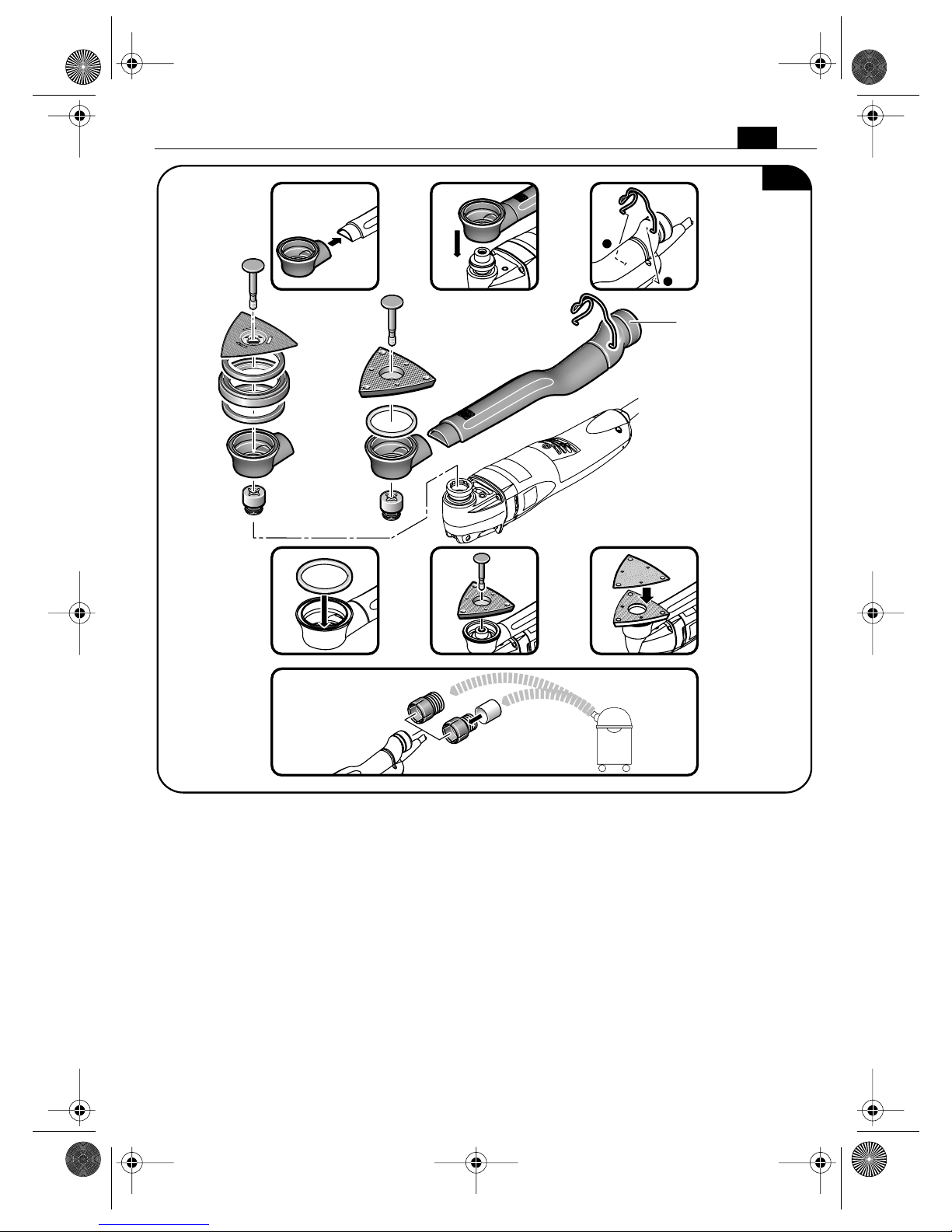

➤Mount the suction device step by step as shown in the figures.
➤For connection with a FEIN Dustex or a vacuum cleaner, various hose adapters are
available as an accessory.
WARNING
1
2
➊➋ ➌
➍➎➏
➐
Fig. 3
Suction device
FSC1.6X
3 41 01 120 21 0.book Seite 12 Dienstag, 26. Mai 2009 2:21 14

13
en
1
2
➊➋ ➌
➍➎➏
➐
Fig. 4
Suction device
FSC1.6Q
FSC2.0Q
3 41 01 120 21 0 - EN (US) Seite 13 Mittwoch, 27. Mai 2009 8:55 08

14 en
Mounting the extraction device for groove-renovating, tiling or sawing work
(Figure 5).
Before mounting or replacing application tools or accessories, pull the power
plug. This preventive safety measure rules out the danger of injuries through
accidental starting of the power tool.

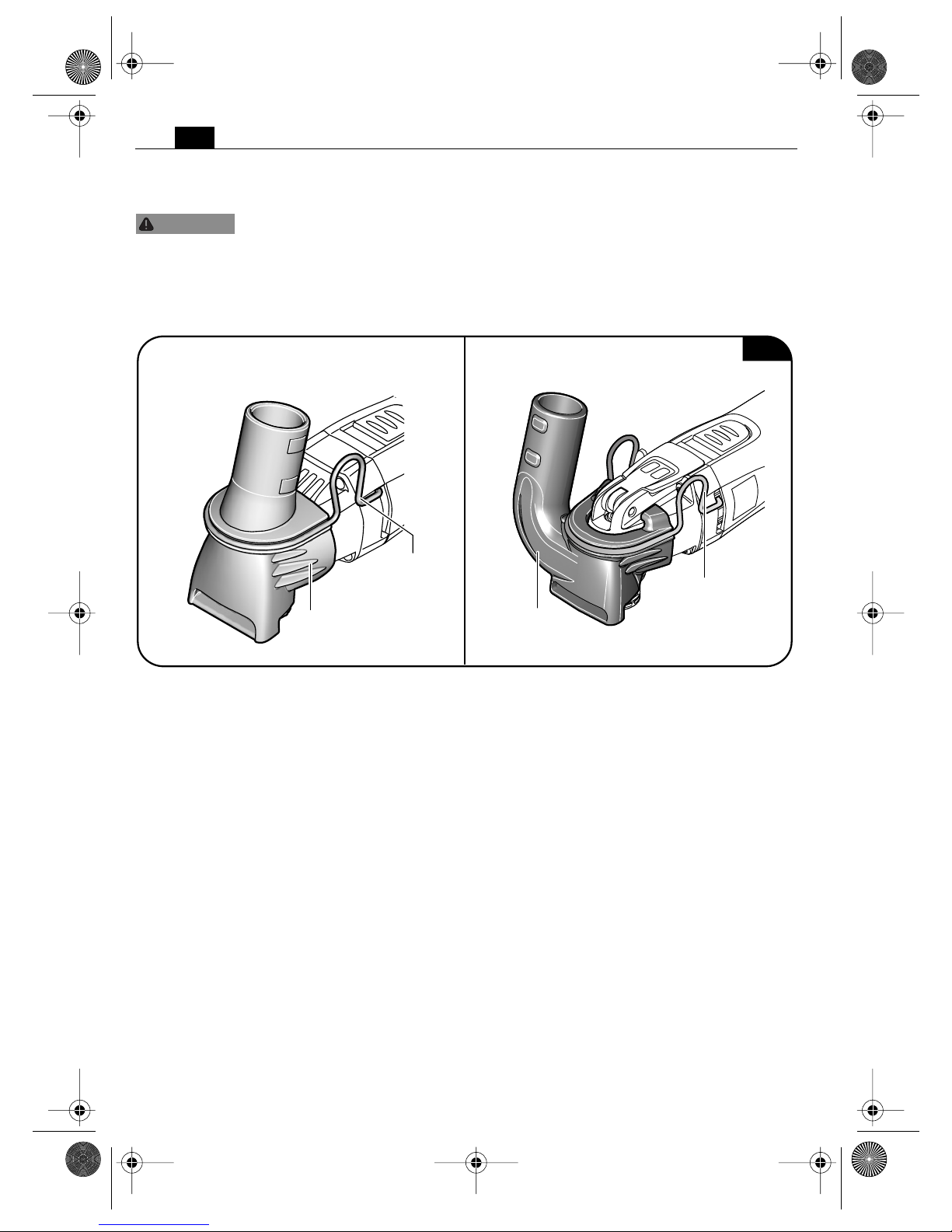

➤Attach the suction device from the front onto the gear head and fasten it to the venti-
lation slots using the retaining clip.
WARNING
Fig. 5
Suction
device
Retaining
clip
Suction
device
Retaining
clip
FSC1.6Q
FSC2.0Q
FSC1.6X
3 41 01 120 21 0 - EN (US) Seite 14 Mittwoch, 27. Mai 2009 8:55 08

15
en
Changing the tool.
The application tool can be fastened offset in 30° steps for adjusting convenient working
positions.
Attaching or changing the cutting blade.

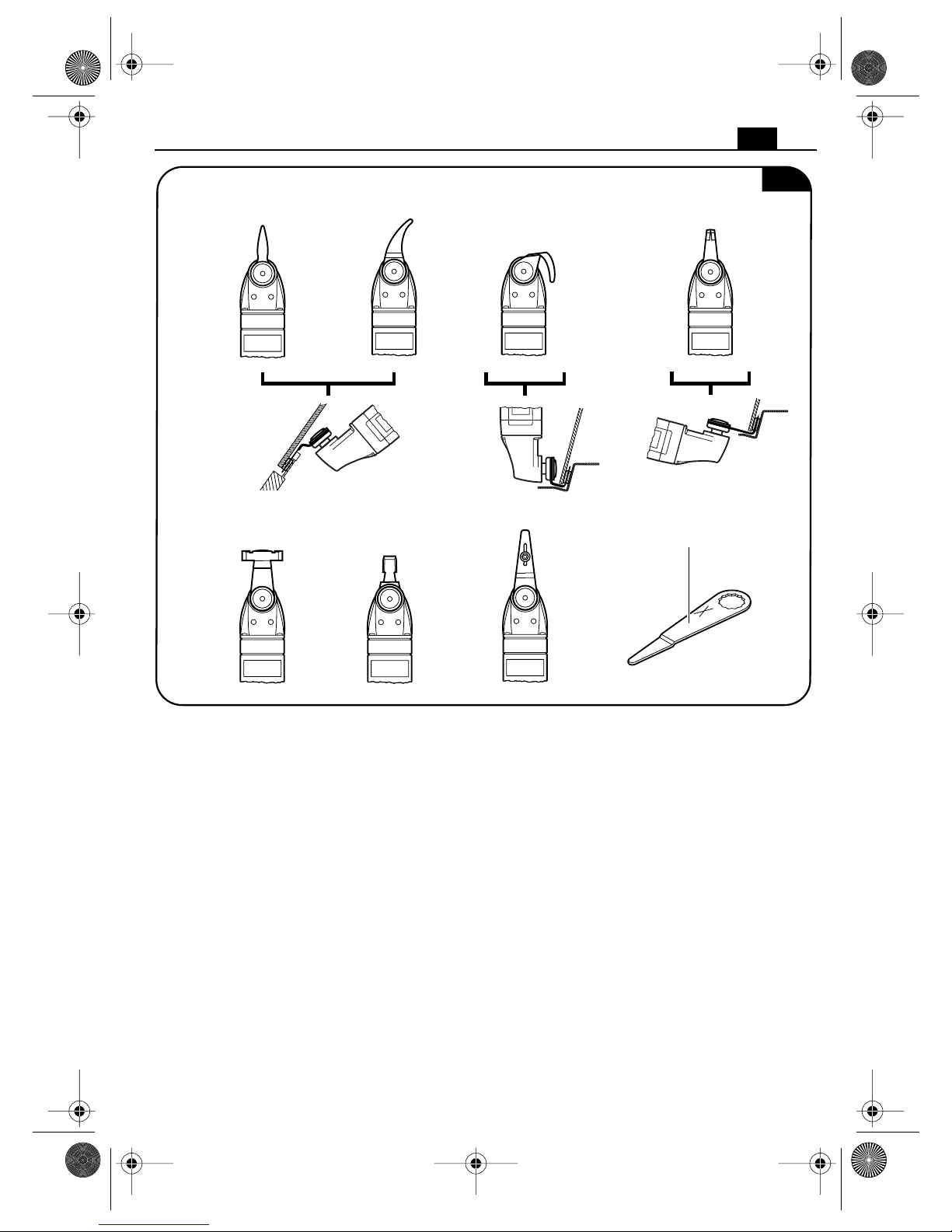

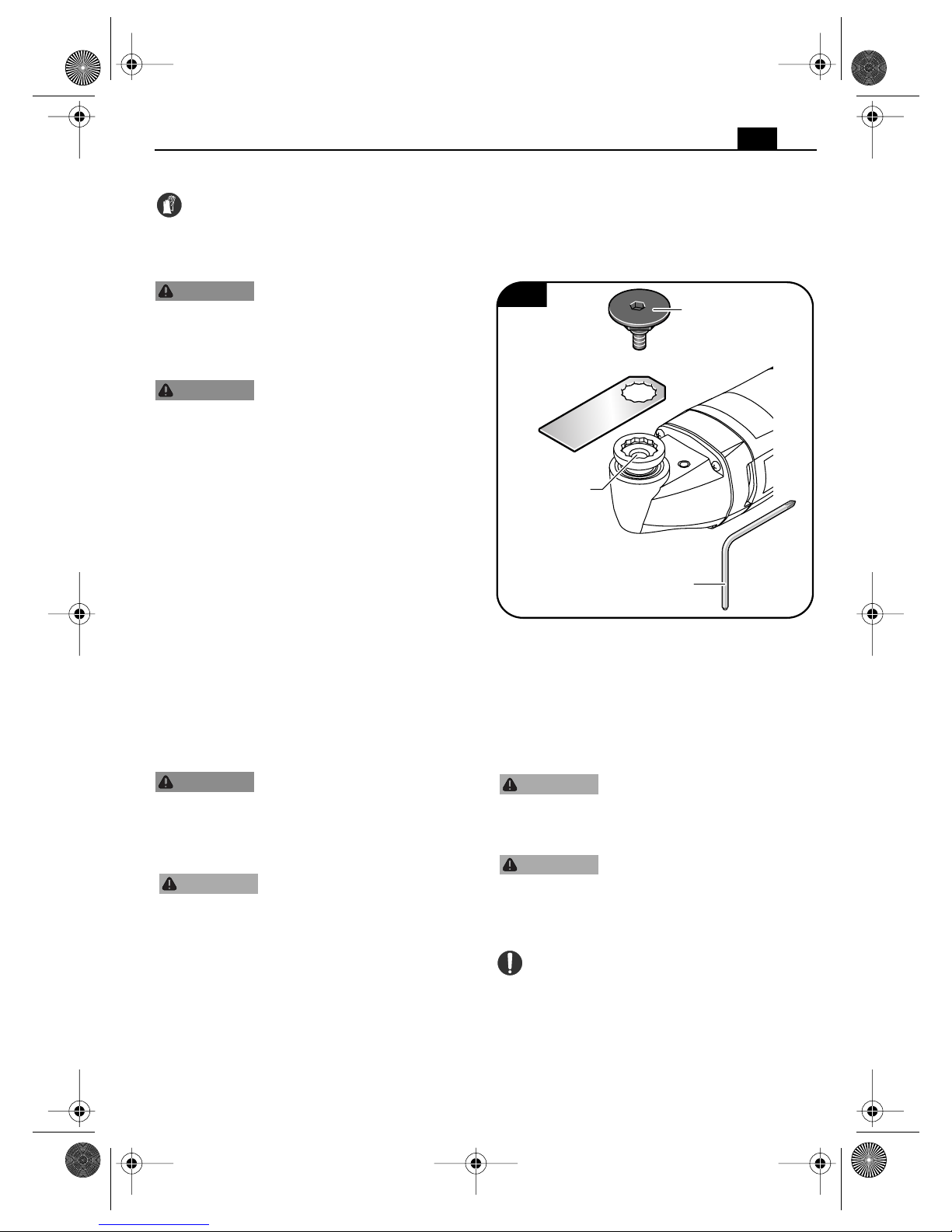

FSC1.6X (Fig. 6).
Before mounting or replacing
application tools or accesso-
ries, pull the power plug. This preventive
safety measure rules out the danger of injuries
through accidental starting of the power tool.
For all work or when changing
application tools, always wear
protective gloves. Danger of injury from the
sharp edges of the application tools. Applica-
tion tools can become very hot while work-
ing. Danger of burns!
Each time before using, also sharpen new
blades with a sharpening stone at the lowest
oscillating frequency.
➤Unscrew the clamping screw.
➤Clean the tool holder, the application
tool and the clamping screw.
➤Insert the application tool exactly into
the tool holder. Pay attention that the
application tool faces flush.
➤Tighten the clamping screw using the
supplied Allen key.
FSC1.6Q/FSC2.0Q (Fig 7).
Before mounting or replacing
application tools or accesso-
ries, pull the power plug. This preventive
safety measure rules out the danger of injuries
through accidental starting of the power tool.
For all work or when changing
application tools, always wear
protective gloves. Danger of injury from the
sharp edges of the application tools. Applica-
tion tools can become very hot while work-
ing. Danger of burns!
Each time before using, also sharpen new
blades with a sharpening stone at the lowest
oscillating frequency.
When changing application
tools with sharp cutting edges,
use cover 3 21 74 011 00 0 to protect your-
self against hand injuries.
Protect your hand and fingers
from being bruised/crushed
from the snapping back clamping lever. The
clamping lever pivots back powerfully due to
the spring force.
Firmly press in the fastening element to
the stop. Then lock the rapid-clamping
lever.
WARNING
WARNING
Allen key
Fig 6
Tod holder
Clamping
screw
WARNING
CAUTION
CAUTION
CAUTION
3 41 01 120 21 0.book Seite 15 Dienstag, 26. Mai 2009 2:21 14

16 en
➤Loosen the clamping lever and swivel
it to the stop.
➤Pull out the fastening element.
➤Clean the tool holder, the application
tool and the fastening element.
➤Place the application tool exactly onto
the star-shaped tool holder. Pay atten-
tion that the application tool has a flush
fit.
➤Insert the fastening element to the
stop into the tool holder.
➤Swivel the clamping lever back until it
engages.
Clamp cutting blades for the vehicles sector as shown in (Figure. 8).
Before mounting or replacing
application tools or accesso-
ries, pull the power plug. This preventive
safety measure rules out the danger of injuries
through accidental starting of the power tool.
For all work or when changing
application tools, always wear
protective gloves. Danger of injury from the
sharp edges of the application tools. Applica-
tion tools can become very hot while work-
ing. Danger of burns!
The cutting blades marked with a symbol
(Fig. 8) may only be operated as indicated.
A Cutting blade, straight and curved.
B Cutting blade, bent at right angles.
C Cutting blade, U-form.
D Cutting blade, L-form.
E Scraping knife.
F Scraping knife.
G Cutting blade with stop roller.
The cutting blades marked with a symbol
(Fig. 8) may only be operated as indicated.
Guide the straight, bent or off-set cutting
blades at a right-angle to the window flange.
For U-form cutting blades, pay attention that
the ridge of the cutting blade is guided parallel
to the vehicle window.
The scraper knife is used for cutting back
bond remainders on the window flange or
the pane. Before re-bonding the vehicle win-
dow, cut back the remaining bead to a height
of approx. 2 mm.
180°

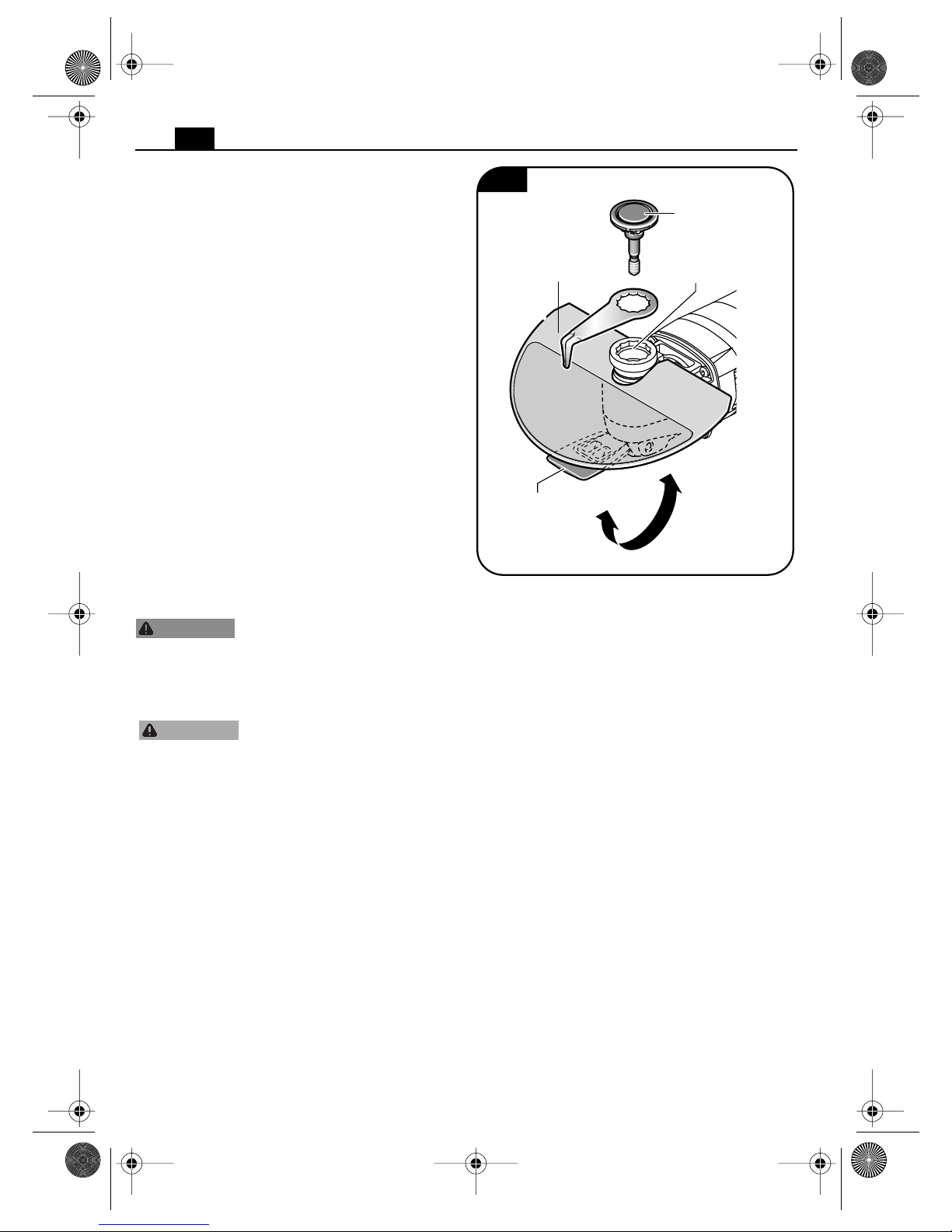

Fig. 7
Fastening
element
Tool holder
Clamping
lever
Cover
WARNING
CAUTION
3 41 01 120 21 0.book Seite 16 Dienstag, 26. Mai 2009 2:21 14

17
en
A
EFG
BDC
ohne Last
no load
vitesse vide
ait tools
max. Pos. 3
}
Fig. 8
Symbol on the
cutting blade
FSC1.6X/FSC1.6Q
3 41 01 120 21 0.book Seite 17 Dienstag, 26. Mai 2009 2:21 14

18 en
Mounting FSC1.6X/FSC1.6Q/FSC2.0Q accessories (Figure. 9).
Before mounting or replacing
application tools or accesso-
ries, pull the power plug. This preventive
safety measure rules out the danger of injuries
through accidental starting of the power tool.
For all work or when changing
application tools, always wear
protective gloves. Danger of injury from the
sharp edges of the application tools. Applica-
tion tools can become very hot while work-
ing. Danger of burns!
For use of accessories with round or star-
shaped tool holder for sanding, polishing or
rasping work, mount the adapter and fasten-
ing element that matches the power tool,
which is available as an accessory.
Attaching/replacing the sanding sheet (Figure 10).
Before mounting or replacing
application tools or accesso-
ries, pull the power plug. This preventive
safety measure rules out the danger of injuries
through accidental starting of the power tool.
The sanding pad can be fastened on the drive
shaft at the suitable position. For working
with the sanding pad, the adapter for the
FSC1.6X/FSC1.6Q/FSC2.0Q accessories
(figure 10) are required.
➤Align the sanding sheet and press it
onto the sanding plate by hand.
➤Firmly press the power tool with the
sanding sheet against a flat surface and
briefly switch the power tool on. This
provides for good adhesion and prevents
premature wear.
The sanding sheet can be pulled off again and
then remounted offset by 120° when only
one tip of the sanding sheet is worn.
WARNING
CAUTION
Adapter with
round tool holder
Tool holder
Fig. 9 FSC1.6X
Tool
FSC1.6Q
FSC2.0Q
Tool
Adapter with star-
shaped tool holder
Tool holder
WARNING
Sanding pad
Sanding
sheett
Fig. 10
3 41 01 120 21 0.book Seite 18 Dienstag, 26. Mai 2009 2:21 14

19
en
Working instructions.
Before mounting or replacing application tools or accessories, pull the power
plug. This preventive safety measure rules out the danger of injuries through
accidental starting of the power tool.
Do not use accessories which are not specifically designed and recommended by the power tool
manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.
For each job, use only the FEIN application tool released and intended for the respective
application.
Connecting the dust extraction
(Figure 3-5).
When working materials that
produce dust, the power tool is
to be connected to an external dust extraction
via the extraction adapter.
The vacuum cleaner must be suitable for the
material being worked.
When vacuuming dry dusts that are particu-
larly hazardous to one’s health or carcino-
genic, a specialty vacuum cleaner is to be
used.
Switching ON and OFF (Figure 1).
First check that the power
cable and power plug are not
damaged.
Always hold the power tool
firmly. Otherwise, you could
lose control over the power tool.
Switching ON:
➤Push the switch towards the front (I).
Switching OFF:
➤Push the switch towards the back (0).
Setting the oscillating frequency
(Figure 1).
The oscillating frequency can be set infinitely
variable with the dial control.
Increasing the oscillating frequency:
➤Turn dial control in counterclockwise
direction.
Decreasing the oscillating frequency:
➤Turn dial control in clockwise direc-
tion.
Securing the work piece.
Secure the workpiece firmly. A
work piece that is gripped
tightly in a clamping device or vice, is more
secure than if held by hand.
Sanding
Typical application: Dry sanding of wood and
metal, especially of smaller surfaces, corners and
edges, as well as hard to reach locations.
Work with the complete surface of the sanding
plate, not only with the tip. Select a high oscillat-
ing frequency. Sand with continuous motion
and light pressure. Applying excessive pressure
does not increase material removal; only the
sanding sheet wears more quickly.
Sawing
Typical application: Sawing of thin steel sheet,
wood and plastic components.
Select a high oscillating frequency.
Round saw blades can be clamped offset again
to provide uniform wear.
While sawing or plunge cutting, provide for
good chip removal by applying a light pendulum
motion.
Scraping
Typical application: Scraping off old coats of
varnish or adhesives, removing bonded car-
peting, e. g., on stairs/steps or other small/
medium-sized surfaces.
Select a medium to high oscillating frequency.
WARNING
CAUTION
WARNING
CAUTION
CAUTION
3 41 01 120 21 0.book Seite 19 Dienstag, 26. Mai 2009 2:21 14

20 en
Maintenance.
Before mounting or replacing application tools or accessories, pull the power plug.
This preventive safety measure rules out the danger of injuries through acciden-
tal starting of the power tool.
Service
Have maintenance carried out
only through qualified person-
nel. Incorrectly mounted leads and components
can cause serious injuries. Have the required
service carried out only through a FEIN cus-
tomer service agent.
Cleaning
Prior to any cleaning or mainte-
nance, disconnect the power
tool from the power supply in order to avoid
accidents.
When using in environments
with conductive dust in the air,
such as when working metals, this dust can
settle in the interior of the power tool. This can
impair the total insulation of the power tool.
Therefore, regularly blow out the interior of the
power tool from outside via the ventilation
openings with dry, oil-free compressed air;
always wear eye protection when doing this.
For additional protection, connect a residual
current device (RCD) on the line side.
Do not attempt to clean clogged or dirty
ventilation openings of the power tool
with pointed metal objects; use non-
metal tools or objects for this.
Do not use cleaning agents and solvents
that can cause damage to plastic parts.
These include: Gasoline, carbon-tetrachlo-
ride, chloric solvents, ammonia and domestic
cleaning agents that contain ammonia.
When the power tool’s power cable is
damaged, it must be replaced by a quali-
fied person using a specially prepared power
cable, available from your FEIN customer
service agent.
Accessories.
Only use accessories recommended by FEIN.
Warranty and liability.
The warranty for the product is valid in accor-
dance with the legal regulations in the country
where it is marketed.
In addition, FEIN also provides a guarantee in
accordance with the FEIN manufacturer’s
guarantee. For further details on this, please
contact your specialist dealer, your national
FEIN representative, or the FEIN customer
service centre.
Environmental protection,
disposal.
Packaging, worn out power tools and accesso-
ries should be sorted for environment-friendly
recycling. Further information can be obtained
from your specialist dealer.
WARNING
WARNING
WARNING
WARNING
3 41 01 120 21 0.book Seite 20 Dienstag, 26. Mai 2009 2:21 14
