Festo VTSA Series Parts list manual

Brief description
VTSA valve
terminal with
AS-Interface
type VTSA-ASI-
...-8E8A-Z
– English
8101765
2018-11b
[8101767]
VTSA Valve Terminal

Festo VTSA-ASI-...-8E8A-Z 2018-11b2
Translation of the original instructions
Documentation on the product
For all available product documentation
èwww.festo.com/pk
Copyright:
Festo AG & Co.
Ruiter Straße 82
73734 Esslingen
Germany
Internet: http://www.festo.com
E-Mail: [e-mail]
Reproduction, distribution or sale of this document or communication of
its contents to others without express authorization is prohibited.
Offenders will be liable for damages. All rights reserved in the event that
a patent, utility model or design patent is registered.
English 3............................................

Festo VTSA-ASI-...-8E8A-Z 2018-11b English 3
English
1 User instructions
Valve terminal type VTSA-ASI-...-8E8A-Z has been de
signed exclusively for controlling pneumatic actuators and
is only suitable for use in bus systems in accordance with
the AS-Interface specifications. If additional commercially-
available components are connected, the specified limits
for pressures, temperatures, electrical data, torques, etc.
must not be exceeded.
The valve terminal enables the control of 8 valve solenoid
coils and the registering of 8 sensors. The exchangeable
connections of the CPX system are used for connecting the
sensors.
AS-Interface bus systems and valve terminals may only be
installed by personnel especially trained for this purpose.
Specifications on the design and addressing of your bus
system can be found in the manual for the AS-Interface
master.
Detailed information on the pneumatic components of the
valve terminal can be found in the Pneumatics manual type
P.BE-VTSA-...
Caution
SSwitch off the power supply before connecting or
disconnecting plugs (otherwise this could lead to
functional damage).
SCommission only a valve terminal which has been
fitted and wired completely.
SConnect the earthing cable between the adapter
module and the multipin node.

Festo VTSA-ASI-...-8E8A-Z 2018-11b English4

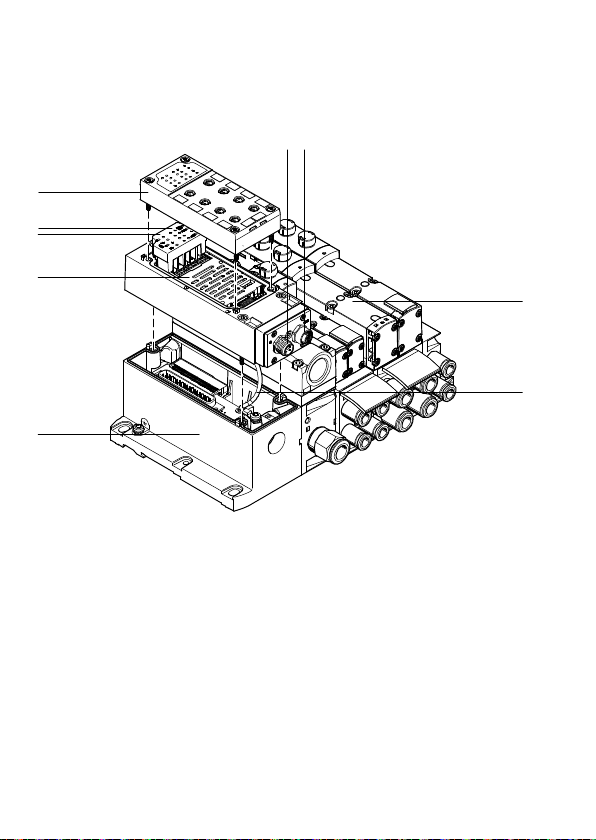

2 Connecting and display elements
5
12
3
4
8
6
7
9
1M12 plug for AS-Interface
bus and additional power
supply (AS-i In)
2M12 socket for AS-Inter
face bus and additional
power supply (AS-i Out)
3VTSA pneumatics
(max. 8 solenoid coils).
4Earthing cable (between
adapter module and
multipin node)
5Multipin node
6Cover
7Status LEDs inputs (LED 0 … 3 for
slave 1, LED 4 … 7 for slave 2)
8Status LEDs AS-Interface
(Fault 1 for slave 1, Fault 2 for
slave 2, AUX/PWR)
9Sub-base for inputs with viewing
window for LEDs

Festo VTSA-ASI-...-8E8A-Z 2018-11b English 5
2.1 Diagnosis / display status LEDs
AS-i
(green)
Fault
(red)
Meaning
on out AS-Interface voltage applied, no fault
on flashes Short circuit/overload at input
on on Bus communication failed
(Watchdog expired)
flashes flashes Additional power supply not applied or
undervoltage (possibly valves do not switch),
periphery fault
flashes on AS-Interface address not set (= 0)
out out AS-Interface voltage not applied
AUX/PWR (green) Meaning
on Additional supply exists
out No additional supply or additional supply failed
Inputs (yellow) Meaning
on 1-signal at input
out 0-signal at input
Note
The AS-Interface has an integrated watchdog function
which resets the outputs (solenoid coils) if the bus
communicationfails.

Festo VTSA-ASI-...-8E8A-Z 2018-11b English6
3 Installation instructions
3.1 Mounting the valve terminal
The valve terminal can be fastened in hat rails or mounted
on a wall.
Note
In order to guarantee resistance to shocks and vibra
tion, the maximum distance between the fastening
points must not exceed 280 mm.
3.2 Connections and address assignment of the inputs
The valve terminal uses the exchangeable connections of
the CPX system. Replace the sub-base as follows:
1. Loosen the 4 screws in the sub-base 9with a TORX
screwdriver size T10.
2. Pull the sub-base 9carefully and without tilting away
from the electrical plug connector.
3. Insert the new sub-base. Tighten the 4 screws of the sub-
base (tightening torque of the screws 0.65Nm±10%).
4. Make the necessary connections. Seal unused connec
tions with protective caps.
Note
The sub-base CPX-AB-4-M12x2-5POL (-R) must not be
used.

Festo VTSA-ASI-...-8E8A-Z 2018-11b English 7
Note
The sensor supply is designated here with US+/US−.
Additional information on the inputs èsection
LEERER MERKER.
Sub-base
CPX-AB-...
Assignment
Slave 1 Slave 2
...4-M12x2-5POL
2
3
1
5
4
X1.1: US+
X1.2: I1
X1.3: US
X1.4: I0
X1.5: d.n.c.1)
X2.1: US+
X2.2: I3
X2.3: US
X2.4: I2
X2.5: d.n.c.1)
X3.1: US+
X3.2: I5
X3.3: US
X3.4: I4
X3.5: d.n.c.1)
X4.1: US+
X4.2: I7
X4.3: US
X4.4: I6
X4.5: d.n.c.1)
Description:
4 M12 sockets, 5-pin, IP65; X1.5, X2.5, X3.5, X4.5
are connected internally with each other
...4-HARx2-4POL
23
14
X1.1: US+
X1.2: I1
X1.3: US
X1.4: I0
X2.1: US+
X2.2: I3
X2.3: US
X2.4: I2
X3.1: US+
X3.2: I5
X3.3: US
X3.4: I4
X4.1: US+
X4.2: I7
X4.3: US
X4.4: I6
Description: 4 HARAX connections, 4-pin, IP65
...8-KL-4POL
.0
.1
.2
.3
.0
.1
.2
.3
X1.0: US+
X1.1: US
X1.2: I0
X1.3: d.n.c.1)
X2.0: US+
X2.1: US
X2.2: I1
X2.3: d.n.c.1)
X3.0: US+
X3.1: US
X3.2: I2
X3.3: d.n.c.1)
X4.0: US+
X4.1: US
X4.2: I3
X4.3: d.n.c.1)
X5.0: US+
X5.1: US
X5.2: I4
X5.3: d.n.c.1)
X6.0: US+
X6.1: US
X6.2: I5
X6.3: d.n.c.1)
X7.0: US+
X7.1: US
X7.2: I6
X7.3: d.n.c.1)
X8.0: US+
X8.1: US
X8.2: I7
X8.3: d.n.c.1)
Description:
2 terminal strips, 4 x 4-pin, IP20;
X1.3, X2.3, X3.3, X4.3, X5.3, X6.3, X7.3, X8.3
areconnected internally with each other

Festo VTSA-ASI-...-8E8A-Z 2018-11b English8

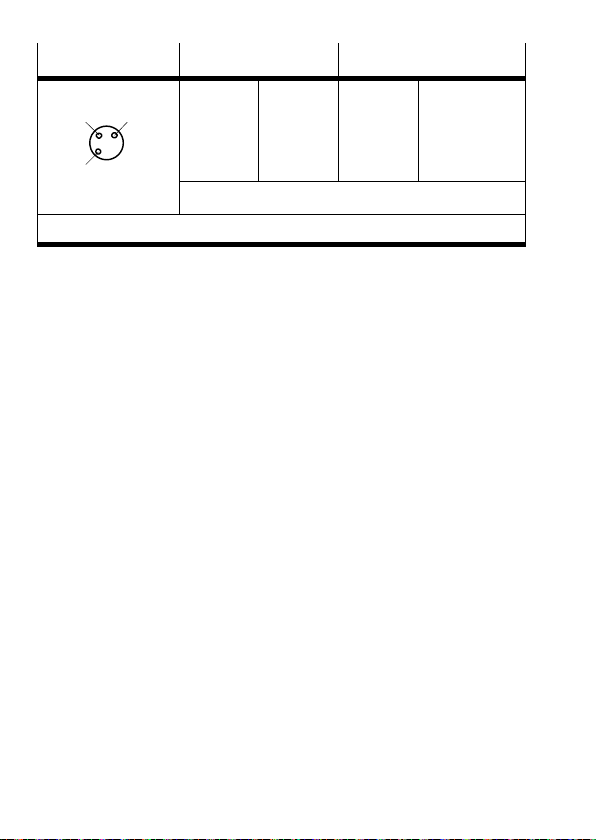

Sub-base
CPX-AB-... Slave 2Slave 1
...8-M8-3POL
41
3
X1.1: US+
X1.3: US
X1.4: I0
X2.1: US+
X2.3: US
X2.4: I1
X3.1: US+
X3.3: US
X3.4: I2
X4.1: US+
X4.3: US
X4.4: I3
X5.1: US+
X5.3: US
X5.4: I4
X6.1: US+
X6.3: US
X6.4: I5
X7.1: US+
X7.3: US
X7.4: I6
X8.1: US+
X8.3: US
X8.4: I7
Description: 8 M8 sockets, 3-pin, IP65
1) d.n.c. = do not connect; do not switch

Festo VTSA-ASI-...-8E8A-Z 2018-11b English 9
3.3 Address assignment
Before connecting to the AS-Interface bus: assign an
unused address to each slave.
Note
Valve terminal type VTSA-ASI-...-8E8A-Z contains two
AS-Interface slaves. The valve terminal behaves on the
AS-Interface bus like 2individual valve terminals each
with 4 inputs and 4 outputs.
– Permitted address range for each slave: 1 … 31
(Factory settings: 1 for slave 1, 2 for slave 2).
– It is not necessary to parametrize the AS-interface
slaves.
Address both slaves one after the other at the plug
“AS-iIn” (see section 3.5).
Note
Never assign the same address to both slaves.
The assignment of the data bits to the inputs and outputs
of both independent slaves is shown in the following
diagram.
Slave 1: IO code 7HSlave 2: IO code 7H
Data bits: D0 D1 D2 D3 D0 D1 D2 D3
I/O I/O I/O I/O I/O I/O I/O I/O
Inputs: I0 I1 I2 I3 I4 I5 I6 I7
Outputs:
(solenoid coils)
O0 O1 O2 O3 O4 O5 O6 O7
I/O = Bidirectional (B)
The address mapping depends on the configuration of the
master.

Festo VTSA-ASI-...-8E8A-Z 2018-11b English10
3.4 Address assignment of the solenoid coils
Depending on the linking up to 8 valve locations can be
assigned. The following applies to VABV...T2:
– solenoid coil 14 occupies the lower-value address,
– solenoid coil 12 occupies the higher-value address.
Addresses are assigned on the solenoid coils in ascending
order without gaps, from left to right.
The number of assigned addresses per valve location
depends on the manifold base, irrespective of whether
valves or cover plates are fitted.
Examples of combinations of electric VABV linkings
(not all possible combinations are shown)
Addresses
01234567
Valve locations/solenoid coil
a) V1/14 V2/14 V3/14 V4/14 V5/14 V6/14 V7/14 V8/14
b) V1/14 V2/14 V3/14 V4/14 V5/14 V6/14 V7/14 V8/14
c) V1/14 V1/12 V2/14 V2/12 V3/14 V3/12 V4/14 V4/12
d) V1/14 V1/12 V2/14 V2/12 V3/14 V3/12 V4/14 V4/12
a) VABV...-2T1: 2 locat. per 1 coil 1) (for single-solenoid 5/2-way valves)
b) VABV...-T1: 1 location, 1 coil 1) (for single-solenoid 5/2-way valves)
c) VABV...-2T2: 2 locations per 2 coils 2)
d) VABV...-T2: 1 location, 2 coils 2)
Symbol:
1) T1: Black dot on type plate and red coil contact
2) T2: No dot on type plate and black coil contact

Festo VTSA-ASI-...-8E8A-Z 2018-11b English 11
Example of address assignment of valve terminal VTSA-...
(seen from above)
13
45 67
2 12
8
1Addresses of solenoid
coil 12
2Addresses of solenoid
coil 14
3Addresses assigned
but not used
4Sub-base
5Manifold sub-base
(size42mm) which occupies
one address (identifier: type
plate with black dot)
6Manifold sub-base
(size42mm) which
occupies one address
7Valve with one solenoid
coil on a valve location
which occupies two
adresses
8Cover plate

Festo VTSA-ASI-...-8E8A-Z 2018-11b English12
3.5 Connect the AS-Interface bus and the load voltage
The sensor supply for the inputs is provided via the
AS-Interface bus.
Warning
SUse only PELV (protective extra-low voltage) circuits
as per EN 60204-1 for the electric power supply.
SAlso observe the general requirements for PELV
power circuits as per EN 60204-1.
SOnly use power sources which guarantee reliable
electrical isolation of the operating voltage as per
EN60204-1.
Through the use of PELV circuits, protection against
electric shock (protection against direct and indirect
contact) is guaranteed in accordance with EN 60204-1.
Note
The sensor supply gained from the AS-interface power
supply is protected against short circuits and overload.
It must not be connected with other potentials
(example, a common ground).
The valves (outputs) are always supplied with 24 V
additional supply, separate via the load voltage
connection.

Festo VTSA-ASI-...-8E8A-Z 2018-11b English 13
Please note with branch lines:
– the maximum total length of the AS-Interface bus
(100 m without repeaters/extenders)
– the length of the load voltage connection cable
(depends on the current consumption of the valve
terminal and fluctuations in load voltage).
Connection to M12 plug (AS-i In / AS-i Out)
1
1
4
2
3Bus
AS-i In
2
2
3
1
4Bus
AS-i Out
1M12 plug, 4-pin,
“AS-i In”
2M12 socket, 4-pin,
“AS-iOut”
Pin 1: AS-Interface +
Pin 2: 0 V (additional supply)
Pin 3: AS-Interface -
Pin 4: +24 V (additional supply)
Seal unused connections with protective caps type ISK M12
or UIFB1-02-1/4.
3.6 Accessories
Note
The Festo accessories can be found under:
èwww.festo.com/catalogue

Festo VTSA-ASI-...-8E8A-Z 2018-11b English14
4 Technical specifications
VTSA-...-ASI-8E8A-Z
Temperature range
– operation
– storage
-5 … +50 °C
-20 … +40 °C
Relative air humidity 90 % at 40 °C
Protection class as per
Plug connector when fully pushed in
or fitted with protective cover
– EN 60529 IP65
– NEMA type 4 1)
Protection against electric shock Through use of PELV current
circuits (protection against
direct and indirect contact
according to EN 60201-1)
Electromagnetic compatibility
– EMC interference emission 2)
– EMC resistance to interference
see declaration of conformity
èwww.festo.com
General technical data see Pneumatics manual
P.BE-VTSA-44-...
AS-Interface specifications
– ID code
– IO code
– Profile
ID = FH; ID1 = FH; ID2 = EH
IO = 7H
S-7.F.E
1) Type 4 (hosedown test, test no. 5.7)
2) The device is intended for use in industrial environments. Measures
may need to be implemented in residential areas for interference
suppression.

Festo VTSA-ASI-...-8E8A-Z 2018-11b English 15
VTSA-...-ASI-8E8A-Z
AS-Interface bus connection
– Voltage range (protected against
incorrect polarity)
– Residual ripple
– Max. current consumption
– Electronics (input circuitry
at 0-status incl. LED)
– Max. sum current for inputs
26.5 … 31.6 V DC
š20 mVpp
< 25 mA
350 mA
Additional supply (load voltage) 1)
– Rated value (protected against
incorrect polarity)
– Residual ripple
– Current consumption
21.6 … 26.4 V DC
(24 V DC ±10 %)
š4 Vpp
see valves
Valves (see Pneumatics manual
P.BE-VTSA-...)
Watchdog function active
after approx. 40 … 100 ms
– Current consumption per solenoid
coil (with LED) at 24 V
3/2-way
valves
60 mA
5/2- and 3/2-
way valves
72 mA
1) Solenoid coils are always operated via the AS-Interface additional
supply

Festo VTSA-ASI-...-8E8A-Z 2018-11b English16
VTSA-...-ASI-8E8A-Z
Digital inputs 1)
– Assignment of the inputs
– Design
– Logic level
– Sensor supply (US+/US−)
– Response delay
8 digital inputs based on
IEC1131-2 type 2
Slave 1: I0 … I3
Slave 2: I4 … I7
24 V DC, PNP,
status display (LED)
ON: 11 … 30 V
OFF: -30 … 5 V
≥ AS-interface bus
voltage − 2.5 V
typically 3 ms (at 24 V)
Diagnosis (see section 2)
– AS-Interface voltage and address,
watchdog, I/O status
– Additional power supply not
applied or undervoltage
LED display
LED display, Peripheral faults
1) The inputs are short-circuit resistant. In the event of a short circuit
the slave will be switched off. The AS-Interface master then regards
this slave as missing. The slave reports back as functioning once the
short circuit has been eliminated.
