Festo EXCM-10 Setup guide

Repair
instructions (en)
7EXCMc_en
Planar surface gantry
EXCM-10 / 30

Imprint
Version:
7EXCMc_en 30.01.19
Copyright:
©Festo AG & Co. KG
Postfach
73726 Esslingen
Germany
Editorial team:
Spare Part Documentation and
Support
Phone:
+49 / 711 / 347-0
Fax:
+49 / 711 / 347-2144
Email:
[email protected]
Internet:
www.festo.com
Reproduction, distribution or sale of
this document or communication of
its contents to others without express
authorisation is prohibited. Offenders
will be held liable for damages. All
rights reserved in the event that a
patent, utility model or design patent
is registered.
All product designations and brand
names used are the property of the
owners and not explicitly identied
as such.
All technical data are subject to
change according to technical
updates.

3 / 52Festo 7EXCMc_en
Foreword
These repair instructions are valid for the planar surface gantries listed on the
title page to the exclusion of any liability claims.
The descriptions in these repair instructions may deviate depending on the
design and/or modication status of the planar surface gantries. The user
must check this prior to carrying out the repair and take the deviations into
consideration if necessary.
These repair instructions have been prepared with care.
Festo AG & Co. KG does not, however, accept liability for any errors in these
repair instructions or their consequences. Likewise, no liability is accepted for
direct or consequential damage resulting from incorrect use of the products.
Further information is given in Chapter 8 on page 51.
The relevant regulations on occupational safety, safety engineering, and
interference suppression as well as the stipulations contained in these repair
instructions must be observed when working on the products.

4 / 52 Festo 7EXCMc_en
Table of Contents
1 Important information 6
1.1 About these repair instructions 6
1.2 Symbols used in these repair instructions 6
1.3 Text designations used in these repair instructions 7
1.4 General safety instructions 7
1.5 Technical requirements 8
1.6 Standards and test values 8
2 General product description 8
2.1 Functional description 8
2.2 Design of the planar surface gantries 9
2.2.1 EXCM-10 9
2.2.2 EXCM-30 9
2.2.2.1 Motor mounting variants EXCM-30 10
2.3 Sizes and part numbers 11
2.3.1 EXCM-10 11
2.3.2 EXCM-30 11
2.4 Orientation designations 11
2.4.1 EXCM-10 11
2.4.2 EXCM-30 12
2.5 Type code 12
2.5.1 EXCM-10 12
2.5.2 EXCM-30 13
3 Component overviews with bill of materials 15
3.1 EXCM-10 components overview 16
3.1.1 EXCM-10 bill of materials 17
3.2 Components overview EXCM-30 (Product series up to H7 / July 2016 18
3.2.1 Bill of materials EXCM-30 (Product series up to H7/ July 2016) 19
3.3 Components overview EXCM-30 (Product series from H8/August 2016) 20
3.3.1 Bill of materials EXCM-30 (Product series from H8/August 2016) 21
3.4 Component overview EXCM-30-…-P8 (Product series from H8/August 2016) 22
3.4.1 Bill of materials EXCM-30-…-P8 (Product series from H8 / August 2016) 23
4 Repair steps 24
4.1 EXCM-10 24
4.1.1 Preparatory steps 24
4.1.1.1 Dismantling covers 24
4.1.2 Visual inspection 25
4.1.3 Dismantling the planar surface gantry 25
4.1.3.1 Removing the toothed belt 28
4.1.4 Mounting the planar surface gantry 29
4.1.4.1 Cleaning and Greasing 29
4.1.4.2 Adjusting the guide backlash 29
4.1.4.3 Notes on the toothed belt 29
4.1.4.4 Installing the toothed belt 30
4.1.4.5 Adjusting the toothed belt pretensioning 32
4.1.4.6 Final steps 34

5 / 52Festo 7EXCMc_en
4.2 EXCM-30 34
4.2.1 Preparatory measures 34
4.2.1.1 Dismantling covers 35
4.2.2 Visual inspection 35
4.2.3 Dismantling the planar surface gantry 36
4.2.3.1 Dismantling the motor / coupling 36
4.2.3.2 Mounting the motor / coupling 37
4.2.3.3 Disassembling the toothed belt EXCM-30 38
4.2.3.4 Disassembling the toothed belt EXCM-30 from product series H8 39
4.2.4 Mounting the planar surface gantry 41
4.2.4.1 Cleaning and Greasing 41
4.2.4.2 Notes on the toothed belt 41
4.2.4.3 Installing the toothed belt EXCM-30 41
4.2.4.4 Installing the toothed belt EXCM-30 from product series H8 43
4.2.4.5 Adjusting the toothed belt pretensioning 46
4.2.4.6 Final steps 47
5 Homing 48
6 Cleaning and greasing 48
6.1 Cleaning 48
6.2 Relubricating 48
6.2.1 Lubrication 48
6.2.2 EXCM-10 49
6.2.3 EXCM-30-…-(P8) 49
7 Tools 49
7.1 Standard tools required 49
7.2 Special tools 50
7.3 Acoustic frequency meter 51
8 Liability 51
Table of Contents

6 / 52 Festo 7EXCMc_en
1 Important information
1.1 About these repair instructions
This document contains important information about the professional repair of planar surface gantries of the type EXCM.
However, the costs of carrying out a repair must be considered in the case of larger defects.
Before carrying out a repair, the relevant chapter in these instructions must be read in full and followed consistently.
For reasons of clarity, these repair instructions do not contain all detailed information. The following documents should
therefore also be available while performing repair work on the planar surface gantry:
– Description of “mechanical installation”
Describes how to mount, install and dismantle the respective planar surface gantry. It can be found on the Festo
website (www.festo.com/sp).
– “Commissioning” description
Describes the functions, the electrical installation, the commissioning using the FCT, the operation, the control
principle and the procedure for error diagnostics for planar surface gantries. It can be found on the Festo website
(www.festo.com/sp).
– Spare parts documentation
Contains an overview of the spare and wearing parts as well as information on their installation. This can be found in
the online spare parts catalogue on the Festo website (www.festo.com/spareparts).
– “Tools and repair accessories” information brochure
Contains an overview of available assembly tools (e.g. lubricants, locking agent), special tools, schematic diagrams,
xtures, measuring devices, etc. The information brochure can be found in the online spare parts catalogue on the
Festo website (Tools and repair accessories.pdf).
1.2 Symbols used in these repair instructions
Danger categories
The following symbols identify text passages which draw attention to specic hazards.
Danger
Caution
Marking special information
The following symbols identify text passages which contain special information.
Note
Information
Environment

7 / 52Festo 7EXCMc_en
1.3 Text designations used in these repair instructions
• Activities that can be carried out in any order.
.1 Activities which should be carried out in the specied order.
– General lists.
Reference to further information.
Underlined, blue text indicates a cross-reference or hyperlink that you can click on in the PDF.
1.4 General safety instructions
Danger
Risk of fatal injury due to electric shock and uncontrolled movement of components.
– The planar surface gantry must be de-energised, depressurised and reliably secured against unauthorised
reactivation before the maintenance and repair work begins.
Caution
The planar surface gantry may only be repaired by authorised and trained persons in accordance with the
specications in the technical documentation and using original spare parts.
Installation and repair by unauthorised and untrained persons, repairs using non-original spare parts or without the
technical documentation required for installation and/or repair are dangerous and therefore not permitted.
Repairs must only be carried out in conjunction with these repair instructions and the respective operating
instructions for the device, as well as the documents listed in Chapter 1.1 on page 6.
Caution
Unintended switching on can trigger unexpected movements and cause bruises.
– Ensure that the unit is protected against restarting before any modication or maintenance work or inspections
are carried out. Loosened parts can make unexpected movements or fall off.
– Secure parts against accidental movements or move them into a safe end position.
Note
Observe the given tightening torques. If no special information is given the tightening torques given in the relevant
standard apply to the screws, bolts and nuts used.
Note the strength class of the screws, bolts and nuts!
Festo recommends use of LOCTITE 243 thread locking agent.
In the event of damage caused by unauthorised manipulation, improper use or use of non-original spare parts, all
warranty and liability claims against the manufacturer expire.
Instead of carrying out the repair yourself, your local Festo sales ofce offers the option of having the repair carried
out by Festo.
Components and equipment replaced during repair must be disposed of in accordance with the relevant local
environmental protection regulations.

8 / 52 Festo 7EXCMc_en
1.5 Technical requirements
Note
The following instructions for safe and proper use must be observed:
– Observe the connection and ambient conditions specied in the technical data of the products and all the
connected components. The product can only be operated in compliance with the relevant safety guidelines if you
comply with the limit values and load limits (see enclosed documentation).
– The planar surface gantry must be in perfect technical condition.
– The planar surface gantry may only be operated in its original condition and without unauthorised modications.
– The planar surface gantry is designed for industrial use.
1.6 Standards and test values
Standards and test values which products comply with and full can be found in the “Technical data” sections of the
enclosed documentation.
2 General product description
2.1 Functional description
The EXCM-10 and EXCM-30 are compact planar surface gantries, whose slides can be moved freely in a 2-dimensional
space (X-Y-axis).
The slides are driven in position-controlled operation via two xed stepper motors. The motors and the slide are coupled
to a toothed belt. The toothed belt is guided via pulleys so that the slide can move to any position within the working
space. This drive concept results in a very low moving mass.
EXCM-10 EXCM-30 Interaction of the two motors
X-axis
Y-axis
Motor 2Motor 1
X-axis
Y-axis
Motor 2Motor 1
Motor 1
Motor 2

9 / 52Festo 7EXCMc_en

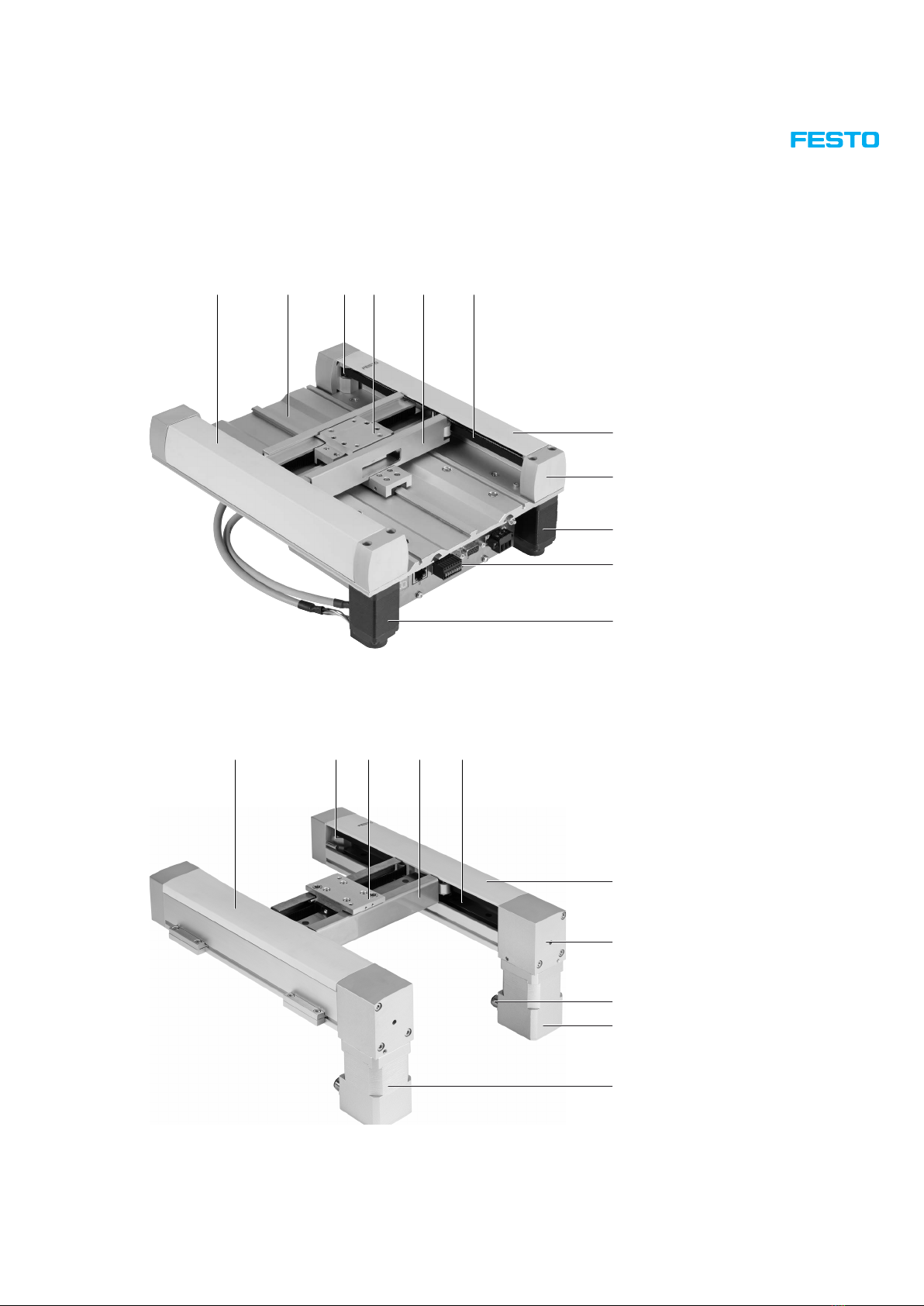

2.2 Design of the planar surface gantries
2.2.1 EXCM-10
This illustration provides you with an overview of the design of the planar surface gantry EXCM-10.
7
8
9
aJ
aA
3 42 51 6 1Cover, left
2Baseplate
3Guide pulley
4Slide
5Y-traverse
6Toothed belt
7Cover, right
8Actuator end cap
9Motor 2
aJ Controller
aA Motor 1
2.2.2 EXCM-30
This illustration provides you with an overview of the design of the planar surface gantry EXCM-30.
6
7
9
8
aJ
2 3 41 5 1Cover, left
2Guide pulley
3Slide
4Y-traverse
5Toothed belt
6Cover, right
7Drive cover (motor 2)
8Cable outlet
9Motor 2
aJ Motor 1

10 / 52 Festo 7EXCMc_en

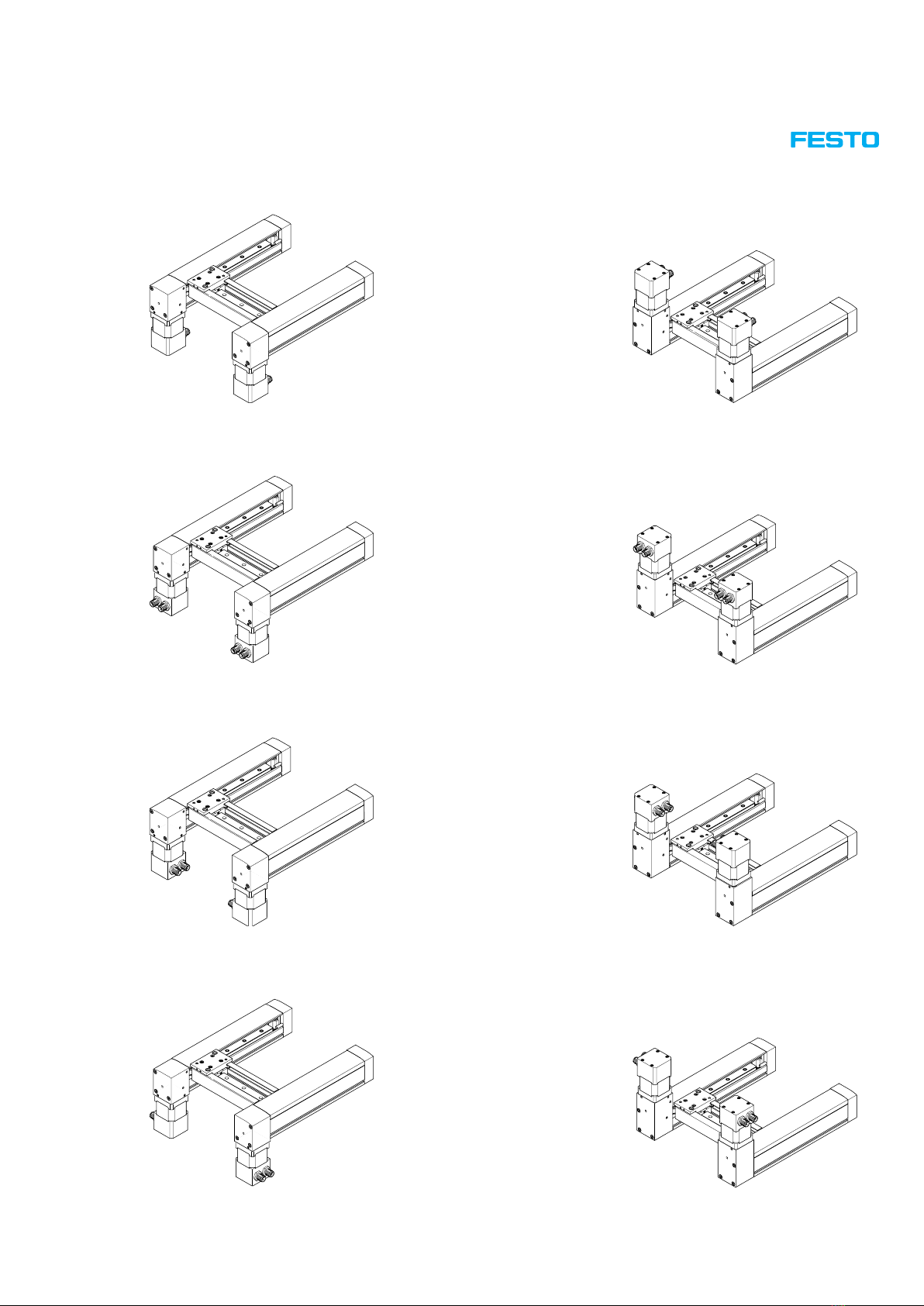

2.2.2.1 Motor mounting variants EXCM-30
EXCM-30-…-…-KF-…-B1-…
– Motor is ange mounted underneath
– Cable outlet at front
EXCM-30-…-…-KF-…-T1-…
– Motor is ange mounted at the top
– Cable outlet at front
EXCM-30-…-…-KF-…-B2-…
– Motor is ange mounted underneath
– Cable outlet at rear
EXCM-30-…-…-KF-…-T2-…
– Motor is ange mounted at the top
– Cable outlet at rear
EXCM-30-…-…-KF-…-B3-…
– Motor is ange mounted underneath
– Cable outlet inside
EXCM-30-…-…-KF-…-T3-…
– Motor is ange mounted at the top
– Cable outlet inside
EXCM-30-…-…-KF-…-B4-…
– Motor is ange mounted underneath
– Cable outlet outside
EXCM-30-…-…-KF-…-T4-…
– Motor is ange mounted at the top
– Cable outlet outside

11 / 52Festo 7EXCMc_en
2.3 Sizes and part numbers
2.3.1 EXCM-10
Size Part number
EXCM-10-150-110-GF-ST-B-E1 1801920
EXCM-10-260-110-GF-ST-B-E1 1801915
EXCM-10-300-110-GF-ST-B-E1 1801917
EXCM-10-360-110-GF-ST-B-E1 1801918
EXCM-10-460-110-GF-ST-B-E1 1801916
EXCM-10-700-110-GF-ST-B-E1 1801919
2.3.2 EXCM-30
Size Part number
EXCM-30-… 2226101
2.4 Orientation designations
2.4.1 EXCM-10
This illustration provides an overview of the orientation designations for the planar surface gantry EXCM-10.
Festo logo = reference point
O = top
U = bottom
R = right
L = left
V = front
H = rear

12 / 52 Festo 7EXCMc_en

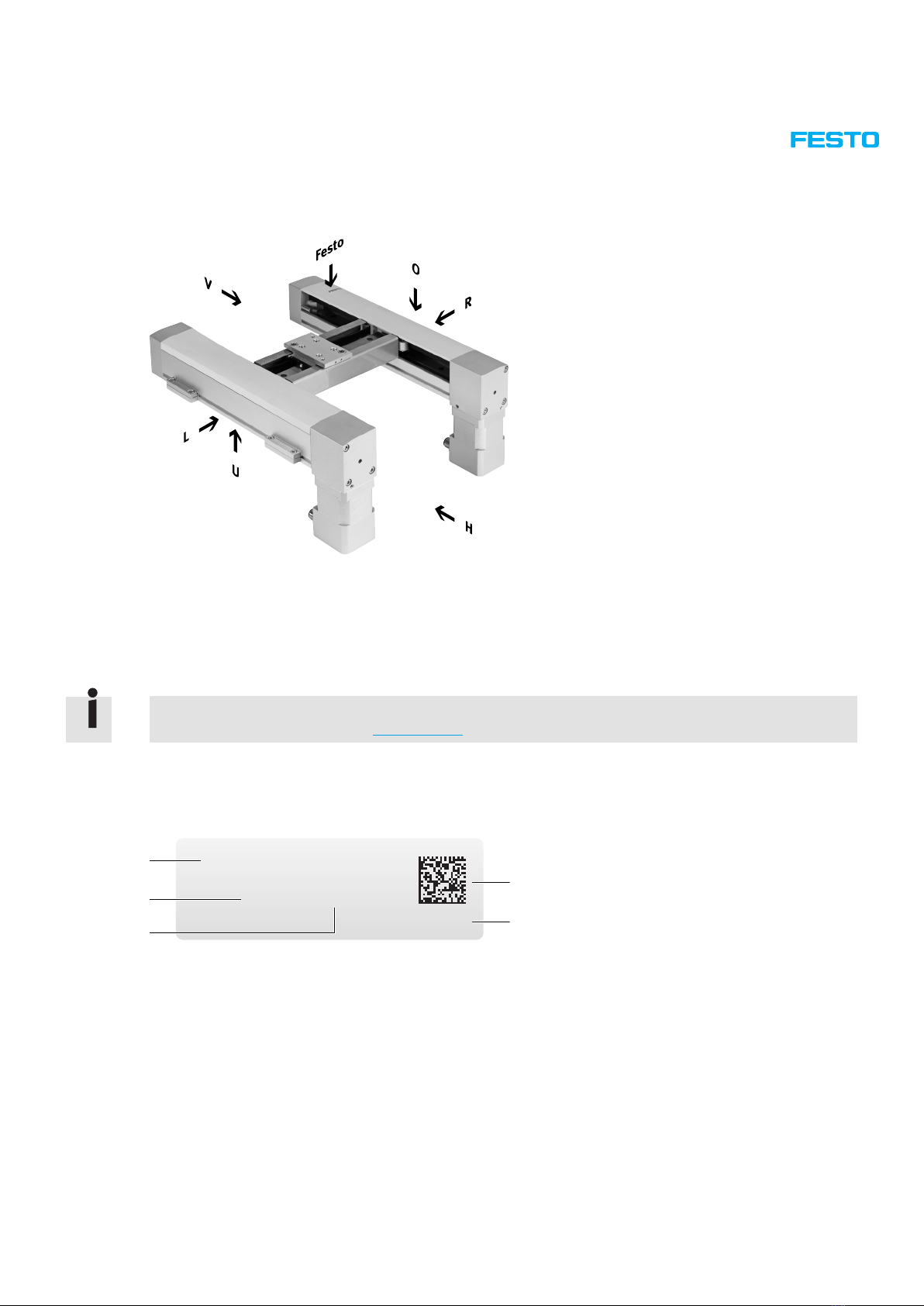

2.4.2 EXCM-30
This illustration provides an overview of the orientation designations for the planar surface gantry EXCM-30.
Festo logo = reference point
O = top
U = bottom
R = right
L = left
V = front
H = rear
2.5 Type code
The features of a planar surface gantry can be determined with the help of the product labelling on the planar surface
gantry. The Festo logo and the product labelling are attached separately to the planar surface gantry. The product
labelling for both sizes is located on the drive cover. The order code describes the planar surface gantry’s features,
separated by a hyphen “-”.
A list and description of all possible equipment features of the planar surface gantry can be found in the data sheet, It
is available on the Festo website (www.festo.com).
2.5.1 EXCM-10
Example:
1801920 C708
ABCDEFG12345
EXCM-10-150-110-GF-ST-B-E1
5
4
1
2
3
1Order code
2Part number
3Serial number
4Product key
5Product Key Code
Data Matrix Barcode
(http://pk.festo.com/ + Product Key)
The order code on the product labelling provides the following information:
EXCM Electric planar surface gantry
10 Size, slide load max. 0.5 kg
150 150 mm stroke of the X-axis
110 110 mm stroke of the Y-axis
GF Plain-bearing guide of the X- and Y-axis
ST Stepper motor with encoder function
B Motor ange mounted downwards
E1 Controller ange mounted on the portal

13 / 52Festo 7EXCMc_en
Key features of the planar surface gantry EXCM-10
Planar surface gantry
feature
Code Specication
Type EXCM Electric planar surface gantry
Size 10
Specication of the max. payload at max. dynamic response, approx. 0.5 kg
Work area Stroke of the
X-axis
150 mm, 260 mm, 300 mm, 360 mm, 460 mm, 700 mm
Stroke of the
Y-axis
110 mm
Guide GF Plain-bearing guide of the X- and Y-axes
Motor type ST Stepper motor with encoder function
Motor attachment
position
BMotor ange mounted downwards
Controller E1 Controller ange mounted on the portal
2.5.2 EXCM-30
Example:
2226101 C708
ABCDEFG12345
EXCM-30-300-210-KF-ST-T3-E4
5
4
1
2
3
1Order code
2Part number
3Serial number
4Product key
5Product Key Code
Data Matrix Barcode
(http://pk.festo.com/ + Product Key)
The order code on the product labelling provides the following information:
EXCM Electric planar surface gantry
30 Size, slide load max. 3 kg
300 300 mm stroke of the X-axis
210 210 mm stroke of the Y-axis
KF Recirculating ball bearing guide of the X- and Y-axis
ST Stepper motor with encoder function
T3 Motor ange mounted upwards, cable outlets to the inside
E4 with controller, motor and encoder cables (1.5 m)
For the X-axis stroke lengths, xed and variable stroke lengths are available, see the table below.

14 / 52 Festo 7EXCMc_en
Key features of the planar surface gantry EXCM-30
Planar surface gantry
feature
Code Specication
Type EXCM Electric planar surface gantry
Size 30 Specication of the max. load of the slide, approx. 3 kg
Work area Stroke of the
X-axis
100 mm, 150 mm, 200 mm, 300 mm, 400 mm, 500 mm (xed stroke
length)
90 mm … 700 mm (variable stroke lengths)
Stroke of the
Y-axis
110 mm, 160 mm, 210 mm, 260 mm, 310 mm, 360 mm, 410 mm, 460 mm,
510 mm (xed stroke lengths)
110 mm … 510 mm (variable stroke lengths)
Guide KF Recirculating ball bearing guide of the X- and Y-axes
Motor type ST Stepper motor
SB Stepper motor with brake function
W Without stepper motor
Motor attachment
position
B bottom
B1 bottom, cable outlets to the front
B2 bottom, cable outlets to the rear
B3 bottom, cable outlets to the inside
B4 bottom, cable outlets to the outside
T top
T1 top, cable outlets to the front
T2 top, cable outlets to rear
T3 top, cable outlets to the inside
T4 top, cable outlets to the outside
Protection against
particles
– Standard
P8 Protected version
Controller – without controller
E2 with controller, motor and encoder cables (0.5 m)
E3 with controller, motor and encoder cables (1 m)
E4 with controller, motor and encoder cables (1.5 m)
E5 with controller, motor and encoder cables (2 m)

15 / 52Festo 7EXCMc_en
3 Component overviews with bill of materials
The component overviews with corresponding bills of materials for the following planar surface gantries are listed on the
following pages:
Size Series Components list Bill of materials
EXCM-10 all Chapter 3.1 on page 16 Chapter 3.1.1 on page 17
EXCM-30 up to H7 / July 2016 Chapter 3.2 on page 18 Chapter 3.2.1 on page 19
EXCM-30 from H8 / August 2016 Chapter 3.3 on page 20 Chapter 3.3.1 on page 21
EXCM-30-…-P8 from H8 / August 2016 Chapter 3.4 on page 22 Chapter 3.4.1 on page 23
The following diagrams are intended only to provide an overview of the individual components. To order spare and
wearing parts, please use the online spare parts catalogue on the Festo website (www.festo.com/spareparts).

16 / 52 Festo 7EXCMc_en

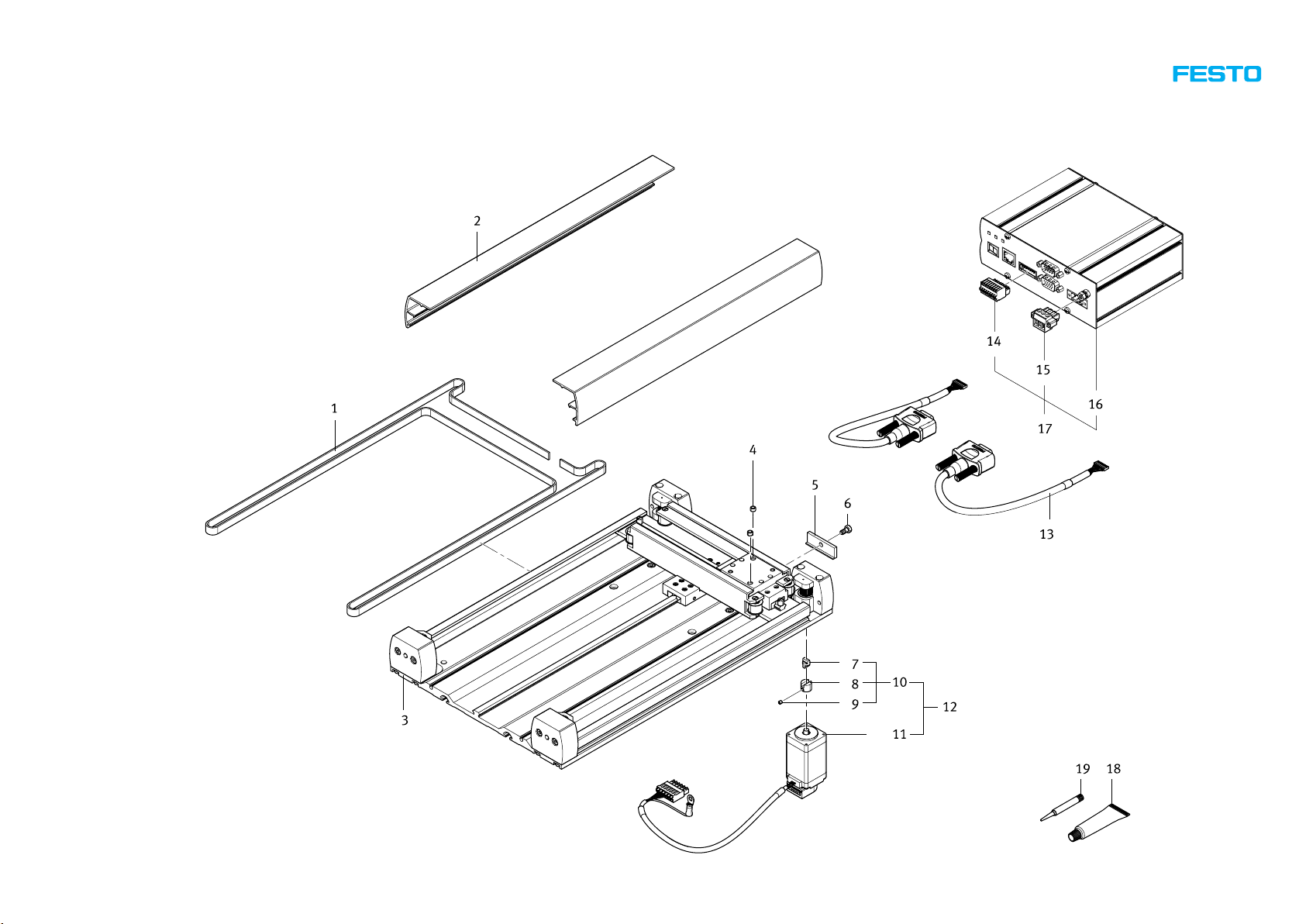

3.1 EXCM-10 components overview

17 / 52Festo 7EXCMc_en
3.1.1 EXCM-10 bill of materials
No. Designation, type
1 Toothed belt
2 Cover
3 Baseplate
4 Centring sleeve
5 Clamping plate
6 Socket head screw, DIN 6912-M4×8-8.8
7 Ring gear
8 Coupling piece
9 Threaded pin, DIN 913-M3×3-45H
10 Couplings
11 Stepper motor, EMMS-ST-28-L-SE-G3
12 Motor unit
13 Encoder cable, NEBM-S1G9-K-0.29-N-L2G10
14 Terminal strip, 8GD-1RR2,5-FEDER-CBL
15 Terminal strip, 3GD-1RR5-SCHRAUB-CBL
16 Housing
17 Controller, EXCM-2ST-C3-1
18 Lubricating grease LUB-KC1, silicone free
19 Screw locking agent, LOCTITE 243

18 / 52 Festo 7EXCMc_en

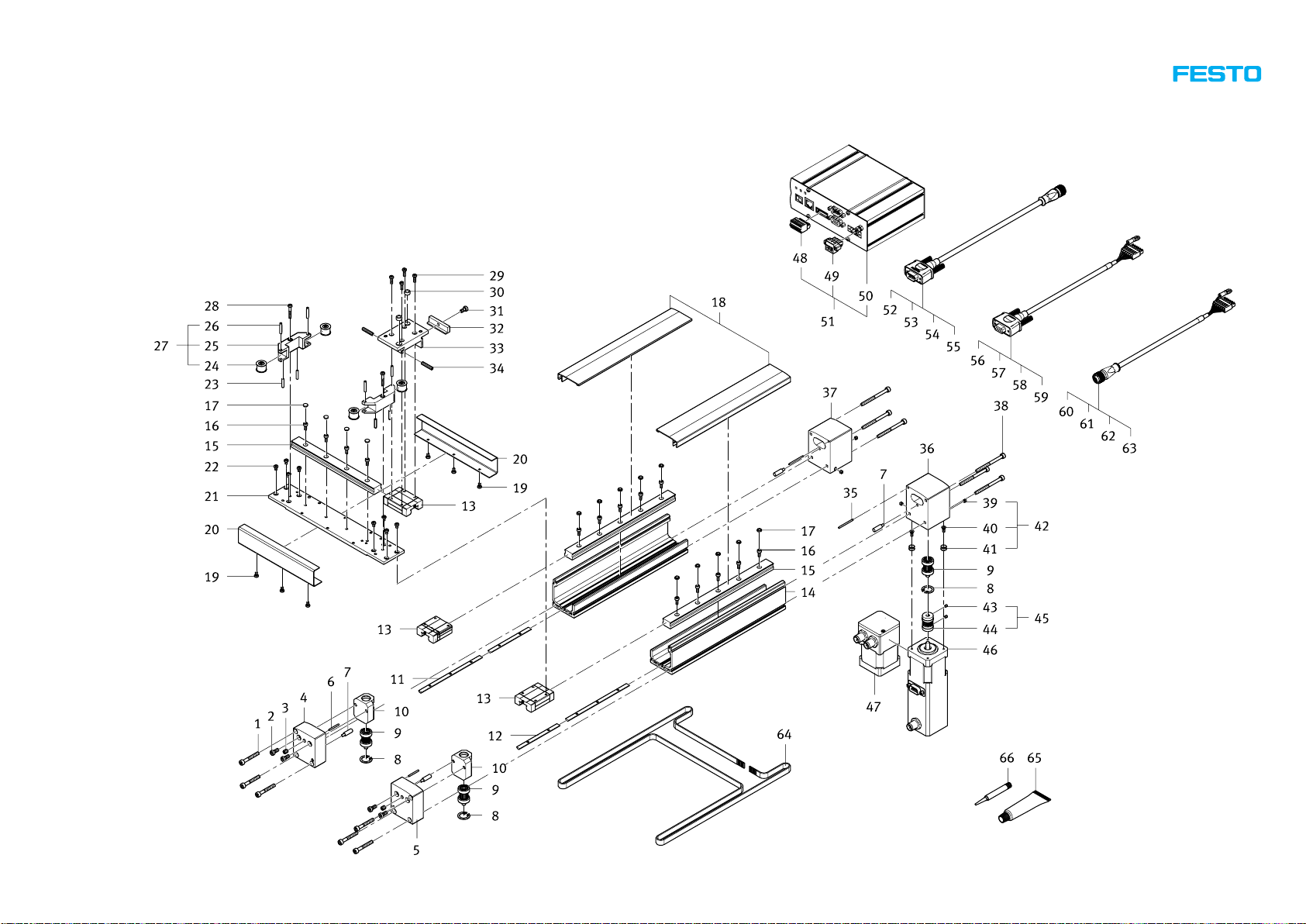

3.2 Components overview EXCM-30 (Product series up to H7 / July 2016

19 / 52Festo 7EXCMc_en
3.2.1 Bill of materials EXCM-30 (Product series up to H7 / July 2016)
No. Designation, type
1 Self-tapping screw, M4×30-10.9
2 Socket head screw, DIN 6912-M4×10-8.8
3 Threaded pin, DIN 913-M5×6-45H
4 End cap
5 End cap
6 Cylindrical dowel pin, DIN 6325-2M6×20
7 Pin
8 Retaining ring, DIN 472-16×1
9 Pinion module
10 Housing
11 Slot nut
12 Slot nut
13 Bearing cartridge
14 Prole module
15 Roller track
16 Socket head screw, ISO 4762-M3×8-10.9
17 Cover cap
18 Cover
19 Socket head screw, DIN 7984-M3×5-8.8
20 Cover
21 Traverse
22 Socket head screw, DIN 7984-M3×5-8.8
23 Cylindrical dowel pin, ISO 2338-3M6×14-ST
24 Guide pulley assembly
25 Retainer
26 Pin
27 Guide roller unit
28 Socket head screw, DIN 7984-M3×20-8.8
29 Socket head screw, DIN 7984-M3×10-8.8
30 Ring, 5×8×3.6
31 Socket head screw, DIN 6912-M4×8-8.8
32 Clamping plate
33 Slide
34 Threaded pin, M4×20-45H
35 Cylindrical dowel pin, DIN 6325-2M6×28
36 Actuator end cap assembly
37 Actuator end cap assembly
No. Designation, type
38 Self-tapping screw, F-M4×50-10.9
39 Threaded pin, DIN 913-M4×4-45H
40 Countersunk screw, DIN 7991-M3×8-8.8
41 Sleeve
42 Motor kit, EAMM-E×CM-30
43 Threaded pin, DIN 916-M3×4-A2-70
44 Coupling, EAMC-B-15-22-5-5
45 Coupling, EAMC-B-15-22-5-5
46 Stepper motor, EMMS-ST-42-SS-SEB-G2
47 Stepper motor, EMMS-ST-42-S-SE-S1-G3
48 Terminal strip, 8GD-1RR2,5-FEDER-CBL
49 Terminal strip, 3GD-1RR5-SCHRAUB-CBL
50 Housing
51 Controller, E×CM-2ST-C3-1
52 Encoder cable, NEBM-M12G8-E-0.5-N-S1G9
53 Encoder cable, NEBM-M12G8-E-1.0-N-S1G9
54 Encoder cable, NEBM-M12G8-E-1.5-N-S1G9
55 Encoder cable, NEBM-M12G8-E-2.0-N-S1G9
56 Motor cable, NEBM-S1G9-E-0.5-N-C1G6
57 Motor cable, NEBM-S1G9-E-1.0-N-C1G6
58 Motor cable, NEBM-S1G9-E-1.5-N-C1G6
59 Motor cable, NEBM-S1G9-E-2.0-N-C1G6
60 Motor cable, NEBM-M12G5-E-0.5-N-C1G6
61 Motor cable, NEBM-M12G5-E-1.0-N-C1G6
62 Motor cable, NEBM-M12G5-E-1.5-N-C1G6
63 Motor cable, NEBM-M12G5-E-2.0-N-C1G6
64 Toothed belt
65 Lubricating grease LUB-KC1, silicone free
66 Screw locking agent, LOCTITE 243

20 / 52 Festo 7EXCMc_en

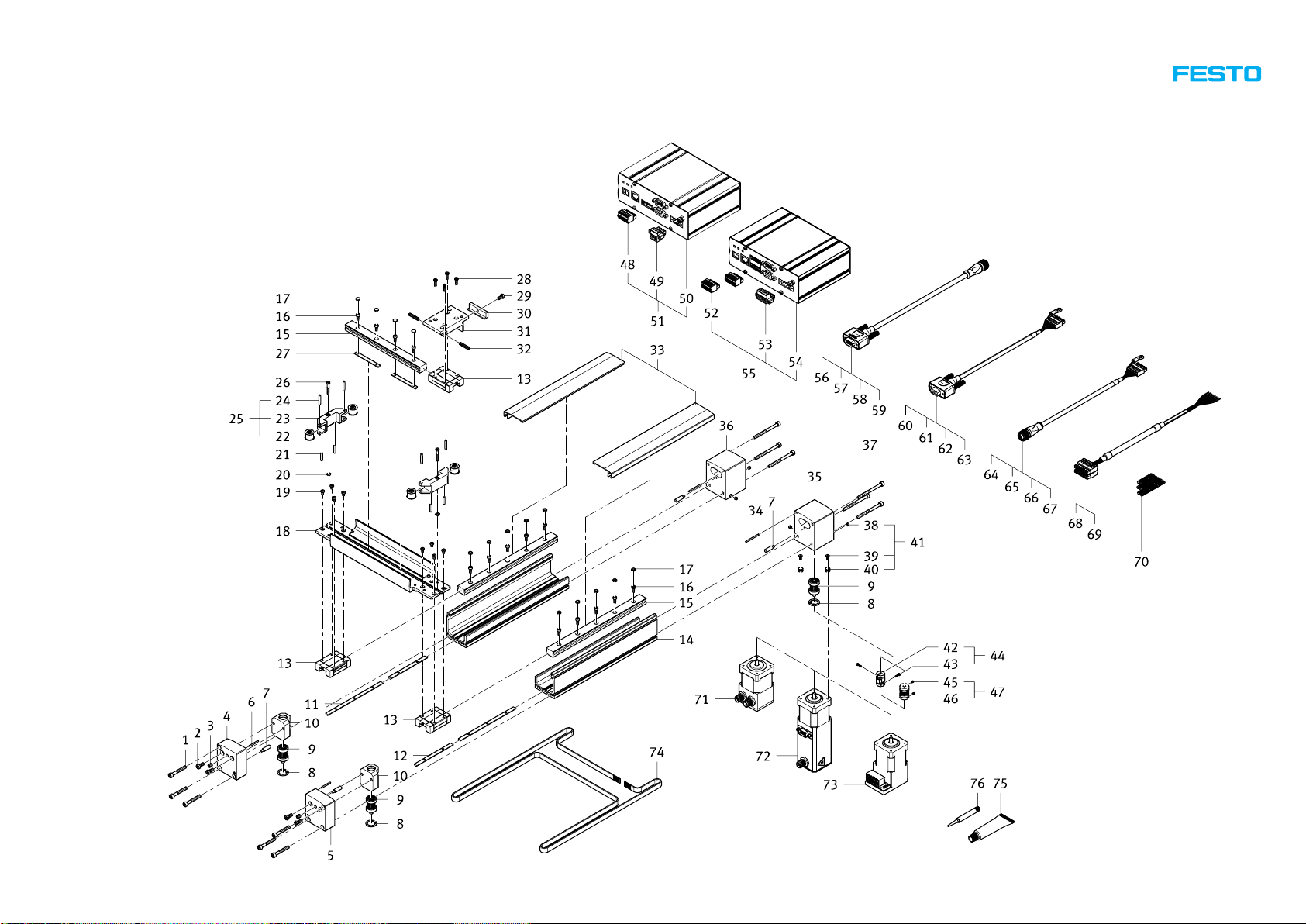

3.3 Components overview EXCM-30 (Product series from H8/August 2016)
