Fisher-Price P6946 User manual

www.fisher-price.co.uk
Infant Seat
Rocker
Swing
P6946
IMPORTANT! KEEP
INSTRUCTIONS FOR
FUTURE REFERENCE.
WARNING

2
To prevent injury or death from
falls or being strangled in the
restraint system
• Never leave child unattended.
When used as a Swing:
• Always use the restraint system.
• Never use with an active child who may
be able to climb out of the product.
When used as an Infant Seat
or Rocker:
• Fall Hazard - It is dangerous to use
this product on an elevated surface.
Use only on a floor.
• Suffocation Hazard - Never use on
a soft surface (bed, sofa, cushion)
since the product can tip over and
cause suffocation in soft surfaces.
• Always use the restraint until child
is able to climb in and out of the
product unassisted.
• Never use as a carrier. Never use the
toy bar as a handle.
• Infant seat and swing modes not
recommended for children who
can sit up by themselves (6 months
approximately, until 9 kg/20 lbs).
• Use the Rocker position only when
child has developed enough upper
body control to sit without
leaning forward.
WARNING
Consumer Information
• IMPORTANT! PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE, AS THEY CONTAIN
IMPORTANT INFORMATION.
• Please read these instructions before assembly and use of
this product.
• Adult assembly is required. Tools needed for assembly:
Phillips screwdriver (not included) and assembly tool (included).
• Requires four “D” (LR20) alkaline batteries (not included) for
swing operation.
• In Swing mode, only to be used by children that cannot climb
out of seat.
• In Infant Seat and Rocker mode, designed for use with children
from birth to 9 kg (20 lbs).
• In Rocker mode, always use restraint until your child is able to
climb in and out of the chair unassisted.
• Product features and decoration may vary from photos.
Great Britain: Vanwall Business Park, Maidenhead SL6 4UB.
Helpline: 01628 500303. www.service.mattel.com/uk.
Australia: Mattel Australia Pty. Ltd., 658 Church Street,
Locked Bag #870, Richmond, Victoria 3121 Australia.
Consumer Advisory Service 1300 135 312.
New Zealand: 16-18 William Pickering Drive, Albany 1331, Auckland.
Asia: Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre,
Harbour City, Tsimshatsui, HK, China.
Malaysia: Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd. (993532-P)
Lot 13.5, 13th Floor, Menara Lien Hoe, Persiaran Tropicana Golf Country
Resort, 47410 PJ. Tel: [phone], Fax: [phone].

3

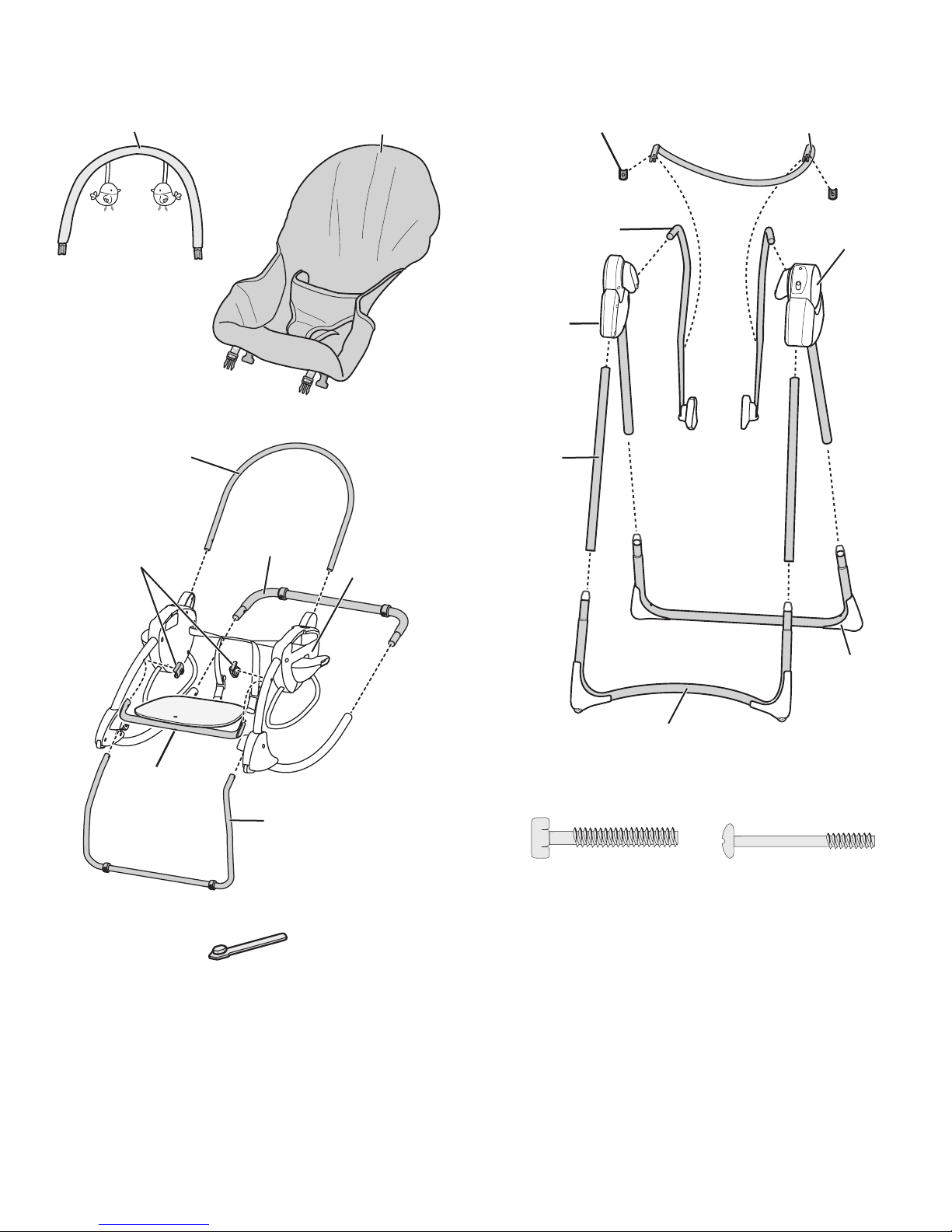

Toy Bar (Toys may be different)
Parts
Pad
2 Retainers
(with Lock Nut)
Seat Back Tube
2 Side Rails
with Waist Belts
Kickstand
Front Tube
Cross Brace
Assembly Tool (This tool is not a toy. Please throw away
after assembly is complete.)
2 Legs
Housing
Front Curved Base
Motor Housing
Seat Tube Support
2 Seat Tubes
Back Base
2 Retainers (with Lock Nut)
IMPORTANT! Please remove all parts from the package and identify them before assembly. Some parts may be packed inside the pad.
#4 x 3,18 cm Screw – 2M5 x 2,9 cm Screw – 4
IMPORTANT! Before assembly, inspect this product for damaged
hardware, loose joints, missing parts or sharp edges. DO NOT
use if any parts are missing or broken. Contact Fisher-Price®
for replacement parts and instructions if needed. Never
substitute parts.
Note: Tighten or loosen screws with a Phillips screwdriver
or the assembly tool. Do not over-tighten the screws.
Shown Actual Size

4

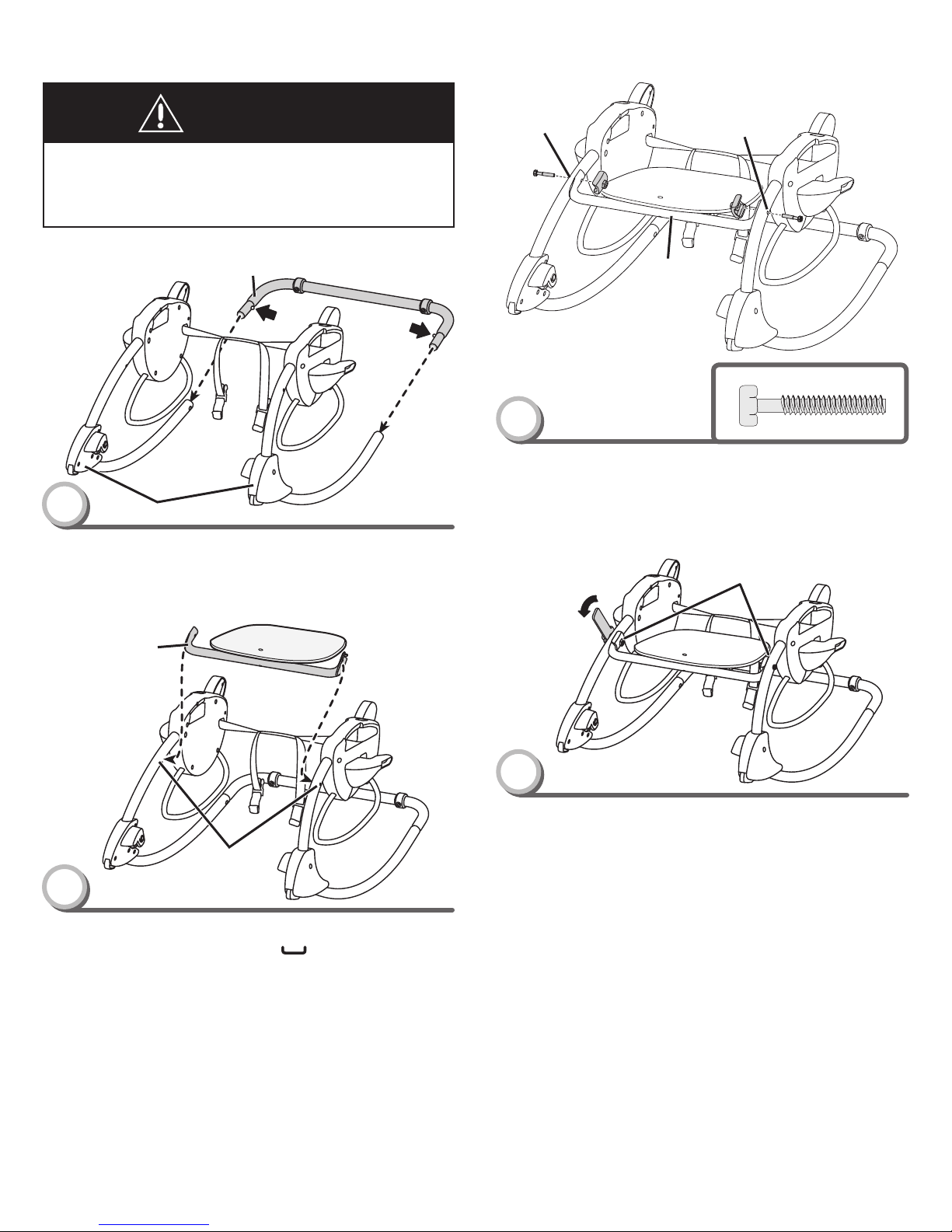

Infant Seat/Rocker Assembly
This package contains small parts
in its unassembled state.
Adult assembly is required.
CAUTION
• Locate the hole in each side rail.
• Position the front tube so that it is a shape.
• Fit the front tube to the side rails, as shown. Hold the front tube
in place and proceed to step 3.
Side Rail Hole
Front Tube
2
• While pressing the tab on each end of the cross brace, insert the
cross brace into the side rails, as shown. Make sure you hear
a “snap” on each side.
1
Cross Brace
PRESS
PRESS
PRESS
Side Rails
• Insert a M5 x 2,9 cm screw through the outside of each side rail
and into the ends of the front tube.
IMPORTANT! Please follow the next assembly (step 4) carefully to
completely secure the front tube to the side rails.
Front Tube
Side Rail Hole
Side Rail Hole
3
• Fit a retainer with lock nut onto the end of a screw and to the
inside of a side rail. Tighten the screw using the assembly tool.
Turn the tool clockwise to tighten.
Hint: A lock nut has been factory assembled to the retainer.
During shipment, the lock nut may have fallen out of the retainer.
If it has, please fit it into the hexagonal hole in the retainer so that
the rounded side of the lock nut faces out.
• Repeat this procedure to fasten the screw to the other end of
the front tube and side rail using another retainer with lock nut.
Retainer with Lock Nut
4

5
Infant Seat/Rocker Assembly
Seat Back Tube
Sockets
PRESS
• Insert the seat back tube into the socket in each side rail.
• While pressing the tabs on the ends of the seat back tube,
continue to insert the seat back tube into the sockets in each
side rail until the tabs “snap” into place. Make sure you hear
a “snap” on each side.
• Pull the seat back tube up to be sure it is secure in the side
rail sockets.
5
Kickstand
• While pressing the tab on each end of the kickstand, insert the
kickstand into the small tube inside each side rail.
Hint: The kickstand is designed to fit into the siderails one way.
If you cannot insert it into the small tubes (inside the side rails),
turn it around and re-insert it into the small tubes.
• Push the kickstand into the small tubes until the tabs “snap”
into place. Make sure you hear a “snap” on each side.
• Pull the kickstand to be sure it is secure in each side rail.
6
PRESS
PRESS
Lower Pocket
Hardboard
• Fit the upper pocket on the pad onto the seat back tube.
• Turn the hardboard over and insert it into the slot in the front
edge of the pad.
Seat Back Tube
Upper Pocket
7

6
• Fasten the pad buckles on the front edge of the pad and underneath
the seat. Make sure you hear a “snap” on both sides.
Pad Buckles
• Fasten the pad buckles around each side rail.
• Press the fasteners together in the seat back portion of the pad.
Pad Buckles
Side Rail
PRESS SEAT BACK
Infant Seat/Rocker Assembly
8
9
• From behind the assembly, insert the restraint straps through
the slots in the pad.
• Press to fasten the restraint strap assembly to the pad.
Restraint Strap Slots
10 PRESS
Button
Leg
Housing
• Place a housing on a flat surface.
• Insert the button end of a leg into the hole in the housing.
• Push the leg in until it “snaps” into the housing.
• Repeat this procedure to assemble the other leg to the
other housing.
• Pull the legs to be sure they are secure in the housings. If you
can remove them, you have not assembled them correctly.
Please re-read and repeat this assembly step.
Swing Frame Assembly
1
• Pull the other leg back until it “snaps” into place in the housing.
• Repeat this procedure to “snap” the leg in the other housing
into place.
Leg
2

7

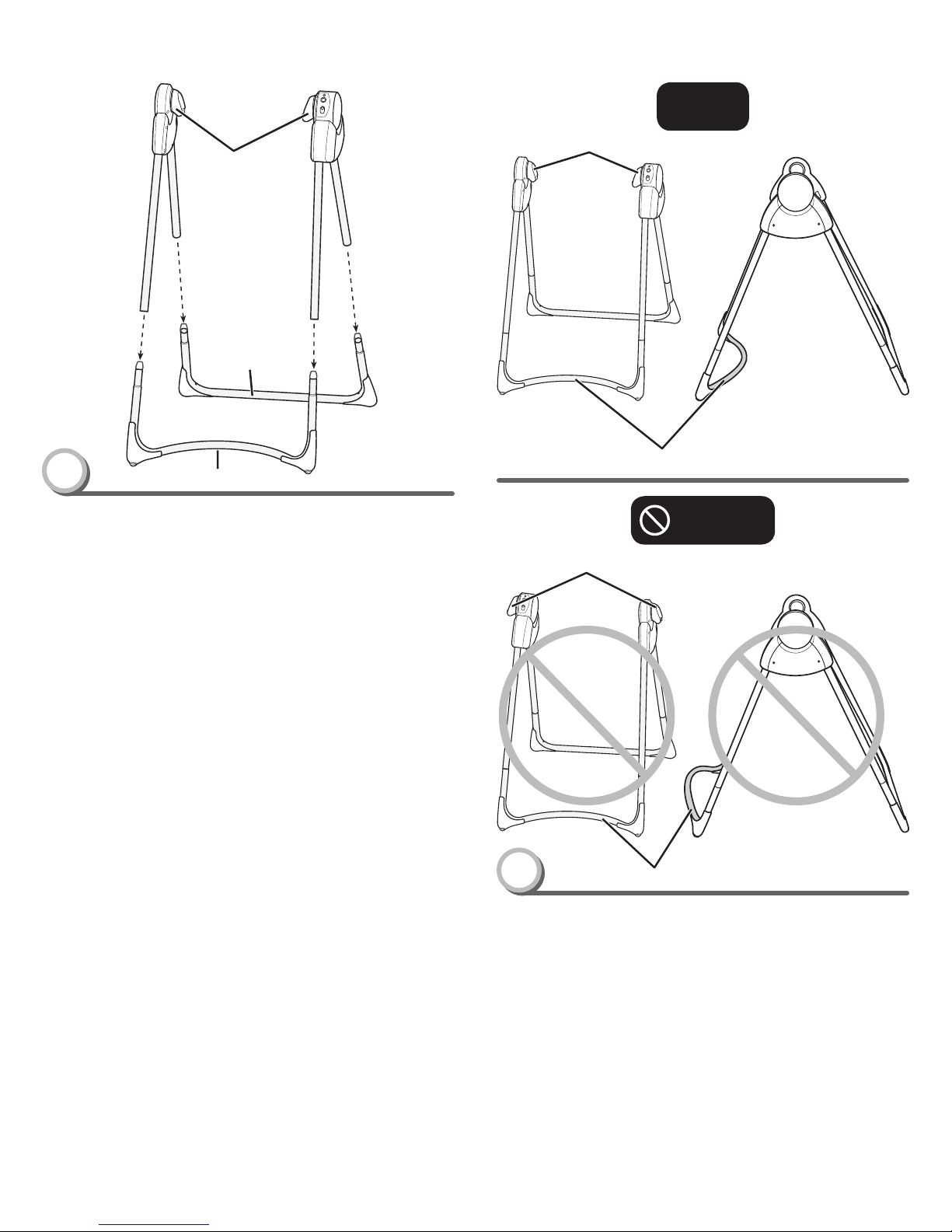

• Place the front curved base on a flat surface so that it curves
away from you.
• Place the back base on a flat surface, behind the front
curved base.
• Position the leg assemblies so that the hubs are facing
each other.
• Fit the ends of the legs over the ends of the front and back
bases, as shown.
Hint: You may need the help of another adult to help you balance
the assembly.
Front Curved Base
Hubs
Back Base
3
Swing Frame Assembly
HUBS FACING OUT
FRONT BASE CURVES INWARD
• Check to be sure you have assembled the leg assemblies to the
bases correctly. Please refer to the illustrations above.
• If the leg assemblies are assembled incorrectly to the bases,
pull the legs from the bases. Please re-read and repeat
assembly step 3.
FRONT BASE CURVES OUT
INCORRECT
4
HUBS FACE IN
CORRECT

8

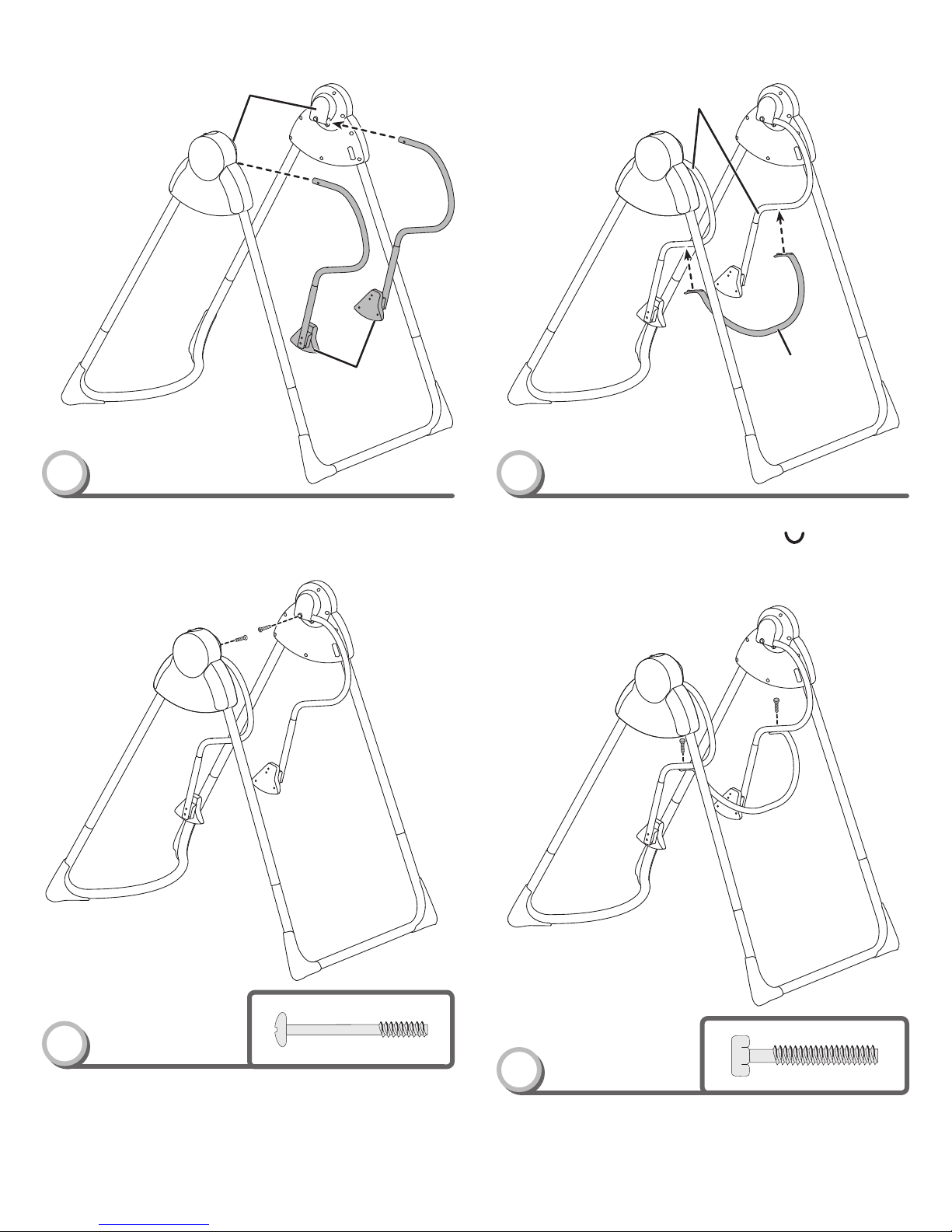

Swing Frame Assembly
Seat Tubes
• Insert the ends of the seat tubes into the sockets in the hubs.
• Push the seat tubes in until you hear a “snap” (for each).
Hubs
• Insert a #4 x 3,18 cm screw into each hub and tighten.
5
6
• Locate the holes on the bottom of the seat tubes.
• Position the seat tube support so that it is a shape.
• Fit the seat tube support to the seat tubes. Hold the seat tube
support in place and proceed to step 8.
Seat Tubes
Seat Tube Support
7
• Insert an M5 x 2,9 cm screw through each seat tube and the
seat tube support.
IMPORTANT! Please follow the next assembly (step 9) carefully to
completely secure the seat tube support to the seat tubes.
8

9
Swing Frame Assembly
Retainer with Lock Nut
• Fit a retainer with lock nut onto the end of the screw and to the
seat tube support.
Hint: A lock nut has been factory assembled to the retainer.
During shipment, the lock nut may have fallen out of the retainer.
If it has, please fit it into the hexagonal hole in the retainer so that
the rounded side of the lock nut faces out.
• Tighten the screw using the assembly tool. Turn the tool
clockwise to tighten.
• Repeat this procedure to fasten the screw in the other seat tube
and seat tube support, using the remaining retainer with lock nut.
9
10
• Loosen the screws in the battery compartment door and remove
the battery compartment door.
• Insert four “D” (LR20) alkaline batteries into
the battery compartment.
• Replace the battery compartment door and tighten the screws.
Hint: We recommend using alkaline batteries for longer
battery life.
• If this product begins to operate erratically, you may need to reset
the electronics. Slide the power switch off and then back on.
Battery Compartment
1,5V x 4
“D” (LR20)
Battery Installation
Battery Safety Information
In exceptional circumstances, batteries may leak fluids that
can cause a chemical burn injury or ruin your product. To avoid
battery leakage:
• Do not mix old and new batteries or batteries of different types:
alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
• Insert batteries as indicated inside the battery compartment.
• Remove batteries during long periods of non-use. Always remove
exhausted batteries from the product. Dispose of batteries safely.
Do not dispose of product in a fire. The batteries inside may
explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the product before charging.
• If removeable, rechargeable batteries are used, they are only to
be charged under adult supervision.
• Protect the environment by not disposing of this product
with household waste (2002/96/EC). Check your local
authority for recycling advice and facilities (Europe only).

10
Setup and Use
To prevent injury or death from
falls or being strangled in the
restraint system
• Never leave child unattended.
When used as a Swing:
• Always use the restraint system.
• Never use with an active child who may
be able to climb out of the product.
When used as an Infant Seat
or Rocker:
• Fall Hazard - It is dangerous to use
this product on an elevated surface.
Use only on a floor.
• Suffocation Hazard - Never use on
a soft surface (bed, sofa, cushion)
since the product can tip over and
cause suffocation in soft surfaces.
• Always use the restraint until child
is able to climb in and out of the
product unassisted.
• Never use as a carrier. Never use the
toy bar as a handle.
• Infant seat and swing modes not
recommended for children who
can sit up by themselves (6 months
approximately, until 9 kg/20 lbs).
• Use the Rocker position only when
child has developed enough upper
body control to sit without
leaning forward.
WARNING
IMPORTANT! Before each use, inspect this product for damaged
hardware, loose joints, missing parts or sharp edges.DO NOT
use if any parts are missing or broken. Contact Fisher-Price®for
replacement parts and instructions if needed.Never substitute parts.
Swing (See page 11)
Rocker (See page 13)
Infant Seat (See page 13)

11

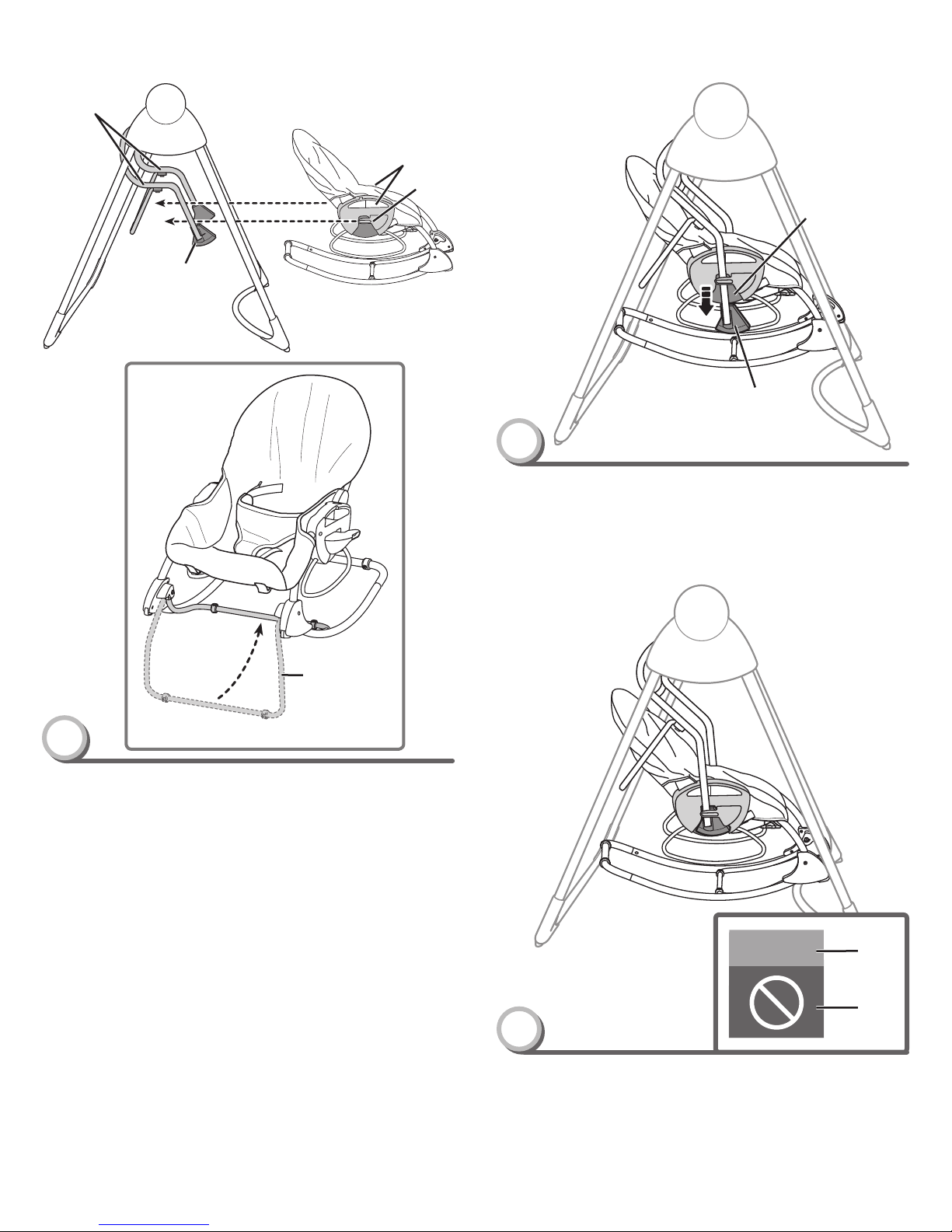

Seat Tube Hub
• Rotate the kickstand up.
• Push down on the seat bottom to be sure the kickstand is
in position.
• Grasp the handles on the seat.
• Slide the seat between the seat tubes.
• Fit the groove in each handle to the seat tubes.
Handles
Kickstand
Swing
1
Seat Tubes
Groove
• Now, lower the seat down onto the red seat tube hubs.
Hint: The seat tube hubs should fit into the red, indented area on
the seat handles.
• Push the seat down to be sure it is secure.
Seat Tube Hub
Indented Area in
Seat Handle
2
• Check to be sure the seat is secure on the seat tube hubs.
• Make sure you see the green indicator on the seat tubes.
• If you can see red on the seat tube indicator, the seat is not
secure on the hubs. Please remove the seat. Re-read and repeat
steps 1 and 2.
3
Green
Red

12
Swing
IMPORTANT! Do not place the seat on top of the seat tube support!
The seat is not secure. Please remove the seat. Re-read and repeat
steps 1 - 3.
4
Plug Plug
Toy Bar
• Fit the plugs on each end of the toy bar into the sockets in each
side rail.
5
Power Switch
• Make sure your child is properly secured in the seat.
• Slide the swing power switch on to either of two speed settings.
The power indicator lights.
• To start swinging motion, give the seat a light push.
• Be sure to turn this product off when not in use. Slide the power
switch OFF.
Hints
• As with most battery-powered swings, a heavier child will reduce
the amount of swinging motion on all settings. In most cases,
the low setting works best for a smaller child while the high
setting works best for a larger child.
• Low battery power may cause product movement to slow or
turn off all together. If this should happen, please remove and
discard all four batteries and replace with four, new “D” (LR20)
alkaline batteries.
Music/Volume Button
• Push the music/volume button once for low volume ;
press again for high volume ; press again to turn
sounds off .
Power Indicator
Power Switch
6
Music/Volume Button

13
Kickstand
• Rotate the kickstand out.
• Push down on the seat bottom to be sure the kickstand is
in position.
• Fit the plugs on each end of the toy bar into the sockets in each
side rail.
Plugs
Toy Bar
Infant Seat
1
2
• Rotate the kickstand up.
• Push down on the seat bottom to be sure the kickstand is
in position.
• Fit the plugs on each end of the toy bar into the sockets in each
side rail.
Rocker
1
2
Plugs
Toy Bar
Kickstand

14
• Place your child in the seat. Position the restraint pad between
your child’s legs.
• Fasten the restraint straps to the restraint pad. Make sure you
hear a “click” on both sides.
• Check to be sure the restraint system is securely attached by
pulling it away from your child. The restraint system should
remain attached.
Restraint Strap
Restraint Pad
Securing Your Child
1
• Tighten each waist belt so that the restraint system is snug
against your child. Please refer to the next section for instruction
to tighten the waist belt.
2
To tighten the restraint straps:
• Feed the anchored end of the restraint strap up through the
buckle to form a loop A. Pull the free end of the restraint
strap B.
To loosen the restraint straps:
• Feed the free end of the restraint strap up through the buckle
to form a loop A. Enlarge the loop by pulling on the end of the
loop toward the buckle. Pull the anchored end of the restraint
strap belt to shorten the free end of the restraint strap B.
LOOSENTIGHTEN
Anchored End
Free End
Anchored End
Free End
3

15

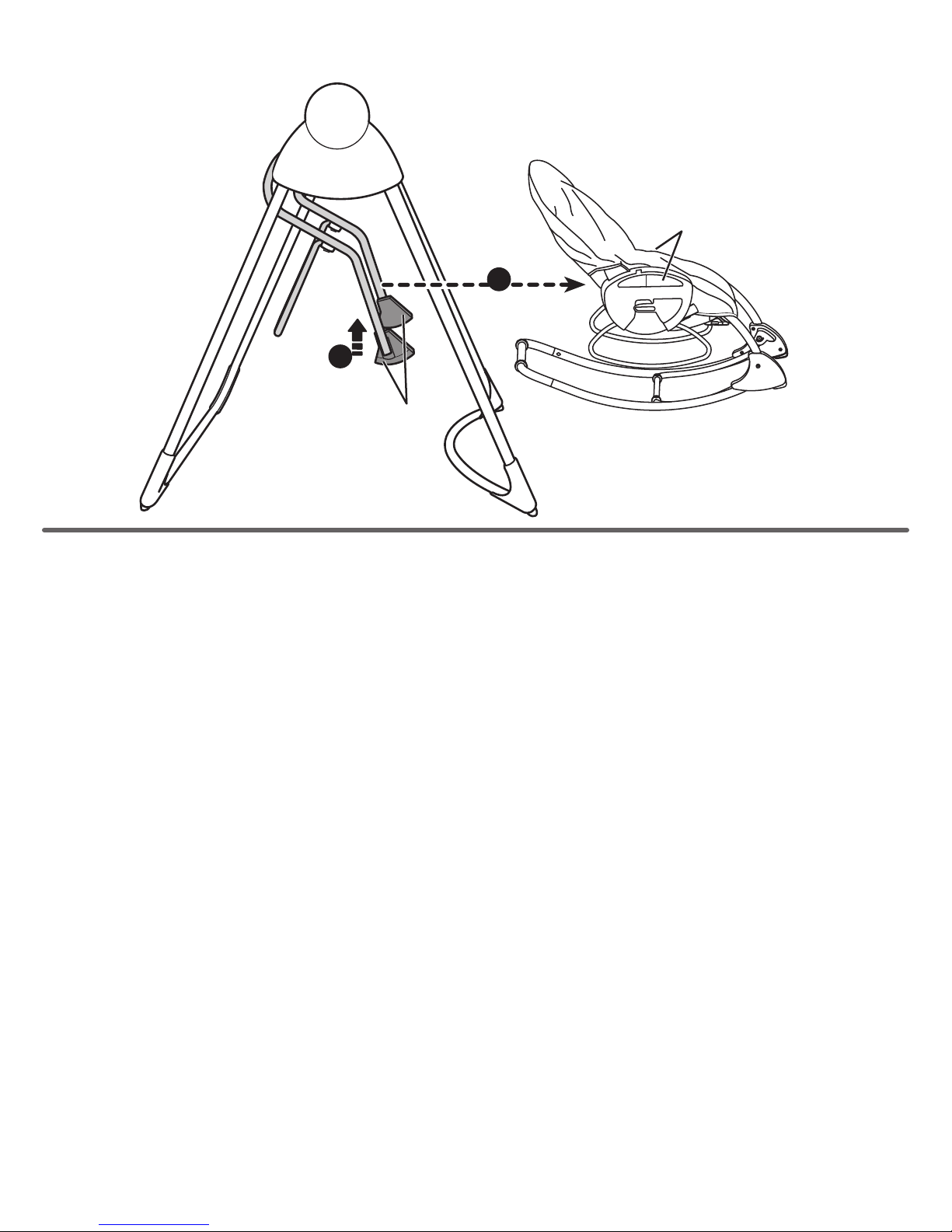

• Grasp handles on the seat.
• Lift the seat from the seat tube hubs A.
• Pull the seat forward B.
Removing the Seat from the Swing
Handles
A
B
Seat Tube Hubs

Fisher Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A.
©2008 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
PRINTED IN CHINA P6946pr-0726
• Press the button on each housing and push the rear legs toward
the front legs. Stand the frame against a wall for storage.
PRESS
Storage
To remove the pad:
• Unfasten the buckles around the front and side rails.
• Remove the hardboard from the slot in the front edge of the pad.
• Push the waist belts back through the pad.
• Pull the front and back of the seat back area of the pad apart.
• Lift the pad off the seat.
To replace the pad, refer to Assembly steps 7 - 10.
• The pad is machine washable. Wash it separately in cold water
on the gentle cycle. Do not use bleach. Tumble dry separately
on low heat and remove promptly.
• The frames and toy bar can be wiped clean using a mild cleaning
solution and a damp cloth. Do not use bleach. Do not use harsh
or abrasive cleaners. Rinse clean with water to remove residue.
Pad
Pad Buckles
Pad Buckles
Care
