Fisher-Price DUNE RACER W2602 Use and care manual

Please read this manual and save it with your
Please read this manual and save it with your
original sales receipt.
original sales receipt.
Tools needed for assembly: assembly wrench
Tools needed for assembly: assembly wrench
(included), Phillips Screwdriver and Adjustable
(included), Phillips Screwdriver and Adjustable
Wrench (both not included).
Wrench (both not included).
Use only with a Power Wheels
Use only with a Power Wheels
®
®
12 Volt Lead-Acid
12 Volt Lead-Acid
Rechargeable Battery and a Power Wheels
Rechargeable Battery and a Power Wheels
®
®
12 Volt
12 Volt
Charger (both included).
Charger (both included).
Owner's Manual
Owner's Manual
with Assembly Instructions
with Assembly Instructions
For W2602
For W2602

2
W2602pr-0920
IMPORTANT INFORMATION
ELECTRICAL HAZARD
RIDING HAZARD
• To prevent electric shock, do not immerse in water; wipe clean with a damp cloth.
DANGER
WARNING
WARNING
Battery can fall out and injure a child if vehicle tips over. Always use battery retainer.•
PREVENT FIRE•
- Never modify the electrical system. Alterations could cause a re resulting in
serious injury and could also ruin the electrical system.
- Use of the wrong type battery or charger could cause a re or explosion resulting
in serious injury.
- Use of Power Wheels®components in products other than Power Wheels®
vehicles could cause overheating, re or explosion.
The battery must be handled by adults only. The battery is heavy and contains•
sulfuric acid (electrolyte). Dropping the battery could result in serious injury.
Never allow children to charge the battery. Battery charging must be done by adults•
only. A child could be injured by the electricity involved in charging the battery.
Read the safety instructions on the battery.•
Examine the battery, charger and their connectors for excessive wear or damage•
each time you charge the battery. If damage or excessive wear is detected, do not
use the charger or the battery until you have replaced the worn or damaged part.
HOT• motors. Handle carefully.
Prevent Injuries and Deaths•
Direct Adult Supervision Required.•
Never Ride at Night.•
Keep Children Within Safe Riding Areas.•
These areas must be:
Away from swimming pools and other bodies of water to prevent drownings.-
Generally level to prevent tipovers.-
Away from steps, steep inclines, cars, roads and alleys.-
Riding Rules•
Make sure children know and follow these rules for safe driving and riding.
Always sit on the seat.-
Always wear shoes.-
Only 2 (two) riders at a time.-

3W2602pr-0920
IMPORTANT INFORMATION
Read this manual carefully for important safety•
information and operating instructions before using
your vehicle. Keep this manual for future reference,
as it contains important information.
The vehicle is designed for use on grass, asphalt, and•
other hard surfaces; on generally level terrain; and by
children 3 years of age and older. Do not exceed the
maximum weight capacity of 130 lbs (59 kg).
Your new vehicle requires adult assembly. Please set•
aside at least 45 minutes for assembly.
Use this vehicle• ONLY outdoors. Most interior flooring
can be damaged by riding this vehicle indoors.
Fisher-Price®will not be responsible for damage
to the floor if the vehicle is used indoors.
You must charge your battery for 18-30 hours• before
you use your vehicle for the first time. We recommend
charging your battery before beginning assembly. Please
see the Battery Charging section for detailed instructions.
The battery charger is not a toy.•
Do not short circuit the battery.•
Adults Note:• Regularly examine the charger for
damage to the cord, plug, housing or other parts that
may result in the risk of fire, electric shock or injury. In
the event of any damage, do not use the charger until
the damage has been properly repaired.
Your Power Wheels• ®12 volt battery is equipped
with a built-in thermal fuse. The thermal fuse is
a self-resetting safety device which automatically
“trips” and shuts down operation of the vehicle if the
vehicle is overloaded or the driving conditions too
severe. Once a fuse has “tripped”, remove your foot
from the pedal and wait approximately 25 seconds
before operating the vehicle again. To avoid repeated
automatic shut-downs, avoid severe driving conditions.
If a thermal fuse in a battery continually trips under•
normal driving conditions, please contact your local
Power Wheels®Authorized Service Center.
To prevent damaging the motors and gears, teach your•
child to stop the vehicle before switching direction.
If you have any questions about your Power Wheels• ®
vehicle, please call our toll-free service lines at
1-800-348-0751. Trained customer service
representatives are available to take your call in English
or French. Habla Español? Si usted tiene alguna
pregunta ó necesita asistencia llame gratis
1-800-348-0755 para los Estados Unidos. Tenemos
representantes que hablan español para atender
su llamada.
For your convenience, Power Wheels• ®maintains an
independently owned and operated Authorized Service
Center Network with more than 300 authorized service
centers nationwide. Our authorized service centers
will repair or replace parts under warranty at no extra
charge, and can perform non-warranty repairs for
a minimal charge. To find the authorized service
center nearest you, please visit us online at
www.powerwheels.com or call 1-800-348-0751.
Please visit us online at• www.powerwheels.com to
register your vehicle.

4
W2602pr-0920
If you experience a problem with this product, please call us at• 1-800-348-0751, rather than return this product
to a store.
Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no•
parts are discarded.
Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with a paper•
towel to remove any excess lubricant.

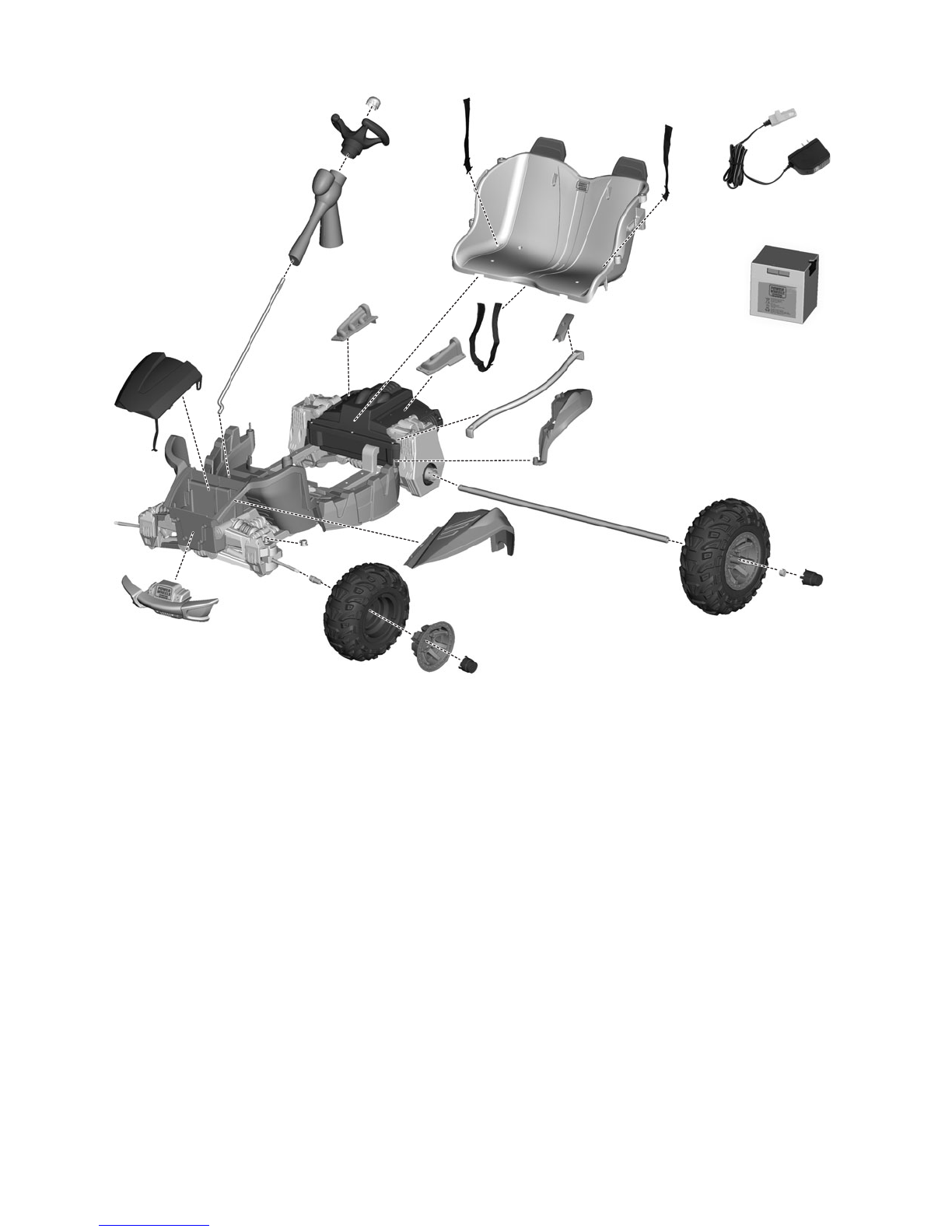

ASSEMBLED PARTS
Vehicle Frame Seat2 Valve Covers
2 Front Fenders
(Left and Right)
Bumper 2 Rear Fenders
(Left and Right)
Rear Axle
2 Sidebars
(Left and Right)
2 Short Seat Belts Long Seat Belt
Steering Wheel Hood
Steering Post
2 Rear Wheels
(Left and Right)
2 Front Wheels
(Left and Right)
2 RimsSteering Column

5W2602pr-0920
ASSEMBLED PARTS
12V Battery 12V Charger
Assembly Wrench
2 Front Axle Fastener
Caps
2 Bushings
Part Not Shown: Label Sheet
2 Sidebar Covers
(Left and Right)
Steering Wheel Cap 2 Front Hubcaps 2 Rear Hubcaps
2 Rear Axle Caps
Fasteners Shown Actual Size
For your convenience, we included extra fasteners!
Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten the screws.
#8 x 3/4" (1,9 cm) Screw - 34 #8 x 1/2" (1,3 cm) Screw - 2 3/8" (1 cm) Lock Nut - 4 #8-32 Acorn Nut - 2

6
W2602pr-0920
ASSEMBLED PARTS
Note: Some parts shown are assembled on both sides of the vehicle. Fasteners not shown.

7W2602pr-0920
ELECTRICAL HAZARD
WARNING
BATTERY CHARGING
Battery can fall out and injure•
a child if vehicle tips over.
Always use battery retainer.
PREVENT FIRE•
- Never modify the electrical system.
Alterations could cause a re
resulting in serious injury and could
also ruin the electrical system.
- Use of the wrong type battery
or charger could cause a re or
explosion resulting in serious injury.
- Use of Power Wheels®components
in products other than
Power Wheels®vehicles could
cause overheating, re or explosion.
The battery must be handled•
by adults only. The battery is
heavy and contains sulfuric acid
(electrolyte). Dropping the battery
could result in serious injury.
Never allow children to charge the•
battery. Battery charging must be
done by adults only. A child could
be injured by the electricity involved
in charging the battery.
Read the safety instructions on•
the battery.
Examine the battery, charger and•
their connectors for excessive wear
or damage each time you charge
the battery. If damage or excessive
wear is detected, do not use the
charger or the battery until you have
replaced the worn or damaged part.
CAUTION
Use the charger in dry locations only.
• Make sure you charge the battery for at least 18 hours
using the enclosed Power Wheels®12 volt charger
before operating your vehicle for the first time. Charge
the battery for at least 14 hours after each use of the
vehicle. Never charge the battery longer than 30 hours.
Failure to follow these instructions may damage your
battery and will void your warranty.
• Use only a Power Wheels®12 volt charger with “12V”
connector (input 120 VAC, 60Hz, with an output of 12
VDC) to charge your Power Wheels®12 volt battery.
• Plug the charger connector into the battery socket
A
.
• Plug the charger into a standard wall outlet
B
.
Notes:
- If power flow to the wall outlet is controlled by a switch,
make sure the switch is “ON”.
- Use the charger only in a wall outlet. Do not plug the
charger into a ceiling outlet.
• Before charging the battery, examine the battery case
for cracks and other damage which may cause sulfuric
acid (electrolyte) to leak during the charging process.
If damage is detected, do not charge the battery or use
it in your vehicle. Battery acid is very corrosive and
can cause severe damage to surfaces it contacts.
• Do not place the battery on a surface (such as kitchen
counter tops) which could be damaged by the acid
contained inside the battery. Take precautions to
protect the surface on which you place your battery.
• Charge the battery in a well ventilated area.
• Once the battery is charged, disconnect the battery
connector from the charger connector. Unplug the
charger from the wall outlet. Refer to the Battery
Installation section for instructions on installing
your battery. If your battery is already installed in
your vehicle, simply re-connect the motor harness
connector to the battery.
• You do not need to remove the battery from your
vehicle to recharge it.
Battery
Charger
B
A
Charger
Connector

8
W2602pr-0920
Assembly
Children can be harmed by small
parts, sharp edges and sharp points
in the vehicle's unassembled state,
or by electrical items. Care should be
taken in unpacking and assembly of
the vehicle. Children should not handle
parts, including the battery, or help in
assembly of the vehicle.
WARNING
Rear Axle
• Slide the rear axle through the hole in the motor in the
back end of the vehicle.
1
Rear Wheel
• Slide a rear wheel onto the end of the rear axle.
2
SIDE VIEW
Motor • Fit a rear axle cap onto the end of the rear axle.
3
Rear Axle Cap
• Insert a #8 x ¾" (1,9 cm) screw into the hole in the
rear axle and tighten.
4
• Fit the tabs on the rear hubcap into the slots in the rear
wheel. Push to "snap" into place.
• Repeat steps 2-5 to assemble the other rear wheel,
rear axle cap and rear hubcap to the rear axle.
5
Rear Hubcap

9W2602pr-0920
ASSEMBLY
6
• Pull to rotate the front axles completely towards the
front of the vehicle.
Front Axle
Front Axle
Front Axle
Fastener Cap
Front Axle
7
• Fit a front axle fastener cap onto the upper portion of
a front axle.
• Align the hole in the axle fastener cap with the hole in
the front axle.
Hint: You may need to push the front axle towards the
front of the vehicle while you insert the screw.
• Insert a #8 x ¾" (1,9 cm) screw into the large opening
in the front axle fastener cap and tighten.
• Repeat steps 7 and 8 to assemble the other front axle
fastener cap.
8
Bushing
Front Wheel
9
10
• Remove the cap on the end of the front axle. Dispose of the
cap in the trash.
• Slide a bushing, ring end first, onto a front axle.
• Slide a front wheel, flat side first, onto the front axle.
• Slide a rim, indented side out, onto the front axle.
11
Rim

10
W2602pr-0920
ASSEMBLY
Lock Nut
• Fit a 3/8" (1 cm) lock nut onto the end of the front axle
and tighten with the assembly wrench.
IMPORTANT! Fully tighten the lock nut with the
included assembly wrench.
12
Assembly
Wrench
Valve Covers
Front Hubcap
14
• Fit the tabs on the front hubcap into the slots in the
front wheel. Push to "snap" into place.
• Repeat steps 9-14 to assemble the remaining bushing,
front wheel, rim and front hubcap to the other front axle.
• Test to be sure the wheel spins. Lift the front end of
the vehicle up slightly and turn the wheel. It should
spin freely.
• If the wheel does not spin freely, use the assembly
wrench to loosen the lock nut a ¼" turn. Spin the
wheel again and loosen more, if necessary.
13
• Fit each valve cover onto the back end of the vehicle
frame, as shown.
Hint: Each valve cover is designed to fit one way. If the
valve cover does not seem to fit, try the other valve cover.
FRONT VIEW
15

11 W2602pr-0920
Rear Fenders
• Fit the rear fenders under the tabs the sides of the seat,
as shown.
19
ASSEMBLY
• Insert three #8 x ¾" (1,9 cm) screws into each valve
cover and tighten.
16
Note: Make sure the fasteners on both short seat belts
face each other.
• Fit the folded end of each short seat belt down
through the outer slots in the seat. Do not insert the
folded tab into the slot. Pull up on each seat belt to
make sure it is secure.
17
Folded
Folded
End
End
Folded
Folded
Tab
Tab
Short Seat Belts
Long Seat Belt
Fastener
Side
Fastener
Side
Note: Make sure the fasteners on the long seat belt are
facing the fasteners on the short seat belts.
• Insert the ends of the long seat belt up through the
slots in the center of the seat.
• Fit the folded tabs on the belt up through the slots
in the center of the seat to keep the long seat belt in
place. Make sure the folded tabs are on visible on the
top side of the seat.
18
Folded
Folded
Tab
Tab

12
W2602pr-0920
• Insert six #8 x ¾" (1,9 cm) screws into the seat
and tighten.
24
• From behind the seat back, fit a #8-32 acorn nut onto
the end of the screw.
• While holding the acorn nut in place with the assembly
wrench, tighten the screw with a Phillips screwdriver.
• Repeat assembly steps 21 and 22 to assemble the
remaining #8 x ½" screw and #8-32 acorn nut to the
seat back.
22
Vehicle Frame
Seat
• Fit the seat onto the vehicle frame.
23
FRONT VIEW
BACK VIEW
ASSEMBLY
• Insert a #8 x ½” (1,3 cm) screw into a hole in the front
of the seat back.
21
DO NOT insert screws here.
• Insert two #8 x ¾" (1,9 cm) screws into the upper hole
in each side of the seat and tighten.
N ote: Do not insert screws into the lower holes on the
seat in this step. These screws will be assembled in this
location in step 24.
20

13 W2602pr-0920
Front Fenders
• Fit the front fenders onto the front of the vehicle,
as shown.
Hint: The front fenders are designed to fit one way. If
a front fender does not seem to fit, try the other one!
27
ASSEMBLY
Sidebar Cover Sidebar Cover
• Fit the sidebar covers onto the sidebars, as shown.
Hint: The sidebar covers are designed to fit one way. If
a sidebar cover does not seem to fit, try the other one!
• Insert a #8 x ¾" (1,9 cm) screw into each sidebar
cover and tighten.
26
• Insert six #8 x ¾" (1,9 cm) screws into the fenders
and tighten.
28
TOP SIDE VIEW
Sidebar with
Curve Out
Sidebar with
Curve Out
• Fit the sidebars into the slots in the vehicle frame and
rear fenders.
Hint: Each sidebar is designed to fit one way. Make sure
the sidebar curves outward and the tabs on the ends fit
into the slots in the vehicle and fenders.
25
Tabs
Tabs

14
W2602pr-0920
ASSEMBLY
• Fit the folded end of the strap attached to the hood up
into the slot in the front end of the vehicle.
31
Hood
Pegs
30
• Fit the tabs on the hood onto the pegs on the
front fenders.
Steering Post
Steering Column
32
• Insert the straight end of the steering column up
through the bottom of the steering post, as shown.
Bumper
29
• Fit the bumper onto the front end of the vehicle.
• Insert four #8 x ¾" (1,9 cm) screws into the bumper
and tighten.
FRONT VIEW

15 W2602pr-0920
ASSEMBLY
34
Steering Column
• Push the steering column down (so that it inserts into
the slot in the steering linkage underneath the vehicle).
• Carefully turn the vehicle on its side.
• Fit the steering column through the hole in the
steering linkage.
• Fit a 3/8" (1 cm) lock nut onto the end of the steering
column and tighten with the assembly wrench.
35
Steering Column
Lock Nut
BOTTOM VIEW
Assembly
Wrench
• Insert four #8 x ¾" (1,9 cm) screws into the holes in
the bottom of the vehicle (to hold the steering column
post and seat) and tighten.
Screws
36
Bend in
Steering
Column
Steering
Column Post
Hole
Slot
• Pull the straight end of the steering column up so that
only the bend is visible (out from the bottom of the
steering column post).
• Hold the steering column in place and lower the
assembly to fit both the steering column post into the
hole in the floor of the vehicle and the steering column
into the slot in the front end of the vehicle.
33
TOP SIDE VIEW

16
W2602pr-0920
• Turn the vehicle upright.
• Fit the steering wheel onto the steering column assembly.
Hint: The steering wheel is designed to fit the steering
column one way. If it does not seem to fit, turn it around
and try again!
37
Steering Wheel Cap
• Fit the steering wheel cap to the center of the steering
wheel. Push to "snap" into place.
39
ASSEMBLY
Steering Wheel
Steering Column Lock Nut
• Fit a 3/8" (1 cm) lock nut onto the end of the steering
column and tighten with the assembly wrench.
38
Assembly
Wrench
INSIDE VIEW

17 W2602pr-0920
DECORATION
• Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils.
• Place the labels exactly as shown in the illustrations. For best results, avoid repositioning a label once it has been
applied to the vehicle.
• After applying a label, rub the label firmly with a clean, dry cloth to make sure the label is adhered to your vehicle. Start
at the center of a label, and smooth towards the outer edges to remove air bubbles.
BACK VIEW
TOP VIEW
12
13
5
19
76
98
1110
18 18
12 12
21
24
22
23
20
4

18
W2602pr-0920
DECORATION
RIGHT SIDE VIEW
LEFT SIDE VIEW
17
3
3
3
3
15
14
16

19 W2602pr-0920
• Carefully fit the battery into the battery compartment.
2
Power Wheels®
12 Volt Battery
BATTERY INSTALLATION
IMPORTANT! Use only a Power Wheels®12 volt battery.
Use of any other battery will damage your vehicle.
• Press the battery door button on the back end of
the vehicle.
• Lower the battery door.
1
• Plug the motor harness connector into the battery.
Push firmly.
• Lift the battery door and "snap" into place.
3
4
Battery Door
Motor Harness
Battery Door

20
W2602pr-0920
RIDING HAZARD
WARNING
Prevent Injuries and Deaths•
Direct Adult Supervision Required.•
Never Ride at Night.•
Keep Children Within Safe•
Riding Areas.
These areas must be:
Away from swimming pools and-
other bodies of water to prevent
drownings.
Generally level to prevent tipovers.-
Away from steps, steep inclines,-
cars, roads and alleys.
Riding Rules•
Make sure children know and follow
these rules for safe driving and riding.
Always sit on the seat.-
Always wear shoes.-
Only 2 (two) riders at a time.-
Before children use this vehicle, an adult should carefully
evaluate the driving area as well as the child’s skill level
and ability to drive the vehicle safely. Teach appropriate
safety rules to your child before allowing operation of
this vehicle. These rules should also be reviewed with
other playmates who want to drive the vehicle.
A child who is not sitting on the seat could fall off,•
cause a tip over or block the driver’s view.
Only operate the vehicle in the daytime in a well-lit area.•
Driving near steep inclines can cause:•
The vehicle to gain unsafe speed, even if the pedal is-
released to stop.
The vehicle to tilt and tip over-
The wheels to lose traction, causing the vehicle to slip.-
The vehicle could roll backwards at an unsafe speed.-
Never put anything near any moving parts. Rotating•
parts, such as motors, gear boxes and wheels, can
snag fingers, hair, etc., causing serious injury.
Do not allow operation of the vehicle when it is on its•
side or in an upside-down position.
Do not operate the vehicle near flammable vapors•
(gasoline, paint thinner, acetone, liquid wax, etc.).
The vehicle’s electrical switches, like most electrical
switches, emit an internal spark when first turned on
or turned off, which could cause an explosion or fire.
To prevent unsupervised use of the vehicle, disconnect•
the motor harness from the battery when the vehicle is
not in use.
SAFE DRIVING RULES
Use vehicle on generally level ground ONLY!
