FONESTAR SCF-500 User manual

SCF-500
CONFERENCE SYSTEM
EN Instruction manual
SCF-510P
President Microphone
SCF-520D
Delegate Microphone
SCF-500
Control unit/Amplifier

- 2-
EN
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECUR TY AND THE ENV RONMENT
ELECTR CAL SECUR TY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUT ON
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCAT ON
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENT LAT ON
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PER ODS OF NACT V TY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
f you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. f it is not going to be used for a long period of time, disconnect it from the mains.
THE ENV RONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
f it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).

- 3-
EN
SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct expose to
the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. t also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
n accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section RE
(Registro de establecimientos ndustriales), with the entry number 001851.
The symbol RoHS (Restriction of Hazardous Substances) shows that the product has been
designed and manufactured restricting the use of certain dangerous materials (Directive
2002/95/CE on the restriction of certain dangerous substances in electrical and electronic
appliances, and its transferal to the Spanish regulations, R.D.208/2005).
* t is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.
INDEX
Security and the environment ............................................................................................. 2
Description .......................................................................................................................... 4
Controls and functions ........................................................................................................ 4
nstallation and connection ................................................................................................. 6
Specifications...................................................................................................................... 10
Declaration of conformity .................................................................................................... 11
Warranty .............................................................................................................................. 11

- 4-
EN
DESCRIPTION
This FONESTAR Conference system model SCF-500 is suitable for P.A. and communication in congresses,
parliaments, Town Halls, Courts, board of directors, seminars, round tables, debates and in general wherever
P.A. and communication is needed among different people.
The system offers very clear audio with a very low noise level.
Each microphone has a monitor loudspeaker incorporated, providing an audio reference for the speakers.
Besides, the control unit has an amplifier with microphone inputs, auxiliary line and amplified speaker output
as an integral solution for the P.A. of the event.
t provides an output signal for recording/splitting.
The control that the system has over the microphones includes checking the microphones connected when
switching on, the amount of open microphones and the disconnection of unused microphones.
Up to 10 President microphones can be connected, 75 microphones in total.
CONTROLS AND FUNCTIONS
SCF-500 CONTROL UNIT
FRONT PANEL
1- MIC-3: volume control for microphone 1 to 3 inputs.
2- AUX 1: volume control for the AUX1 auxiliary level input and priority level adjustment for the President
microphone.
AUX 2: volume control for the AUX2 auxiliary level input.
3- AUX 3: volume control for the conference system signal level that is sent to the amplifier and the AUX3
output.
4- TREBLE, BASS: treble and bass tone control.
5- MASTER: general output volume control.
6- POWER: power supply switch.
7- LED indicator for output signal level.
8- LED state indicators and controls.
MIC CONTROL: shows the maximum number of active delegate microphones permitted at the same
time.
TIME: automatic disconnection time for unused microphones. LED indicator and switch.
SELECTOR: selects the maximum number of active delegate microphones at the same time.
OVERRIDE: OVERR DE function switch, using this, once the maximum number of active delegate
microphones has been reached and then another delegate microphone is activated, the delegate
microphone that has been on for the longest time will be deactivated. This function does not affect the
President microphones.

- 5-
EN

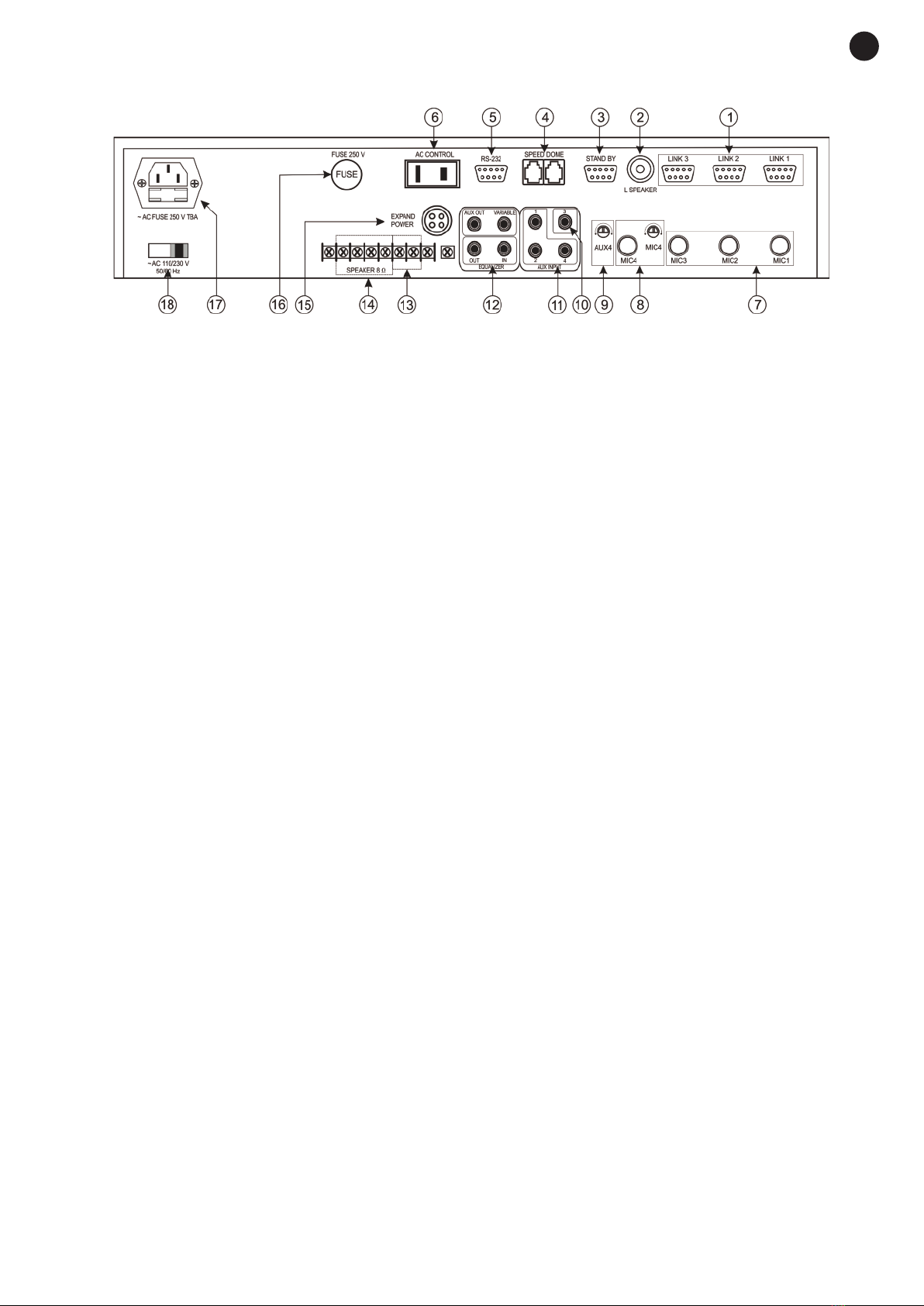

BACK PANEL
1- LINK 1 - 3: socket for interconnecting microphones. Control and audio signal for the conference system
microphones. Each “L NK” socket can take up to 25 microphones.
2- L.SPEAKER: volume control for the microphone monitor speakers.
3- STAND BY: future upgrades.
4- SPEED DOME: future upgrades.
5- RS-232: future upgrades.
6- AC CONTROL: future upgrades.
7- MIC1 - MIC3: unbalanced microphone inputs, 6.3 mm mono jack.
8- MIC4: volume control and unbalanced microphone input, 6.3 mm mono jack.
9- AUX 4: volume control for AUX4 input.
10- CONFERENCE AUX 3 OUT: conference system signal output.
11- AUX INPUT 1, 2, 4: AUX1, AUX2 and AUX4 auxiliary level input.
12- Output terminal for conference system and connection of signal processing equipment.
AUX OUT : direct output for the conference system and preamplifier, this output is not adjusted by
the MASTER output volume control.
VARIABLE : direct output for the conference system microphones, this output is adjusted by the
MASTER output volume control
E UALIZER OUT/IN : input/output for connecting signal processing equipment, such as
equalizers, compressors, etc. The default configuration includes a direct bridge.
13- Future upgrades.
14- SPEAKER 8 Ω: amplified loudspeaker output 2 x 40 W, for connecting an 8 Ω low impedance line.
15- EXPAND POWER: future upgrades.
16- FUSE: DC protective fuse for the control unit (8A).
17- AC SOCKET: mains supply with AC T8 A protective fuse.
18- AC 110/230 V: power supply voltage selector.

- 6-
EN
PRES DENT AND DELEGATE M CROPHONE
1- Activation button: press once to activate the microphone, a second time to deactivate it. While the
microphone is active, the speaker will be able to speak (with backlighting).
2-Priority button: when you press this button, all the delegate microphones will close. Only the President
microphone will stay active. (with backlighting).
3- Monitor loudspeaker.
4- Gooseneck microphone connector.
5- Headphone output, 3.5 mm stereo jack.
6- System interconnection socket, DIN-8.
INSTALLATION AND CONNECTION
1.- Prepare the control unit model SCF-500, the president microphones model. SCF-510P and the delegate
microphones model SCF-520D.
The control unit model SCF-500 is supplied with a 12 m interconnection cable with a male sub “D” 9
connector for connecting it to the control unit and a male D N-8 connector for connecting microphones.
The President microphones model SCF-510P and the Delegate microphones model SCF-520D are
supplied with an interconnection cable in “Y”, which has a female D N-8 connector for connecting the
control unit to the interconnection cable or the previous microphone and two male D N-8 connectors for
connecting to the microphone and extending the line to the next microphone.
2.- Connect the control unit interconnection cable to one of the interconnection
sockets (L NK1-3). A maximum of 25 microphones can be connected in
each socket.
Connect the other end of the interconnection cable to a “Y” interconnection
cable on a microphone. One of the branches on the “Y” cable has to be
connected to the microphone, while the other must be used to extend the
line to the next microphone.
3.- n this way up to 25 microphones can be connected to each interconnection
socket (L NK 1-3). n total 75 microphones can be connected to three
interconnection sockets.
The delegate and president microphones can be connected to each one of the interconnection sockets
(L NK 1-3) independently.
The President microphone can be connected anywhere. The system allows the connection of a maximum
of up to 10 President microphones.

- 7-
EN

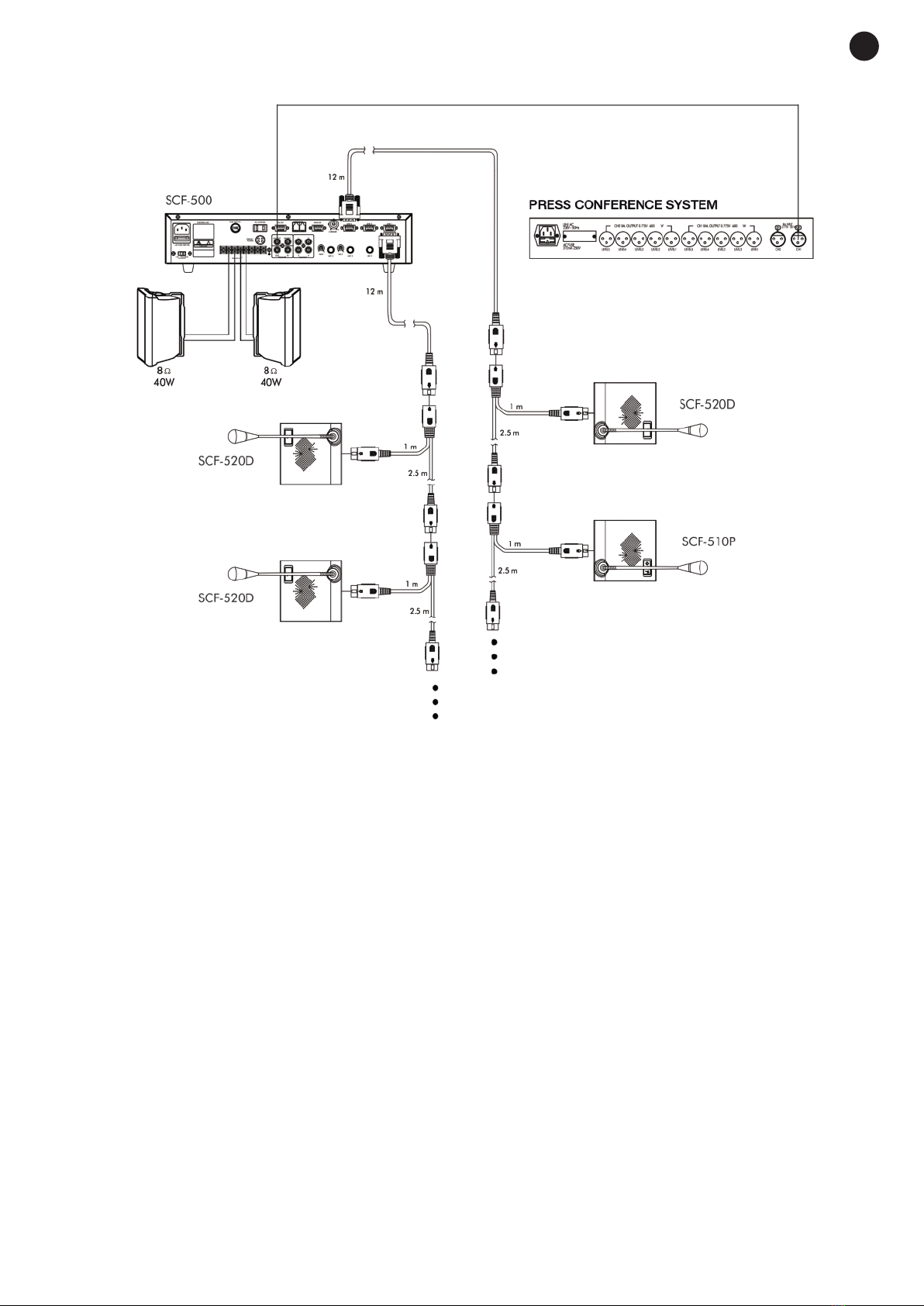

NSTALLAT ON EXAMPLE
UP TO 10 PRES DENT M CROPHONES
UP TO 75 M CROPHONES N TOTAL
4- Use low Z (8 Ω) speakers to be connected to the amplifier output and reproduce the conference audio.
5- To connect an audio splitter use the “AUX OUT” output.
6- With all the controls at their minimum, connect the control unit to the electrical power and switch the
system on. Remember, when you switch the system off, lower the volume to its minimum before switching
the control unit off.
7- When the system is switched on, the control unit will check that the microphones are working correctly.
During the test the microphone LED indicators will stay on if the microphone works correctly. f an error
is detected or a microphone is not connected properly, the LED indicator will flash after 5 seconds. f a
fault is detected you must switch the control unit off and check the microphone and the connection.
Wait 30 seconds while the system is being checked or press the activation button on a microphone to
stop the checking.
8- To speak into a microphone press the activation button. When you stop speaking deactivate the
microphone by pressing the activation button again. When a microphone is active the LED indicator will
light up.
9- The President microphone can deactivate the delegate microphones at any time by pressing the priority
button.

- 8-
EN
MIC CONTROL
This control lets you select the maximum number of delegate microphones active at the same time.
Using the selector you can switch between the number of delegate
microphones that can be active. f you do not select a quantity,
you will only be able to activate the president microphone and the
delegate microphones cannot be used.
OVERRIDE
This function defines how to activate the delegate microphones when they have
reached their maximum amount of active delegate microphones permitted.
f the OVERR DE function has been deactivated, another delegate microphone cannot
be activated until one is deactivated.
With the OVERR DE function activated, if a delegate microphone is activated, the
delegate microphone that was activated the first will automatically be deactivated. n
this way, if the number of delegate microphones allowed is two and two are already
active, then when another is activated the first one will automatically be deactivated.
This function does not affect president microphones.
TIME
This control lets you select how long a delegate microphone is going to be active before
the system deactivates it if a signal is not detected.
n position 0 this function is not active. Positions 30 and 45 select the time in seconds
before automatic deactivation, when no signal is detected in the microphone.
This function does not affect president microphones.
ID MICROPHONES
Delegate microphones have their own id number in the system. n the majority of cases
it is not neccessary to set the microphone id numbers. The conference system is delivered ready to use, with
an id number for each microphone.
The id number is shown on a sticker on the base of the microphone. f you have 2 microphones with the same
id number in the system, then you must change the number for one of them.
The id number can be set using a 7-way D P switch on the printed circuit board. This switch lets you give an
id number to each microphone (from 0 to 127). n order to select the id number you have to activate the
micro switches to set the number you want in binary code.

- 9-
EN

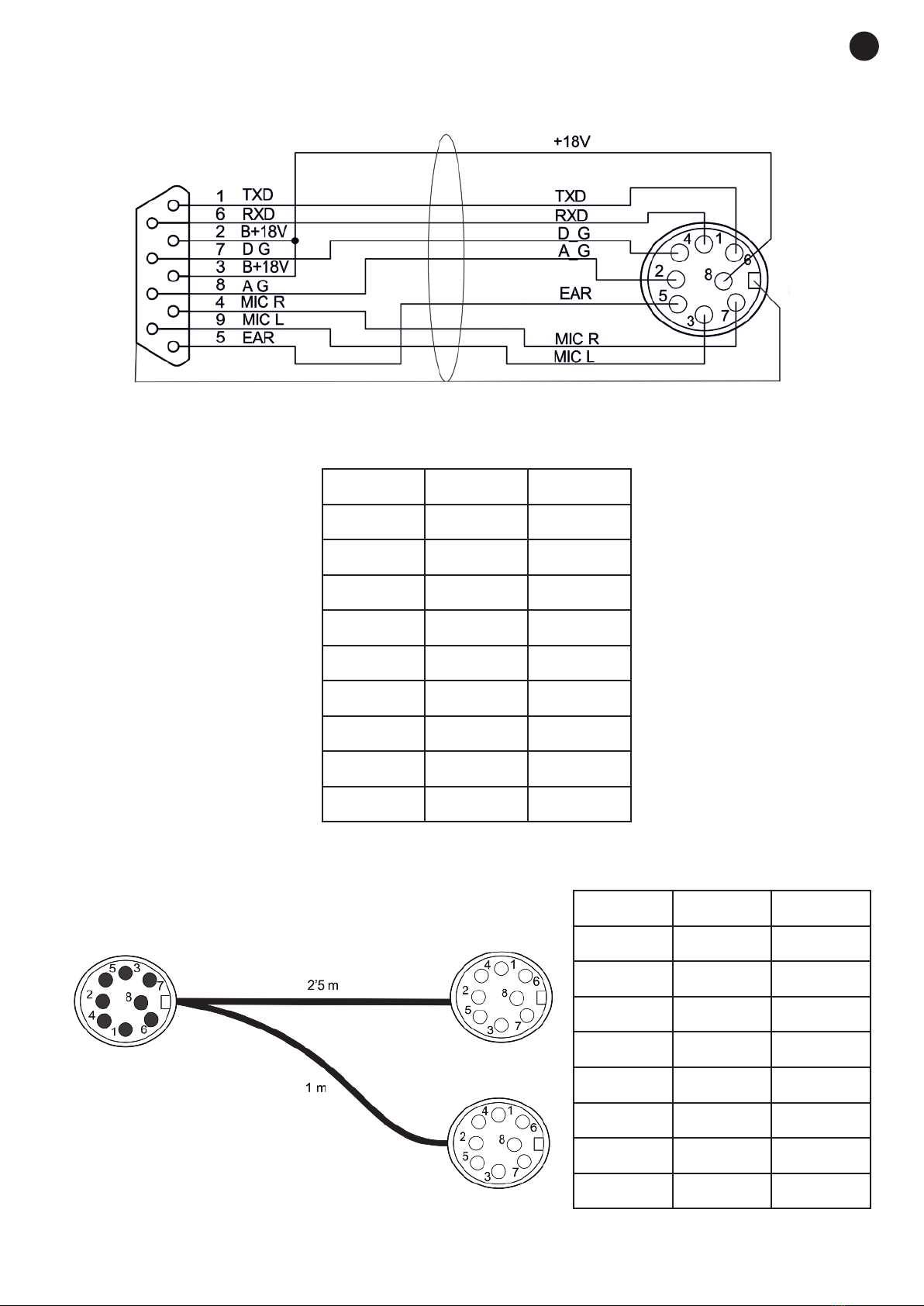

INTERCONNECTION CABLE
“Y” INTERCONNECTION CABLE
1 TXD 6
2 +18 V 8
3 +18 V 8
4 M C R 7
5 EAR 5
6 RXD 1
7 DG 4
8 AG 2
9 M C L 3
Mesh - Mesh
1 R x D 1
2 A G 2
3 M C L 3
4 DG 4
5 EAR 5
6 TXD 6
7 MM C R 7
8 +18 V 8
Mesh - Mesh
Male SUB D-9
pins Signal
Male D N-8
pins
Female D N-8
pins Signal
Female D N-8
pins
Female D N-8
(pin view)
Male D N-8
(pin view)
Male D N-8
(pin view)
Male SUB D-9
(pin view)
Male D N D-8
(pin view)

- 10 -
EN
SPECIFICATIONS
SCF-500 Control Unit
CHARACTERISTICS Control unit for system power supply.
ntegrated amplifier.
System test.
Control of number of microphones in use. Disconnects unused microphones.
Distribution or recording output.
Allows the connection of up to 75 microphones.
POWER 2 x 40 W RMS at 8 Ω
RESPONSE 100-16 000 Hz
CONTROLS Volume mics. 1-3.
Auxiliary volume 1 and 2.
Conference system output volume (aux 3).
Bass and trebles control.
General volume.
Selector with digital control of number of mics. in use.
Selector with digital control of disconnection time of unused mics.
Monitor speakers volume.
INDICATORS LED power indicator
Microphones in use
Disconnection time
LED output volume indicator
INPUTS 3 groups of microphones, D9 for system interconnection
4 balanced mics., 6.3 mm jack 600 Ω 6 mV
4 auxiliaries, RCA 20,000 Ω 300 mV
1 equalization in, RCA 20,000 Ω 300 mV
OUTPUTS 2 auxiliaries, RCA 200 Ω 750 mV
1 equalization out, RCA 200 Ω 750 mV
POWER SUPPLY 230 V AC
DIMENSIONS 430 x 89 x 230 mm depth. 2 U 19" rack
WEIGHT 6.6 Kg
ACCESSORIES 1 x 12 m cable for interconnection, D9 connector to male D N 8 (Please en-
quire for other lengths)
Mounts for assembly in 19" rack

SCF-510P SCF-520D
CHARACTERISTICS President microphone with speech
priority and possibility of cancelling
delegate microphones.
Monitor speaker incorporated.
Metal microphone base.
Delegate microphone.
Monitor speaker incorporated.
Metal microphone base.
MICROPHONE Unidirectional electret condenser
RESPONSE 120-16 000 Hz
CONTROLS Priority and on/off on/off
INDICATORS LED ring and buttons with backlight
INPUTS Power supply and audio, female D N 8 interconnection
OUTPUTS 1 headphone, 3.5 mm stereo jack
1 audio, female D N 8 interconnection
POWER 0.5 W RMS
POWER SUPPLY 12-18 V DC, supplied by control unit
DIMENSIONS Gooseneck microphone: 430 mm height
Base: 142 x 59 x 151 mm depth
WEIGHT 1.2 Kg
ACCESSORIES 1 Y interconnection cable, 2 male D N 8 to female D N 8
- 11 -
EN

DECLARATION OF CONFORMITY
FONESTAR declares, under its responsibility, that the following equipment complies with that shown
in the European Parliament and Council directive 1995/5/EC of the 9th March 1999, transposed to
Spanish legislation through the Real Decreto 1890/2000, on the 20th November.
This is class 1 equipment and has no use restrictions.
List of standards tests applied
Standards Area Compliance with the 1999/5/EC essential
directive requirements
EN 300 422-1 V1.3.1: 2007 R&TTE Section 3.2 Directive 1999/5/CE
EN 300 422-1 V1.2.1: 2007
EN 301 489-9 V1.7.1: 2006 EMC Section 3.1b Directive 1999/5/CE
EN 301 489-3 V1.3.1: 2002
EN 60065:1998 ELECTR CAL SECUR TY Section 3.1a Directive 1999/5/CE
Santander, 7th December 2007
Technical Engineer, Sales Department
WARRANTY
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date
and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los
Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with no more
than showing the proof of purchase. After six months FONESTAR reserves the right to demand proof of the product being
sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts due to use,
breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and internal manipulation of
the device, the software or its components by unauthorized persons, and in general any use that is unrelated to the nature
and purpose of the product.
f any service is needed during the warranty period because of lack of conformity, please contact the business or distributor
where the product was purchased in no more than 2 months after being conscious of the problem. t is only necessary to
contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections
or crossing out.
This document adds information, and never decreases the consumers’ rights, which in all cases are protected by the Spanish
law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
FONESTAR is a member of ECOEMBALAJES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our products
carry the symbol, backed by our membership and subscription to the above mentioned organization with the recycling
and subsequent management of our packaging.
FONESTAR – Apartado 191 - 39080 SANTANDER (SPA N)
www.fonestar.com
