fully Jarvis Series User manual

Jarvis standing desk
Assembly instructions for use
with Jarvis Desktops 42” and
smaller
For assembly assistance,
visit fully.com/howtojarvis
call 888-508-3725
or email [e-mail]
In Europe call [phone]
or email [e-mail]

Thank you for choosing a Jarvis desk
from Fully.

Cautions and Use
Before starting
Specs
In the box
Assembly
Initial calibration/Reset
Custom settings
Using your own desktop
Contact
1
2
2
3
4
10
11
12
13

Cautions
Voltage
Converters
Use & liability
1
Please read this manual carefully. If this desk changes hands, please provide this
manual to the new owner.
Make sure the desktop is not touching any obstacles or walls and that no obstacles
are in the desk’s path. Make sure all cords are an appropriate length to
accommodate the full range of height adjustment.
Keep children away from desk components. There is risk of injury and electric shock.
Do not sit or stand on the desk frame. Do not crawl or lie under the desk frame.
Do not open or modify any of the components, including the Lifting Columns,
Control Box, or Handset. Doing so risks electric shock and voids any warranty
claims.
Placing objects taller than 20” underneath the desk will obstruct the desk’s
movement and may result in physical damage.
Using a voltage converter could cause damage to the desk and is considered
improper use. Resulting damage is not covered by the warranty.
Verify the voltage of the Control Box as labeled to avoid damage. Alternative voltage
Control Boxes are available from Fully.
This Jarvis height adjustable desk has electric motors and is designed for use in dry
work environments only.
This Jarvis desk is adjustable so it can be positioned at an optimal ergonomic height.
Any extracurricular use is at user’s own risk.
Under no circumstances does the manufacturer accept warranty claims or liability
claims for damage caused by improper use or handling of the desk frame.
Jarvis is a registered trademark of Fully, LLC. All rights reserved.

On a padded or carpeted area, take all of the items out
of your Jarvis frame box and confirm that nothing is
missing. Reference the included parts listings on page 3.
Before starting
If you are using your own desk top, refer to page 15 for
instructions before beginning assembly.
Using your own desk top
2
Specs
Tools
4mm Hex Wrench3mm Hex Wrench
Phillips Screw Driver
(Not Included)
Mid Range Jarvis Extended Range Jarvis
Height range (w/o desktop)
Travel speed
Operating noise
Load capacity
Duty cycle
Frame width min-max
29”–48.25”
1.3” per second
<50dB w/o top
1000N
10% with Max 2 mins on
29.5”–47”
25.25”–50.75”
1.5” per second
<50dB w/o top
1000N
10% with Max 2 mins on
29.5”–47”

A—Lifting Column x2
E—Right Side Bracket F—Left Side Bracket
B—Frame End x2 C—Foot x2 D—Center Rail x2
G—Control Box
P—Noise Attenuation
Grommet x5 (Extras)
H—Power Cable
K—Cable Clip x10I—Leg Cable J—Handset (Memory or Up/Down)
M—Medium Machine
Screw x12
L—Wood Screw x12
N—Small Machine
Screw x8
Jarvis standing desk
O—Medium Set
Screw x8 (Pre-Installed)
3
Wood Screws: Pointy End Machine Screws: Flat End
Pro tip
or
Q— Desktop Washer x8

Assembly
Insert one of the Lifting Columns (either one; they’re identical) into one of the Frame
Ends (also the same) as shown below.
To secure the Frame End to the leg, thread four (4) of the Small Machine Screws
into the holes as shown, but do not tighten them all the way. Once all four screws
are in place, tighten completely.
Step 1
Step 2
Select the Right Side Bracket. The two tabs on the Side Bracket will slot into the
Frame End, around the Lifting Column.
Use two of the Medium Machine Screws to secure the Side Bracket. As before,
don’t tighten all the way until both screws are in place and then tighten completely.
4
Step 1 Assembly
A—Lifting Column x1
N—Small Machine
Screw x4
B—Frame End x1
E—Right Side Bracket
M—Medium Machine
Screw x2

Step 3
Step 4
Repeat Steps 1–2 for the remaining Lifting Column, Frame End, and Side Bracket.
Lay your desktop on a padded surface with the underside facing up, and the front of
the desktop towards you.
Place the Left Leg Assembly on the desktop to your right, with the Frame End point-
ing towards the center of the top. (Once you flip your desk over, this will
become the left side, and the world will make sense again.)
Insert all four screws part way. Once they are in place, tighten them all completely.
If your Jarvis Desktop’s pre-drilled holes have metal
inserts, you will need to use the Machine Screws
packaged with the Jarvis Desktop to secure the frame.
Important
*Front edge of Jarvis Desktop.
5
Jarvis Desktop
Step 2 Assembly
L—Wood Screw x4
Desktop Machine Screw x4
(Included with Jarvis Desktop)
(If using own desktop)
Q—Desktop Washer x4

Step 5
Step 6
Slide the Center Rails into the Frame End attached to the desktop, so that the mid-
point mark is facing up and the cut-out slots are facing inwards.
Slide the Right Leg Assembly onto the other end of the Center Rails (your left-hand
side). The entire frame should now fit onto the desktop.
*Correct Center
Rail orientation
Secure the Right Leg Assembly to the desktop with the appropriate screws.
Again, if the pre-drilled holes have metal inserts, you will need to use the Machine
Screws packaged with the desktop to secure the frame; otherwise use Wood
Screws.
Insert all screws part way. Once they are in place, tighten them all completely.
6
D—Center Rail x2
(Included with Jarvis Desktop)
Desktop Machine Screw x4
L—Wood Screw x4
(If using own desktop)
Q—Desktop Washer x4

Step 7
Step 8
Center the labeled midpoint marks on both Center Rails between the two Frame
Ends, and use the pre-installed Set Screws to lock the Center Rails down firmly.
If you have a Jarvis desktop, there will be pre-drilled holes for attaching your
Handset along the front of the desktop, on both the left and right sides. Keep in
mind that when you turn your desk over, the sides of your desk will be reversed.
If you haven’t already, now is a great time to decide which side you want your
Handset on.
7
O—Medium Set
Screw x8 (Pre-Installed)
Warning
Skipping this step will
result in stability issues.
L—Wood Screw x2
J—Handset
(Memory or Up/Down)
or

Step 9
If you have a 30” or 36”
Desktop, position the
Control Box over the pre-
drilled holes in front of the
Center Rails and secure
it using the appropriate
screws.
If you have a 42” Desktop,
position the Control Box
over the pre-drilled holes
in between the Center
Rails and secure it using
the appropriate screws.
8
G—Control Box
H—Power Cable
K—Cable Clip x10
Connect the cables from both Legs to the Control Box via the sockets labeled M1
and M2.
Connect the Handset to the Control Box via the socket labeled HS.
Connect the Power Cable via the power socket.
I—Leg Cable
Cable Management Cable Clips work best adhered
directly to the Jarvis metal frame. Route your Power
Cord and Leg Cable towards the side of your nearest
wall outlet, or use a cable management tray for opti-
mal cable taming.
Pro Tip

Step 10
Step 11
Loosely attach a Foot to the bottom of each Lifting Column using four (4) Medium
Machine Screws per Foot.
Once all the screws are in place, tighten them down the rest of the way in an X
pattern.
Double-check that all screws everywhere on the desk are tight. Triple-check that all
screws everywhere on the desk are tight.
Step 12
With one friend (or more), lift the desk and gently flip it onto its feet. As you flip it
support both the top and the frame, being careful not to put weight on the Handset.
Adjust the pre-installed leveling glides on the feet as needed.
Plug in the desk.
9
C—Foot x2
M—Medium Machine
Screw x8
If using casters, remove and replace the pre-installed
leveling glides before proceeding with Step 12.
Pro Tip

10
Initial calibration/Reset
Before you start using your Jarvis, you’ll need to get all the parts synced.
Don’t worry — it’s easy.
Step 13

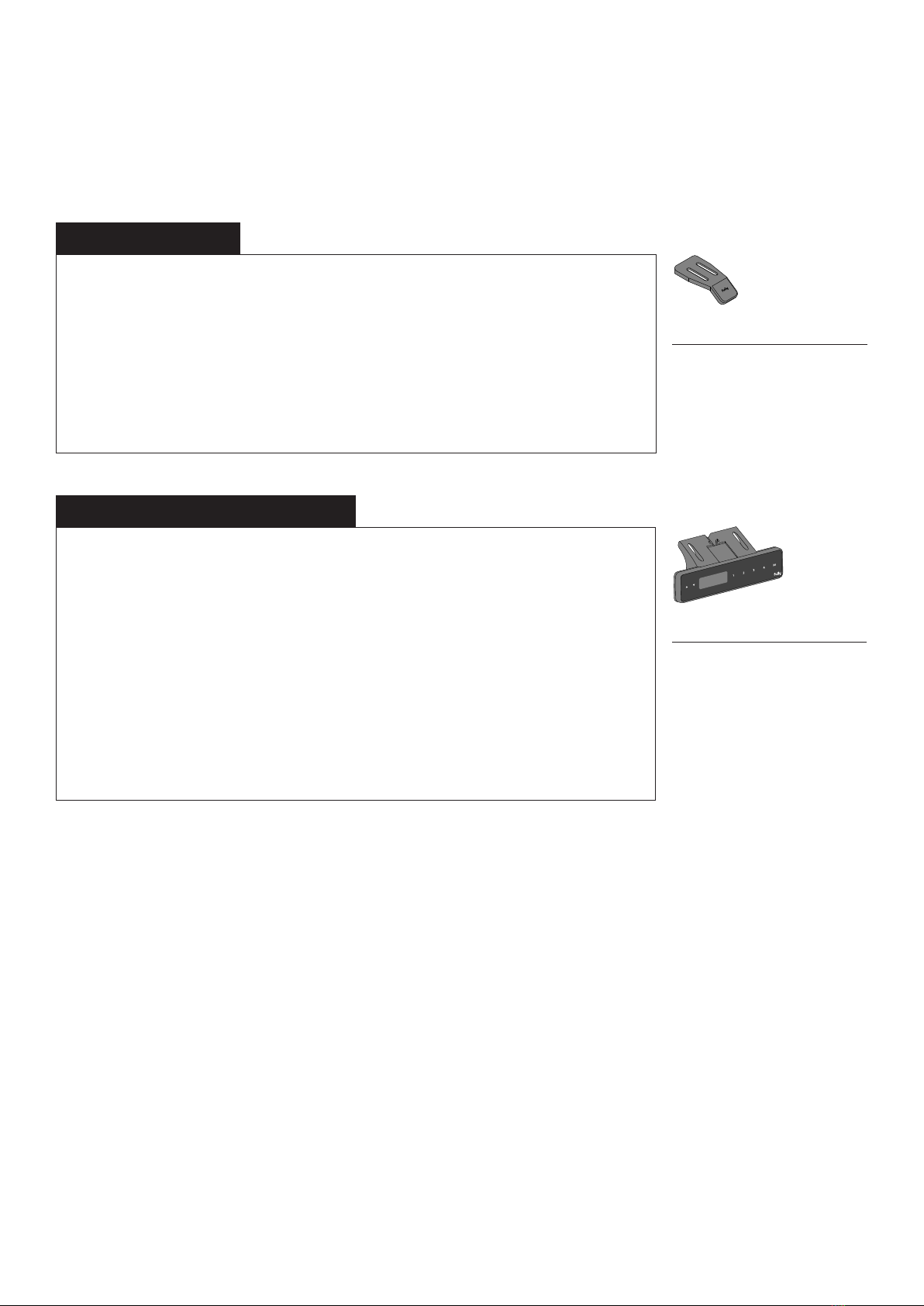

Up/Down Handset
Memory Handset
Up/Down Handset
1. Press and hold the Fully logo located on the front face of the Up/Down
handset until Jarvis reaches its lowest position. Release.
2. Press and hold the Fully logo for about 10 seconds. Release.
3. Press and hold the Fully logo again, this time until the Jarvis first lowers
slightly, then rises slightly, and finally stops. Remove your finger from the
handset.
4. You can now use your Jarvis.
Programmable Memory Handset
1. Press and hold the ▼icon until Jarvis reaches its lowest position. Release.
2. Press and hold the ▼icon until the display reads RESET.
3. Press and hold the ▼icon again, this time until Jarvis first lowers slightly,
then rises slightly, and finally stops. Release the ▼icon.
4. You can now use your Jarvis.
Programming memory presets
To program your memory presets, raise or lower your Jarvis to your preferred
height. Then, press the Micon followed by one of the four numbers you want
to preset. This number will return Jarvis to your preferred height from now on.

Custom settings for
Programmable Memory Handset
11
Getting started
To begin, access the menu by holding down Mfor 3 seconds until Lock/Unlock desk appears on screen. Use
the ▴and ▼icons to navigate through the menu. ‘1’ selects the feature you want to change and also confirms
your selection. ‘4’ takes you back to the main menu.
Lock/Unlock Jarvis
To lock Jarvis and prevent any further changes to the height or menu settings use Lock. Unlock will allow you
to once again use all of Jarvis’s features.
Max height
If you want to limit how high your Jarvis can go, set a Max height limit. Simply raise Jarvis to the desired
maximum height and navigate to Max height on the menu, then press ‘1’ to confirm.
Min height
To limit how low your Jarvis can go, set a Minimum height limit. Move Jarvis to the desired minimum height
and navigate to Min height on the menu, then press ‘1’ to confirm.
Units
Prefer to work in centimeters instead of inches? Choose the unit of measurement you’d like under the Units
menu option.
Anti-collision
To help prevent damage, Jarvis is outfitted with an accelerometer that stops it if it runs into something. You
can set the sensitivity with the anti-collision options.
Screen brightness
Adjust the screen brightness on your memory handset to the level that suits you—and your eyes.
Button brightness
You can also adjust the button brightness on your memory handset. Choose from 3 different brightness levels
to help you navigate through your presets and menu options.
Memory preset mode
Use One touch to move your Jarvis to a memory preset height with the touch of a button, or use Constant
touch and keep your finger on the button until Jarvis gets to the memory preset height.
Calibrate height
To calibrate your handset’s height display, lower Jarvis all the way down and then use a tape measure to
determine the height from the top of your desktop to the floor. Select the Calibrate height menu option and
use the ▴and ▼icons to adjust the height readout to match your previously measured height.

12
The Jarvis comes in two foot lengths: short and long.
YQ-140
YQ-141
Bottom view of Short Foot:
YQ-140
YQ-141
Bottom view of Long Foot:
For positioning the short foot (YQ-140), the
maximum distance from the front desktop edge
to the first hole in the side bracket is 5.5”.
For positioning the long foot (YQ-141), the
maximum distance from the front desktop edge
to the first hole in the side bracket is 6.75”.
Using your own desktop
2”
2” 5.5”
2”
2” 6.75”
If your foot is engraved with YQ-140, it is the Short
Foot, which we recommend for desktops with
depths between 24” and 27”.
If your foot is engraved with YQ-141, it is the
Long Foot, which we recommended for desktops
between 27” and 30”.

13
There’s no one right way to position your frame on your desktop but there are a few things you’ll want to keep
in mind. Generally speaking, the desktop should be centered over the frame side-to-side, and positioned slightly
forward of center (towards the user) front-to-back.
Side-to-side position
In our experience, desks have better lateral stability the further apart the legs are. We position the screw holes for
the Side Brackets 2 inches in from the sides of the desktop. This leaves about 1” of desktop overhang and maxi-
mizes lateral stability.
Placing the holes at least 2 inches in from the sides lowers the chance that your desktop will split during drilling.
Depending on the rigidity and strength of your desktop material you can leave more of it overhanging the Side
Brackets. For example, on our 78” tops the Side Bracket holes are 5” in from the edge with 4” of overhang.
Laying it out
The easiest way to position your own desktop on Jarvis is to partially assemble the frame and use it as a guide.
This frame assembly is easier to maneuver than the entire frame and will allow you to see exactly how things line
up and where all of the holes should be.
1. Lay your desktop on a padded workspace with the underside facing up, and the front of the desktop
towards you.
2. Without the Lifting Columns, attach the Side Brackets to the Frame Ends as shown in steps 2 and 3, on
pages 4 and 5.
3. Slide the Center Rails into the Frame Ends.
4. Position the frame assembly on the underside of your desktop, with the screw holes in the Side Brackets
2” or more from the side edges of the top, and the front-most hole the appropriate depth or more from the
front (user-facing) edge of the top.
Contact
Fully North America
Portland, Oregon
888-508-3725
[e-mail]
www.fully.com
Fully Europe
Ghent, Belgium
EU [phone]
UK [phone]
DE [phone]
[e-mail]

version 90.014.01.0663v.b
Desks, chairs & things
to keep you moving
