fully Jarvis User manual

Jarvis standing desk
Assembly instructions
For assembly assistance,
visit fully.com/howtojarvis
or call 888-508-3725
or email [e-mail]

Thank you for choosing a Jarvis desk
from Fully.

Cautions and Use
Before starting
Specs
In the box
Assembly
Setup
Custom settings
Troubleshooting
Reset procedure
Using your own desk top
Contact
1
2
2
3
5
18
19
22
22
23
24

1
Please read this manual carefully. If this desk changes hands, please
provide this manual to the new owner.
Make sure the desk top is not touching any obstacles or walls.
Make sure no obstacles are in the desk’s path. Make sure all cords
are an appropriate length to accommodate the full range of height
adjustment.
Keep children away from desk components. There is risk of injury
and electric shock.
Do not sit or stand on the desk frame. Do not crawl or lie under the
desk frame.
Do not open or modify any of the components, including the Lifting
Columns, Control Box, or handset. Doing so risks electric shock and
voids any warranty claims.
Placing objects taller than 20” underneath the desk will obstruct the
desk’s movement and may result in physical damage.
Using a voltage converter could cause damage to the desk, and is
considered improper use. Resulting damage is not covered by the
warranty.
Verify the voltage of the Control Box as labeled to avoid damage.
Alternative voltage Control Boxes are available from Fully.
This Jarvis height adjustable desk has electric motors and is de-
signed for use in dry work environments only.
This Jarvis desk is adjustable so it can be positioned at an optimal
ergonomic height. Any extracurricular use is at user’s own risk.
Under no circumstances does the manufacturer accept warranty
claims or liability claims for damages caused by improper use or
handling of the desk frame.
Jarvis is a registered trademark of Fully, Inc. All rights reserved.
Cautions
Voltage
converters
Use & liability
Mid Range Jarvis Extended Range Jarvis
Height range
(without desk top)
26.5” - 45.75” 23.75” - 49.25”
Travel speed 1.3” per second 1.5” per second
Operating noise <50dB w/o top <50dB w/o top
Load capacity 1000N 1000N
Duty cycle 10% with Max 2 mins on,
18 mins off
Soft start/stop
Adjustable level studs
4 Memory Presets, optional
10% with Max 2 mins on,
18 mins off
Soft start/stop
Adjustable level studs
4 Memory Presets, optional

2
On a padded or carpeted area, take all of the items out of your
Jarvis frame box, and confirm that nothing is missing.
Reference the included parts listings on page 3 or 4.

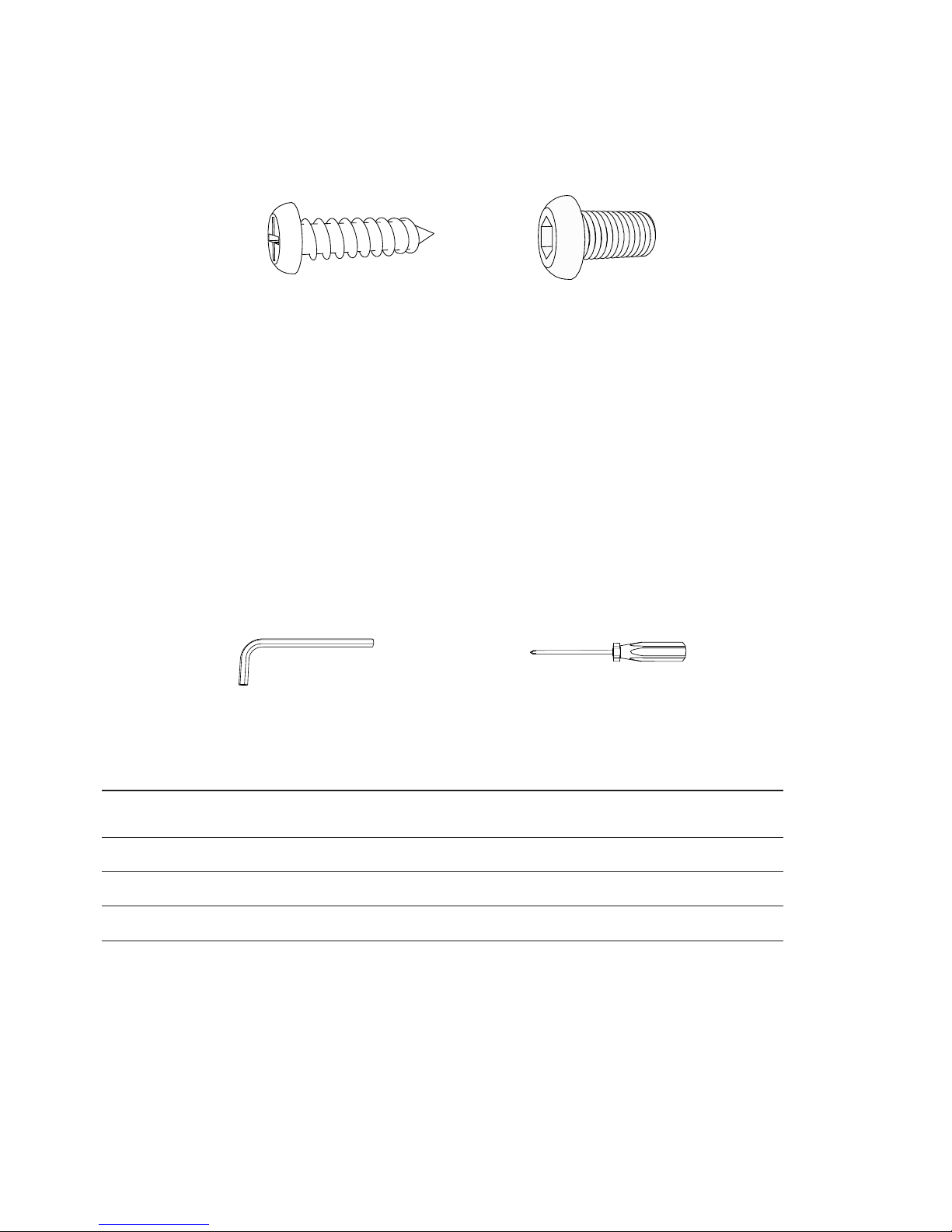

Wood Screws: Pointy End Machine Screws: Flat End
In order to accommodate a broad range of desk top sizes, we offer
the Jarvis frame in a Narrow Version (for Jarvis desk tops 30” - 42”)
and a Wide Version (for Jarvis desk tops 48” -78”).
There are a few small differences in the way the two are
assembled, so we’ve made things as clear as possible by splitting
steps into two blocks labeled “Narrow” and “Wide.”
If you are using your own desk top, refer to page 21 for instructions
before beginning assembly.
4mm Hex Wrench Phillips Head Screw Driver
(Included) (Not Included)
Before starting
Pro tip
Wide vs.
Narrow
Using your
own desk top
Tools
Specs
Mid Range Jarvis Extended Range Jarvis
Height range
(without desk top)
26.5” - 45.75” 23.75” - 49.25”
Travel speed 1.3” per second 1.5” per second
Operating noise <50dB w/o top <50dB w/o top
Load capacity 1000N 1000N
Duty cycle 10% with Max 2 mins on,
18 mins off
Soft start/stop
Adjustable level studs
4 Memory Presets, optional
10% with Max 2 mins on,
18 mins off
Soft start/stop
Adjustable level studs
4 Memory Presets, optional

3
If you have a 30-42” Jarvis desk top, follow the Narrow steps.

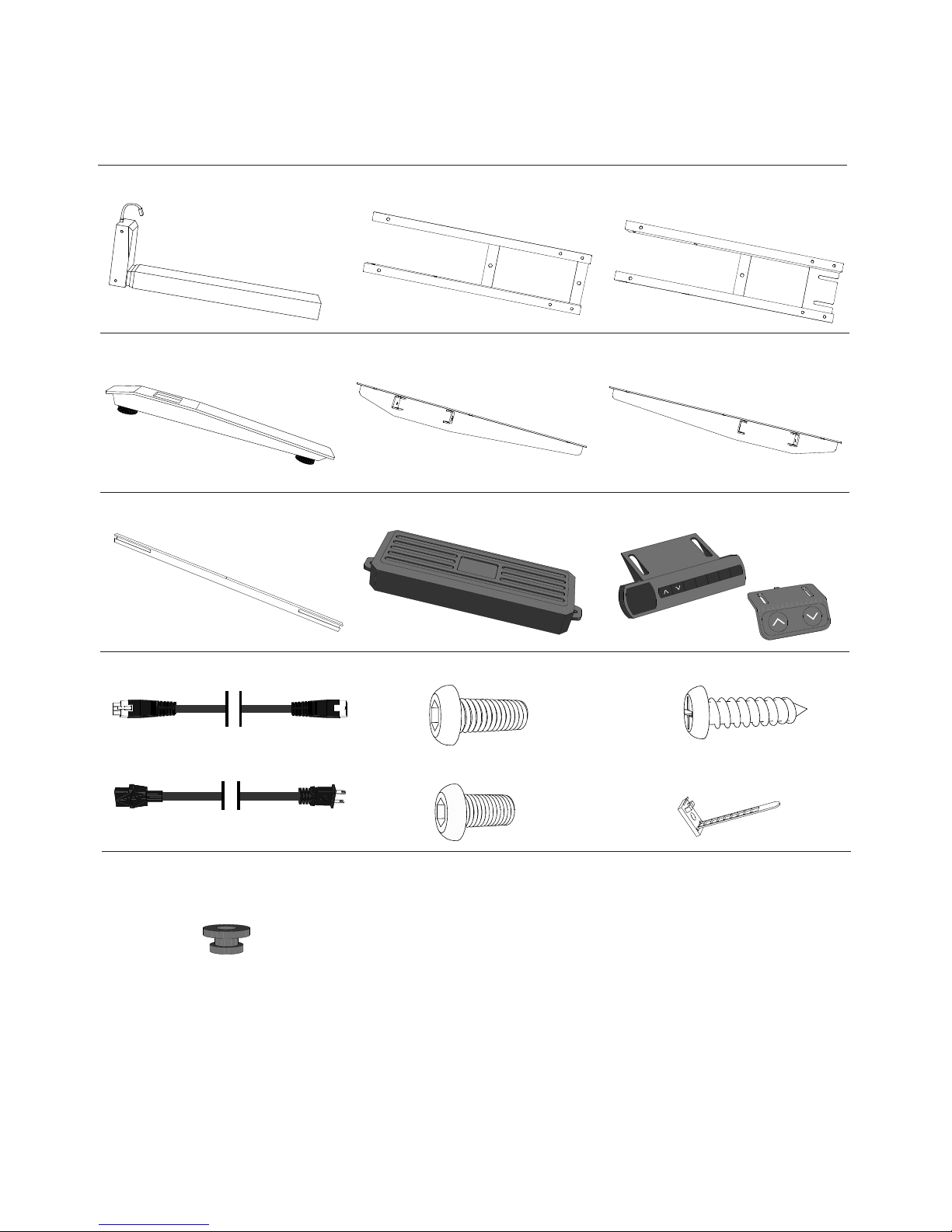

Narrow - In the Box
Lifting Column x2
Right Side Bracket Left Side Bracket
Narrow Frame End x2 Foot x2
Narrow Center Rail x2
Control Box Memory or Simple Handset
1234M
Extra Acoustic
Dampening Grommets
Leg Cable
Power Cable
Wood Screw x12
M5x16
Cable Clip x10
Large Machine Screw x12
M6x14
Small Machine Screw x16
M6x10

4
If you have a 48”-78” Jarvis desk top, follow the Wide steps.
Wide - In the Box
Lifting Column x2
Right Side Bracket Left Side Bracket
Wide Frame End w/ Control
Box Bracket
Foot x2
Wide Center Rail x2 Control Box Memory or Simple Handset
Large Machine Screw x12
M6x14
Small Machine Screw x16
M6x10
Wide Frame End
1234M
Leg Cable
Power Cable
Wood Screw x12
M5x16
Cable Clip x10
Extra Acoustic
Dampening Grommets

5
Narrow Assembly

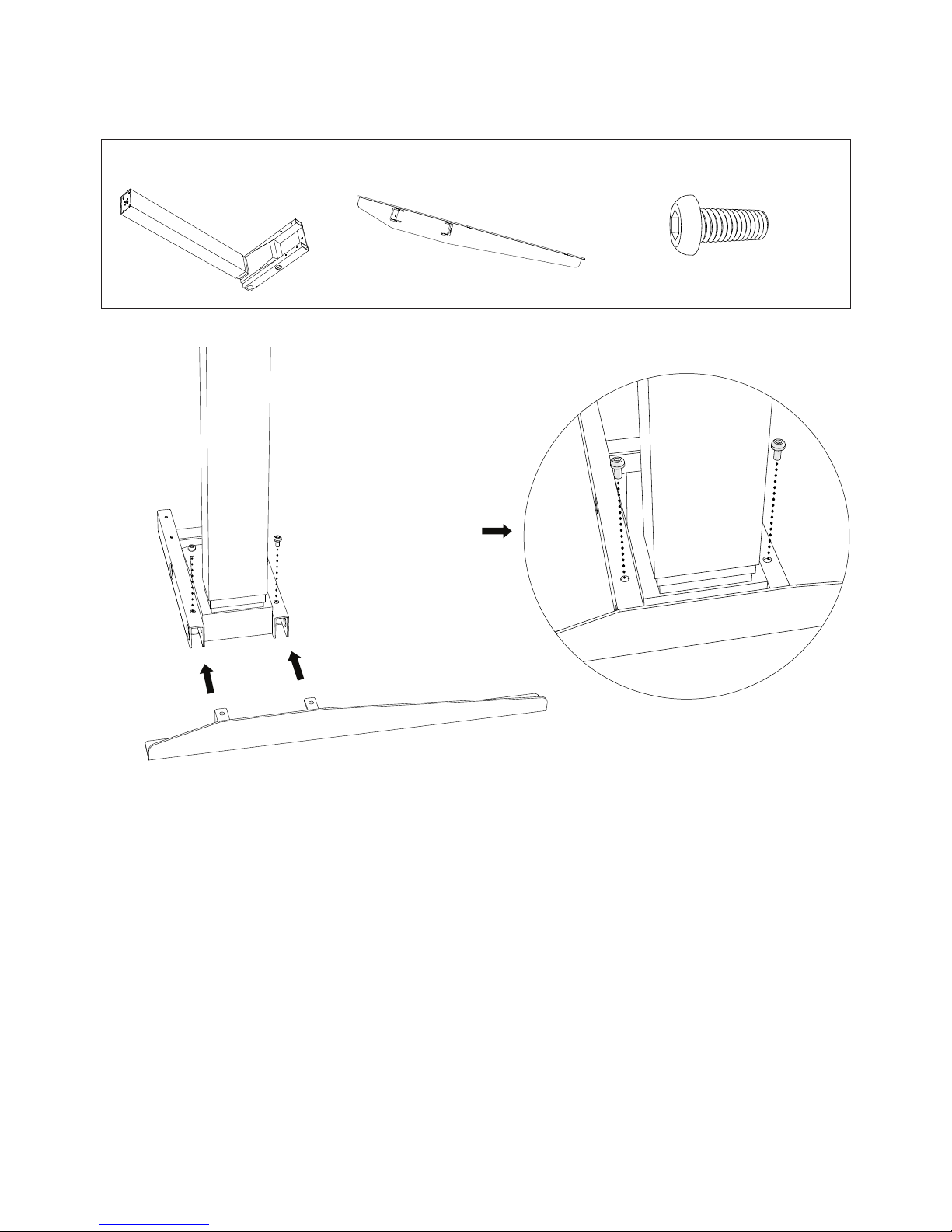

Insert one of the Lifting Columns (either one; they’re the same) into one of the Frame Ends (also
the same) as shown above.
To secure the Frame End to the leg, thread four (4) of the Small Machine Screws into the holes as
shown, but do not tighten them all the way.
Once all four screws are in place, tighten completely.
Lifting Column x1 Narrow Frame End x1
step 1
Small Machine Screw x4

6
step 1
Wide Assembly

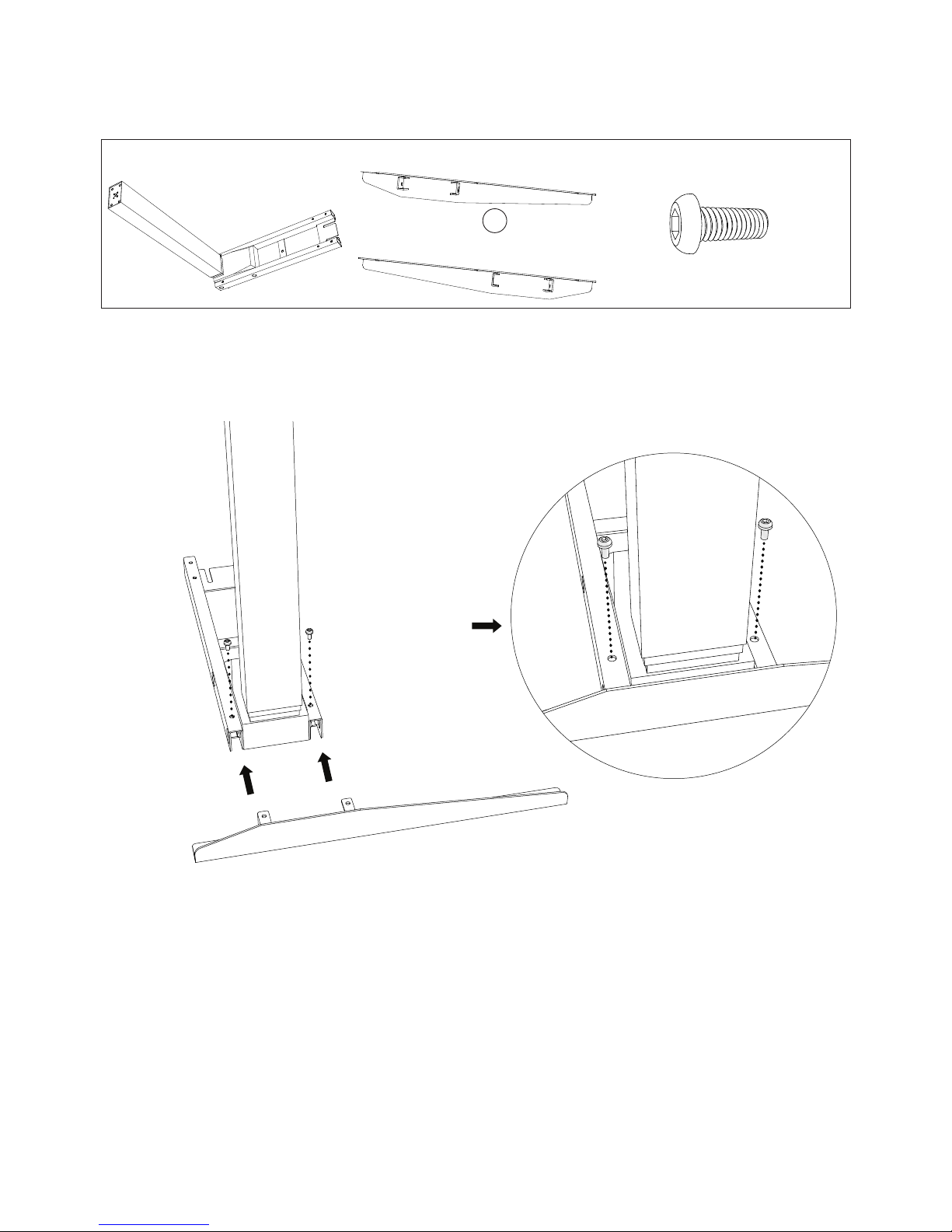

Insert one of the Lifting Columns (either one; they’re the same) into the Frame End with the Control
Box Bracket.
To secure the Frame End to the leg, thread four (4) of the Small Machine Screws into the holes as
shown, but do not tighten them all the way.
Once all four screws are in place, tighten completely.
Lifting Column x1 Small Machine Screw x4
Wide Frame End
w/ Control Box Bracket

7
step 2
Narrow Assembly
Select the Right Side Bracket. The two tabs on the Side Bracket will slot into the Frame End, around
the Lifting Column.
Use two of the Large Machine Screws to secure the Side Bracket. As before, don’t tighten all the way
until both screws are in place and then tighten completely.
Right Side Bracket
step 3
Repeat Steps 1–2 for the remaining Lifting Column, Frame End, and Left Side Bracket.
Step 1 Assembly Large Machine Screw x2

8
step 2
Wide Assembly
Decide if you want your height-adjustment handset on the left side or the right side
of your finished desk. Choose the corresponding Left or Right Side
Bracket.
Decision
Point:
Select the Left or Right Side Bracket (corresponding to the side your handset will be mounted on).
The two tabs on the Side Bracket will slot into the Frame End with Control Box Bracket, around the
Lifting Column.
Use two of the Large Machine Screws to secure the Side Bracket. As before, don’t tighten all the way
until both screws are in place and then tighten completely.
Right Side Bracket
Left Side Bracket
or
step 3
Repeat Steps 1–2 for the remaining Lifting Column, Frame End, and Side Bracket.
Step 1 Assembly Large Machine Screw x2

9
step 4
Narrow Assembly
Step 2 Assembly
If your desk top’s pre-drilled holes have metal inserts, you will need to use the Ma-
chine Screws packaged with the Jarvis desk top to secure the frame; otherwise use
four (4) of the Wood Screws to attach the leg assembly to the desk top.

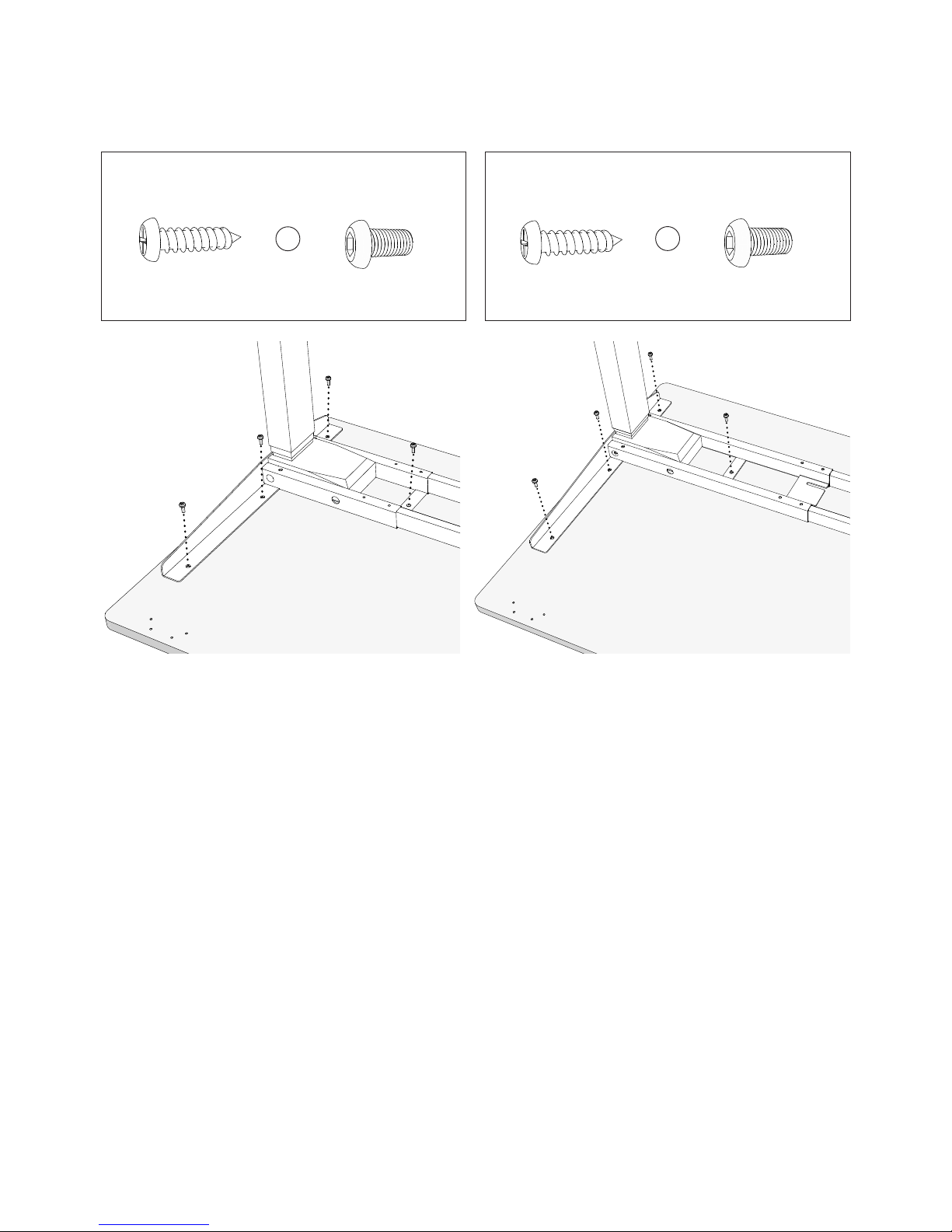

Lay your desk top on a padded workspace with the underside facing up, and the front of the desk top
towards you.
Place the Left Leg Assembly on the desk top to your right, with the Frame End pointing towards the
center of the top. (Once you flip your desk over, this will become the left side, and the world will
make sense again.)
Insert all four screws part way. Once they are in place, tighten them all completely.
Front edge of Jarvis Desk Top
Important
Desk Top Machine Screw x4
included w/ Jarvis Desk Top
Wood Screw x4
or

10
step 4
Wide Assembly
Step 2 Assembly
If your desk top’s pre-drilled holes have metal inserts, you will need to use the Ma-
chine Screws packaged with the Jarvis desk top to secure the frame; otherwise use
the Wood Screws to attach the leg assembly to the desk top.
Lay your desk top on a padded workspace with the underside facing up, and the front of the desk top
towards you.
Place the Left Leg Assembly on the desk top to your right, with the Frame End pointing towards the
center of the top. (Once you flip your desk over, this will become the left side, and the world will
make sense again.)
Insert all screws part way. Once they are all in place, tighten them all completely.
Front edge of Jarvis Desk Top
Important
Desk Top
Frame End with Control Box Bracket uses 4 screws
Wood Screw x4/5 Machine Screw x4/5
included w/ Jarvis Desk Top
or

11
step 5
Narrow and Wide Assembly

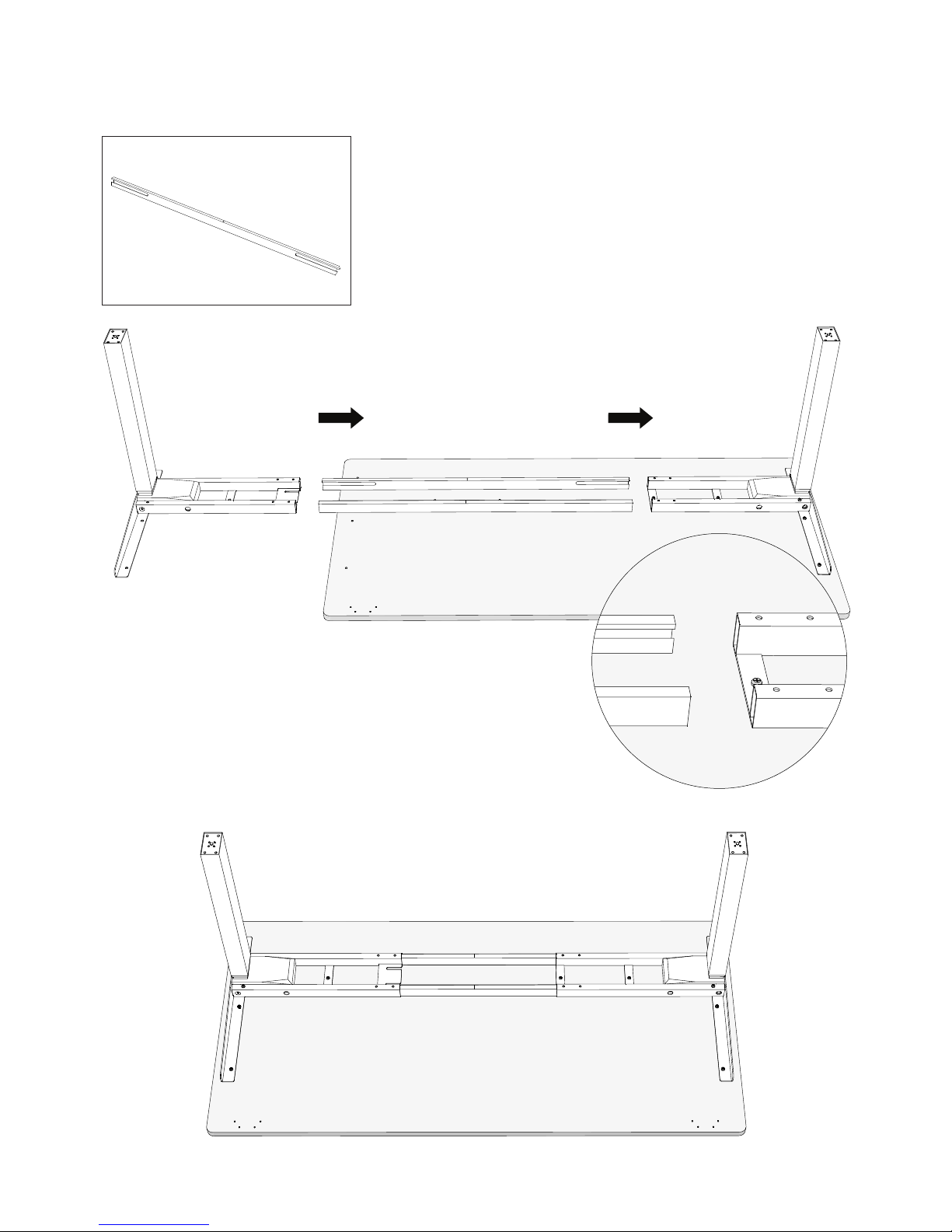

Slide the Center Rails into the Frame End attached to the desk
top, so that the midpoint mark is facing up, and the cut-out slots
are facing inwards.
Slide the right leg assembly onto the other end of the Center
Rails (your left-hand side). The entire frame should now fit onto
the desk top. Correct Center Rail orientation
Center Rails x2

12
step 6
Narrow and Wide Assembly
Secure the Right Leg Assembly with the remaining screws.
Again, if the pre-drilled holes have metal inserts, you will need to use the Machine Screws packaged
with the desk top to secure the frame; otherwise use Wood Screws.
Insert all screws part way. Once they are in place, tighten them all completely.
Narrow Wide
Frame End with Control Box Bracket uses 4 screws
(Wide Frame End w/ Control
Box Bracket shown)
Wood Screw x4/5 Machine Screw x4/5
included w/ Jarvis Desk Top
Machine Screw x4
included w/ Jarvis Desk Top
Wood Screw x4
or or

13
step 7
Center the labeled midpoint marks on both Center Rails between the two Frame Ends, and use eight
(8) of the Small Machine Screws to lock the Center Rails down firmly.
Narrow and Wide Assembly
Small Machine Screw x8
Skipping this step will result in stability issues. We don’t recommend skipping any
steps though!
Warning

14
step 8
Narrow and Wide Assembly

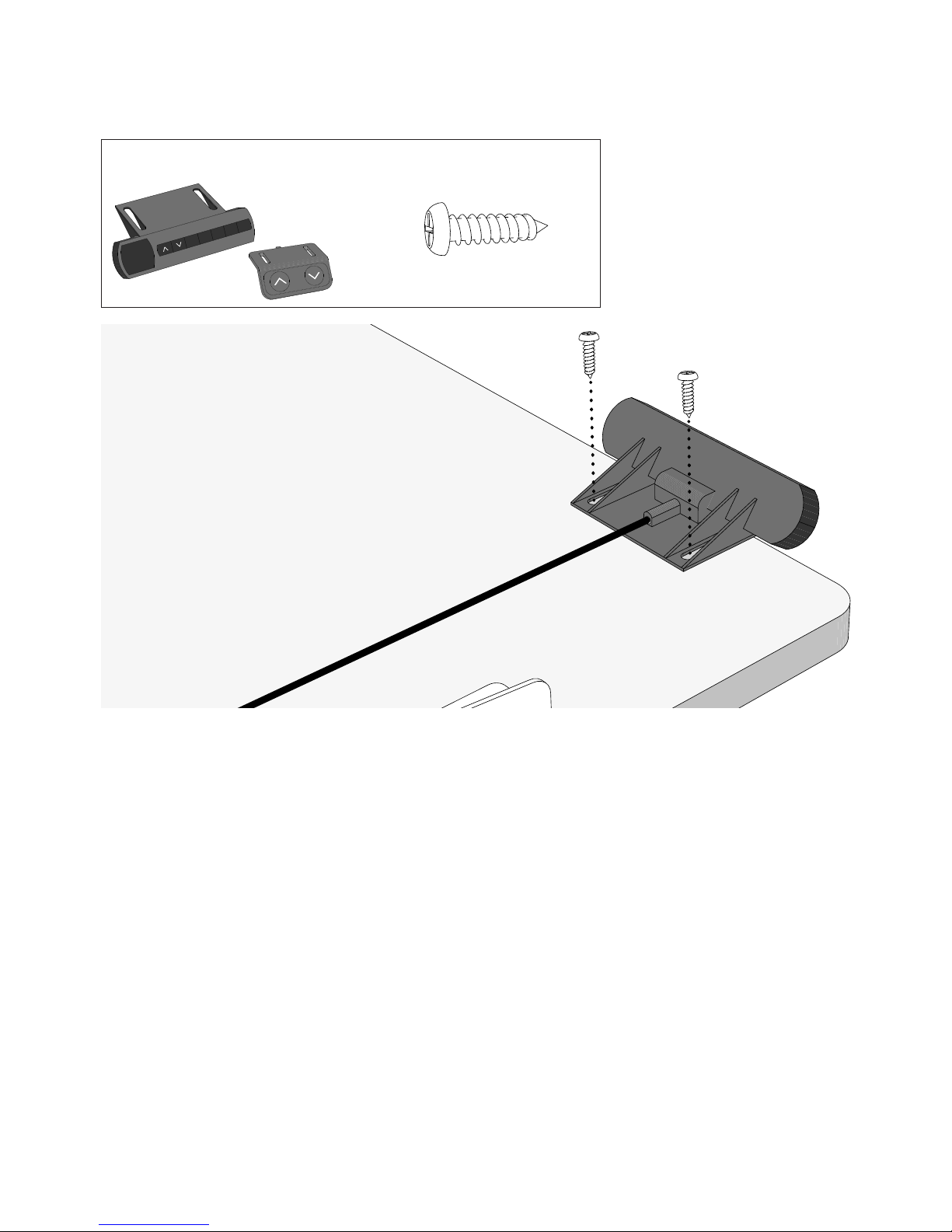

Memory or Simple Handset Wood Screw x2
If you haven’t already, now is a great time to decide which side you want your handset on.
If you have a Jarvis desk top, there will be pre-drilled holes for attaching your handset along the front
of the desk top, on both the left and right sides. Keep in mind that when you turn your desk over, the
sides of your desk will be reversed.
1234M

15
step 9
Narrow Assembly
Control Box
If you have a 30” or 36” Desk Top, position the
Control Box over the pre-drilled holes in front of
the Center Rails, and secure it using two Wood
Screws.
Cable management: Cable Clips work best adhered directly to the Jarvis metal
frame. Plus, it just looks cleaner. Route your power cord towards the side of your
nearest wall outlet, or, better yet, use a cable management tray for optimal cable
taming goodness.
Pro Tip:
If you have a 42” Desk Top, position the Con-
trol Box over the pre-drilled holes in between
the Center Rails, and secure it using two Wood
Screws.
Power Cable Wood Screw x2
Connect the cables from both Legs to the Control Box via the sockets labeled M1 and M2.
Connect the Handset to the Control Box via the socket labeled HS.
Connect the Power cable via the power socket.

16
step 9
Wide Assembly
Cable management: Cable Clips work best adhered directly to the Jarvis metal
frame. Plus, it just looks cleaner. Route your power cord towards the side of your
nearest wall outlet, or, better yet, use a cable management tray for optimal cable
taming goodness.
Pro Tip:
Slide the Control Box onto the Frame End with the
receiving Bracket.
Connect the cables from both Legs to the Control
Box via the sockets labeled M1 and M2.
Connect the Handset to the Control Box via the
socket labeled HS.
Connect the Power Cable via the power socket.
Leg Cable
Power Cable
Control Box

17
step 10
Narrow and Wide assembly
Foot x2 Large Machine Screw x8
Loosely attach a (desk) Foot to
the bottom of each Lifting Col-
umn, using four (4) Large Ma-
chine Screws per Foot.
Once all the screws are in place,
tighten them down the rest of
the way in an X pattern.
step 11 - narrow and wide
Double-check that all screws everywhere on the desk are tight.
Triple-check that all screws everywhere on the desk are tight.
step 12 - narrow and wide
With one friend (or more), lift the desk, and gently flip it onto its feet being careful not to put weight
on the handset, supporting both the top and the frame.
Adjust the pre-installed leveling glides on the feet as needed.
Plug in the desk.
