fully Jarvis User manual

Jarvis benching system
Assembly instructions for
benching systems w / Kit C–Feet
For assembly assistance,
visit fully.com/howtojarvis
or call 888-508-3725
or email [e-mail]

Thank you for choosing a Jarvis
benching system from Fully.

Cautions and Use
Before starting
Specs
In the box
Assembly
Setup
Custom settings
Troubleshooting
Reset procedure
Contact
1
2
2
3
4
13
14
17
17
17

Cautions
Voltage
Converters
Use & liability
1
Please read this manual carefully. If this benching system changes hands, please
provide this manual to the new owner.
Make sure the desk top is not touching any obstacles or walls and that no obstacles
are in the benching system’s path. Make sure all cords are an appropriate length to
accommodate the full range of height adjustment.
Keep children away from the benching system components. There is risk of injury
and electric shock.
Do not sit or stand on the the benching system frame. Do not crawl or lie under the
benching system frame.
Do not open or modify any of the components, including the Lifting Columns,
Control Box, or Handset. Doing so risks electric shock and voids any warranty
claims.
Placing objects taller than 20” underneath the benching system will obstruct the
desk’s movement and may result in physical damage.
Using a voltage converter could cause damage to the desk, and is considered im-
proper use. Resulting damage is not covered by the warranty.
Verify the voltage of the Control Box as labeled to avoid damage. Alternative voltage
Control Boxes are available from Fully.
This Jarvis benching system has electric motors and is designed for use in dry work
environments only.
This Jarvis benching system is adjustable so it can be positioned at an optimal ergo-
nomic height. Any extracurricular use is at user’s own risk.
Under no circumstances does the manufacturer accept warranty claims or liability
claims for damage caused by improper use or handling of the desk frame.
Jarvis is a registered trademark of Fully, LLC. All rights reserved.

On a padded or carpeted area, take all of the items out of your Jarvis Benching
System Boxes and confirm that nothing is missing. Reference the included parts
listings on page 3.
Before starting
2
Specs Height range (w/o desk top)
Travel speed
Operating noise
Load capacity
Duty cycle
25.25” - 50.75”
1.5” per second
<50dB w/o top
1000N
10% with Max 2 minutes on
4mm Hex Wrench 5mm Hex Wrench
Phillips Screw Driver
(Not Included)
Tools

Jarvis benching system
1234M
Panel Poles x2
N— Small Machine Screw x8
Kit A—Frame Components (two kits needed per Benching System)
A— Right Lifting Column
B—Left Lifting Column
C—Right Side Bracket
D—Left Side Bracket
E— Frame End (w/ Capture Plate)
F— Frame End
G—Center Rails x2
H—Control Box
I—Handset
J—Power Cable
K—Leg Cable
L—Cable Snake
M— Med. Machine Screw x4
N— Small Machine Screw x8
O—Medium Set Screw* x8
P—Wood Screw x12
Q—Desk TopWasher x9
Noise Attenuation Grommets
Cable Clips
A
B
C
D
E
F
G
H
I
J
K
L
M
N
Kit B — Cable Tray
R
S
T
R—Cable Tray
S—Cable Tray Covers x2
T—Closed Stretcher Rail x2
N— Small Machine Screw x4
U— Thick Machine Screw x4
M
N
O
P
Q
N
U
Kit C — Feet
V M V—Feet x4
M— Med. Machine Screw x16
Kit D — Connect (optional)
W—Open Stretcher Rail x2
X—Small Stretcher Bars x2
Y—Stretcher Plate
N— Small Machine Screw x8
T— Thick Machine Screw x4
W
X
Y
N
T
N
Kit E1 — Field Privacy Panel Poles (optional) Kit E2 — Privacy Panel L Brackets (optional)
Panel L Brackets x4
N— Small Machine Screw x8
N
*Set Screws are
preinstalled in
Frame Ends.

Assembly
Insert a Right Lifting Column into a Frame End w/ Capture Plate.
Use four Small Machine Screws to secure the Frame End to the leg, as shown.
Once all four screws are in place, tighten completely.
Repeat this step to create the corresponding assembly for each desk.
Step 1
Step 2
Select the Right Side Bracket. The two tabs on the Side Bracket will slot into the
Frame End with Capture Plate, around the Lifting Column.
Use two of the Medium Machine Screws to secure the Side Bracket. As before,
don’t tighten all the way until both screws are in place and then tighten completely.
Repeat this step to create the corresponding assembly for each desk.
4
N— Small Machine Screw x4
C—  Right Side Bracket
M—  Med. Machine Screw x2
A—Right Lifting Column
E— Frame End (w/ Capture Plate)
Step 1 Assembly

Step 3
Step 4
Repeat Steps 1–2 to assemble the remaining Lifting Column, Frame End, and Side
Bracket for each desk.

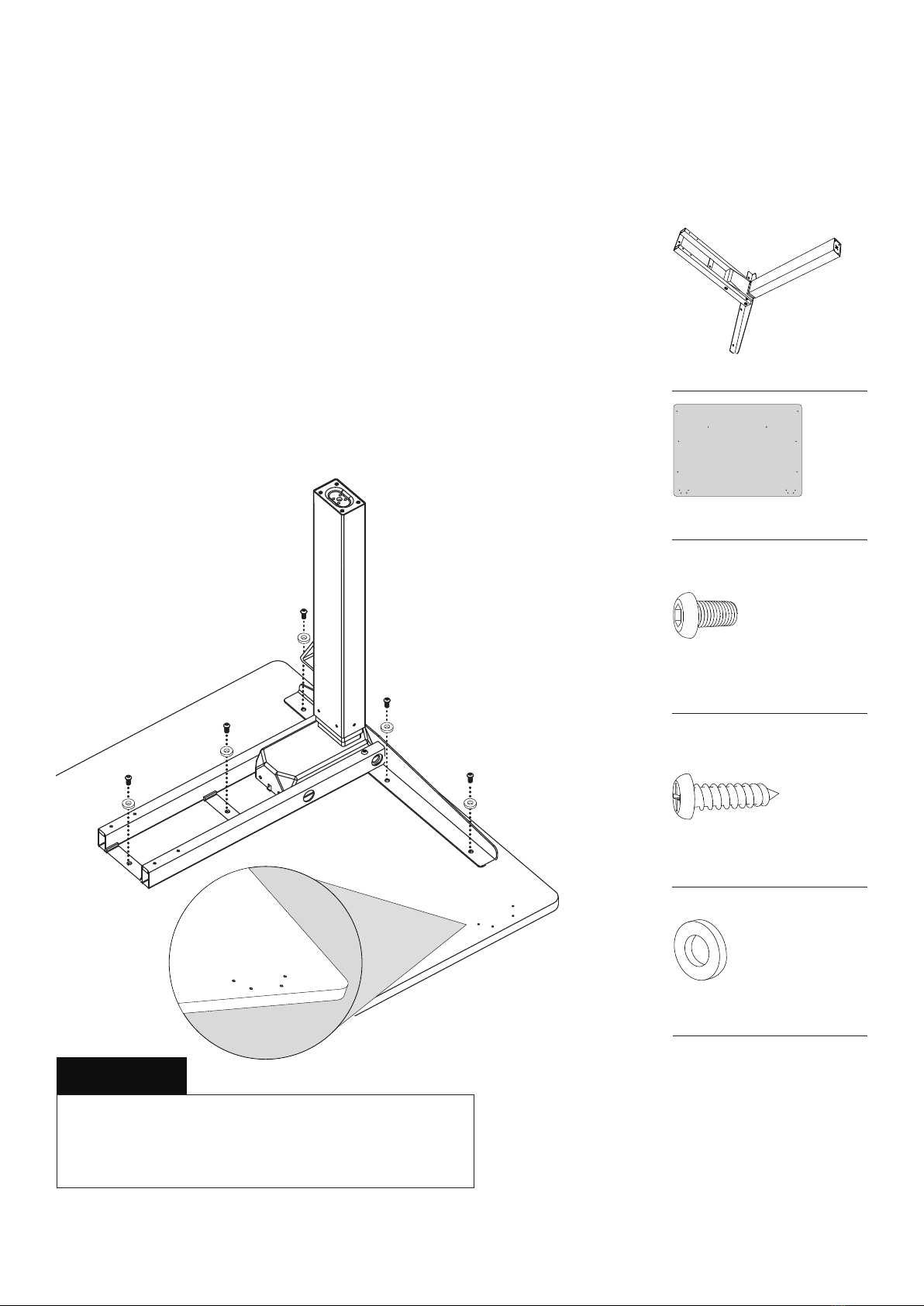

Lay a desk top on a padded workspace with the underside facing up, and the front
of the desk top towards you.
Place the Left Leg Assembly on the desk top to your right, with the Frame End
pointing towards the center of the top. (Once you flip your desk over, this will be-
come the left side.)
Insert all screws part way. Once they are all in place, tighten them all completely.
Repeat this step for other desks.
*Front edge of Jarvis Desk Top
5
Jarvis Desk Top
Step 3 Assembly
Desk Top Machine Screw x5
(Included with Jarvis Desk Top)
If your Jarvis Desk Top’s pre-drilled holes have metal
inserts, you will need to use the Machine Screws
packaged with the Jarvis Desk Top to secure the frame.
Important
P—  Wood Screw x5
(If using own desk top)
Q—Desk Top Washer x5

Secure the Right Leg Assembly to the desk top with the appropriate screws.
Again, if the pre-drilled holes have metal inserts, you will need to use the Machine
Screws packaged with the desk top to secure the frame; otherwise use Wood
Screws.
Insert all screws part way. Once they are in place, tighten them all completely.
Step 5
Step 6
6
(Included with Jarvis Desk Top)
Desk Top Machine Screw x4

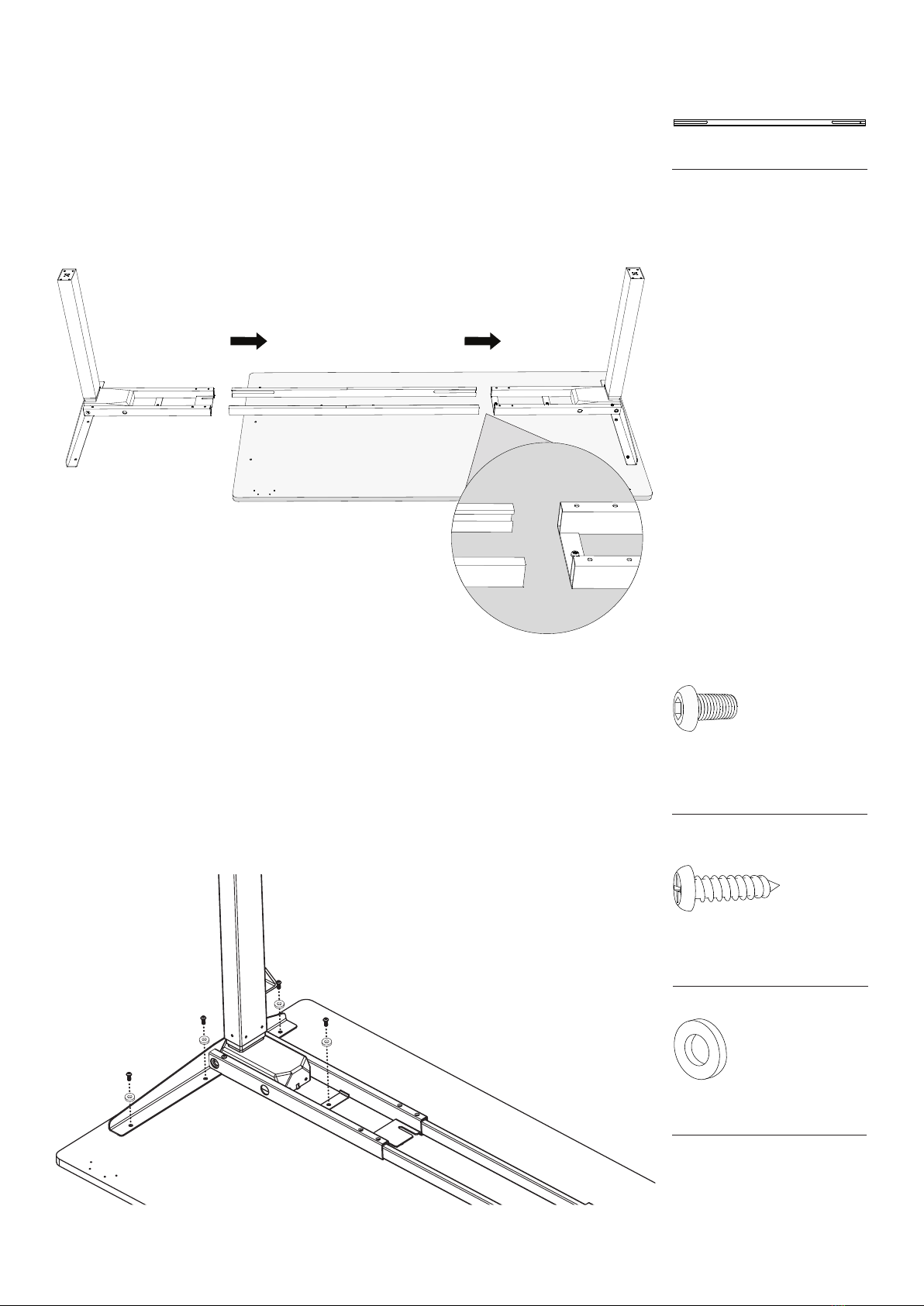

Slide the Center Rails into the Frame End attached to the desk top, so that the
midpoint mark is facing up and the cut-out slots are facing inwards.
Slide the Right Leg Assembly onto the other end of the Center Rails (your left-hand
side). The entire frame should now fit onto the desk top.
*Correct Center
Rail orientation
G—  Center Rails x2
P—  Wood Screw x4
(If using own desk top)
Q—Desk Top Washer x4

Step 7
Center the labeled midpoint marks on both Center Rails between the two Frame
Ends, and tighten the Set Screws to lock the Center Rails down firmly.
Repeat Steps 5 and 6 for other desks.
7
O— Medium Set
Screw x8 (Pre-Installed)
Warning
Skipping this step will
result in stability issues.
Step 8
Use two (2) Wood Screws to attach a Handset to the underside of each desk top
using the pre-drilled holes.
1234M
I—Handset
P—Wood Screw x2

Step 9
H—Control Box
J—Power Cable
Cable Clip x10

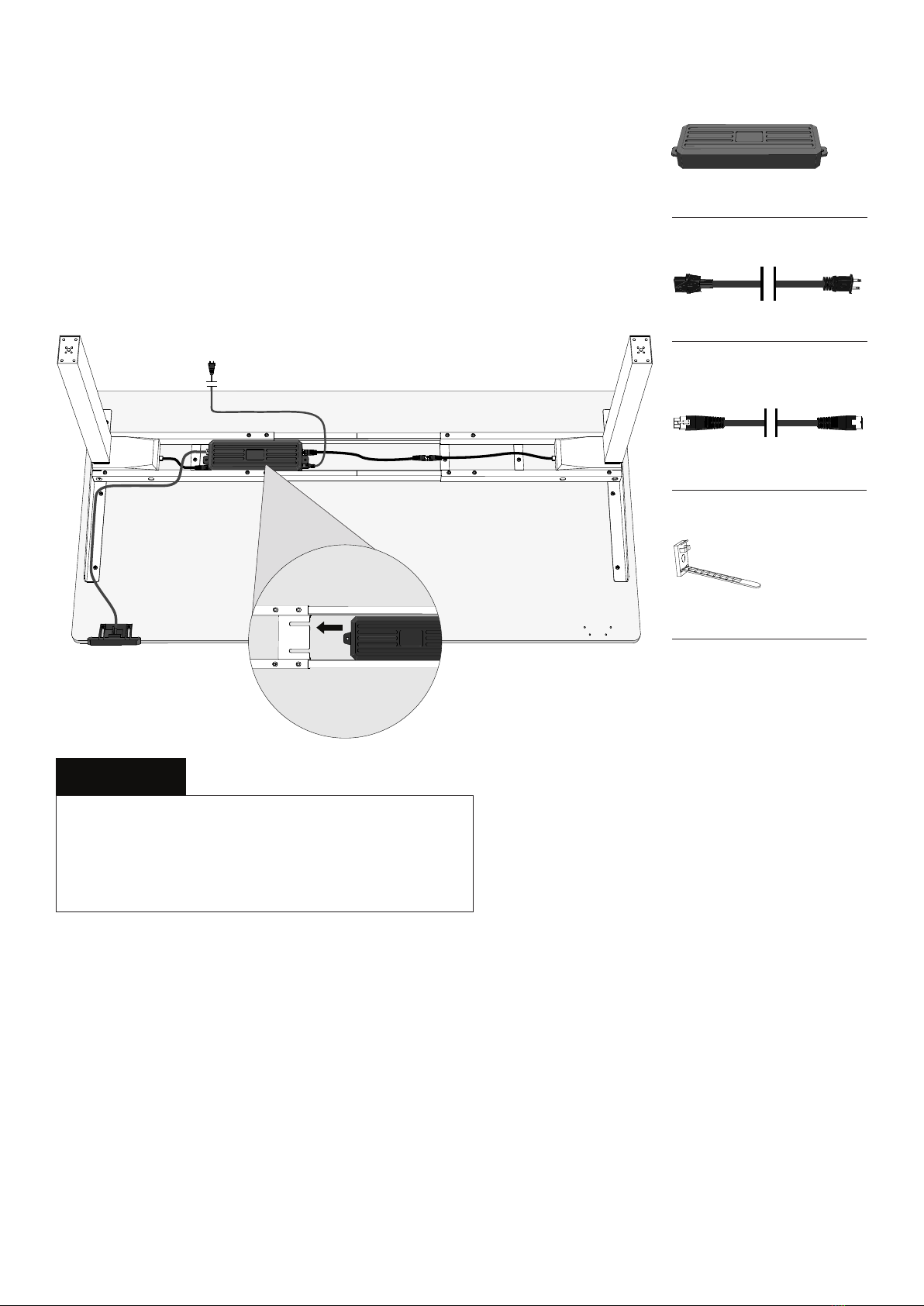

For each desk, slide the Control Box onto the Frame End with the Capture Plate.
Connect the cables from both Lifting Columns to the Control Box via the sockets
labeled M1 and M2.
Connect the Handset to the Control Box via the socket labeled HS.
Connect the Power Cable via the power socket.
K—Leg Cable
8
Cable Clips work best adhered directly to the Jarvis
metal frame. Plus, it looks cleaner. Route your power
cord towards the side of your nearest wall outlet, or use
a cable management tray for optimal cable taming.
Pro Tip

9
Step 10

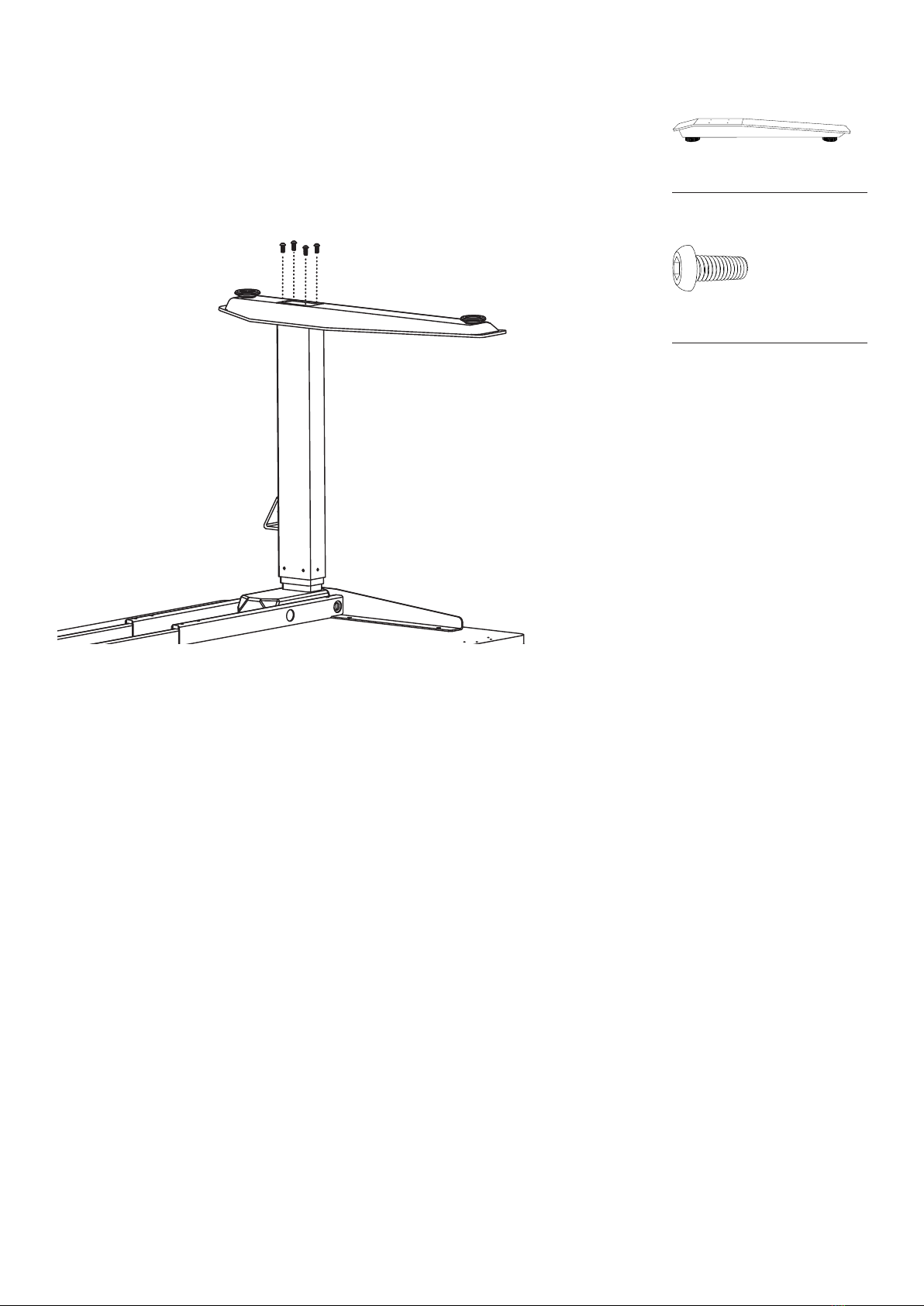

Loosely attach a Foot to the bottom of each Lifting Column using four (4) Medium
Machine Screws per Foot.
Once all the screws are in place, tighten them down the rest of the way in an X
pattern.
V—Feet x2
M— Med. Machine Screw x8
Step 11
Double-check that all screws everywhere on the desk are tight. Triple-check that all
screws everywhere on the desk are tight.
With one friend (or more), lift each desk and gently flip it onto its feet. As you flip,
support both the desk top and the frame, being careful not to put weight on the
Handset.
Adjust the pre-installed leveling glides on the feet as needed.
Step 12
Plug in each desk and follow the reset procedure below:
1. Press and hold the DOWN button until the display reads ASΓ. Release.
2. Press and hold the DOWN button again, this time until the desk first lowers
slightly, then rises slightly, and finally stops. Release the DOWN button.
Raise all desks to their maximum height for the final steps of assembly.

10
Step 13
Note: Use the Closed Stretcher Rail on ends that will not be connected to other
desk pairs. Choose the Open Stretcher Rail to connect to additional desks pairs.
Using the Thick Machine Screws, connect the appropriate Stretcher Rails to the
back of one desk. Slide the other desk into position and again using the Thick Ma-
chine Screws, connect to the Stretcher Rails.
W—Open Stretcher Rail
T—Closed Stretcher Rail x2
Step 14
Lower the Cable Tray between the Stretcher Rails and secure it in place with four
Small Machine Screws. Install the Cable Tray Covers once you have managed all
your cables.
N— Small Machine Screw x4
R—Cable Tray
S—Cable Tray Covers x2
U— Thick Machine
Screw x4

Step 16
Attach a Cable Snake to each desk top using two wood screws. Run cables through
the Cable Snake and through the slot on the Power Tray.
L—Cable Snake
P—Wood Screw x2
Step 15 - optional
Assemble all desks up to Step 14 before proceeding.
If attaching two pairs of desks to each other, use two Small Stretcher Bars to connect
them using Thick Machine Screws.
If installing the optional Privacy Panels (see Step 17), wait to secure the Stretcher
Plate. Otherwise do so now using eight Small Machine Screws.
X—Small Stretcher Bars x2
Y—Stretcher Plate
U— Thick Machine
Screw x4
11
N— Small Machine Screw x8

Step 17 - optional

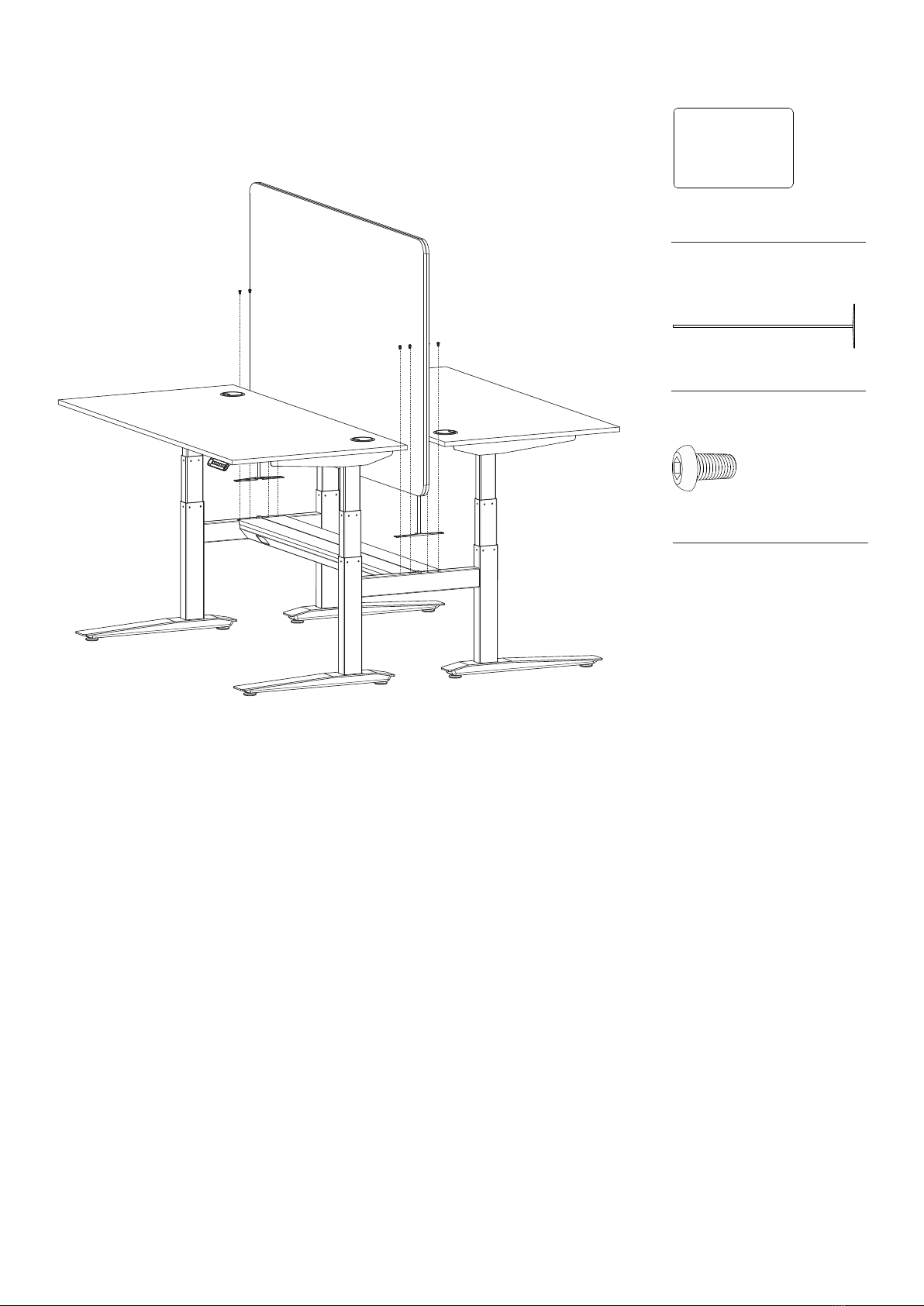

Slide Privacy Panel Poles into the holes on the underside of the Field Privacy Panel.
Secure Field Privacy Panel using eight Small Machine Screws, as shown.
Field Privacy Panel
Privacy Panel Poles x2
N— Small Machine Screw x8
12

Setup
Initial calibration
Before you start using your desk normally, you’ll need to get all the parts synced. Don’t worry — it’s easy.
With Standard Up-Down Handset
1. Press and hold the DOWN button until the desk reaches its lowest position. Release.
2. Press and hold the DOWN button again for about 10 seconds. Release.
3. Press and hold the DOWN button again, this time until the desk first lowers slightly, then rises slightly, and
finally stops. Release the DOWN button.
4. You’re all set.
With Memory Preset Handset
1. Press and hold the DOWN button until the display reads RST. Release.
2. Press and hold the DOWN button again, this time until the desk first lowers slightly, then rises slightly, and
finally stops. Release the DOWN button.
3. You can now use your desk. See page 14 for tips on making the most of your Memory Preset Handset.
Setting memory presets
1. Adjust the desk to the desired height.
2. Press M (the display will show S -).
3. Press a number 1 – 4.
4. Pressing that number will return your desk to the programmed height. By default, the desk will continue to
move on its own once you’ve activated the preset, though pressing any other button will stop this move-
ment. If you prefer to change this behavior, please refer to “Toggle between One Touch and Constant Touch
Presets” on page 16.
13

Custom settings for
Memory Preset Handset
14
Lock your desk
If you have a Memory Preset handset, your desk can be locked in place at any height, either as a safety
precaution or just to keep your friends from messing with your settings. It unlocks just as easily, but we recom-
mend guarding that secret.
To lock: Press and hold the M button for about 8 seconds. The display will first change to S -, then to LOC,
indicating that the desk is now locked.
To unlock: Press and hold the M button for about 8 seconds until LOC goes away and the height appears on the
display.
Adjust the height readout
Our LED handsets display the approximate height of your desk top surface, in inches or centimeters. The accu-
racy may be affected by the thickness of your top, the evenness of your floor, etc. If you want it to be completely
accurate, you can manually set the readout to match your measured height.
1. Press and hold the DOWN button until the desk reaches its lowest position. Release.
2. With your favorite measuring tool, measure the distance from the floor to your desk top surface.
If it matches your readout, you’re all set. Otherwise, proceed to the next step.
3. Press and hold the DOWN button again, until the display flashes RST (looks like “AS Γ”). Release.
4. Press and hold the M button until it begins to flash the starting height. Note: the display will revert to RST
after about 5 seconds. If that happens before you have a chance to make your changes, just press and hold
M again.
To change the readout height:
5. Use the UP or DOWN button to adjust the display by 0.1 inch at a time until the display shows the correct
height, as measured.
6. Wait about 5 seconds and the display will automatically return to RST, which indicates Reset Mode.
7. Complete the reset process by pressing and holding the DOWN button again while the desk lowers a little
bit more, slightly rises, and then stops.
8. Release the button, and you should see the new starting height ±.1 inches. This height is saved, and your
desk is ready to use!

15
Set custom upper and lower height limits
By default, the Jarvis frame and handset are set to allow the maximum range of motion — from a fully retracted
Lifting Column to a fully extended one. If you would like to set a higher minimum height or a lower maximum
height, you can do that! Before starting, make sure the desk is plugged in, and the LED display is showing a num-
ber. If the readout has gone dark, you can wake it up by pushing any button. If it is displaying something besides a
number, perform the Reset Procedure on page 17.
To set the upper limit:
1. Use the UP/DOWN buttons to move the desk to the desired maximum height.
2. Press the M button and release, then press the UP button and release. The display will flash S - to show that
it is ready to set the upper limit.
3. Press and hold the M button for about 2 seconds. The display will show “999” and then return to the height
readout. This indicates that the upper limit is set. All done!
To set the lower limit
1. Use the UP/DOWN buttons to move the desk to the desired minimum height.
2. Press the M button and release, then press the DOWN button and release. The display will flash S - to
show that it is ready to set the lower limit.
3. Press and hold the M button for about 2 seconds. The display will show “000” and then return to your
selected height. This indicates that the lower limit is set. You did it!
Warning: There are certain times when your desk might require a Reset Procedure to correct a balance, calibra-
tion or other issue. This procedure requires the legs to retract completely, beyond any lower height limits that
might be set. Please ensure that you have the proper clearance below the desk base.
Note: If you had previously set any memory presets that were outside of your newly defined range, they won’t
work anymore. You can reuse the numbers.
2nd Note: If you want to set a new upper or lower limit that is outside of your set range, you will first have to
restore the defaults.
To restore default upper and lower limits
1. Press the M button and release. “S -” will appear on the display.
2. Within 5 seconds, press the M button again and hold for about 2 seconds until the display shows “555”.
3. Release the button. The display will automatically change back to the height display, and your height limits
will reset.

16
Toggle between One Touch and Constant Touch presets
Our programmable handsets allow your desk to remember your favorite height settings. By default, if you press
and release a memory preset button, the desk will move on its own to the programmed height. You can change
this behavior so that the desk will only continue to move to the programmed height with continued pressure on
that preset number. Here’s how to toggle this setting:
1. Press and hold the DOWN button until the desk reaches its lowest position. Release.
2. Press and hold the DOWN button again, until the display begins to flash RST (looks like “ASΓ”).
3. With the display still flashing RST, press and hold the 1 button for about 5 seconds. The handset will register
the change in input method and display the corresponding readout:
4. To toggle to the next setting, press and hold the 1 button again for 5 seconds, until the displayed readout
updates.
5. Once your preferred setting displays, release the button and wait about 5 seconds for the display to return to
RST.
6. Complete the reset process by pressing and holding the DOWN button again while the desk lowers a little
bit more, slightly rises, and then stops. Release the button. Your new preset touch setting is saved, and the
desk is ready to use!
Change readout between inches and centimeters
By default, our programmable handsets display inches on models configured for 120-Volt power, and centimeters
on models for 240-Volt power. If you’d like to break with tradition, you can easily change this setting.
1. Press and hold the DOWN button until the desk reaches its lowest position. Release.
2. Press and hold the DOWN button again, until the display begins to flash RST (looks like “ASΓ”).
3. Press and hold the 2 button for about 5 seconds. Your handset will register the unit change and display the
corresponding readout:
10.3 = Centimeters
10.4 = Inches
4. To toggle to the next setting, press and hold the 2 button again for 5 seconds, until the displayed readout
updates.
5. Once your preferred setting displays, release the button and wait about 5 seconds for the display to return to
RST.
6. Complete the reset process by pressing and holding the DOWN button again while the desk lowers a little
bit more, slightly rises, and then stops. Release the button. Your preferred unit setting is now saved, and the
desk is ready to use!
10.1 = One Touch
The desk will keep moving to the preset height after you
release the memory preset button
10.2 = Constant Touch
The desk will only continue to the programmed height
while you are holding the corresponding preset button

17
Troubleshooting
If your desk is not functioning properly, or if you have a Memory Preset Handset that reads “RST” or any error
message (E01 - E13), confirm that all wired connections are secure (legs to cables, cables to Control Box). Once
you’re certain that all connections are secure, perform the reset procedure below. If the error message
persists after the reset procedure, contact Fully.
If there is a difference in height between the two legs that exceeds 1.5”, stop the reset procedure and contact
Fully. If the Memory Preset Handset displays “HOT”, let the desk cool down for 20 minutes.
Reset procedure
CAUTION: This will override any custom lower limit you might have set! Please ensure proper clearance for the
Lifting Columns to retract fully.
With Standard Up-Down Handset
1. Press and hold the DOWN button until the desk reaches its lowest position. Release.
2. Press and hold the DOWN button again, for about 10 seconds. Release.
3. Press and hold the DOWN button again, this time until the desk first lowers slightly, then rises slightly, and
finally stops. Release the DOWN button.
4. You’re all set!
With Memory Preset Handset
1. Press and hold the DOWN button until the desk reaches its lowest position. Release.
2. Press and hold the DOWN button until the display reads RST. Release.
3. Press and hold the DOWN button again, this time until the desk first lowers slightly, then rises slightly, and
finally stops. Release the DOWN button.
4. You can now use your desk!
Contact
Fully
Portland, Oregon
888-508-3725
[e-mail]
www.fully.com
