Galletti ACQVARIA AQ10Q0B0 User manual

TECHNICAL MANUAL
ACQVARIA
EN
3 - 10 kW
Cassette fan coils with ON/OFF motor
24
Supervision GARDA 2 pipes systems 4 pipes systems Touch screen device Recess ceiling-mount
PLUS
» Reliability and sturdiness in a compact design
» Fresh air with direct or mixed introduction
» Heat exchanger up to 3 rows
» Condensate drainage pump for height dierences of up
to 0.9 m
» Air intake and diusion grille in two colors (RAL9010
and RAL9030)
» Reduced installation and commissioning time
WC66000496 03/21

Dear Customer,
Thank you for placing your trust in one of the products of Galletti S.p.a
This product is the result of our work and our commitment to design, research, and production and has been
made from the nest materials, employing state-of-the-art components and production technology.
The CE marking of the product ensures its compliance with the safety requirements of the following directives:
the Machinery Directive, the Electromagnetic Compatibility Directive, the Electrical Safety Directive, and the
Pressure Equipment Directive. Fulllment of the Ecodesign requirements is fully in keeping with the environ-
mental awareness that has always guided our company.
The company certication of the Quality and Safety management system ensures that product quality is
constantly checked and improved, and that the product is manufactured in full compliance with the highest
standards.
By choosing our product, you have opted for Quality, Reliability, Safety, and Sustainability.
At your disposal, once again.
Galletti S.p.a

TABLE OF CONTENTS
1 MAIN FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 4
1.1 OPERATING LIMITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 4
1.2 AVAILABLE VERSIONS . . . . . . . . . . . . . . . . . . . . . . . . . p. 4
1.3 CONFIGURATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 4
1.4 GRILLE CONFIGURATOR. . . . . . . . . . . . . . . . . . . . . . . p. 5
1.5 AVAILABLE ACCESSORIES . . . . . . . . . . . . . . . . . . . . . p. 5
2 MAIN COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . p. 6
2.1 STRUCTURE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 6
2.2 AIR FILTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 6
2.3 HEAT EXCHANGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 6
2.4 FAN DRIVE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . p. 6
2.5 CONDENSATE COLLECTION SYSTEM . . . . . . . . . . p. 6
2.6 CONDENSATE DISCHARGE SYSTEM . . . . . . . . . . . p. 6
2.7 LOUVRE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 6
2.8 EXPLODED VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 7
3 AIR RANGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 9
4 INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 10
4.1 INSTALLATION REQUIREMENTS. . . . . . . . . . . . . . . p. 10
4.2 DIMENSIONAL UNIT ASSEMBLY . . . . . . . . . . . . . . p. 12
5 RATED TECHNICAL DATA . . . . . . . . . . . . . . . . . p. 15
6 WEIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 16
7 PERFORMANCES . . . . . . . . . . . . . . . . . . . . . . . . . . p. 17
8 SOUND LEVELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 18
9 ELECTRICAL CONNECTION DIAGRAMS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 19
10 OVERALL DIMENSIONS . . . . . . . . . . . . . . . . . . . p. 31
11 ACCESSORIES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 35
11.1 2 OR 3WAY MOTORDRIVEN VALVE KITS . . . . . p. 38
11.2 PRESSUREINDEPENDENT MOTORDRIVEN
2WAY VALVE KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 42
11.3 AUXILIARY WATER DRIP TRAY FOR
COLLECTING CONDENSATE FROM THE
CONTROL VALVES. . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 45
11.4 CONNECTION FOR INTAKE OF FRESH AIR TO
BE TREATED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 45
11.5 CONNECTION FOR OUTLET OF AIR IN
ADJACENT ROOMS . . . . . . . . . . . . . . . . . . . . . . . . . . p. 46
11.6 CONNECTION FOR INTRODUCTION OF
FRESH AIR INTO ROOM . . . . . . . . . . . . . . . . . . . . . . p. 47
12 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 48
12.1 CLEANING THE AIR FILTER. . . . . . . . . . . . . . . . . . . . p. 48
12.2 CLEANING THE AIR INTAKE GRILLE . . . . . . . . . . . p. 48
12.3 CLEANING THE CABINET . . . . . . . . . . . . . . . . . . . . . p. 48
12.4 ELECTRIC CONTROL BOARD . . . . . . . . . . . . . . . . . p. 49
12.5 ADDITIONAL MAINTENANCE. . . . . . . . . . . . . . . . . p. 49
12.6 ABNORMAL WATER LEVEL . . . . . . . . . . . . . . . . . . . . p. 49

ACQVARIA
TECHNICAL MANUAL4
1 MAIN FEATURES
Comfort, low noise, and eciency in perfect harmony!
The new series of hydronic cassette units ACQVARIA, with ON/
OFF motor, consists of 5 models (10-20-40-50-60) for 2-pipe sys-
tems and 4 models (10-20-40-60) for 4-pipe systems.
The engineering of the unit makes it possible to develop up to
4,3 kW in the cooling mode in a standard 600x600 mm modular
suspended ceiling and over 9 kW in the 860x860 mm modulari-
ty, with exceptionally low noise levels in the phases for maintain-
ing interior comfort.
ACQVARIA leverages the entire Galletti, MYCOMFORT, EVO , and
TED microprocessor controller platform that incorporate sophis-
ticated adjustment logics based on air temperature, air humidi-
ty, and water temperature.
These benets translate into greater accuracy in achieving and
maintaining the desired comfort conditions through appropriate
modulation of the fan speed as well as the reduction of noise
emissions, which adapt to the actual thermal load.
The suspended ceiling unit houses all the components, heat ex-
change coil, fan drive assembly, and condensate collection and
drainage system. Its structure is designed for introducing fresh
air into the space, mixing it with recovered air, and distributing
the treated air from the cassette unit to adjacent rooms.
The design and colour, RAL9003 or RAL9010, of the air intake
and diusion louvre guarantee optimal integration into the sus-
pended ceiling panels. Easy access to the air lter for cleaning
operations.
The unit can be supplied complete with valves, including pres-
sure-independent balancing and control valves, the use of
which signicantly reduces commissioning time.
OPERATING LIMITS
Thermal carrier uid: water
Water temperature: 5°C ÷ 70°C
Air temperature: 5°C ÷ 43°C
Supply voltage: 230 V - 50 Hz
Maximum water pressure during operation: 10 bar
Relative humidity limit of the ambient air:RH < 75% not
condensing
AVAILABLE VERSIONS
AQ**Q0B0*****0A Unit with one coil for 2-pipe
systems
AQ**Q0BB*****0A Unit with one coil for 4-pipe
systems
Accessories supplied with the unit
 Auxiliary water drip tray;
 Installation and use manual;
 Brackets for securing the unit.
CONFIGURATOR
A Q 1 0 Q 0 B 0000 0 00
1 2 3 4 5 6 7 9 1110 12 138
10
20
40
50
60
Q hydronic
cassette
0 3 speed
I Brushless
B standard 0 absent
B coil 1R
0 absent
A 3 way -
on/o 230V
2 2 way -
on/o 230V
B 3way -
modulating
4 2 way -
modulating
C 3 way -
on/o 24V
6 2 way -
on/o 24V
7 3V on/o
230V C.A.
8 2V on/o
230V C.A.
H 2V press.
Ind. ON/OFF
I 2V press.
Ind. Modul.
0 absent
E EVO board
G opz.E +
NAVEL wi
0 absent
1
SA
2 SW
3 SU
4 SA+SW
5 SA+SU
6 SA+SU+SW
0 absent
6 shell valves
0 none 0A rst release
A
Family Size Version Motor Std.Coil DF Coil Valves Control Probe Accessories
various
Various
options Release / Special

WC66000496
All copying, even partial, of this manual is strictly forbidden 5
GRILLE CONFIGURATOR
A Q Y G R 1 0 F1A
1 2 3 4 5 6 7 8
Family SizeVersion Control Variants Release
GR grid 30 AQ10-20
60 AQ40-50-60
F wire 1 RAL9003
2 RAL9010
A rst release
AVAILABLE ACCESSORIES
Electronic microprocessor control panels with display
DIST MY COMFORT controller spacer for wall mounting
EVO-2-TOUCH 2.8”touch screen user interface for EVO control
EVOBOARD Circuit board for EVO control
EVODISP User interface with display for EVO controller
EYNAVEL Device forWi-Fi or Bluetooth communication between EVOBOARD and smartphone
LED503 Recessed wall-mounted electronic display controller LED 503
MCBE MYCOMFORT BASE electronic controller with display
MCLE Microprocessor control with display MY COMFORT LARGE
MCME MYCOMFORT MEDIUM electronic controller with display
MCSUE Humidity sensor for MY COMFORT (medium e large), EVO
MCSWE Water sensor for MYCOMFORT and EVO controllers
Electronic microprocessor control panels
TED 2T Electronic controller for AC fan control and one ON/OFF 230V valve
TED 4T Electronic controller for AC fan control and two ON/OFF 230V valves
TED SWA Water temperature sensor forTED controls
Power interface and regulating louver controllers
KP Power interface for connecting in parallel up to 4 fun coil units to the one controller
Valves
PIC-AQi PRESSURE-INDEPENDENT 2-way valves for models with 1 or 2 coils
V2-AQi 2-way valve, ON/OFF or MODULATING actuator, 230V or 24 V power supply, hydraulic kit, for model with 1 or 2 heat exchangers
V3-AQi 3-way valve, ON/OFF or MODULATING actuator, 230V or 24 V power supply, hydraulic kit, for model with 1 or 2 heat exchangers
Plenum, air intake modules, air inlet and outlet connectors and cabinets
BAR Spigot for introduction of mixed renewal air
MOB Cabinet for cassette
PAR Plenum for introduction of unmixed renewal air
PMAA Air outlet plenum

ACQVARIA
TECHNICAL MANUAL6
2 MAIN COMPONENTS
2.1 STRUCTURE
Made of galvanised steel sheet with internal polyurethane foam
coating and external closed-cell polyethylene foam to guaran-
tee heat and sound insulation. Fresh air can be introduced in-
to the room directly through the unit due to the provision of
connections for neutral or mixed introduction. Accessories are
available for connection to ducts. There are systems on the unit
for anchoring it to the ceiling. The electrical wiring is housed in
a containment box and is easily accessible from the side for easy
connection.
2.2 AIR FILTER
Honey-comb polypropylene washable air lter, easily removable for maintenance operations.
2.3 HEAT EXCHANGER
Copper pipe and high eciency aluminium ns secured to the
pipe by mechanical expansion. With at least two rows in the
models for 2-pipe systems, it is available in the 2+1 conguration
in the models for 4-pipe systems. The coil comes complete with
manual air vent valves. On request, valves can be connected to
the coil to regulate and balance the operation of the unit.
2.4 FAN DRIVE ASSEMBLY
Three-speed electrical motor, directly connected to a centrifu-
gal fan with backward-curving blades with prole optimised for
stable operation at all speeds.
2.5 CONDENSATE COLLECTION SYSTEM
Located under the heat exchanger, the main drip tray is made of
polystyrene and is inserted inside the proles optimised for the
distribution of air in the room. The supply is completed by the
auxiliary water drip tray for the collection of condensate from
the regulating valves.
2.6 CONDENSATE DISCHARGE SYSTEM
The condensate drainage pump, with built-in check valve, can
lift the condensate up to 0.9 m from the exit point from the unit.
The operation of the pump is controlled by a oat switch with
three levels of action that activate it and stop it during normal
operation. If the critical water level inside the main drip tray is
exceeded, an alarm signal closes the control valves, stopping the
ow of water inside the exchanger.
2.7 LOUVRE
It is square shaped for the intake and diusion of air in the space,
and it is made of ABS, colour RAL9003 or RAL9010. The air intake
louvre can be opened for access to the air lter. Air is diused in
the space through the 4 sides, each of which is equipped with an
adjustable n with suitable thermal insulation.

WC66000496
All copying, even partial, of this manual is strictly forbidden 7
2.8 EXPLODED VIEW
» 2.2 Exploded view, units AQ 10-20
1. Locking clips
2. Tie rods
3. Condensate drip tray
4. Condensate drainage pump
5. Heat exchanger
6. Fan drive assembly
7. External insulation
8. Internal insulation
9. Lateral sheet metal
10. Sheet metal back
11. Fan drive assembly support bracket
12. Exchanger support brackets
13. Electric box
2
4
5
6
11
10
12
13
3
1
7
7
9
9
8
7
7
9
9
8
8

ACQVARIA
TECHNICAL MANUAL8
» 2.3 Exploded view, units AQ 40-50-60
1. Locking clips
2. Tie rods
3. Condensate drip tray
4. Condensate drainage pump
5. Heat exchanger
6. Fan drive assembly
7. External insulation
8. Internal insulation
9. Lateral sheet metal
10. Sheet metal back
11. Reinforcement brackets
12. Exchanger support brackets
13. Electric box
1
2
3
5
7
7
7
7
9
9
9
9
9
12
11
10
88
8
8
13
4

WC66000496
All copying, even partial, of this manual is strictly forbidden 9
3 AIR RANGE
• Flap inclination 45°
» Air range 2T
Model AQ10 AQ20 AQ40 AQ50 AQ60
Air range X (m) 3,0 3,5 4,2 3,1 3,9 5,2 3,9 4,4 5,2 3,6 4,2 5,1 4,2 5,1 5,4
Height Y (m) 2,0 2,3 2,8 2,0 2,6 3,4 2,4 2,7 3,2 2,3 2,6 3,1 2,6 3,1 3,3
Distance Z (m) 2,3 2,6 3,1 2,3 2,9 3,9 3,1 3,5 4,1 2,9 3,3 3,9 3,3 3,9 4,2
» Air range 4T
Model AQ10 AQ20 AQ40 AQ60
Air range X (m) 3,0 3,5 4,2 3,1 3,9 5,2 3,9 4,4 5,2 4,2 5,1 5,4
Height Y (m) 2,0 2,3 2,8 3,0 3,4 4,1 3,1 3,9 5,2 2,6 3,3 3,3
Distance Z (m) 2,3 2,6 3,1 2,0 2,3 2,7 2,0 2,6 3,4 3,3 4,0 4,2

ACQVARIA
TECHNICAL MANUAL10

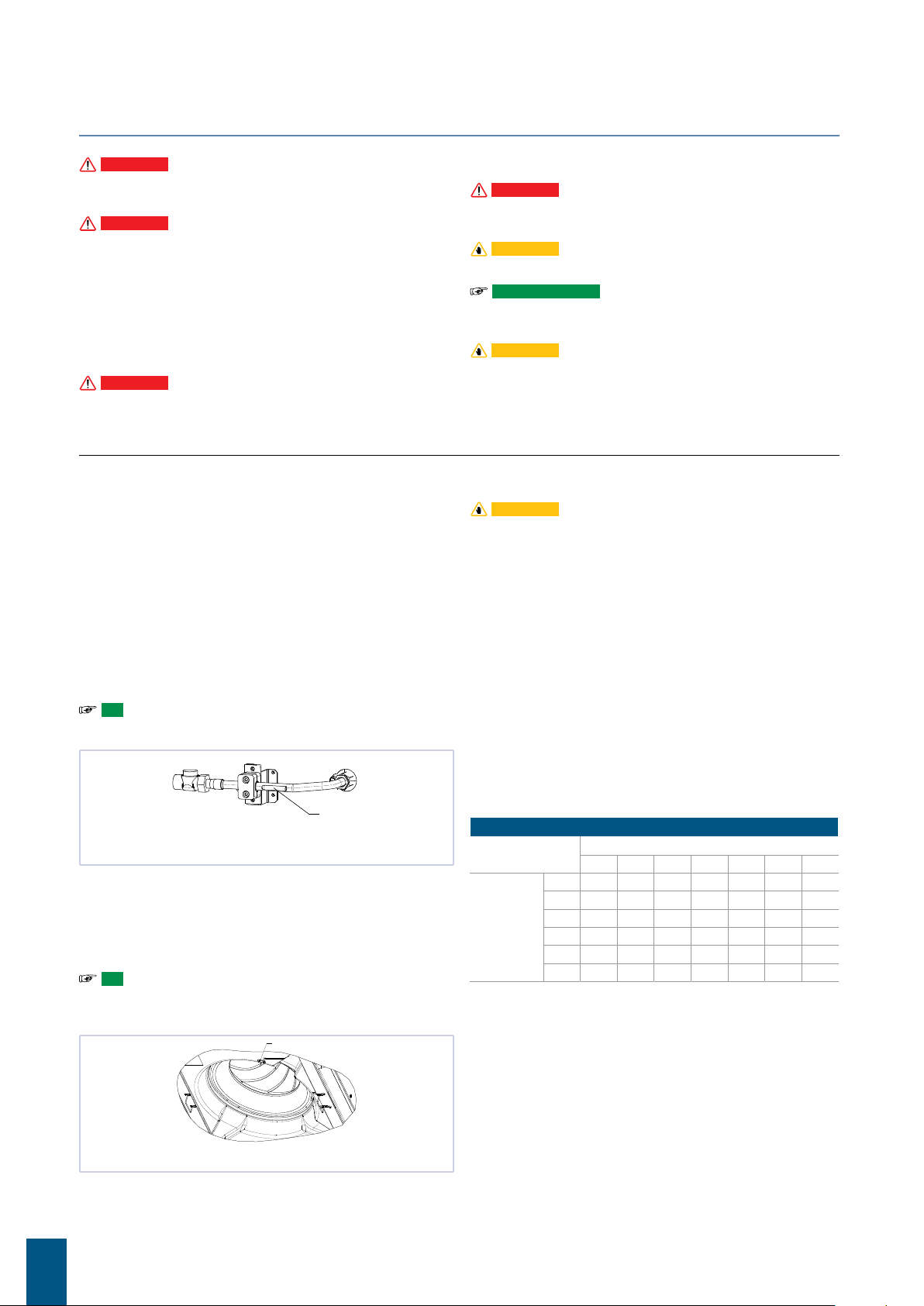

4 INSTALLATION
WARNING: unit installation and start-up must be entrusted
to competent personnel and performed in a workmanlike
manner, in accordance with current regulations.
WARNING: It is mandatory to install the 3-way (or 2-way)
valve accessory in order to avoid the circulation of cold
water in the exchanger if the unit is not operated for
long periods of time, with the fan o. Install the auxiliary
water drip tray, provided together with the base unit, in
order to prevent valve kits from dripping.
For each unit an (IL) switch should be mounted on the power
supply, with opening contacts at a distance of at least 3 mm
and a suitable protection fuse (F) .
WARNING: before carrying out any operation, check that
the voltage and frequency of the unit correspond exactly
to those of the main power supply.
WARNING: Install the unit, circuit breaker (IL) and/or any re-
mote controls in a place out of reach of persons who may be
taking a bath or shower.
WARNING: keep the unit's grille in its original packaging
until nal assembly.
RECOMMENDED: to ensure optimal comfort (homoge-
neous air temperature in the room), it is recommended not
to exceed a heat exchanger water inlet temperature of 55 °C.
WARNING: during a shutdown for installation, in the event
of a connection to a fresh air intake or an ambient tempera-
ture close to 0 °C, there is a risk of the pipes freezing. Provide
drainage for the water circuit.
4.1 INSTALLATION REQUIREMENTS
The fan coils should be installed in a position where the room
can be heated or cooled evenly, on ceilings able to support their
weight. Store the unit in its packaging until you are ready to in-
stall it.
For installation and use of accessories, please refer to the relative
technical sheets.
Install any remote control panel in an easily accessible position
allowing the user to set the functions while ensuring an accurate
reading of the ambient temperature, if provided.
Avoid therefore:
 positions directly exposed to sunlight;
 positions exposed to direct currents of warm or cold air
 placing obstacles that impede an accurate temperature
reading
NB: The water sensor, where present, must be mounted in
the appropriate trap on the valve kit, on the INLET pipe.
1 Water sensor holder
1
 If a valve kit other than the one suggested is used, it is neces-
sary to install the sensor on the INLET pipe, by means of the
special copper socket lled with conductive paste.
 Lastly, the sensor must be properly isolated to ensure that it
reads the water temperature correctly.
NB: The air and humidity sensors, where present, must be at-
tached in the appropriate section located in the intake area
of the base unit.
1 Sensor retainer
1
Make the plumbing connections to the heat exchanger and,
where the cooling function is to be used, to the condensate
drainage outlet.
WARNING:
In normal operation, particularly with the fan at minimum
speed and ambient air with high relative humidity, conden-
sation may form on the air outlet and on some external parts
of the unit.
To avoid such issues while always remaining within the oper-
ating limits envisaged for the unit, it is necessary to limit the
inlet temperature of the water inside the heat exchanger. In
particular, the dierence between the air dew point (TA,DP)
and the inlet water temperature (TW) must NOT exceed 14
°C, according to the following relationship: TW>TA,DP-14
°C
Example: in the case of ambient air at 25 ° C with 75% rela-
tive humidity, the dew point temperature is about 20 ° C and
therefore the inlet temperature of the water in the battery
must be greater then:
 20-14 = 6 °C in order to avoid condensation on a fancoil
equipped with a valve.
Fan coil with valve
Air temperature dry bulb (°C)
21 23 25 27 29 31 33
Relative
humidity %
40 5555555
50 5555568
60 55557911
70 5 5 6 8 9 11 13
80 5 6 8 10 12 14 16
90 6 8 10 12 14 16 18
If the valves are not installed, there could be abundant con-
densation, especially if the unit is not operated for long pe-
riods of time.
During wintertime periods of quiescence, drain water from the
system, to prevent ice from forming. If anti-freeze solutions are
used, check for their freezing point using the table below.

WC66000496
All copying, even partial, of this manual is strictly forbidden 11
% Glycol by weight Freezing
temperature (°C)
Capacity
adjustment
Pressure drop
adjustment
0 0 1,00 1,00
10 -4 0,97 1,05
20 -10 0,92 1,10
30 -16 0,87 1,15
40 -24 0,82 1,20
4.1.1 Electrical connections
Make the electrical connections whilst the power supply is
disconnected, in accordance with current safety regulations,
carefully following the wiring diagram and its legend.
Check that the mains electricity supply is compatible with the
voltage shown on the unit rating plate.
The electrical connections indicated must be made by the
installer.
For each fan coil a switch (IL) should be mounted on the power
supply, with opening contacts at a distance of at least 3 mm and
a suitable protection fuse (F).

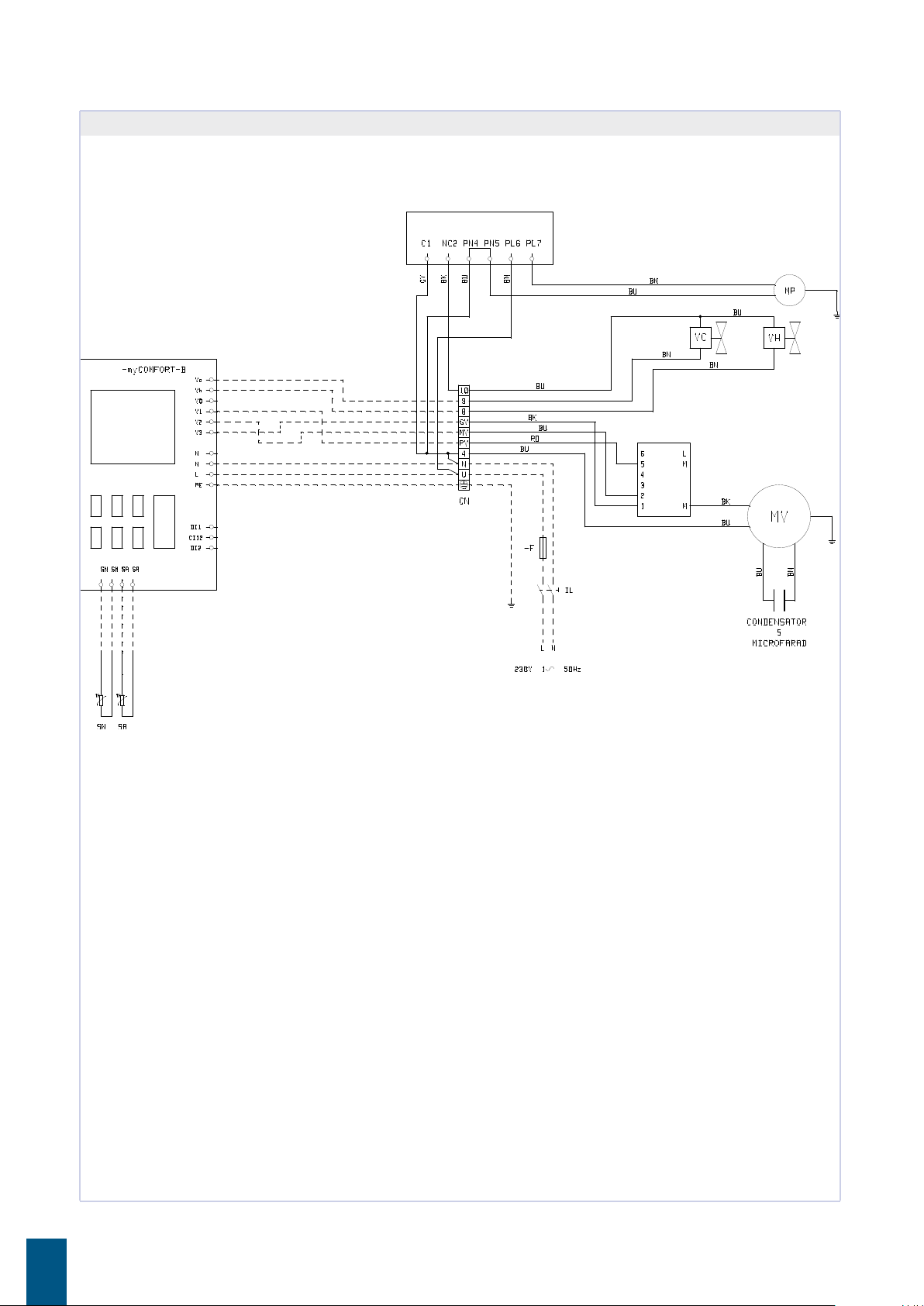

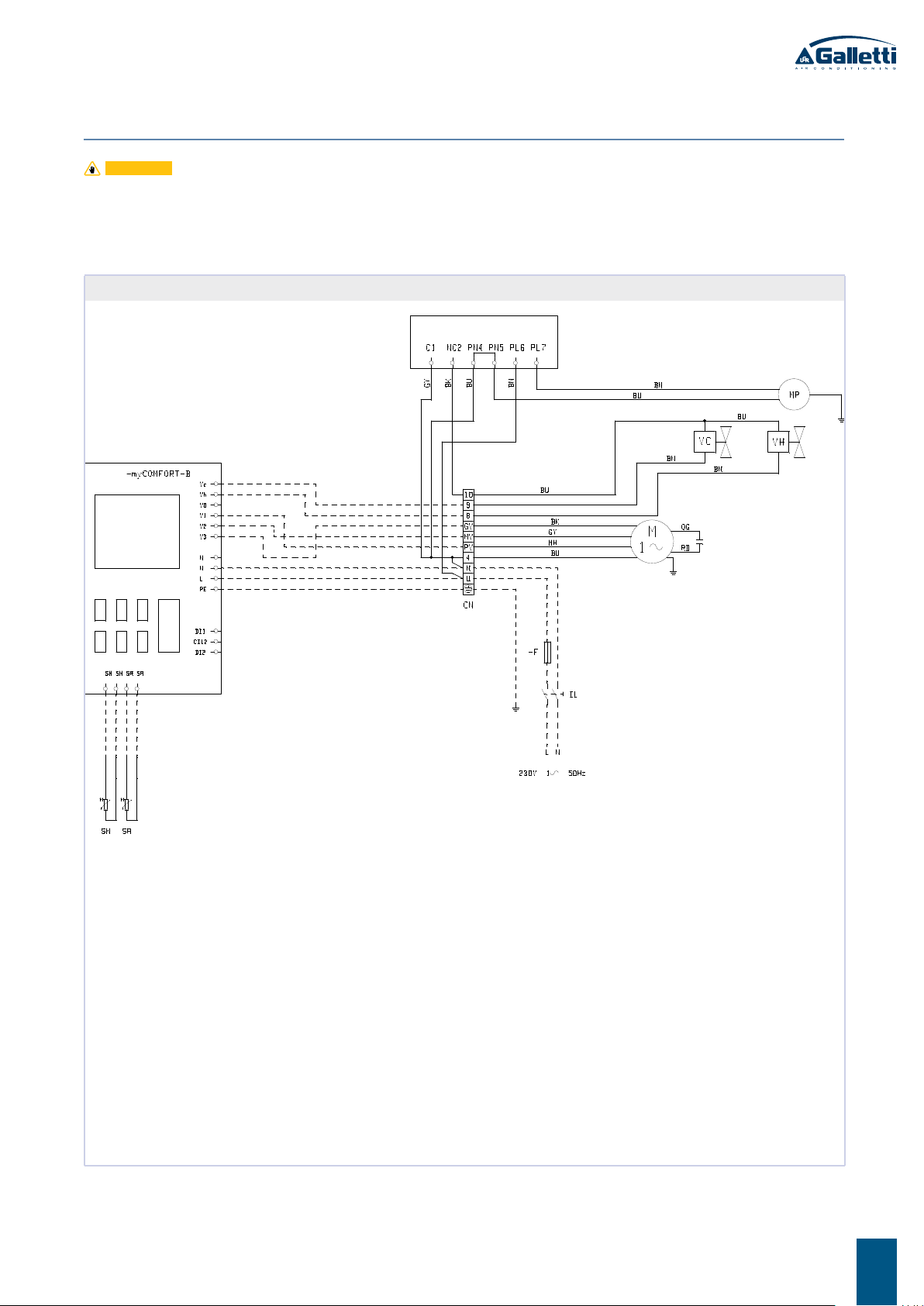

For the electrical connections of the controls, follow the dia-
grams in the gures from:p.23.
WARNING! Cassette is predisposed for standard control MY-
COMFORT, for TED2T disconnect the gray wire of the oat
from terminal 4 and connect to free terminal 8, remove the
blue bridge between terminals N and 4, then complete the
connections of the TED2T to the terminal board as in the
wiring diagrams:
 p.25 for ACQVARIA 10-20;
 p.26 for ACQVARIA 40-50-60;
CASSETTE is predisposed for standard control MYCOM-
FORT, for TED4T disconnect the gray wire of the oat from
terminal 4 and connect it through a ying terminal to ter-
minal 3 of the TED4T, remove the blue bridge between ter-
minals N and 4, then complete the connections of the TED4T
to the terminal board as in the wiring diagrams:
 p.27 for ACQVARIA 10-20;
 p.28 for ACQVARIA 40-50-60;
WARNING: The power supply to the pump-oat switch de-
vice must never be interrupted.
4.1.2 Galletti control dedicated (EVO - TED - MY
COMFORT)
Galletti controls implement a logic that makes it possible to set
a xed speed between minumum, medium and maximum, or
automatic speed modulation.
The automatic logic varies the analog signal to the motor be-
tween minimum, medium and maximum speed, based on the
distance from the set-point, in order to accelerate the imple-
mentation phases.
» Cooling
min
med
max
» Heating
min
med
max
4.1.3 Hydraulic connections
Unit Exchanger connection
AQ10Q0B0, AQ20Q0B0 (2 pipes) 1/2’’gas F
AQ40Q0B0, AQ50Q0B0, AQ60Q0B0 (2 pipes) 3/4’’gas F
Cooling Heating
AQ10Q0BB, AQ20Q0BB (4 pipes) 1/2’’gas F 1/2’’gas F
AQ40Q0BB, AQ60Q0BB (4 pipes) 3/4’’gas F 1/2’’gas F
To optimise performance, it is advisable to make the following
connections on the exchanger:
 Unit outlet: connection below.
 Unit return: connection above.
WARNING: While making the connections, hold the water
connections of the unit tightly in place with a hexagonal
wrench or make sure that they do not rotate, in order to pre-
vent the pipes inside the unit from being damaged.
 Carefully insulate the inlet and outlet water pipes as well as
the devices installed in the network (on/o valves…). Use a
material that is suitable for the operating conditions and wa-
ter temperature.
 Bleed air from the exchanger by means of the air vent valves
located next to the water connections of the coil. Depending
on the installation, it may be necessary to place other vent
valves on the hydraulic system.
4.1.3.1 Condensate drain connection
Connect a rigid PVC pipe to the end of the hose and secure it
with a clamp
Correctly insulate the pipe with polyethylene foam.
 Be careful of the risk of freezing in winter in suspended ceil-
ings.
 If necessary, the condensate pipe can be routed immediately
after the unit's outlet. Maximum height: 900 mm (FIGURE 1).
 Make sure that the drainpipe has a slight slope in the direc-
tion of ow and that it does not form a siphon (FIGURE 1).
 The piping must have several supports (FIGURE 2).
 Do not install an air vent (FIGURE 3) in the wrong position.

ACQVARIA
TECHNICAL MANUAL12

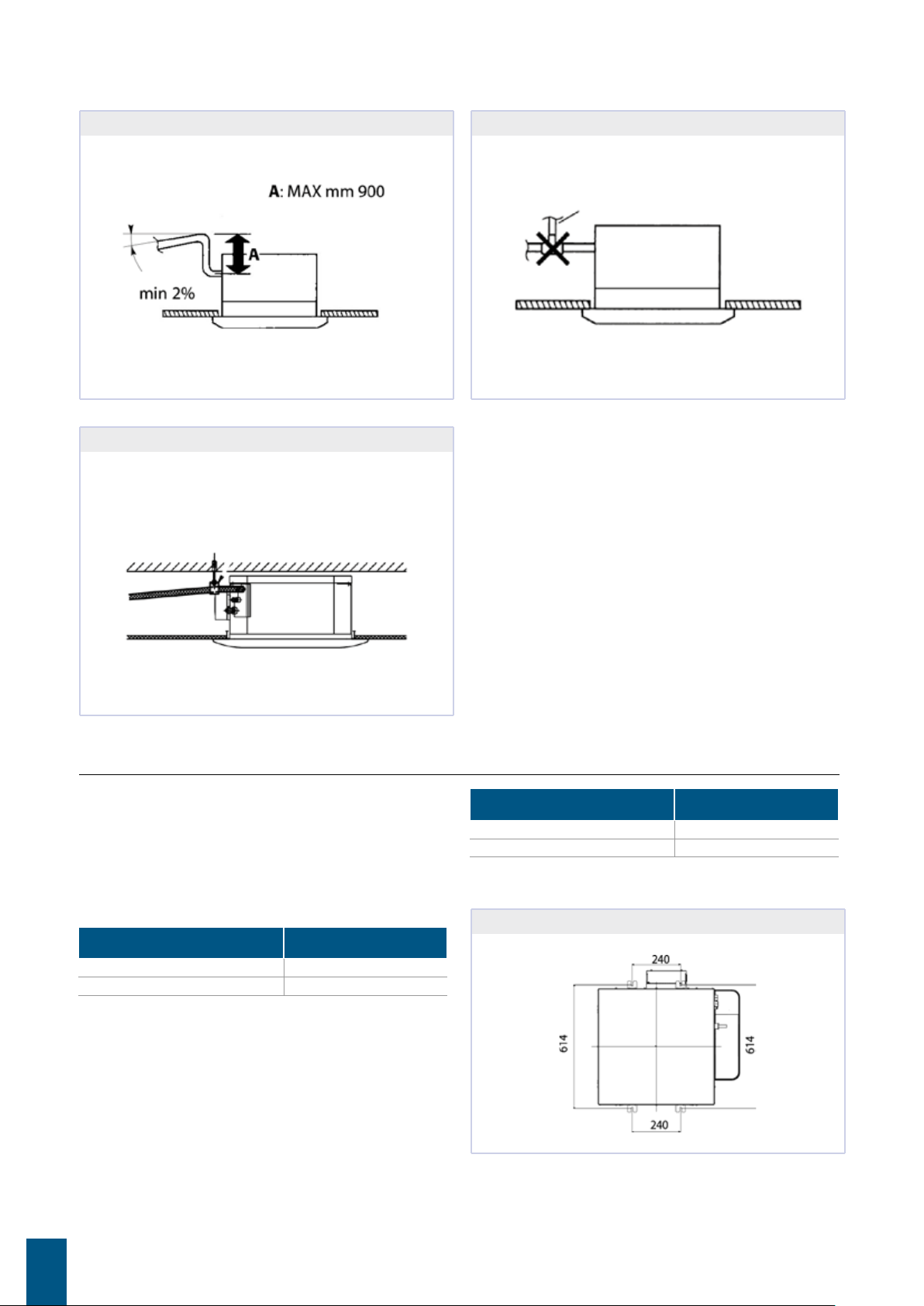

» Fig.1
» Fig.2
» Fig.3
4.2 DIMENSIONAL UNIT ASSEMBLY
 Use the dimensional drawings to determine the position of
the suspension rods (Fig.4 AQ 10-20) (Fig.5 AQ 40-50-60)
 Position the suspension rods (not supplied) in place.
 Attach the supplied brackets (Fig.6 ) to the suspension rods
(Fig.7 ). The length of the suspension rods depends on the
space between the suspended ceiling and the structural
ceiling.
 The distance C (Fig.7 ) must be:
Model C- Bracket distance to the false
ceiling
ACQVARIA 10-20 270
ACQVARIA 40-50-60 312
 Pay attention to the excess length B of the suspension rod
(Fig.7 ): it may interfere with the unit's electrical box.
 Place the fan coil unit in the suspended ceiling, orienting
the side with the water connections in the most appropriate
position, using the hooks on the brackets to provide quick
temporary installation.
 Then attach the unit to the threaded bars with the screws
provided and check that it is level (Fig.8 )
 Adjust the distance between the unit and suspended ceiling
D (Fig.9 AQ 10-20 andFig.10 AQ 40-50-60) using the nuts of
the suspension rods:
Model D - Distance from unit to false
ceiling
ACQVARIA 10-20 23
ACQVARIA 40-50-60 48
 Make sure that the unit does not touch the ceiling: contact
may cause noise.
» Fig.4 AQ 10-20

WC66000496
All copying, even partial, of this manual is strictly forbidden 13
» Fig.5 AQ 40-50-60
» Fig.6
18.8
11
» Fig.7
1. Nut + washer
2. Washer + nut + lock nut
» Fig.8
» Fig.9 AQ10-20
» Fig.10 AQ40-50-60

ACQVARIA
TECHNICAL MANUAL14
4.2.1 Front panel/grille assembly
The front panel/grille, available in RAL9003 and RAL9010 ver-
sions, is delivered in a separate cardboard box:
 AQYGR30 for models AQ 10-20
 AQYGR60 for models AQ 40-50-60
Before installing the front panel: (Fig.11 )
 Remove the screws (1) securing the retainers (2) on each side
(remember to put these screws back in place after installa-
tion).
 To open the grille (3), move the two retainers (2) in the direc-
tion of the arrow.
 Open the grille (3) by 45°.
 Detach the control panel’s safety cable (4) (remember to at-
tach it again after installation).
 Lift the grille to remove it from the control panel.
» Fig.11

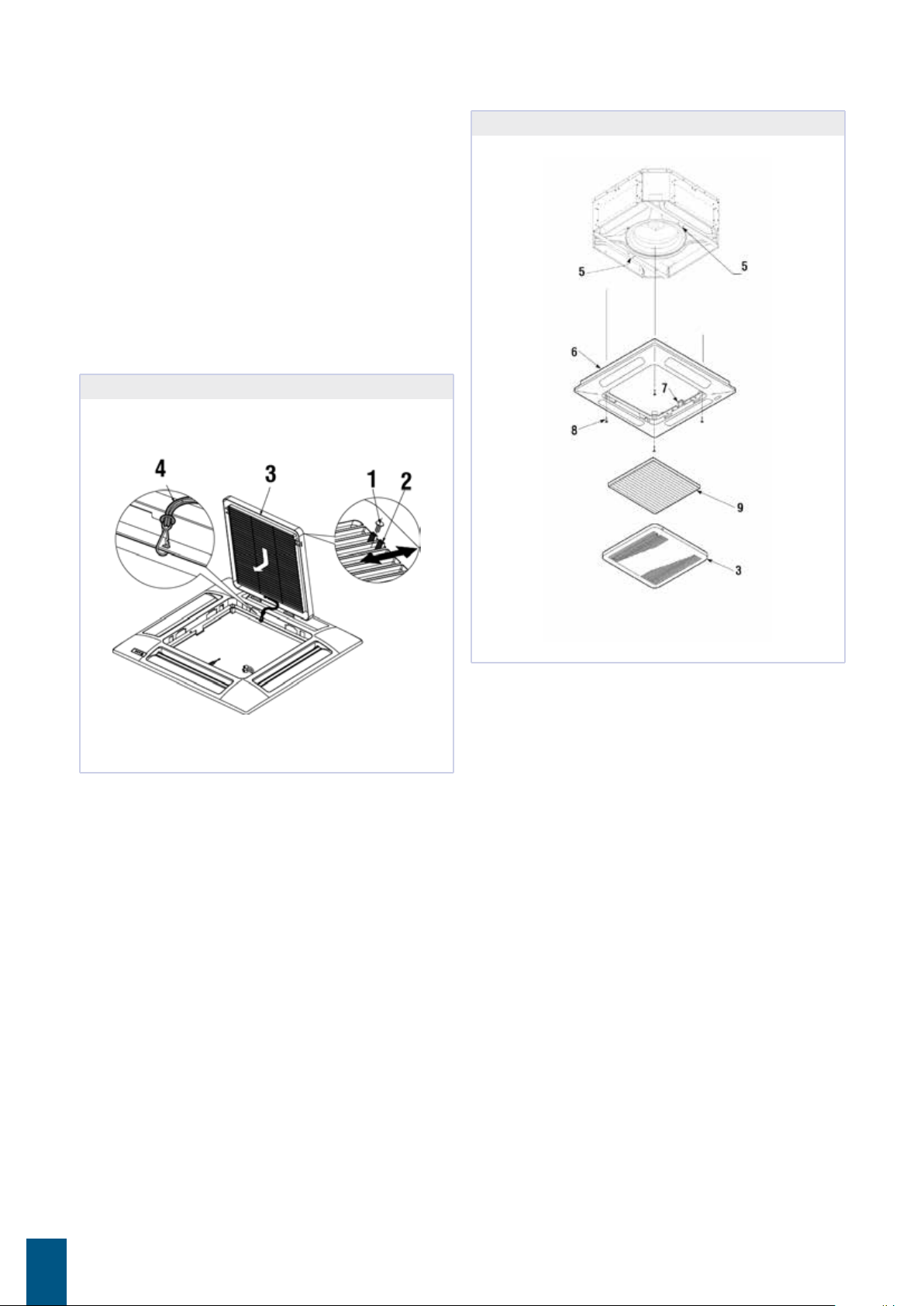

To install the front panel: (Fig.12 )
 Turn the two locking clips (5) downwards.
 Attach the control panel of the panel (6) to the unit by means
of the two hooks (7), matching them to the locking clips (5).
 Check the exact position of the panel's control panel in re-
lation to the suspended ceiling. Adjust the position of the
indoor unit as necessary.
 Attach the panel's control panel to the unit using the special
screws and washers (8) provided.
 Put the grille (3) in place, making sure that the lter (9) is cor-
rectly positioned.
 Hook the safety cable to the control panel, close the grille,
and put the screws securing the retainers (2) back in place.
» Fig.12

WC66000496
All copying, even partial, of this manual is strictly forbidden 15
5 RATED TECHNICAL DATA
» Rated technical data ACQVARIA - 2 pipes
ACQVARIA AQ10Q0B0 AQ20Q0B0 AQ40Q0B0
Speed min med max min med max min med max
Total cooling capacity (1) kW 1,70 1,97 2,53 2,39 3,55 4,31 4,64 5,36 7,01
Sensible cooling capacity (1) kW 1,33 1,60 2,14 1,66 2,53 3,18 3,42 3,99 5,29
FCEER class C
Water flow (1) l/h 295 342 441 416 616 749 805 930 1223
Water pressure drop (1) kPa 3 4 6 9 19 26 14 18 28
Heating capacity (2) kW 1,97 2,33 3,10 2,29 3,44 4,30 5,16 6,06 8,17
FCCOP class C D D
Water flow (2) l/h 342 404 539 399 597 747 897 1053 1420
Water pressure drop (2) kPa 3 5 8 7 15 22 14 18 31
Rated air flow m³/h 297 379 557 306 487 640 801 997 1494
Power input W 18 23 42 32 40 50 47 64 108
Total sound power level (3) dB(A) 33 37 45 40 44 50 35 40 51
Cross-section area of power cables (4) mm² 1,00 1,00 1,00
Power supply cable type N07V-K
Safety fuse F A 2 2 2
Fuses type gG
ACQVARIA AQ50Q0B0 AQ60Q0B0
Speed min med max min med max
Total cooling capacity (1) kW 5,16 6,11 8,24 6,34 8,61 9,73
Sensible cooling capacity (1) kW 3,68 4,37 6,10 4,59 6,40 7,35
FCEER class C
Water flow (1) l/h 893 1060 1434 1097 1498 1696
Water pressure drop (1) kPa 12 17 28 17 29 36
Heating capacity (2) kW 5,22 6,53 9,18 6,71 9,53 11,1
FCCOP class C D
Water flow (2) l/h 908 1136 1596 1167 1656 1930
Water pressure drop (2) kPa 10 15 28 15 28 37
Rated air flow m³/h 718 902 1380 902 1380 1651
Power input W 47 64 108 64 108 147
Total sound power level (3) dB(A) 35 40 51 40 51 56
Cross-section area of power cables (4) mm² 1,00 1,00
Power supply cable type N07V-K
Safety fuse F A 2 2
Fuses type gG
(1) Water temperature 7°C / 12°C, air temperature dry bulb 27°C, wet bulb 19°C (47% relative humidity) according to EN1397:2015
(2) Water temperature 45°C / 40°C, air temperature 20°C
(3) Sound power measured according to standards ISO 3741 and ISO 3742
(4) The shown section is to be considered as the minimum recommended section.The cables must be chosen in compliance with CEI - UNEL 35024/1. standard.
Power supply 230-1-50 (V-ph-Hz)

ACQVARIA
TECHNICAL MANUAL16
» Rated technical data ACQVARIA - 4 pipes
ACQVARIA AQ10Q0BB AQ20Q0BB AQ40Q0BB AQ60Q0BB
Speed min med max min med max min med max min med max
Total cooling capacity DF (1) kW 1,56 1,85 2,35 2,01 2,83 3,38 4,74 6,60 7,45 5,83 8,48 9,00
Sensible cooling capacity DF (1) kW 1,24 1,49 1,94 1,49 2,22 2,77 3,47 5,04 5,81 4,29 6,56 6,98
FCEER class DF C E C D
Water flow DF 1R l/h 271 321 410 351 493 589 822 1148 1299 1010 1477 1571
Water pressure drop DF 1R kPa 3 4 6 15 27 37 10 18 22 14 27 30
Heating capacity DF 1R (2) kW 2,53 2,88 3,55 2,75 3,62 4,22 7,20 9,60 10,6 7,88 11,7 12,4
FCCOP class DF 1R C D C C
Water flow DF 1R (2) l/h 222 258 311 241 317 369 634 840 929 690 1026 1083
Water pressure drop DF 1R (2) kPa 4 5 8 6 9 12 12 19 23 14 27 30
Rated air flow DF 1R m³/h 289 366 533 306 487 640 718 1147 1380 902 1544 1651
Power input DF 1R W 18 23 42 35 55 73 47 86 108 64 128 147
Total sound power level DF 1R (3) dB(A) 33 37 45 40 44 50 35 47 51 40 54 56
Cross-section area of power cables (4) mm² 1,00 1,00 1,00 1,00
Power supply cable type N07V-K
Safety fuse F A 2 2 2 2
Fuses type gG
(1) Water temperature 7°C / 12°C, air temperature dry bulb 27°C, wet bulb 19°C (47% relative humidity) according to EN1397:2015
(2) Water temperature 65°C / 55°C, air temperature 20°C
(3) Sound power measured according to standards ISO 3741 and ISO 3742
(4) The shown section is to be considered as the minimum recommended section.The cables must be chosen in compliance with CEI - UNEL 35024/1. standard.
Power supply 230-1-50 (V-ph-Hz)
ACQVARIA i AQ 10-20-30 AQ 40-50-60
CONDENSATE DRAINAGE PUMP
Power supply V - ph - Hz 230 - 1 -50 230 - 1 -50
Rated current l/h 24 24
Lifting height above the unit mm 900 900
Power input kW 0,011 0,011
INTAKE OF FRESH AIR TO BE TREATED
Number of intakes nr 3
Connection dimensions mm Ø 100
OUTLET OF AIR IN ADJACENT ROOMS
Number of intakes nr 2 2
Connection dimensions mm Ø 150 Ø 180
INTRODUCTION OF FRESH AIR DIRECTLY INTO THE ROOM
Number of intakes nr 2 2
Connection dimensions mm Ø 150 Ø 180
6 WEIGHTS
ACQVARIA AQ10Q0B0 AQ10Q0BB AQ20Q0B0 AQ20Q0BB AQ40Q0B0 AQ40Q0BB AQ50Q0B0 AQ60Q0B0 AQ60Q0BB
Weight kg
23 + 2,5 23 + 2,5 24 + 2,5 24 + 2,5 42+ 5 42+ 5 43 + 5 43 + 5 43 + 5
Note: Panel + grid weight

WC66000496
All copying, even partial, of this manual is strictly forbidden 17
7 PERFORMANCES
Galletti has developed on its www.galletti.com web-area the new ON-LINE integrated platform for product selection, conguration
and the making of the economic oer.
The software, whose use is easy and intuitive, allows the identication of the desired products by calculating their performances
based on real working conditions and their conguration helping the user in choosing options and accessories. It also allows to ob-
tain a detailed report which includes performances, dimensional drawings, tender specications and the economic oer.
Product selection:
Filters to make the identication of the requested product easier
Performance calculation and saving of results
Performance comparison between products belonging to dierent series
Conguration and project history
Wizard conguration of accessories and options for chillers, heat pumps and
hydronic units
Creation of a project which collects all products of interest
Complete management of the storaged history projects
Report:
Generation of a detailed list report in pdf format
Choice of the sections to be included in the print:
 Products performances
 Dimensional drawings
 Tender specications

ACQVARIA
TECHNICAL MANUAL18
8 SOUND LEVELS
» 2 pipes
ACQVARIA AC Speed 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz LWA
dB dB dB dB dB dB dB dBA
AQ10Q0B0
min 37,6 35,6 32,1 26,8 17,8 10,2 10,8 33
med 41,1 38,8 35,2 32,3 24,7 11,7 9,0 37
max 48,2 45,9 43,5 39,3 36,0 26,2 13,5 45
AQ20Q0B0
min 44,6 42,6 39,1 33,8 24,8 17,2 17,8 40
med 48,1 45,8 42,2 39,3 31,7 18,7 16,0 44
max 53,2 50,9 48,5 44,3 41,0 31,2 18,5 50
AQ40Q0B0
min 39,6 37,6 34,1 28,8 19,8 12,2 12,8 35
med 44,1 41,8 38,2 35,3 27,7 14,7 12,0 40
max 54,2 51,9 49,5 45,3 42,0 32,2 19,5 51
AQ50Q0B
min 39,6 37,6 34,1 28,8 19,8 12,2 12,8 35
med 44,1 41,8 38,2 35,3 27,7 14,7 12,0 40
max 54,2 51,9 49,5 45,3 42,0 32,2 19,5 51
AQ60Q0B0
min 44,1 41,8 38,2 35,3 27,7 14,7 12,0 40
med 54,2 51,9 49,5 45,3 42,0 32,2 19,5 51
max 58,0 57,1 53,8 49,8 46,1 39,3 27,2 56
» 4 pipes
ACQVARIA AC Speed 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz LwA
dB dB dB dB dB dB dB dBA
AQ10Q0BB
min 37,6 35,6 32,1 26,8 17,8 10,2 10,8 33
med 40,2 38,4 34,9 32,0 27,6 15,4 4,9 37
max 48,2 45,9 43,5 39,3 36,0 26,2 13,5 45
AQ20Q0BB
min 44,6 42,6 39,1 33,8 24,8 17,2 17,8 40
med 47,2 45,4 41,9 39,0 34,6 22,4 11,9 44
max 53,2 50,9 48,5 44,3 41,0 31,2 18,5 50
AQ40Q0BB
min 39,6 37,6 34,1 28,8 19,8 12,2 12,8 35
med 50,2 47,9 45,5 41,3 38,0 28,2 15,5 47
max 54,2 51,9 49,5 45,3 42,0 32,2 19,5 51
AQ60Q0BB
min 44,1 41,8 38,2 35,3 27,7 14,7 12,0 40
med 57,2 54,9 52,5 48,3 45,0 35,2 22,5 54
max 58,0 57,1 53,8 49,8 46,1 39,3 27,2 56

WC66000496
All copying, even partial, of this manual is strictly forbidden 19
9 ELECTRICAL CONNECTION DIAGRAMS
WARNING: The traced electrical connections must be made by the installer.
For each unit an (IL) switch should be mounted on the power supply, with opening contacts at a distance of at least 3 mm and a
suitable protection fuse (F) .
Make the electrical connections with the power supply disconnected, in accordance with current safety regulations, and following
the base wiring diagram and pertinent legend.
Check that the mains electricity supply is compatible with the voltage shown on the unit rating plate.
» 9.1 My Comfort Base wiring diagram for AQ 10-20
M:Fanmotor
MP: Condensate drainage pump
FLOAT: Float switch
VC/H: Water valve (hot and cold)
F: 2A fuse (not supplied)
IL: Circuit breaker (not supplied)
CN: Fast-on connector
SW: Water temperature sensor
SA: Room temperature sensor
BK(M): Black=maximum speed
GY(M): Grey=medium speed motor
WH(M): White=minimum speed motor
BU(M): Blue= common motor
BN (FLOAT): Brown = pump power supply line
BU (FLOAT): Blue = pump power supply neutral
BK (FLOAT): Black = oat switch alarm signal
GY (FLOAT): Grey = COM alarm
BN (VC/H): Brown = valve actuator line
BU (VC/H): Blue = valve actuator neutral
FLOAT

ACQVARIA
TECHNICAL MANUAL20
» 9.2 Wiring diagram My Comfort base AQ 40-50-60
M:Fanmotor
MP: Condensate drainage pump
FLOAT: Float switch
VC/H: Water valve (hot and cold)
F: 2A fuse (not supplied)
IL: Circuit breaker (not supplied)
CN: Fast-on connector
SU: Umidity sensor
SW: Water temperature sensor
SA: Room temperature sensor
BK(M): Black=maximum speed
BU(M): Blue=Medium speed motor
RD(M): Red=minimum speed motor
BU(M): Blue= common motor
BN (FLOAT): Brown = pump power supply line
BU (FLOAT): Blue = pump power supply neutral
BK (FLOAT): Black = oat switch alarm signal
GY (FLOAT): Grey = COM alarm
BN (VC/H): Brown = valve actuator line
BU (VC/H): Blue = valve actuator neutral
AUTOTRASFORMER
FLOAT
