Gamma+ Luxe Rose XT 200Z VW User manual

Luxé Rosé XT
200Z VW
200w Cold White/Warm White Fresnel with Motorized
Zoom
Luxé Rosé XT 200Z VW AMMA LED Vision Page 1 of 12
User Manual

Table of Contents
1. Introduction and Setup.......................................................................................................................................3
Unpacking and In the Box.................................................................................................................................3
Mounting and Operation...................................................................................................................................3
Features......................................................................................................................................................................3
Safety Precautions.................................................................................................................................................4
Customer Support.................................................................................................................................................5
2. Setup and Operation...........................................................................................................................................6
Using the LCD Menu and Buttons.................................................................................................................6
Menu Operation...............................................................................................................................................6
DMX Setup...............................................................................................................................................................7
DMX Basics..........................................................................................................................................................7
DMX Wiring........................................................................................................................................................7
DMX Modes and Configuration.....................................................................................................................9
3. Maintenance..........................................................................................................................................................10
Routine Maintenance........................................................................................................................................10
Troubleshooting Problems..............................................................................................................................10
4. Technical Specifications....................................................................................................................................11
Photometric Reports..........................................................................................................................................12
Luxé Rosé XT 200Z VW AMMA LED Vision Page 2 of 12

1. Introduction and Setu
Un acking and In the Box
Thank you for choosing our Luxé Rosé XT 200Z VW. For your own safety, lease read this
manual before installing or using the device. This manual covers the im ortant information on
installation and a lications. Please install and o erate the fixture with following instructions.
Meanwhile, lease kee this manual for future needs.
In the box you will find:
•Luxé Rosé XT 200Z VW Fixture: 1
•PowerCon Cable: 1
•DMX Signal Cable 1
Mounting and O eration
Use a clam rated for the full weight of the Luxé Rosé XT 200Z VW to hang the fixture from
the mount(s) on the fixture’s yoke.
As an added safety measure be sure to attached at least one ro erly rated safety cable
to the fixture using on of the safety cable rigging oint integrated in the base assembly or
on the yoke.
Features
•Voltages: AC 100V-240V，50/60Hz
•Power Consumption: 250W@230V
•LED: Light Source: 200W
•Cool White & Warm White COB Led
•Manufacturers Rated LED Life: 50000 Hours
•Full mixing of Cool and Warm White and Color Temperature Presets
•Dimming: 0-100%
•Strobe: Electronic Strobe Variable from 0-25hz
•Zoom Angle: 5°-60°
•Control: DMX512 3 pin w/RDM Control Protocol
Luxé Rosé XT 200Z VW AMMA LED Vision Page 3 of 12

•Control Mode: DMX512 / Master-Slave / Auto / Sound
•Housing: Cast aluminum, IP20 Indoor
•Working Environmental Temperature: -10°C-40°C
•Net weight : 7.50Kg
Safety Precautions
Please keep this User uide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction manual.
Caution: For added rotection mount the fixtures in areas outside walking aths, seating
areas, or in areas were the fixture might be reached by unauthorized ersonnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum oint load of 10 items the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
a ro riate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is ke t
at least 0.5m (1.5ft) away from any flammable materials (decoration etc.).
Always use and install the su lied safety cable as a safety measure to revent accidental
damage and/or injury in the event the clam fails.
DO NOT connect the device to any dimmer ack.
During initial start-u some smoke or smell may arise. This is a normal rocess and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Don’t try to modify the fixture without any instruction by the manufacturer.
Warranty is voided if there are any malfunctions from not following the user manual while
o erating or any hazardous o eration, like shock short circuit, electronic shock, lam broken,
etc.
Luxé Rosé XT 200Z VW AMMA LED Vision Page 4 of 12

Customer Su ort
WARRANTY POLICY
AMMA LED Vision warrants its products for the periods set below from the date of
purchase to be free of manufacturer and workmanship defects. Warranty does not cover
normal wear and tear caused by force, negligence or misuse of products. AMMA LED
Vision is not responsible for any damages or injury caused by misuse or improper
handling of the products and in accordance with instructions and specifications of manual.
Warranty terms are as follows:
LED Fixtures:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Lamp Fixtures: 1 year / excludes the lamp
LED Video Products:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Controllers: 2 years
Batteries: 6 months
All Trussing Related Products and Accessories: 1 Year
Please visit WWW. AMMALEDVISON.COM for complete Limited Warranty terms and
contact information.
Luxé Rosé XT 200Z VW AMMA LED Vision Page 5 of 12

2. Setu and O eration

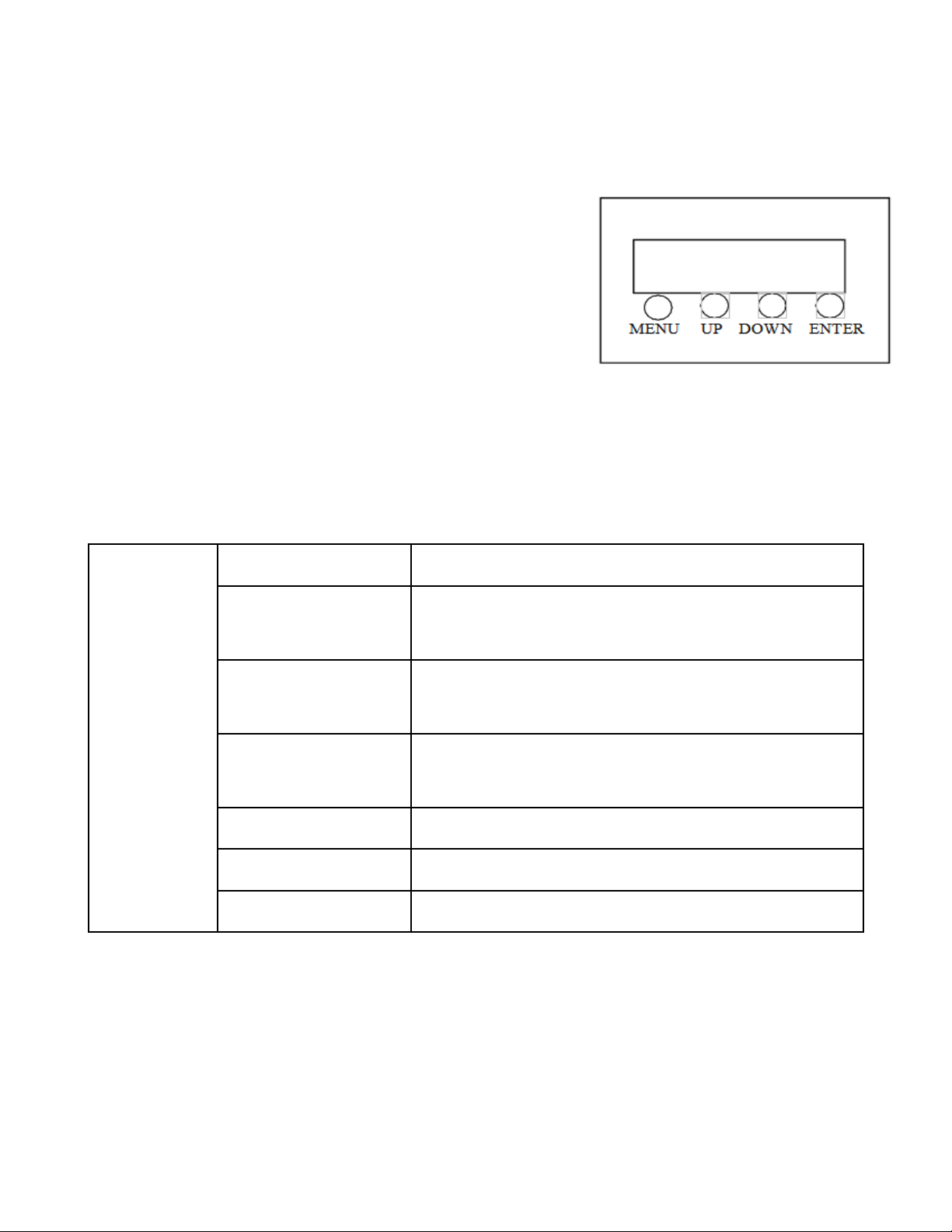

Using the LCD Menu and Buttons
Turn on the light, ress the MENU button to enter the menu
mode, use the UP and DOWN buttons to find the menu,
When the reset menu is dis layed on the dis lay screen,
ress the ENTER button to confirm, use the UP and DOWN
buttons to select the sub menu, ress the ENTER button to
save the settings or automatically return to the revious
menu.
Press the MENU button to return, or wait for one minute and then exit the menu mode
automatically. When there is no ower connection, ress the UP button for 1 minute to enter
the menu mode. After setting, ress MENU button to return to the revious menu.
Menu O eration
MENU A001 Set DMX Address, 1-512
CC99 Automated programs, color chasing. Up/Down
keys change speed from 01-99.
DE99 Automated programs, color pulsing. Up/Down keys
change speed from 01-99.
BE00 Automated programs, sound-active mode.
Up/Down keys change sensitivity from 01-99.
W255 White Dimmer (Manual Mode) 000-255
F255 Linear Zoom (Manual Mode) 000-255
N000 Strobe (Manual Mode) 000-255
Luxé Rosé XT 200Z VW AMMA LED Vision Page 6 of 12

DMX Setu
DMX Basics
DMX512 stands for digital multiplex 512. This means that 512 channels are controlled
digitally through 1 data cable.
A channel is a set of 255 steps that are assigned to control attributes in each light. This
may be a color like red, green or blue, and intensity, strobe, pan/tilt or other attributes.
Multiple sets of 512 “universes” may be used. Only 1 universe will travel on a DMX cable,
but through networked DMX (Art-Net or sACN E1.31), many universes can travel over a
network.
DMX Wiring
DMX works by connecting 1 or multiple lights to the output of a DMX lighting console or
software with a DMX interface.
DMX lights connect in what is called a “daisy-chain”. Your first DMX cable will plug it’s
male DMX connector into the female DMX connector on your lighting console. The
remaining female connector will then connect to the DMX input on your first light.
You may then connect your next fixture to the output of your first light, and continue the
chain.
Luxé Rosé XT 200Z VW AMMA LED Vision Page 7 of 12

32 Fixture Rule – DMX only allows you to connect up to 32 fixtures in a single daisy
chain for signal strength. Sometimes, depending on the fixtures and cable length, this
number is less (or more).
DMX Cables can be 3-pin or 5-pin. These use the same type of data, and in the 5-pin
only pins 1, 2, and 3 are used. The cable should be a 2 conductor, shielded cable of at
least 110 ohms resistance. Microphone cable is not DMX cable.
Please refer to the diagram below:
For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, it is recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise and reflections. The DMX
terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,
which is then plugged into the output XLR socket of the last fixture in the chain. Please
see illustrations below:
Luxé Rosé XT 200Z VW AMMA LED Vision Page 8 of 12

DMX Modes and Configuration
The Luxé Rosé XT 200Z VW offers a 7 channel DMX mode.
DMX Channel Mode Sheet:
7CH Function Channel Value Descri tion
1 Master Dimmer 0-255 Master Intensity Control
2 Warm White 0-255 Warm White Control
3 Cool White 0-255 Cool White Control
4 Color
Tem erature
Presets
0-15 No Function
16-30 3000k Color Tem erature
31-45 3200k
46-59 3400k
60-74 3600k
75-89 3800k
90-104 4000k
105-119 4200k
120-134 4400k
135-149 4600k
150-164 4800k
165-179 5000k
180-194 5200k
195-209 5400k
210-224 5600k
225-240 5800k
240-255 6000k
5 Strobe 0-255 Strobe, 0-25hz
6 Zoom 0-255 Zoom Control, 5°-60°
Luxé Rosé XT 200Z VW AMMA LED Vision Page 9 of 12

3. Maintenance
Routine Maintenance
The cleaning of lens must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smokey, or
particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s
optics.
• Clean with a damp, soft cloth..
• Always dry the parts carefully.
• Clean the external optics at least every 20 days in demanding environments.
Troubleshooting Problems
The following are a few common problems that may occur during operation. Here are
some suggestions for easy troubleshooting:
A. The unit does not work:
•Check that the unit is plugged in to a working power connector.
•Press the menu button to confirm that the unit is powered on. If the screen does
not light up, the unit has no power.
B. Not Res onding to the DMX Controller
•Check DMX cables to verify that they are plugged in and functional.
•Check the DMX address and mode – does it match the address and mode patched
in the lighting console or software?
•Plug the light directly into the DMX controller with a cable that you know is good.
Unplug all other lights – does it work?
•Try to use another DMX controller.
Luxé Rosé XT 200Z VW AMMA LED Vision Page 10 of 12

4. Technical S ecifications
•Voltages: AC 100V-240V，50/60Hz
•Power Consumption: 250W@230V
•LED: Light Source: 200W Cool White & Warm White COB Led Quantity: 1pcs
•Manufacturers Rated LED Life 50000 Hours
•Colors: linear color mixing with Macro
•Dimmer: 0-100% linearly adjustable
•Strobe: Electronic Strobe 0-25hz
•Zoom Angle: 5 -60°
•Control: DMX512, 3 pins interfaces RDM Control Protocol
•3 Channels in standard mode Master/Salve Synchronous
•Control Mode: DMX512 / Master-Slave / Auto / Sound
•Housing: Cast aluminum, IP20 Indoor
•Working Environment: -10°C-40°C
•Box Dimension: Inner: 300*300*510mm (CONVERT)
•Fixture Dimension 280*185*380mm
•Net weight : 7.50Kg
Luxé Rosé XT 200Z VW AMMA LED Vision Page 11 of 12

Photometric Re orts
Zoom Out (60°)
Photometric Data FC Full – 3900k FC Warm White –
2950k
FC Cool White - 5700k
10’ 108 56 57
15’ 49 26 25
20’ 29 15 14
25’ 21 11 11
Zoom In (5°)
Photometric Data FC Full – 3900k FC Warm White –
2950k
FC Cool White - 5700k
10’ 710 360 380
20’ 193 98 102
25’ 130 66 68
30’ 88 45 46
Luxé Rosé XT 200Z VW AMMA LED Vision Page 12 of 12
