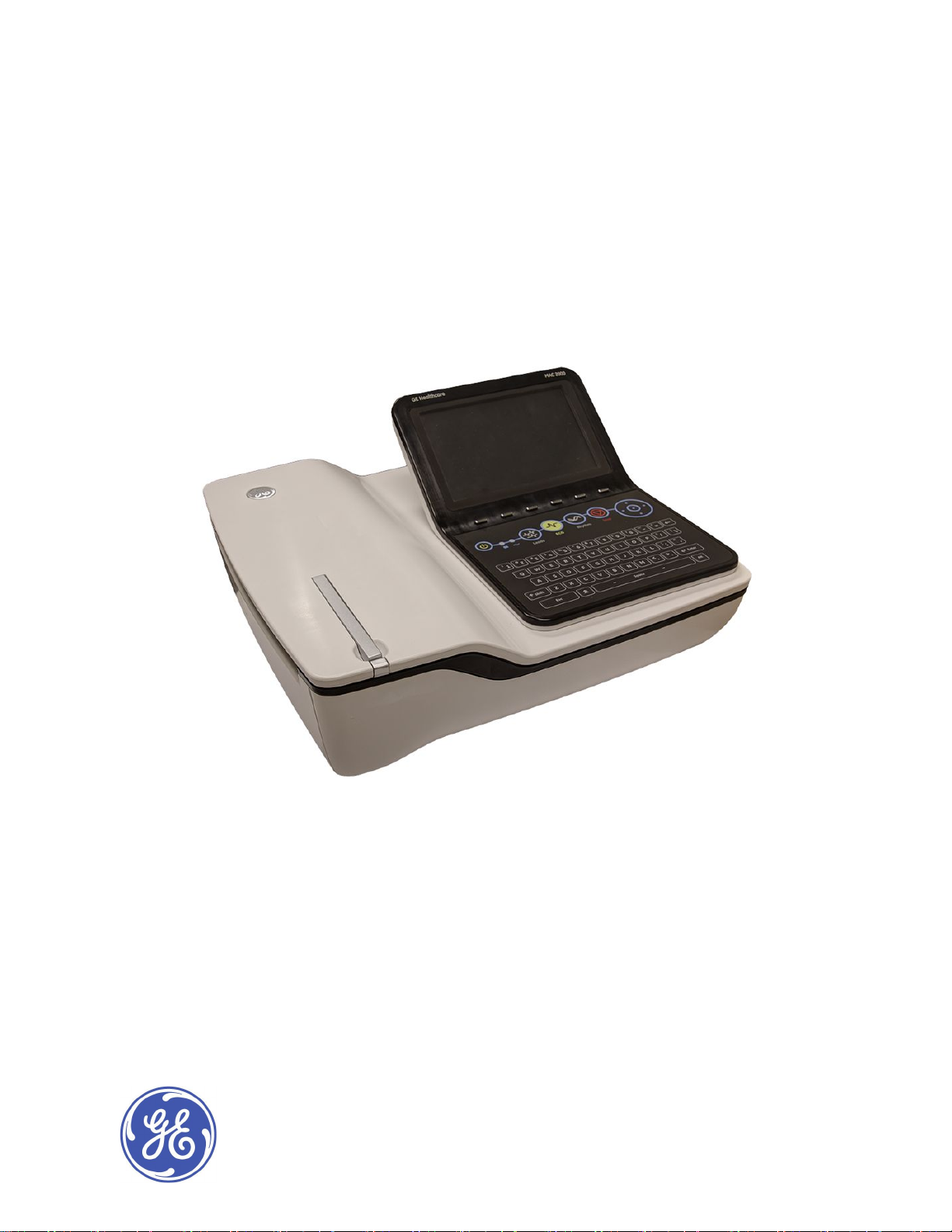

MAC™2000ECGAnalysisSystem
SuppliesandAccessories
ReferenceGuide
2053535-004RevisionD
English
©2013-2014GeneralElectricCompany.
AllRightsReserved.

PublicationInformation
TheinformationinthismanualappliesonlytoMAC™2000.Duetocontinuingproductinnovation,specicationsinthismanualaresubjectto
changewithoutnotice.
MACisatrademarkownedbyGEMedicalSystemsInformationTechnologies,Inc.,aGeneralElectricCompanygoingtomarketasGE
Healthcare.Allothertrademarkscontainedhereinarethepropertyoftheirrespectiveowners.
Thisproductcomplieswiththerequirementsconcerningmedicaldevicesfromthefollowingregulatorybodies:
Thedocumentpartnumberandrevisionareoneachpageofthedocument.Therevisionidentiesthedocument’supdatelevel.Therevision
historyofthisdocumentissummarizedinthefollowingtable.
RevisionDateComments
A17October2012Internalrelease
B19April2013Customerrelease
C19August2013Allreferencestothesoftwareversionnumberwereremovedfromthemanual
perSPRHCSDM00229788.
D31January2014AddedCEmarkinformationtoPublicationInformationandonbackpage;added
sentenceinChapter2,Supplies&Accessories,notingthatCEinformationison
individualitempackagingandlabeling:perSPRHCSDM00264047.
ToaccessotherGEHealthcareDiagnosticCardiologymanuals,gototheCommonDocumentationLibrary(CDL),locatedat
www.gehealthcare.com/documents,andclickCardiology.
ToaccessOriginalEquipmentManufacturer(OEM)manuals,gotothedevicemanufacturer'sWebsite.
2MAC™2000ECGAnalysisSystem2053535-004D
31January2014

Contents
1Introduction
OrderingInformation..................................................................................5
RegulatoryandSafetyInformation.............................................................6
SafetyMessages.......................................................................................7
2SuppliesandAccessories
Supplies.......................................................................................................9
Accessories...............................................................................................10
3Maintenance
Cleaning,Disinfecting,andStoringECGCablesandLeadwires................17
CleaningGuidelines..................................................................................17
CleaningandDisinfectingCablesandLeadwires..............................................18
StoringCablesandLeadwires.....................................................................19
Cleaning,Disinfecting,andSterilizingReusableElectrodes.....................19
ReplacingLeadwireAdapters...................................................................20
PaperMaintenance...................................................................................21
ReplacingPaper......................................................................................21
StoringThermalPaper...............................................................................22
2053535-004DMAC™2000ECGAnalysisSystem3

4MAC™2000ECGAnalysisSystem2053535-004D

1
Introduction
QualitysuppliesandaccessoriesforyourGEHealthcaredeviceplayanimportantrole
inensuringthatyoursystemperformsatthehighlevelyouhavecometoexpect
fromGEHealthcare.
UsethismanualasyourguidefortheGEHealthcaresuppliesandaccessoriesthat
haveprovencompatibilitywithyourdevice.Fromelectrodes,cables,andleadwires
torecordingpaper,youcanbeassuredthateachproductlistedwastestedand
validatedwiththedevice,enablingyoursystem'sperformancetoberepresentativeof
GEHealthcare'squality.
YoucanrelyonGEHealthcareasyourtrustedsourceforsuppliesandaccessories
afteryouroriginalpurchaseandthroughoutthelifeofyoursystem.
Additionalinformationregardingtheuseofsuppliesandaccessorieswiththisdevice
maybefoundintheproductoperatormanualortheinstructionsforuseofthe
particularsupplyoraccessory.
OrderingInformation
Theavailabilityofsuppliesandaccessoriesvariesbycountry.Contactyourlocal
GEHealthcarerepresentativetocheckontheavailabilityofselectedsuppliesand
accessoriesinyourregion.
AmericasAsiaPacic
NorthAmerica
T:1–800–558–7044,option#2
F:1–800–421–4841
msdcarhardcopyor[email protected]
Australia
T:[phone]
F:[phone]
[e-mail]
CanadaandLatinAmericaforVSDProducts
T:1–800–932–0760
F:1–973–956–5437
[email protected]
India
T:[phone]/25/26
F:[phone]
2053535-004DMAC™2000ECGAnalysisSystem5

Introduction
CanadaforGELegacyProducts
T:1–800–668–0732,option#3
F:1–888–988–6822
[email protected]
Japan
T:[phone]
Korea
T:[phone]
AssociationofSoutheastAsianNations
T:[phone]
Europe
Denmark
T:[phone]
F:[phone]
[email protected]
Norway
T:[phone]
F:[phone]
Finland
T:[phone]
T:[phone]
F:[phone]
[email protected]
Russia
T:[phone]
F:[phone]
France
T:[phone]
F:[phone]
[email protected]
Spain
T:(0034)902100163
F:(0034)902100178
[email protected]
Germany
T:[phone]
F:[phone]
Sweden
T:[phone]
F:[phone]
[email protected]
Italy
T:(0039)0226001622
F:(0039)0226001625
Turkey
T:[phone]
F:[phone]
Netherlands
T:[phone]
F:[phone]
[email protected]
UnitedKingdom
T:[phone]
F:uk.customersalesof[email protected]
[email protected]
RegulatoryandSafetyInformation
Thissectionprovidesinformationaboutthesafeuseandregulatorycomplianceofthe
suppliesandaccessoriesforthissystem.Familiarizeyourselfwiththisinformation,
andreadandunderstandallinstructionsbeforeattemptingtousethesesupplies
andaccessories.
6MAC™2000ECGAnalysisSystem2053535-004D

Introduction
SafetyMessages
WARNING:
PATIENTSAFETY/EQUIPMENTFAILURE—Usingunauthorizedsuppliesor
accessoriescanresultinpatientinjuryorequipmentfailure.
Toensurepatientsafety,useonlysuppliesandaccessoriesmanufacturedor
validatedbyGEHealthcareandrecommendedforusewiththisdevice.
Parts,supplies,andaccessoriesmustmeettherequirementsoftheapplicable
safetystandards.Thesystemcongurationmustmeettherequirementsofthe
IEC60601/EN60601-1MedicalElectricalSystemsstandard.Usingaccessory
equipmentthatdoesnotcomplywiththeequivalentsafetyrequirementsofthis
equipmentmayleadtoareducedlevelofsafetyoftheresultingsystem.
Whenchoosingaccessories,considerthefollowing:
•Useoftheaccessoryinthepatientvicinity.
Patientvicinityisdenedasaspace,withinalocationintendedfortheexamination
andtreatmentofpatients,extending1.83m(6ft.)beyondthenormallocationof
thebed,chair,table,treadmill,orotherdevice(s)supportingthepatientduring
examinationandtreatment,andextendingverticallyto2.5m(8ft.,2.4in.)above
theoor.
•Evidencethatthesafetycerticationoftheaccessorywasperformedinaccordance
withtheappropriateIEC60601/EN60601-1standard(s).
ContactGEHealthcareforinformationbeforeconnectingthedevicetoany
accessoriesthatarenotrecommendedinthismanual.
2053535-004DMAC™2000ECGAnalysisSystem7

Introduction
8MAC™2000ECGAnalysisSystem2053535-004D

2
SuppliesandAccessories
Thischapteridentiessuppliesandaccessoriesthatareapprovedforusewith
yoursystem.Seeindividualsuppliesandaccessoriespackagingandlabelingfor
CEmarkinginformation.
Supplies
Paper
PartNumberDescription
2009828-061GEPremiumThermal-SensitiveChartPaper,RedGridBlank
InterpretationArea,8.43inx11in.(214.2mmx279.4mm)
Sheet,Z-fold,QueueHole,150sheets/pack,16packs/case,2400
sheets/case.
2020314-001GEPremiumThermal-SensitiveChartPaper,FullPageRedGrid,A4,
210mmx295mm(8.26inx11.61in.)Sheet,Z-fold,QueueMark,
150sheets/pack,10packs/case,1500sheets/case
22616605GEContrastThermal-SensitiveChartPaper,FullPageRedGrid,A4,
210mmx295mm(8.26inx11.61in.)Sheet,Z-fold,QueueMark,
150sheets/pack,10packs/case,1500sheets/case
22616606GEContrastThermal-SensitiveChartPaper,FullPageRedGrid,
216mmx280mm(8.5inx11in.)Sheet,Z-fold,QueueMark,150
sheets/pack,10packs/case,1500sheets/case
22616611GEArchivistThermal-SensitiveChartPaper,FullPageRedGrid,A4,
210mmx295mm(8.26inx11.61in.)Sheet,Z-fold,QueueMark,
150sheets/pack,10packs/case,1500sheets/case
Creams,Gels,Sprays,Pads
PartNumberDescription
2034731-002ElectrodeGel,250mlbottle,4/case
2034741-002EpicontCream,250mlbottle,4/case
2046978-001ElectrodeCream,250mlbottle,4/case
21708318ElectrodeCream,250mlbottle
21730701ElectrodeContactSpray,200mlbottle
2053535-004DMAC™2000ECGAnalysisSystem9

SuppliesandAccessories
Creams,Gels,Sprays,Pads(cont'd.)
PartNumberDescription
21730702ElectrodeContactSpray,200mlbottle,10/box
21730705ElectrodeContactSpray,2L
401210-001Signacreme®ElectrodeCream,5ozbottle,12/case
401210-003Signacreme®ElectrodeCream,70ozbottlew/pump
Accessories
Electrodes,Non-polarizing
PartNumberDescription
2014780-001SilverTRACEECGElectrodes,SoftStressPS50MO,foamround,wet
gel,30/pouch,300/box
2014783-001SilverTRACEECGElectrodes,WindowP50TR,cleartaperound,solid
gel,30/pouch,300/box
2014784-001SilverTRACEECGElectrodes,WindowP50TR,cleartaperound,solid
gel,5/strip,300/box
2014785-001SilverTRACEECGElectrodes,WindowP50TR,cleartaperound,solid
gel,7/strip,350/box
2014786-001SilverTRACEECGElectrodes,FirstCarbonP28MOC,foamrectangle,
wetgel,carbonsnap,30/pouch,300/box
2046545-001ECGElectrode,WetGelP28MOC,SilverTRACEElectrodes,30/pack
21714401SuctionBulbElectrode,ThoraxElectrode
402207-810BabyMACElectrodes,RestingECGElectrodes,10/card,50/pack,
500/case
42101600SuctionBulb32x33rubberblue
900703-805SilverTRACEAg/AgClElectrodes,AdultHolter/StressElectrode,Foam
Oval,WetGel,5/pkg,150/box,600/case
900703-830SilverTRACEAg/AgClElectrodes,AdultHolter/StressElectrode,Foam
Oval,WetGel,30/pouch,300/case
91920031SilverTRACEECGElectrodes,SoftP55MO,foamround,wetgel,
25/pouch,200/box
9623-810SilverMactrodeRestingECGElectrodes,10/card,100/pack,
1000/case
9623-810PSilverMactrodePlusRestingECGElectrodes,10/card,100/pack,
1000/case
Leadwires
PartNumberDescription
2001925-003CAM14ECGLeadwire,Universal,40in(102cm)
2001925-004CAM14ECGLeadwire,Universal,51in(130cm)
10MAC™2000ECGAnalysisSystem2053535-004D

SuppliesandAccessories
Leadwires(cont'd.)
PartNumberDescription
2001925-005CAM14ECGLeadwire,Universal,26in(66cm)
2001925-006CAM14ECGLeadwire,Universal,36in(90cm)
2016032-001CAM14LeadwireSet,DedicatedBanana,AHA,10/set,mixed
lengths
2016032-002CAM14LeadwireSet,DedicatedBanana,IEC,10/set,mixedlengths
2020558-001CAM14ECGLeadwire,DedicatedBanana,AHA,36in(90cm),RA
2020558-002CAM14ECGLeadwire,DedicatedBanana,AHA,36in(90cm),LA
2020558-003CAM14ECGLeadwire,DedicatedBanana,AHA,40in(102cm),LL
2020558-004CAM14ECGLeadwire,DedicatedBanana,AHA,40in(102cm),RL
2020558-005CAM14ECGLeadwire,DedicatedBanana,AHA,26in(66cm),V1
2020558-006CAM14ECGLeadwire,DedicatedBanana,AHA,26in(66cm),V2
2020558-007CAM14ECGLeadwire,DedicatedBanana,AHA,26in(66cm),V3
2020558-008CAM14ECGLeadwire,DedicatedBanana,AHA,26in(66cm),V4
2020558-009CAM14ECGLeadwire,DedicatedBanana,AHA,26in(66cm),V5
2020558-010CAM14ECGLeadwire,DedicatedBanana,AHA,26in(66cm),V6
2020559-001CAM14ECGLeadwire,DedicatedBanana,IEC,36in(90cm),R
2020559-002CAM14ECGLeadwire,DedicatedBanana,IEC,36in(90cm),L
2020559-003CAM14ECGLeadwire,DedicatedBanana,IEC,40in(102cm),F
2020559-004CAM14ECGLeadwire,DedicatedBanana,IEC,40in(102cm),N
2020559-005CAM14ECGLeadwire,DedicatedBanana,IEC,26in(66cm),C1
2020559-006CAM14ECGLeadwire,DedicatedBanana,IEC,26in(66cm),C2
2020559-007CAM14ECGLeadwire,DedicatedBanana,IEC,26in(66cm),C3
2020559-008CAM14ECGLeadwire,DedicatedBanana,IEC,26in(66cm),C4
2020559-009CAM14ECGLeadwire,DedicatedBanana,IEC,26in(66cm),C5
2020559-010CAM14ECGLeadwire,DedicatedBanana,IEC,26in(66cm),C6
38401765ECGLeadwireSetwithResistance,Banana,IEC,10/set,mixed
lengths
38401766ECGLeadwireSetwithResistance,Banana,IEC,NST&NAX,27in
(70cm)
38401816ECGLeadwireSet,Banana,10/set,IEC,mixedlengths
2053535-004DMAC™2000ECGAnalysisSystem11

SuppliesandAccessories
Leadwires(cont'd.)
PartNumberDescription
38401817ECGLeadwireSet,Banana,10/set,AHA,mixedlengths
420101-002CAM14ECGLeadwireSet,Universal,mixedlength,10/set
LeadwireAccessories
PartNumberDescription
401089-003LeadwireOrganizers,43-LSeparators,24-LSeparators
414763-002Multi-LinkLeadwireSeparator,3-L,3/pack
Cables
PartNumberDescription
2029890-001ValueECGCable/Leadwires,10-L,IEC
2029893-001ValueECGCable/Leadwires,10-L,AHA
22336203ConnectioncabletoCardioSys
22338002ConnectioncableforeBike
22339003ConnectioncableforT2000/T2100
22340305ECGCable,14-L,IEC,2.5m(8ft)
22341808ECGCable,Multi-Link,10-L,IEC,2.5m(8ft)
22341809ECGCable,Multi-Link,MAC500/1200,10-L,AHA,3m(10ft)
ECGAdaptersandConnectors
PartNumberDescription
2029891-001ReusableLimbClamps,IEC,4/set
2029892-001ReusableBulbElectrodes,6/set
2029894-001ReusableLimbClamps,AHA,4/set
2056813-010ElectrodeAdapterSet,10/set
900178-001CAM14ECGConnectorSet,Banana,10/set,AHA
900178-002CAM14ECGConnectorSet,Mactrode,10/set,AHA
900178-003CAM14ECGConnectorSet,Grabber,10/set,AHA
900178-101CAM14ECGConnectorSet,Banana,10/set,IEC
12MAC™2000ECGAnalysisSystem2053535-004D

SuppliesandAccessories
ECGAdaptersandConnectors(cont'd.)
PartNumberDescription
900178-102CAM14ECGConnectorSet,Mactrode,10/set,IEC
900178-103CAM14ECGConnectorSet,Grabber,10/set,IEC
KISSAccessories
PartNumberDescription
2024037-001KISSES600Electrodes&Leadwires,Standard,10/set,mixedlengths
2024039-001KISSUpgradeElectrodes&Leadwires,NEHB,2/set,127cm(50in),
Nst,Nax
21612113ElectrodeApplicationSystemKISS10Leadwithoutpump
21612202ElectrodeApplicationSystemKISS12Leadwithoutpump
21732801SuctionElectrode,KISSES600
22341410TrunkCable,KISS,12-LwithTube
22341415Cable,KISS,12-L
30344365Leadwire,KISS,IEC,127cm(50in),C1
30344366Leadwire,KISS,IEC,127cm(50in),C2
30344367Leadwire,KISS,IEC,127cm(50in),C3
30344368Leadwire,KISS,IEC,127cm(50in),C4
30344369Leadwire,KISS,IEC,127cm(50in),C5
30344370Leadwire,KISS,IEC,127cm(50in),C6
30344371Leadwire,KISS,IEC,147cm(57in),F
30344372Leadwire,KISS,IEC,147cm(57in),L
30344373Leadwire,KISS,IEC,147cm(57in),R
30344374Leadwire,KISS,IEC,147cm(57in),N
30344375Leadwire,KISS,IEC,127cm(50in),NST
30344376Leadwire,KISS,IEC,127cm(50in),NAX
30344377SwivelAttachmentArmforKiss
30344419ExtensiontubeforKISSES600Pump,1.5m(5ft)
30344420ErgometerMountingArm,KISS
30344421LeadwireClipAdapter,KISS,fordisposableelectrodes
30344427BlindPlugforKISS
30344434Leadwire,KISS,AHA,127cm(50in),V1
30344435Leadwire,KISS,AHA,127cm(50in),V2
30344436Leadwire,KISS,AHA,127cm(50in),V3
30344437Leadwire,KISS,AHA,127cm(50in),V4
30344438Leadwire,KISS,AHA,127cm(50in),V5
2053535-004DMAC™2000ECGAnalysisSystem13

SuppliesandAccessories
KISSAccessories(cont'd.)
PartNumberDescription
30344439Leadwire,KISS,AHA,127cm(50in),V6
30344440Leadwire,KISS,AHA,147cm(57in),LL
30344441Leadwire,KISS,AHA,147cm(57in),LA
30344442Leadwire,KISS,AHA,147cm(57in),RA
30344443Leadwire,KISS,AHA,147cm(57in),RL
38401584KISSMountingTableKit
38401590KISSLeadwireSet,IEC,10/set,mixedlengths
43252125SuctionDome,KISS
93204775KISSElectrodeFilterDisc,100/bag
BarcodeAccessories
PartNumberDescription
2035979-001BarcodeScanner—English
2035979-002BarcodeScanner—German
2035979-003BarcodeScanner—French
2035979-004BarcodeScanner—Spanish
2035979-005BarcodeScanner—Swedish
2035979-006BarcodeScanner—Italian
2035979-008BarcodeScanner—Dutch
2035979-009BarcodeScanner—Norwegian
2035979-010BarcodeScanner—Danish
2035979-011BarcodeScanner—Czech
2035979-014BarcodeScanner—Hungarian
2035979-016BarcodeScanner—Russian
2035979-017BarcodeScanner—Slovene
14MAC™2000ECGAnalysisSystem2053535-004D

SuppliesandAccessories
BarcodeAccessories(cont'd.)
PartNumberDescription
2035979-018BarcodeScanner—Portuguese
2035979-020BarcodeScanner—Finnish
StorageAccessories
PartNumberDescription
2073012-001CARDSECUREDIGITAL-4GB
PowerCords
PartNumberDescription
401855-001EURO-PWRSPLYCRDRACONTEURO10A250V2.5M
401855-002British-PWRSPLYCRDRABRITSH10A250V2.5MFSD
401855-003Italian-PWRSPLYCRDRAITALIAN10A250V2.5M
401855-004Israel-PWRSPLYCRDRAISRAELI10A250V2.5M
401855-110Australia-PWRSPLYCRDRAAUSTRALIAN10A250V2.5M
401855-018China-PWRCRDSTCHINARAPLUG10A250V2.5M
401855-107Swiss-PWRSPLYCRDSTSWISS10A250V2.5M
401855-108India-PWRSPLYCRDSTINDIAN10A250V2.5M
405535-006US-PWRSPLYCRDRAHOSPGRD13A125V10FT
405535-011Japan-PWRSPLYCRDST-RAPSE10A250V10FT
401855-041Brazil-PWRSPLYCRDSTBRAZIL10A250V2.5M
2053535-004DMAC™2000ECGAnalysisSystem15

SuppliesandAccessories
16MAC™2000ECGAnalysisSystem2053535-004D

3
Maintenance
Thischapterprovidesinformationaboutthemaintenanceoftheaccessoriesused
withyoursystem.
Cleaning,Disinfecting,andStoringECGCables
andLeadwires
Inadditiontokeepingthesystemcleanandingoodrepair,itisimportanttokeepthe
cablesandleadwirescleananddisinfected.Thissectionprovidesinstructionsfor
cleaning,disinfecting,andstoringECGcablesandleadwirestoextendtheirlifeand
protectpatients.Cablesandleadwirescomeintocontactwithpatientsandshouldbe
cleanedanddisinfectedaftereveryuse.
NOTE:
FordeviceswiththeKISSsystem,refertotheKISSoperator'smanualforcleaning
anddisinfectinginformation.
CleaningGuidelines
Observethefollowingguidelineswhencleaninganddisinfectingthecables,leadwires,
andelectrodesforyoursystem.
•Followthecleaninginstructionsexactly.
•Wringexcessdisinfectantfromthewipebeforeusingit.
•Neverimmersethedevice,cables,orleadwiresinanyliquid,asthismaycorrode
metalcontactsandaffectsignalquality.
•Donotallowliquidstocollectaroundtheconnectionpins.Ifthishappens,blotthem
drywithasoft,lint-freecloth.
•Neveruseconductivesolutionsorsolutionsthatcontainchlorides,wax,orwax
compoundstocleanthedevice,cables,orleadwires.
•NeverusesolutionsorproductsthatcontainanytypeofAmmoniumChloridesuch
as,butnotlimitedto:
•DimethylBenzylAmmoniumChloride
•QuaternaryAmmoniumChloridesolutions
•Abrasivecleanersorsolventsofanykind
•Acetone
2053535-004DMAC™2000ECGAnalysisSystem17

Maintenance
•Ketone
•Betadine
•Alcohol-basedcleaningagents
•Sodiumsalts
•Neverautoclaveorsteamcleanthedevice,cables,orleadwires.
•Donotuseanyoftheaccessoriesuntilthoroughlydry.
•DoNOTimmerseeitherendofacableorleadwireconnectorinanysolution.
Immersingorsoakingtheconnectorendsmaycorrodemetalcontactendsand
affectsignalquality.
•DoNOTletliquidscollectaroundtheconnectionpins.
Ifthishappens,blotthemdrywithasoft,lint-freecloth.
CleaningandDisinfectingCablesandLeadwires
Propercleaninganddisinfectingprolongsthelifeofthecablesandleadwires.Failure
tousethepropercleaningsolutionsortofollowtheproperprocedurescanresultin
thefollowing:
•Damageorcorrosion
•Diminishedsignalquality
•Productdiscoloration
•Metalpartcorrosion
•Brittlewiresandconnectors
•Reducedcablesandleadwireslife
•Devicemalfunction
•Voidedwarranty
CleaningtheCablesandLeadwires
Usethefollowingproceduretocleanthecablesandleadwires:
NOTE:
•Whileperformingthefollowingprocedure,usecareincleaningtheleadwires
topreventpullingthewiresfromtheconnectorends,becausethemetal
connectionscanbepulledawayfromtheconnectors.
•Cleaningremovesdirtandmarksbutdoesnotdisinfectthecablesand
leadwires.
1.Removethecablesandleadwiresfromthedevicebeforecleaning.
2.Wipethemwithaclothlightlymoistenedwithamildsolutionofsoapandwater.
Donotuseanyofthefollowingcleaningproducts,orproductsthatcontainthe
sameactiveingredientsandsolutions,whichareknowntocausetheproblems
previouslylisted:
•Sani-Cloth®Wipes
•Ascepti®Wipes
•HBQuat®
18MAC™2000ECGAnalysisSystem2053535-004D

Maintenance
•Clorox®Wipes(theydonotcontainbleach)
•Over-the-counterdetergents(suchasFantastic®,Tilex®,andsoon)
3.Wipethecablesandleadwireswithadry,cleanclothorpapertowelandlet
themairdry.
DisinfectingtheCablesandLeadwires
Usethefollowingproceduretodisinfectthecablesandleadwires:
1.Cleananddrythecablesandleadwiresbeforedisinfectingthem.
See“CleaningtheCablesandLeadwires”onpage18forinstructions.
2.Wipethecablesandleadwireswithasoft,lint-freecloththatismoistenedwith
anappropriatedisinfectant.
Usethefollowingsolutions,asrecommendedinAPICGuidelinesforSelection
andUseofDisinfectants(1996):
•Sodiumhypochlorite(5.2%householdbleach)minimum1:500dilution
(minimum100ppmfreechlorine)andmaximum1:10dilution.
•Anysodiumhypochloritewipeproductthatmeetsthepreviousguidelines.
3.Drythecablesandleadwireswithacleanclothorpapertowelandletthem
airdryforatleast30minutes.
NOTE:
•Dryingtimesvarybasedontheenvironmentalconditions.
•DONOTuseexcessivedryingtechniques,suchasovens,forcedheat,or
sundrying.
StoringCablesandLeadwires
Toensurethatthecablesandleadwiresareinproperworkingorder,usethefollowing
guidelinestostorethemwhennotinuse:
•Storecablesandleadwiresinadry,well-ventilatedarea.
•Hangcablesandleadwiresvertically
•DoNOTcoilcablesorleadwiresaroundthedevice.
Cleaning,Disinfecting,andSterilizingReusable
Electrodes
Cleanreusableelectrodesimmediatelyafterusingthemonapatient.
2053535-004DMAC™2000ECGAnalysisSystem19

Maintenance
CleaningandDisinfectingReusableElectrodes
Usethefollowingproceduretocleananddisinfectthereusableelectrodes:
1.Usewarmwaterandasmallbrushtoremoveanycreamorgelfromthe
electrode.
Donotusepointedorsharpobjectsforcleaning.
2.Disinfecttheelectrodeswithalcohol-freedisinfectant.
Ensurethattheconnectorsandsocketsdonotgetwet.
SterilizingReusableElectrodes
Usethefollowingproceduretosterilizereusableelectrodes:
Theonlyapprovedsterilizationmethodisgassterilization.
1.Sterilizereusableelectrodeswithethyleneoxidegas(EtO)atamaximum
temperatureof50°C(122°F).
2.Aftersterilizationiscomplete,followthemanufacturer'srecommendationsfor
requiredaeration.
ReplacingLeadwireAdapters
Althoughpropercleaningandstorageprolongthelifeofleadwires,youeventually
needtoreplacetheleadwireadapters.Thefollowingillustrationshowstheproper
methodforreplacingadapters.
20MAC™2000ECGAnalysisSystem2053535-004D
