High Resolution 700TVL Cameras
3
Contents
General Features ........................................................................................................................4
Precautions .................................................................................................................................5
Safety Instructions .....................................................................................................................6
How to Set Up the Camera Menu .............................................................................................7
Menu Set Up .............................................................................................................................10
Lens ...........................................................................................................................................11
Exposure ...................................................................................................................................12
White Balance...........................................................................................................................14
Day & Night ...............................................................................................................................15
3DNR..........................................................................................................................................16
Special .......................................................................................................................................17
Adjust.........................................................................................................................................21
Reset..........................................................................................................................................21
Exit .............................................................................................................................................21
Camera Installation ..................................................................................................................22
Specication .............................................................................................................................25
Camera Dimensions.................................................................................................................31
Troubleshooting........................................................................................................................34

High Resolution 700TVL Cameras
4
General Features
• 700TV Lines
The combination of a 960H CCD image sensor and DSP provides an excellent resolution of 700TVL
• 3D-DNR
Smart 3DNR prevents the image blurring of moving object and activates only if moving objects are
appearing on th scene.
• DIS (Digital Image Stabiliser) Function
Stabilises image focus problems caused when the camera is affected by environmental movement e.g.
wind.
• Smart-IR
This technology eliminates IR saturation caused when objects are close to the camera. Smart IR
adjusts IR intensity in proportion to the distance to the object.
• Sens Up
Sens Up enables images to be captured in very low light conditions. Maximum setting is x256.
• Defog
The Defog function improves image clarity if the scene is affected by fog or mist.

High Resolution 700TVL Cameras
5

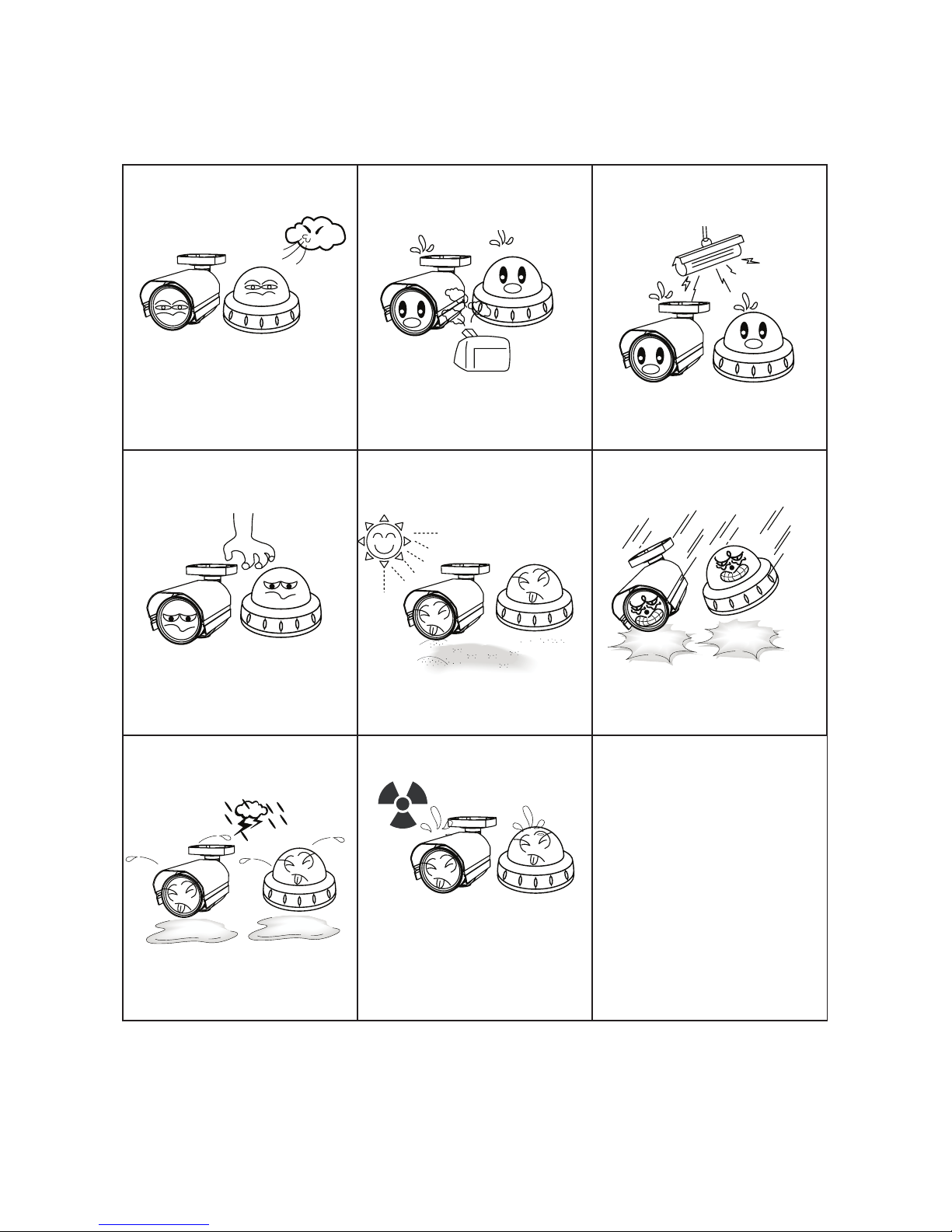

Precautions
Do not install the camera in
extreme temperature
conditions.
Only use the camera under conditions
where temperatures are between
-10°C and +50°C. Be especially careful
to provide ventilation when operating
under high temperatures.
Do not install or use the
camera in an environment
where the humidity is high.
Do not install or use the camera in
an environment where the humidity
is high.
Do not install the camera
under unstable lighting
conditions.
Severe lighting change or flicker can
cause the camera to work improperly.
Do not touch the front lens of
the camera.
Do not expose internal grade
cameras (Mini Domes) to rain
or moisture.
This is one of the most important parts of
the camera. Be careful not to leave
fingerprints on the lens cover.
Never keep the camera
pointed directly at strong
light.
It can cause malfunctions to occur.
Do not drop the camera or
subject it to physical shocks.
Do not expose the camera to
radioactivity.
If it gets wet, wipe dry immediately.
Liquids can contain minerals that
corrode the electronic components.
If exposed to radioactivity the CCD
will fail.
NOTE
• If a camera is exposed to spotlights,
or objects which reflect strong light,
smearing or blooming may occur.
• Please check that the power satisfies
the normal specification before
connecting the camera.

High Resolution 700TVL Cameras
6
Safety Instructions
Precautions for Use
• This camera should only be installed by qualied personnel.
• There are no user serviceabe parts inside.
• Do not disassemble this camera other than to make initial adjustments.
• Use appropriate low voltage power cable to prevent re or electrical shock.
• Please ensure your installation area can support the weight of the camera.
Please handle this Camera carefully
• Do not use strong or abrasive detergents when cleaning the camera.
• Do not expose the camera to direct sunlight.
• Do not install the camera in places where humidity is high.
• Do not install near cooling or heating devices.
• Do not expose an internal grade camera to rain or moisture.

High Resolution 700TVL Cameras
7
How to Set Up the Camera Menu
;-<=85-6= ,-.)=4<;-<
*:1/0<6-;; f4M^MT;MTMK\IJTM
16,77:
7=<,77:
5)6=)4
;0=<<-:
,-.)=4<
/)16
,-.)=4<
47?4->-4
01/04->-4
47?4->-4
01/04->-4
)<?
)?*
)?+&;-<
*4=-
:-,
+747=:
*=:;<
>)4=-
;<):<,-4)A
-6,,-4)A
,-4)A
,&6)/+
6&,)/+
)=<7
f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
:-<=:6 :-<
;)>--6,
-@<
f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
:-<=:6 :-<
;)>--6,
7..
1:,?,:7..
f4M^MT;MTMK\IJTM
:-<=:6 :-<
;)>--6,
,)A61/0<
*?
767..
1:;5):<
f4M^MT;MTMK\IJTM
):-)
87;1<176
;1B-
:-<)/)16
?01<-*)4
5)6=)4
f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
:-<=:6 :-<
;)>--6,
:-<=:6 :-<
;)>--6,
,?,:
7..
16,77:
:-<=:6 :-<
;)>--6,
7=<,77:
f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
:-<=:6 :-<
;)>--6,
:-<=:6 :-<
;)>--6,
f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
)/)16
:-<=:6 :-<
;)>--6,
0;*4+
f 4M^MT;MTMK\IJTM
57,- )44,)A
61/0<764A
*4+
7..
*4+
>)4=-
47?
51,,4-
01/0
):-)
87;1<176
;1B-
;-6;-=8 )=<7
;-6;=8`f`4M^MT;MTMK\IJTM
:-<=:6 :-<
7..
```` ```````` `)=<7.43

)/+
7..
47?
51,,4-
01/0
:-<
;)>--6,
-@87;=:-
;)>--6,
5-6=
4-6;
,+ 57,-
:-<=:6
Setup Menu

High Resolution 700TVL Cameras
8
7..
4->-4
.:--B-
:)6/-`f`;MTMK\IJTM
8)6f;MTMK\IJTM
<14< f;MTMK\IJTM
:-<
;)>--6,
:)6/-`f`;MTMK\IJTM
87;1<1764-.<:1/0<=8,7?6
;-6;1<1>1<Af4M^MT;MTMK\IJTM
<15- f4M^MT;MTMK\IJTM
:-<
;)>--6,
,1;
6-/15)/-
):-)
87;1<176
;1B-
:-<)/)16
>)4=-
57<176>1-?
):-) f ;MTMK\IJTM
<784-.<
<78:1/0<
*<54-.<
*<5:1/0<
87;1<176
:-<)/)16
+747=:
<:)6;8):
;-6;=8
,1..
<0:-;074,
;<):<
7..
4->-4
+747=:/)16
-,/-/)16
/)55)
,-<-+<4->-
f4M^MT;MTMK\IJTM
:-<=:6 :-<
;)>--6,
:-<=:6 :-<
-6,
,-.7/
5)6=)4
f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
=;-:f4M^MT;MTMK\IJTM
:-<=:6 :-<
;)>--6,
)=<7
,-.-+<
`f` 4M^MT;MTMK\IJT
f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
:-<=:6 :-<
;)>--6,
f4M^MT;MTMK\IJTM
f;MTMK\IJTM
:-<=:6 :-<
;)>--6,
7..
:-<=:6 :-<
;)>--6,
7..
8:1>)+A76
):-),1;84)A
76
7..
f;MTMK\IJTM
57<176 76
f;MTMK\IJTM
):-),1;84)A
76
7..
f4M^MT;MTMK\IJTM
767..
767..
767..
:-<=:6 :-<
;)>--6,
7..
,B775 76
:-<=:6
7..
;5):<,B775
7..
76
:-<=:6
;8-+1)4
+)5<1<4- 76
7..
,-..-+<
767..
51::7:
51::7:
>.418
:7<)<-
,6: f4M^MT;MTMK\IJTM
:-<
;)>--6,
:-<=:6
76

High Resolution 700TVL Cameras
9
;0):86-;;
/)55)
4->-4
*4=-/)16
:-,/)16
/)55)
4->-4
*4=-/)16
:-,/)16
4->-4
*4=-/)16
:-,/)16
.)+<7:A
-@1<
:-;-<
:-;-<
:-<=:6 :-<
;)>--6,
+:<
f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
:-<=:6 :-<
;)>--6,
;)>--6,
=;-:
=;-:f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
:-<=:6 :-<
;)>--6,
),2=;<
f4M^MT;MTMK\IJTM
5761<7:
4+,
=;-:f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
f4M^MT;MTMK\IJTM
:-<=:6 :-<

High Resolution 700TVL Cameras
10
Menu Set Up
Menu settings can be selected using the buttons inside the camera.
1. Press the SET button.
* The Set Up menu will be displayed on the monitor.
2. Move and select the required function using the Up and Down buttons.
3. Change menu settings using the Left or Right buttons.
* Available values are displayed by pressing the Left and Right buttons.
Press the buttons until the desired value is displayed.
4. After altering the setting, move the cursor to EXIT and press the SET button to exit.
NOTE
* Move to the available submenu by moving arrow to desired feature.
* A submenu is not available when this symbol is displayed “---”.

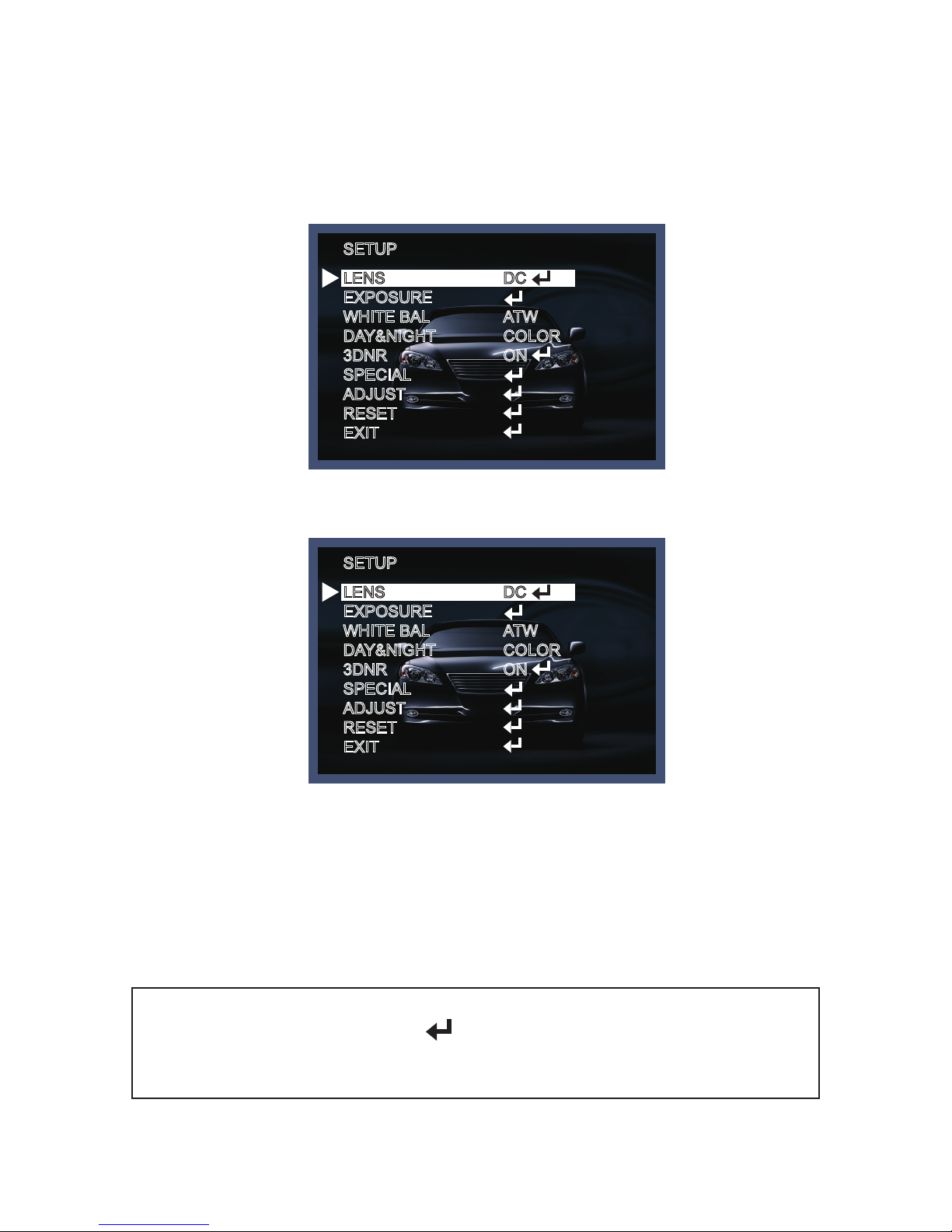

SETUP
LENS
EXPOSURE
WHITE BAL
DAY&NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DCAUTO
ATW
COLOR
ON
SETUP
LENS
EXPOSURE
WHITE BAL
DAY&NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DCAUTO
ATW
COLOR
ON

High Resolution 700TVL Cameras
11
Lens

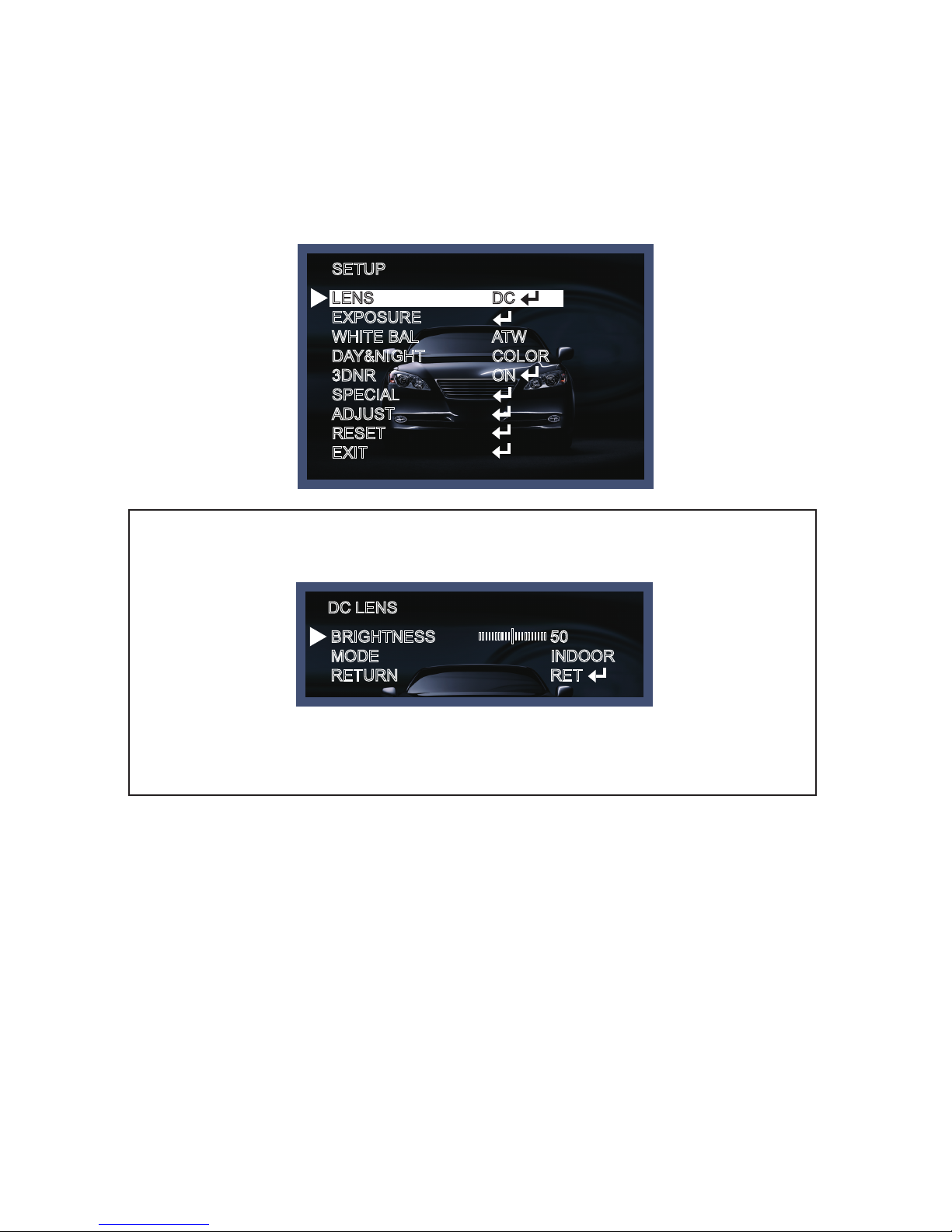

This function adjusts the brightness of the image being displayed on the monitor.
1. Move the cursor to LENS using the Up and Down buttons on the Set Up menu screen.
2. Select the desired lens type by pressing the Left or Right button.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY&NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DCAUTO
ATW
COLOR
ON
NOTE
* When DC is selected, the brightness control range is 1~100.
* When you select the mode setup, you can select INDOOR or OUTDOOR depending on the
installation environment.
DC LENS
BRIGHTNESS
MODE
RETURN
50
INDOOR
RET
IIIIIIIIII IIIIIIIIII|

High Resolution 700TVL Cameras
12
Exposure
1. On the Set Up menu, Select EXPOSURE using the Up or Down buttons.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY&NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DC
ATW
COLOR
ON
2. Select the desired shutter mode by pressing the Left or Right button.
EXPOSURE
SHUTTER
AGC
SENSE-UP
BLC
D-WDR
RETURN
AUTO
MID
AUTO
OFF
OFF
RET
• Electronic Shutter: DC Lens is set by default to 1/50 and Manual is defaulted to the Auto shutter
setting, but can be adjusted from 1/50 to 1/100,000. Sens Up does not work when in Manual.
• AGC (Auto Gain Control): The higher the AGC level is, the more noise will appear.
- Off: Deactivated
- Low: 28dB Gain is applied.
- Mid: 32dB Gain is applied.
- High: 36dB Gain is applied.
- DIS (Digital Image Stabiliser): Select DIS mode if the camera is moving due to an environmental
condition. It stabilises the image. Sens Up does not work when in DIS mode.
NOTE
* Sens Up mode does not work while the Electronic shutter is set to Manual or DIS.

High Resolution 700TVL Cameras
13
• Sens Up: The degree of darkness is automatically sensed and compensated for.
- Off: Deactivated status
- Auto: Sens Up is in automatic mode and the gain is decided by the low luminance level.
SENSE-UP
SENSE-UP
RETURN
x32
RET
NOTE
* Sens Up mode does not work when AGC is off.

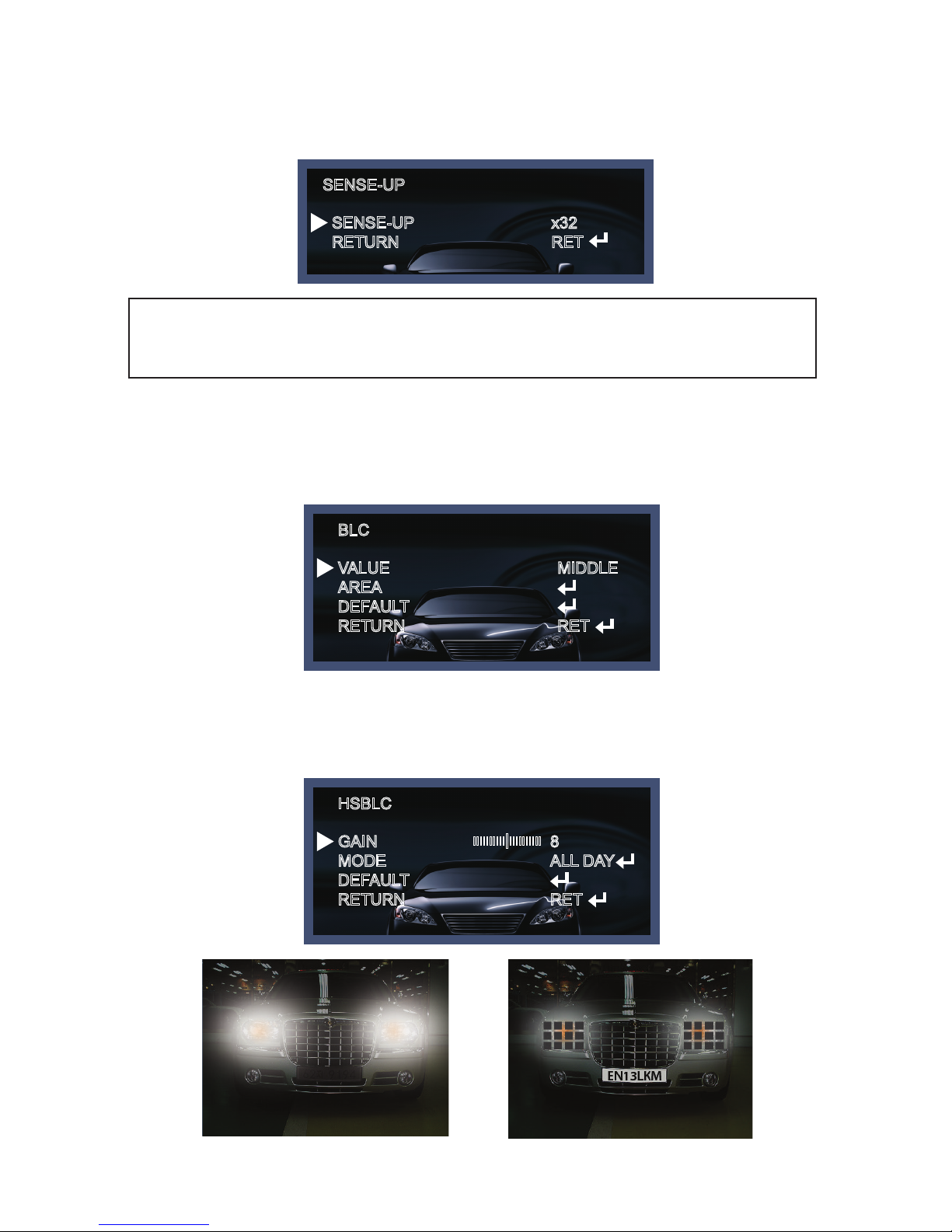

• BLC (Black Light Compensation): The camera is equipped with 3D-DNR which provides intelligent
light level control to overcome strong backlit conditions.
- Off: Deactivated status
- BLC: The BLC area can be set by the user to compensate for backlit installation environments.
- HSBLC: If the scene contains an extremely bright light source, such as car headlights, HSBLC can
be used to mask them. This is especially useful for number plate recognition.
BLC
VALUE
AREA
DEFAULT
RETURN
MIDDLE
RET
HSBLC
GAIN
MODE
DEFAULT
RETURN
8
ALL DAY
RET
IIIIIIIIII IIIIIIIIII|
Normal HSBLC

High Resolution 700TVL Cameras
14
• D-WDR: This camera has 3D-DNR which provides intelligent light level control even when strong
backlight is present.
- Off: Deactivated status.
- Indoor Compensation: To be used when the camera is installed internally.
- Outdoor Compensation: To be used when the camera is installed externally.
• Return: Save changes and return to the previous menu.
WDR OFF WDR ON
White Balance
Use this function when adjustment of the colour output is needed.

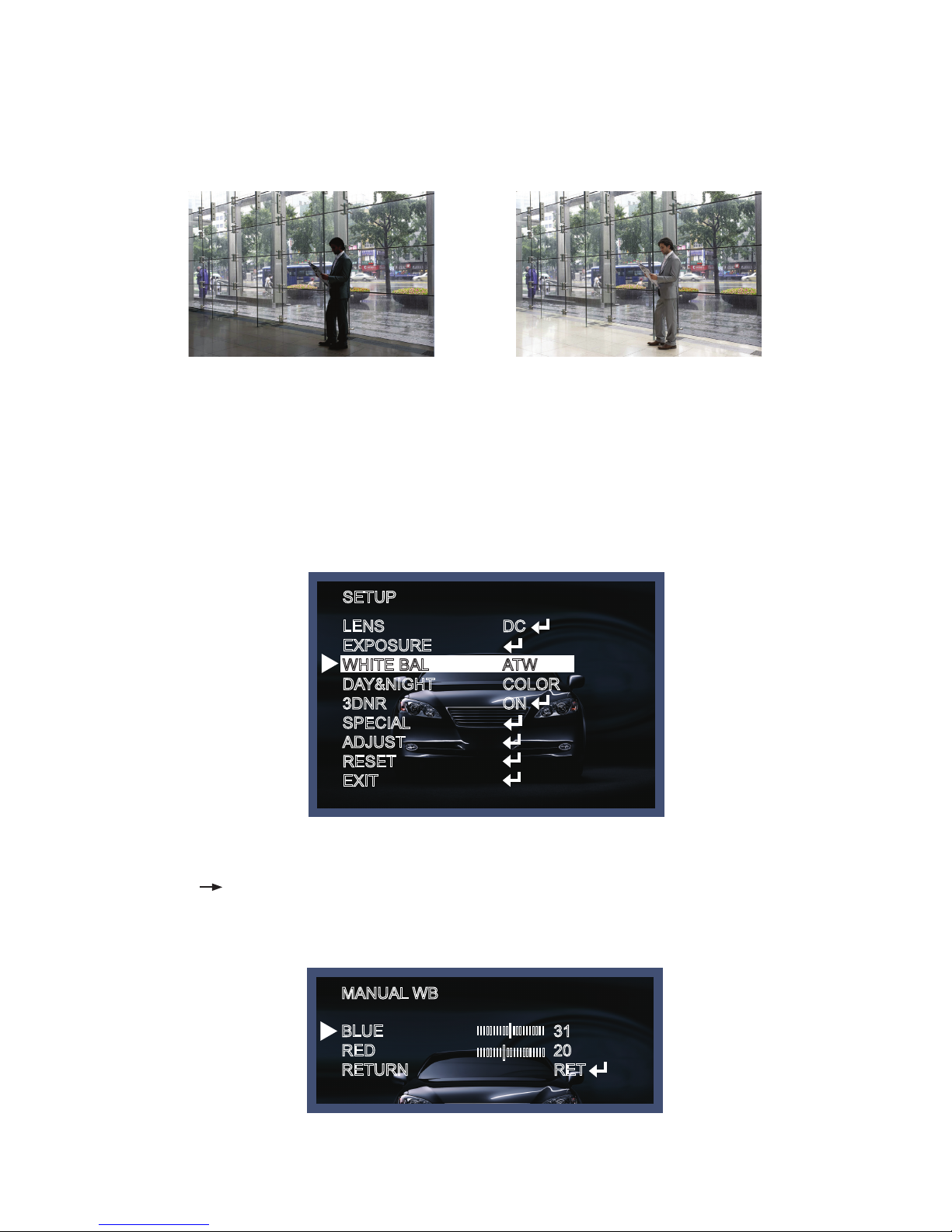

1. Move the triangular cursor to WHITE BAL on the Set Up menus screen, using the Up and Down buttons
2. Select the desired mode using the Left and Right buttons.
Select the most appropriate mode for the prevailing installation conditions.
• ATW: Use this mode when the colour temperature is from 1,800K to 10,500K.
• AWB: Use this mode when the colour temperature is from 3,000K to 7,000K.
• AWC SET: Direct and focus the camera toward a blank white sheet of paper and press the SET
button. If the lighting conditions change re-calibration will be required.
• Manual: Manual setting allows for more detailed colour control. First adjust the white balance using
either ATW or AWB. Then change to manual mode and press the SET button.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY&NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DC
ATW
COLOR
ON
MANUAL WB
BLUE
RED
RETURN
31
20
RET
IIIIIIIIII IIIIIIIIII|
IIIIIIII IIIIIIIIIIII|

High Resolution 700TVL Cameras
15
NOTE
White Balance may not work correctly in the following conditions:
* When there is a very high colour temperature within the subject, for example a sunset in a clear sky.
* It is very dark
* If the camera is pointed towards uorescent light, or there is a drastic change in lighting, the White
Balance operation may become unstable.
* In these conditions, AWB mode is recommended.
Day & Night
The Day & Night menu is used to set the camera video output.
1. Select Day & Night using the Up or Down button on the set up menu screen.
2. Select the desired mode using the Left or Right buttons.
• Colour: The video output remains in colour mode at all times.
• B/W: The video output remains in monochrome at all times.
- Burst: Removes the colour element and makes the video output monochrome.
- Smart IR: Eliminates IR saturation caused by objects which are close to the camera. Only for
cameras equipped or used with IR LED’s.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY&NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DC
ATW
COLOR
ON
DAY&NIGHT B/W
BURST
IR SMART
RETURN
OFF
ON
RET
• Auto: Automatically switches to colour during daytime and monochrome at night time, or low light
environments. The switching time is adjustable - both day to night and night to day.
• EXT: Select the mode using the Right or Left button.
DAY&NIGHT AUTO
DELAY
D → N(AGC)
N → D(AGC)
RETURN
5
60
20
RET
IIIIIIIIII IIIIIIIIII|
IIIIIIII IIIIIIIIIIII|
IIII IIIIIIIIIIIIIIII|

High Resolution 700TVL Cameras
16
3DNR
3DNR decreases noise caused by low luminance levels.
1. Move the cursor to 3DNR using the Up and Down buttons.
2. Select the mode using the Right or Left button.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY&NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DC
ATW
COLOR
ON

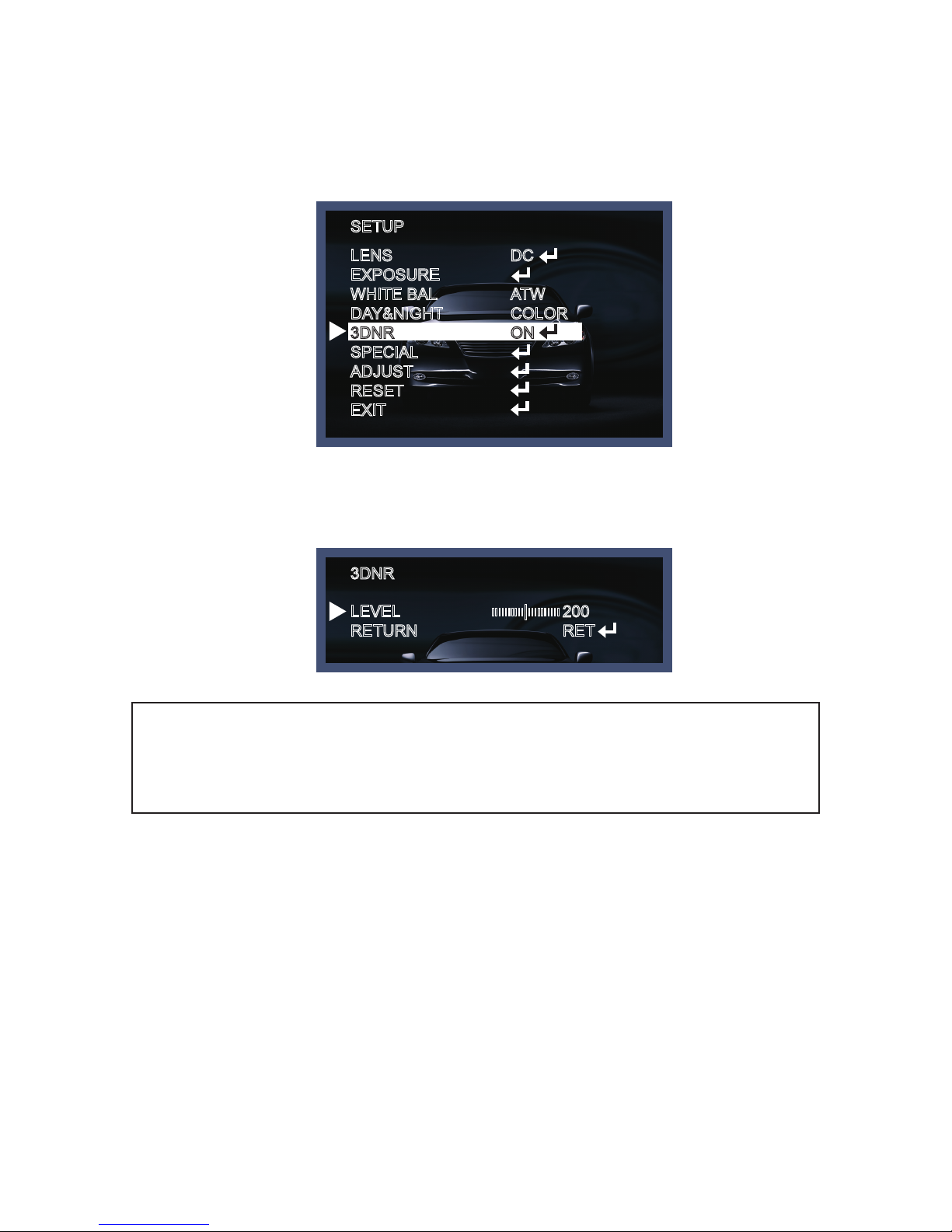

3. The 3DNR level is adjustable from 0~200. Change to On and press the SET button.
• Off: Deactivated status.
• On: The compensation level is 0~200.
3DNR
LEVEL
RETURN
200
RET
IIIIIIIIII IIIIIIIIII|
NOTE
* When the 3DNR function is activated noise cancellation is extremely effective. However, ghosting can
occur if the level is set too high.

High Resolution 700TVL Cameras
17
Special
This menu is used to select additional control functions.
1. When the SETUP menu is displayed, select SPECIAL using the Up and Down buttons.
2. Select one of the modes using the Up and Down buttons.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY&NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DC
ATW
COLOR
ON
SPECIAL
CAM TITLE
D-EFFECT
MOTION
PRIVACY
DEFECT
DEFOG
RETURN
OFF
OFF
OFF
OFF
RET
• CAM (Camera) TITLE: This function is used to display the camera title on the monitor and recorded
footage. Up to 15 alphanumeric characters can be displayed, and positioned, on the screen. Move the
cursor to CAMERA TITLE using the Up and Down buttons and set to On using the left or Right button.
Enter the chosen ID and press the Set button on END to complete the procedure.
CAM TITLE
0 1 2 3 4 5 6 7 8 9
A B C D E F G H I J K
L M N O P Q R S T U V
W X Y Z → ← ↑↓ ( )
α - _ ■ / = & : , .
← → CLR POS END
CAMERA 001
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _
NOTE
* If you need to erase a character, move the cursor on the empty space before the 0. Characters will be
erased, one by one, by pressing the Set button. Selecting the CLR option deletes all characters.

High Resolution 700TVL Cameras
18
NOTE
* When you use the digital zoom, SMART DZOOM and DIS cannot be used.
• D-EFFECT: This function allows the video image to be manipulated.
- FREEZE: Causes the video image to freeze.
- MIRROR: Causes the video image to be reversed vertically or horizontally.
- D-Zoom: Implements a digital zoom of the image with x1~x32 magnication.
D-EFFECT
FREEZE
MIRROR
D-ZOOM
SMART DZOOM
DIS
NEG.IMAGE
RETURN
OFF
OFF
- - -
OFF
- - -
OFF
RET
D-ZOOM
RANGE
PAN
TILT
RETURN
x2.0
0
0
RET
IIIIIIIIII IIIIIIIIII|
IIIIIIIIII IIIIIIIIII|

High Resolution 700TVL Cameras
19
• SMART DZOOM: This function is interlocked with D-ZOOM to distinguish specic objects in greater
detail when movement is detected in programmed areas. This function is much more effective when
used with optical zoom.
- DIS (Digital Image Stabiliser): DIS compensates for slight image movements in the camera moves
because of environmental conditions i.e. wind.
- NEG IMAGE
- ON: Output a negative image.
- OFF: Normal image
- Return: Save and return to the SPECIAL menu.
DIS OFF DIS ON

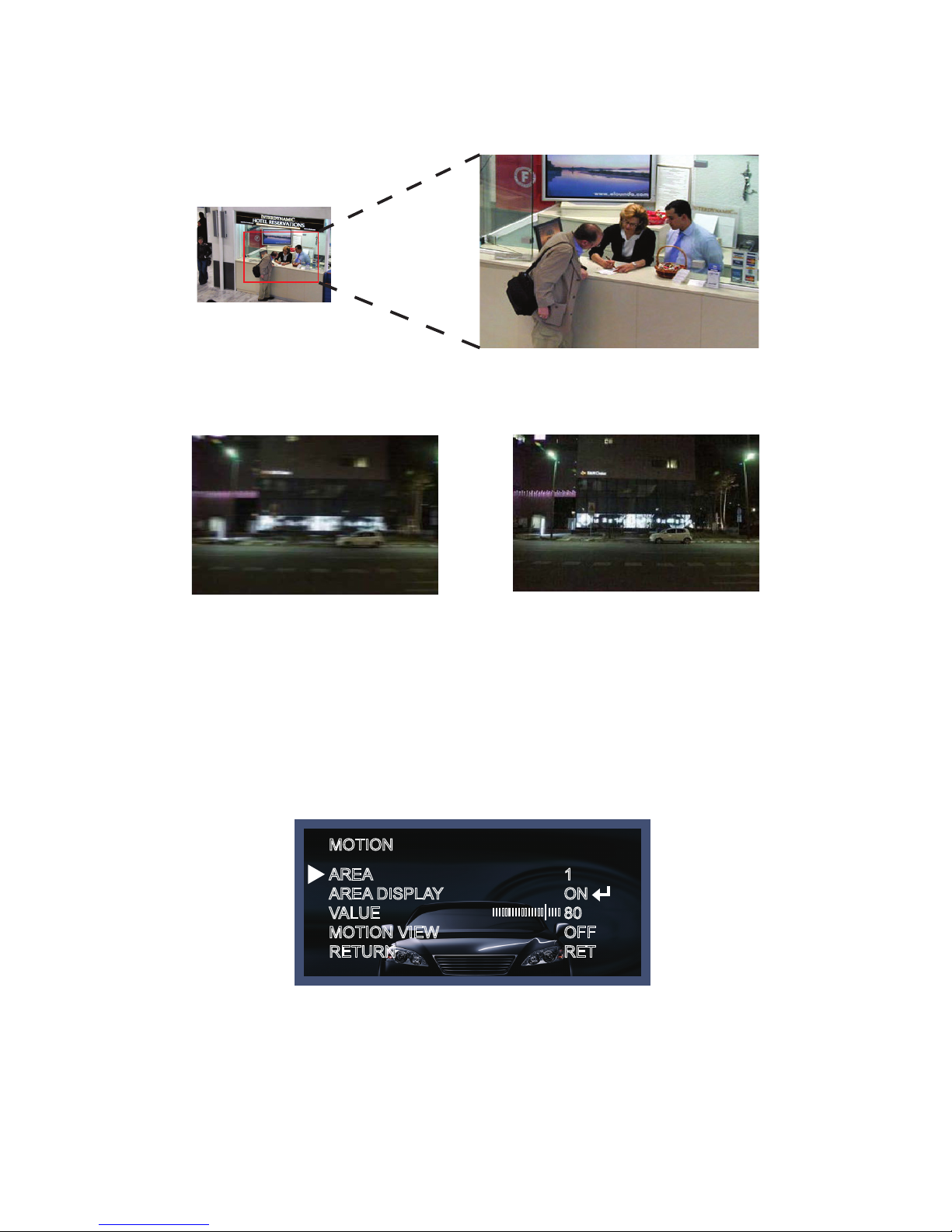

• MOTION: Detects movement of a subject within a pre-dened are(s). When MOTION is On, a new
sub-menu is displayed when the Set button is pressed.
MOTION
AREA
AREA DISPLAY
VALUE
MOTION VIEW
RETURN
1
ON
80
OFF
RET
IIIIIIIIIIIIIIII IIII|
- Area: Up to 4 areas can be designated.
- AREA DISPLAY: The area screen should be activated - set to On - after selecting it. Activation
displays the selected area on the screen.
- VALUE (Sensitivity): The higher the set value, the higher the sensitivity.
- Motion View: If the camera detects motion, the sentence “Motion Detected” appears on the monitor.
- Return: Save and return to the SPECIAL menu.

High Resolution 700TVL Cameras
20
• PRIVACY: The Privacy function is used to mask certain areas of the surveillance scene. Up to 8 areas
can be dened and their size is adjustable. Fifteen colours are available to differentiate areas. When
RETURN is selected all changes ae saved.
PRIVACY
AREA
AREA DISPLAY
COLOR
TRANSPAR
RETURN
4
ON
8
3
RET
IIIIIIIIIIIIIIIIIIII|
IIIIIIIIIIIIIIIIIIII|
• DEFECT: White spot defects can be eliminated - up to a maximum of 512 points.
DEFECT
SENSE UP
DIFF
THRESHOLD
START
RETURN
x32
1
2
RET
IIIIIIIIIIIIIIIIIIII|
IIIIII IIIIIIIIIIIIII|
- Sens Up: To eliminate defects set Sens Up to a high level. We recommend using a maximum value
of x32.
- DIFF: You can set the size of DEFECT from 0 to 3.
- THRESHOLD: The higher the level is, the more defects appear.
- START: Press the SET button on the “<” symbol and the defect elimination process begins. The
message “Processing Now” is displayed on the monitor.
- Return: Save the setting value of this menu, return to the SPECIAL menu.
• DEFOG: The Defog function aids object recognition in foggy conditions.
DEFOG OFF DEFOG ON
• Return: Save the set values and exit from the menu. Adjust
