Getac B300 User manual
RuggedMobileComputingSolution
B300
USER MANUAL
March 2018
TRADEMARKS
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc.
All brand and product names are trademarks or registered trademarks of their
respective companies.
i
TableofContents
Chapter 1
Getting Started ...................................................................... 1
Getting the Computer Running ........................................... 2
Unpacking .................................................................. 2
Using the Tether (Optional) ......................................... 3
Connecting to AC Power............................................... 4
Turning On and Off the Computer .................................. 5
Taking a Look at the Computer......................................... 8
Front Components ........................................................ 8
Rear Components ........................................................ 9
Right-Side Components................................................ 11
Left-Side Components..................................................12
Top-open Components.................................................13
Bottom Components.....................................................15
Chapter 2
Operating Your Computer..................................................... 17
Using the Keyboard ........................................................18
Typewriter Keys ..........................................................18
Cursor-Control Keys ....................................................18
Numeric Keypad .........................................................19
Function Keys ........................................................... 20
Fn Key.................................................................... 20
Hot Keys ................................................................. 20
Windows Keys........................................................... 22
Using the Touchpad....................................................... 23
Configuring the Touchpad ............................................ 25
Using the Touchscreen (Optional) ................................... 26
ii
Using the Quick Buttons ................................................. 27
Using the DVD Drive..................................................... 29
Inserting and Removing a Disc..................................... 30
Using Network and Wireless Connections ........................... 32
Using the LAN .......................................................... 32
Using the WLAN ....................................................... 32
Using the Bluetooth Feature......................................... 33
Using the WWAN Feature (Optional) ........................... 34
Using the Fingerprint Scanner .......................................... 37
Chapter 3
Managing Power .................................................................. 39
AC Adapter.................................................................. 40
Battery Pack ................................................................ 42
Charging the Battery Pack........................................... 42
Initializing the Battery Pack.......................................... 43
Checking the Battery Level .......................................... 43
Battery Low Signals and Actions................................... 44
Replacing the Battery Pack.......................................... 44
Power-Saving Tips ........................................................ 46
Chapter 4
Expanding Your Computer .................................................... 47
Connecting Peripheral Devices.......................................... 48
Connecting a Display Monitor ....................................... 48
Connecting a Serial Device.......................................... 49
Connecting a USB Device ........................................... 49
Connecting Audio Devices............................................ 50
Using Various Card Readers............................................ 52
Using Smart Cards .................................................... 52
Using PC Cards........................................................ 53
Using ExpressCards.................................................... 54
Using Storage Cards .................................................. 55
Changing or Replacing ................................................... 57
System Memory Upgrade............................................. 57
Replacing the Hard Disk Drive ..................................... 60
Installing a Secondary Battery Pack or Hard Disk Drive .....61
iii
Chapter 5
Using BIOS Setup................................................................. 63
When and How to Use.................................................. 64
Menu Descriptions ......................................................... 65
Information Menu ....................................................... 65
Main Menu............................................................... 65
Advanced Menu......................................................... 66
Security Menu ........................................................... 68
Boot Menu ............................................................... 69
Exit Menu ................................................................ 69
Quick BIOS Settings .......................................................71
Chapter 6
Using Getac Software ........................................................... 72
G-Manager .................................................................. 73
P1 Quick Button Definition Utility ...................................... 75
Chapter 7
Caring for the Computer ...................................................... 77
Protecting the Computer.................................................. 78
Using an Anti-Virus Strategy ....................................... 78
Using the Cable Lock................................................. 78
Taking Care of the Computer .......................................... 79
Location Guidelines..................................................... 79
General Guidelines ..................................................... 80
Cleaning Guidelines .................................................... 80
Battery Pack Guidelines ...............................................81
Touchscreen Guidelines ............................................... 82
When Traveling ............................................................. 84
Chapter 8
Troubleshooting .................................................................. 85
Preliminary Checklist....................................................... 86
Solving Common Problems .............................................. 87
Battery Problems........................................................ 87
Bluetooth Problems..................................................... 87
Display Problems ....................................................... 88
DVD Drive Problems .................................................. 88
Hardware Device Problems .......................................... 89
Hard Disk Drive Problems ........................................... 90
iv
Keyboard and Touchpad Problems................................. 90
LAN Problems............................................................91
Power Management Problems ........................................91
Software Problems ......................................................91
Sound Problems ........................................................ 92
Startup Problems ....................................................... 92
WLAN Problems ........................................................ 93
Other Problems ......................................................... 94
Resetting the Computer .................................................. 95
System Recovery........................................................... 96
Using Windows RE .................................................... 96
Using Recovery Partition.............................................. 97
Using the Driver Disc (Optional)..................................... 99
Appendix A
Specifications.................................................................... 100
Appendix B
Regulatory Information ...................................................... 102
On the Use of the System ............................................ 103
Class B Regulations .................................................. 103
ANSI Warning .......................................................... 105
Safety Notices.......................................................... 105
On the Use of the RF Device ....................................... 108
USA and Canada Safety Requirements and Notices......... 108
European Union CE Marking and Compliance Notices ...... 110
User Notification of Take-back Service ..............................112
ENERGY STAR 6.1.......................................................114
Battery Recycling...........................................................116
1
Chapter1
GettingStarted
This chapter first tells you step by step how to get the computer up and running.
Then, you will find a section briefly introducing the external components of the
computer.
2
GettingtheComputerRunning
Unpacking
After unpacking the shipping carton, you should find these standard items:
B300 notebook computer
AC adapter
Screen cleaning cloth
AC power cord
Stylus*
Tether*
Battery pack
Driver disc*
Document(s)
* Optional
Inspect all the items. If any item is damaged or missing, notify your dealer
immediately.
3

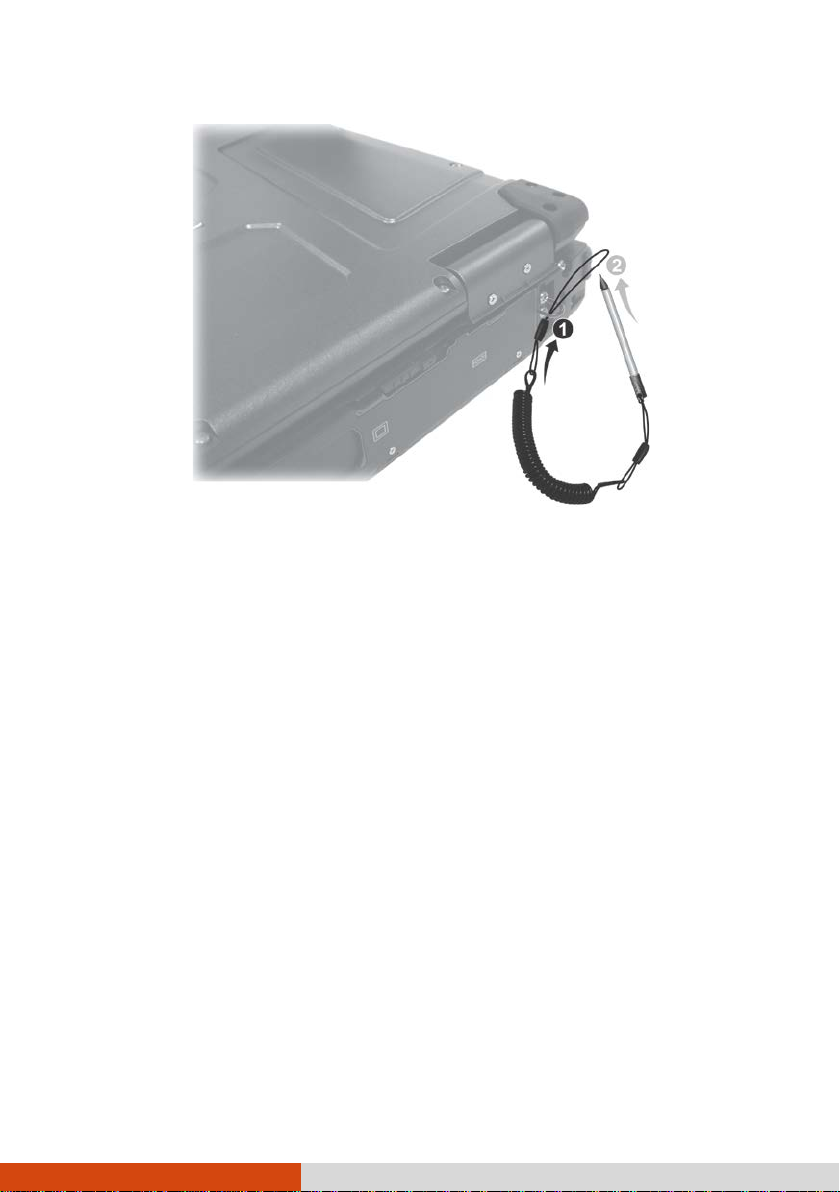

UsingtheTether(Optional)
A tether is provided for attaching the stylus to your computer.
1. Insert one of the tether’s loop ends through the hole of the stylus (as indicated
by below). Then, insert the other end through the first loop (as indicated
by below) and pull it tight.
2. Insert the other loop end to the hook on the computer (as indicated by
below). Then, insert the stylus end through the loop (as indicated by below)
and pull it tight.
4
ConnectingtoACPower
CAUTION: Use only the AC adapter included with your computer.
Using other AC adapters may damage the computer.
NOTE:
The battery pack is shipped to you in power saving mode that
protects it from charging/discharging. It will get out of
the mode to be ready for use when you install the battery
pack and connect AC power to the computer for the very first
time.
When the AC adapter is connected, it also charges the battery
pack. For information on using battery power, see Chapter
3.
You must use AC power when starting up the computer for the very first time.

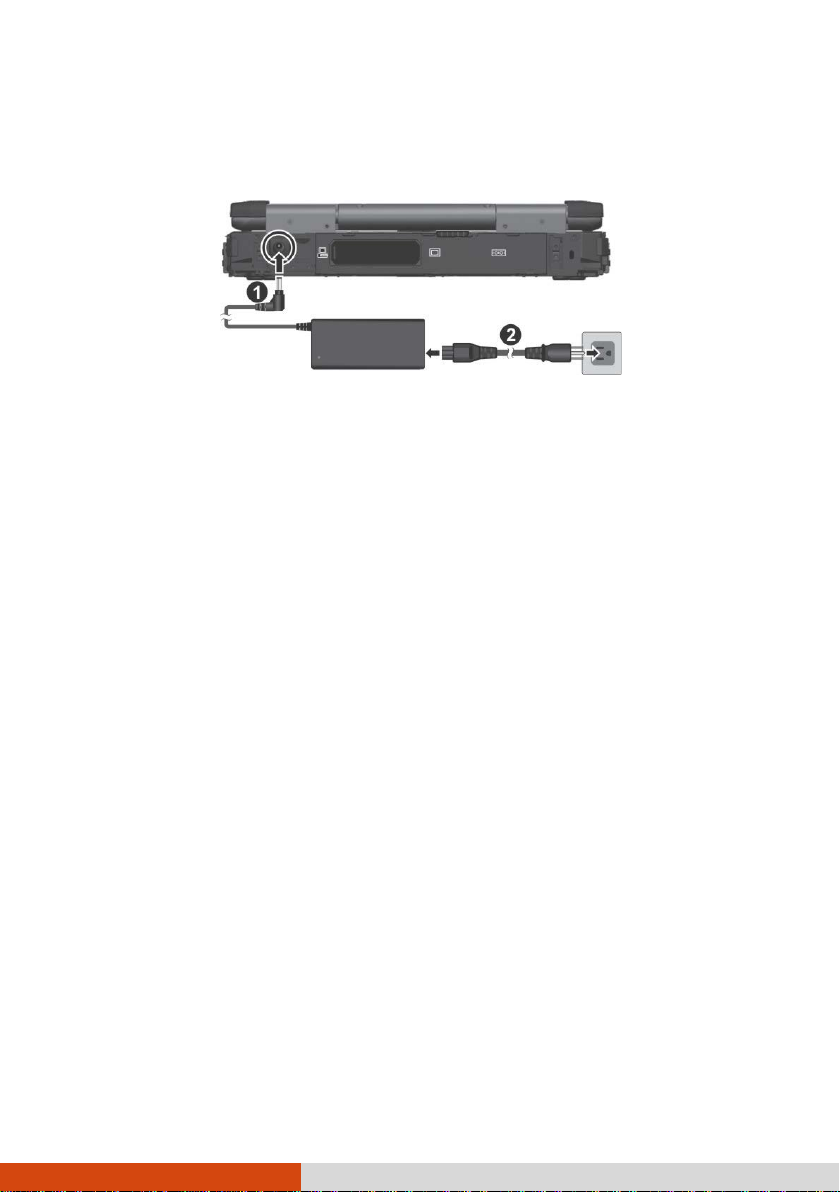

1. Plug the DC cord of the AC adapter to the power connector of the computer
().
5
2. Plug the female end of the AC power cord to the AC adapter and the male
end to an electrical outlet ().
3. Power is being supplied from the electrical outlet to the AC adapter and onto
your computer. Now, you are ready to turn on the computer.
TurningOnandOfftheComputer
TurningOn
1. Open the top cover by pushing on the cover latch () and lifting up the
cover (). You can tilt the cover forward or backward for optimal viewing
clarity.
6
2. Press the power button (
). The Windows operating system should start.
TurningOff
When you finish a working session, you can stop the system by turning off the
power or leaving it in Sleep or Hibernation mode:
To...
Dothis...
Power off
(Shutdown)
Click Power Shut down.
7
To...
Dothis...
Sleep Use one of these methods:
Press the power button.*
Close the top cover.*
Press Fn + F12.*
Click Power Sleep.
Hibernate By default, this option is not shown
in the Start menu. If you
want to use the feature, set up accordingly in Windows settings.
* “Sleep” is the default result of the action. You can change what the action
does through Windows settings.
8
TakingaLookattheComputer
NOTE: Depending on the model you purchased, the appearance of
your computer may not be exactly the same as those shown in this
manual.
CAUTION:You need to open the protective covers to access the
connectors. When not using a connector, make sure to close the
cover completely for water- , dust-, and fire-proof integrity.
(Engage the locking mechanism if existing.)
FrontComponents
Ref
Component
Description
TopCoverLatch
Locks the top cover.
WWANAntenna
Should be pulled out for reception of mobile
telecommunications signals.
Handle
Provides a convenient way to carry the computer.
9
RearComponents
Ref
Component
Description
PowerConnector
Connects the AC adapter.
USBPort
Connects a USB device, such as a USB flash
disk,
printer, digital camera, joystick, and more.
WWANPass-
throughConnector
(option)
Connects the external antenna for WWAN connectivity.
NOTE: Must be connected via a docking
station.
GPSPass-through
Connector
(option)
Connects the external antenna for GPS signal reception.
NOTE: Must be connected via a docking
station.
DockingConnector
Connects to a docking station.
Listed below are the model names of docking stations
for your computer.
– B300 OD
– Getac B300 Docking Station
– Getac B300 Cradle
VGAConnector
Connects an external display monitor.
SerialConnector
Connects a serial mouse or serial communication device.
10
Ref
Component
Description
KensingtonLock
Locks the computer to a stationary object for security.
CAUTION: Closing the cover in an incorrect manner will result
in poor sealing. As shown below, when closing the cover, you
must firmly press the two sides () of the release latch to
make sure the latch () clicks into the locked position.
11
Right-SideComponents
Ref
Component
Description
ExpressCardSlot
Accepts an ExpressCard for additional functions.
SIMCardSlot
(option)
Accepts a SIM card for models having the WWAN module.
NOTE: The slot still exists but cannot be
used for models without the WWAN module.
SDCardReader
Accepts a Secure Digital (SD) card for removable
storage media.
HDMI Connector
Connects a HDMI monitor or TV set.
HardDiskDrive
Inside is the hard disk drive.
PCCardSlot
Accepts a PC card for additional functions.
USBPort
Connects a USB device, such as a USB flash disk,
printer, digital camera, joystick, and more.
GPSAntenna
Connector
Connects the external antenna for GPS signal reception.
AudioOutput
Connector
Connects a set of headphones or external speakers with
amplifier.
12
Ref
Component
Description
Microphone
Connector
Connects an external microphone.
RJ-45Connector
Connects the LAN cable.
Left-SideComponents
Ref
Component
Description
BatteryPack
S
upplies power to your computer when external power is not
connected.
SmartCard
Reader
Accepts a smart card for additional security feature.
NOTE: On
your computer, the Smart Card reader
is a part of the super multi drive module. If
the super multi drive module is replaced by
a secondary battery pack or hard disk drive,
you cannot use the Smart Card reader.
SuperMulti
Drive
Accepts a compact disc
for installing or loading software,
accessing data, and playing music/video.
13
Ref
Component
Description
Can
be replaced by a secondary hard disk drive or battery
pack (purchased separately).
Top-openComponents
Ref
Component
Description
LCDScreen
Displays the output of the computer.
May include the
optional touchscreen feature.
QuickButtons
Other manuals for B300
8
Table of contents
Other Getac Laptop manuals
