MANUAL ZIGBEE CONFIGURATION
BINDING BETWEEN THE GWA1521 ACTUATOR AND THE GWA1514 H2O SENSOR
TECHNICAL MANUAL

page 2| ZIGBEE | TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1415

TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1415 | ZIGBEE | page 3
CONTENTS
CONTENTS .............................................................................................................................................................. 3
AIM OF THIS PUBLICATION ................................................................................................................................. 4
ZIGBEE KEY –USEFUL TERMS .......................................................................................................................... 4
TECHNICAL FILES ................................................................................................................................................. 5
DIMENSIONS........................................................................................................................................................... 6
BREAKDOWN OF THE ZIGBEE DEVICES.......................................................................................................... 7
ELECTRIC DIAGRAMS .......................................................................................................................................... 8
CONFIGURATION................................................................................................................................................... 9
CREATING AND JOINING TO THE ZIGBEE NETWORK:.....................................................................................................9
ASSOCIATION BETWEEN DEVICES:................................................................................................................................. 9
SENSOR (GWA1514) FACTORY RESET............................................................................................................10
ACTUATOR (GWA1521) FACTORY RESET.......................................................................................................10

page 4| ZIGBEE | TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1415
AIM OF THIS PUBLICATION
This manual is designed for the installer responsible for configuring the ZigBee system.
It explains how to make the binding between the GWA1521 and GWA1415 devices.
ZIGBEE KEY –USEFUL TERMS
Binding:
The association between an actuator and a sensor in order to carry out a certain
function
Coordinator:
The ZigBee device that carries out the following tasks:
1. Create the ZigBee network
2. Define the optimal frequencies that the network will use
3. Generate the PAN (Personal Area Network)
4. Generate the decoding key used by that specific network
5. Assign a short address to all the devices which are part of that ZigBee
network
6. Transmit the decoding key to those devices
End device:
Battery-controlled ZigBee devices
Joining:
Operation via which a ZigBee device becomes part of a ZigBee network
Permit Join:
Operation via which a ZigBee network coordinator opens that network so that one
ZigBee device or more (not yet part of the network) can become part of it
Router:
Any device of a ZigBee system that is not the coordinator or an end device (battery-
controlled). Router devices forward messages within the ZigBee network, facilitating
communication between devices.

TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1415 | ZIGBEE | page 5
TECHNICAL FILES
GWA1521
CATEGORY:
General loads actuator
SUPPLY VOLTAGE:
230V AC / 50Hz
OUTPUT CONTACTS:
1 NO 10A (AC1) 230V AC
NO.OF OUTPUT CHANNELS:
1
MAX.DISPERSIBLE POWER (W):
2W
MAX.MOTOR POWER:
500W
OUTPUT POWER:
3 dBm
CFL LAMPS:
150W
LOADS CONTROLLED BY TOROIDAL TRANSFORMERS:
450W
LOADS CONTROLLED BY ELECTRONIC TRANSFORMERS:
600W
230V HALOGEN INCANDESCENT LAMPS:
2300W
230V LED LAMPS
150W
DEGREE OF PROTECTION:
IP20
OPERATING TEMPERATURE:
[-5°; +45°C]
STORAGE TEMPERATURE:
[-25°; +70°C]
RELATIVE HUMIDITY (NON-CONDENSATIVE):
Max. 93%
DIMENSIONS LX HX D(MM):
42x40x20
COMMUNICATION PROTOCOL:
ZigBee (IEEE 802.15.4)
REFERENCE STANDARDS:
2014/53/EU
GWA1514
CATEGORY:
Water sensor
COLOUR:
White
SUPPLY VOLTAGE:
Battery-controlled
SUPPLY BATTERIES:
CR123 replaceable
OUTPUT POWER:
8 dBm
SIREN:
85 dB/3m
TEMPERATURE SENSOR:
[0°; 50°C]
DEGREE OF PROTECTION:
IP20
STORAGE TEMPERATURE:
[-20°; +80°C]
OPERATING TEMPERATURE:
[0°; 50°C]
RELATIVE HUMIDITY (NON-CONDENSATIVE):
[10%; 95%]
DIMENSIONS (MM):
Ø 60x37
COMMUNICATION PROTOCOL:
ZigBee (IEEE 802.15.4)
REFERENCE STANDARDS:
2014/53/EU, EN 60669-2-1, ETSI EN 300 328

page 6| ZIGBEE | TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1415
DIMENSIONS
GWA1521
GWA1514

TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1415 | ZIGBEE | page 7
BREAKDOWN OF THE ZIGBEE DEVICES
GWA1514
A1: Push-button/multi-purpose red LED
A2: Test and alarm silencer push-button/red
alarm LED

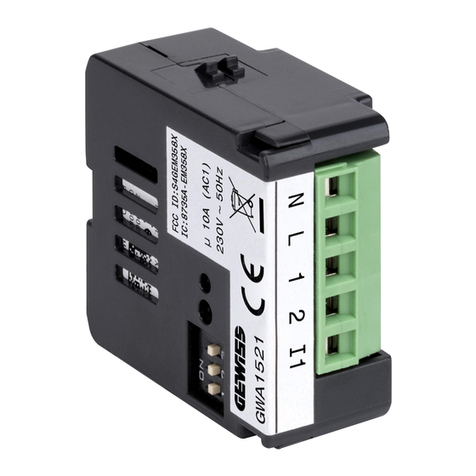

GWA1521
A1. DIP-switch with 3 one-way switches
A2. Miniature button key for joining functions
A3. Status LED

page 8| ZIGBEE | TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1415
ELECTRIC DIAGRAMS
GWA1521
N. Power supply neutral
L. Power supply phase
1. Output common wire
2. NO output
I1. Local command input

TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1415 | ZIGBEE | page 9
CONFIGURATION
If the ZigBee network hasn't yet been created, proceed as follows:
1. Choose which device will have the role of coordinator
2. Activate the procedure to create the ZigBee network via the coordinator
3. After creating the network, activate Permit Join
4. Power the devices that you want to join to the network (GWA1521 and GWA1514)
5. Make the binding between the GWA1521 and GWA1514 devices
If the ZigBee network has already been created, only the last three points of the list are
required:
1. After creating the network, activate Permit Join
2. Power the devices that you want to join to the network (GWA1521 and GWA1514)
3. Make the binding between the GWA1521 and GWA1514 devices
Creating and joining to the ZigBee network:
1. Make sure the actuator is in its factory-set condition (if it isn't, make a factory reset)
2. Make the connections on the GWA1521 actuator as shown in the diagram above
3. Power the actuator
4. The status LED will light up fixed red (if it's in the factory-set condition)
5. Press the Join button key 3 times, quickly
6. The status LED will turn fixed green for a few seconds, then begin flashing in green. The
device is now the coordinator. Permit Join will stay open for 15 minutes.
7. Insert the battery in the GWA1514 water detector
8. The status LED (A1) of the H2O sensor will flash initially and then switch off when the
sensor has joined the ZigBee network of the actuator
9. The joining is indicated on the actuator by three quick flashes of the status LED, after
which the actuator will flash once per second
10. Join the other water sensors, repeating the procedure in the previous point (and within 15
minutes of the activation of Permit Join)
11. The procedure to join the sensors with the actuator is now complete
Association between devices:
1. On the GWA1521 actuator, bring the dip-switches to the positions shown
2. The status LED will have a fixed yellow light
3. Press the push-button connected to input I1 of the actuator
4. The status LED of the actuator will make a double yellow flash and this will continue
cyclically
5. Intervene on the GWA1514 water sensor, pressing and holding button A1 for at least 5
sec. until the sensor status LED flashes, then release it
6. The sensor LED will flash every 3 seconds until the sensor has been joined to the ZigBee
network of the actuator. The joining is indicated on the actuator by a double yellow flash
of the status LED
7. Repeat the procedure from point 3 for any other sensors
8. To end the procedure, wait 3 minutes or press the push-button connected to input I1 of
the actuator again
9. On the GWA1521 actuator, bring the dip-switches to the positions shown

page 10 | ZIGBEE | TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1415
SENSOR (GWA1514) FACTORY RESET
Press and hold button/status LED A1 until the LED flashes continuously (it will first of all make
a single flash, then a double one, then it will continue flashing).
ACTUATOR (GWA1521) FACTORY RESET
Press and hold the Permit Join activation push-button (A2) for at least 10 seconds. The status
LED will flash red and green alternately for 3 seconds, then become red fixed.

TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1415 | ZIGBEE | page 11
LAST REVISION 07/2020 code 70194220
