GMI EL Series User manual

EL Booth Mounted Table
TOOLS REQUIRED FOR ASSEMBLY
Socket set, Open end wrench set, Cordless
drill with 3/8" socket bit (Magnetic recommended).
BEFORE ASSEMBLY
Read through the assembly instructions to
familiarize yourself with the order in which
the parts are assembled. We suggest that
you clear & vacuum the area where the bench
is to be assembled. It is important that the
bench is assembled in the same sequence
as instructed.
HARDWARE
All assembly hardware is provided.
Note: Assistance will be needed to mount the table.

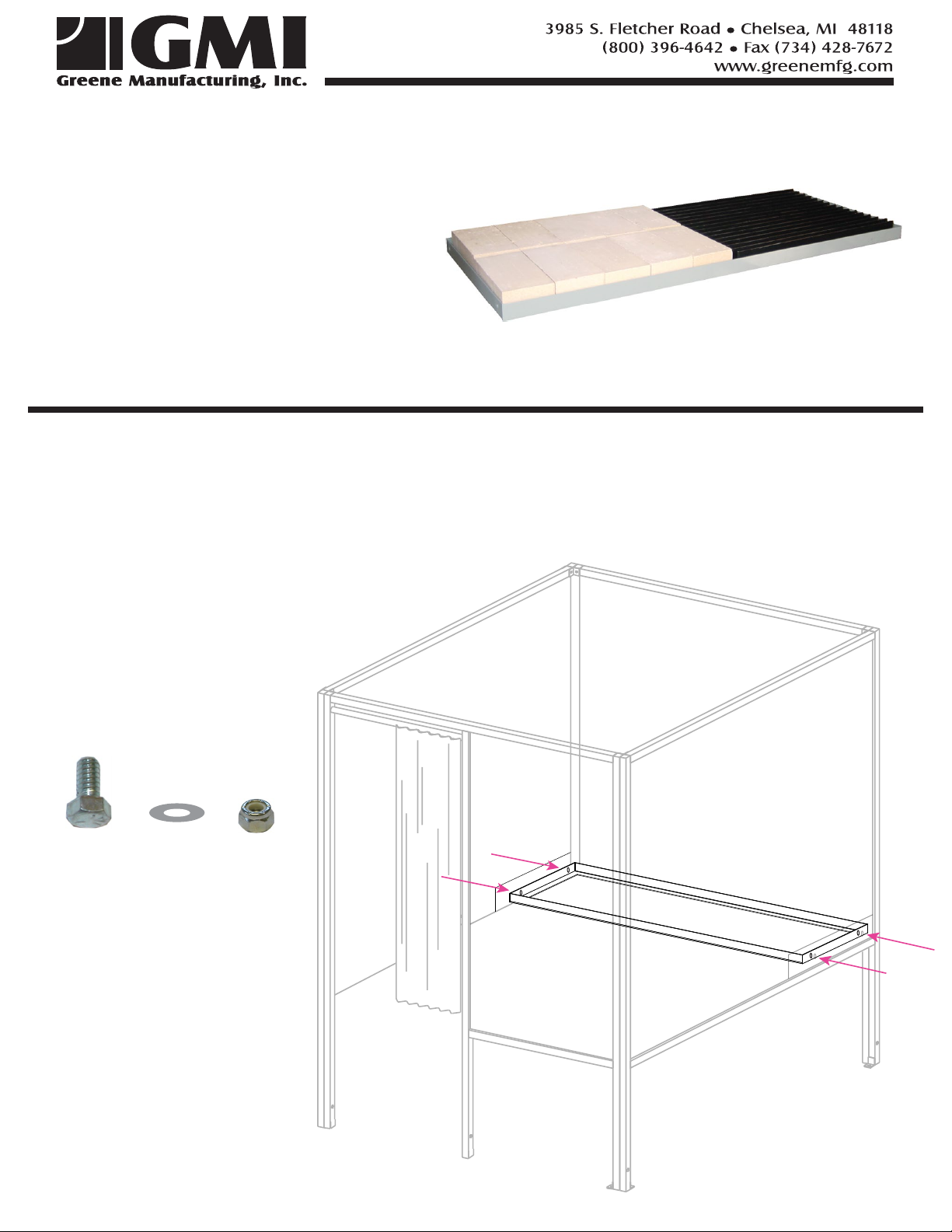

Insert the table frame into the assembled booth. The booth walls will have
two mounting plates for attaching the table to the wall. Either the two side
panels or the front and rear panel will have mounting plates depending
on which table orientation was ordered.
Use (4) 5/16 x 1” hex head bolts, flat washers, and
nylock nuts to bolt the frame in place.
Note: If booths are arangened in a row
additional assistance may be needed
to mount the tables. At points were
two booths are joined together
the bolts will need to run through
one booth and into the next.
STEP 1
Nylock Nut
5/16-18 x 1”
Hex Head Bolt
5/16” Washer

Insert brick and/or grates into the table frame once the
frame mounting bolts are fully tightened.
Worksurface will vary depending on type that was
ordered.
Note:
If a GWP-2 Weld positioner has been
purchased, a hole will need to be drilled
in the bottom pan to mount the positioner
in its desired location.
Place the grate in position in the pan,
next mark the hole position for the
GWP-2 mounting T-bolt to pass through.
Drill the hole using a 13/32” drill bit.
STEP 2
