Graef M6 User manual

Allesschneider Master M 6 / M 9 / M 91
Universal slicer Master M 6 / M 9 / M 91
Trancheuse Master M 6 / M 9 / M 91
Cortadora de alimentos Master M 6 / M 9 / M 91
Tagliatutto Master M 6 / M 9 / M 91
Allessnijder Master M 6 / M 9 / M 91
Bedienungsanleitung
Operating instructions
Notice d’utilisation
Manual de instrucciones
Istruzioni per l’uso
Bedieningshandleiding

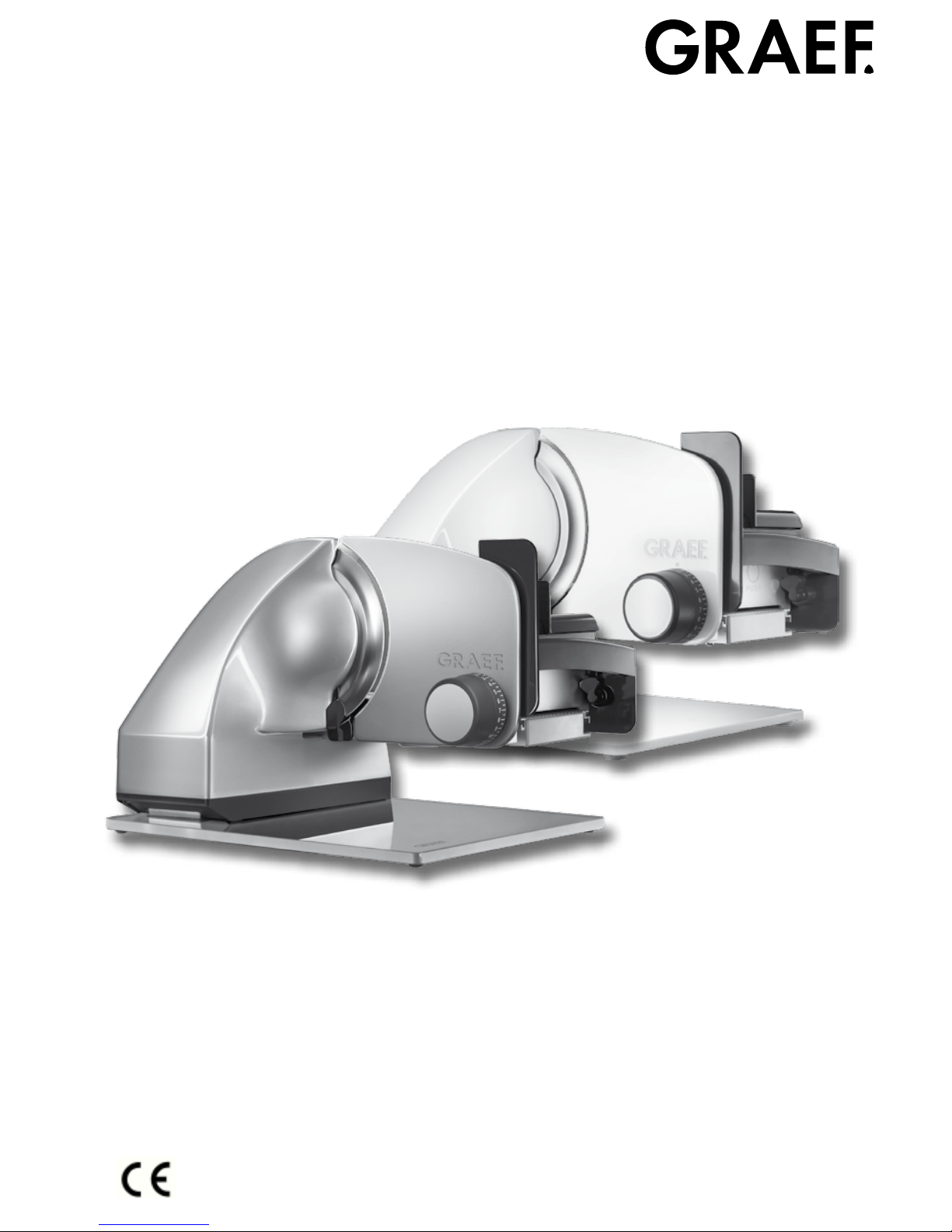

Universal Slicer Master M 6 / M 9 / M 91
© Gebr. Graef & Co. KG 17
EN
Preface
Dear customer,
You made the right decision with
the purchase of the Master M 6
/ M 9 / M 91 universal slicer. You
have acquired an established qual-
ity product.
We thank you for the purchase and
wish you lots of joy with the new
universal slicer.
Information about these
operating instructions
These operating instructions are a
component of the universal slicer
(in the following referred to as the
unit) and provide important infor-
mation about its rst use, safety,
the intended use and care of the
unit.
The operating instructions must
always be kept available near the
unit. Every person who deals with
the following must read and apply
them:
●First use,
●Operation and
●Cleaning
of the unit.
Keep the operating instructions
and pass them on to the next own-
er together with the unit.
It is possible that these operating
instructions do not cover every
possible use. For more information
or if you have any problems not
covered or not sufciently dealt
with in these instructions, please
contact the Graef customer service
department or your dealer.
Warnings
The following warnings and signal
words are used in these operating
instructions:
WARNING
This indicates a possibly danger-
ous situation. If the instructions
are not complied with, severe
injury can result or non-compli-
ance can even lead to death.
CAUTION
This indicates a possibly danger-
ous situation. Non-compliance
with the instruction can lead to
property damage.
important!
This indicates useful tips and
other important information!
Use as intended
This unit is not intended for com-
mercial usage.
This unit is intended to be used in
the household and for similar ap-
plications such as
• in employee kitchens, in shops,
ofces and other commercial
areas;
• on agricultural premises;

Universal Slicer Master M 6 / M 9 / M 91
18
EN
• by guests in hotels, motels and
other residential facilities;
• in bed-and-breakfast establish-
ments.
With the unit you can slice bread,
ham, sausage, cheese, fruit, veg-
etables, etc.
Never slice hard objects such as
frozen foods, bones, wood, sheet
metal or similar.
Any other use or use beyond and
above that is considered non-in-
tended usage.
CAUTION
Danger through non-intended
usage!
The unit can cause hazards if used
other than intended and/or for
alien usage.
►Use the unit exclusively as
intended.
►Follow the procedures de-
scribed in these operating
instructions.
All claims of any type due to non-
intended usage are excluded.
The risk is borne solely by the op-
erator.
Limitation of liability
All technical information, data and
instructions on installation, opera-
tion and care included in these op-
erating instructions accord with the
latest state at the time of printing
and have been made to the best of
our knowledge with consideration
of our previous experiences and in-
sights.
No claims can be derived from the
information, illustrations and de-
scriptions in these instructions.
The manufacturer does not assume
any liability for damages due to:
●Non-compliance with the in-
structions
●Non-intended use
●Improper repairs
●Technical modications
●Use of non-approved spare parts
Customer service
If your Graef unit is defective,
please contact your dealer or the
Graef customer service depart-
ment.
Gebr. Graef GmbH & Co. KG
Customer service
Donnerfeld 6
59757 Arnsberg
Tel.: [phone]
Fax.: [phone]
Email: [email protected]
Safety
This chapter provides you with im-
portant safety instructions for han-
dling the unit.
This unit complies with the statu-
tory safety regulations. Improper
use can, however, lead to personal
injury and property damage.

Universal Slicer Master M 6 / M 9 / M 91
© Gebr. Graef & Co. KG 19
EN
Danger due to electric cur-
rent
CAUTION
Danger of death due to electric
current!
Touching live lines or compo-
nents is mortally dangerous!
Follow the safety instructions
below to prevent hazards from
electric current:
►Do not use the unit if the
connecting cable or plug are
damaged.
►Before continued use of the
unit, have a new connect-
ing cable installed. Have it
installed solely by the manu-
facturer or its customer service
or a similarly qualied person
to prevent hazards
►Never open the unit housing
under any circumstances. If
live connections are touched
and the electrical or mechani-
cal structure changes, there is
a danger of electric shock.
►Never touch any parts that are
conducting electricity. They
can cause an electric shock or
even lead to death.
Basic safety instructions
To handle the unit safely, follow
the instructions below:
■Check the unit for external, vis-
ible damage to the housing, the
connector cable and the plug be-
fore using it. Do not put a dam-
aged unit into operation.
■If the machine's connecting ca-
ble is damaged, continued use
of the machine is only allowed
it has been replaced with a new
one. Have it installed solely by
the manufacturer or its customer
service or a similarly qualied
person to prevent hazards.
■Repairs are only allowed to be
performed by a specialist or by
the Graef customer service de-
partment. Improper repairs can
lead to extreme hazards for the
user and damage the unit. Fur-
thermore, the warranty claim
expires.
■Only Graef customer service is
authorised to repair the unit dur-
ing the warranty period, other-
wise there the warranty expires
for additional damages.
■Defective components must be
replaced solely with genuine
spare parts. Fullment of the
safety regulations is only guaran-
teed if these parts are used.
■This unit is not intended for use
by people (including children)
with restricted physical, sensory
or mental capabilities, or who
have a lack of experience and/

Universal Slicer Master M 6 / M 9 / M 91
20
EN
or lack of knowledge, unless
they are supervised by a person
responsible for their safety or
have received instructions from
that person about how to use
the unit.
■Children should be supervised to
ensure that they do not play with
the unit.
■Always pull the supply line from
the electric socket using the con-
nector plug, not on the connec-
tor cable.
■Never operate the unit with wet
hands.
■This unit must be used with the
carriage and food holder unless
the size and shape of the items
to be sliced do not permit use of
the food holder.
■In stand-by mode, turn the con-
trol knob clockwise past the zero
position up to the limit so that
the stop plate covers the cutter.
First use
Safety instructions
CAUTION
Personal harm or property dam-
age could occur when the unit is
being used for the rst time!
Follow the safety instructions
below to prevent hazards and
property damage:
►Do not use the packing mate-
rial as a toy. Danger of suffoca-
tion.
Scope of delivery and
shipping inspection
The unit comes standard with the
following components:
●Universal slicer
●ø 170 mm smooth, fully-hard-
ened solid steel blade
●GENIO carriage
●Food holder
●Stainless steel tray
●Diamond blade sharpener
●Operating instructions
●Vaseline packs
important!
►Check the delivery for com-
pleteness and for visible dam-
age.
►Immediately notify the car-
rier and the supplier about an
incomplete delivery or dam-
ages due to improper packing
or caused by shipping.
Unpacking
To unpack the unit, proceed as be-
low:
Take the unit out of the carton.
Remove all pieces of the pack-
ing.
Remove any possibly extant la-
bels on the unit (do not remove
the rating plate).

Universal Slicer Master M 6 / M 9 / M 91
© Gebr. Graef & Co. KG 21
EN
Dispose of the packing
The packing protects the unit from
shipping damage. The packing
materials are selected for their en-
vironmental compatibility and from
disposal aspects so they are recy-
clable.
Returning the packing to the ma-
terials circuit saves raw materials
and reduces the accumulation of
waste. Dispose of packing material
that is no longer needed at a col-
lection point for the »Green Point«
recycling system.
important!
►If possible, save the original
packing during the unit's
warranty period to be able to
properly pack the unit in case
of a warranty claim.
Requirements for the in-
stallation location
For safe and awless operation of
the unit, the place of location must
meet these prerequisites:
■The unit must be set up on a
rm, at, level and non-slip base
that has sufcient load bearing
capacity.
■Select the place of location so
that children cannot reach the
sharp blade in the unit.
Electric connection
Follow these instructions about the
electrical connection for safe and
awless operation of the unit:
■Before connecting the unit, com-
pare the connection information
(voltage and frequency) on the
rating plate with those of your
electrical network. This informa-
tion must match to avoid dam-
age to the unit. If in doubt, ask
your electrician.
■Make sure that the connecting
cable is not damaged. Do not
conduct it over hot surfaces or
sharp edges.
■The connector cable must not be
pulled tight.
■The electrical safety of the unit
is only ensured if it is connected
to a properly installed protective
conductor system. Operation
on a socket without a protec-
tive conductor is prohibited. If in
doubt, have the building instal-
lation checked by an electrician.
The manufacturer does not as-
sume any responsibility for dam-
ages caused by a missing or in-
terrupted protective conductor.

Universal Slicer Master M 6 / M 9 / M 91
22
EN 12
3
4
5
6
8
9
10 11 12
13
14
15
17
M 6
M 9
3
7
16
Setup and Functioning
Overview 1) Cutting blade
2) Stop plate
3) Quick-action switch
4) Adjustment knob
5) Glass baseplate
6) Aluminium baseplate
7) Food holder
8) Continuous operation switch
9) Child-proof safety catch
10) Lock button, pivoting mecha-
nism
11) Cable compartment
12) Tilting lever
13) Guide prole
14) Blade cover
15) Arresting bolt
16) Arresting the slicing support
17) GENIO carriage

Universal Slicer Master M 6 / M 9 / M 91
© Gebr. Graef & Co. KG 23
EN
Technical data
Master M 6 Master M 9 / M 91
Dimensions
(L x W x H) 390 x 325 x 270 373 x 310 x 270 mm
Weight ca. 7.2 ca. 8.6 kg
Slice thickness 0 - 20 0 - 20 mm
Slice height 140 140 mm
Slice length 220 220 mm
Operating voltage 230 230 Volt
Power 170 170 Watt
Features
●Solid metal design
●Whisper-quiet, high-traction
capacitor motor with
170 Watt
●ø 170 mm solid steel blade with
smooth cutting edge
●Removable stainless steel blade
cover
●30° tilt cutter
●Solid glass baseplate
(M 9 / M 91)
●Aluminium baseplate (M 6)
●GENIO carriage to xate the
items to be sliced
●Food holder
●Carriage switch with quick ac-
tion and continuous operation
switch
●Slice thickness setting 0 - 20 mm
●Diamond blade sharpener
●Stainless steel tray
●Cable compartment
Spare parts
The following spare parts can be
supplied for this unit:
●170 ø mm Replacement blade
●Replacement food holder
Contact customer service if you
need spare parts for your unit.
Control and operation
This chapter provides you with im-
portant information on operating
the unit.
Safety instructions
CAUTION
Follow the safety instructions
below to prevent hazards and
property damage:
►Do not touch the cutter blade
with your ngers. It is very
sharp and cause severe injuries.

Universal Slicer Master M 6 / M 9 / M 91
24
EN
Sources of hazards
WARNING
The rotating blade can cut off
body parts. Your ngers, especially
the thumbs, are endangered. For
this reason, never reach into the
space between the stop plate and
the holder for the material to be
sliced as long as the stop plate
is not completely closed, i.e., is
placed below "0".
Child-proof safety catch
You can push the carriage in front
of the blade and press in the car-
riage lock (child-proof safety catch)
to secure the blade (the stop plate
must be closed, i.e. be positioned
under "0"). The carriage ts snug-
ly.
Cutting with the quick-ac-
tion switch
Place the items to be sliced on
the carriage.
Set the desired slicing thickness.
Press the items to be sliced
slightly against the stop plate
and uniformly guide the car-
riage against the blade.
Use your thumb to press the
quick-action switch - that
switches on the motor.
Press your thumb against the
quick-action switch while slic-
ing.
As soon as you remove your
thumb from the quick-action
switch the motor switches off.
Cutting with the continu-
ous operation switch
Use the continuous operation
switch to slice large quantities.
Place the items to be sliced on
the carriage.
Set the desired slicing thickness.
Press the items to be sliced
slightly against the stop plate
and uniformly guide the car-
riage against the blade.
Turn the continuous operation
switch clockwise up the limit
stop (1/4 turn).
Turn the continuous operation
switch back to turn off the unit.
Let the motor cool off after us-
ing continuously for approx. 9.5
minutes.
important!
►Soft items to be sliced (e.g.,
cheese or ham) can be sliced
best when cool.
►Soft items can be sliced better
when you push them slowly
forward.
►When slicing cucumbers or
carrots, it is advantageous
if they are cut to a uniform
length beforehand and then
fed in with the food holder.

Universal Slicer Master M 6 / M 9 / M 91
© Gebr. Graef & Co. KG 25
EN
30° tilt
The tilt function is especially use-
ful when slicing bread, dry sausage
and vegetables. The tilt function
takes advantage of the natural
gravity of the items to be sliced
while feeding.
To tilt the unit, proceed as below:
Press the lock button. The unit is
unlatched.
Pull the unit up powerfully with
the tilting lever until you hear it
latch.
The unit is only secured if you
hear it latch.
You can now continue as de-
scribed under "Slicing".
After completing the slicing
process, swivel the unit back.
Turn the tilting lever down.
The arresting bolt latches in by
pressing on the rear part of the
prole.
GENIO carriage
The GENIO carriage uses its spring-
loaded carriage support to keep
the items to be sliced in the start
position. It continuously adapts to
the size and weight of the items
to be sliced, bringing them from
the hard anodized aluminium slic-
ing support into the ideal position.
That makes additional xation as
used in conventional carriages un-
necessary while at the same time
absolutely precluding the food
from slipping or rolling off. Re-
gardless of what is to be sliced, the
GENIO carriage completely rede-
nes slicing thanks to its enormous
exibility, great operating comfort
and ergonomic handling together
with new high standards for safety,
simplicity and speed.
The unique spring mechanism
keeps the GENIO carriage adapted
to the particularities of the items to
be sliced. They cannot roll off and
they can always be ideally and ef-
fortlessly guided to the blade.
If you happen to want to slice heavy
items (such as bread or ham), you
can lock the slicing support.
Press the arresting bolt and then
press down the slicing support. Re-
lease the bolt again.
To unlatch, press the bolt; the slic-
ing support springs up.

Universal Slicer Master M 6 / M 9 / M 91
26
EN
Food holder
When the items to be sliced are
shorter and 10 cm so it is no long-
er possible to correctly hold onto
them, the food holder must be
used.
Place the food rests or the small
items for slicing on the carriage.
Set the food holder on the rear
of the carriage and put the food
holder onto the items to be
sliced.
Proceed as above as described in
"Slicing".
important!
►The food holder lets you slice
small items such as mushrooms
and tomatoes.
►The unit must not be used
without the food holder unless
the size and shape of the items
to be sliced do not permit its
use.
Blade sharpener
Use the enclosed blade sharpener
to re-sharpen the blade when the
cutter becomes too dull.
Turn the slicing thickness to 15.
Put the blade sharpener on the
carriage.
Push the carriage forwards until
the blade sharpener touches the
blade.
Switch on the unit.
Switch the unit back off after 2
- 3 blade rotations.
Check the blade to see if there
are any burrs.
Move your nger slowly from
the inner to the outer edge. If
you detect a beaded grade, the
blade is sharp.
You should now use the honing
stone.
Put the blade sharpener back on
the blade.
Press the press lever for the
grindstone.
Switch on the unit.
Switch the unit back off after
one blade rotation.
Please also read the operating in-
structions enclosed with the blade
sharpener.
Cleaning and Care
This chapter provides you with im-
portant information on cleaning
and caring for the unit.

Universal Slicer Master M 6 / M 9 / M 91
© Gebr. Graef & Co. KG 27
EN
Safety instructions
CAUTION
Follow the safety instructions below
before you start cleaning the unit:
►Make sure the unit is switched
off and not connected to the
mains supply.
►Check to make sure the limit
stop is closed (cutter blade is
covered).
►Do not use any aggressive or
abrasive cleaning agents and do
not use any solvents.
►Do not scratch off stubborn soil-
ing with hard objects.
►Do not wash in the unit in water
or immerse it into water.
Cleaning
Clean the exterior of the unit with
a soft, moist cloth. If heavy soiled,
a mild detergent can be used.
Blade removal
Please occasionally unscrew the
blade and clean the interior of the
unit. Especially, when "juicy" slic-
ing items (vegetables, fruit, roasts,
etc.) were sliced. Handle the blade
with great care!
WARNING
►CAUTION: sharp blade.
Pull the carriage completely
closed.
Remove the blade cover by ro-
tating it upwards with the black
handle. You can now slightly
press slightly against it to re-
move the blade.
Loosen the blade by turning the
blade screw counter clockwise
with a coin.
Clean the inside of the blade
and the black ring with a moist
cloth.
Replace the blade in the reverse
sequence.
important!
►Periodically grease the marked
points.
WARNING
►This process must be per-
formed with great CAUTION
as this is an extremely sharp
object.
Carriage
The carriage can be removed from
the machine for better cleaning.
To do that, pull out the carriage
Grease here

Universal Slicer Master M 6 / M 9 / M 91
28
EN
latch on the right side of the car-
riage.
Pull the carriage towards the
back and remove it.
You can now take apart the
GENIO carriage for better clean-
ing.
Remove the slicing support by
placing it vertically and pulling it
out to the top.
You can now also pull off the
at spring.
Clean all parts with a moist cloth or
under running water.
important!
►Do not clean the slicing support
in a dishwasher!
Please put a few drops of non-
resinous oil or Vaseline on the car-
riage guide once a month. Wipe
off excess oil/Vaseline with a soft
cotton rag.

Universal Slicer Master M 6 / M 9 / M 91
© Gebr. Graef & Co. KG 29
EN
Disposal
Disposing this product at the end of its service life through
normal domestic waste is prohibited. The symbol on the prod-
uct and in the operating instructions points this out. The ma-
terials can be recycled in accordance with their markings. By
recycling, making use of the materials or other forms of recy-
cling old units you are making an important contribution to
protecting our environment. Please ask your municipal admin-
istration about the responsible disposal sites.
Warranty
10 year warranty
Starting with the date of purchase, we assume a 120 month
manufacturer's warranty for defects that are attributable
to manufacturing and material defects. Your legal warranty
rights in accordance with § 439 ff. German Civil Code-E re-
main unaffected by this clause. Not included in the warranty
are damages that have arisen due to improper handling and
use as well as defects which have only a slight inuence on the
functioning or value of the unit. Furthermore, shipping dam-
ages, unless our responsibility, are excluded from warranty
rights. Warranty claims are excluded for damages that arise
due to repairs we or our representatives have not performed.
In case of a justied complaint, we will repair or replace the
defective product with a awless product as we choose.
