WELCOME
Thank you for purchasing the Grandstream BT–200 SIP phone. The BT–200 is an affordable, next
generation SIP phone that features excellent audio quality and rich telephony features. The BT–200
supports popular voice codecs and is designed for full SIP compatibility and interoperability with 3rd party
SIP providers, thus enabling you to fully leverage the benefits of VoIP technology.
This manual will help you learn how to operate and manage your SIP phone and make the best use of its
many upgraded features including 3-way conferencing, full-duplex hands-free speakerphone, voicemail
with indicator, and custom ring tones. This phone is very easy to use and is designed to be a basic VoIP
solution for the home or office.
Caution: Changes or modifications to this product not expressly approved by Grandstream, or operation
of this product in any way other than as detailed by this User Manual, could void your manufacturer
warranty.
•This document is contains links to Grandstream GUI Interfaces. Please download examples from
http://www.grandstream.com/user_manuals/GUI/GUI_BT200.rar for your reference.
•This document is subject to change without notice. The latest electronic version of this user manual
is available for download @: http://www.grandstream.com/user_manuals/BT-200.pdf
•Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print,
for any purpose without the express written permission of Grandstream Networks, Inc. is not
permitted.

CONNECTING YOUR PHONE
Connecting your BT–200 is easy. Before you begin, please verify the contents of the BT–200 package.
EQUIPMENT PACKAGING
The BT–-200 phone package contains:
1. One BT–200 Main Case
2. One Handset
3. One phone cord
4. One Universal Power Adapter
5. One Ethernet cable
CONNECT YOUR PHONE
Connecting your phone is simple. First, connect the handset to the handset port. Next, connect the
network port on the back of your phone to the Ethernet port on your router using the Ethernet cable
included in your package. Then connect your BT–200 to your PC using the PC port. Lastly, connect your
power supply to your phone and wall outlet. Please ensure your BT-200 has the latest firmware @
http://www.grandstream.com/y-firmware.htm.
FIGURE 1: BT–200 ILLUSTRATION
Headset
Powe
r
LAN Port
PC Port
CONNECT YOUR PHONE TO THE VOIP NETWORK
Follow these steps to connect your phone to the VoIP network:
1. Ensure your phone is connected to the Internet and the power socket.
2. Wait 1 minute and press MENU.
3. Press Arrow down 1 time to see on display [2] IP Address
4. Press MENU again to see IP address on display
5. Enter this IP in Internet Explorer browser.
6. Login as administrator (password on default: admin)
a. Type your SIP ID numbers
b. Type your NAME used for Member Login
c. Type your PASSWORD used for Member Login
7. REBOOT the BT–200 phone
Grandstream Networks, Inc. BT-200 User Manual Page 5 of 35
Firmware 1.1.1.14 Last Updated: 12/2006

Grandstream Networks, Inc. BT-200 User Manual Page 6 of 35
Firmware 1.1.1.14 Last Updated: 12/2006
TABLE 1: BT–200 CONNECTOR DEFINITIONS
POWER 5V power port; Connect to your phone and the wall outlet
LAN 10/100 Mbps Switch LAN port to connect your phone to an Ethernet port.
PC 10/100 Mbps Switch port to connect your phone to the PC.
HEADSET 2.5mm Headset port
SAFETY COMPLIANCES
The BT-200 phone complies with FCC/CE and various safety standards. The BT-200 power adaptor is
compliant with UL standard. Only use the universal power adapter provided with the BT– package. The
manufacturer’s warranty does not cover damages to the phone caused by unsupported power adaptors.
WARRANTY
If you purchased your BT–200 from a reseller, please contact the company where you purchased your
phone for replacement, repair or refund. If you purchased the product directly from Grandstream, contact
your Grandstream Sales and Service Representative for a RMA (Return Materials Authorization) number
before you return the product. Grandstream reserves the right to remedy warranty policy without prior
notification. Grandstream reserves the right to remedy warranty policy without prior notification.
Warning: Please do not use a different power adaptor with the BT-200 as it may cause damage to the
products and void the manufacturer warranty.

Grandstream Networks, Inc. BT-200 User Manual Page 7 of 35
Firmware 1.1.1.14 Last Updated: 12/2006
PRODUCT OVERVIEW
The BT–200 SIP phone is designed to provide all the feature functionality of a traditional phone plus
advanced features like voicemail, 3-way conferencing, remote configuration, and dual 100 Mbps switched
or routed network ports. The BT–200 is based on SIP Industry Standards and supports popular voice
codecs and is designed for full SIP compatibility and interoperability with 3rd party SIP providers. It’s
simple to use, configure and manage.
KEY FEATURES
•Interoperable & compatible with SIP platforms
•Two (2) 100 Mbps auto sensing Ethernet RJ45 ports (switched or routed)
•Full duplex speakerphone
•Standard voice features and functionality
•Advanced functionality
•Voicemail indicator with light
Lines Ethernet Ports DHCP Security Voice Mail
Indicator Voice Codec Remote Configuration
1 Line / 1 SIP
account
2 RJ45 (LAN)
(switched/routed)
Client/
Server
SRTP,
TLS
(pending)
Yes
G.722, G.723,
G.711, G.729,
G.726, GSM,
iLBC
TFTP/HTTP

Grandstream Networks, Inc. BT-200 User Manual Page 8 of 35
Firmware 1.1.1.14 Last Updated: 12/2006
TABLE 2: TECHNICAL SOFTWARE FEATURES
Feature Software
Lines 1 direct number
Protocol Support(1) IETF SIP (RFC 3261 and companion RFCs)
Display 12-digit caller ID LCD
Feature Keys 8 dedicated keys: Message Button, Hold, Transfer, Conference, Flash,
Speakerphone, Send, Mute/Del, 5 display/menu navigation keys
Ethernet Ports Dual 100 Mbps Ethernet LAN and PC ports (switched or routed)
Device Management Web interface or via secure (AES encrypted) central configuration file for
mass deployment
NAT-friendly remote software upgrade (via TFTP/HTTP) for deployed
devices including behind firewall/NAT
Support Layer 2 (802.1Q, VLAN, 802.1p) and Layer 3 QoS (ToS, DiffServ,
MPLS)
Auto/manual provisioning system
Keypad & LCD
Audio Features Full-duplex hands-free speakerphone
Advanced Digital Signal Processing (DSP)
Dynamic negotiation of codec and voice payload length
Support for G.723,1 (5.3K/6.3K), G.729A/B, G.711 µ/A, G.726, G.722 (wide-
band), GSM and iLBC codecs
In-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
Silence Suppression, VAD (voice activity detection), CNG (comfort noise
generation), ANG (automatic gain control)
Adaptive jitter buffer control
Packet delay & loss concealment
Call Handling Features Voice mail indicator with indicator, 3-way conferencing, Caller ID display or
block, Call waiting, transfer, hold, forward, flash, mute
Redial, call log, and volume control
Dial plans, off-hook auto dial, early dial, click-to-dial
Network and
Provisioning
TCP/UDP/IP, RTP/RTCP , HTTP, ARP/RARP, ICMP, DNS, DHCP, NTP,
TFTP, PPPoE protocols
Manual or dynamic host configuration protocol (DHCP) network setup
Support for IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS
RTP and NAT support traversal via STUN and external media proxy
Message waiting indicationAdvanced Server
Features Server redundancy – support for fail-over SIP server and DNS server
Security DIGEST authentication and encryption using MD5 and MD5-sess
SRTP and TLS (pending)

HARDWARE FEATURES
•Headset with auto switch when in use
•10/100 Mbps Full/Half Duplex Ethernet Switch with LAN and PC port,
•Auto detect Ethernet polarity - use either straight through or twist cable
•Message Waiting Indicator – RED LED
TABLE 2: TECHNICAL HARDWARE SPECIFICATIONS
LAN interface 2 x RJ45 10/100Mbps Ethernet Ports
Headset Jack 2.5mm Headset port
LED 1 LED in RED color
Phone Case 25-button keypad
12-digit caller ID LCD
Universal Switching
Power Adaptor
Input: 100-240VAC 50-60 Hz
Output: +5VDC, 1200mA, UL certified
Dimension 18cm (W) x 22cm (D) x 6.5cm (H)
Weight 0.9kg (2lbs)
Temperature 40 - 130ºF | 5 – 45ºC
Humidity 10% - 90%
(non-condensing)
Compliance FCC / CE / C-Tick
USING THE BT–200 IP PHONE
GETTING FAMILIAR WITH THE LCD /LED
BT–200 has a numeric backlit LCD measuring 64mm x 24mm which displays icons to illustrate the
mode(s) of the phone. The LCD turns on with an incoming call. If voicemail is configured, there is also a
RED LED message indicator.
FIGURE 2: BT–200 LCD ILLUSTRATION
Grandstream Networks, Inc. BT-200 User Manual Page 9 of 35
Firmware 1.1.1.14 Last Updated: 12/2006

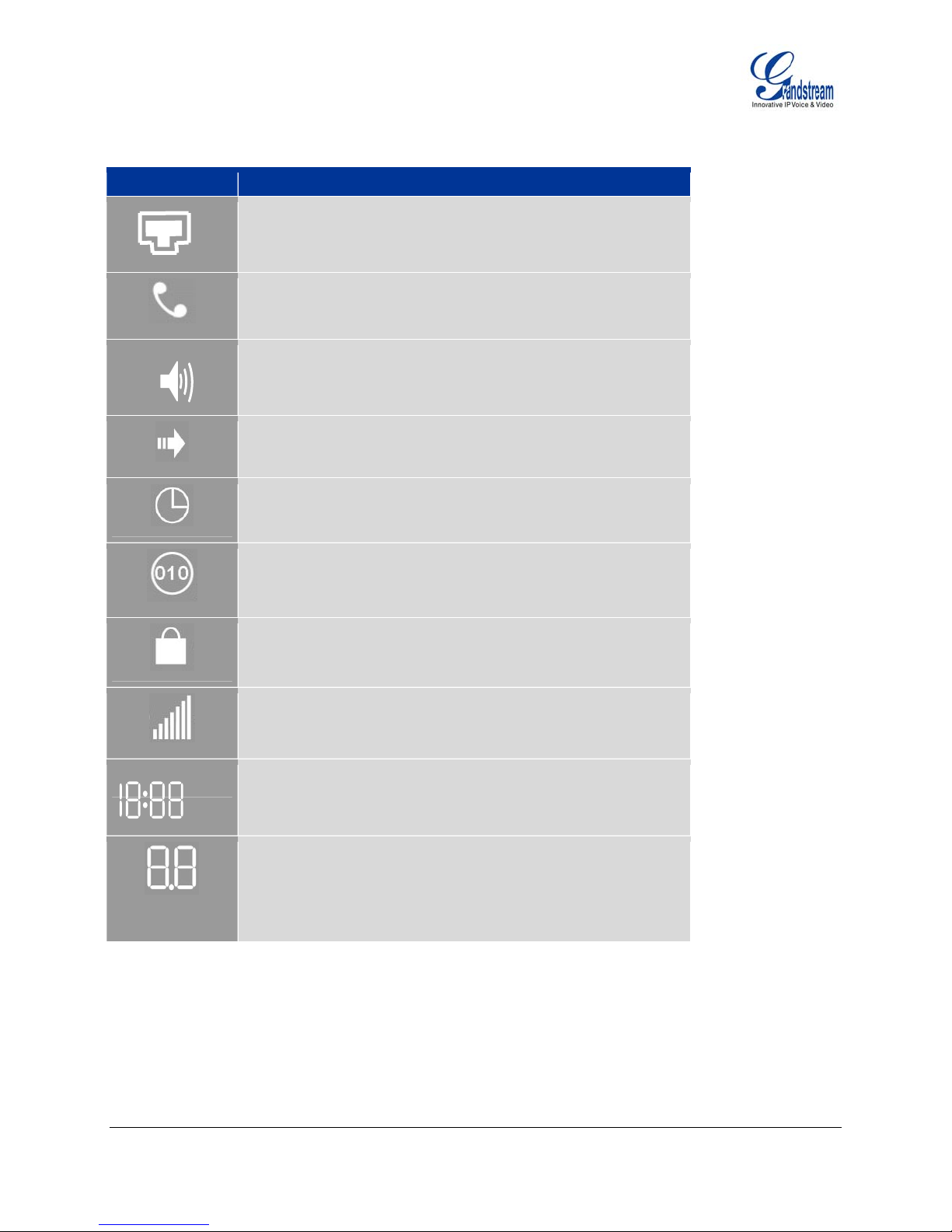

TABLE 4: LCD ICON DEFINITIONS
Icon LCD Icon Definitions
Connectivity Status / SIP Proxy/Server Icon:
Solid – connected to SIP Server/IP address received
Blinking – physical connection failed
Blank – SIP Proxy/Server not registered
Phone Status Icon:
OFF when the handset is on-hook
ON when the handset is off-hook
Speaker Phone Status Icon:
FLASH when phone rings or a call is pending
OFF when the speakerphone is off
ON when the speakerphone is on
Calls Forwarded Icon:
INDICATES calls are forwarded
Currently not implemented
Alarm Clock Icon:
Currently not implemented
RTP Encryption Icon:
Ensures data security
Currently not implemented
Keypad Lock Icon:
Locks the keypad
Currently not implemented
Handset, Speakerphone and Ring Volume Icon:
Each icon appears next to the volume icon
To adjust volume, use the up/down button
Real-time Clock:
Synchronized to Internet time server
Time zone configurable via web browser
AM/PM indicator
Call Logs and IP Address Separator Icons:
01-10 for CALLED history (dialed number)
01-10 for CALLERS history (Incoming caller ID)
Numbers and Characters:
0 – 9, “* key” = └, “# key“= ┘
PM
AM
Grandstream Networks, Inc. BT-200 User Manual Page 10 of 35
Firmware 1.1.1.14 Last Updated: 12/2006

GETTING FAMILIAR WITH KEYPAD
The BT–200 keypad is the same as a traditional phone, with additional feature functionality including
speaker, menu keys, LCD navigation keys, and advanced feature keys which include hold, transfer,
conference and flash.
FIGURE 3: BT–200 KEYPAD ILLUSTRATION
Navigation
Keys
Message
Button & LED
Menu and
Call Keys
Advanced
Feature
Buttons
Speaker, Send
& Mute/Del
TABLE 5: KEYPAD BUTTON DEFINITIONS
Key Button Key Button Definitions
UP ↑
Use button to select next “Menu Item” when phone is in keypad configuration mode; Or
increase handset/speakerphone volume when phone is ACTIVE; Or increase ring volume
when phone is in IDLE mode
DOWN ↓
Use button to select previous “Menu Item” when phone is in keypad configure mode; Or
decrease handset/speakerphone volume when phone is ACTIVE; Or decrease ring volume
when is in IDLE mode
MENU Enter keypad MENU mode when phone is in IDLE mode.
It is also the ENTER key once entering MENU
CALLED After off hook, press to display the dialed numbers. When number displayed, press the
SEND key can make call using that displayed number
CALLERS After off hook, press to display the incoming Caller IDs. When number displayed, press the
SEND key can make call using that displayed number
MSG Enter to retrieve (video) voice mails or other messages
HOLD Place ACTIVE call on hold
TRNF TRANSFER key: Transfer an ACTIVE call to another number
Grandstream Networks, Inc. BT-200 User Manual Page 11 of 35
Firmware 1.1.1.14 Last Updated: 12/2006

CONF Press CONF button to connect Calling/Called party into conference
FLASH Flash to switch between two lines
SPEAKER Enable/Disable hands-free speaker mode
SEND Press SEND to dial a new number or redial last number dialed. Press send button to send
a call immediately before “no key entry timeout” value expires
MUTE/DEL Mute an active call; or Delete a key entry
Also used to ‘REJECT’ incoming call.
0 - 9, *, # Standard phone keypad; press # key to send call; * key for special needs
MAKING AND ANSWERING PHONE CALLS
HANDSET,SPEAKERPHONE AND HEADSET MODE
The BT–200 handset can be toggled between speaker mode (hands-free) or headset mode. To toggle
between the handset and speaker/headset, press the Hook Flash in the handset cradle or press the
SPEAKER button.
Grandstream Networks, Inc. BT-200 User Manual Page 12 of 35
Firmware 1.1.1.14 Last Updated: 12/2006
PLACING A TRADITIONAL PHONE CALL
There are four ways to place a call:
1. Use handset, headset or press SPEAKERPHONE button and dial.
2. Press the SEND button directly to redial last number. Last dialed number will be displayed on the
LCD as the number is dialed.
3. Browse the CALLED/CALLER history, select the number using the navigation keys and press
SEND button to place the call.
4. Use the menu key to browse the “CALLED/CALLERS” menu to scroll through the last 10
numbers dialed or received. Select number using the navigation keys and press SEND button to
place the call.
Examples:
•To dial another extension on the same proxy, such as 1008, pick up handset or press speaker, dial
1008 and then press SEND.
•To dial an outside number such as 626-666-7890, enter prefix if necessary and dial number and
press SEND. Check with your VoIP provider for more information about prefixes.
PLACING CALLS USING AN IP ADDRESS
Direct IP calling allows two parties using a BT-200 and another VoIP device to talk with each other in an
ad hoc fashion without a SIP proxy. VoIP calls can be made between two phones if:
•both phone/VoIP device have public IP addresses, or
•both phone/VoIP device are on a same LAN/VPN using private or public IP addresses, or
•both phone/VoIP device can be connected through a router using public or private IP
addresses (with necessary port forwarding or DMZ)

Grandstream Networks, Inc. BT-200 User Manual Page 13 of 35
Firmware 1.1.1.14 Last Updated: 12/2006
PLACING A DIRECT IP-IP CALL
To place a direct IP to IP call, first off-hook, then press the “MENU” key, then enter a 12-digit target IP
address to make the call. If port is not default 5060, destination ports can be specified by using “*4”
(encoding for “:”) followed by the port number.
Examples:
•If the target IP address is 192.168.0.10, the dialing convention is MENU 192 168 000 010 followed
by pressing the “SEND” key or wait for seconds in the No Key Entry Timeout.
•If the target IP address/port is 192.168.1.20:5062, then the dialing convention is MENU_key
192168001020*45062 followed by the SEND key or wait for 4 seconds.
Placing a Quick IP Call
The BT–200 can dial an IP address under the same LAN segment by dialing the last octet in the IP
address. Controlled static IP usage is recommended.
In the “Advanced Settings” page, set the "Use Quick IP-call Mode” to YES. When #xxx is dialed, where x
is 0 – 9 and xxx <= 255, a direct IP call to aaa.bbb.ccc.XXX is completed. “aaa.bbb.ccc” is from the local
IP address regardless of subnet mask. The numbers #xx or #x are also valid. The leading 0 is not
required but can be used.
Examples:
•192.168.0.2 calling 192.168.0.3 just dial #3 follow by SEND or #
•192.168.0.2 calling 192.168.0.23 just dial #23 follow by SEND or #
•192.168.0.2 calling 192.168.0.123 just dial #123 follow by SEND or #
•192.168.0.2 dial # 3 and # 03 and # 003 has same effect --> call 192.168.0.3
NOTE: If you have a SIP Server configured, a Direct IP-IP call still works. If you are using STUN, the
Direct IP-IP call will also use STUN. Configure the “Use Random Port” to “NO” when completing Direct IP
calls.
ANSWER AN INCOMING CALL
The BT–200 works like any other traditional phone. There are two ways to answer an incoming call:
1. Pick up the handset to answer the call normally using handset, or
2. Press the SPEAKER button to answer in speakerphone or headset mode
Call Hold
Press the HOLD button to place a call on hold. Press the HOLD button again to release the previously
held call.
Call Waiting and Call Flashing
If call waiting feature is enabled, a call waiting tone (stutter tone) will alert the caller to an incoming call.
Press the FLASH button to place the current party on hold and switch to the incoming call. Press the
flash button to toggle between two active calls.

Grandstream Networks, Inc. BT-200 User Manual Page 14 of 35
Firmware 1.1.1.14 Last Updated: 12/2006
Blind and Attended Call Transfer
BT–200 supports both blind and attended call transfer. Each is easy to use. Use blind transfer if you
want to transfer a call without speaking with someone first; use attended transfer if you want to speak with
the xxxxxxxx prior to transferring call.
Blind Transfer
Transfer an active call to a third party without announcement.
Press the TRANSFER button and wait for a dial tone. Dial the third party’s phone number followed by the
SEND button.
Expected outcomes:
a) A
quick confirmation tone (call waiting tone) followed by a dial tone. This indicates the transfer is
successful. Hang up or place another call.
b) A
quick busy tone followed by a restored call (on supported platforms only). The busy tone
indicates the transfer failed.
c) Continuous busy tone. The phone call has timed out. NOTE: continuous busy tone does not
indicate the transfer has been successful, nor does it indicate the transfer has failed. It often
means there was a failure to receive second NOTIFY – check firmware for most recent release.
NOTE: The “Enable Call Feature” must be configured to “Yes” in the web configuration page to enable
this feature.
Attended Transfer
Transfer an active call to a third party with an accompanying message. User has the option to speak to
the intended receiver of call prior to transferring the call.
Press the FLASH button for a second dial tone. Dial the third party’s phone number and press the SEND
button. If the call is answered, press TRANSFER to complete the transfer and hang up. If the call is not
answered, press FLASH to resume the original call.
NOTE: If Attended Transfer fails, and party A hangs up, the HandTone-496 will ring party A to remind A
that party B is still on the line. Party A can pick up the phone to resume conversation with party B.
3-way Conference
The BT–200 supports the advanced 3-way conferencing feature. To use 3-way conferencing, assume
aller A and Caller B wish to conference Caller C.
C
1. Press CONFERENCE for dial-tone, placing Caller B on hold. Dial third number and press SEND.
2. Press CONFERENCE again to establish 3-way conference call.
3. If Caller C does not answer, press FLASH to resume conversation with Caller B.
NOTE: If either Caller B or Caller C drops the call, the two remaining parties can still talk. However, if
Caller A (conference initiator) ends the call, the conference is terminated and all lines hang up.
Retrieving Messages
The blinking red MWI (Message Waiting Indicator) indicates a message is waiting. Press the MSG button
to retrieve the message. An IVR will prompt the user through the message retrieval menu.
Mute/Delete
1. To enable/disable mute during a call, press MUTE/DEL button.

Grandstream Networks, Inc. BT-200 User Manual Page 15 of 35
Firmware 1.1.1.14 Last Updated: 12/2006
2. To delete entries when dialing, press MUTE/DEL to delete the digit.
3. To send a call directly to voicemail (without picking up the call), press MUTE/DEL
CALL FEATURES
The BT–200 supports an advanced call feature list including but not limited to Caller ID Block (or
Anonymous Call), Disable/Enable Call Waiting, Call Forward on Busy, Delay, or Unconditional. The
following table outlines each call feature available on the BT–200.
TABLE 6: CALL FEATURE DEFINITIONS
Key Call Features
*30 Block Caller ID (for all subsequent calls)
*31 Send Caller ID (for all subsequent calls)
*67 Block Caller ID (per call)
*82 Send Caller ID (per call)
*70 Disable Call Waiting (per Call)
*71 Enable Call Waiting (per Call)
*72 Unconditional Call Forward
Dial “*72” for a dial tone. Dial the forwarding number followed by “#”.
Wait for dial tone. LCD will display “Call FWD Activated”.
*73 Cancel Unconditional Call Forward: dial “*73” and get the dial
tone, then hang up. LCD will display “Call FWD Activated”.
*90 Busy Call Forward
Dial “*90” for a dial tone. Dial the forwarding number followed by “#”.
Wait for a dial tone. Hang up.
*91 Cancel Busy Call Forward: dial “*91”. Wait for dial tone. Hang up.
*92 Delayed Call Forward
Dial “*92” for a dial tone. Dial the forwarding number followed by “#”.
Wait for a dial tone. Hang up. LCD will display “Call FWD Activated”.
*93 Cancel Delayed Call Forward
Dial “*93” for a dial tone, then hang up.

Grandstream Networks, Inc. BT-200 User Manual Page 16 of 35
Firmware 1.1.1.14 Last Updated: 12/2006
CONFIGURATION GUIDE
This section of the BT–200 manual will help guide you to configure your phone, either using the keypad or
through the web interface. Examples of the web interfaces can be downloaded @
http://www.grandstream.com/user_manuals/GUI/GUI_BT200.rar.
CONFIGURATION WITH KEYPAD
Configuring the BT–200 using the key pad is simple. If at anytime the phone rings or there is a 20+
second idle time, while in the configuration state, the phone will exit the configuration menu. You can
answer an incoming call as usual during the configuration stage.
First, be sure your phone is not in use. Press the MENU button to enter key pad menu. There are eleven
main menu functions ranging from 1 – 11. Navigate the menu options using the navigation keys on the
keypad. Definitions are found in Table 7.
TABLE 7: CONFIGURATION MENU DEFINITIONS
Menu Item Menu Functions
1
Display “[1] dhcP On ” or “[1] dhcP oFF” for the current selection
Press MENU key to enter edit mode
Press ‘↓’ or ’↑’ to toggle the selection
Press MENU to save and exit
Must recycle power for changes to take effect.
2
Display “[2] IP Addr ”
Press MENU to display the current IP address
Enter new IP address if DHCP is OFF
Press ‘↓’ or ’↑’ to exit
Press MENU to (save and) exit
Must recycle power for changes to take effect.
3
Display “[3] SubNet ”
Press MENU to display the Subnet mask
Enter new Subnet mask if DHCP is OFF
Press ‘↓’ or ’↑’ to exit
Press MENU to (save and) exit
Must recycle power for changes to take effect.
4
Display “[4] routEr ”
Press MENU to display the Router/Gateway address
Enter new Router/Gateway address if DHCP is OFF
Press ‘↓’ or ’↑’ to exit
Press MENU to (save and) exit
Must recycle power for changes to take effect.

Grandstream Networks, Inc. BT-200 User Manual Page 17 of 35
Firmware 1.1.1.14 Last Updated: 12/2006
Menu Item Menu Functions
5
Display “[5] dnS ”
Press MENU to display the DNS address
Enter new DNS address if DHCP is OFF
Press ‘↓’ or ’↑’ to exit
Press MENU to (save and) exit
Must recycle power for changes to take effect.
6
Display “[6] tFtP ”
Press MENU to display the TFTP address
Enter new TFTP server IP address
Press MENU to save
Press ‘↓’ or ’↑’ to exit
7
Display “[7] G-711u 2”
Press MENU to select new codec
Press ‘↓’ or ’↑’ to browse a list of available codecs
line 2 “ - G-711A 2”
3 “ - G-723 1”
4 “ - G-729 2”
5 “ - GS 1”
Press 1 to 9 to indicate number of frames per TX packet
Press MENU to save and exit
Must recycle power for changes to take effect.
8 Display “[8] SIP SP-1”
Reserve for future products.
9
Display “[9] codE rEL”
Press Menu to display the code releases
Press ‘↓’ or ’↑’ to browse
line 1 “b 2006-09-28” – date: boot code
2 “ 1. 1. 1. 3” – version: boot code
3 “P 2006-10-02” – date: phone code
4 “ 1. 1. 1. 14 – version: phone code
5 “1r 2004-05-12” – date: 1st ring tone
6 “ 1. 0. 0. 0” – version: ring tone
7 “2r 2004-05-12” – date: 2nd ring tone
8 “ 1. 0. 0. 0” – version: ring tone
9 “3r 0000-00-00” – date: 3rd ring tone
10 “ 1. 0. 0. 0” – version: ring tone
(all zeroes means unavailable or unsupported)
Press MENU to exit.

Grandstream Networks, Inc. BT-200 User Manual Page 18 of 35
Firmware 1.1.1.14 Last Updated: 12/2006
Menu Item Menu Functions
10
Display “[10] Phy Addr”
Press MENU to display the physical / MAC address.
Press ‘↓’ or ’↑’ to exit.
11
Display “[11] ring 0”
Press MENU to hear the selected ring tone, press ‘↓’ or ’↑’ to select the stored ring
tones. There are 3 available ring-tones: ring 0 (default), ring 1 and ring 2. ring 3 is
unavailable or unsupported.
Press MENU to select and exit.
Factory
Reset
Display “ -- rESEt --”. Please be very careful when using this function.
Two options: factory reset or manual reboot.
Factory Reset:
1. Key in the physical / MAC address on back of the phone.
2. Press MENU to reset phone to FACTORY DEFAULT settings. All your
setting will be erased.
Manual Reboot: Press MENU without keying anything.
Others
When phone is powered on and time is displayed
Press ‘↓’ or ’↑’, Display “ ring [4] ”, press ‘↓’ or ’↑’ again to hear and adjust the ring
tone volume, from 0 (off) to 7 (maximum), off and on hook to set
Press SPEAKERPHONE button, or off hook and pick up handset, press ‘↓’ or ’↑’ to
adjust the speakerphone/headset or handset volume.
CONFIGURATION WITH WEB BROWSER
The BT–200 has an embedded Web server that will respond to HTTP GET/POST requests. It also has
embedded HTML pages that allow a user to configure the IP phone through any web browser.
Access the Web Configuration Menu
The IP Phone Web Configuration Menu can be accessed by the following URI: http://Phone-IP-Address
where the Phone-IP-Address is the IP address of the phone. To find your IP address, press MENU and
select the Status item to see “IP: IP Address”.
NOTE: When typing the IP address into a browser, strip out the leading “0” as the browser will parse in
octet. e.g. if the IP address is: 192.168.001.014, please type in: 192.168.1.14.
END USER CONFIGURATION
Once this HTTP request is sent from a Web browser, the web server will display a login screen. The
password is case sensitive with maximum length of 25 characters. The factory default password for the
End User is “123”. After login, the embedded Web server will display the Configuration page, explained
in detail in Table 8.

Grandstream Networks, Inc. BT-200 User Manual Page 19 of 35
Firmware 1.1.1.14 Last Updated: 12/2006
TABLE 8: KEYPAD BUTTON DEFINITIONS
End User
Password
This contains the password to access the Web Configuration Menu. This field is
case sensitive with a maximum length of 25 characters.
IP Address There are two modes under which the BT–200 can operate:
1. DHCP Mode: all the field values for the Static IP mode are not used (even
though they are still saved in the Flash memory.) The BT–200 will acquire
its IP address from the first DHCP server it discovers from the LAN it is
connected.
To use the PPPoE feature the PPPoE account settings need to be set. The
BT–200 will attempt to establish a PPPoE session if any of the PPPoE
fields is set.
2. STATIC IP Mode: the IP address, Subnet Mask, Default Router IP
address, DNS Server 1 (primary), DNS Server 2 (secondary) fields will
need to be configured. These fields are set to zero by default.
Time Zone This parameter controls how the date/time is displayed according to the specified
time zone.
Daylight Savings
Time
This parameter controls whether the displayed time will be daylight savings time or
not. If set to “Yes” and the Optional Rule is empty, then the displayed time will be 1
hour ahead of normal time. The “Automatic Daylight Saving Time Rule” shall have
the following syntax: start-time;end-time;saving
Both start-time and end-time have the same syntax:
month,day,weekday,hour,minute
month: 1,2,3,..,12 (for Jan, Feb, .., Dec)
day: [+|-]1,2,3,..,31
weekday: 1, 2, 3, .., 7 (for Mon, Tue, .., Sun), or 0 which means the daylight
saving rule is not based on week days but based on the day of the month.
hour: hour (0-23), minute: minute (0-59)
If “weekday” is 0, it means the date to start or end daylight saving is at exactly the
given date. In that case, the “day” value must not be negative. If “weekday” is not
zero and “day” is positive, then the daylight saving starts on the first “day”th iteration
of the weekday (1st Sunday, 3rd Tuesday etc). If “weekday” us not zero and “day”
is negative, then the daylight saving starts on the last “day”th iteration of the
weekday (last Sunday, 3rd last Tuesday etc). The saving is in the unit of minutes.
The saving time may also be preceded by a negative (-) sign if subtraction is
desired instead of addition. The default value for “Automatic Daylight Saving Time
Rule” shall be set to
“04,01,7,02,00;10,-1,7,02,00;60” which is the rule for US.
Examples
US/Canada where daylight saving time is applicable:
04,01,7,02,00;10,-1,7,02,00;60
This means the daylight saving time starts from the first Sunday of April at
2AM and ends the last Sunday of October at 2AM. The saving is 60 minutes
(1hour).

Grandstream Networks, Inc. BT-200 User Manual Page 20 of 35
Firmware 1.1.1.14 Last Updated: 12/2006
Date Display
Format
Allow user to choose among the following three formats:
1. Year-Month-Day
2. Month-Day-Year
3. Day-Month-Year
Display Account
Name instead of
Date
If set to Yes, it will display the information entered on Account Name field from
Account page.
Device Mode This parameter controls whether the device is working in NAT router mode or
Bridge mode. Need save the setting and reboot the device before the setting start
to work.
WAN side HTTP
access
If set to “Yes”, user can access the configuration page through the WAN port,
instead of connecting PC and BT200 through the “PC” port to do the configuration.
On the other hand, it exposes the BT200 to others, and may cause some security
issues for users. Default is No.
Reply to ICMP on
WAN port
If set to “Yes”, The BT200 will respond to the PING command from other computers
for testing, but it also is vulnerable to the DOS attack. Default is No.
Cloned WAN
MAC Addr
Allow the user to set a specific MAC address. Set in Hex format.
LAN Subnet
Mask
Sets the LAN subnet mask. Default value is 255.255.255.0
LAN DHCP Base
IP
Base IP for the LAN port, which function as a Gateway for the subnet.
Default value is 192.168.2.1.
DHCP IP Lease
Time
Value is set in units of hours. Default value is 120hr (5 Days.) The time IP address
is assigned to the LAN clients.
DMZ IP Forward all WAN IP traffic to a specific IP address if no matching port is used by
HandyTone-486 itself or in the defined port forwarding.
Port Forwarding Allow the user to forward a matching (TCP/UDP) port to a specific LAN IP address
with a specific (TCP/UDP) port.
In addition to the Basic Settings configuration page, the end user can also access to the device Status
page. The Device Status page allows the user to find device specific data. After login, the embedded
Web server will display the Device Status page, explained in detail in Table 9: Device Status Page
Definitions.
