Greenlee IPM-100 User manual

999 3816.2 © 2000 Greenlee Textron IM 1491 10/00
IPM-100
INDUSTRIAL PROCESS
CONTROL LOOP
CALIBRATOR
CALIBRADOR DE
BUCLE DE CONTROL
DE PROCESO
INDUSTRIAL
CALIBRATEUR DE
BOUCLE DE
REGULATION DE
PROCEDE INDUSTRIEL
INSTRUCTION MANUAL
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
Read and understand all of the instructions and safety
information in this manual before operating or servicing this tool.
Lea y entienda todas las instrucciones y la información sobre
seguridad que aparecen en este manual, antes de manejar estas
herramientas o darles mantenimiento.
Lire attentivement et bien comprendre toutes les instructions et
les informations sur la sécurité de ce manuel avant d‘utiliser ou de
procéder à l‘entretien de cet outil.

2
Description
The Greenlee IPM-100 Industrial Process Control Loop Calibrator is a hand-held testing device
intended to calibrate any standard 4 mA to 20 mA industrial process control loop.
It has the ability to:
• Check, measure, and calibrate all current signal instruments in a 4 mA to 20 mA DC loop.
• Provide a 0.00 mA to 24.0 mA source.
• Simulate a 2-wire transmitter.
• Simultaneously power and measure a 2-wire transmitter.
• Display either current (0 mA to 24 mA) or percent (–25% to 125%).
Safety
Safety is essential in the use and maintenance of Greenlee tools and equipment. This
instruction manual and any markings on the tool provide information for avoiding hazards and
unsafe practices related to the use of this tool. Observe all of the safety information provided.
Purpose
This instruction manual is intended to familiarize all personnel with the safe operation and
maintenance procedures for the Greenlee IPM-100 Industrial Process Control Loop Calibrator.
Keep this manual available to all personnel.
Replacement manuals are available upon request at no charge.
Greenlee and are registered trademarks of Greenlee Textron.
KEEP THIS MANUAL

IPM-100
3
Important Safety Information
Read and understand this material before operating or servicing
this equipment. Failure to understand how to safely operate this
tool can result in an accident causing serious injury or death.
This symbol is used to call your attention to hazards or unsafe practices which could
result in an injury or property damage. The signal word, defined below, indicates the
severity of the hazard. The message after the signal word provides information for
preventing or avoiding the hazard.
SAFETY ALERT SYMBOL
Immediate hazards which, if not avoided, WILL result in severe injury or death.
Hazards which, if not avoided, COULD result in severe injury or death.
Hazards or unsafe practices which, if not avoided, MAY result in injury or property
damage.

4
Important Safety Information
Electric shock and fire hazard:
• Do not expose this unit to rain or moisture.
• Do not use the unit if it is wet or damaged.
• Use test leads or accessories that are appropriate for the application. See the
category and voltage rating of the test lead or accessory.
• Inspect the test leads or accessory before use. They must be clean and dry, and the
insulation must be in good condition.
• Use this unit for the manufacturer’s intended purpose only, as described in this
manual. Any other use can impair the protection provided by the unit.
Failure to observe these warnings can result in severe injury or death.
Electric shock hazard:
Contact with live circuits can result in severe injury or death.
This unit is not intrinsically safe. Do not use this unit in a Hazardous Location. Refer to
Article 500 of the National Electric Code for information on Hazardous Locations. Using
this tool in a Hazardous Location can result in a fire or explosion.
Failure to observe this warning will result in severe injury or death.

IPM-100
5
Important Safety Information
• Do not attempt to repair this unit. It contains no user-serviceable parts.
• Do not expose the unit to extremes in temperature or high humidity.
See Specifications.
Failure to observe these precautions can result in injury and can damage the unit.
Do not change the measurement function while the test leads are connected to a
component or circuit.
Failure to observe this precaution can result in injury and can damage the unit.
Electric shock hazard:
• Do not apply more than the rated voltage between any two input terminals, or
between any input terminal and earth ground.
• Do not contact the test lead tips or any uninsulated portion of the accessory.
Failure to observe these warnings can result in severe injury or death.
• Do not operate with the case open.
• Before opening the case, remove the test leads from the circuit and shut off the unit.
Failure to observe these warnings can result in severe injury or death.
Using this unit near equipment that generates electromagnetic interference can result
in unstable or inaccurate readings.

6

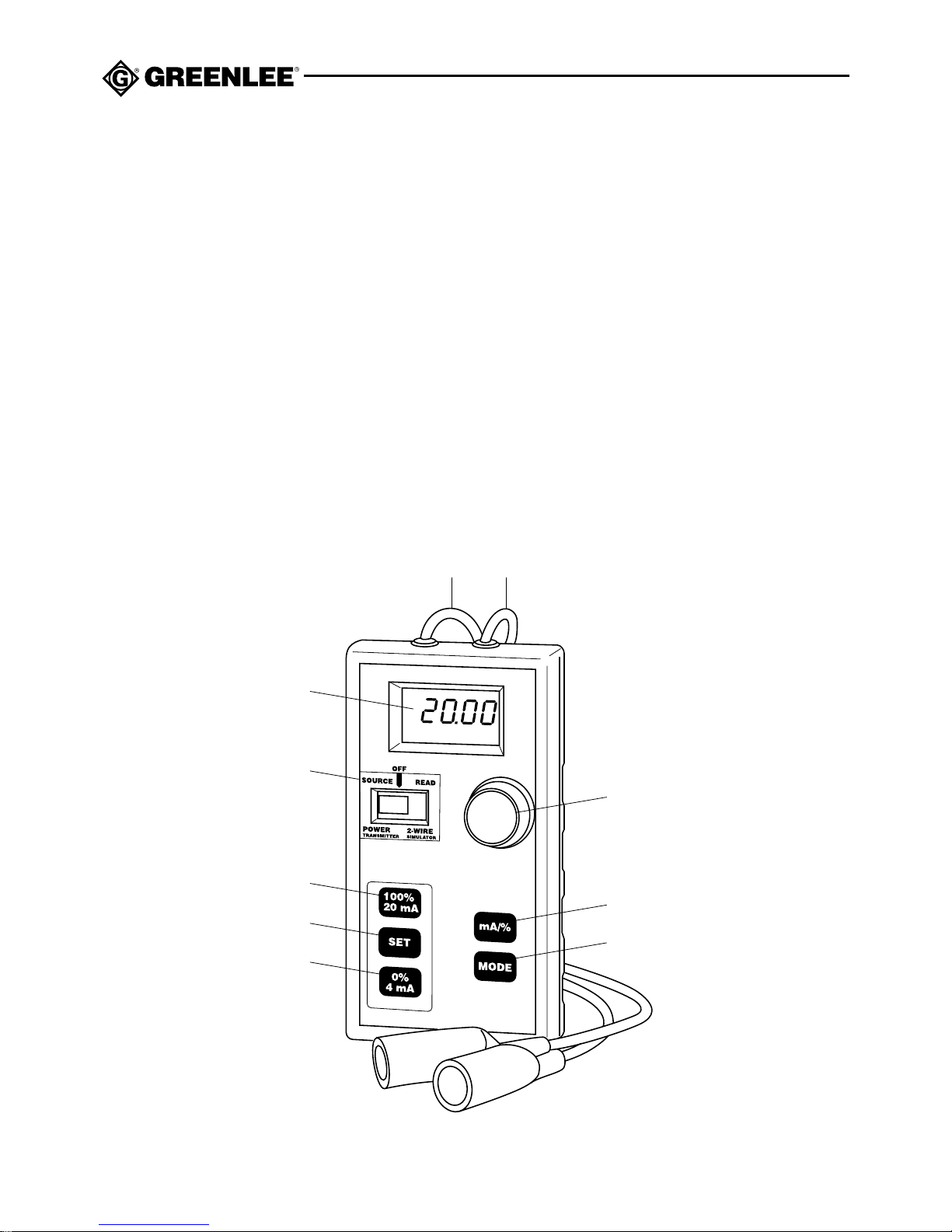

Identification
1. Display LCD
2. SOURCE OFF Use to select an operating function (see Features) or to turn the unit off
READ
3. 100% / 20 mA Press for High Span Output (100% or 20 mA)
4. SET Press for the preset output
5. 0% / 4 mA Press for Low Span Output (0% or 4 mA)
6. MODE Press to select an operating function (see Features)
7. mA / % Press to display either current (mA) or percent (%)
8. Control Knob Turn to adjust the output
9. Red Lead Positive lead
10. Black Lead Negative lead
1
2
3
4
5
10
7
8
6
9

IPM-100
7

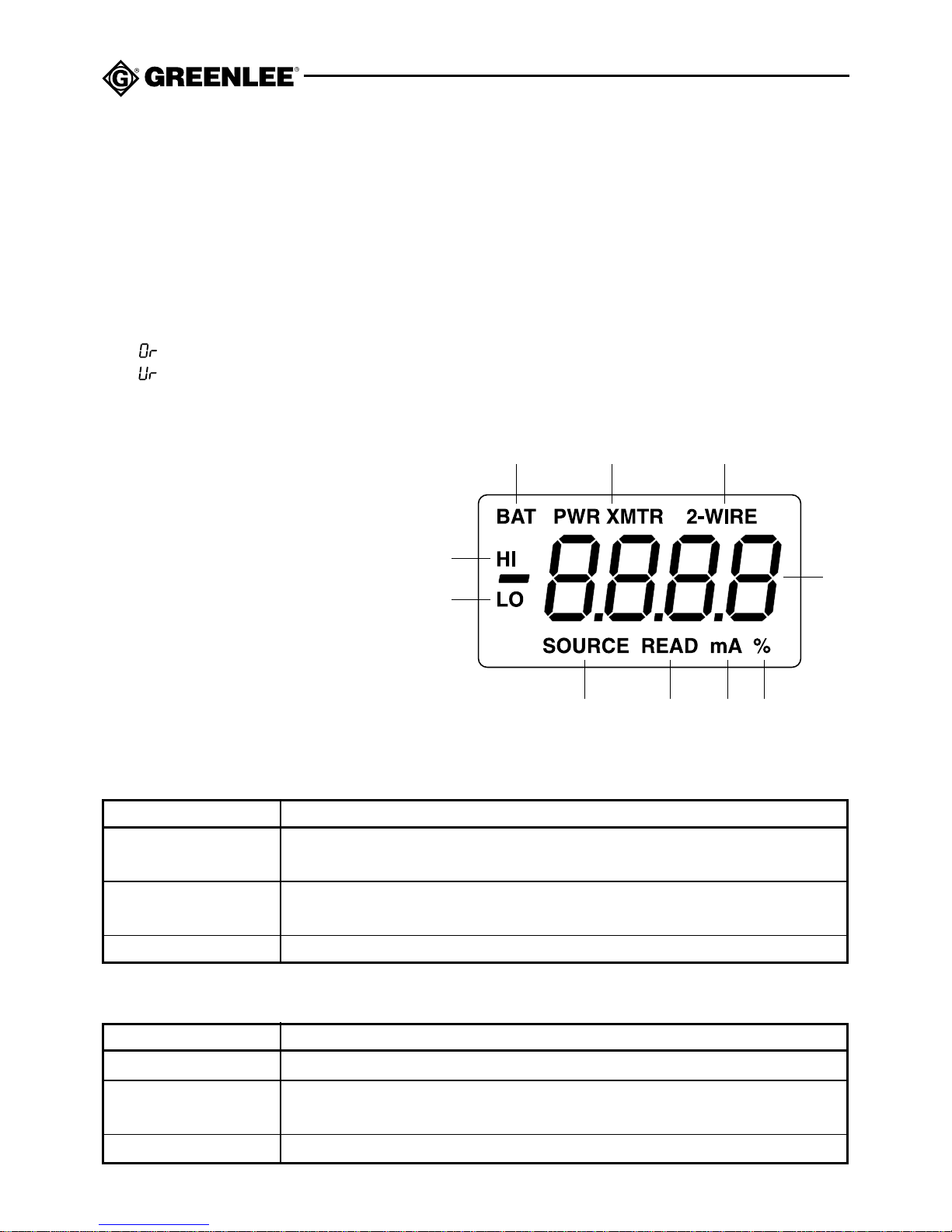

Display Icons
11. LO Low Span Output is selected (0% or 4 mA)
12. HI High Span Output is selected (100% or 20 mA)
13. BAT Low battery
14. PWR XMTR Power Transmitter Function is selected
15. 2-WIRE 2-Wire Function is selected
16. -8.8.8.8 Measurement
Over-range (the signal is too high for the range)
Under-range (the signal is too low for the range)
Flashing digits Open loop or reversed polarity
17. % Percent
18. mA Milliamperes
19. READ Read Function
is selected
20. SOURCE Source Function
is selected
11 16
12
13 14 15
17181920
Features
Operating Functions
Output Checkpoints
Switch or Button Use to:
SOURCE READ •Select SOURCE/POWER TRANSMITTER.
POWER 2-WIRE •Select READ/2-WIRE SIMULATOR.
MODE •Toggle between SOURCE and POWER TRANSMITTER.
•Toggle between READ and 2-WIRE SIMULATOR.
mA / % Select a display mode, either current (mA) or percent (%).
Switch or Button Use to:
100% / 20 mA Set the output to 100%, or 20 mA.
SET Set the output to the user-defined set point.
The default setting is 12 mA. To change this, see Settings.
0% / 4 mA Set the output to 0%, or 4 mA.

8
Introduction
The user can change the SET button to any other convenient set point (see Settings). In
addition, the control knob is speed-sensitive; turning it faster produces a faster change in the
output.
The normal industrial process control loop current range, or span, is 4 mA to 20 mA (0% to
100%). Intermediate points are as follows:
Settings
The IPM-100 has two selectable settings: Automatic Power-off and the current/percent
set point of the SET button.
To change Automatic Power-off setting:
1. Press and hold the SET button while turning the unit on.
2. After the firmware revision appears on the display, release the SET button. BAT and
ON indicate that Automatic Power-off is enabled.
3. Press the MODE button to change the Automatic Power-off function (ON or OFF).
4. Press the SET button to store your selection.
To change current/percent set point for SET button:
1. Use the control knob to set the output to the desired value.
2. Press the SET button to store the selected value.
Current 0 mA 4 mA 8 mA 12 mA 16 mA 20 mA 24 mA
Percent –25% 0% 25% 50% 75% 100% 125%

IPM-100
9

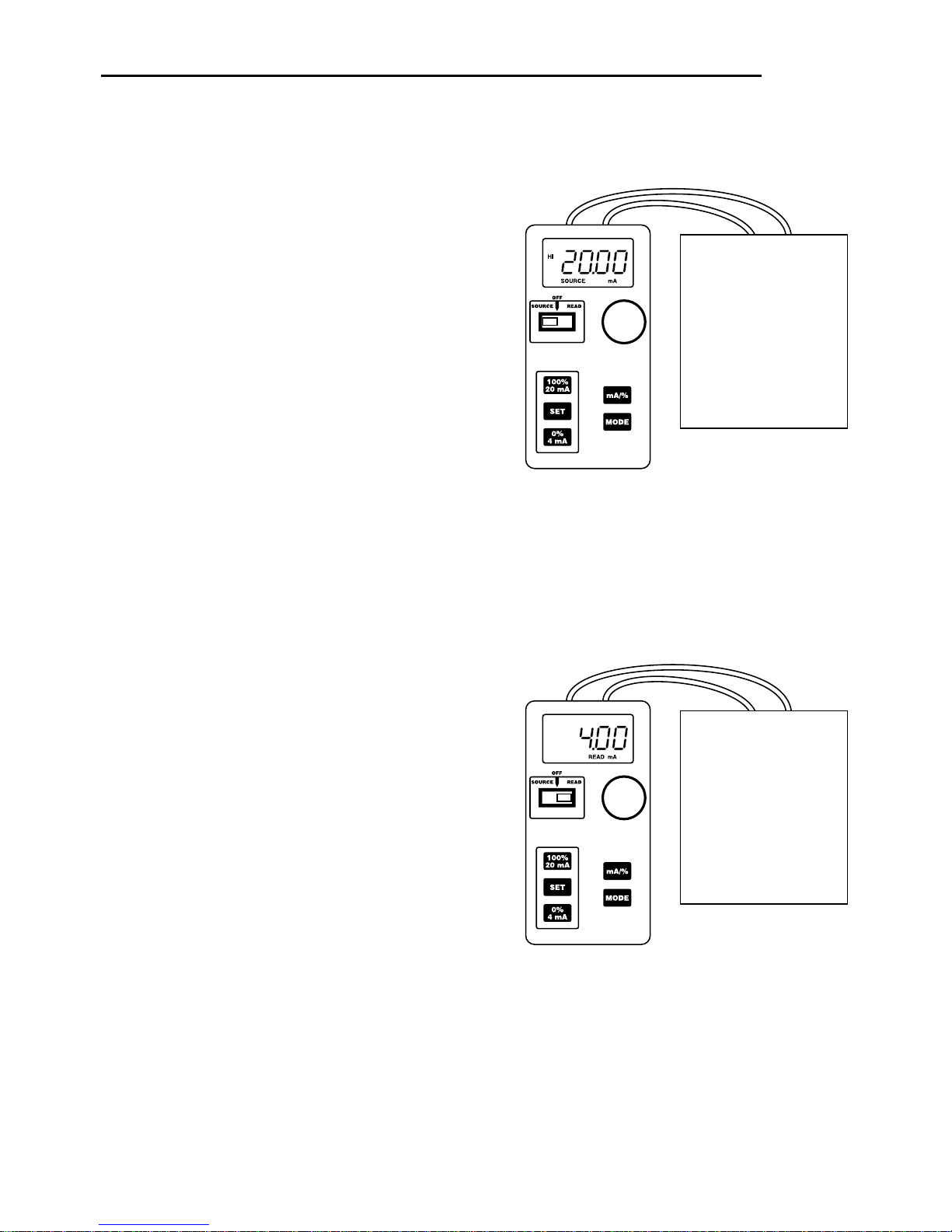

Operation
Source
The Source Function relies on the batteries of the
IPM-100, and provides an output from 0.00 mA to
24.0 mA (–25 to 125%).
1. Disconnect one or both of the input wires
from the device to be calibrated.
2. Select SOURCE and press the MODE button
until SOURCE appears on the display.
3. Press the mA / % button to select current or
percent.
4. Connect the red lead to the positive (+) input
of the device; connect the black lead to the
negative (–) input of the device.
5. Adjust the output current by turning the
control knob, or by using the output
checkpoint buttons.
Read
The Read Function measures current from
0.00 mA to 24.0 mA (–25% to 125%).
1. Open the loop at any convenient point.
2. Select READ and press the MODE button until
READ appears on the display.
3. Press the mA / % button to select current or
percent.
4. Connect the red lead to the positive (+) side
of the circuit; connect the black lead to the
negative (–) side of the circuit.
5. Read the display.
mA Receiver Input
Controller
Transmitter
Computer
Logger
I/P
DCS
mA Output Signal
Controller
Transmitter
P/I
DCS

10
2-Wire Simulator
The 2-Wire Simulator Function relies on an external power supply (3 VDC to 45 VDC), and
provides an output from 0.00 mA to 24.0 mA (–25% to 125%).
1. Disconnect the 2-wire transmitter from the loop.
2. Select 2-WIRE SIMULATOR and press the MODE button until 2-WIRE appears on the
display.
3. Press the mA / % button to select current or percent.
4. Connect the red lead to the positive (+) side of the circuit; connect the black lead to the
negative (–) side of the circuit.
5. Adjust the output current by turning the control knob, or by using the output checkpoint
buttons.
Operation (cont’d)
Receiver
(powers external
2-Wire Transmitter)
Power Supply
2 to 45 VDC
To
Sensor
Typical
2-Wire
Transmitter
(disconnected)

IPM-100
11
Operation (cont’d)
Power Transmitter
The Power Transmitter Function
relies on the internal battery to
power the circuit (12 volts DC
nominal at 24 mA) while simulta-
neously reading the current.
1. Disconnect one or both of the
input wires to the 2-wire
transmitter to be calibrated.
2. Select POWER TRANSMITTER
and press the MODE button until PWR XMTR appears on the display.
3. Press the mA / % button to select current or percent.
4. Connect the red lead to the positive (+) side of the circuit; connect the black lead to the
negative (–) side of the circuit.
5. Connect an appropriate sensor or calibrator to the input of the 2-wire transmitter.
6. Calibrate the transmitter in the usual manner.
Valve Setup
Proper valve setup requires setting the end stops. Select either SOURCE or 2-WIRE
SIMULATOR to control the valve. Refer to the corresponding illustration.
1. Disconnect the control loop’s 4 mA to 20 mA control wires from the current-to-pressure
(I/P) converter or actuator.
2. Connect the IPM-100 to the device.
3. Press the 0% / 4 mA button and adjust the fully closed stop on the actuator.
4. Slowly turn the control knob counterclockwise and verify that the actuator and valve do
not move. Repeat Steps 3 and 4 until the stop is set correctly.
5. Press the 0% / 4 mA button again and turn the control knob clockwise. The actuator and
valve should move.
6. Press the 100% / 20 mA button and adjust the fully open stop on the actuator.
7. Slowly turn the control knob clockwise and verify that the actuator and valve do not move.
Repeat Steps 6 and 7 until the stop is set correctly.
8. Press the 100% / 20 mA button again and turn the control knob counterclockwise. The
actuator and valve should move.
Transmitter Input
Sensor
Process Signal
Simulated Input
Typical
2-Wire
Transmitter

12
Specifications
Display: LCD
Polarity: Automatic
Ranges: 0.00 mA to 24.00 mA and –25.0% to 125.0% of 4 mA to 20 mA
Accuracy: ±(0.08% of 24 mA span + 0.01 mA) = 0.03 mA
Temperature Effect: 0.01% per °C between –2 °C and 45 °C
Warm-up Time: 10 seconds to specified accuracy; 2 minutes to maximum accuracy
Automatic Power-Off: After 30 minutes of inactivity
Overload Protection: 120 V AC/DC for 30 seconds
Operating Conditions: –20 °C to 55 °C (–4 °F to 131 °F), 10% to 90% relative humidity,
without condensation, for 24 hours
Indoor use only
Storage Conditions: –20 °C to 55 °C (–4 °F to 131 °F), 10% to 90% relative humidity, without
condensation, for 24 hours
Remove battery
Battery: Two 9-volt batteries (NEDA 1604, JIS 006P or IEC 6F22)
Source
Typical Drive Capability: 700 Ω@ 20.00 mA with fresh batteries;
300 Ω@ 20.00 mA with low batteries
Compliance Voltage: Nominal 14 VDC @ 20 mA with fresh batteries
Read
Voltage Burden: 0.9 VDC @ 4 mA, 1.2 VDC @ 20 mA, 1.9 VDC @ 24 mA excitation current
2-Wire Simulator
Loop Voltage Limits: 3 VDC minimum; 45 VDC maximum
Overload Protection: Current limited to 25 mA nominal
Power Transmitter
Typical Drive Capability: Same as for Source
Output Current: 0.00 mA to 24.00 mA
Compliance Voltage: Nominal 12 VDC @ 20 mA with fresh batteries

IPM-100
13
Maintenance
1. Disconnect the unit from the circuit. Turn the unit OFF.
2. Remove the screws from the back cover.
3. Remove the back cover.
4. Replace the batteries (observe polarity).
5. Replace the cover and screws.
Cleaning
Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or
solvents.
•Do not attempt to repair this unit. It contains no user-serviceable parts.
•Do not expose the unit to extremes in temperature or high humidity.
See Specifications.
Failure to observe these precautions can result in injury and can damage the unit.
Battery Replacement
Before opening the case, remove the test leads from the circuit and shut off the unit.
Failure to observe this warning can result in severe injury or death.

14
Greenlee Textron / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL61109-2988 815/397-7070

IPM-100
15
Descripción
El Calibrador de Bucle de control de proceso industrial modelo IPM-100 de Greenlee es un
instrumento de verificación diseñado para calibrar cualquier bucle de control de proceso
industrial estándar de 4 mA a 20 mA. Esta unidad es de bolsillo y cabe perfectamente en la palma
de la mano.
Tiene la capacidad de:
•Verificar, medir, y calibrar todos los instrumentos de señal de corriente en un bucle de 4 mA a
20 mA CC.
•Proporcionar una fuente de 0,00 mA a 24,0 mA.
•Simular un transmisor bifilar.
•Energizar y medir simultáneamente un transmisor bifilar.
•Mostrar corriente (0 mA a 24 mA) o por ciento (–25% a 125%).
Acerca de la seguridad
Es fundamental observar métodos seguros al utilizar y dar mantenimiento a las herramientas y
equipo Greenlee. Este manual de instrucciones y todas las marcas que ostenta la herramienta le
ofrecen la información necesaria para evitar riesgos y hábitos poco seguros relacionados con su
uso. Siga toda la información sobre seguridad que se proporciona.
Propósito de este manual
Este manual de instrucciones tiene como propósito familiarizar a todo el personal con los
procedimientos de operación y mantenimiento seguros para el Calibrador de Bucle de control
de proceso industrial modelo IPM-100 de Greenlee.
Manténgalo siempre al alcance de todo el personal.
Puede obtener copias adicionales de manera gratuita, previa solicitud.
Greenlee y son marcas registradas de Greenlee Textron.
CONSERVE ESTE MANUAL

16
Importante Información sobre Seguridad
Este símbolo se utiliza para indicar un riesgo o práctica poco segura que podría
ocasionar lesiones o daños materiales. Cada uno de los siguientes términos denota la
gravedad del riesgo. El mensaje que sigue a dichos términos le indica cómo puede evitar
o prevenir ese riesgo.
SÍMBOLO DE ALERTA
SOBRE SEGURIDAD
Peligros inmediatos que, de no evitarse, OCASIONARÁN graves lesiones o incluso la
muerte.
Peligros que, de no evitarse, PODRÍAN OCASIONAR graves lesiones o incluso la muerte.
Peligro o prácticas peligrosas que, de no evitarse, PUEDEN OCASIONAR lesiones o
daños materiales.
Lea y entienda este documento antes de manejar esta
herramienta o darle mantenimiento. Utilizarla sin comprender
cómo manejarla de manera segura podría ocasionar un accidente
y, como resultado de éste, graves lesiones o incluso la muerte.

IPM-100
17
Importante Información sobre Seguridad
Esta unidad no es intrínsicamente segura. No utilice esta unidad en una Ubicación
Peligrosa. Para mayor información sobre Ubicaciones Peligrosas, consulte el Artículo
500 del Código Eléctrico Nacional. El uso de esta herramienta en Ubicaciones Peligrosas
puede resultar en incendio o explosión.
De no observarse esta advertencia pueden sufrirse graves lesiones o incluso la muerte.
Peligro de electrocución:
El contacto con circuitos activados puede ocasionar graves lesiones
o incluso la muerte.
Peligro de electrocución e incendio:
•No exponga esta unidad ni a la lluvia ni a la humedad.
•No utilice esta unidad si se encuentra mojada o dañada.
•Utilice cables de prueba y accesorios que sean apropiados para la aplicación que se va
a realizar. Consulte la información sobre categoría y voltaje nominal del cable de
prueba o el accesorio.
•Revise minuciosamente los cables de prueba o el accesorio, antes de utilizarlos.
Deberán estar limpios y secos, y su forro aislante deberáhallarse en buenas
condiciones.
•Utilícela únicamente para el propósito para el que ha sido diseñada por el fabricante,
tal como se describe en este manual. Cualquier otro uso puede menoscabar la
protección proporcionada por la unidad.
De no observarse estas advertencias pueden sufrirse graves lesiones o incluso la muerte.

18
Importante Información sobre Seguridad
Peligro de electrocución:
•No aplique más del voltaje nominal entre dos terminales de entrada cualesquiera, o
entre una terminal de entrada cualquiera y una conexión a tierra.
•No toque las puntas de los cables de prueba ni ninguna parte del accesorio que
carezca de forro aislante.
De no observarse estas advertencias pueden sufrirse graves lesiones o incluso la muerte.
•No intente reparar esta unidad, ya que contiene partes que deben recibir
mantenimiento por parte de un profesional.
•No exponga la unidad a ambientes de temperatura extrema o altos niveles de
humedad. Consulte las “Especificaciones”.
De no observarse estas precauciones podrían sufrirse lesiones o daños a la unidad.
No cambie la función de medición mientras los cables de prueba estén conectados a un
componente o circuito.
De no observarse esta advertencia podrían sufrirse lesiones o daños a la unidad.
•No haga funcionar esta unidad con la caja abierta.
•Antes de abrir la caja, retire del circuito los cables de prueba y apague la unidad.
De no observarse estas advertencias pueden sufrirse graves lesiones o incluso la muerte.
Al utilizar esta unidad cerca de equipo que genere interferencia electromagnética quizá
se obtenga una lectura inexacta e inestable.

IPM-100
19
Identificación
1. Pantalla LCD
2. SOURCE OFF Utilícela para seleccionar una función de operación
READ (véase Características) o para apagar la unidad
3. 100% / 20 mA Oprima para Salida de alto alcance (100% o 20 mA)
4. SET Oprima para preajustar la salida
5. 0% / 4 mA Oprima para Salida de bajo alcance (0% o 4 mA)
6. MODE Oprima para seleccionar una función de operación
(véase Características)
7. mA / % Oprima para mostrar corriente (mA) o por ciento (%)
8. Perilla de control Gírela para ajustar la salida
9. Cable de prueba rojo Cable de prueba positivo
10. Cable de prueba negro Cable de prueba negativo
1
2
3
4
5
10
7
8
6
9

20
Iconos de la pantalla
11. LO Se seleccionóSalida de bajo alcance (0% o 4 mA)
12. HI Se seleccionóSalida de alto alcance (100% o 20 mA)
13. BAT Pila baja
14. PWR XMTR Se seleccionóla función Transmisor de potencia
15. 2-WIRE Se seleccionóla función Bifilar
16. -8.8.8.8 Medición
Superior a la escala (la señal es demasiado alta para la escala)
Inferior a la escala (la señal es demasiado baja para la escala)
Dígitos Bucle abierto o polaridad inversa
parpadeantes
17. % Porcentaje
18. mA Miliamperios
19. READ Se seleccionóla
función Lectura
20. SOURCE Se seleccionóla
función Fuente
11 16
12
13 14 15
17181920
Características
Funciones de operación
Puntos de verificación de salida
Interruptor o Botón Utilícelo para:
SOURCE READ •Seleccionar SOURCE/POWER TRANSMITTER.
POWER 2-WIRE •Seleccionar READ/2-WIRE SIMULATOR.
MODE •Alternar entre SOURCE y POWER TRANSMITTER.
•Alternar entre READ y 2-WIRE SIMULATOR.
mA / % Seleccionar un modo de visualización, corriente (mA) o por ciento (%).
Interruptor o Botón Utilícelo para:
100% / 20 mA Ajustar la salida a 100% o 20mA.
SET Ajustar la salida al punto de ajuste definido por el usuario.
El valor por defecto es 12 mA. Para cambiarlo, véase Valores.
0% / 4 mA Ajustar la salida a 0% o 4 mA.
