Guardian 00240 User manual

Product Name: Concrete Swivel Anchor
Instruction Manual
Part #: 00240, 00241, 00242, 00243, 00244
Do not throw away these instructions!
Read and understand these instructions before using equipment!
Introduction 1
Applicable Safety Standards 1
Worker Classifications 1
Safety Information 6-7
Product Specific Applications 1-2
Limitations 2-3
Components and Specifications 4
Maintenance, Cleaning, and Storage 5
Inspection 5
Installation and Use 5
Inspection Log 6
Labels 7

Introduction
Thank you for purchasing a Guardian Fall
Protection Concrete Swivel Anchor. This
manual must be read and understood in
its entirety, and used as part of an
employee training program as required by
OSHA or any applicable state agency.
This and any other included instructions
must be made available to the user of the
equipment. The user must understand how
to safely and effectively use the Concrete
Swivel Anchor, and all fall safety equipment
used in combination with the Concrete
Swivel Anchor.
User Information
Date of First Use:
Serial #:
Trainer:
User:
Applicable Safety Standards
When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926
Subpart M, OSHA 1910, ANSI Z359.18-2017, and ANSI A10.32-2012 standards for fall protection. This product
has been tested in compliance with the requirements of ANSI/ASSE Z359.7. Testing only covers hardware and
does not extend to the anchorage or substrate to which this product is attached. Applicable standards and
regulations depend on the type of work being done, and also might include state-specific regulations. Consult
regulatory agencies for more information on personal fall arrest systems and associated components.
Worker Classifications
!
CAUTION
Understand the following definitions of those who
work near or who may be exposed to fall hazards.
Qualified Person: A person with an accredited degree or certification, and with extensive experience or
sufficient professional standing, who is considered proficient in planning and reviewing the conformity of fall
protection and rescue systems.
Competent Person: A highly trained and experienced person who is ASSIGNED BY THE EMPLOYER to be
responsible for all elements of a fall safety program, including, but not limited to, its regulation, management,
and application. A person who is proficient in identifying existing and predictable fall hazards, and who has
the authority to stop work in order to eliminate hazards.
Authorized Person: A person who is assigned by their employer to work around or be subject to potential or
existing fall hazards.
It is the responsibility of a Qualified or Competent person to supervise the job site and ensure all
applicable safety regulations are complied with.
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
1

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
2
Product Specific Applications
Personal Fall Arrest: Concrete Swivel Anchor may be used to support a MAXIMUM 1 PFAS for use
in Fall Arrest applications. Structure must withstand loads applied in the directions permitted by
the system of at least 5,000 lbs. Maximum free fall is 6‘, or up to 12’ if used in combination with
equipment explicitly certified for such use. Applicable D-ring: Dorsal.
Restraint: Concrete Swivel Anchor may be used in Restraint applications. Restraint systems
prevent workers from reaching the leading edge of a fall hazard. Always account for fully
deployed length of lanyard/SRL. Structure must withstand loads applied in the directions
permitted by the system of at least 1,000 lbs. No free fall is permitted. Restraint systems may
only be used on surfaces with slopes up to 4/12 (vertical/horizontal). Applicable D-rings: Dorsal,
Chest, Side, Shoulder.
!
WARNING
Use of equipment in unintended applications may result in serious
injury or death. Maximum 1 attachment per connection point.
For all applications: worker weight capacity range
(including all clothing, tools, and equipment) is 130-420 lbs.
Limitations

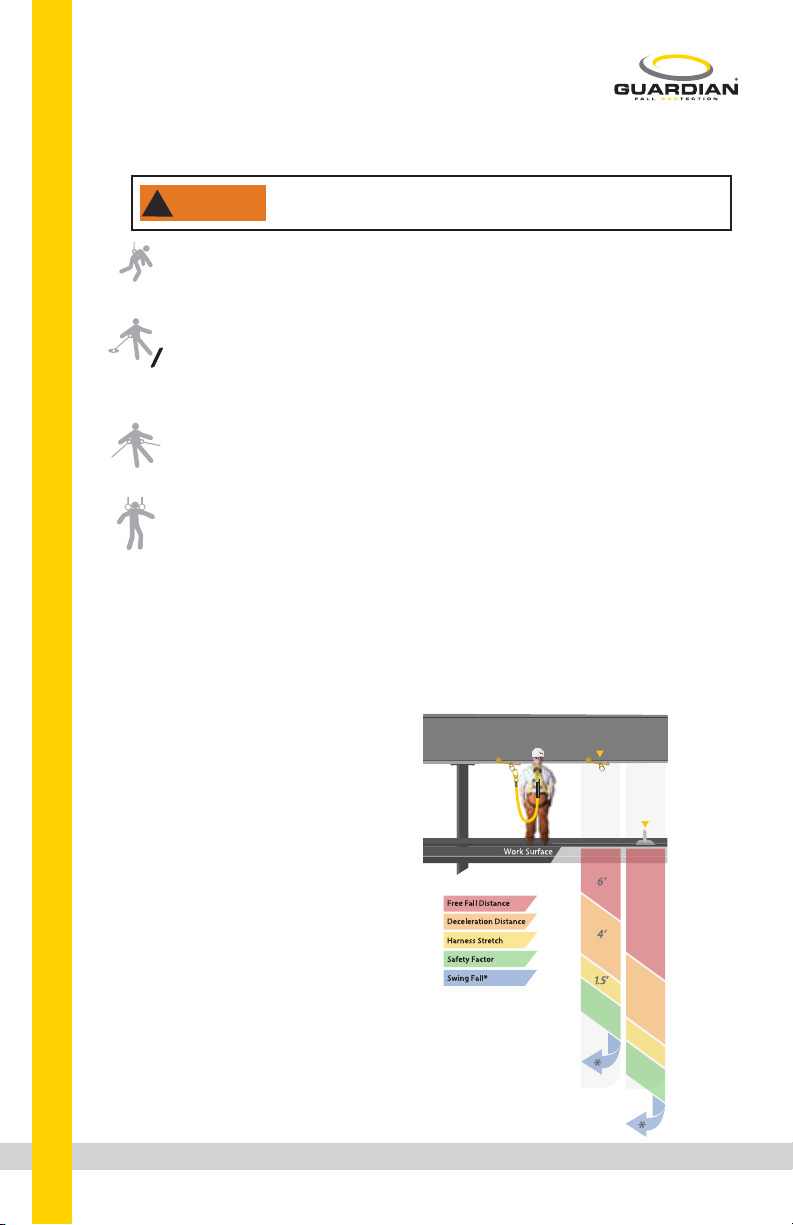

Fall Clearance: There must be
sufficient clearance below the
anchorage connector to arrest a
fall before the user strikes the
ground or an obstruction. When
calculating fall clearance,
account for a MINIMUM 2’ safety
factor, deceleration distance, user
height, length of lanyard/SRL,
and all other applicable factors.
Diagram shown is an example
fall clearance calculation ONLY.
Swing Falls: Prior to installation
or use, make considerations for
eliminating or minimizing all
swing fall hazards. Swing falls
occur when the anchor is not
directly above the location where
a fall occurs. Always work as close
to in line with the anchor point
as possible. Swing falls
significantly increase the
likelihood of serious injury or
death in the event of a fall.
Rescue/Confined Space: Concrete Swivel Anchor may be used in Rescue/Confined Space
applications. Rescue systems function to safely recover a worker from a confined location or after
exposed to a fall. There are various configurations of Rescue systems depending on the type of
rescue. Structure must withstand loads applied in the directions permitted by the system of at
least 3,000 lbs. No free fall is permitted. Applicable D-rings: Dorsal, Chest, Shoulder.
Work Positioning: Concrete Swivel Anchor may be used in Work Positioning applications. Work
Positioning systems allow a worker to be supported while in suspension and work freely with
both hands. Structure must withstand loads applied in the directions permitted by the system of
at least 3,000 lbs. Maximum allowable free fall is 2’. Applicable D-rings: Side.
Fall clearance calculation shown based on standing worker
falling directly in-line with anchor point. Always consider potential
swing fall and other hazards when calculating fall clearance.
*Eliminate Swing Fall whenever
possible! If Swing Fall exists,
always account for additional
fall clearance.
1.5’
2’
12’
5’
Anchor Point
at Foot Level
12’ Free Fall
Lanyard
Anchor Point
Level w/Dorsal D-ring
6’ Free Fall
Lanyard
2’

Ø: Total Working Angle
X: Working Distance
Along Leading Edge
Y: Distance From
Leading Edge
X
Y
ø
X
Leading Edge
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
3
Compatibility: When making connections with Concrete Swivel Anchor, eliminate all possibility of roll-out.
Roll-out occurs when interference between a hook and the attachment point causes the hook gate to
unintentionally open and release. All connections must be selected and deemed compatible with Concrete
Swivel Anchor by a Competent Person. All connector gates must be self-closing and self-locking, and
withstand minimum loads of 3,600 lbs. See the following for examples of compatible/incompatible
connections:
Correct Anchorage Positioning:
This chart details allowable working zones required
to reduce risk of swing falls and improper side loading.
ALWAYS adhere to information specified by chart.
Anchor Distance
From
Leading Edge (Y)
Working Distance
Along Roof Edge
(Either Direction) (X)
Working Angle
From
Perpendicular (Ø)
6’
10’
15’
20’
25’
30’
35’
40’
45’
50’
55’
60’
8’
9’ - 9”
11’ - 7”
13’ - 3”
14’ - 6”
16’
17’ - 2”
18’ - 3”
19’ - 4”
19’ - 10”
21’ - 4”
22’ - 3”
53°
45°
38°
33°
30°
28°
26°
24°
23°
21°
21°
21°
For example, if the anchorage connector is 6’ from the leading
edge (Y), the working distance (X) is 8’ in each direction from
the perpendicular, which translates to a 53° working angle.
Connector
closed and
locked to
D-ring. OK.
Connector
to integral
lanyard.
NO.
Two or more
snap hooks or
carabiners
connected to
each other. NO.
Two connectors
to same
D-ring. NO.
Connector
directly to
horizontal
lifeline. NO.
Connector
directly to
webbing.
NO.
Incompatible
or irregular
application,
which may
increase risk
of roll-out. NO.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
4
Installation and Use
Components and Specifications
Prior to use, plan your system:
1. Ensure all PFAS equipment is selected and deemed compatible with Concrete Swivel Anchor by Competent
Person.
2. Make considerations for eliminating or minimizing all swing fall hazards.
3. Mounting hole must be AT LEAST 15” away from any obstruction that might prevent D-ring from swiveling
freely when PFAS is attached.
4. Ensure selected substrate is compatible with Concrete Swivel Anchor, and is free of any debris, rust,
cracking, deformation, and hazardous materials.
5. Concrete Swivel Anchor is rated for loading in any direction provided it is installed as prescribed. Suitable for
use in HLL applications.
Substrate requirements:
- DO NOT install onto wood, steel, hollow block, grout, or lightweight concrete.
- Concrete MUST be at least 3,000 psi.
- Concrete MUST be at least 6¼” thick.
Fully Assembled
Concrete Swivel Anchor
Inner Bolt
Outer Bolt
Components
(shown in
order of
assembly)
Washer
D-ring and Bracket
Assembly
Part # Description
00240
00241
00242
00243
00244
Concrete Swivel Anchor D-ring and Bracket Assembly
Concrete Swivel Anchor Bolt (HSL-3-B M 12/5)
Concrete Swivel Anchor Kit. Includes (1) #00240 & (1) #00241
Concrete Swivel Anchor Bolt (#00241) 5-Pack
Concrete Swivel Anchor Bolt (#00241) 12-Pack
Type A anchorage connector.
Minimum permitted service
temperature: -30° F.
5,000 lb. MBS (minimum
breaking strength).
Materials: galvanized steel.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
5
Maintenance, Cleaning, and Storage
If Concrete Swivel Anchor fails inspection in any way, immediately remove it from service, and contact
Guardian to inquire about its return or repair. Field serviceability testing is not required, and should not be
done by the end user.
Cleaning after use is important for maintaining the safety and longevity of Concrete Swivel Anchor. Remove
all dirt, corrosives, and contaminants from Concrete Swivel Anchor before and after each use. If Concrete
Swivel Anchor cannot be cleaned with plain water, use mild soap and water, then rinse and wipe dry. NEVER
clean Concrete Swivel Anchor with corrosive substances.
When not in use, store equipment where it will not be affected by heat, light, excessive moisture, chemicals,
or other degrading elements.
4
3/8
”
1.
2.
3.
4.
5.
6.
Installation:
1. Use rotary hammer and drill bit to
drill hole into concrete.
- Bit size must be 18mm diameter.
- Hole MUST be 4
3/8
” deep.
2. Clean hole using compressed air.
Ensure hole is fully clean of all debris.
3. Disassemble bolt.
4. Reassemble bolt with Concrete
Swivel Anchor D-ring and Bracket
Assembly. In order, pass Inner Bolt
through Washer, D-ring and Bracket
Assembly, and Outer Bolt
Components (see image on right).
Ensure bolt end cap (#6) is
hand-tight and fully secure.
5. Use a hammer to drive Concrete
Swivel Anchor and bolt into hole.
D-ring bracket must be flush against
work surface. DO NOT expand bolt
before fully installing Concrete
Swivel Anchor in hole.
6. Use
15/16
” wrench to expand bolt.
Torque to 59 ft.-lbs. Red cap of
Concrete Swivel Anchor bolt will break
off once proper torque is reached.
7. Attach complete and compatible PFAS
to Concrete Swivel Anchor D-ring.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
6
Safety Information
Failure to understand and comply with safety regulations may result in
serious injury or death. Regulations included herein are not all-inclusive,
are for reference only, and are not intended to replace a Competent
Person’s judgment or knowledge of federal or state standards.
!
WARNING
Prior to EACH use, inspect Concrete Swivel Anchor for deficiencies, including, but not limited to, corrosion,
deformation, pits, burrs, rough surfaces, sharp edges, cracking, rust, paint buildup, excessive heating,
alteration, and missing or illegible labels. IMMEDIATELY remove Concrete Swivel Anchor from service if defects
or damage are found, or if exposed to forces of fall arrest.
Ensure that applicable work area is free of all damage, including, but not limited to, debris, rot, rust, decay,
cracking, and hazardous materials. Ensure that selected work area will support the application-specific
minimum loads set forth in this instruction manual. Work area MUST be stable.
At least every 12 months, a Competent Person other than the user must inspect Concrete Swivel Anchor.
Competent Person inspections MUST be recorded in inspection log in instruction manual and on
equipment inspection grid label. The Competent Person must sign their initials in the box
corresponding to the month and year the inspection took place.
During inspection, consider all applications and hazards Concrete Swivel Anchor have been subjected to.
Inspection
Inspection Log
If equipment fails inspection
IMMEDIATELY REMOVE FROM SERVICE.
Date of First Use: __________________.
Product lifetime is indefinite as long as it
passes pre-use and Competent Person
inspections. User must inspect prior to EACH
use. Competent Person other than user must
complete formal inspection at least every 12
months. Competent Person to inspect and initial.
This inspection log must be specific to one
Concrete Swivel Anchor. Separate inspection
logs must be used for each Concrete Swivel
Anchor. All inspection records must be made
visible and available to all users at all times.
Do not alter equipment. Do not misuse equipment.
Workplace conditions, including, but not limited to, flame, corrosive chemicals, electrical shock, sharp objects,
machinery, abrasive substances, weather conditions, and uneven surfaces, must be assessed by a Competent
Person before fall protection equipment is selected.
Fall protection systems must be selected and installed under the supervision of a Competent Person, and used
in a compliant manner. Fall protection systems must be designed in a manner compliant with all federal, state,
and safety regulations. Forces applied to anchors must be calculated by a Competent Person.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
785148 (Rev. E)
Labels
The analysis of the workplace must anticipate where workers will be performing their duties, the routes they
will take to reach their work, and the potential and existing fall hazards they may be exposed to. Fall
protection equipment must be chosen by a Competent Person. Selections must account for all potential
hazardous workplace conditions. All fall protection equipment should be purchased new and in an unused
condition.
Unless explicitly stated otherwise, the maximum allowable free fall distance for lanyards must not exceed 6’.
No free fall allowed for non-LE SRLs. Class A SRLs must arrest falls within 24”; Class B SRLs must arrest falls
within 54”.
Harnesses and connectors selected must be compliant with manufacturer’s instructions, and must be of
compatible size and configuration. Snap hooks, carabiners, and other connectors must be selected and applied
in a compatible fashion. All risk of disengagement must be eliminated. All snap hooks and carabiners must be
self-locking and self-closing, and must never be connected to each other.
A pre-planned rescue procedure in the case of a fall is required. The rescue plan must be project-specific. The
rescue plan must allow for employees to rescue themselves, or provide an alternative means for their prompt
rescue. Store rescue equipment in an easily accessible and clearly marked area.
Training of Authorized Persons to correctly erect, disassemble, inspect, maintain, store, and use equipment
must be provided by a Competent Person. Training must include the ability to recognize fall hazards, minimize
the likelihood of fall hazards, and the correct use of personal fall arrest systems.
NEVER use fall protection equipment of any kind to hang, lift, support, or hoist tools or equipment, unless
explicitly certified for such use.
Equipment subjected to forces of fall arrest must immediately be removed from use.
Age, fitness, and health conditions can seriously affect the worker should a fall occur. Consult a doctor if there
is any reason to doubt a user’s ability to withstand and safely absorb fall arrest forces or perform set-up of
equipment. Pregnant women and minors must not use this equipment.
Physical harm may still occur even if fall safety equipment functions correctly. Sustained post-fall suspension
may result in serious injury or death. Use trauma relief straps to reduce the effects of suspension trauma.
ANSI Z359.18-17, ANSI A10.32-12, OSHA 1910, and OSHA 1926 Subpart M.
Type A anchorage connector.
Inspection Grid:
Inspect prior to each use. Competent Person must
inspect and record at least every 12 months.
Prior to use, read and understand manufacturer’s
instructions provided with equipment. Alteration,
abuse, or misuse of this product may result in
serious injury or death. Take caution when using
in electrical, high heat, or corrosive environments.
IMMEDIATELY REMOVE FROM USE IF EXPOSED TO
FORCES OF FALL ARREST. DO NOT REMOVE LABELS. Made in China
!
WARNING
Concrete Swivel Anchor
90190 (Rev. E)
DOM:
1-800-466-6385
www.guardianfall.com
Part #: 00240
Maximum 1 connection per anchor.
Capacity range: 130-420 lbs.
(including all equipment)
5,000 lb. MBS (minimum breaking strength).
Materials: galvanized steel.
Min. service temperature: -30° F.
ALWAYS USE WITH COMPATIBLE EQUIPMENT.
ONLY MAKE COMPATIBLE CONNECTIONS. REFER TO INSTRUCTIONS.
Serial #:
