hager h3+ HTP610H User manual

HTP610H
Configuration tool
h3
User manual

26LE005546A

36LE005546A
Index Page
01 About this manual 6
02 Abbreviations 7
03 The HTP610H configuration tool 9
3.1 Presentation 10
3.2 Contents of the tool 11
3.3 Technical information 12
0 3.4 Compatibility with h3+ trip units 13
0 3.5 Connecting the configuration unit with the h3+ circuit breaker 14
03.6 Meaning of the LEDs 15
0 3.7 Charging the battery 16
0 3.8 Connecting the configuration unit to a computer 17
0 3.9 Transporting and securing the unit 18
04 Commissioning the configuration server 19
0 4.1 Compatible devices and browsers 20
0 4.2 Computer connection via Wi-Fi 21
0 4.3 Computer connection via Ethernet cable 23
0 4.4 Tablet connection via Wi-Fi 24
05 Presentation of the h3+ configuration tool interface 27
5.1 Structure 28
5.2 HTP610H administration session menus 29
5.3 Changing the interface language 30
5.4 MCCB management session menus 31
06 Administration HTP610H session 33
6.1 Opening the administration session 34
6.2 Managing user accounts 35
6.3 Updating the configuration software 37
6.4 Generating passwords 39
6.5 Licenses and information 41
6.6 Closing the administration session 42
07 MCCB management session 43
7.1 Opening the MCCB management session 44
7.2 Closing the MCCB management session 45
7.3 Trip Unit Status menu 46
7.4 Measurements menu 47
7.4.1 Real-time sub-menu 47
7.4. 2 Demand sub-menu 52
7.4. 3 Energy sub-menu 53
7.5 Test menu 54
7.5.1 Trips sub-menu 54
7.5.2 Contacts sub-menu 58
7.6 Configuration menu 59
7.6.1 Communication sub-menu 59
7.6. 2 Measurements sub-menu 60
7.6.3 Protection sub-menu 61
7.6.4 Custom Alarms sub-menu 62
7.6. 5 Trip and Contacts sub-menu 64
7.6.6 Reset and Erase sub-menu 66
7.7 Diagnostic menu 67
7.7.1 Indicators sub-menu 67
7.7. 2 History sub-menu 67
7.8 Identification menu 69
08 Support 71
8.1 Troubleshooting 72
8.2 Spare parts 73

46LE005546A
Warnings and instructions
This documentation contains safety advice which must be respected for your own
safety and to prevent property damage.
Safety advice relating to your own safety is identified by a safety warning symbol
in the documentation. Safety advice relating to damage to property is identified by
"ATTENTION".
The safety warning symbols and the wording below are classified according to the
risk level.
DANGER
DANGER indicates an imminent dangerous situation which, if unavoided, will
result in death or serious injuries.
ATTENTION
ATTENTION indicates a warning message relating to equipment damage.
ATTENTION also indicates important instructions for use and particularly
relevant information regarding the product, which must be respected to ensure
eective and safe use.
WARNING
WARNING indicates a potentially dangerous situation which, if unavoided, may
result in serious injuries or even death.
IMPORTANT
IMPORTANT indicates a potentially dangerous situation which, if unavoided, may
result in minor or moderate injuries.
Safety advice

56LE005546A
Qualified personnel
The product or the system described in this documentation must be installed,
operated and maintained by qualified personnel only. Hager Electro accepts
no responsibility regarding the consequences of this equipment being used by
unqualified personnel.
Qualified personnel are those who have the necessary skills and knowledge for
building, operating and installing electrical equipment, and who have received
training enabling them to identify and avoid the risks incurred.
Appropriate use of Hager products
Hager products are designed to be used only for the applications described in the
catalogues and on the technical documentation relating to them. If products and
components from other manufacturers are used, they must be recommended and
approved by Hager.
Appropriate use of Hager products during transport, storage, installation, assembly,
commissioning, operation and maintenance is required to guarantee problem-free
correct operation in complete safety.
The permissible ambient conditions must be respected. The information contained
in the relevant documents must be respected.
Publication liability
The contents of this documentation have been reviewed in order to ensure that the
information is correct at the time of publication.
Hager cannot, however, guarantee the accuracy of all the information contained in
this documentation. Hager assumes no responsibility for printing errors and any
damage they may cause.
Hager reserves the right to make the necessary corrections and modifications to
subsequent versions.

66LE005546A
Purpose of the document
This manual is designed to provide users, electricians, panel builders and
maintenance personnel with the technical information required to use the HTP610H
configuration tool.
Fields of application
This document is applicable to the HTP610H configuration tool for use on h3+ LSnI,
LSI, LSIG and Energy circuit breakers.
Revisions
Version Date
6LE005546A version zero September 2018
Copyright
This manual is a component of the configuration tool. Unauthorised reproduction,
even partial, is forbidden.
Liability
Hager Group accepts no liability in the event of personal injury or damage to
property, including accidental or consequential damage which may be linked
to the content of this manual.
Other applicable documents
Document title Reference
h3+ communication system manual 6LE005550A
Recommendation
The HTP610H configuration tool can only be connected to the above-mentioned
h3+circuit breakers.
You can download these publications and other technical information from our
website: www.hager.fr
Contact
Address Hager Electro SAS 132 Boulevard
d‘Europe 67215 Obernai France
Telephone + 33 (0)3 88 49 50 50
Website www.hager.fr
1. About this manual

76LE005546A
2. Abbreviations
AL ALarm (Fault-signal auxiliary contact).
AX AuXiliary (Open/closed auxiliary contact).
GF Ground Fault protection.
INST Instantaneous protection.
LT Long Time delay protection.
MIP Maintenance Interface Port.
OAC Optional Alarm Contact.
PTA PreTrip Alarm (overload pre-alarm).
SSID Service Set Identifier (name of wireless Wi-Fi network).
ST Short Time delay protection.
URL Uniform Resource Locator (website address).
ZSI Zone Selective Interlocking (zone selectivity).

86LE005546A

96LE005546A
The HTP610H configuration tool Page
3.1 Presentation 10
3.2 Contents of the tool 11
3.3 Technical information 12
3.4 Compatibility with h3+ trip units 13
3.5 Connecting the configuration unit with the h3+ circuit breaker 14
3.6 Meaning of LEDs 15
3.7 Charging the battery 16
3.8 Connecting the configuration tool to a computer 17
3.9 Transporting and securing the unit 18

10 6LE005546A
The HTP610H configuration tool
3.1 Presentation
The HTP610H configuration tool is used to perform configurations, trip tests and
diagnostic procedures on the Energy h3+ circuit breaker. It is also used to perform
trip tests on h3+ circuit breakers with an electronic trip unit (LSnI, LSI, LSIG).
The main component of the tool is the configuration unit hosting the configuration
server and the configuration software.
It is not necessary to download an application in order to use the HTP610H tool.
Just log in to the configuration server using a multimedia tablet or smartphone via
a Wi-Fi connection or using a desktop computer or laptop via an Ethernet cable.
Once connected, enter the address http://htp610h.html in a web browser to launch
the configuration software.
HTP610H configuration tool
(*) Tablet not included
The h3+ configuration tool facilitates the following:
- View the status of the Energy circuit breaker and its identification parameters
- Synchronise the date and time of the Energy circuit breaker
- Set all the parameters of the Energy circuit breaker
- Display the measurements of the electrical variable in real-time and the
calculated variables (Energy trip unit only).
- Run the trip unit test (also available for LSnI, LSI, LSIG and Energy trip units)
- Force activation of the LSI, LSIG and Energy trip unit contacts
- Manage the predefined alarms and customised alarms (Energy trip unit only)
- View the event logs (trips, operations, alarms, settings for Energy trip unit only)
- Activate/deactivate data write permission in order to avoid any remote
modifications (Energy trip unit only)
- Manage user accounts
- Update the configuration software and re-generate passwords for
communicating accessories.

116LE005546A
The HTP610H configuration tool

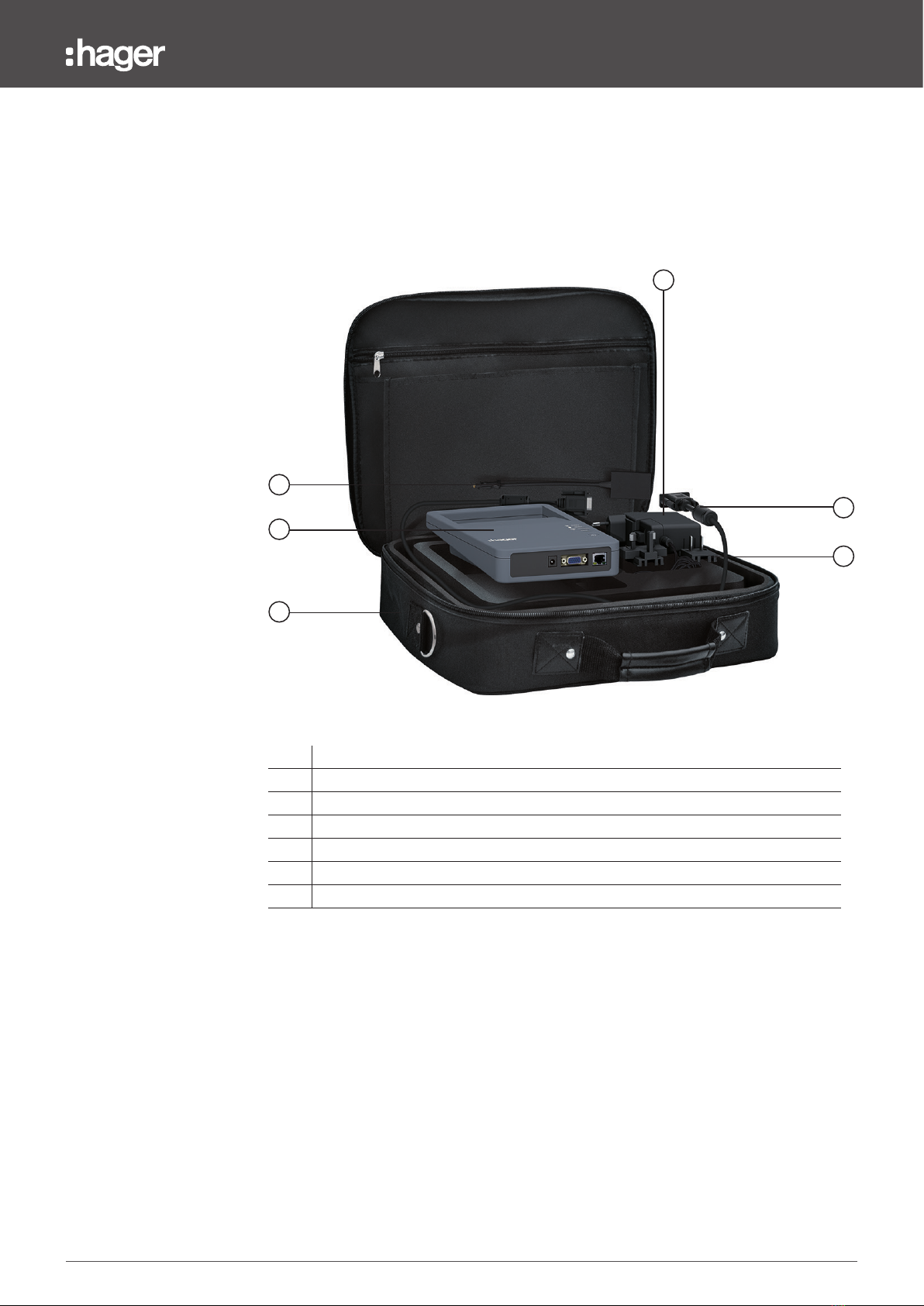

3.2 Contents of the tool
The HTP610H configuration tool is a case containing all the components
necessary to connect and supply the configuration unit.
The configuration unit is equipped with a rechargeable battery in order to work
o-grid.
The computer, multimedia tablet or smartphone needed to use the configuration
software, is not included in the case.
No. HTP610H contents
1Carry case
2Configuration unit
3HTP020H MIP adaptor
4HTP030H 1 m connection cable
5110V/230V 60 Hz mains charger (included in the HTP040H box)
6EU/US/EN/Asia plug adaptor (included in the HTP040H unit)
3
1
2
5
4
6

12 6LE005546A
The HTP610H configuration tool
3.3 Technical information
Consumption (charging the battery) 9 W
Ethernet network communication Ethernet - TCP/IP - RJ45
Operating temperature -5 °C to +60 °C
Storage temperature -20°C to +30 °C
Weight 750 g
Colour Grey
Protection index IP2X
Maximum operating altitude 2000 m
HTP050H battery:
Removable Contact us
Technology Lithium-ion
Capacity 5800 mAh (7.2 V DC)
Charging time 8 hours
Usage time 8 hours (circuit breaker connected and
Wi-Fi activated)
Charging Charger provided
Connections:
No. Connection Description
1Mains socket Power supply
2Circuit breaker socket Connection to the moulded case
circuit breaker
3Ethernet port Ethernet connection
321

136LE005546A
Compatibility Disconnect-
ing switch
MAG TM Electronic trip units
LSnI LSI LSIG Energy
Configuration No No No No No No Yes
Trip test No No No Yes Yes Yes Yes
Diagnostic No No No No No No Yes
The HTP610H configuration tool
3.4 Compatibility with h3+ trip units

14 6LE005546A
The HTP610H configuration tool
3.5 Connecting the configuration unit to the h3+ circuit breaker
Before switching the configuration unit on, check that the battery is suciently
charged.
Action
1
Connect the connection cable to the circuit breaker socket of the configuration unit.
2Connect the other end of the connection cable to the MIP adaptor.
3Connect the MIP adaptor to the MIP connector located on the front of the h3+ circuit
breaker.
4Press the on/o button on the configuration unit.
5The configuration unit automatically supplies the circuit breaker (*).
(*) The configuration unit enables the trip unit to operate when the circuit breaker is
not self-powered. The power supplied by this unit does not, however, enable the
HTD210H panel display to operate.
Configuration unit connection

156LE005546A
The HTP610H configuration tool
3.6 Meaning of LEDs
Front view of the configuration unit.
LED LED status Meaning
Green Device switched on
Flashing green Device currently being switched on or o
O Device switched o
Orange Terminal connected
Orange Circuit breaker connected

16 6LE005546A
The HTP610H configuration tool
3.7 Charging the battery
The mains charger is provided in the h3+ configuration tool case. Use this charger
to recharge the battery for your configuration unit.
Configuration unit connected to mains supply
A set of mains power adaptors ensures that the device is compatible for use in other
countries.
Operation using mains supply and battery power
The configuration tool can be used with the battery or connected to the mains.
The charging time to fully charge the battery is 8 hours maximum.
It is possible to use the configuration tool with the battery for up to 8 hours by
supplying a circuit breaker and with an active Wi-Fi connection.
Battery LED
The status of the battery is shown by the Battery LED.
Green
Red Flashing red O Orange
Battery
charged
Charge below 30%
and above 10%
Charge below
10%
Battery
discharged
Battery
charging

176LE005546A
The HTP610H configuration tool
3.8 Connecting the configuration tool to a computer
Ethernet connection
The h3+ configuration tool can be used with an Ethernet wire connection with
a desktop computer or laptop.
If you want to use the configuration tool with a Wi-Fi connection, please consult
the section entitled Commissioning the configuration server.

18 6LE005546A
The HTP610H configuration tool
3.9 Transporting and securing the unit
The configuration unit is equipped with a handle to enable it to be transported.
The configuration unit is equipped with a magnetic plate at the rear enabling it to
be easily secured to the metal door of an electrical panel.
Securing the configuration unit to the metal wall

196LE005546A
Commissioning the
configuration server
Page
4.1 Compatible devices and browsers 20
4.2 Computer connection via Wi-Fi 21
4.3 Computer connection via Ethernet cable 23
4.4 Tablet connection via Wi-Fi 24

20 6LE005546A
Commissioning the configuration server
4.1 Compatible devices and browsers
Compatible devices
The configuration server can be connected using one of the following devices:
- A computer (desktop or laptop) via Wi-Fi or Ethernet cable
- A tablet via Wi-Fi
- A smartphone via Wi-Fi.
In order to benefit fully from all the functions of the h3+ configuration tool, it is
advisable for it to be connected to a computer or an iPad.
Compatible browsers
It is possible to connect the configuration server to all HTML5-compatible web
browsers.
To guarantee optimal performance of the HTP610H configuration tool, it is
preferable to use the Google Chrome browser on an Android device, or Safari
on an iOS device. Internet Explorer is recommended when using a computer.
