Hanil Supra R30 User manual

Setting Temperature
Setting temperature ( -10℃ ~ 40℃)
Fast cool
Setting Time
Up to < 100 hr, Continuous run (00:00)
50000 10000 30 18.7
19 5 5
View Settings
Verifying the setting
parameters during
centrifugation
Setting Speed
Setting RPM
Setting RCF
LED Display
Status of RPM / RCF / Time / Temperature /Rotor ID / Program / ACC / DEC
Power Key
Setting ACC / DEC Rate
ACC (0 ~ 9 steps, Max.9)
DEC (0 ~ 9 steps)
Lid Open
Vacuum
Rotor
Identification
Start
Stop Pulse
Program Save / Call
Saving a program
(up to 100)
Calling up a program
Quick Guide Supra R30
Cat. No. : SU-R30
Display & Control Panel Max. RPM : 30,000 rpm
Max. RCF : 106,657 xg
Serial No. Installation Date
Saving / Calling Up a Program
Press a parameter
to be changed
Press the
Enter button
Enter the desired values
on the keypad
Enter the desired
program number on
the keypad
Press the
Save or call button
Setting Run Parameters
(RPM / RCF / Time / Temperature / ACC / DEC)
Release the vacuum by pressing the
Vacuum button to open the lid after
centrifugation.
Press the Pulse
button.
Press the
Enter button
Enter the desired speed
(See ‘Setting Run
Parameters’)
Releasing the Vacuum Pulse
Press the Rotor ID button-Enter the
rotor ID using the numeric keypad-
Press the Enter button.(Refer to the
user manual for rotor id)
Setting Rotor ID

Connect the device to voltage
sources, which correspond to the
electrical requirements on the label
attached to the device.
Check the wall outlet is earth-
grounded, surge-protected and
can supply enough power.
Connect the power cable to the
distribution box, or install the plug
and socket that are packed with
the device.
Switch off the device after use.
Unplug the power plug before
cleaning or unused for a long
period of time.
Check the Line Voltage Grounded Outlet Power Connection Switch Off the Device
ULTRA, 30K콘덴서위치
30K
30K, 비상도어
Quick Guide Supra R30
Cat. No. : SU-R30
If the centrifuge lid cannot be opened, lift the
emergency tool on the top right of the device.
(Before activating emergency open, switch off the
device and wait for the rotor to stop.)
Remove any dust from the ventilation slits on the left
side of the device.
Remove DustEmergency Lid Open
A50-8
A85-6
A250-6
A500-6
A1000-4
A2.0-36
A10-12
A15-12
A15c-12
A50-6
A50c-6
8 x 50 mL / Max. 30k (Rotor ID.7)
6 x 85 mL / Max. 25k (Rotor ID.9)
6 x 250 mL / Max. 10k (Rotor ID.10)
6 x 500 mL / Max. 8k (Rotor ID.11)
4 x 1,000 mL / Max. 7k (Rotor ID.12)
36 x 1.5/2.0 mL / Max. 20k (Rotor ID.14)
12 x 10 mL / Max. 30k (Rotor ID.2)
12x 15 mL / Max. 30k (Rotor ID.4)
12 x 15 mL conical / Max. 17k (Rotor ID.8)
6 x 50 mL / Max. 30k (Rotor ID.5)
6 x 50 mL conical / Max. 17k (Rotor ID.6)

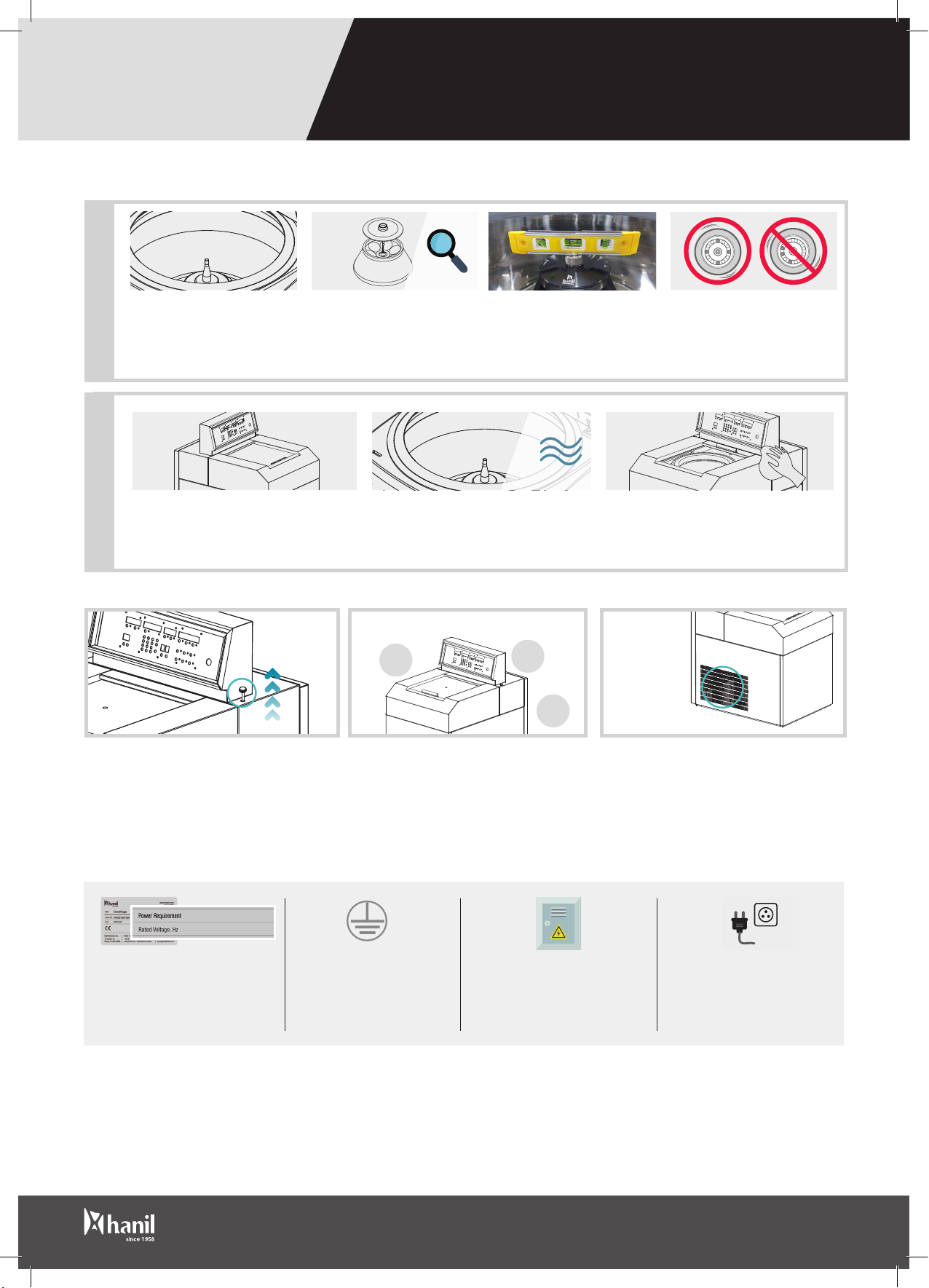

Allow a safety clearance of 30 cm around the
centrifuge during operation.
Allow a Safety Clearance of 30 cm
30 cm
30 cm
30 cm
Inspect the rotor chamber, rotor
& accessories for foreign objects.
Check the Chamber
& Accessories Load tubes symmetrically into
the rotor with identical amount.
Load Tubes Symmetrically
Check the rotor,buckets and tubes
are free of scratch and crack before
operation.
Check the Accessories
for Abnormalities
After relocating the device or loading the
rotor, balance them by using a leveler. If
necessary, level the device by adjusting the
‘Leveling foot’ on the bottom of the device.
Balancing the Centrifuge and Rotor
4.0KVA
220~240V 50/60Hz
QDS3PDEN2001 Rev.2
Proudly made by Jiyoung Shim, Hyewon Jeong
Order & Inquiry l [phone] l [email protected] l www.ihanil.com
Service l [phone] l [email protected]
Cautions For Use
Electrical Safety
Rotors
Before Operation
Release the vacuum by pressing the Vacuum
button to open the lid after centrifugation.
Wipe up the moisture in the chamber with a
dry cloth after use.
Clean the chamber by wiping with a cloth
soaked in mild detergent and dry completely.
Lid Open Keep the Chamber Dry Cleaning
After Operation
ULTRA, 30K콘덴서위치
