Hanil Smart 13 User manual

Operation Manual
Smart 13
Micro Centrifuge
Date of purchase
Serial No.

Research Use Only
Copyrightⓒ 2018 Hanil Scienti󽗉c Inc. All rights reserved.
Contact Us
If you have any questions, contactHanil Scienti󽗉c Inc. or place of purchase.
[email protected]om / [email protected]
Doc.No. : OMM4PDEN1801
www.ihanil.com
2/20

Tech. Support : 02-3452-8966 / [email protected]om 3/18
Index
1. General Considerations -------------------------------------------------------- 4
1.1 Safety - 4
1.2 Transport & Storage - 5
1.3 Safety label - 5
1.4 Electric safety information - 5
2. Product Description ------------------------------------------------------------- 6
2.1 Appearance - 6
2.2 Delivery Package - 6
2.3 Technical Speci󽗉cations - 7
3. Installation ------------------------------------------------------------------------- 8
3.1 Packing Inspection - 8
3.2 Installation - 8
3.3 Connect Power - 9
3.4 Opeing/Closing the lid - 9
3.5 Loading and Removal of the Rotor - 10
3.6 Loading Tubes - 11
4. Operation -------------------------------------------------------------------------- 12
4.1 Control Panel - 12
4.2 Setting RPM - 13
4.3 Setting Run Time - 13
4.4 Starting/End the Centrifugation - 13
4.5 Pulse - 13
5. Maintenance ----------------------------------------------------------------------- 14
6. Troubleshooting - 15
6.1 General Errors - 15

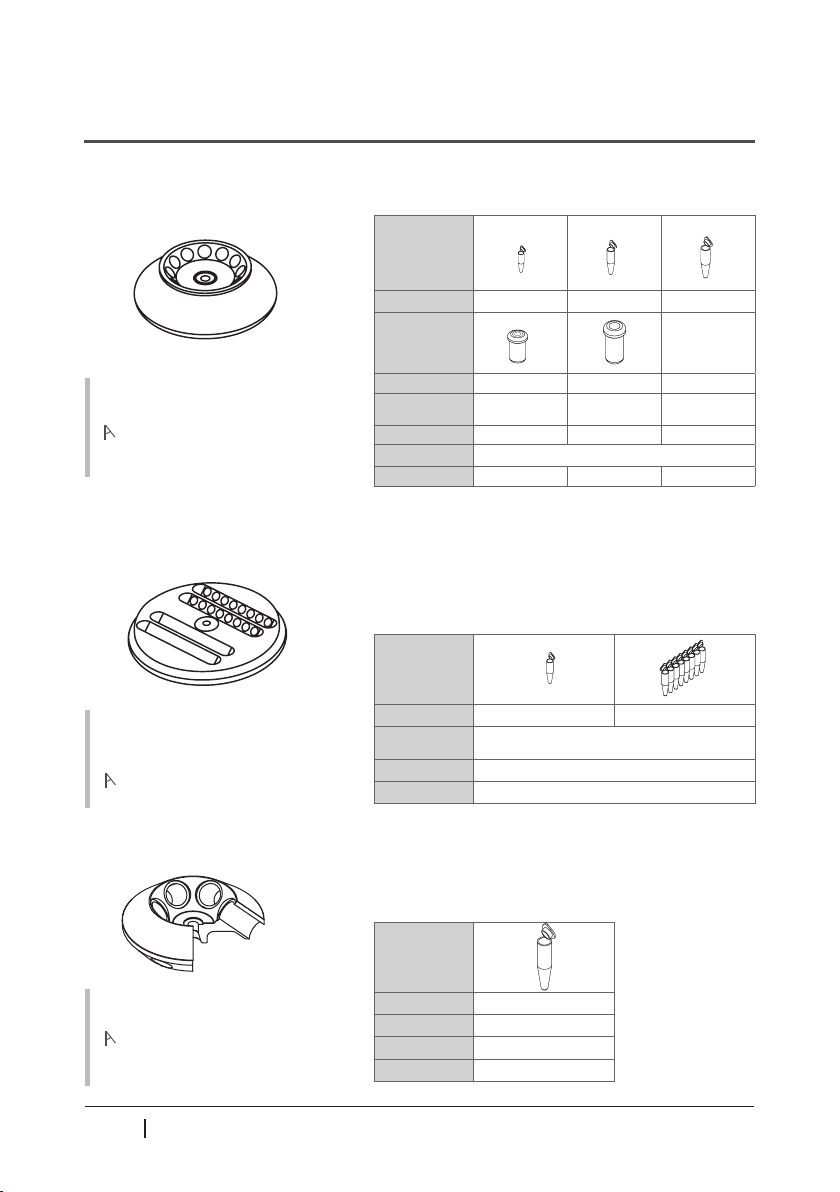

7. Rotors and Accessories --------------------------------------------------------- 16

www.ihanil.com
4/18
1. General Considerations
Follow precautions and all the safety requirements described on this user manual to prevent any
damages, failure of equipment and loss of lives.
1. The centrifuge should be installed on 󽗊at surface to maintain level.
Abnormal vibration is caused when the device is installed on an inclined surface.
2. Check the voltage to be used, before connecting the centrifuge to the power source.
3. Only use rotors, parts, and accessories provided by Hanil Scienti󽗉c Inc. Hanil Scienti󽗉c Inc. is not responsible
for damages of the device and accidents caused by using parts and accessories
not recommended.
4. Do not exceed the maximum rated speed of the rotor or buckets or accessories in use.
5. Make sure to prepare necessary safety measures before using samples that are toxic or radioactive samples
or pathogenic or samples or infectious blood.
6. If the centrifuge is contaminated by toxic or radioactive samples or infectious blood samples, remove
contaminants completeyly and take needful actions such as ventilation or isolation of centrifuge.
7. Substances that may generate volatile or explosive vapor can not be centrifuged.
8. The balancing work of samples shoud be done in advance before operation.
9. Before operation, rotor and chamber should be dry.
10. Do not attempt to slow or stop the spinning rotor by hand.
11. Only centrifuge with rotor and rotor lid 󽗉rmly tightened.
12. Do not block vents.
13. Do not insert foreign objects into the holes of the device.
14. Repairs must be carried out by a technologist authorized by Hanil scienti󽗉c Inc.
15. According to IEC61010-2-020 maintain a 30cm“clearance envelope”around the centrifuge while
the rotor is spinning.
16. Please contact the place of purchase or Hanil Scienti󽗉c Inc. ([email protected]om/[email protected])
for product repairs.
17. Turn the power switch o󽗈 after using the device.
18. Unplug the power plug before cleaning or left unused for a long period of time.
1.1 Safety

Tech. Support : 02-3452-8966 / [email protected]om 5/18
1. General Considerations
1.4 Electric safety information
1. Use a power cord only provided with the device.
2. Use sockets with a protective earth conductor and suitable power cord.
3. Do not use an extension cord.
4. Do not place anything on the power cable
5. Do not block vents.
6. If you have the following emergencies, shut o󽗈 the power supply and unplug the power cord from outlet
and contact your place of purchase or Hanil Scienti󽗉c Inc.
- Unusual noises or smell from the device.
- Damage or wear of a power cord.
- Breakdown of circuit breaker, fuse or safety device.
- If you spill liquid on the device.
- If Some of device has been damaged.
1.2 Transport & Storage
Storage
Ambient temperature 5℃ ~ 35℃
Maximum relative humidity 30% ~ 85%
Air pressure 500 ~ 1060 hpa
Transport
Ambient temperature -10℃ ~ 40℃
Maximum relative humidity 10% ~ 90%
Air pressure 500 ~ 1060 hpa

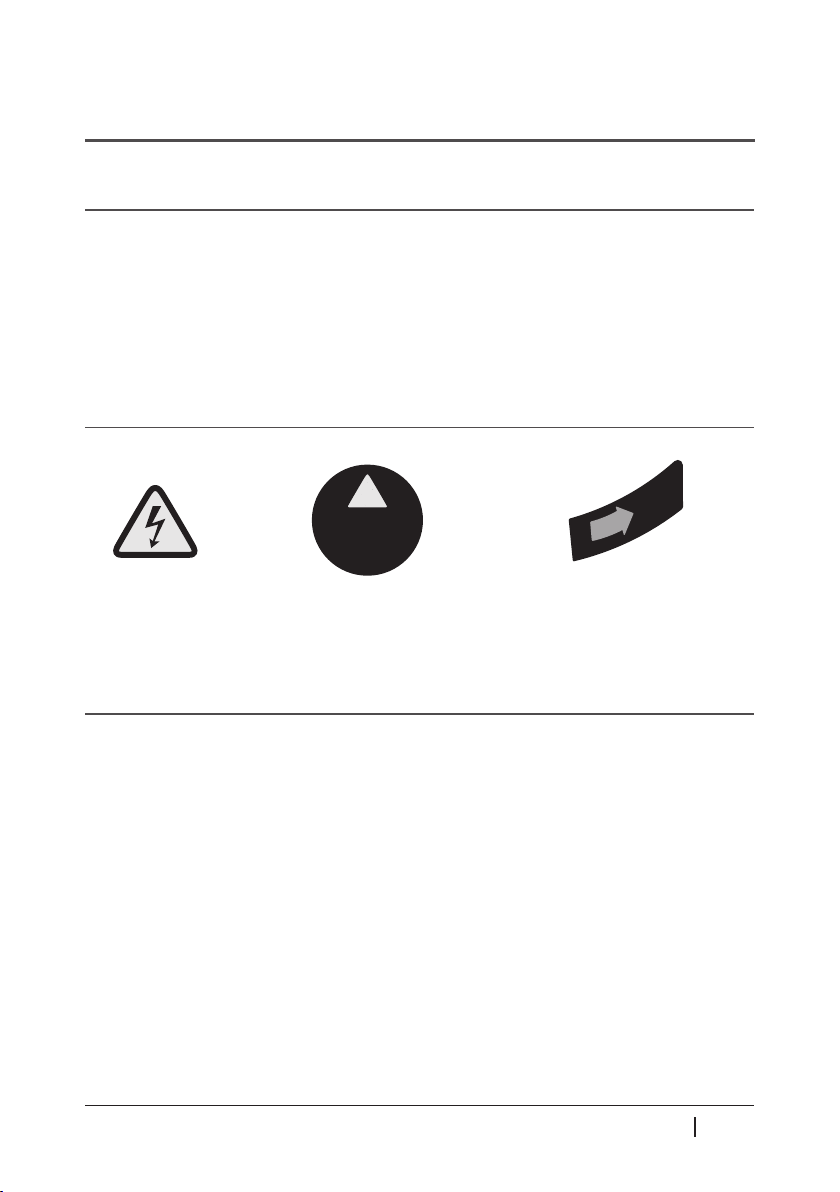

1.3 Safety label
Risk of electric shock Do not open lid until rotor
makes a complete stop. Rotation direction of the rotor.
!
WARNING
Do not open the lid
unntil rotor makes
a complete stop.

www.ihanil.com
6/18
2. Product Description
2.1 Appearance
① Lid : Lid protects the inside of the chamber.
② Rotor locking screw: Screw connects the rotor to the motor shaft.
③ Rotor :Rotor holds the tubes.
④ Lid sensor : Lid sensor detects whether lid is cloesd
⑤ Lid open button : Press the button to open lid.
⑥ Control Panel : Keys and knobs for operating the centrifuge.
⑦ Power socket : Socket is where the power cable connected.
⑧ Power switch : Switch allows the device to be turned on or o󽗈
⑨ Absorbent rubber : Rubber 󽗉x the device on the laboratory bench.
① Standard o󽗈ering
- Smart 13 main body(incl. :A2.0-12)
- Powercable(300/500V,6A)
- Usermanual
② Optional products [ See. 7. Rotors & Acc.]
- PCR tube & strip rotor
- 0.5 ml tube adaptor
- 0.2 ml tube adaptor
①
②
⑥
⑤ ⑦
⑧
⑨
③
④
④
2.2 Delivery Package

Tech. Support : 02-3452-8966 / [email protected]om 7/18
2. Product Description
2.3 Technical Speci󽗉cations
※ RPM, RCF values are for A2.0-12
※ This device does not provide automatic recognition of the rotor.
So do not exceed 6,000 rpm when using the PCR rotor.
Max. RPM 13,500 RPM
Max. RCF 12,032 xg
Time ≤ 15 min, Pulse
Acc. time to max. speed ≤15 sec
Dec. time from max. speed ≤8 sec
Tube Capacity 1.5/2.0ml x 12
Power supply AC110/220V, 50/60Hz
Dimension (W x D x H, mm) 189.7 x 202 x 129
Weight (kg) 1.5
Cat.No. SM-13
※ RCF Table
* Rcf value was calculated based on the bottom of the rotor hole.
RPM
A2.0-12
RPM
A0.2-32 A5.0-6
0.2ml 0.5ml 1.5/2.0ml 0.2 ml
Inner line
0.2 ml
Outer line 5 ml
3,000 443 545 594 3,000 313 ~ 443 464 ~ 560 654
6,000 1,773 2,191 2,377 5,000 870 ~ 1,231 1,289 ~ 1,556 1,817
8,000 3,151 3,877 4,226
6,000
[ Max.]
1,253 ~ 1,773 1,857 ~ 2,241 2,616
10,000 4,924 6,058 6,603
12,000 7,090 8,724 9,508
13,500 8,973 11,042 12,032

www.ihanil.com
8/18
3. Installation
3.1 Packing Inspection
3.2 Installation
· You can get contact details on packing box or back of the manual.
· Check packing conditions very carefully before unpacking.
· Contact Hanil Scienti󽗉c Inc. immediately if damages found.
· Check the delivery for completeness.
Installation on hard and 󽗊at ground.
• Centrifuge should be installed on hard and 󽗊at place.
• If the centrifuge is installed in an inclined place, the shaft may be bent due to
the weight of the rotor.
Good ventailation.
• For air circulation and safety, maintain a 30cm“clearance envelope”around
the centrifuge while the rotor is spinning.
Constant temperature/humidity
• Centrifuge equipped with the sensitive electronic software which is fragile with
humidity and temperature.
• Must avoid direct ray or heater and be put in the ambience of controlled temp. and
air.
Avoid the corrosive gas
• Install the centrifuge in a place where corrosive gas is not generated.
• Sulfur dioxide gas and chlorine gas may cause corrosion.
Leveling
• The shaft should be put exactly vertical on the hotizontaliy 󽗊at ground by
the leveling tool.

Tech. Support : 02-3452-8966 / [email protected]om 9/18
3. Installation
3.3 Connect Power

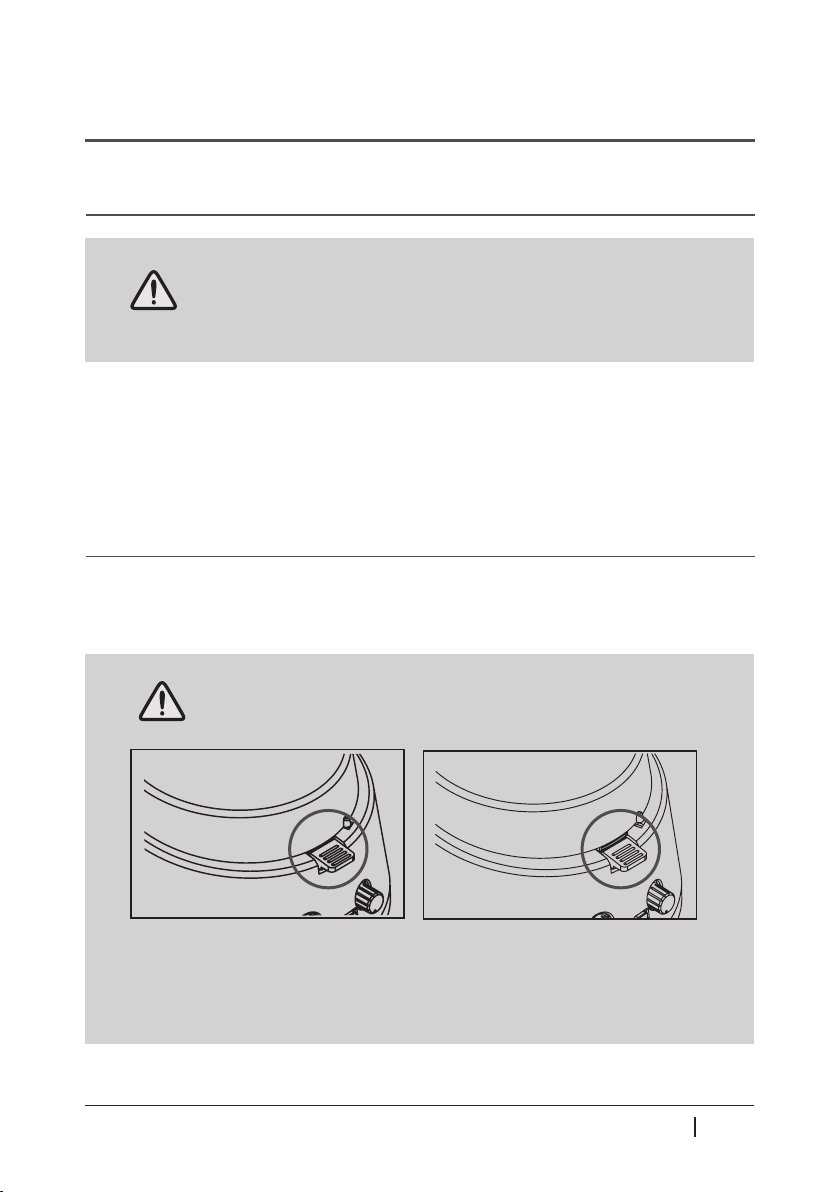

3.4 Opeing/Closing the lid
· Connect the device to voltage sources which correspond to the electrical
requirements on the label attached to the device.
· Use sockets with a protective earth conductor and provided power cord.
Press the lid down until it clicks.
When lid is not closed completely, the device does not operate.
(O) (X)
1. Connect the power cable to the power socket on the back side of the device and
plug the cord into the power outlet.
2. Switch the centrifuge on using the power switch on the back side of the device.
1. Press the lid button to open the lid.
▶ Closing the lid : Press the lid down until it clicks.

www.ihanil.com
10/18
3. Installation
3.5 Loading and Removal of the Rotor
· This device is equipped withthe rotor .
· Only use rotors, parts, and accessories provided by Hanil Scienti󽗉c Inc .
· Do not use a defective rotor.
1. Using a 󽗊at head screwdriver, turn the rotor locking screw counterclockwise and pull
it completely out with the washer under the screw.
2. Lift up the rotor from the motor shaft.
3. Load the rotor into the motor shaft.
4. Align the washer with the hole at the top of the rotor.
5. Insert the rotor lock screw into the screw hole in the center of the rotor and turn it
clockwise using a 󽗊at head screwdriver to completely lock it.
6. Check that the rotor is completely locked.
Follow the steps below to remove or replace the rotor.
Flat head screwdriver
Rotor lock screw
Washer
Rotor
Rotor Hub

Tech. Support : 02-3452-8966 / [email protected]om 11/18
3. Installation

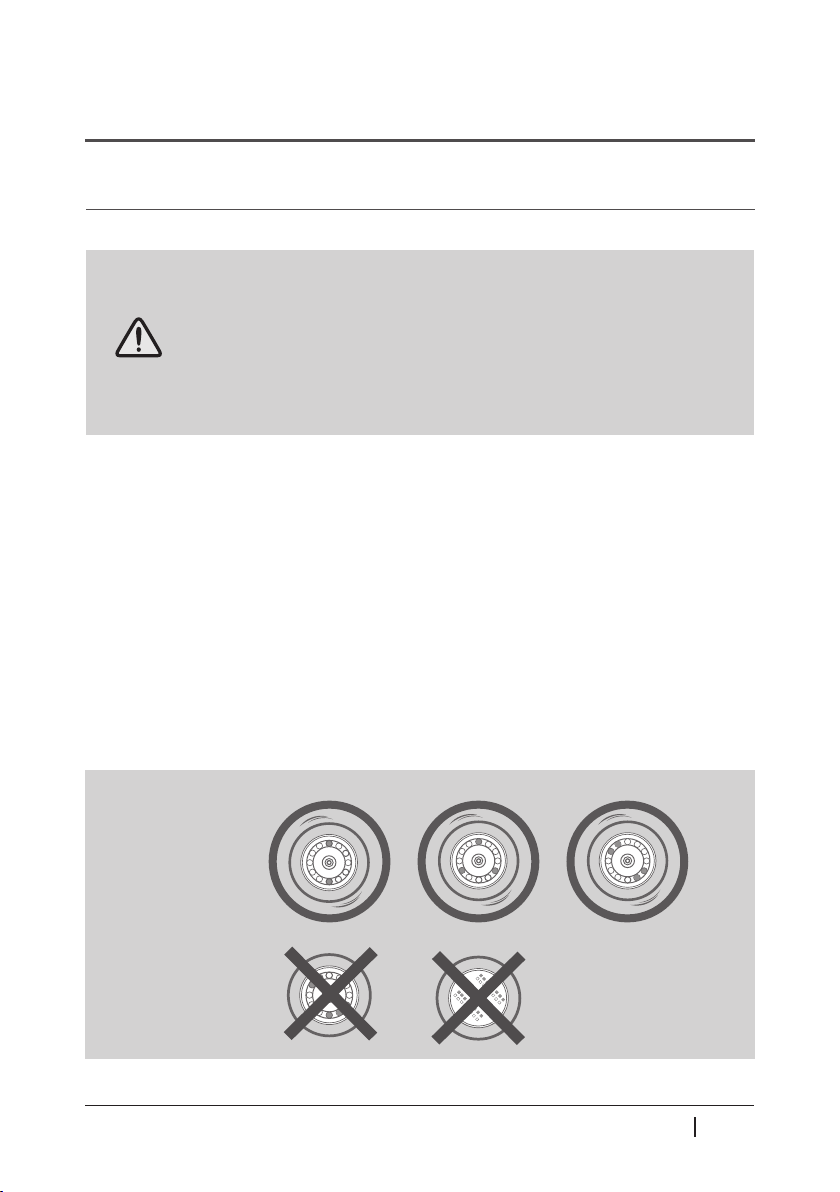

3.6 Loading tube
· Only use tubes provided or approved by Hanil Scienti󽗉c Inc .
· Always use the same type of tube .
· Tubes should be loaded symmetrically .
· Do not exceed the maximum rated speed of the tube .
· Same volume and density of sample should be put on tubes .
· Check symmetric loading by balncing tubes with scales .
1. Check the inside of the rotor hole for moisture or foreign matter.
2. Tubes must be loaded symmetrically.
Correct
Arrangement
Wrong
Arrangement

www.ihanil.com
12/18

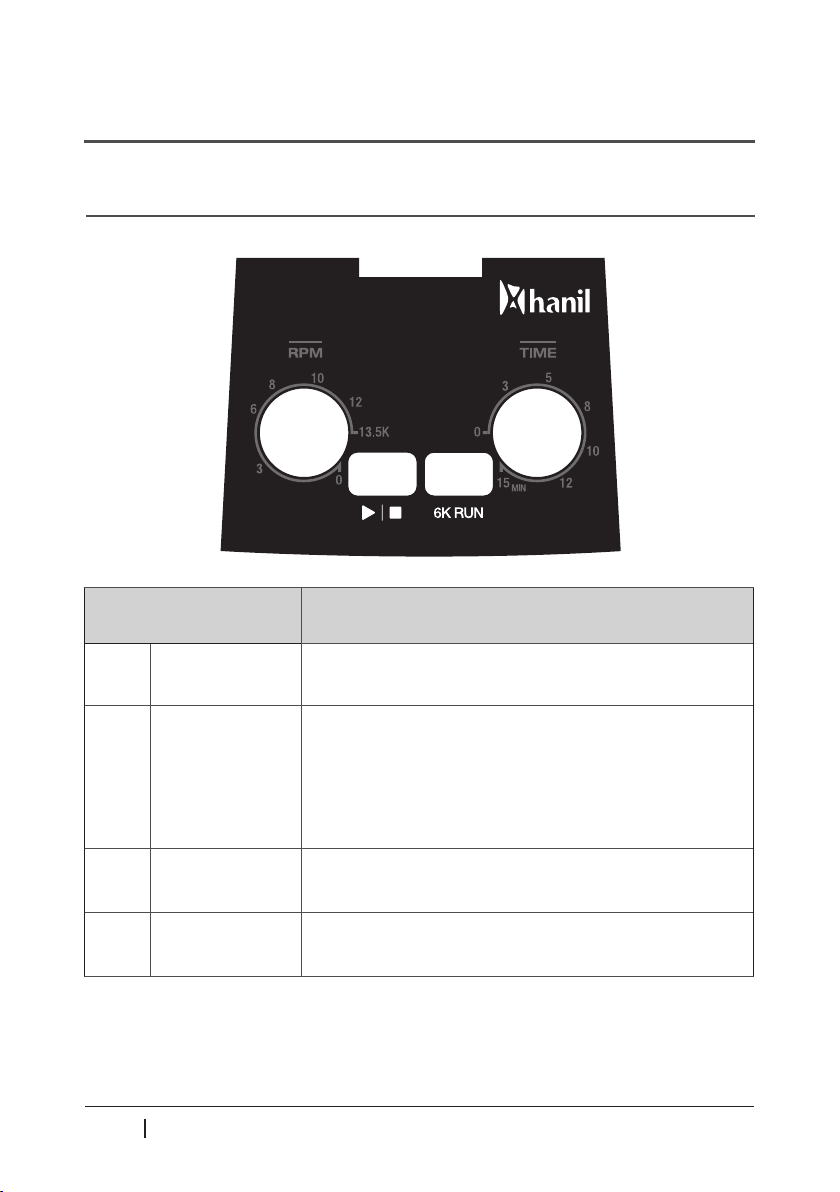

4.1 Control Panel
4. Operation
Button Description
①RPM setting knob Rotate clockwise or counterclockwise to set the rpm value.
②Time setting knob
Rotate clockwise or counterclockwise to set the run time.
(To use pulse function, set the time to '0' and press the start
key.)
③Start /Stop button Start or stop the centrifugation.
④6K Run button After loading the rotor, press this button to start operation at
6,000 rpm
※ When using a A0.2-32(PCR strip rotor) do not exceed 6,000rpm.

Tech. Support : 02-3452-8966 / [email protected]om 13/18
4.2 Setting RPM
[A2.0-12 rotor]
[Start]
[Stop]
[A0.2-32 rotor/A5.0-6 rotor]
4.3 Setting Run Time
4.4 Starting/End the Centrifugation
4.5 Pulse
1. Rotate the 'RPM setting knob' clockwise or counterclockwise to set the rpm value.
▶ 0~13,500 RPM
1. Press the 6K RUN button to start operation at 6,000 rpm
▶ Do not exceed 6,000 rpm.
1. Rotate 'Time setting knob' clockwise or counterclockwise to set the run time.
▶ 0~15 min
1. After setting the RPM and run time, close the lid and press the start button.
▶ If the lid is not completely closed, it will not operate.
▶ When the set time is over, the device is decelerated and stopped with beep sound.
1. While operation, press the Start/Stop button or 6K Run button to stop operation.
▶ While operation, rotate the RPM setting knob to '0' to stop operation.
▶ When the lid is opened during operation, operation stopped.
1. Set the RPM
2. Set the Time setting knob to '0'.
3. Press the Start button.
4. The device decelerates and stops when the set rpmis reached.
4. Operation

www.ihanil.com
14/18
5. Maintenance
1. Regularly inspect the rotor chamber for check the motor shaft is nomal.
2. Rotate the shaft with your hand to make sure it turns smoothly
3. Use the stopwatch to check that the time setting is correct
4. If you 󽗉nd any damages, do not use the device. Contact Hanil Scienti󽗉c Inc.
5. Be careful not to get any foreign substances on the sensor.
6. Check the rotor hole regulary for any foreign materials.
7. Use a damp cloth and the neutral detergent to clean and disinfect the rotor.

Tech. Support : 02-3452-8966 / [email protected]om 15/18
Problem Recommended Action
Power failure Check the power cord connection.
Error sound doesn't stop When opening the lid, error sound activated.
Press the 6K Run button to stop the error sound.
Lid cannot be opened Press the ‘Lid open button’.
Lid cannot be closed Remove the dirt on the lid latch and close the lid again.
Check the lid latch is not damaged.
Unusual noise and
vibration
Check the device whether it is installed on the hard and 󽗊at place.
Reload the rotor symmetrically.
Reload the tubes symmetrically.
Tighten the clamping of the rotor with wrench by turning clockwise
6. Troubleshooting
6.1 General Errors

www.ihanil.com
16/18
7. Rotors and Accessories
12 x 1
.
5
/
2
.
0
ml
45o
Hole diameter
(
m
m) :
11.5
Max
.
height for tube 󽗉t
(
mm
) :
48
Fixed Angle Rotor, A2.0-12
Tube
Tube capacity 0.2 ml 0.5 ml 1.5/2.0 ml
Adaptor None
Cat. No. TR0.2 TR0.5 -
Adaptor bore
(Фx L, mm) 6.3 x 21 8 x 37 -
Radius (mm) 44.04 54.19 59.06
Max. RPM 13,500
Max. RCF (
xg)
8,973 11,042 12,032
Tube
Tube capacity 0
.
2 ml 8
-
tube PCR strip
Radius (m
m)
Inner line : 31.13 ~ 44.06
Outer line : 46.13 ~ 55.68
Max
.
RPM 6
,
000
Max
.
RCF (
xg)
Inner line : 1,773 / Outer line : 2,241
Tube
Tube capacity 5.0 mL
Radius (m
m)
52
Max
.
RPM 6,000
Max
.
RCF (
xg)
2,126
4 x 8
-
tube
P
CR
s
trips, 32 x 0.2 ml
45o
Hole diameter
(
m
m) :
6
.
5
6 x 5.0
ml
50o
Hole diameter
(
m
m) :
16.5
Max
.
height for tube 󽗉t
(
mm
) :
60
PCR Rotor,
A0.2-32
Fixed Angle Rotor, A5.0-6

MEMO

RECYCLABLE
