Hanil Fleta5 User manual

Operating Manual
FLETA 5
Clinical Centrifuge
Date of Purchase
Serial No.
Place of purchase

Contact Us
If you have and questions, contact Hanil Scientific Inc. or place of purchase.
[phone]
Inquiry: [e-mail]
Order: [email protected]
Tech. support: [email protected]
The contents in this operating manual are subject to change for device improvement.
Copyright ⓒ2018 Hanil Scientific Inc. All rights reserved.
Fleta5
Research Use Only
Doc.No.: OMF5PDEN1801

CONTENTS
1. General Considerations-------------------------------------------------
1.1 Safety -3
1.2 Transport & Storage -4
1.3 Safety label -4
2. Product description-------------------------------------------------------
2.1 Structure -5
2.2 Delivery package -6
2.3 Technical specifications -7
3. Installation ----------------------------------------------------------------
3.1 Packing Inspection -8
3.2 Installation -8
3.2.1 Selecting the location -8
4. Operation ----------------------------------------------------------------
4.1 Operation panel -10
4.2 Opening and closing the lid -11
4.3 Loading and removal of the rotor -11
4.4 Setting rotor/bucket ID - 12
4.5 Loading tubes -13
4.6 Setting RPM -14
1.4 Electric safety information -4
5. Maintenance------------------------------------------------------------
6. Troubleshooting---------------------------------------------------------
6.1 General errors -19
6.2 Error codes- 20
7. Rotor ----------------------------------------------------------------------
3
5
8
10
3.2.2 Power connetion -9
4.7 Setting RCF-14
4.8 Setting Run Time - 15
4.9 Setting Acceleration Rate - 15
4.10 Setting Deceleration Rate - 16
18
5.1 Care instructions -18
5.2 Cleaning -18
19
23
6.3 Emergency release -22
4.11 Saving a Program - 16
4.12 Calling Up a Program - 17
4.13 Starting/Stopping a Run - 18

[email protected] / [e-mail] l 3
1. General Considerations
1.1 Safety
Follow precautions and all the safety requirements described on this user manual
to prevent any damage and failure of equipment and loss of lives.
1. The centrifuge should be installed on flat surface to maintain level.
2. Check the voltage to be used, before connecting the centrifuge to the power source.
3. Only use rotors, parts, and accessories provided by Hanil Scientific Inc.
Hanil Scientific Inc. is not responsible for damages of the device and accidents caused by
using parts and accessories not recommended.
4. Do not exceed the maximum rated speed of the rotor or buckets in use.
5. Make sure to prepare necessary safety measures before using samples that are toxic or
radioactive samples or pathogenic or samples or infectious blood.
6. Substances that may generate volatile or explosive vapor can not be centrifuged.
7. The balancing work of samples should done in advance before operation.
8. To ensure safe use of the device, do not expose the device to strong acids, strong bases,
cesium, salt, or alkaline detergents.
8. If the centrifuge is contaminated by toxic or radioactive samples or infectious blood
samples, remove contaminants completely and take needful actions such as ventilation
or isolation of centrifuge.
9. Before operation, rotor and chamber should be dry.
10. Do not attempt to slow or stop the spinning rotor by hand.
11. Only centrifuge with rotor and rotor lid firmly tightened.
12. Do not block vents.
13. When serving the centrifuge, be sure to remove contaminants in advance.
14. Please contact the place of purchase or Hanil Scientific Inc. for product repairs.
15. According to IEC61010-2-020 maintain a 30cm “clearance envelope” around the
centrifuge while the rotor is spinning.
16. Turn the power switch off after using the device.
17. Unplug the power plug before cleaning or left unused for a long period of time.

1. General Considerations
1.2 Transport & Storage
• The device and the accessories
may only be stored in dry rooms
• Only lift and transport the
device with sufficient number of
helpers.
-Storage-
Ambient temperature 5℃~35℃
Maximum relative humidity 30%~85%
Air pressure 500~1060hpa
-Transport-
Ambient temperature -10℃~40℃
Maximum relative humidity 10%~90%
Air pressure 500~1060hpa
1.3 Safety label attached to a product
Insert tube
symmetrically.
Firmly tighten
the rotor lid.
Watch your figers
when close the lid.
Mark indicating danger
and warning.
Mark indicating a place in
danger of electric shock.
1.4 Electric safety information
1.Use a power cord only provided with equipment.
2.Use sockets with a protective earth conductor and suitable power cord.
3.Do not use an extension cord.
4.Do not place anything on the powercable
5.Do not block vents.
6.If you have the following emergencies, shut off the power supply and unplug the
powercord from outlet and contact your place of purchase.
-Unusual noises or smell from the equipment.
-Damage or wear of a power cord.
-Breakdown of circuit breaker, fuse or safety device.
-If you spill liquid on the equipment.
-If theequipment has been damaged.
4 l www.ihanil.com

①
②
③
④
⑤
⑥
⑦⑧
⑨
①Door:
Door protects the inside of the chamber.
②Door latch:
Fix the door.
③RPM measuring window:
Visual inspection for rotor stop or for a speed check using a stroboscope.
④Chamber:
Where the rotor is loaded.
⑤Operating panel
Set desired run conditions.
⑥Power switch
On/off the centrifuge
⑦Emergency lid open tool
Active the emergency release(on the bottom of the device)
⑧Fuse case
If the wiring is short-circuited, overloaded, or short-circuited, turn off the power.
⑨Power connector
The power cord is connected.
2. Product description
2.1 Structure
[email protected] / [e-mail] l 5

2. Product description
2.2 Delivery package
①Mainbody
②Power Cable
③Operating manual
④Twrench, for rotor locking
⑤Optional items
6 l www.ihanil.com

2. Product description
2.3 Technical Specifications
Max. RPM 5,500 rpm
Max. RCF 6,230 xg
Max. Capacity 32 x 15 mL
ACC/DEC
ACC/DEC
ramps 9/10 steps
Acc. time to
max. speed 20/80 sec
Dec. time
from max.
speed
26/82 sec
Time control < 100 hr, continuous
Program memory 100
Noise level ≤ 65 dB
Imbalance cutoff Yes
Dimension (W x D x H, mm) 570 x 475 x 325
Weight without rotor 37 kg
Power requirement (VA) 700 VA(Usual)
1079VA(Max.)
Power input (V, Hz) 210~240 V, 50/60 Hz (110V optional)
Cat. No. FL-5
[email protected] / [e-mail] l 7

3. Installation
3.1 Packing Inspection
•Check packing conditions carefully, before unpacking.
•Contact Hani lScientific Inc. immediately if damages found.
•Check the delivery for completeness.
•You can get contact details on packing boxes and the back of the manual.
3.2 Installation
3.2.1 Selecting the location
Installation on hard and flat ground.
• Centrifuge should be installed on hard and flat place.
• If the centrifuge is installed in an inclined place, the shaft may be bent due to the
weight of the rotor.
Goodventailation.
• For air circulation and safety, maintain a 30cm“clearance envelope”around the
centrifuge while the rotor is spinning.
Constant temperature/humidity
• Centrifuge equipped with the sensitive electronic software which is fragile with
humidity and temperature.
•Must avoid direct ray or heater and be put in the ambience of controlled temp.and air.
Avoid the corrosive gas
• Install the centrifuge in a place where corrosive gas is not generated.
• Sulfur dioxide gas and chlorine gas may cause corrosion.
Leveling
• The shaft should be put exactly vertical on the hotizontaliy flat ground by
the leveling tool
8 l www.ihanil.com

3. Installation
3.1 Packing Inspection
3.2.2 Power Connection
• Connect the device to voltage sources which correspond to the electrical
requirements on the label attached to the device.
• Use sockets with a protective earth conductor and provided powercord.
1. Connect the power cable to the power socket on the back side of the product and plug
the cord into the outlet.
2. Switch the centrifuge on using the power switch.
[email protected] / [e-mail] l 9

4. Operation
4.1 Operation Panel
①③④⑤②
⑥⑦⑧ ⑨ ⑩
⑪ ⑫ ⑬
10 www.ihanil.com
No. Button Function
①‘MODE’ dial Turn the dial in the setting mode
to move cursor to set the RPM / RCF / Time / Prog./Acc/Dec.
②‘Enter’ dial Set the value.
③Display-‘RPM’ ‘RCF’ RPM/ RCF value is displayed.
④Display-‘Time’ Centrifugation time is displayed.
(Set to 0:0:0 , for continuous centrifugation
⑤Display-‘Prog’ Program No. is displayed.
⑥Display-‘Acc’ Acceleration rate is displayed.
⑦Display-‘Dec’ Deceleraterate is displayed.
⑧Display-‘Rotor’ Rotor Id. is displayed.
⑨Display-‘Radius’ Radius is displayed.
⑩Display-
‘Ready’ ‘Check’ ‘Set’ Current status of the device is displayed.
⑪‘Start’ Start the centrifugation.
⑫‘Stop’ Abort the centrifugation.
⑬‘Lid’ Open the lid.

4. Operation

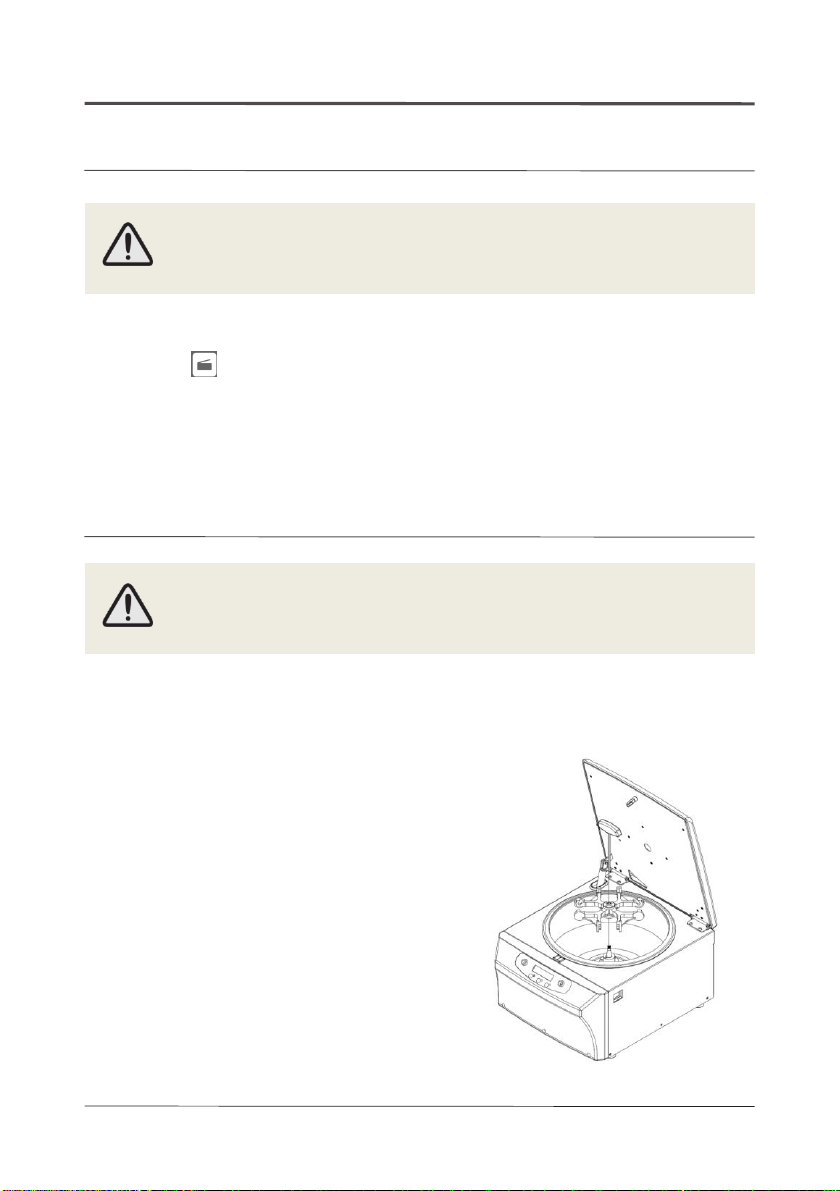

4.2 Opening and closing the lid
•The lid can only be opened when the centrifuge is switched on.
•Do not reach with your fingers between the housing and lid.
•Close the lid completely before operation.
•Opening the lid
Press the ( ) lid key.
•Closing the lid
Put the lid on and press the edge of the lid.
4.3 Loading and removal of the rotor
•Only use rotors, parts, and accessories provided by Hanil Scientific Inc.
•Do not use scatched or cracked rotor in use.
Loading
①Clean the motor shaft and the chamber.
- When loading the rotor, the temperature should be 10 to 30 degrees.
②Load the rotor vertically onto the motor shaft.
③Insert the wrench into the center hole of the rotor
and turn it clockwise to tighten the rotor bolt.
④Check the rotor to make sure it loaded firmly.
Unloading
①To remove the rotor,
insert the wrench into the center hole of the rotor
and turn it counterclockwise to loosen the bolt.
[email protected] / [e-mail] l 11

4. Operation
4.4 Setting rotor/bucket ID
• Be sure to set rotor id. or bucket id. correctly before use
1. Press the Enter knob.
2. Turn the Mode knob to move the cursor to rotor ID mode.
3. Turn the Enter knob until the desired rotor/bucket ID displayed.
4. Press the Enter button.
5. Do you save? appears. Turn the mode knob to select [YES]
6. Press the Enter button.
Rotor/Bucket ID
Rotor Bucket ID.
HSR-4S
HBTM 3
HBT50-1 2
HBT50-2
HBT50c-1 6
HBT15-8 1
HBT15c-4 5
HSM-2 - 4
12 www.ihanil.com

4. Operation
4.5 Loading tubes
• Only use tubes provided or approved by Hanil Scientific Inc.
• Always use the same type of tube.
• Tubes should be loaded symmetrically.
• Do not exceed the maximum rated speed of the tube.
• Same volume of sample should be put on tubes.
• Check symmetric loading by balncing tubes with scales.
①Check the maximum load for each tube.
②Put tubes into rotor holes.
③Tubes located opposite each other must be the same type and contain the same quantity.
Correct arrangement
Wrong arrangement
[email protected] / [e-mail] l 13

4. Operation
4.6 Setting RPM
1. Press the Enter knob.
2. Turn the Mode knob to select RPM setting mode.
▶RPM setting mode: RPM flashes.
3. Turn the Enter knob until the desired rpm is displayed.
4. Press the Enter knob to save the value.
5. Do you save? appears.
Turn the Mode knob to select [Yes]
6. Press the Enter knob.
4.7 Setting RCF
1. Press the Mode knob in stand-by mode.
2. Press the Enter knob.
3. Turn the Mode knob to select RCF setting mode.
▶RCF setting mode: xg flashes.
4. Turn the Enter knob until the desired RCF is displayed.
5. Press the Enter knob to save the value.
6. Do you save? appears.
Turn the Mode knob to select [Yes]
7. Press the Enter knob.
14 www.ihanil.com

4. Operation
4.8 Setting Run Time
1. Press the Enter knob.
2. Turn the Mode knob to select Time setting mode.
▶Time setting mode: 00:00:00 flashes.
3. Turn the Enter knob until the desired run time is displayed.
4. Press the Enter knob to save the value.
5. Do you save? appears.
Turn the Mode knob to select [Yes]
6. Press the Enter knob.
4.9 Setting Acceleration Rate
1. Press the Enter knob.
2. Turn the Mode knob to select ACC setting mode.
▶ACC setting mode: ACC flashes.
3. Turn the Enter knob until the desired acceleration rate is displayed.
4. Press the Enter knob to save the value.
5. Do you save? appears.
Turn the Mode knob to select [Yes]
6. Press the Enter knob.
[email protected] / [e-mail] l 15

4. Operation
4.10 Setting Deceleration Rate
1. Press the Enter knob.
2. Turn the Mode knob to select DEC setting mode.
▶DEC setting mode: DEC flashes.
3. Turn the Enter knob until the desired deceleration rate is displayed.
4. Press the Enter knob to save the value.
5. Do you save? appears.
Turn the Mode knob to select [Yes]
6. Press the Enter knob.
4.11 Saving a Program
1. Press the Enter knob until desired program number is displayed.
▶You can see that the program number is changed on the PROG display.
2. Set the desired Speed/Time/ACC/DEC.
3. Press the Enter knob to save the value.
4. Do you save? appears.
Turn the Mode knob to select [Yes]
6. Press the Enter knob.
16 www.ihanil.com

4. Operation
4.12 Calling Up a Program
1. Turn the Enter knob until desired program number is displayed.
▶You can see that the program number is changed on the PROG display.
4.13 Starting or Stopping a Run
Starting a run
1. Check that all parameters are correct and the lid is closed.
2. Press the Start button.
Stopping a run
1. Press the Stop button.
[email protected] / [e-mail] l 17

5. Maintenance
5.1 Care instructions
• The following procedures should be performed regularly.
①Regularly inspect the rotor chamber for check the motor shaft is nomal.
②Rotate the shaft with your hand to make sure it turns smoothly
③Use the stopwatch to check that the time setting is correct
• Oustside of the device
①Clean the outside of equipment with a soft and dry cloth.
②Do not use aggressive chemicals on the device such as alchol, benzene, acetone
or phenol.
③Use the stopwatch to check that the time setting is correct
▶If the device is contaminated, use a mild cleaning fluid to clean.
④Make sure do not scratch the surface of equipment when cleaning it.
▶Do not use a metal sponge.
▶If the device is rusted, remove it with a mild detergent and wipe it with a dry cloth.
• Chamber
①If the rotor chamber is not dry, wipe moisture from the chamber with a dry cloth.
②If the rotor chamber is dirty, wipe moisture from the chamber with a dry cloth.
• Rotor
①To prevent corrosion, take out the rotor from the rotor chamber.
②If any sample is spilt inside the rotor, wash and dry the rotor well.
• Disposal
In case of product is to be disposed of, the local wastes laws and regulations are
to be observed.
5.2 Cleaning
• Before cleaning the centrifuge, be sure to switch off the device and
disconnect the power cord.
18 www.ihanil.com

6. Troubleshooting
6.1 General errors
Problem Recommended Action
Power failure Check the power cord connection.
Check the power fuse of the device.
Device cannot be started Check the lid is closed completely.
Lid cannot be opened Press the ‘Lid open button’.
Lid cannot be closed
Remove the dirt at the door latch and
close the lid.
Checkthe lid latch is not damaged.
Unusual noise and vibration
Check the device whether it is installed
on the hard and flat place
Reload the rotor symmetrically.
Reload the tubes symmetrically.
Tighten the clamping of the rotor with
wrench by turning clockwise
[email protected] / techsuppo[email protected] l 19
