Harbor Breeze 40821 User manual

1
ATTACH YOUR RECEIPT HERE
Serial Number _________________________ Purchase Date _________________________
Lowes.com/harborbreeze
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
XXXXXXX
ITEM #0599849, 0599656, 0599848
CROSSWINDS II CEILING FAN
MODEL #40821, 40823, 40822
Español p. 23

2Lowes.com/harborbreeze
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Closemount Instructions ...........................................................11
Wiring .........................................................................12
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operating Instructions .............................................................18
Care and Maintenance ............................................................19
Troubleshooting..................................................................19
Limited Lifetime Warranty ..........................................................21
Replacement Parts List ............................................................22

3Lowes.com/harborbreeze
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to Downrod [A]) 1
C Downrod Clip (preassembled to Downrod [A]) 1
D Canopy 1
E Mounting Bracket (preassembled to the Canopy [D]) 1
F Canopy Cover (preassembled to Canopy [D]) 1
GMotor Assembly 1
H Switch Housing (preassembled to Motor Assembly [G]) 1
I Switch Housing Cap (preassembled to Light Kit [J]) 1
J Light Kit 1
K Finial Cap (preassembled to Light Kit [J]) 1
L Finial (preassembled to Light Kit [J]) 1
M Glass Bowl 1
NBlade Arm 5
O Blade 5
P Remote Pack 1
Q Bulb 3
R Blade Balancing Kit 1
S Rubber Washer (preassembled to Light Kit [J]) 1
T Hex Nut (preassembled to Light Kit [J]) 1
U Motor Screw (preassembled to Motor Assembly [G]) 10 + 1 extra
V Switch Housing Screw (preassembled to Switch Housing Cap [I]) 3
W Mounting Bracket Screw (preassembled to Mounting Bracket [E]) 4
X Set Screw (preassembled to Motor Assembly [G]) 2
Y Phillips-head Closemount Screw (preassembled to Motor Assembly [G]) 3
A
B
C
D
I
H
G
F
J
K
LM
N O
E
PQR
S T U V W X Y

4Lowes.com/harborbreeze
HARDWARE CONTENTS (shown actual size)
Plug Button
Qty. 1
Wire Connector
Qty. 1
+1 extra
AA BB

5Lowes.com/harborbreeze
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code,andANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourselfwiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
theoorandatleast30in.fromtheendofthebladestoanyobstruction.
• The net weight of this fan is: 16.4 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noisefromthefan.Toreducetheriskofreorelectricshock,doNOTuseafull-rangedimmerswitch
to control the fan speed.
WARNING: Toreducetheriskofre,electricshock,orpersonalinjury,mountthefantoan
outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with
theoutletbox.Mostoutletboxescommonlyusedforthesupportoflightingxturesarenotacceptable
forfansupportandmayneedtobereplaced.Consultaqualiedelectricianifindoubt.Securethe
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: Toreducetheriskofre,electricshock,orpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges and/or there is more than one house wire to
connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,donotbendtheblade
arms when installing them, balancing the blades, or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6Lowes.com/harborbreeze
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with
the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook

7Lowes.com/harborbreeze
INITIAL INSTALLATION
1. Turn off the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
2. Determine the mounting method to use.
Helpful Hint: Standard mounting is best suited for
ceilings 8 ft. or higher. For taller ceilings you may
want to use a longer downrod (sold separately). Angle
mounting is best suited for angled or vaulted ceilings.
A longer downrod is sometimes necessary to ensure
proper blade clearance. Closemount-style mounting
is more suitable for ceilings lower than 8 ft. high.
Flushmount installation is not available for this item.
Important:If using the angle mount, check to ensure
the ceiling angle is not steeper than 10°.
2
Standard Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (O) will be at least 30 in. from
any obstructions. Also check the downrod (A) length
to ensure the blades (O) will be at least 7 ft. above
theoor.
7 ft. min.
30 in. min.
3
A
O
1

8Lowes.com/harborbreeze

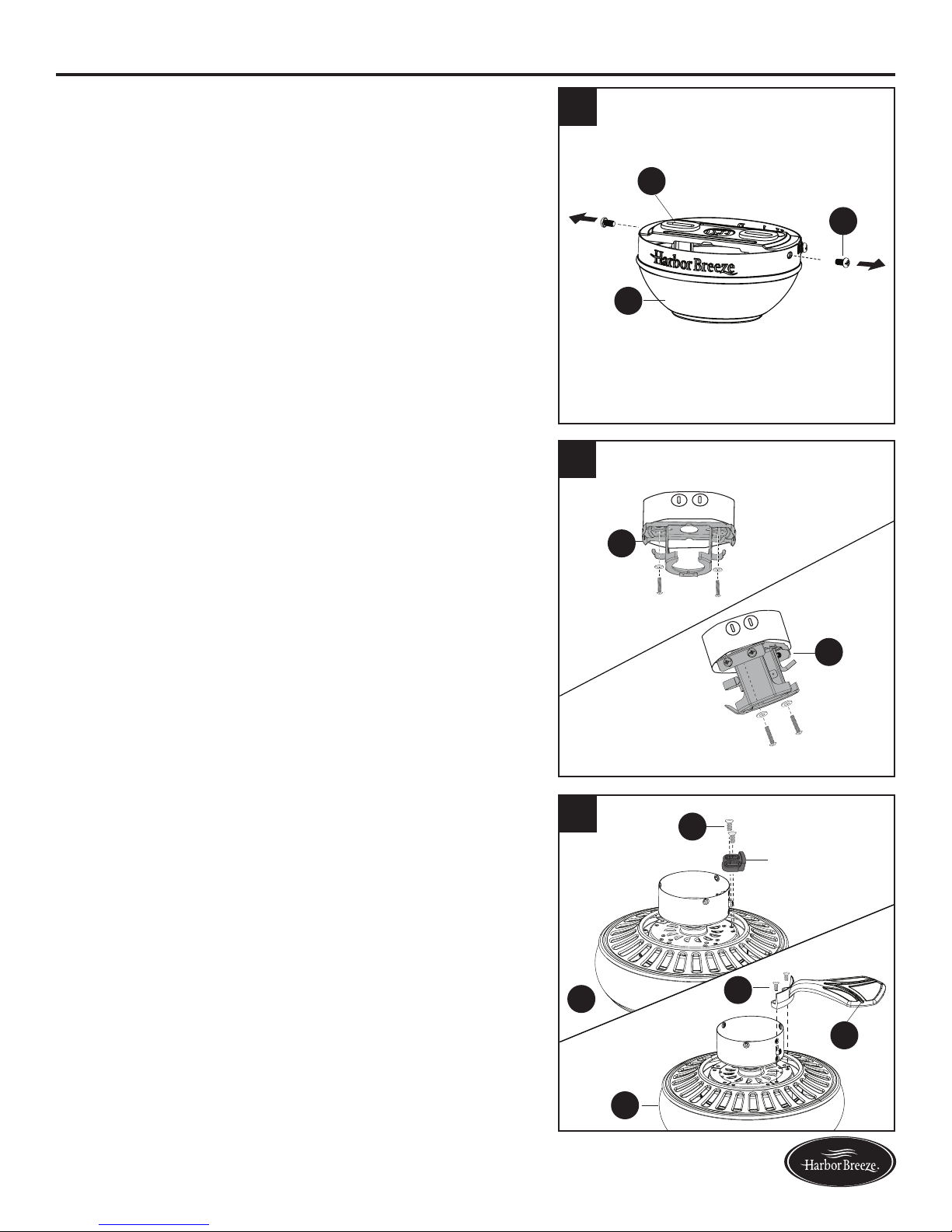

INITIAL INSTALLATION
4. Loosen all four mounting brackets screws (W),
then completely remove the two mounting bracket
screws (W) from the round holes of canopy (D). Set
aside for later use.
Detach mounting bracket (E) from canopy (D).
Note:Do NOT remove the mounting bracket screws
(W) from the slotted holes.
5. Extend the supply wires from outlet box (not
included) to one side of the mounting bracket (E)
and secure the mounting bracket (E) to the outlet
box using screws and washers provided with the
outlet box.
CAUTION: It is very important you use the proper
hardware when installing the mounting bracket (E) as
this will support the fan.
Note:Do not feed supply wires through the hole in the
top of the mounting bracket.
Important:If using the angle mount, ensure the open
end of the mounting bracket (E) is installed facing the
higher point of the ceiling.
6. Remove all ten preassembled motor screws (U) and
vepreassembedmotorblocksfromtheundersideof
the motor assembly (G). Then install the blade arms
(N) into the underside of the motor assembly (G)
using the ten motor screws (U).
Discard the motor blocks.
For Standard or Angle Mounting Instructions,
continue to page 9. For Closemount Instructions,
proceed to page 11.
D
W
E
E
E
4
5Standard or
Closemount
Mounting
Angled
Mounting
6
Motor
Block
U
G
N
G
U

9Lowes.com/harborbreeze

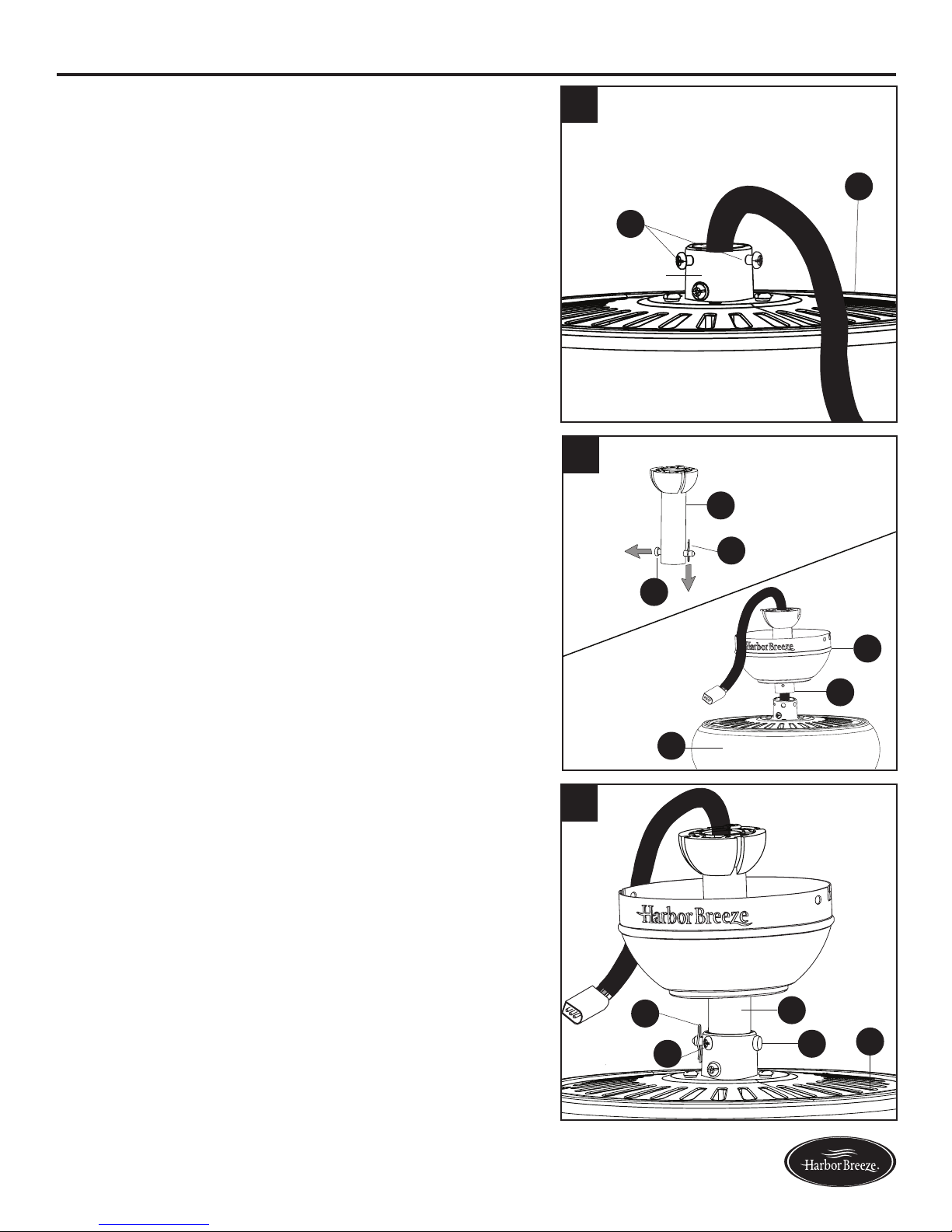

STANDARD OR ANGLE MOUNTING INSTRUCTIONS
1. Partially loosen the two set screws (X) in the yoke
at the top of the motor assembly (G) to allow for
installation of the downrod (A).
2. Remove the downrod pin (B) and downrod clip (C)
from the downrod (A). Feed the wire harness from
the fan through the downrod (A). Then insert the
downrod (A) -- or a longer downrod, if required --
through the canopy (D) and into the yoke of motor
assembly (G).
3. Align the holes of downrod (A) and the yoke of motor
assembly (G), then re-install the downrod pin (B) and
downrod clip (C). Once secure, re-tighten the set
screws (X).
C
B
G
A
A
G
B
A
G
C
X
D
2
3
1
X
Yoke

10 Lowes.com/harborbreeze
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
4. Install the ball end of the downrod (A) into the opening of
the mounting bracket (E). Rotate the fan in the mounting
bracket (E) until a slot in the ball end of the downrod (A)
engages the tab in the mounting bracket (E).
DANGER: The fan and/or downrod should not
rotate in the mounting bracket (E) if installed correctly.
Failure to align the slot with the tab may result in fan
falling causing serious injury or death.
5. Insert the receiver from remote pack (P) into the
mountingbracket(E)withtheatsideofthereceiver
facing the ceiling.
WARNING: Using a full-range dimmer switch to
control fan will cause a loud humming noise from the
fananddamagetheremote.Toreducetheriskofre
or electric shock, do NOT use a full-range dimmer
switch to control the fan speed.
Proceed to WIRING on page 12.
4
A
A
E
E
Tab
Slot
E
5Receiver
