Haverland ECORADi Series Parts list manual

Instructions & installation manual
ECORADi
ECORADi_V1_28052019_MISA_ESUKFP2019
NOT SUPPLIED
SMARTBOX
HAVERLAND
APP
works with the
Google is a trademark of Google LLC.
Voice Control
IF YOU HAVE ANY DIFFICULTY WITH
THIS PRODUCT, INSTEAD OF TAKING
IT BACK TO THE RETAILER, TRY:
1. The instruction booklet
2. Refer to [email protected]
3. Or call our helpline:
UK: 0330365 1940

P
INDEX
PAGE
41. CAUTION
62. INSTRUCTIONS FOR INSTALLATION
93. OPERATION
93.1 CONTROL PANEL
93.2 YOUR RADIATOR IS CONFIGURED!
11 3.3 FACTORY-SET PARAMETERS
11 3.4 OPERATING MODES
12 3.4.1 LEARNING MODE (factory activated)
13 3.4.2 SENSOR MODE
13 3.4.3 MANUAL MODE
13 3.5 ADJUSTING THE TEMPERATURE
14 3.6 COMFORT, ANTI-FROST AND ECONOMY TEMPERATURES
15 3.7 “OPEN WINDOW” FUNCTION
16 3.8 “KEYPAD LOCK” FUNCTION
16 3.9 STANDBY
17 3.10 ADJUSTING DAY AND TIME
18 3.11 OTHER INDICATIONS
18 3.11.1 HEATING ELEMENT ON INDICATOR
18 3.11.2 SENSOR INDICATOR ON
19 3.12 BATERRY
19 4. SMARTBOX (OPTIONAL)
19 4.1 SMARTBOX (OPTIONAL)
20 4.2 CONTROL “VIA APP”
20 4.2.1 HOW DO I CONFIGURE THE SMARTBOX WITH MY RADIATORS?
21 5. MAINTENANCE
21 6. GUARANTEE

4 ECORADi
• Please read these instructions carefully.
• To disconnect mains power from the radiator remove the
plug from the wall socket, but never pull on the cable.
• Do not leave the mains cable in contact with the radiator
when it is switched on.
• During operation, the radiator must be kept well away from
combustible materials, such as curtains, carpets and furniture
etc.
• The warranty for the radiator does not cover any damage
caused by not reading these instructions.
WARNING: In order to avoid overheating, do not
cover the heater.
• WARNING: If the mains power cable is damaged, it must
be replaced by the manufacturer, with their after-sales
service or similar qualied persons, in order to prevent
any danger.
• WARNING: If the heater is to be installed in a bathroom,
it must be positioned so that it cannot be touched by
anybody in the bath or shower.
• The installation should be carried out with consideration
to the manufacturer’s instructions and in accordance to
the relevant National Wiring Regulations BS7671.
• It is very important that radiator has a good Electric Earth
connection.
• The radiator shall be installed so that its mains plug is always
accessible.
• The radiator must not be installed below or in front of a mains
socket.
• This radiator cannot be surface-mounted with a wall.
Safety distances shall always be respected.
1. CAUTION

ECORADi 5
• The radiator has a keyboard blockage option to prevent
children from changing the programming.
• This unit is not designed to be handled by persons (including
children) with physical, sensorial or mental handicaps, with
little experience or knowledge unless they are under the
supervision of an adult responsible for their safety with the
instructions on its use. Children shall always be supervised to
ensure they do not play with the unit.
• Children under three shall be kept well away from the heater
unless they are continually supervised.
• Children between three and eight shall only switch the unit o
or on providing it is positioned or installed in its nal operating
location and be supervised or have received instructions on
how to use the unit in a safe manner and understand the risks
involved.
• Children between three and eight shall not plug in, adjust or
clean the heater or carry out any maintenance operations.
• This unit may be used by children older than eight and by
persons with physical, sensorial or mental handicaps, with
little experience or knowledge, provided they have been duly
trained and are supervised by an adult that understands the
risks involved.
• Cleaning and maintenance shall be performed by adults not
children. Children must not play with the unit.
• WARNING: Certain parts of this product can become
very hot and cause burns. Special attention shall be paid
when children and other vulnerable persons are present.
• Do not touch the external parts of the radiator when it is
operating.
• It is quite normal that, with the rst switch-on, the unit
produces a “new” smell. Allow your heater to operate in a
well-ventilated place for two or three hours.
1. CAUTION

6 ECORADi
• It is important that the radiator IS FIXED FIRMLY TO A SOLID AND LEVELLED WALL.
• Make sure that there is a socket near the area where you are going to place it.
• Take out the wall pattern from the box to see the exact positions of the necessary drill
holes.

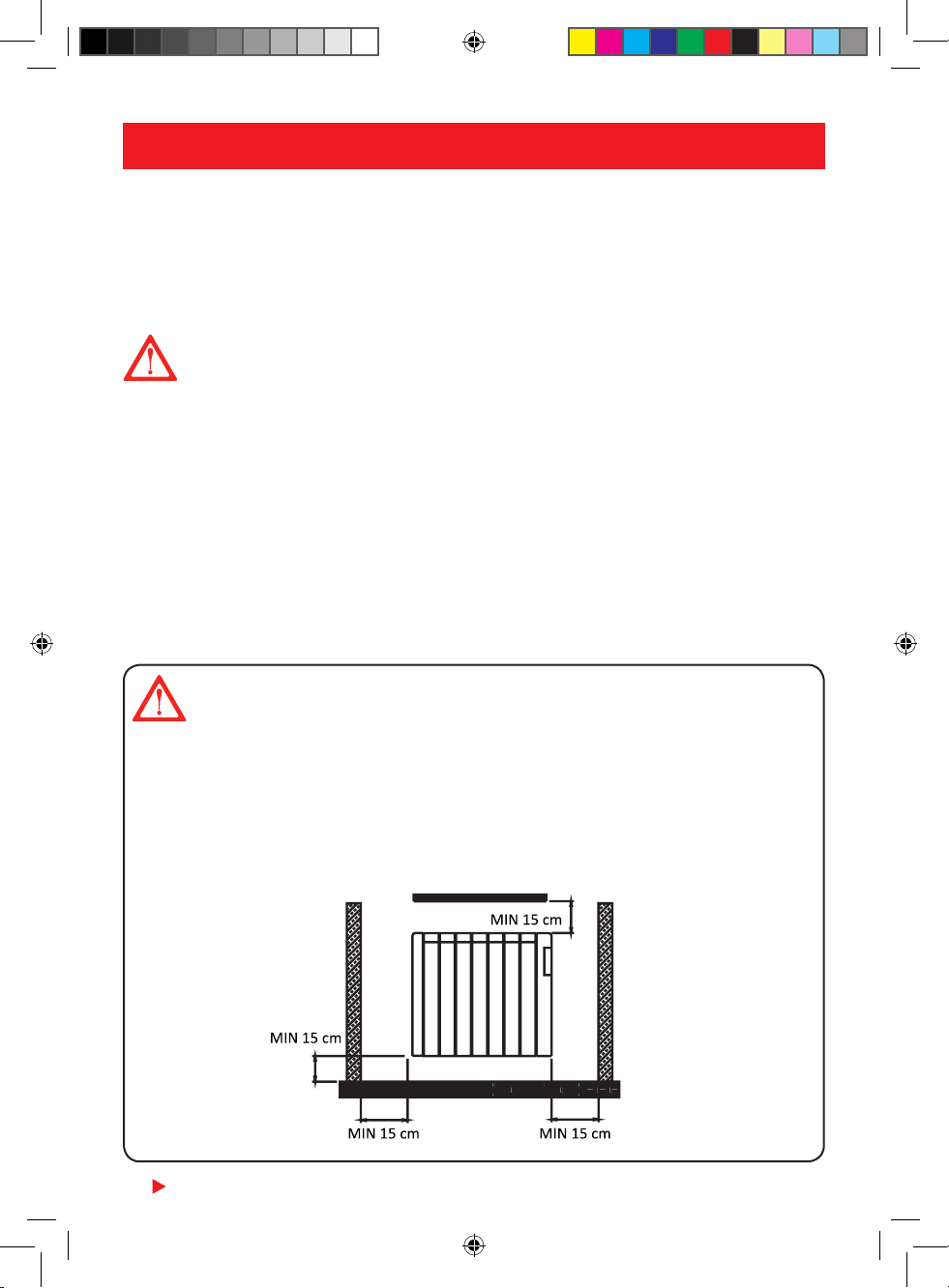

• You must keep a minimum distance of 15 cm between the radiator and any object, wall
or combustible material.
IMPORTANT
2. INSTRUCTIONS FOR INSTALLATION
• Before the rst switch on for the coming winter or when the
heater has not been used for several days, the unit should be
cleaned (follow the steps given in the “maintenance section”.This
cleaning operation will avoid burning the accumulated dust and
other remains.
• This radiator CAN’T OPERATE with external programmable
controllers or any other exterior control device.
• CAUTION: Keep bags and other accessories well out of the
reach of children.
• The convection eect, together with other ambient factors, can
cause discolouring to metal surfaces and to plastics.
• Temperature dierences can cause crackling and other noises in
the unit. This does not indicate any failure in the radiator.
• When the radiator is disposed of, the requirements established
by current legislation on waste processing and recycling shall be
taken into account.

ECORADi 7
1
34
2
2. INSTRUCTIONS FOR INSTALLATION
Cardboard
template
4 Screws
5.5 x 50 mm
Place the screw
but don’t
screw it fully.
(M. 6 x 40 mm)
Place
the radiator
• Take into account the radiator location
so that it can detect presence over the
largest possible area of the room.
• The presence sensor will not detect any
movement if the distance to the heater
exceeds ve metres.
• Remember that the sensor will detect
the movement of pets.
• DO NOT PLACE ANY OBJECTS IN
FRONT OF OR ANYWHERE NEAR
THE SENSOR.
IMPORTANT

8 ECORADi
7
6
Press ON /
OFF switch
located at the
right rear part
of the unit.
8
2. INSTRUCTIONS FOR INSTALLATION
Screw down
FULLY to lock
the radiator
INFORMATION
IMPORTANT:
Plug in
3 pin 13 amp
plug
5
1
3
2
Slide the
radiator up,
Place over top
tang and lower
gently into
position
(W)
500
750
1000
1250
1500
“A” (mm)
420
420
420
420
420
“B” (mm)
246
246
246
246
246
“C” (mm)
159
319
478
638
638

ECORADi 9
3. OPERATION
3.1 CONTROL PANEL

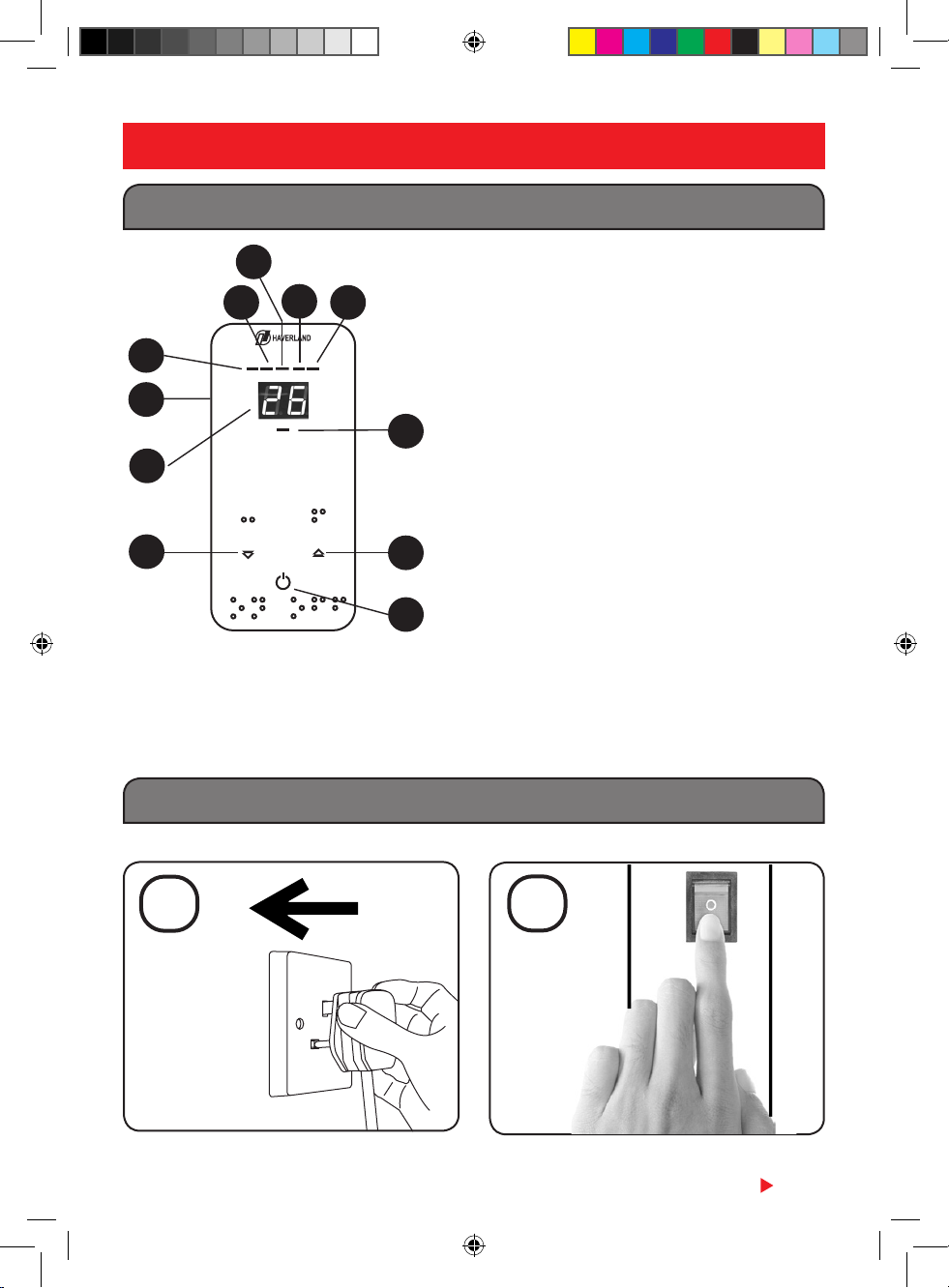

1. Panel control
2. Temperature indicator
• Red = Comfort
• Blue = Anti-frost
• Green = Economy
3. Operating mode indicator:
• Flashing = “Learning” mode
• Fixed = Sensor mode
• O = Manual mode or “Forced” programming
mode (via Smartbox App (available separately).
4. “Forced” programming mode (via Smartbox App
(available separately).
5. Sensor indicator
6. Heating On
7. Increase
8. Decrease
9. Screen:
• Ambient temperature
• Selected temperature
• Clock and day
10. Standby
11. “Open windows” indicator
3.2 YOUR RADIATOR IS CONFIGURED!
1
2
1
2
3
4 6
7
10
8
9
5
11

10 ECORADi
3. OPERATION
34
7
6
8
5

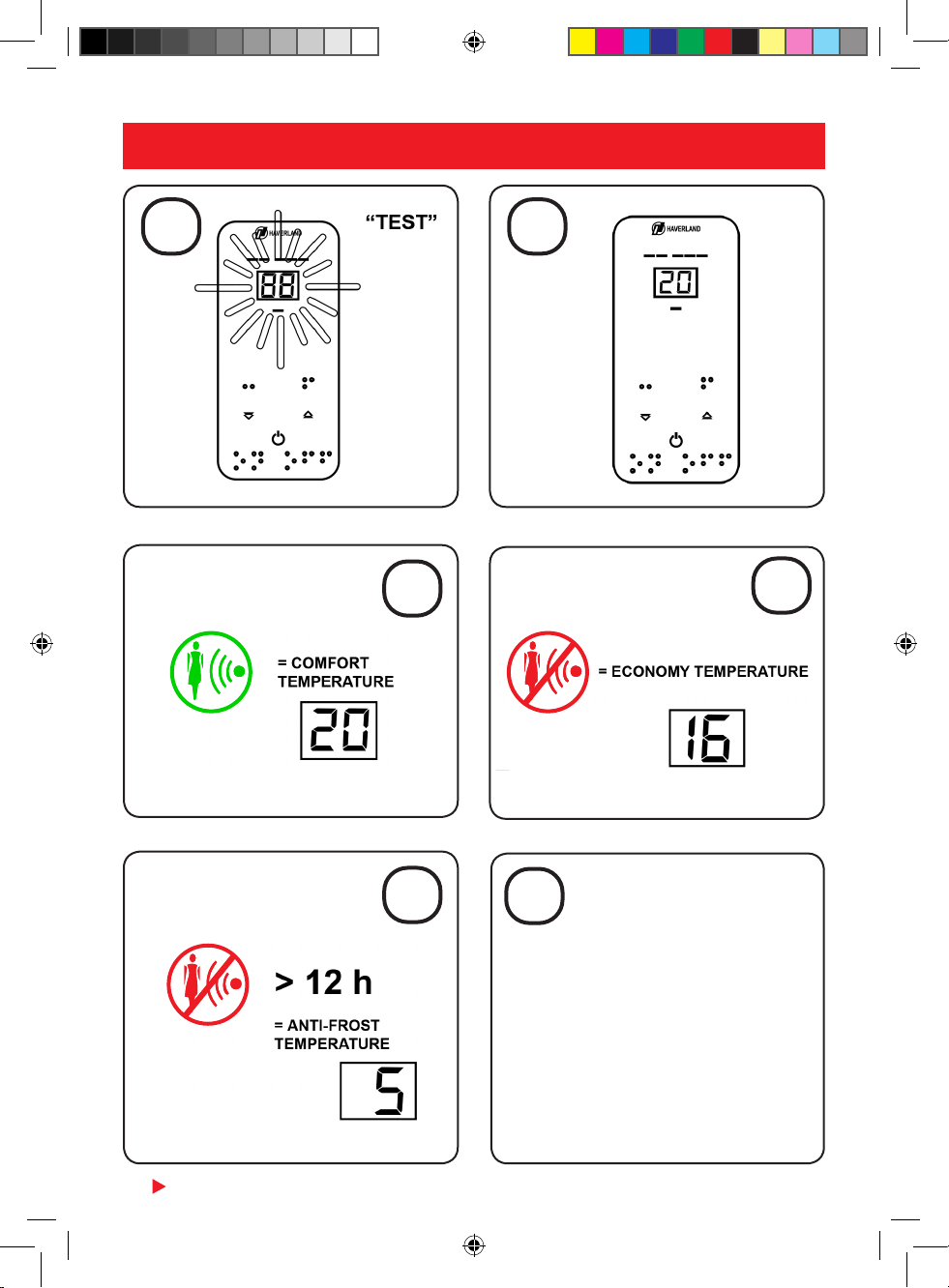

Your radiator is now ready to learn
your life style habits and to provide
heat WITHOUT ANY NEED TO
PROGRAMME ANYTHING.
According to your presence, it will
learn a template for each day of
the week, week by week.
The radiator NEVER stops
learning. If you change your
habits of getting up and going
to bed etc, the unit will re-
programme itself to adapt to your
new habits.
Detection
No Detection
No Detection

ECORADi 11
3. OPERATION
3.3 FACTORY-SET PARAMETERS
1) Clock and current day are factory set.
2) Comfort temperature = 20 ºC.
3) Economy temperature = 16 ºC
4) Activated operating mode = “Learning” mode.
3.4 OPERATING MODES
Your radiator incorporates four operating modes. The “learning” mode is activated at the factory.
To change the operating mode:
Simultaneously press and every time you want to change the operating mode.
Light indicator 3
will change:
1) “Learning” mode: “slowly ashing” light.
2) Manual mode: light is OFF.
3) Sensor mode: xed light.
4) “Forced” programming mode (via Smartbox App (available
separately)

12 ECORADi
1
2
3
3. OPERATION
During seven days and CONTINUALLY, week by week, your radiator will be learning your lifestyle.
The radiator has 2 working proles:
3.4.1 LEARNING MODE (factory activated):
* Economic Prole “PE” (Default factory settings)
This prole prioritizes the energy savings.
If there is detection: Comfort mode.
If there is no detection: > 30 minutes = Economy mode.
If there is no detection: > 12 hours = Anti-frost mode.
* Comfort prole “PC”:
This prole prioritizes comfort and welfare.
If there is detection: Comfort mode.
If there is no detection: > 30 minutes = Economy mode.
If there is no detection: > 16 hours = Anti-frost mode.
Day by day, the radiator is “learning” the presence (comfort) periods and the absence periods
(economy).
After 7 days, the radiator will start working according to the programmed presence periods
(comfort) and the absent periods (economy), depending on the chosen working prole.
The comfort periods in the following week will start before the programmed time so that the unit
wams up before you enter the room.
The auto-programming period is continuous. The radiator updates according to
your lifestyle variations, day by day, week by week.
1
2
3

ECORADi 13
3. OPERATION
3.4.2 SENSOR MODE
If there is detection: Comfort mode.
If there is no detection: > 30 minutes = Economy mode.
The radiator does NOT store any information on the memory.
3.4.3 MANUAL MODE
In this mode, you decide when you want Comfort temperature, Economy temperature or Anti-
frost temperature.
When Manual mode is selected, you only have to choose Comfort, Anti-frost or Economy and
the desired ambient temperature.
3.5 ADJUSTING THE TEMPERATURE
In order to change the Comfort and Economy temperatures the radiator must be in
MANUAL mode (see point 3.4).
The factory-set temperatures are:
1) COMFORT TEMPERATURE = 20 ºC
2) ECONOMY TEMPERATURE = 16 ºC
3) ANTI-FROST TEMPERATURE = 7 º C
The anti-frost temperature (7 ºC) cannot be changed.
1
2

14 ECORADi
3. OPERATION
3.6 COMFORT, ANTI- FROST AND ECONOMY TEMPERATURES
The radiator has three pre-adjusted temperatures.
The operating temperature is shown in colours light indicator 2:
The default comfort temperature adjustment (when the room is occupied) is 20 ºC.
• Red light = Comfort
• Blue light = Anti-frost
• Green light = Economy
The default economy temperature adjustment (when the room is not occupied or there’s no
detection on the room) is 16 ºC.
The default anti-frost temperature adjustment (when the occupant is absent from the room for
more than twelve hours) is 7 ºC.
Comfort and economy temperatures can be modied (the anti-frost temperature is xed):
1. To change the comfort and economy temperatures, the heater must be in MANUAL
MODE (see point 3.4).
2. Select the temperature to be changed, comfort, anti-freezing or economy, pressing the
button .
3. Press the button. The selected temperature will be displayed and it will start to ash.
4. To select the desired temperature please press the or buttons.
1. Panel control
2. Temperature indicator
• Red = Comfort
• Blue = Anti-frost
• Green = Economy
3. Operating mode indicator:
• Flashing = “Learning” mode
• Fixed = Sensor mode
• O = Manual mode or “Forced” programming
mode (via Smartbox App (available separately).
4. “Forced” programming mode (via Smartbox App
(available separately).
5. Sensor indicator
6. Heating On
7. Increase
8. Decrease
9. Screen:
• Ambient temperature
• Selected temperature
• Clock and day
10. Standby
• Red light = Comfort
• Blue light = Anti-frost
• Green light = Economy
2
Light indicator 2

ECORADi 15
3. OPERATION
• The comfort temperature range is from 18 to 28 ºC.
• The maximum economy temperature is 18 ºC.
• The economy temperature can NEVER be higher than the comfort
temperature.
• The economy temperature is always 4 ºC less than the assigned comfort
temperature.
3.7 “OPEN WINDOW” FUNCTION
This function is activated when there is a sudden drop of temperature in the room.
When this function is activated (indicator 11, point 3.1), the radiator will switch off, avoiding
unnecessary power consumption.
By closing the window, the radiator will detect a rise in temperature and this function will be
deactivated.
The radiator will switch on again to the mode it was on before the switch-off.
This function is pre-set from the factory. It can be activated or deactivated
by the user.
1. Set the radiator on “Standby” mode by pressing the “Standby” button.
2. Press the and buttons simultaneously, two lines will be displayed indicating that
the function is activated.
3. To deactivate the function please press again the and buttons.
A single line will be displayed. Wait a few seconds for the radiator to return to the “Standby”
mode. If you wish to switch on the radiator, press the “standby” button.

16 ECORADi
3. OPERATION
3.8 “KEYPAD LOCK” FUNCTION
The keypad may be blocked and unblocked
by simultaneously pressing the and
buttons.
The display and the control panel lights
will turn o.
A dot will be displayed on the right
bottom part of the display.
If two dots are displayed it means the key-
board is locked and the unit is on standby
mode. Please unlock the keyboard rst.
3.9 STANDBY
To switch the radiator on and off press .
ON = 1 beep.
OFF = 2 beeps.
A dot will be displayed on the left part of
the display.

ECORADi 17
3. OPERATION
3.10 ADJUSTING DAY AND TIME
Your radiator is supplied with the clock and day of the week already factory set.
You will need to adjust the clock to change to the Summer/Winter schedule (this is an automatic
setting if you have the Smartbox (not included)).
Press the and buttons. A “d” will appear on the screen.
Wait.
Then a number from 1 to 7 will appear ashing to indicate the day of the week.
Wait. Adjust the day of the week by pressing or . Wait.
“h” is displayed.
Wait.
Then, the value indicating the hours will ash.
Adjust the hours using and . Wait.
Then, “n” appears on the screen.
Wait.
d
2
2
1
h
15
n
3

18 ECORADi
3. OPERATION
Then, the value indicating the minutes will ash:
Adjust the minutes using or .
Wait.
Straight away, the working prole will appear and show the learning mode “PE”,
“Economy Prole”.
On the “Economy” PE, the energy savings is prioritized, while on the Comfort Prole “PC” it
prioritizes your comfort.
To set up the prole using or .
Wait.
Then, to nalise, the approximate room temperature appears.
4
57
pE
3.11 OTHER INDICATIONS
When the radiator is operating, mode light 6 will be
on.
3.11.1 Heating element ON indicator:
When the sensor is detecting, mode light 5 will
be on.
3.12.2 Sensor indicator On:

ECORADi 19
4. SMARTBOX
3.12.2 Sensor indicator On:
Thanks to the “smartbox” and our Haverland APP,
you will have control of all functions of your radiators
through your smartphone, tablet or PC/Mac.
Check with your distributor.
APP
“Smartbox optional”
4.1 SMARTBOX (OPTIONAL)
3.12 BATTERY
Your radiator is tted with long-duration lithium battery.
When the battery is replaced, the day of the week and the time have to be re-adjusted (see point
3.10) (this is an automatic setting if you have the Smartbox (not included)).
works with the
Google is a trademark of Google LLC.
Voice Control

20 ECORADi
4.2 CONTROL “VIA APP”
To control all functions of your radiators, through your smartphone or tablet and via our free
Haverland app, you will need a Haverland Smartbox (not supplied with the device).
The Smartbox communicates with the radiators via radio frequency, and with the router through
an Ethernet cable (supplied with the Smartbox).
If you would like to purchase our Haverland Smartbox, please contact your distributor.
Once you have installed our Smartbox (follow the steps described in its manual), you can
download our Haverland app for free on the Apple Store or on Google Play. Follow the
wizard on the app.
Once you have registered into our system (user account and your Smartbox is registered), press
“+ HEATER”. The Smartbox is now in “discovery mode.
Then to add the device to the app make sure the radiator is on “Standby” mode.
Press the “START SEARCH” button in the app and hold both and buttons for at least
3 seconds on your radiator. The device is now installed on your app.
You can manage all its functions from your smartphone or tablet.
4.2.1 HOW DO I CONFIGURE THE SMARTBOX WITH MY
RADIATORS?
Our Haverland Smartbox connects your radiators to the Internet using the
property’s router.
4. SMARTBOX
