Hendi HND298060 User manual

BLENDER WITH NOISE COVER
HND298060
You should read this user manual carefully before using the appliance.

2
Keep these instructions with the appliance.
For indoor use only.

3
EN
Dear Customer,
Thank you for purchasing this Hendi appliance. Before using the appliance for the first time, please
read this manual carefully, paying particular attention to the safety regulations outlined below.
Safety regulations
• This appliance is intended for commercial use.
• The appliance must only be used for the purpose for which it was intended and
designed. The manufacturer is not liable for any damage caused by incorrect
operation and improper use.
• Keep the appliance and electrical plug away from water and any other liquids. In the
event that the appliance should fall into water, immediately remove plug from the
socket and do not use until the appliance has been checked by a certified technician.
Failure to follow these instructions could cause a risk to lives.
• Never attempt to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not touch the plug with wet or damp hands.
• DANGER OF ELECTRIC SHOCK! Do not attempt to repair the appliance yourself.
In case of malfunctions, repairs are to be conducted by qualified personnel only.
• Never use a damaged appliance! Disconnect the appliance from the electrical outlet
and contact the retailer if it is damaged.
• WARNING! Do not immerse the electrical parts of the appliance in water or other
liquids. Never hold the appliance under running water.
•Regularly check the power plug and cord for any damage. If the power plug or power
cord is damaged, it must be replaced by a service agent or similarly qualified persons
in order to avoid danger or injury.
•Make sure the cord does not come in contact with sharp or hot objects and keep it
away from open fire. To pull the plug out of the socket, always pull on the plug and
not on the cord.
•
Ensure that the cord (or extension cord) is positioned so that it will not cause a trip
hazard.
• Always keep an eye on the appliance when in use.
•WARNING!
As long as the plug is in the socket the appliance is connected to the power
source.
• Turn off the appliance before pulling the plug out of the socket.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied along with the appliance.
• Only connect the appliance to an electrical outlet with the voltage and frequency
mentioned on the appliance label.
• Connect the power plug to an easily accessible electrical outlet so that in case of
emergency the appliance can be unplugged immediately. To completely switch off
the appliance pull the power plug out of the electrical outlet.

4
EN
• Always turn the appliance off before disconnecting the plug.
• Never use accessories other than those recommended by the manufacturer. Failure
to do so could pose a safety risk to the user and could damage the appliance. Only
use original parts and accessories.
•This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge.
•This appliance must not be used by children under any circumstances.
•Keep the appliance and its cord out of reach of children.
•Always disconnect the appliance from the mains if it is left unattended or is not in
use, and before assembly, disassembly or cleaning.
•Never leave the appliance unattended during use.
Special Safety Regulations
• Use the machine only as described in this manual.
• This machine should be operated and installed by specialized trained personnel in
the kitchen of the food industry.
• All maintenance, installation and repair works should be performed by specialized
trained authorized technicians.
• Do not place the machine on a heating object (gasoline, electric, charcoal cooker,
etc.) Keep the appliance away from any hot surfaces and open flames. Always oper-
ate the machine on a level, stable, clean, heat-resistant and dry surface.
• Do not use the machine near explosive or flammable materials, credit cards, mag-
netic discs or radios.
• Wear protective clothing, mask, or protective glasses if necessary during operation.
• This machine is not intended to be operated by means of an external timer or sepa-
rate remote-control system.
• Never bypass any safety interlocks on the machine.
• WARNING: Keep all ventilation openings in the appliance clear of obstruction.
• WARNING: ALWAYS switch off the machine and unplug from electrical power supply
before cleaning, maintenance or storage.
• WARNING! ALWAYS keep hands, long hair and clothing away from the moving parts.
• Allow at least 20 cm spacing around the appliance for ventilation purpose during use.
• CAUTION! Securely route the power cord if necessary in order to prevent unintention-
al pulling or contact with the heating surface.
• Do not put hands into the jug set when the machine is in operation.
• Do not load too much ingredients in order to prevent overflow of the food products.
• WARNING! Do not fill above the MAX. mark of the jug.
• WARNING! Liquids to blend should be at or below room temperature. If you are going
to blend warm liquids, ensure that the jug lid is correctly in place and use low speed
for processing. Risk of burns and be careful.
• Do not wash the machine with water or a waterjet. Washing with water can cause
leakage and increase the risk of electric shock. No parts are dishwasher safe.

5
EN
• Do not clean or store the machine unless it is completely cooled down.
• Do not move the machine while it is under operation. Unplug the machine when
moving the machine and hold it at the bottom.
• Do not operate the machine without ingredients to avoid overheated.
• Ensure the machine is switched OFF (0) and the speed dial in the “Low” position
before removing the jug set.
Intended use
• This appliance is intended for professional use.
• The appliance is designed for blending and
mixing food. Any other use may lead to damage
to the appliance or personal injury.
• Operating the appliance for any other purpose
shall be deemed as a misuse of the device. The
user shall be solely liable for improper use of
the device.
Grounding installation
This appliance is classified as protection class
I and must be connected to a protective ground.
Grounding reduces the risk of electric shock by
providing an escape wire for the electric current.
This appliance is fitted with a power cord that
has a grounding wire and grounded plug. The
plug must be plugged into an outlet that is prop-
erly installed and grounded.

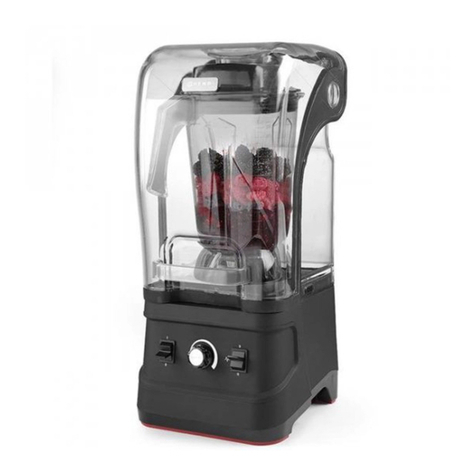

Main parts of the machine
123
4
5
6
7
8
9
10 1. Power switch (0 / I)
: Flip to “I” position to switch ON the machine;
: Flip again to “0” position to switch OFF the
machine
2. Speed dial (Low to High)
: Dial clockwise to increase the rotation
speed;
: Dial anti-clockwise to decrease the rotation
speed.
3. Pulse button : Full speed impulse move-
ment. Press downwards to
operate, release the button
to stop.
4. Bottom of the motor base unit
5. Motor unit
6. Blade assembly
7. Jug set
8. Jug lid
9. Cover cap
10.Protective cover

6
EN
Special safety features
IMPORTANT: This machine has a specially de-
signed safety feature: Protective cover (10).
The machine can only operate when the protec-
tive cover (10) is closed and the jug (7) is installed
properly on the motor unit (5).
Preparations before installation
• Remove all protective packaging and wrapping.
• Keep the packaging if you intend to store your
appliance in the future.
• Check the machine for completeness and
transport damages. In case of incomplete de-
livery (e.g. jug lid, etc) or damage, contact sup-
plier immediately. DO NOT use the machine.
(See ==> Warranty).
• Clean the machine and the jug (7) before use
(See ==> Cleaning and Maintenance).
• Make sure the appliance is completely dry.
Installation
• Read this manual thoroughly and carefully be-
fore installation and operation.
• Ensure the machine is placed in a dry area and
that the surface has sufficient strength to sup-
port the appliance. Also ensure that there are
no obstructions nearby during operation of the
appliance.
• Ensure that the electrical power supply corre-
sponds with the rating label on the machine.
CAUTION! Never bypass any safety micro switch.
Transportation
• Do not move the machine while it is under op-
eration. Unplug the machine when moving the
machine.
• Always remove the jug set (7) when moving.
• Lift only at the bottom of the motor unit (4)
when moving.
Operation
Note: For safety reason, the appliance can only start to operate with the jug set (6) installed properly on
the motor unit (5) and when the protective cover (10) is closed properly.
• Check if the power switch (1) is at the “0” po-
sition and turn the speed dial (2) to “Low” po-
sition.
• Unplug the machine and open the protective
cover (10), take out the jug set (7) from the mo-
tor unit (5).
• Pour all the ingredients into the jug (7) and
close the lid (8) and place the cover cap (9) cor-
rectly in place.
• Place the whole jug set (7) onto the motor unit
(5) & close the protective cover (10).
• Connect the power plug to a suitable electrical
power supply socket.
• Switch ON the machine by pressing the pow-
er switch (1) to “I” position & select a suitable
speed by turning the speed dial (2).
Speed dial (2) setting Description
Low speed For mixing liquids
High speed For mixing liquids and solid ingredients
Pulse function (0 / II)
For ice crushing or short, power impulse movements.
Note: Use the pulse function for 1 ~ 2 seconds each time. Repeated about
several times if necessary.
After use, always turn the power switch (1) to “0” position and disconnect the plug from the electrical
socket.

7
EN
Remarks:
1. For the best results when blending solid food-
stuffs, only add small portions in succession,
not all ingredients at the same time.
2. Always start with lower speed. If necessary,
then switch to the higher speed or to the
“Pulse” function, so as not to jam the blade
assembly (6).
3. Do not use this machine to blend hard food-
stuff, such as nuts.
4. Do not fill liquids above the MAX. mark of the
jug (7).
5. Liquids to be blend should be at or below
room temperature. If you are going to blend
warm liquids, ensure that the jug lid (8) is cor-
rectly in place and use low speed for process-
ing. Risk of burns and be careful.
6. Avoid long period of operation due to the loud
noise that may hurt the hearing.
Cleaning and Maintenance
Attention: Always unplug the appliance from the electrical power outlet and let it cool down completely
before cleaning, maintenance, repair & storage.
Cleaning
• Clean the machine and the jug after each use
and ensure all food residues are removed.
• Never immerse the appliance in water or other
liquids.
• Clean the surface with a slightly damp cloth or
sponge with some mild soap solution.
• Never use abrasive sponges, detergents, steel
wool or metallic utensils to clean the interior
or exterior parts of the appliance.
• DO NOT wash the machine with water or wa-
terjet. Washing with water can cause leakage
and increase the risk of electric shock.
• No any parts are dishwasher safe.
Recommended cleaning procedure:
Parts How to clean Frequency
Motor unit (5) - Never immerse this part into wa-
ter or other liquids.
- Using a damp cloth with some de-
tergent and water, rinse, sanitize
and dry thoroughly.
Clean after each use
Jug, lid and cap - Clean it with some water and
some mild detergent.
- Then, rinse off under flowing wa-
ter.
- Dry all parts before using again.
Clean after each use
Blade assembly (8) - Warning! Risk of injury! Take great
care when cleaning the blades.
- Clean it with some water and
some mild detergent.
- Dry all parts before using again.
Clean after each use
Storage
• Before storage, always make sure the appli-
ance has already been disconnected from the
electrical outlet and cooled down completely.
• Store the appliance in a cool, clean and dry
place.

8
EN
Troubleshooting
If the appliance does not function properly, please check the below table for the solution. If you are still
unable to solve the problem, please contact the supplier/service provider.
Problems Possible causes Possible solution
Machine does not
start running
Protective cover (10) is not in properly
closed position.
Check to make sure the protective cover
(10) is closed properly.
Jug (7) is not placed properly. Check to make sure the jug set (7) properly.
Power switch (1) is not pressed Press the power switch (1)
Machine stops dur-
ing operation Built-in overloading safety activated.
- Switch OFF the machine by pressing the
switch (1) to “0” position and unplug the
machine.
- Leaving the machine for cooling down for
about 30 minutes and then start again.
In case of any doubt, always contact your supplier!
Technical specification
Item no.: HND298060
Operating voltage and frequency: 240V~ 50/60Hz
Rated input power: 1,680W
Protection class: class I
Waterproof protection class: IP23
Maximum capacity: 2,5 L
Dimension: 252x258x(H)547 mm
Net weight: approx. 9,7 kg
Noise level: ≤ 85dB(A)
Rotation speed without loading (rpm):
- Minimum: 16,000 +/- 10%
- Maximum: 24,800 +/- 10%
Jar material: PC
Remark: Technical specification is subjected to change without prior notification.

9
EN
Machine exploded drawing
1
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

10
EN
Machine part list
Part no. Part name Quantity Part no. Part name Quantity
1 Cap cover 1 23 Motor inner housing 1
2 Jug lid 1 24 Bottom housing 1
3 Stamper (not supplied) 1 25 Bottom plate 1
4 Protective cover (rear) 1 26 Fixing screw 4
5 Jug set 1 27 Protective cover (front) 1
6 Protective cover rubber
sealing (rear)
1 28 Protective cover (inner) 1
7Blade assembly 1 29 Jug handle left cover 1
8Seal ring of the blade assem-
bly
1 30 Jug handle right cover 1
9 Large seal ring 1 31 Internal wire terminal for
pulse button
1
10 Mounting screw 1 32 Pulse button 1
11 Clutch 1 33 Internal wire terminal for
power switch
1
12 Jug holder 1 34 Power switch 1
13 Jug holder support 1 35 Control panel cover 1
14 Rubber seal cover 1 36 Speed dial 1
15 Motor outer housing 1 37 Internal wire terminal for
speed dial
1
16 Safety micro switch assembly 1 38 Anti-shock dampers 4
17 Internal wire terminal for
safety micro switch
1 39 Mounting screws for an-
ti-shock dampers 4
18 Mounting screws for the micro
switch
2 40 Magnetic micro switch
assembly
1
19 Power plug 1 41 Internal wire terminal for the
magnetic switch
1
20 Power cord 1 42 PCB assembly 1
21 Power cord clamp 1 43 Screws for fixing PCB assem-
bly
4
22 Motor assembly 1 44 Sound absorption cotton 1
