Hewlett Packard Enterprise ProLiant BL460c Gen10 Manual

HPE ProLiant BL460c Gen10 Server Blade
Maintenance and Service Guide
Part Number: 876834-003
Published: April 2018
Edition: 3
Abstract
This guide describes identification and maintenance procedures, diagnostic tools, specifications
and requirements for hardware components and software. This guide is for an experienced
service technician. Hewlett Packard Enterprise assumes you are qualified in the servicing of
computer equipment, trained in recognizing hazards in products, and are familiar with weight and
stability precautions.

© Copyright 2017, 2018 Hewlett Packard Enterprise Development LP
Notices
The information contained herein is subject to change without notice. The only warranties for Hewlett Packard
Enterprise products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett
Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Confidential computer software. Valid license from Hewlett Packard Enterprise required for possession, use,
or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software
Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under
vendor's standard commercial license.
Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard
Enterprise has no control over and is not responsible for information outside the Hewlett Packard Enterprise
website.
Acknowledgments
Intel®, and the Intel Inside logo are trademarks of Intel Corporation in the United States and other countries.

Contents
Illustrated parts catalog.............................................................................. 6
Mechanical components......................................................................................................................6
Access panel spare parts......................................................................................................... 6
DIMM baffle spare parts........................................................................................................... 6
Heatsink blank spare parts....................................................................................................... 7
Mezzanine assembly spare parts............................................................................................. 7
Server blade release lever kit spare parts................................................................................ 7
Serial label pull tab spare parts................................................................................................ 7
Drive blank spare parts.............................................................................................................7
System components............................................................................................................................7
Front panel/drive cage assembly spare parts...........................................................................8
System board with base pan spare parts................................................................................. 8
Storage controller/NVMe pass-through board spare parts....................................................... 8
System battery spare part.........................................................................................................9
DIMM spare parts..................................................................................................................... 9
HPE 16GB NVDIMM spare part............................................................................................... 9
Heatsink spare parts.................................................................................................................9
Processor spare parts...............................................................................................................9
FlexibleLOM adapter spare parts........................................................................................... 10
Direct connect SATA cable spare parts...................................................................................11
Optional server components..............................................................................................................11
Drive spare parts.................................................................................................................... 12
Drive backplane spare parts...................................................................................................15
HPE SFF Flash Adapter with dual micro form factor (uFF) SSDs spare parts....................... 15
M.2 enablement kit spare parts.............................................................................................. 15
M.2 SSD spare parts.............................................................................................................. 15
Mezzanine card option spare parts.........................................................................................16
HPE Smart Storage Battery spare parts.................................................................................17
Trusted Platform Module spare parts......................................................................................17
Customer self repair..................................................................................18
Removal and replacement procedures....................................................28
Required tools................................................................................................................................... 28
Safety considerations........................................................................................................................ 28
Preventing electrostatic discharge..........................................................................................28
Server blade warnings and cautions.......................................................................................28
Symbols on equipment........................................................................................................... 29
Server blade preparation...................................................................................................................29
Power up the server blade......................................................................................................29
Power down the server blade................................................................................................. 30
Remove the server blade........................................................................................................31
Install the server blade............................................................................................................31
Remove the enclosure connector cover................................................................................. 33
Relocate the PEM nut and rubber stopper............................................................................. 33
Remove the M.2 interposer board and the M.2 riser board.................................................... 36
Installing the M.2 riser board and M.2 interposer board......................................................... 37
Removing and replacing the access panel........................................................................................39
Contents 3

Removing the access panel....................................................................................................39
Replacing the access panel....................................................................................................40
Removing and replacing the drive bay options..................................................................................40
Removing and replacing a drive blank....................................................................................40
Removing and replacing an SFF drive................................................................................... 41
Removing and replacing an NVMe drive................................................................................ 41
Removing and replacing the SFF Flash Adapter option......................................................... 42
Removing and replacing a uFF drive......................................................................................42
Removing and replacing DIMM baffles..............................................................................................43
Removing the DIMM baffles................................................................................................... 43
Replacing the DIMM baffles....................................................................................................44
Removing and replacing a DIMM...................................................................................................... 46
Removing and replacing an NVDIMM............................................................................................... 47
DIMM and NVDIMM population information........................................................................... 48
NVDIMM sanitization.............................................................................................................. 48
NVDIMM relocation guidelines............................................................................................... 49
Recovering restored data from an NVDIMM-N DRAM........................................................... 50
Configuring the server blade for NVDIMMs ........................................................................... 51
Removing and replacing the M.2 enablement option........................................................................ 51
Removing the M.2 enablement option....................................................................................51
Replacing the M.2 enablement option.................................................................................... 52
Removing and replacing an M.2 SSD............................................................................................... 54
Removing and replacing the direct connect SATA cable...................................................................54
Removing and replacing the mezzanine assembly........................................................................... 55
Removing the mezzanine assembly....................................................................................... 55
Replacing the mezzanine assembly....................................................................................... 56
Removing and replacing the mezzanine card options.......................................................................57
Removing the mezzanine card options...................................................................................57
Replacing the mezzanine card options...................................................................................58
Removing and replacing the FlexibleLOM adapter........................................................................... 59
Removing and replacing a storage controller or NVMe pass-through board.....................................60
Removing a storage controller or NVMe pass-through board................................................ 60
Replacing a storage controller or NVMe pass-through board.................................................61
Removing and replacing the HPE Smart Storage Battery.................................................................63
Removing the HPE Smart Storage Battery.............................................................................63
Replacing the HPE Smart Storage Battery.............................................................................65
Removing and replacing the front panel/drive cage assembly.......................................................... 66
Removing and replacing the SAS/SATA or NVMe backplanes......................................................... 68
Removing and replacing the system battery..................................................................................... 69
Removing and replacing the heatsink blank......................................................................................70
Removing the heatsink blank..................................................................................................70
Replacing the heatsink blank..................................................................................................71
Removing and replacing the server blade release lever assembly................................................... 72
Removing the server blade release lever assembly............................................................... 72
Replacing the server blade release lever assembly............................................................... 74
Removing and replacing the system board assembly....................................................................... 77
Removing the system board assembly...................................................................................77
Replacing the system board assembly................................................................................... 78
HPE Trusted Platform Module 2.0 Gen10 Option............................................................................. 79
Troubleshooting.........................................................................................80
Troubleshooting resources................................................................................................................ 80
Diagnostic tools.........................................................................................81
4Contents

Product QuickSpecs..........................................................................................................................81
UEFI System Utilities.........................................................................................................................81
Selecting the boot mode ........................................................................................................81
Secure Boot............................................................................................................................82
Launching the Embedded UEFI Shell ....................................................................................82
Intelligent Provisioning.......................................................................................................................83
HPE Insight Remote Support............................................................................................................ 84
USB support...................................................................................................................................... 84
External USB functionality...................................................................................................... 84
HPE Smart Storage Administrator.....................................................................................................84
Component identification......................................................................... 86
Front panel components....................................................................................................................86
Front panel LEDs and buttons...........................................................................................................87
Front panel LED power fault codes........................................................................................ 88
Serial label pull tab information...............................................................................................88
Drive numbering................................................................................................................................ 89
Hot-plug drive LED definitions...........................................................................................................89
NVMe SSD components....................................................................................................................90
SFF flash adapter components and LED definitions......................................................................... 91
SUV cable connectors.......................................................................................................................92
System board components................................................................................................................93
System maintenance switch................................................................................................... 94
DIMM slot locations................................................................................................................ 95
DIMM label identification.........................................................................................................95
NVDIMM identification............................................................................................................ 96
NVDIMM LED identification.................................................................................................... 98
Mezzanine connector definitions............................................................................................ 99
Mezzanine connector guide pin locations...............................................................................99
Cabling......................................................................................................100
Cabling resources............................................................................................................................100
HPE Smart Storage Battery cabling................................................................................................ 100
Direct connect SATA cabling........................................................................................................... 100
Using the HPE c-Class Blade SUV Cable....................................................................................... 101
Disconnecting and replacing the SUV cable................................................................................... 101
Connecting locally to a server blade with video and USB devices.................................................. 101
Accessing a server blade with local KVM............................................................................. 102
Accessing local media devices............................................................................................. 103
Specifications.......................................................................................... 104
Environmental specifications ..........................................................................................................104
Server blade specifications..............................................................................................................104
Documentation feedback........................................................................ 105
Contents 5

Illustrated parts catalog

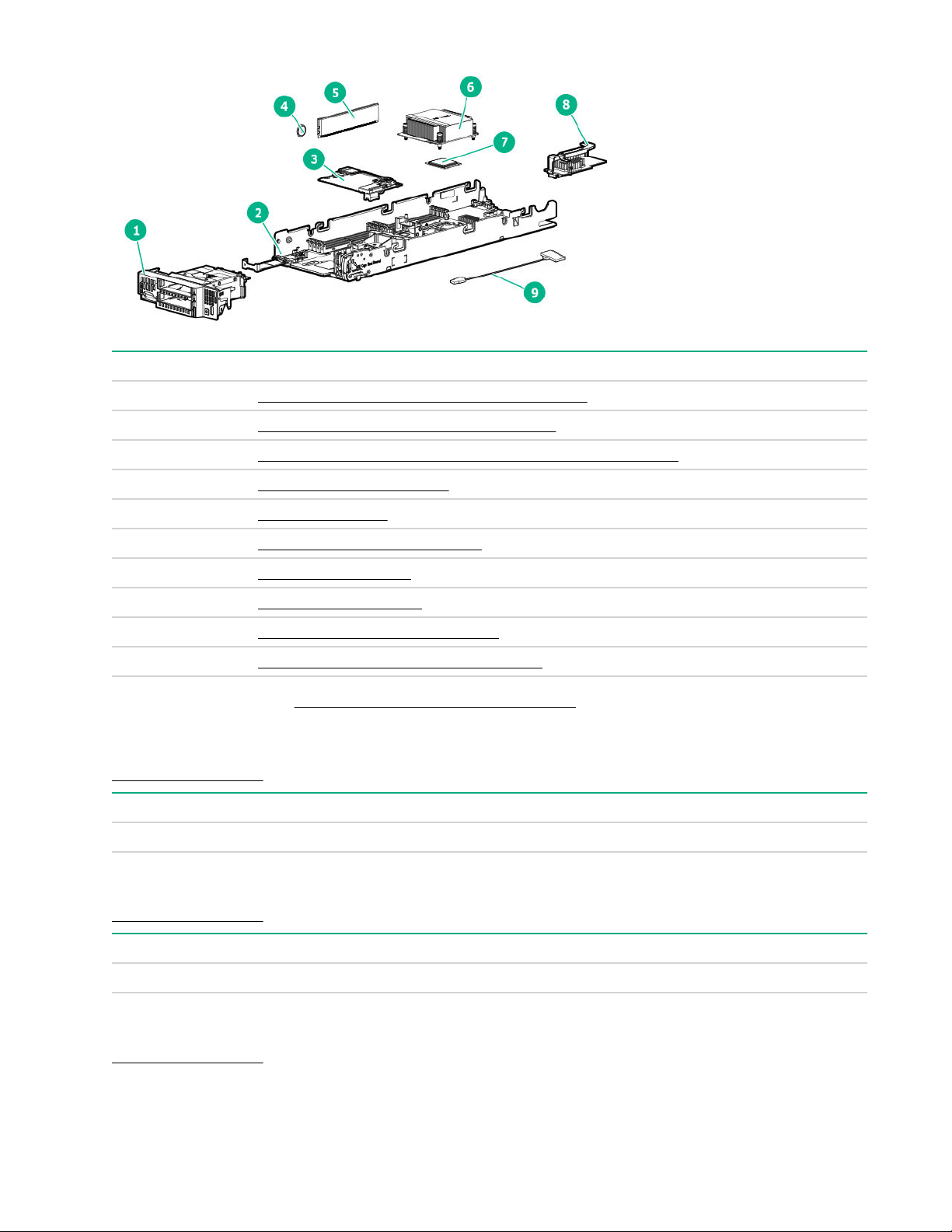

Mechanical components
Hewlett Packard Enterprise continually improves and changes product parts. For complete and current
supported parts information, see the Hewlett Packard Enterprise PartSurfer website (http://www.hpe.com/
info/partssurfer).
Item Description
1Access panel spare parts on page 6
2DIMM baffle spare parts on page 6
3Heatsink blank spare parts on page 7
4Mezzanine assembly spare parts on page 7
5Server blade release lever kit spare parts on page 7
6Serial label pull tab spare parts on page 7
7Drive blank spare parts on page 7
For more information, see Removal and replacement procedures on page 28.
Access panel spare parts
Customer self repair on page 18: mandatory
Description Spare part number
Access panel 877964-001
DIMM baffle spare parts
Customer self repair on page 18: mandatory
6 Illustrated parts catalog

Description Spare part number
DIMM baffle, right 877967-001
DIMM baffle, left 877968-001
Heatsink blank spare parts
Customer self repair on page 18: mandatory
Description Spare part number
Heatsink blank 877969-001
Mezzanine assembly spare parts
Customer self repair on page 18: optional
Description Spare part number
Mezzanine assembly 784960-001
Server blade release lever kit spare parts
Customer self repair on page 18: optional
Description Spare part number
Server blade release lever assembly, release lever
bracket, and T-15 screws (4)
688895-001
Serial label pull tab spare parts
Customer self repair on page 18: optional
Description Spare part number
Serial label pull tab 777690-001
Drive blank spare parts
Customer self repair on page 18: mandatory
Description Spare part number
Drive blank 667276-001
System components
Hewlett Packard Enterprise continually improves and changes product parts. For complete and current
supported parts information, see the Hewlett Packard Enterprise PartSurfer website (http://www.hpe.com/
info/partssurfer).
Heatsink blank spare parts 7

Item Description
1Front panel/drive cage assembly spare parts on page 8
2System board with base pan spare parts on page 8
3Storage controller/NVMe pass-through board spare parts on page 8
4System battery spare part on page 9
5DIMM spare parts on page 9
—HPE 16GB NVDIMM spare part on page 9
6Heatsink spare parts on page 9
7Processor spare parts on page 9
8FlexibleLOM adapter spare parts on page 10
9Direct connect SATA cable spare parts on page 11
For more information, see Removal and replacement procedures on page 28.
Front panel/drive cage assembly spare parts
Customer self repair on page 18: optional
Description Spare part number
Front panel/drive cage assembly 877973-001
System board with base pan spare parts
Customer self repair on page 18: optional
Description Spare part number
System board with base pan 875625-001
Storage controller/NVMe pass-through board spare parts
Customer self repair on page 18: optional
8 Front panel/drive cage assembly spare parts

Description Spare part number
HPE Smart Array P204i-b SR Controller 877972-001
NVMe pass-through board 877975-001
System battery spare part
Customer self repair on page 18: mandatory
Description Spare part number
System battery 319603-001
DIMM spare parts
Customer self repair on page 18: mandatory
Description Spare part number
8-GB, 1Gx8 PC4-2666V-R 850879-001
8-GB, 1Gx8 PC4-2666V-R 872969-001
16-GB, 2Gx4 PC4-2666V-R 850880-001
16-GB, 1Gx8 PC4-2666V-R 868846-001
16-GB, 2Gx4 PC4-2666V-R 872970-001
32-GB, 2Gx4 PC4-2666V-R 850881-001
64-GB, 2Gx4 PC4-2666V-L 850882-001
128-GB, 2Gx4 PC4-2666L-R 850883-001
HPE 16GB NVDIMM spare part
Customer self repair on page 18: mandatory
Description Spare part number
NVDIMM 16GB 1Rx4 NN4-2666V-R 874540-001
Heatsink spare parts
Customer self repair on page 18: no
Description Spare part number
Processor 1 heatsink 877965-001
Processor 2 heatsink 877966-001
Thermal grease, 2.0 g 777298-001
Processor spare parts
Customer self repair on page 18: no
Do not mix processors with different speeds or cache sizes.
System battery spare part 9

Description Spare part number
1.70 GHz Intel Xeon-B 3104 6c 85W 875709-001
1.70 GHz Intel Xeon-B 3106 8c 85W 875710-001
1.80 GHz Intel Xeon-S 4108 8c 85W 875712-001
2.10 GHz Intel Xeon-S 4110 8c 85W 875711-001
2.60 GHz Intel Xeon-S 4112 4c 85W 875714-001
2.20 GHz Intel Xeon-S 4114 10c 85W 875713-001
2.10 GHz Intel Xeon-S 4116 12c 85W 875716-001
2.40 GHz Intel Xeon-G 5115 10c 85W 875715-001
2.30 GHz Intel Xeon-G 5118 12c 105W 875717-001
2.20 GHz Intel Xeon-G 5120 14c 105W 875718-001
3.60 GHz Intel Xeon-G 5122 4c 105W 875719-001
2.60 GHz Intel Xeon-G 6126 12c 125W 875720-001
3.40 GHz Intel Xeon-G 6128 6c 115W 875721-001
2.10 GHz Intel Xeon-G 6130 16c 125W 874736-001
2.60 GHz Intel Xeon-G 6132 14c 133W 875722-001
3.30 GHz Intel Xeon-G 6134 8c 130W 875723-001
3.20 GHz Intel Xeon-G 6134M 8c 130W 878083-001
3.00 GHz Intel Xeon-G 6136 12c 145W 875724-001
2.00 GHz Intel Xeon-G 6138 20c 125W 874735-001
2.30 GHz Intel Xeon-G 6140 18c 140W 874734-001
2.30 GHz Intel Xeon-G 6140M 18c 140W 878084-001
2.60 GHz Intel Xeon-G 6142 16c 150W 874733-001
2.60 GHz Intel Xeon-G 6142M 16c 150W 878085-001
2.40 GHz Intel Xeon-G 6148 20c 150W 874732-001
2.10 GHz Intel Xeon-G 6152 22c 140W 874730-001
2.00 GHz Intel Xeon-P 8153 16c 125W 875728-001
3.60 GHz Intel Xeon-P 8156 4c 105W 875732-001
3.00 GHz Intel Xeon-P 8158 12c 150W 875733-001
2.10 GHz Intel Xeon-P 8160 24c 150W 874729-001
2.10 GHz Intel Xeon-P 8160M 24c 150W 878086-001
2.10 GHz Intel Xeon-P 8164 26c 145W 875729-001
FlexibleLOM adapter spare parts
Customer self repair on page 18: mandatory
10 FlexibleLOM adapter spare parts

Description Spare part number
HPE FlexFabric 10Gb 2-port 536FLB Adapter 768080-001
HPE Ethernet 10Gb 2-port 560FLB Adapter 656243-001
HPE FlexFabric 20Gb 2-port 630FLB Adapter 701528-001
HPE FlexFabric 20Gb 2-port 650FLB Adapter 700761-001
Direct connect SATA cable spare parts
Customer self repair on page 18: mandatory
Description Spare part number
Direct connect SATA cable 877979-001
Optional server components
Hewlett Packard Enterprise continually improves and changes product parts. For complete and current
supported parts information, see the Hewlett Packard Enterprise PartSurfer website (http://www.hpe.com/
info/partssurfer).
Item Description
1Drive spare parts on page 12
2Drive backplane spare parts on page 15
3HPE SFF Flash Adapter with dual micro form factor (uFF) SSDs spare parts on
page 15
4M.2 enablement kit spare parts on page 15
5M.2 SSD spare parts on page 15
6Mezzanine card option spare parts on page 16
7HPE Smart Storage Battery spare parts on page 17
8Trusted Platform Module spare parts on page 17
Direct connect SATA cable spare parts 11

For more information, see Removal and replacement procedures on page 28.

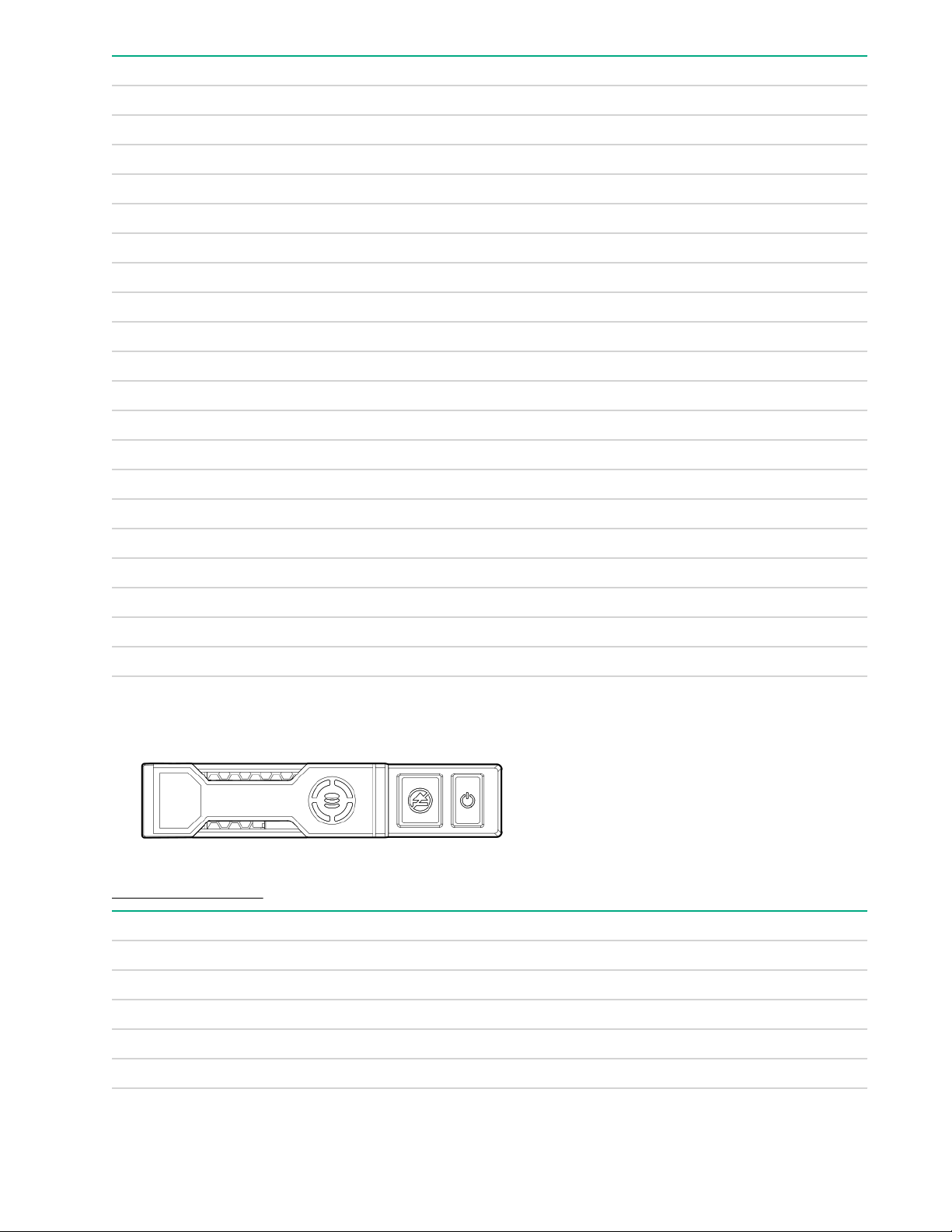

Drive spare parts
SFF SAS/SATA hard drives
Customer self repair on page 18: mandatory
Description Spare part number
300 GB, HDD, SAS, 12G, 10K, ST, DS 872735-001
300 GB, HDD, SAS, 12G, 10K, SC, ENT 785410-001
300 GB, HDD, SAS, 12G, 15K, SC, DS, ENT 870792-001
300 GB, HDD, SAS, 12G, 15K, SC, ENT 759546-001
450 GB, HDD, SAS, 12G, 15K, SC, ENT 759547-001
600 GB, HDD, SAS, 12G, 10K, ST, DS 872736-001
600 GB, HDD, SAS, 12G, 10K, SC, ENT 781577-001
600 GB, HDD, SAS, 12G, 15K, SC, ENT 870794-001
600 GB, HDD, SAS, 12G, 15K, 512e, DS, ENT 870797-001
600 GB, HDD, SAS, 12G, 15K, SC, ENT 759548-001
900 GB, HDD, SAS, 12G, 10K, SC, ENT 785411-001
900 GB, HDD, SAS, 12G, 15K, SC, ENT 870795-001
900 GB, HDD, SAS, 12G, 15K, 512e, DP, SC, ENT 870798-001
1 TB, HDD, MDL, 6G, 7.2K, 512e, SC 765868-001
1 TB, HDD, SC, MDL, 6G, 7.2K, SC 656108-001
1 TB, HDD, SAS, SC, MDL, 12G, 7.2K 832984-001
1 TB, HDD, MDL, 12G, 7.2K, 512e, SC 765872-001
1.2 TB, HDD, SAS, 12G, 10K, SC, ENT 781578-001
1.2 TB, HDD, SAS, 12G, 10K, ST, DS 872737-001
1.8 TB, HDD, SAS, 12G, 10K, ST, DS 872738-001
1.8 TB, HDD, SAS, 12G, 10K, SC, ENT 791055-001
2 TB, HDD, MDL, 6G, 7.2K, 512e, SC 765869-001
2 TB, HDD, MDL, 12G, 7.2K, 512e, SC 765873-001
12 Drive spare parts

More information
Hot-plug drive LED definitions on page 89
SFF SAS/SATA SSDs
Customer self repair on page 18: mandatory
Description Spare part number
80 GB, SSD, SC, 6G, VE, PLP 805361-001
120 GB, SSD, SC, 6G, VE, PLP 805362-001
120 GB, SSD, SC, 6G, RI, PLP 817061-001
120 GB, SSD, MU, 6G, SC, PLP 817096-001
150 GB, SSD, SC, DS, 6G, RI 869575-001
200 GB, SSD, SC, 6G, LE, PLP 805377-001
200 GB, SSD, SC, 6G, ME, PLP 805385-001
240 GB, SSD, SC, 6G, VE, PLP 789351-001
240 GB, SSD, SC, 6G, RI 869576-001
240 GB, SSD, SC, 6G, VE, PLP 805363-001
240 GB, SSD, SC, 6G, RI 868924-001
240 GB, SSD, SC, 6G, RI, PLP 817066-001
240 GB, SSD, MU, 6G, SC, PLP 817101-001
400 GB, SSD, 6G, WI-3 872512-001
400 GB, SSD, SC, 6G, ME, PLP 805387-001
480 GB, SSD, SC, DS, 6G, RI 869577-001
480 GB, SSD, SC, 6G, VE, PLP 805364-001
480 GB, SSD, SC, 6G, MU, PLP 832454-001
480 GB, SSD, SC, 6G, RI 868926-001
480 GB, SSD, MU-3, 6G, SC 872518-001
480 GB, SSD, SC, 6G, RI, PLP 817075-001
480 GB, SSD, MU, 6G, SC, PLP 817106-001
480 GB, SSD, SC, 6G, VE, PLP 789356-001
800 GB, SSD, 6G, WI-3, SC 872514-001
Table Continued
SFF SAS/SATA SSDs 13

Description Spare part number
800 GB, SSD, SC, 6G, VE, PLP 805365-001
800 GB SSD, SC, 6G, LE, PLP 805381-001
800 GB, SSD, SC, 6G, ME, PLP 805389-001
960 GB, SSD, SATA, SC, DS, 6G, RI, DS 869580-001
960 GB, SSD, SC, 6G, RI, DS 868928-001
960 GB, SSD, MU-3, 6G, SC 872520-001
960 GB, SSD, SC, 6G, RI, PLP 817080-001
960 GB, SSD, MU, 6G, SC, PLP 817111-001
960 GB, SSD, SC, RI, 6G, VE, PLP 789361-001
1.2 TB, SSD, SC, 6G, ME, PLP 805391-001
1.6 TB, SSD, 6G, SC, WI-3 872516-001
1.6 TB, SSD, SC, 6G, VE, PLP 805366-001
1.6 TB, SSD, SC, 6G, MU-2, LE, PLP 805383-001
1.6 TB, SC, DS, 6G, RI 869581-001
1.92 TB, SSD, SC, 6G, RI, DS 868930-001
1.92 TB, SSD, MU-3, 6G, SC 872522-001
1.92 TB, SSD, SC, 6G, RI, PLP 817085-001
1.92 TB, SSD, MU, 6G, SC, PLP 817116-001
3.84 TB, SSD, SC, 6G, RI 868932-001
3.84 TB, SSD, SC, 6G, RI, PLP 817090-001
SFF NVMe drives
Customer self repair on page 18: mandatory
Description Spare part number
400 GB, SC2, ME, PLP 765059-001
400 GB, LE, SC2, PLP 765063-001
400 GB, VE, SC2, PLP 765067-001
800 GB, SC2, ME, PLP 765060-001
800 GB, LE, SC2, PLP 765064-001
Table Continued
14 SFF NVMe drives

Description Spare part number
1.2 TB, VE, SC2, PLP 765068-001
1.6 TB, SC2, PLP 765061-001
1.6 TB, LE, SC2, PLP 765065-001
2 TB, LE, SC2, PLP 765066-001
2 TB, VE, SC2, PLP 765069-001
Drive backplane spare parts
Customer self repair on page 18: mandatory
Description Spare part number
SAS/SATA drive backplane 877970-001
NVMe drive backplane 877974-001

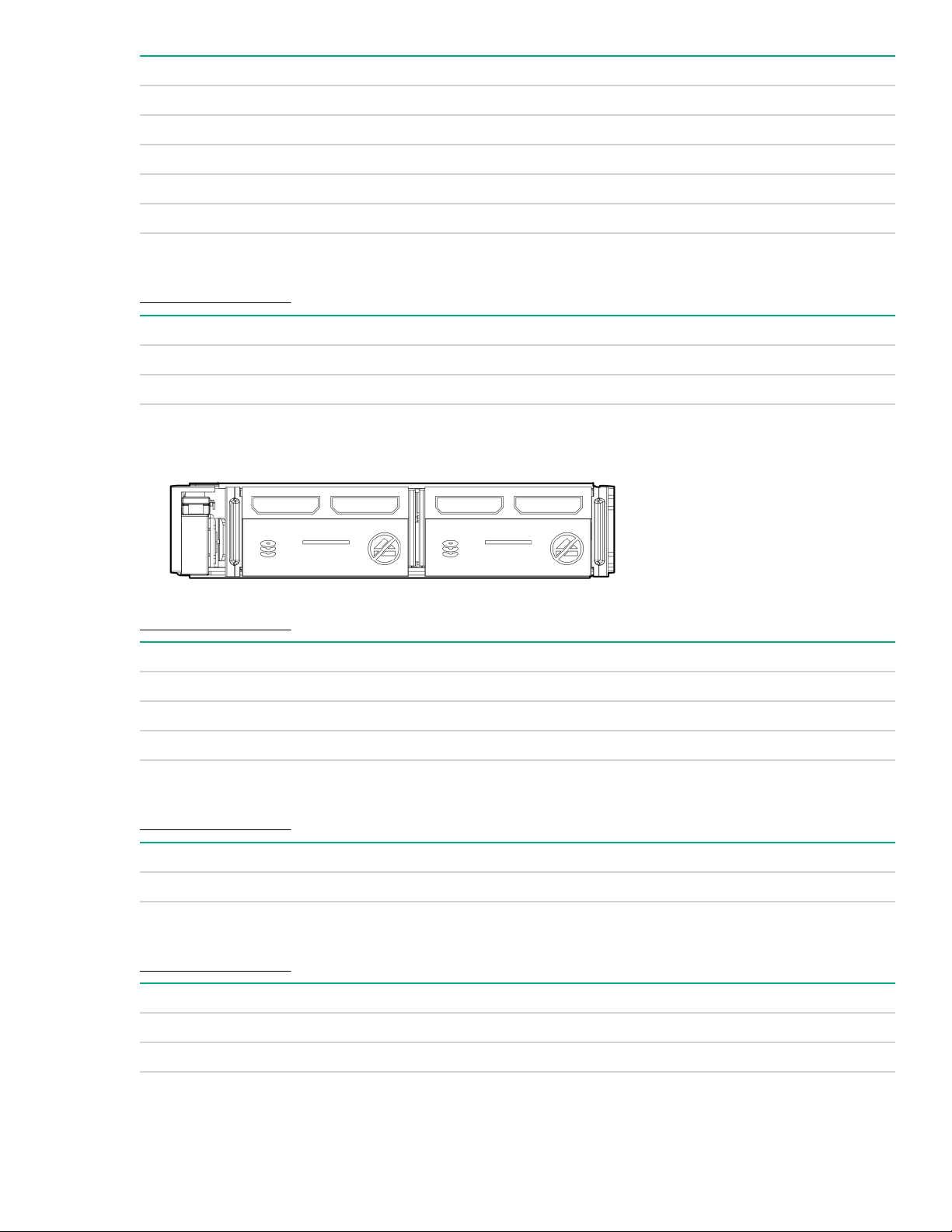

HPE SFF Flash Adapter with dual micro form factor (uFF) SSDs spare parts
Customer self repair on page 18: mandatory
Description Spare part number
SFF Flash Adapter 830452-001
120 GB, SATA, SSD, 6G, uFF 831995-001
340 GB, SATA, SSD, 6G, uFF 830453-001
M.2 enablement kit spare parts
Customer self repair on page 18: optional
Description Spare part number
M.2 enablement kit 877976-001
M.2 SSD spare parts
Customer self repair on page 18: mandatory
Description Spare part number
120 GB SATA UFF M.2 SSD, 2280, 6G 781565-001
340 GB SATA UFF M.2 SSD, 2280, 6G 781566-001
Table Continued
Drive backplane spare parts 15

Description Spare part number
150 GB hot-plug SATA SFF M.2 SSD 882402-001
480 GB hot-plug SATA SFF M.2 SSD 882403-001
120 GB SATA UFF M.2 SSD, 2280, 6G 831995-001
150 GB SATA UFF M.2 SSD, 2280, 12G 875835-001
480 GB SATA M.2 SSD, 2280, 6G 875836-001
240 GB SATA M.2 SSD, 2280 875850-001
480 GB SATA M.2 SSD, 2280 875851-001
960 GB SATA M.2 SSD, 2280 875852-001
1.92 TB SATA M.2 SSD, 2280 875853-001
1.92 TB SATA M.2 SSD, 2280 875854-001
480 GB SATA M.2 SSD, 2280 875855-001
960 GB SATA M.2 SSD, 2280 875856-001
400 GB NVMe x4 M.2 SSD, 22110 875879-001
800 GB NVMe x4 M.2 SSD, 22110 875880-001
480 GB NVMe x4 M.2 SSD, 22110 875877-001
960 GB NVMe x4 M.2 SSD, 22110 875878-001
HPE BL460c Gen10 M.2 module, PCA 877976-001
Mezzanine card option spare parts
Customer self repair on page 18: mandatory
Description Spare part number
HPE FlexFabric 20Gb 2-port 630M Adapter 701528-001
HPE FlexFabric 20Gb 2-port 650M Adapter 701535-001
Infiniband QDR/EN 10Gb 2P 544+M Adapter 764734-001
HPE Ethernet 10Gb 2-port 560M Adapter 669282-001
HPE InfiniBand FDR/Ethernet 40Gb two-port 544+M
Adapter
764735-001
HPE LPe1605 16Gb Fibre Channel HBA for
BladeSystem c-Class
718577-001
HPE QMH2672 16Gb Fibre Channel Host Bus
Adapter
711305-001
HPE Smart Array P408e-m Mezz SR Gen10
Controller
836264-001
Ethernet 10Gb 2P 534M Adapter 701530-001
1.2 TB VE Mezzanine PCIe WKLD Accelerator 795154-001
1.6 TB VE Mezzanine PCIe WKLD Accelerator 795155-001
16 Mezzanine card option spare parts

HPE Smart Storage Battery spare parts
Customer self repair on page 18: optional
Description Spare part number
HPE Z BLc Smart Storage Battery 878640-001
Trusted Platform Module spare parts
Customer self repair on page 18: optional
Description Spare part number
HPE TPM 2.0 872159-001
HPE Smart Storage Battery spare parts 17

Customer self repair
Hewlett Packard Enterprise products are designed with many Customer Self Repair (CSR) parts to minimize
repair time and allow for greater flexibility in performing defective parts replacement. If during the diagnosis
period Hewlett Packard Enterprise (or Hewlett Packard Enterprise service providers or service partners)
identifies that the repair can be accomplished by the use of a CSR part, Hewlett Packard Enterprise will ship
that part directly to you for replacement. There are two categories of CSR parts:
•Mandatory—Parts for which customer self repair is mandatory. If you request Hewlett Packard Enterprise
to replace these parts, you will be charged for the travel and labor costs of this service.
•Optional—Parts for which customer self repair is optional. These parts are also designed for customer
self repair. If, however, you require that Hewlett Packard Enterprise replace them for you, there may or
may not be additional charges, depending on the type of warranty service designated for your product.
NOTE: Some Hewlett Packard Enterprise parts are not designed for customer self repair. In order to satisfy
the customer warranty, Hewlett Packard Enterprise requires that an authorized service provider replace the
part. These parts are identified as "No" in the Illustrated Parts Catalog.
Based on availability and where geography permits, CSR parts will be shipped for next business day delivery.
Same day or four-hour delivery may be offered at an additional charge where geography permits. If
assistance is required, you can call the Hewlett Packard Enterprise Support Center and a technician will help
you over the telephone. Hewlett Packard Enterprise specifies in the materials shipped with a replacement
CSR part whether a defective part must be returned to Hewlett Packard Enterprise. In cases where it is
required to return the defective part to Hewlett Packard Enterprise, you must ship the defective part back to
Hewlett Packard Enterprise within a defined period of time, normally five (5) business days. The defective part
must be returned with the associated documentation in the provided shipping material. Failure to return the
defective part may result in Hewlett Packard Enterprise billing you for the replacement. With a customer self
repair, Hewlett Packard Enterprise will pay all shipping and part return costs and determine the courier/carrier
to be used.
