Hodedah HI4DR-G User manual

Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
HODEDAH ®
ITEM # HI4DR-G (MOP-SP)
4 DRAWER CHEST
2 people
90 mins
1 YR LTD
1 Box
FRONT VIEW BACK VIEW
Weight Capacity: Large Drawer 25Ib. | Small Drawer 20Ib.
Product Dimensions: Height 40.24" x Width 27.52" x Depth 15.51"
www.Hodedah.com 1| Page

HODEDAH ®
www.Hodedah.com 2| Page
DO NOT RETURN PRODUCT TO THE STORE
Phone WebsiteEmail
Questions, need parts, we are here to help!
WARRANTY
WARNING
If parts are missing or damaged please contact our customer service team and we will
gladly ship your replacement parts FREE of charge within ONE YEAR of purchase!
Hodedah warrants this product to be free from defects in materials and workmanship and agrees to
remedy any such defect. This warranty covers one year from the date of original purchase. This is solely
limited to replacement of defective parts and no assembly for labor is included. This warranty does not
apply to any product that has been improperly assembled, subjected to misuse, abuse or which has been
altered or repaired in any way. To obtain warranty service, original purchaser must present the following;
original bill of sale, date of purchase, where the product was purchased and images if applicable.
Components replaced warranted through the remainder of the original warranty only. The defective part
will be replaced without charge, subject to the terms and conditions described above.
Mon - Fri | 9:30 am to 5pm EST Send us an email
FOR PROMPT, RELIABLE SERVICE PLEASE HAVE YOUR INSTRUCTION MANUAL READY
Visit our website to open a case
1 - 855 - HODEDAH
1 - 855 - 463 -3324
[email protected] www.Hodedah.com
·This product contains small parts, keep away from children.
·This product contains plastic bags, keep away from children.
·Serious or fatal crushing injuries can occur from furniture tip-over. To help
prevent this, place heaviest items on the lower shelves and drawers. Do not set
heavy objects on top shelves and drawers.
·Never allow children to climb or hang on drawers, shelves and doors.
·Never open more than one drawer at a time.
·The use of tip-over restraints may reduce but not eliminate the risk of tip-over.

HODEDAH ®
www.Hodedah.com 3| Page
Product Care and Maintenance
Let's get started…
·Never open more than one drawer at a time.
·The use of tip-over restranits may reduce but not eliminate the risk of tip-over.
·Make sure you receive all boxes. If your item is packed in one box, box count will read 1
of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second
box will read 2 of 2.
·Read each step carefully. It is very important that each step is performed in the correct
order. If these steps are not followed in sequence, assembly difficulties will occur.
·Work in a spacious level area, preferably carpet, near the place the unit will be used.
·DO NO USE power tools to assemble your furniture, it will strip and damage parts.
·Your package should include the following hardware and parts. Parts are labeled or
stamped on the raw edge. Please inspect contents to ensure you have received all
components. If you are missing any hardware or parts please contact customer
service right away before assembly.
Helpful hints, read before beginning assembly
Assembly Tools Required (not supplied)
·Wipe clean with dry soft cloth, never use chemicals or cleaning products they will
damage the finish.
·Avoid placing your furniture in direct sunlight, as sunlight causes fading.
·Never push, drag or pull your furniture, to move to a new location carefully with
two or more people carry the unit to its new location.
·Avoid extreme changes in temperature by arranging furniture away from radiators,
heat and air vents and air conditioning units.
Hammer Phillips Screwdriver No Power Tools NeededTape Measure

HODEDAH ®
www.Hodedah.com 4| Page
Hardware List
1QTY
Screw M6 x 40mm 10 Pcs
Pvc Cap
2QTY
Screw M4 x 32mm
20 Pcs
3QTY
Screw M3.5 x 14mm
32 Pcs
QTY
6 Sets
6QTY 7QTY
Pvc Dowel
42 Pcs
8QTY 9QTY
Nail
70 Pcs
10 QTY
Allen Key
1 Pc
11 QTY
16 Pcs
Pvc Cap
Mini Fix
10 Pcs
6 Pcs
5
L Bracket 16 Pcs
Screw M6.3 x 13mm
32 Pcs
Screw M6.2 x 10mm
*For # 12 Drawer Slides
*For # 13 Drawer Slides
H-Profile
1 Pc

* Fix On Side Panels Ⓐ
HODEDAH ®
www.Hodedah.com 5| Page
Accessories
4QTY
Handle 4 Pcs
Screw M4 X 30mm 8 Pcs
* Fix On Drawer Side Panels Ⓘ
* Fix On Side Panels Ⓕ
* Fix On Drawer Side Panels Ⓙ
12
13
Drawer Slide - A
*Fix On Side Panels A & F
QTY
4 Sets
QTY
4 Sets
*Fix On Side Panels I& J
Drawer Slide - B
Important
1. Before you throw the package, please use the Check Box to identify the parts
and hardware to ensure that you have everything you need.
2. Check and measure the bolts before applying them to parts.
3. Do not completely tighten all hardware until the entire assembly is complete,
unless indicated otherwise.

HODEDAH ®
www.Hodedah.com 6| Page
AQTY
1 Pc
BQTY CQTY
1 Pc
DQTY
1 Pc
EQTY F
QTY
1 Pc
1 Pc
GQTY
HQTY I
QTY
4 Pcs 4 Pcs
4 Pcs
Parts List
JQTY KQTY
QTY
4 Pcs 4 Pcs
4 Pcs
MQTY
2 Pcs
L
Drawer - Left Side Panels
338 x 140 x 15mm
Kick Panel (Front)
603 x 105 x 15mm
Drawer Base Panels
577 x 342 x 3mm
Drawer Front Panels
597 x 222 x 15mm
Left Side Panel
1003x 387 x 15mm
Drawer End Panels
549 x 140 x 15mm
Drawer - Right Side Panels
338 x 140 x 15mm
Top Panel
699 x 394 x 15 mm
Kick Panel (Back) & Back
Strengthening Panel
603 x 300 x 15mm
Drawer Support Panel
338 x 51 x 15 mm
Back Panels
432 x 316 x 3mm
QTY
1 Pc
Right Side Panel
1003x 387 x 15mm
Front Strengthening Panel
603 x 89 x 15mm
1 Pc
Kick Panel (Back) & Back
Strengthening Panel
603 x 300 x 15mm

G
F
B
E
N
D
C
A
I
H
J
K
L
HODEDAH ®
www.Hodedah.com 7| Page
The Breakdown
M

HODEDAH ®
www.Hodedah.com 8| Page

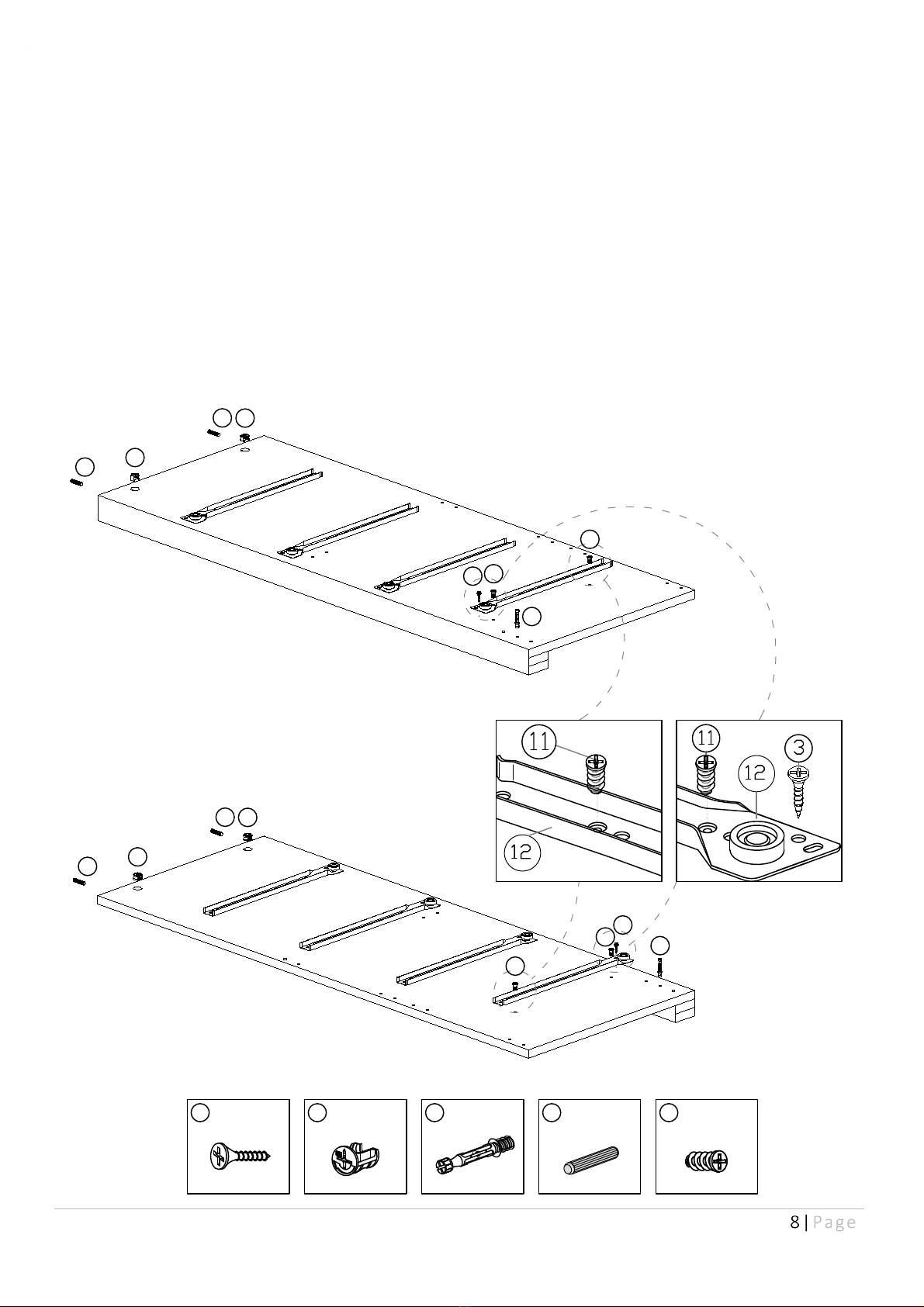

Pre - Assembly
Screw M6.2 x 10mm
16 Pcs.
11
Mini Fix
4 Pcs.
5Pvc Dowel
4 Pcs.
7
4. Insert the mini fix ⑤(nuts) with the cross arrow mark facing upward and aim to panels A and F's top thru
holes. (As shown)
5. Insert, push down and tighten mini fix screw ⑤to the hole at panels A and Fas shown.
1. Insert the pvc dowels ⑦to panels Aand F 's non-thru holes as shown, using hammer to gently tap them in.
3. Nail Protection Nail ⑧, provided with hammer onto the bottom edge of panels A and Fas shown.
2. Place the drawer slide A ⑫onto the 2 holes area shown at left side panels A and F. Then tighten
it with 2 screws ⑪ and 1 screw ③. Do the same for the 3 other slide A ⑫.
5Mini Fix
2 Pcs.
PANEL A
PANEL F
7
7
5
5
5
11
11 3
7
7
5
5
11
11
5
3
Screw M3.5 x 14mm
8 Pcs.
3

7
7
7
7
7
PANEL D
PANEL E
PANEL C
PANEL B
5
5
5
5
PANEL G
5
5
7
HODEDAH ®
www.Hodedah.com 9| Page
Pre - Assembly
Mini Fix
2 Pcs.
5
5Mini Fix
4 Pcs.
Pvc Dowel
14 Pcs.
7
Insert, push down
and tighten mini fix
screw ⑤, to the
non-thru hole of
the panel Gas
shown, 4pcs.
Insert the mini fix
⑤(nuts) with the
cross arrow facing
outward and aim
to panel B's thru
hole.
Insert the pvc
dowels ⑦to both
end of the panels
B,C,Dand E.
Using hammer to
gently tap them in.
7
7
7
7
7
7
7
7

DRAWER G
6
6
6
2
2
22
6
77
77
K
I
J
6
6
I
J
K
H
HODEDAH ®
www.Hodedah.com 10| Page

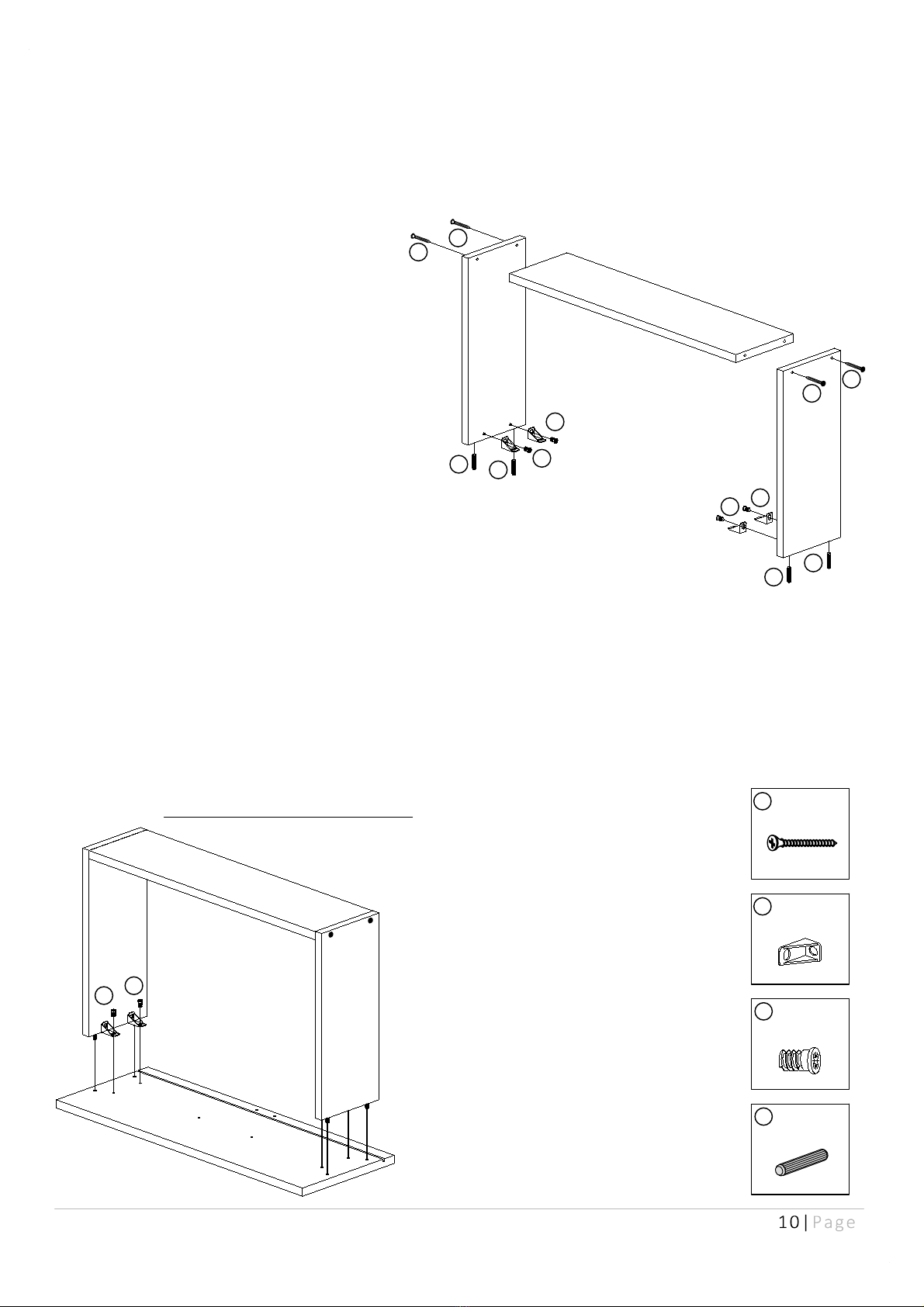

Assembly Of Drawers : 4 DRAWERS
(1)
L Bracket
16 Pcs.
6
6Screw
M6.3 x 13mm
32Pcs.
Pvc Dowel
16 Pcs.
7
Screw M4 x 32mm
16 Pcs.
2
Place L bracket and ensure
its shorter part contact on
panels Iand J's non-thru
holes as shown, then
tighten them with screws
⑥.
Insert the PVC dowels ⑦to
end of the panels Ito J.
Using hammer to gently
tap them in.
Place panels Iand Jon
each side of panel Kas
shown.
Then tighten screw ②to
panels Iand J's upper thru
holes to fix them onto
panel K.
(2) Inserting panels Iand
J's lower PVC dowels
onto the outer
non-thru holes at
panel H.Tighten 4
screws ⑥from 4 L
bracket's thru hole to
4 non-thru holes of
panel H.
x4
x4

(3)
I
J
L
H
K
I
J
L
K
9H
2M
77
(4) 3
3
13
13
HODEDAH ®
www.Hodedah.com 11| Page
Assembly Of Drawers : 4 DRAWERS
x4
x4
Flip drawer with bottom side up, place panel
Lonto panels I, Jand Kand insert panel L
to groove of panel H.
9
7
Screw M3.5 x 14mm
24 Pcs.
3
Screw M4 x 32mm
4 Pcs.
2Nail
32 Pcs.
Pvc Dowel
8 Pcs.
Then nail the nails provided with hammer on the
border of panel Las shown.The gap between 2 nails
should be about 100mm.
After that, place drawer slides B ⑬with the small
white roller facing outward and with other end tip
touching panel Honto each bottom side (angle)
edge of panels Iand J.
Then tighten 3 screws ③on each drawer slide B ⑬
(as shown).
Insert the pvc dowels ⑦to end of the panels M.
Using hammer to gently tap them in.
Place and fix Panel Monto Panel Hby inserting
the dowels onto the non-thru holes at Panel H.
Then tighten screw ②to panels L 's thru holes to fix
them onto panels Land K.

COMPLETED
HODEDAH ®
www.Hodedah.com 12| Page
Assembly Of Drawers : 4 DRAWERS
4
4
I
J
K
H
(4) Screw
M4 X 30mm
8Pcs.
4
Handle
4 Pcs.
4Flip drawer over with
bottom side down,
tighten 2 screw ④
from inner side of
panel Hinto the
handle ④'s holes.
x4
x4

Screw
M 6 x 40mm
5 Pcs.
1Allen Key
1 Pc.
10
HODEDAH ®
www.Hodedah.com 13| Page
Step 1
* Place and fix Panels B,C,D,Eonto Panel Aby inserting
the (Left) dowels onto the non-thru holes at Panel A.
* Using allen key ⑩to tighten screws ①from the 5 thru
holes of panel A, one by one.
* Tighten mini fix clockwise to lock mini fix up.
1
1
1
1
1
A
E
B
C
D
Dowel / Mini Fix Installation

HODEDAH ®
www.Hodedah.com 14| Page
Step 2
Screw
M 6 x 40mm
5 Pcs.
1Allen Key
1 Pc.
10
* Place and fix Panels B,C,D,Eonto Panel Fby pushing and slotting the (Right)
dowels onto the non-thru holes at Panel F.
* Using allen key ⑩to tighten screws ①from the 5 thru holes of panel F, one by one.
* Tighten mini fix clockwise to lock mini fix up.
Dowel / Mini Fix Installation
F
A
B
C
D
E
1
1
1
1
1

Mini Fix Cap
4 Pcs.
5
Dowel / Mini Fix Installation
HODEDAH ®
www.Hodedah.com 15| Page
Step 3
*Then, tighten mini fix ⑤ clockwise to lock
the mini fix up for tightening panel G
up. Cover 4 mini fix caps provided by
pushing the cover 's stem onto the hole
of mini fix nut on upper side of panel A
and F.
Place and fix panel Gonto panels Aand panel F, and align properly by
inserting the 4 (down) mini fix screws ⑤onto the L-thru holes at top edge of
panel Aand F. At the same time, inserting panel Aand panel F's upside
dowels going onto panel G's non-thru holes.
G
A
F

8H-Profile
1 Pc.
HODEDAH ®
www.Hodedah.com 16| Page
Step 4
Lay the main unit at face down position, Place the back Panels N
onto the back of the main unit, and join the 2 panels Ntogether
with H-profile by slotting one side each of panels Ninto the
track of H-profile. Then align them properly for nailing.
Then use hammer to nail the nails one by one and at center of 4
side edges. Gap between 2 nails should be about 100mm for all.
9Nail
24 Pcs.
100
N
N
8
A

HODEDAH ®
www.Hodedah.com 17| Page
Step 5
PVC Cap
10 Pcs.
1
* Lift up the main unit carefully and let it stand up properly.
* Cover all the screws ①'s head with the PVC cap provided by pushing
the cover's stem onto the hole of screw head one by one for all screws
on panels Aand F.
* Take all drawers , and slide them (the white rollers at drawer slide at
both side of drawers are to go into the track of the slides at each side
panel.) all the way gently, one drawer by one drawer starting from
bottom one
F
G
A
1
1
1
1
1
H
H
H
H

HODEDAH ®
www.Hodedah.com
b
TP 6#x5/8'' Screw
2Pcs.
Mounting bracket
4Pcs. d
Restraint strap
2Pcs.
·Attach the mounting bracket a to the furniture in the
solid part below the top panel a few inches away from the
side of the unit.
·Screw b through the smallest hole of a .
FITTING OF ANTI-TIP SAFETY STRAP
STEP 1:
STEP 2:
·Locate a stud in the wall
behind the unit,does not
have to be centered.
·Place the other mounting
bracket a on the wall
stud 2 inches below the
mounting bracket
secured to the back of
your unit.
·Attach to the wall stud
using c through the
smaller hole of a .
·Repeat the same step a few inches away from
the other side of the unit.
·Place the furniture into position so both mounting
brackets are vertically in line.
·Lace the end of the restraint strap through the
larger holes in each mounting bracket.
·Secure the straps and lock into place.
STEP 3:
TP 8#x2'' Screw
2Pcs.
BACK SIDE OF
TOP PANEL
WALL
ac
FURNITURE
18| Page

HODEDAH ®
www.Hodedah.com 19| Page
Completion
Enjoy & Thank you for purchasing from Hodedah!
