IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed, including the following: Read all instructions
before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of
all warnings and precautions. If you have any questions after reading this guide, contact Customer Tech Support at the number
listed on the back panel of the OWNER’S MANUAL.
This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting.
Failure to comply will void the warranty.

4
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop
exercising immediately and consult your physician before continuing.
• When exercising, always maintain a comfortable pace.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• At no time should more than one person be on treadmill while in operation.
• This treadmill should not be used by persons weighing more than specified in the OWNER’S MANUAL WARRANTY SECTION.
Failure to comply will void the warranty.
• When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp
clothonly; never use solvents. (See MAINTENANCE)
• The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on
ortaking off parts.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• Connect this exercise product to a properly grounded outlet only.
WARNING
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on
ortaking off parts.
DANGER

5
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• At NO time should pets or children under the age of 13 be closer to the treadmill than 10 feet.
• At NO time should children under the age of 13 use the treadmill.
• Children over the age of 13 or disabled persons should not use the treadmill without adult supervision.
• Use the treadmill only for its intended use as described in the treadmill guide and owner’s manual.
• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
• Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged,
orimmersed in water. Return the treadmill to a service center for examination and repair.
• Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
• Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.
• To prevent electrical shock, never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms,
bathrooms, car ports or outdoors. Failure to comply will void the warranty.
• This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting.
Failure to comply will void the warranty.
• Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an authorized
service technician.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been exposed to colder
temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room temperature before
first time use. Failure to do so may cause premature electronic failure.
WARNING

6
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance
for electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with local codes and ordinances.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working
properly. Never operate any product if it appears damaged, or has been
immersed in water. Contact Customer Tech Support for replacement
orrepair.
3-POLE
GROUNDED
OUTLET
GROUNDING PIN
WARNING
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified
electrician or service provider if you are in doubt as to whether the product is properly grounded. Do not modify the plug
provided with the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 110-120 Volt circuit and has a grounding plug that looks like the plug in the illustration. Make
sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this
product.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit
and observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple outlets on one
circuit. This treadmill should be used with a minimum 15-amp circuit.

7
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the
treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located on a white barcode sticker
near the on/off power switch and power cord and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
SERIAL NUMBER:
TM
WARNING
SERIAL NUMBER LOCATION
MODEL NAME: HORIZON TREADMILL

8

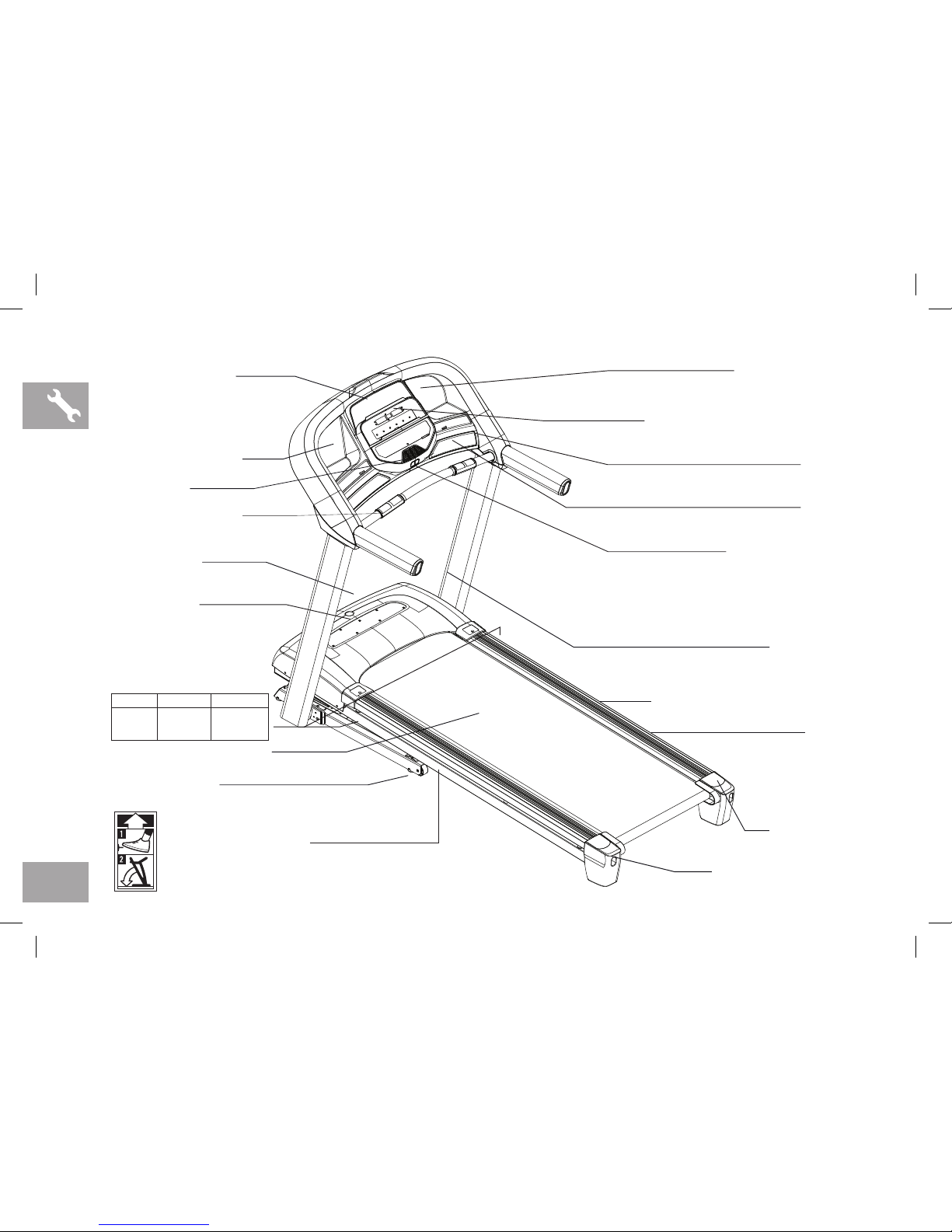

SPEAKERS
WATER BOTTLE HOLDER
GRIP PULSE HANDRAILS
CONSOLE FAN
ON/OFF SWITCH
TRANSPORT WHEEL
POWER CORD
TABLET/READING RACK
CONSOLE
CONTROL PANEL AND DISPLAY WINDOWS
SAFETY KEY PLACEMENT
MOTOR COVER
RUNNING BELT/RUNNING DECK
SIDE RAIL
ROLLER END CAP
REAR ROLLER
TENSION/ALIGNMENT BOLTS
CONSOLE MAST
FOOT LOCK LATCH (UNDERNEATH DECK)
FOOT LOCK LATCH DECAL
(UNDERNEATH FOOT LATCH)
WATER BOTTLE HOLDER
KEEP HAN DS AND FE ET
AWAY FROM THIS AREA.
HIGH-PRESSURE
SHOCKS COULD
CAUSE BODILY INJURY.
CAUTION
GARDEZ VOS MAI NS ET VOS
PIED S À L’ÉCART DE CET
ENDR OIT. DES COUPS
À HAUTE PRESSION
PEUVENT CAUSE R DES
BLESSURES CORPORELLES.
ATTENTION
MANTENGA LAS MANOS
Y LOS PIES ALEJADOS DE
ESTA ÁREA. DESCARGAS
DE ALTA PRESIÓN
PODRÍAN OCASIONAR
LESIONES FÍSICAS.
PRECAUCIÓN

9
TOOLS INCLUDED:
F6 mm T-Wrench
F5 mm L-Wrench
F4 mm T-Wrench
FPhillips Screwdriver
PARTS INCLUDED:
F1 Console Assembly
F2 Console Masts
F1 Hardware Kit
F1 Safety Key
F1 Audio Adapter Cable
F1 Bottle of Silicone Lubricant
(for 2 applications)
F2 Console Mast Covers
F1 Power Cord
If you have questions or if
there are any missing parts,
contact Customer Tech
Support. Contact information
is located on the back panel
of this manual.
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. You may
remove the plastic wrap from console masts.
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a
protective covering on your floor. Take CAUTION when handling and transporting this
unit. Never open box when it is on its side. Once the banding straps have been removed,
do not lift or transport this unit unless it is fully assembled and in the upright folded
position, with the lock latch secure. Unpack and assemble the unit where it will be used.
The enclosed treadmill is equipped with high-pressure shocks and may spring open if
mishandled. Never grab hold of any portion of the incline frame and attempt to lift or
move the treadmill.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NEED HELP?
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.
PRE ASSEMBLY

10
ASSEMBLY STEP 1
A Cut the yellow banding straps and lift the running
deck upward from the rear to remove all contents
from underneath the running deck.
B Open HARDWARE FOR STEP 1.
C Attach CONSOLE MAST BRACKETS (B) to the
CONSOLE MASTS (1 & 2) using 8 BOLTS (A).
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
M6X1.0PX10L 8A BOLT
A
1
2
NOTE: Do not fully tighten bolts until STEP 5.
B
A
